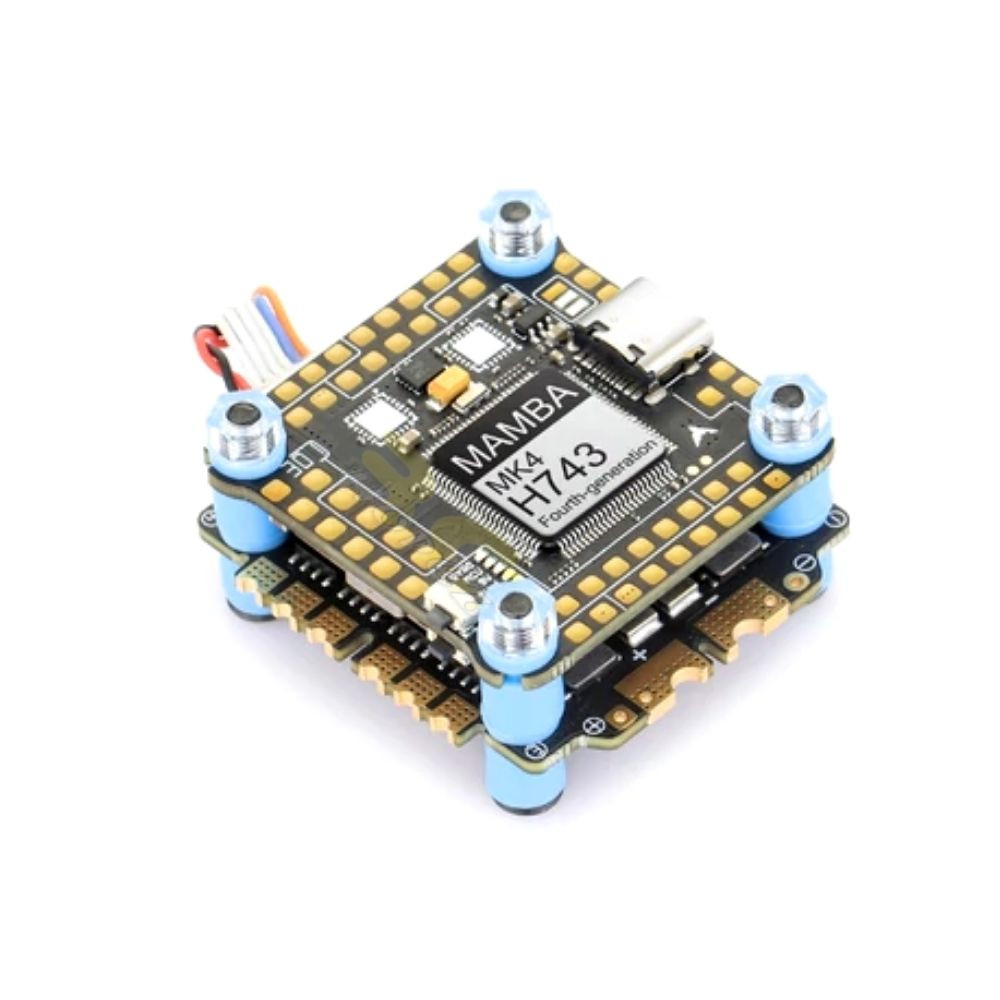

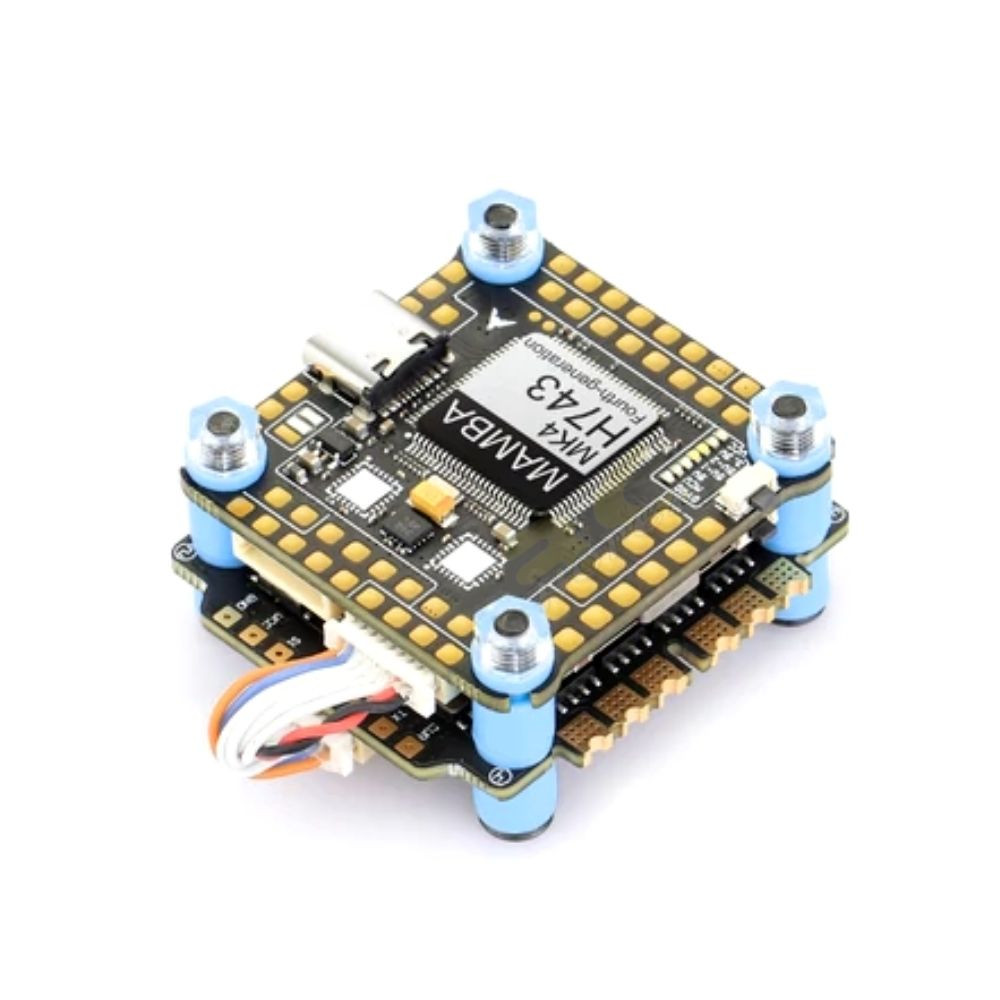

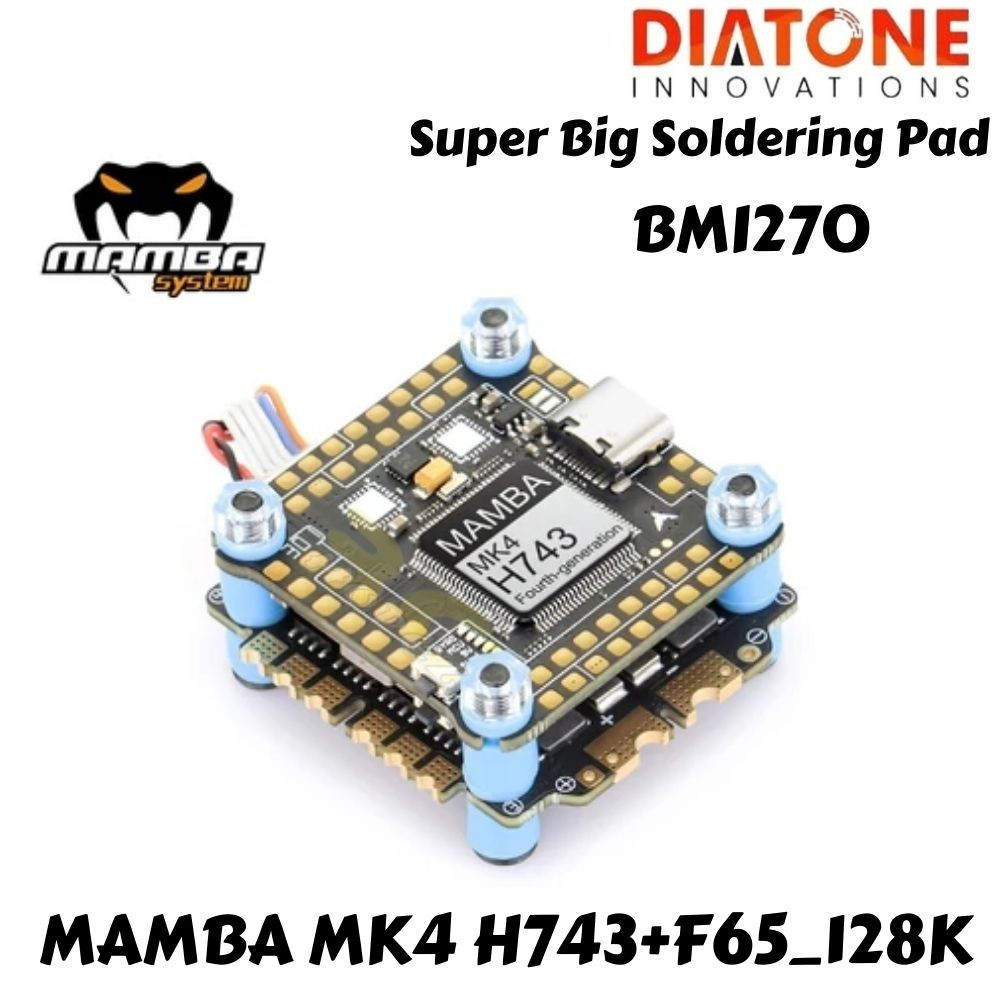

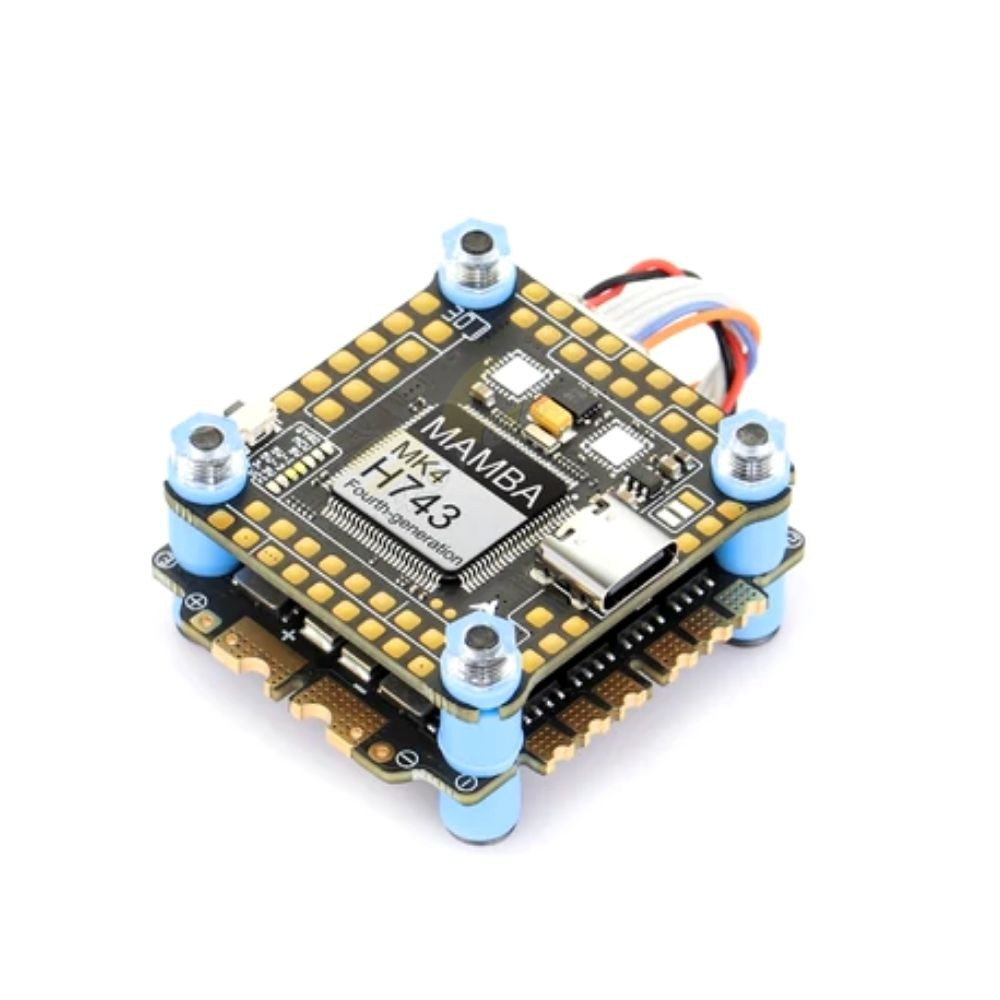

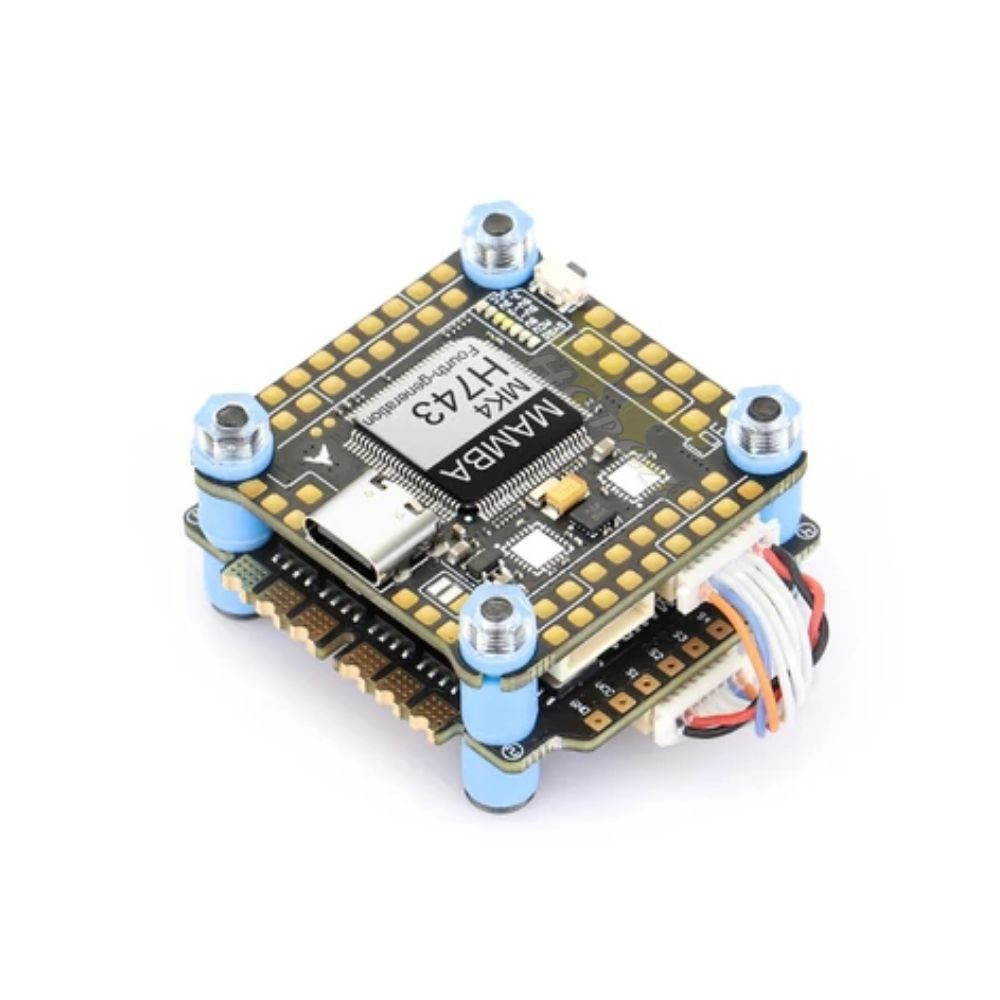

Diatone MAMBA (30.5×30.5) MK4 H743 BMI270 & 65A 128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-0806

Diatone MAMBA (30.5×30.5) MK4 H743 BMI270 & 65A 128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-0806

#All H7 uses Development version 4.3 Traget temporarily

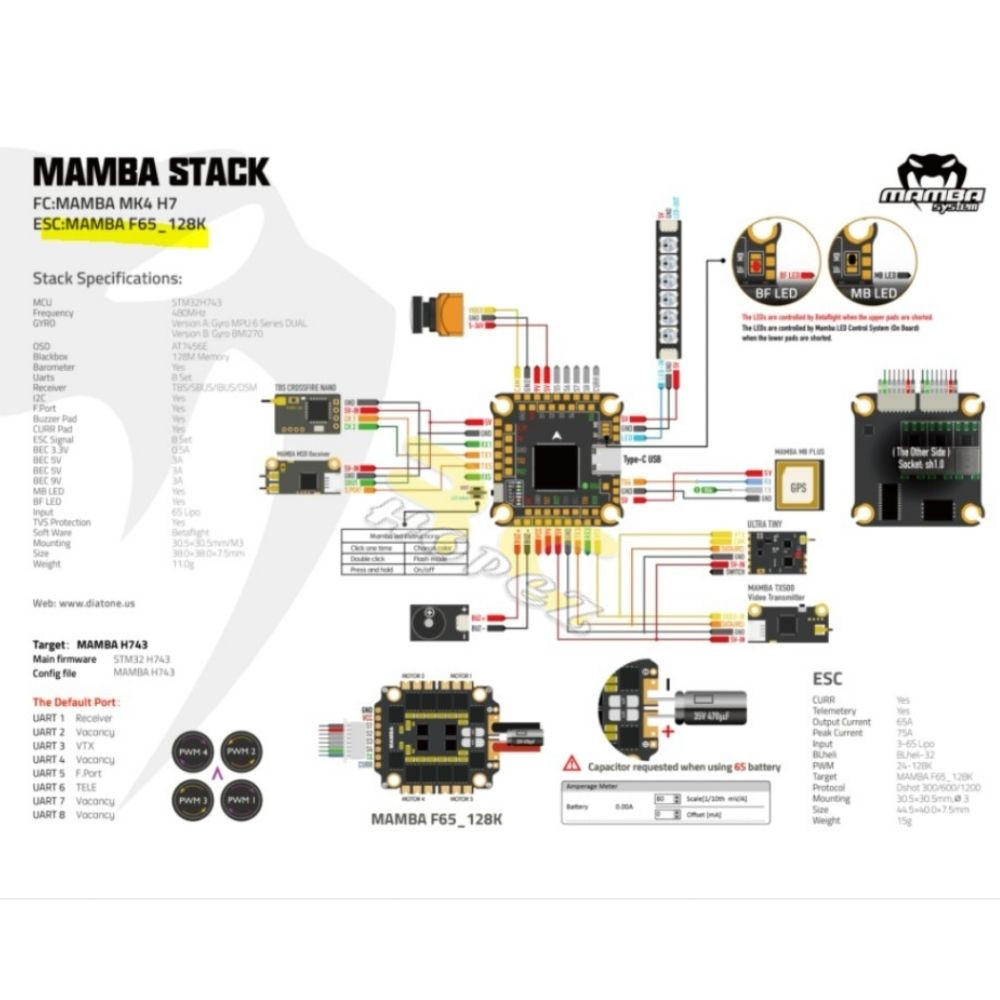

FC Specifications
MAMBA MK4 H743
MCU: 480MHz STM32H743
GYRO: BMI270
Barometer: Yes
OSD: Yes
Blacbox: 128M Flash Memory
Uarts: 8Set
ESC Signal:8Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED（4 Set 2812 LED）
F.Port: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A (System Power)&
5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm,M3

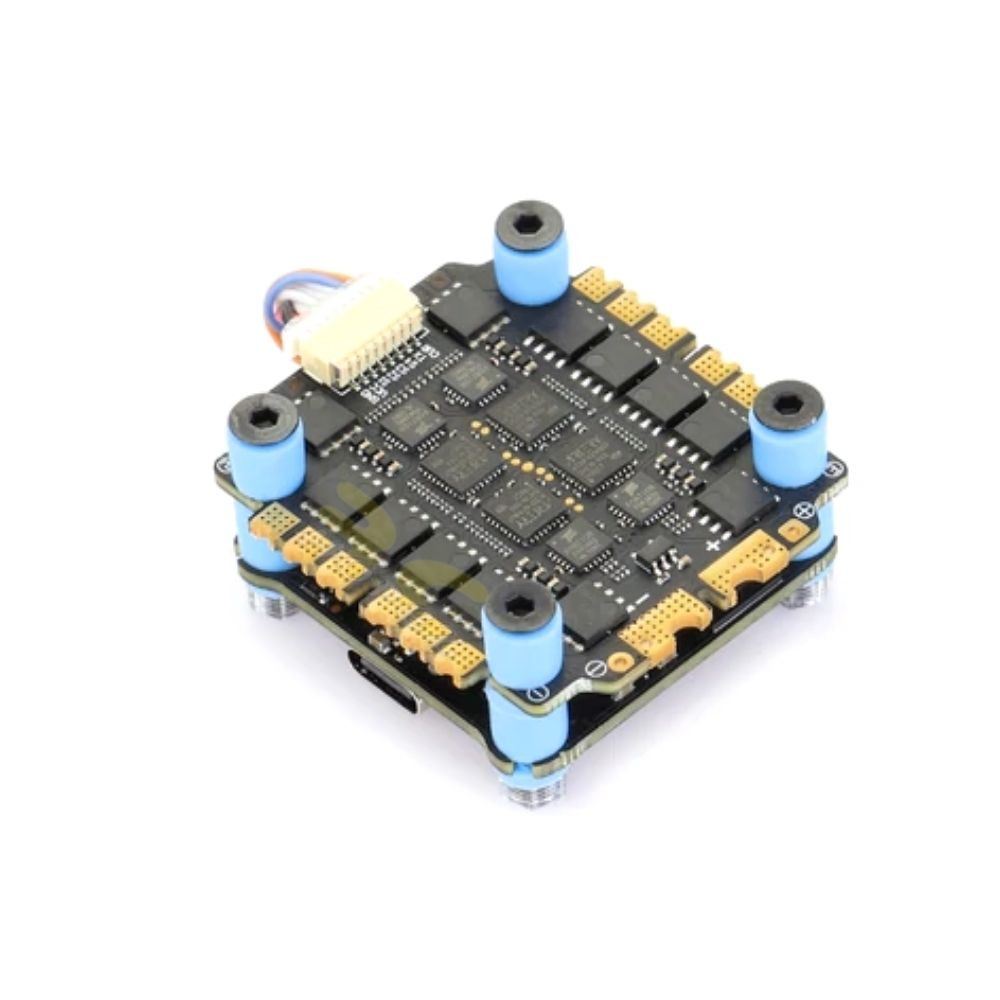

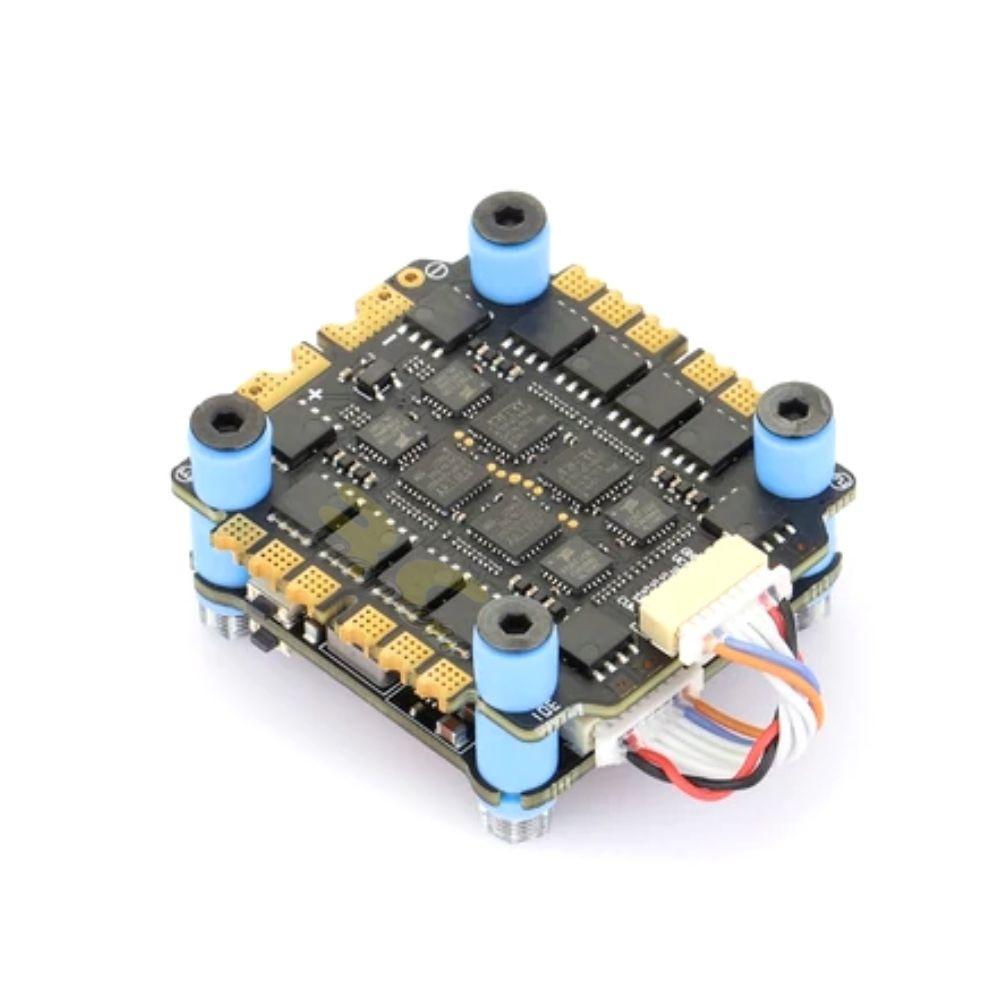

ESC Specifications
MAMBA F65_128K
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:65A×4
BURST CURRENT:75A (10S)
BEC: No
Target: BLHeli_32 MAMBA F65_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Packing included:
1x Mamba MK4 H743 BMI270 Flight controller
1x MAMBA 128K 65A ESC
1 x High Frequency 470uF/35V
2 x 8pin sh1.0
2 x 12AWG 100mm
1 x AMASS Original XT60
