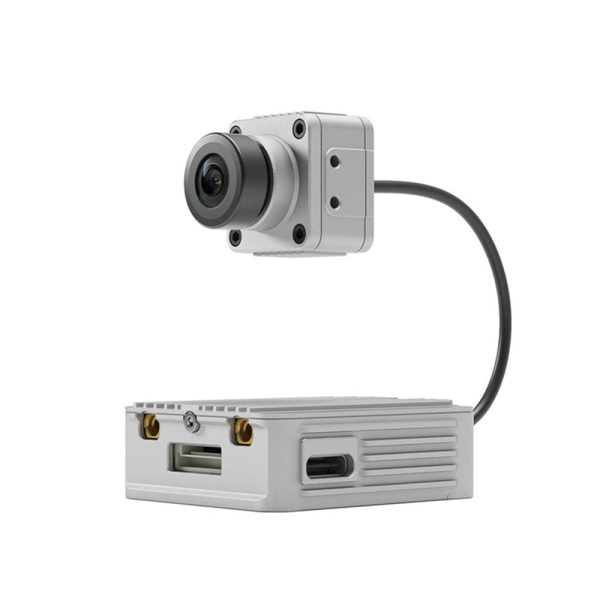

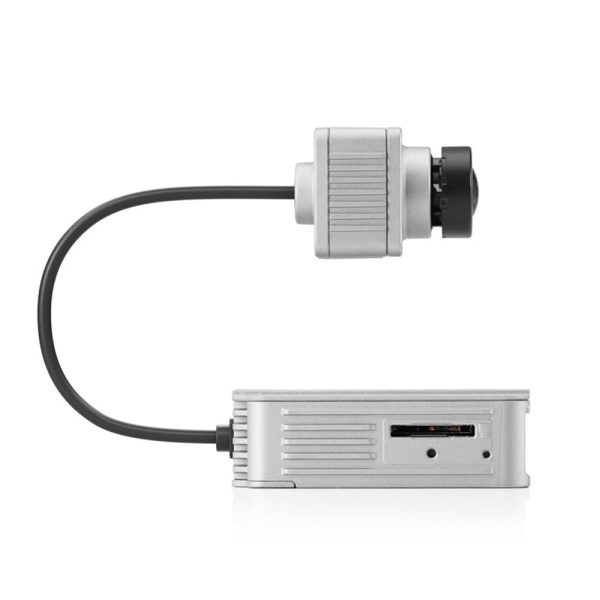

Overview



The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.







Tips



The air unit may become hot during or after operation.



DO NOT touch the air unit before it cools down.



DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.



Keep the antennas of the air unit at least 40 mm apart.



Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.







FEATURES



8 Channels, 8 Drones



The DJI HDL FPV Transmission system and the DJI FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.



1080p Aerial Footage



The DJI FPV Air Unit records videos at 1080p/60fps during flight, providing pilots with smooth and clear aerial footage.



Embedded Remote Controller Receiver



Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.



Multi-Antenna Technology



The DJI FPV Air Unit has two antennas, both of which are receivers and transmitters, ensuring broader signal coverage for reliable image transmission.







DESCRIPTION



Weight : Air Unit (Camera included): 45.8 g / 3.9 g (MMCX elbow each)



Dimensions



Air Unit: 44 x 37.8 x 14.4 mm



Camera: 27.4 x 21.1 x 20.1 mm



Coaxial Cable: 100 mm







SPECIFICATION



Operating Frequency: 5.725-5.850 GHz



Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm



Low Latency Mode (720p/120fps): <28 ms



High-Quality Mode (720p/60fps): <40 ms



Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km



Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)



I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot



Operating Temperature Range: 32° to 104°F (0° to 40°C)



Input Power: 7.4-17.6 V, about 4-9 W



Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M



Lens: 2.1 mm



Shutter: Rolling shutter



ISO: 100-25600



FOV: 150°(D); 122°(H); 93°(V)



Dimension: 22.1 x 21.1 x 20.1 mm



Weight: 8.2 g







CHANNELS



Channels Info :8CH



FCC



Channel 1: 5660



Channel 2: 5695



Channel 3: 5735



Channel 4: 5770



Channel 5: 5805



Channel 6: 5878



Channel 7: 5914



Channel 8: 5839







CE/SRRC



Channel 1: 5735



Channel 2: 5770



Channel 3: 5805



Channel 8: 5839







MIC



Channel 1: 5660



Channel 2: 5700



Channel 8: 5745







Compatibility (Not Including)



DJI FPV Goggles



DJI FPV Remote Controller

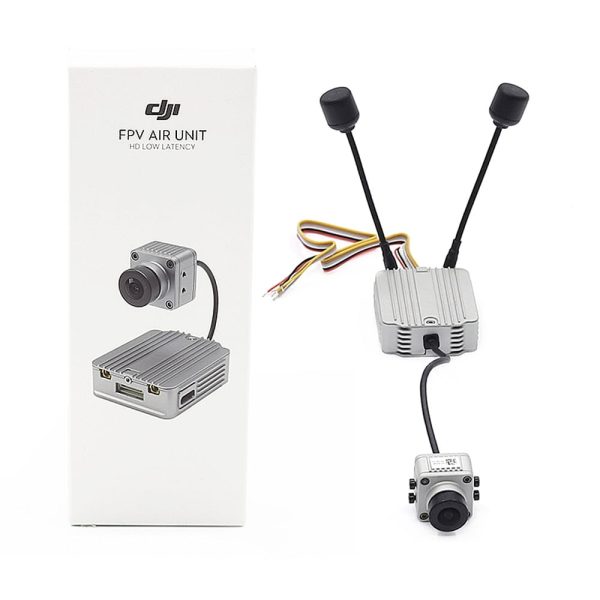

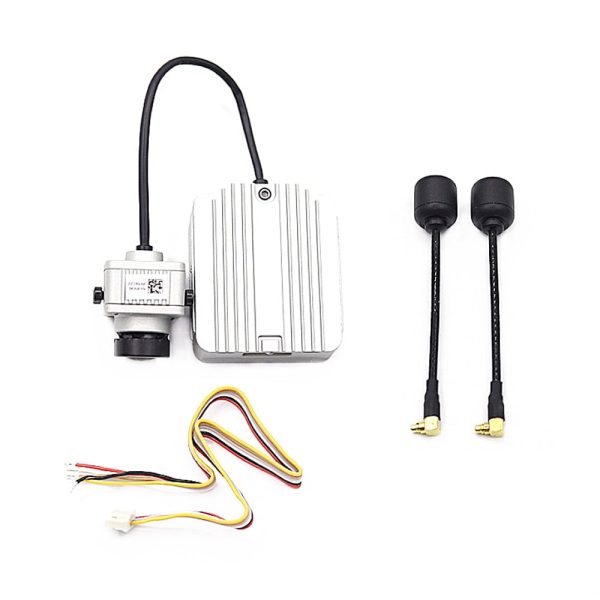

PACKAGE INCLUDED



1 x DJI FPV Air Unit (with camera and four M2 screws)



1 x Three-in-one cable



2 x Antenna (MMCX elbow)
