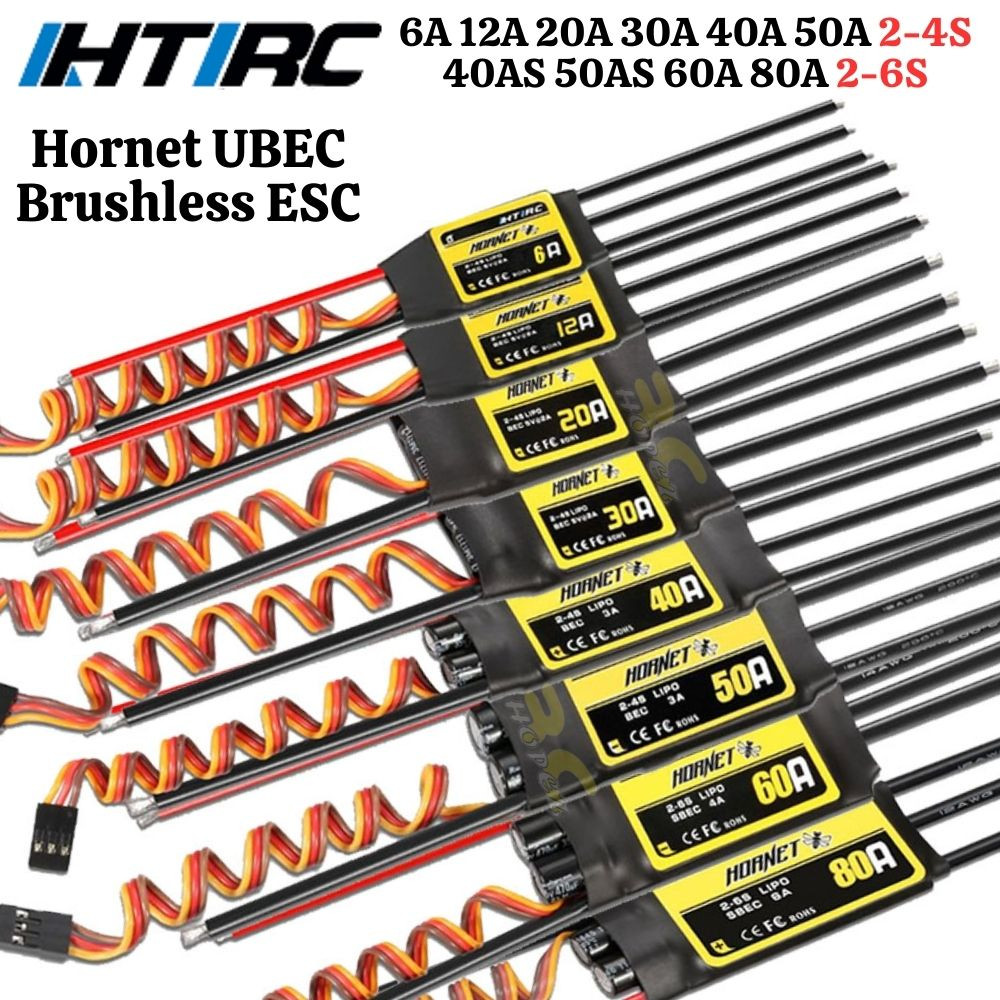

ESC HTIRC Hornet 6A 12A 20A 30A 40A 40AS 50A 50AS 60A 80A SBEC Brushless ESC For RC Plane Airplane Hornet

ESC HTIRC Hornet 6A 12A 20A 30A 40A 40AS 50A 50AS 60A 80A SBEC Brushless ESC For RC Plane Airplane Hornet

Features:
Using imported three-terminal regulator or high-quality power management module to provide BEC voltage, with a strong ability to load and BEC output with short-circuit protection, short-circuit recovery to restore the output.
Compared to other similiar product,this ESC is maller,lighter and has less power consumption.
All ESC use high-performance imports N-CHANNEL MOS tube.
Automatically adjust the throttle stroke
Support programming settings.

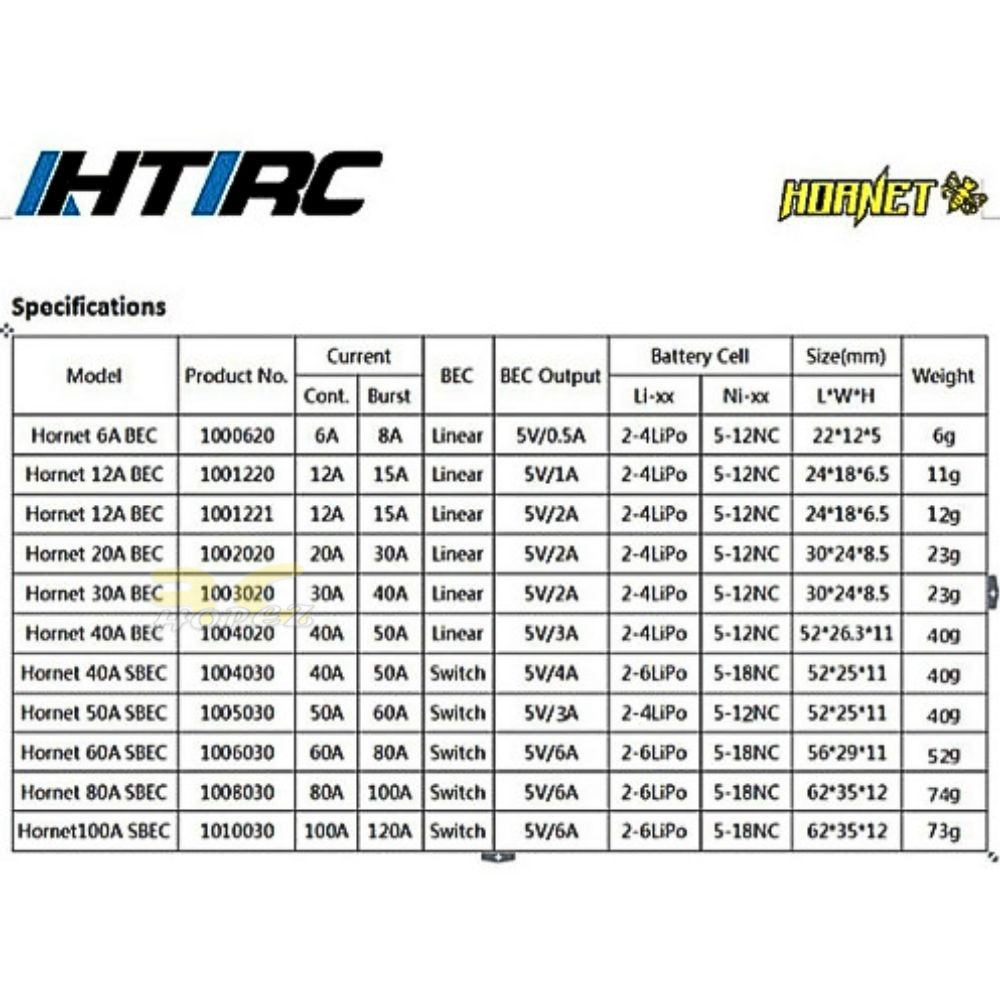

Description:
Item Name: 6A brushless ESC
Continuous Working Current: 6A
Burst Current: 8A (10s)
Recommended Battery: 2-4S Lipo (5-12NC)
BEC: Linear
BEC Output: 5V/0.5A
Dimension: 22*12*5mm (L x W x H)
Weight: 6g
Programmable: Yes

Description:
Item Name: 12A brushless ESC
Continuous Working Current: 12A
Burst Current: 15A (10s)
Recommended Battery: 2-4S Lipo (5-12NC)
BEC Type: Linear
BEC Output: 5V/2A
Dimension: 24*18*6.5mm (L x W x H)
Weight: 12g
Programmable: Yes

Description:
Item Name: 20A brushless ESC
Continuous Working Current: 20A
Burst Current: 30A (10s)
Recommended Battery: 2-4S Lipo (5-12NC)
BEC Type: Linear
BEC Output: 5V/2A
Dimension: 30*24*8.5mm (L x W x H)
Weight: 23g
Programmable: Yes

Description:
Item Name: 30A brushless ESC
Continuous Working Current:30A
Burst Current: 40A (10s)
Recommended Battery: 2-4S Lipo (5-12NC)
BEC Type: Linear
BEC Output: 5V/2A
Dimension: 30*24*8.5mm (L x W x H)
Weight: 23g
Programmable: Yes

Description:
Item Name: 40A brushless ESC
Continuous Working Current:40A
Burst Current: 50A (10s)
Recommended Battery: 40A 2-4S Lipo (5-12NC)/40AS 2-6S Lipo (5-18NC)
BEC Type: 40A Linear/40AS Switch
BEC Output: 40A 5V/3A 40AS 5V/4A
Dimension: 40A 52*26.3*11mm/40AS 52*25*11mm (L x W x H)
Weight: 40g
Programmable: Yes

Description:
Item Name: 50A brushless ESC
Continuous Working Current:50A
Burst Current: 60A (10s)
Recommended Battery: 50A 2-4S Lipo (5-12NC)/50AS 2-6S Lipo (5-18NC)
BEC Type: Switch
BEC Output: 50A 5V/3A 50AS 5V/4A
Dimension: 52*25*11mm (L x W x H)
Weight: 50A 40g/50AS 43G
Programmable: Yes

Description:
Item Name: 60A brushless ESC
Continuous Working Current:60A
Burst Current: 80A (10s)
Recommended Battery: 2-6S Lipo (5-18NC)
BEC Type: Switch
BEC Output: 5V/6A
Dimension: 56*29*11mm (L x W x H)
Weight: 52g
Programmable: Yes

Description:
Item Name: 80A brushless ESC
Continuous Working Current:80A
Burst Current: 100A (10s)
Recommended Battery: 2-6S Lipo (5-18NC)
BEC Type: Switch
BEC Output: 5V/6A
Dimension: 62*35*12mm (L x W x H)
Weight: 74g
Programmable: Yes

Package Included:
1 x HTIRC Hornet 6A 0.5A 2-4S ESC
or
1 x HTIRC Hornet 12A 2A 2-4S ESC
or
1 x HTIRC Hornet 20A 2A 2-4S ESC
or
1 x HTIRC Hornet 30A 2A 2-4S ESC
or
1 x HTIRC Hornet 40A 3A 2-4S ESC
or
1 x HTIRC Hornet 40AS 4A 2-6S ESC
or
1 x HTIRC Hornet 50A 3A 2-4S ESC
or
1 x HTIRC Hornet 50AS 4A 2-6S ESC
or
1 x HTIRC Hornet 60A 5A 2-6S ESC
or
1 x HTIRC Hornet 80A 6A 2-6S ESC
