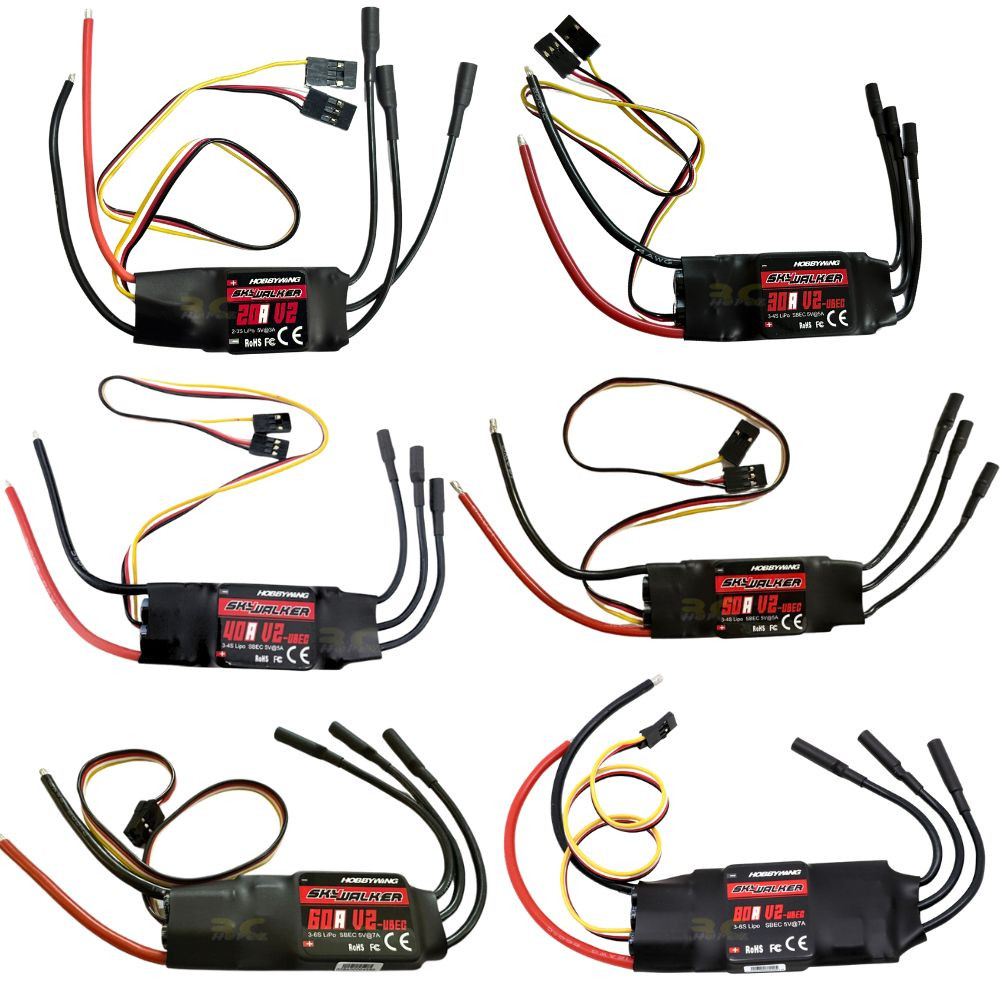

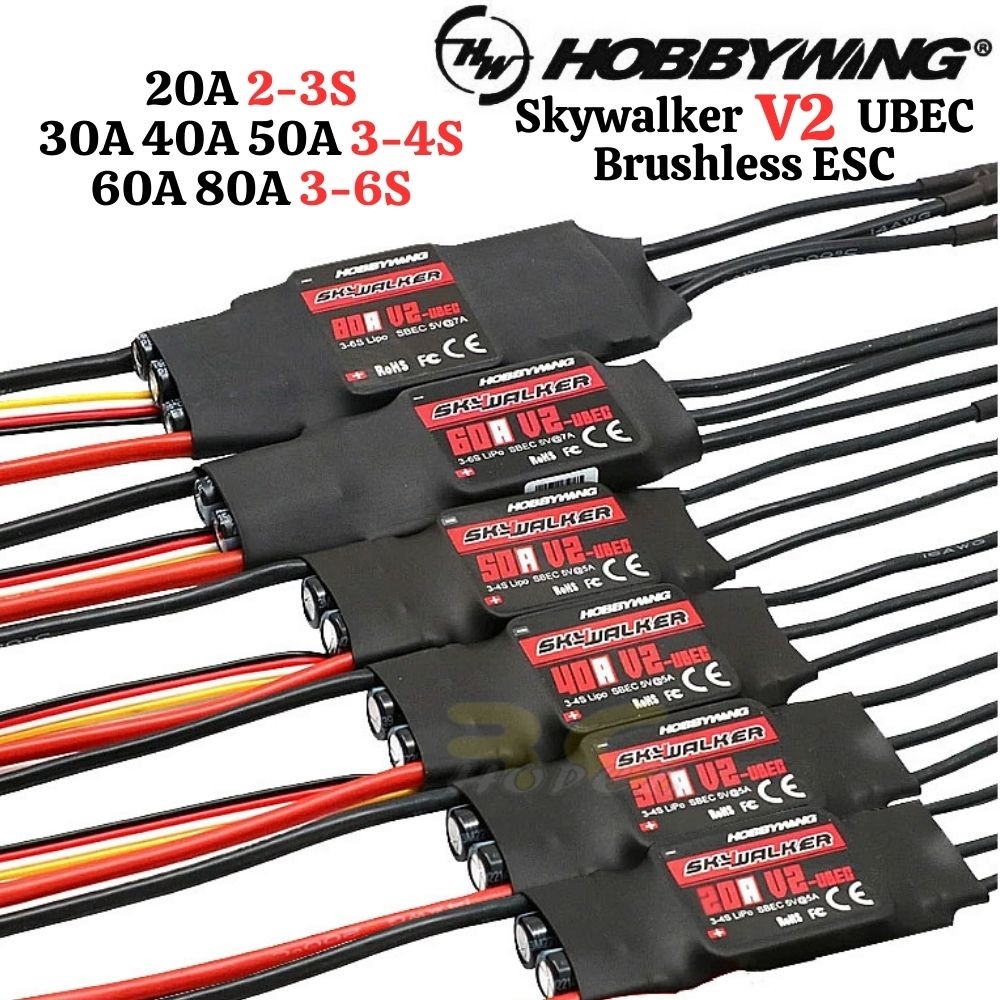

Hobbywing Skywalker V2 20A 30A 40A 50A 60A 80A UBEC Brushless ESC SWESCN

Hobbywing Skywalker V2 20A 30A 40A 50A 60A 80A UBEC Brushless ESC SWESCN

Specifications:
Model: 20A V2
Input Voltage: 2-3S
BEC Output: 5V @3A (Linear-mode)
Continues Current: 20A
Peak Current: 40A
Dimensions: 45x23x8mm (LxWxH)
Weight: 19g
Wire Input: 16AWG-100mm
Wire Output: 18AWG-70mm
Output Connectors: 3.5mm Bullets (Female)
Programming: Stick / LED program box

Specifications:
Model: 30A V2
Input Voltage: 3-4S
BEC Output: 5V @ 5A (Switch-mode)
Continues Current: 30A
Peak Current: 50A
Dimensions: 60x25x8mm (LxWxH)
Weight: 33g
Wire Input: 14AWG-100mm
Wire Output: 16AWG-75mm
Output Connectors: 3.5mm Bullets (Female)
Programming: Stick / LED program box

Specifications:
Model: 40A V2
Input Voltage: 3-4S
BEC Output: 5V @ 5A (Switch-mode)
Continues Current: 40A
Peak Current: 60A
Dimensions: 60x25x8mm (LxWxH)
Weight: 36g
Wire Input: 14AWG-100mm
Wire Output: 16AWG-75mm
Output Connectors: 3.5mm Bullets (Female)
Programming: Stick / LED program box

Specifications:
Model: 50A V2
Input Voltage: 3-4S
BEC Output: 5V @ 5A (Switch-mode)
Continues Current: 50A
Peak Current: 70A
Dimensions: 60x25x8mm (LxWxH)
Weight: 36g
Wire Input: 14AWG-100mm
Wire Output: 16AWG-75mm
Output Connectors: 3.5mm Bullets (Female)
Programming: Stick / LED program box

Specifications:
Model: 60A V2
Input Voltage: 3-6S
BEC Output: 5V @ 7A (Switch-mode)
Continues Current: 60A
Peak Current: 80A
Dimensions: 73x30x12mm (LxWxH)
Weight: 68g
Wire Input: 12AWG-100mm
Wire Output: 14AWG-100mm
Output Connectors: 4.0mm Bullets (Female)
Programming: Stick / LED program box

Specifications:
Model: 80A V2
Input Voltage: 3-6S
BEC Output: 5V @ 7A (Switch-mode)
Continues Current: 80A
Peak Current: 100A
Dimensions: 85x36x9mm (LxWxH)
Weight: 79g
Wire Input: 12AWG-150mm
Wire Output: 14AWG-100mm
Output Connectors: 4.0mm Bullets (Female)
Programming: Stick / LED program box

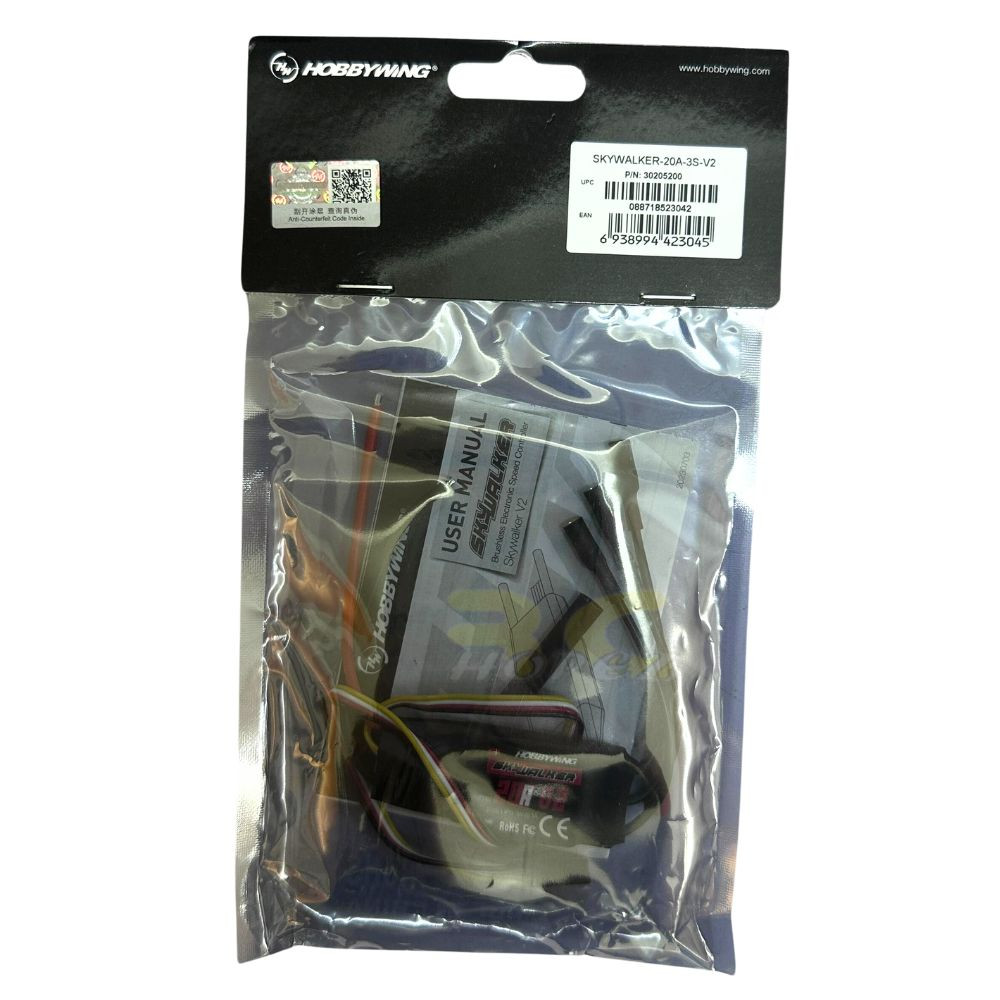

Package Included (Optional) :
1 x Hobbywing Skywalker 20A V2 UBEC 3A 2-3S Brushless ESC
or
1 x Hobbywing Skywalker 30A V2 UBEC 5A 3-4S Brushless ESC
or
1 x Hobbywing Skywalker 40A V2 UBEC 5A 3-4S Brushless ESC
or
1 x Hobbywing Skywalker 50A V2 UBEC 5A 3-4S Brushless ESC
or
1 x Hobbywing Skywalker 60A V2 UBEC 7A 3-6S Brushless ESC
or
1 x Hobbywing Skywalker 80A V2 UBEC 7A 3-6S Brushless ESC
