Flywoo DJI O4 Wide Cam Shell V2 Protective Shell for DJI O4 Wide Air Unit FW5276

Flywoo DJI O4 Wide Cam Shell V2 Protective Shell for DJI O4 Wide Air Unit FW5276

Description

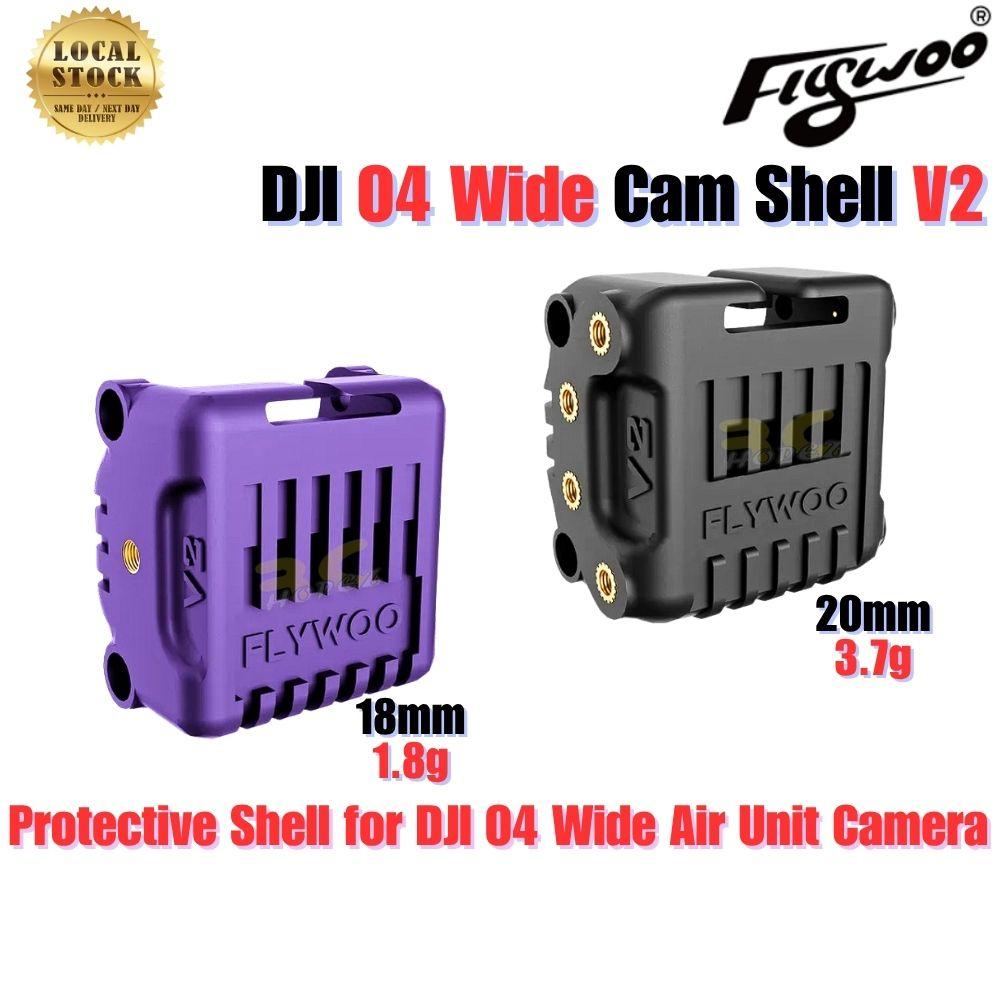

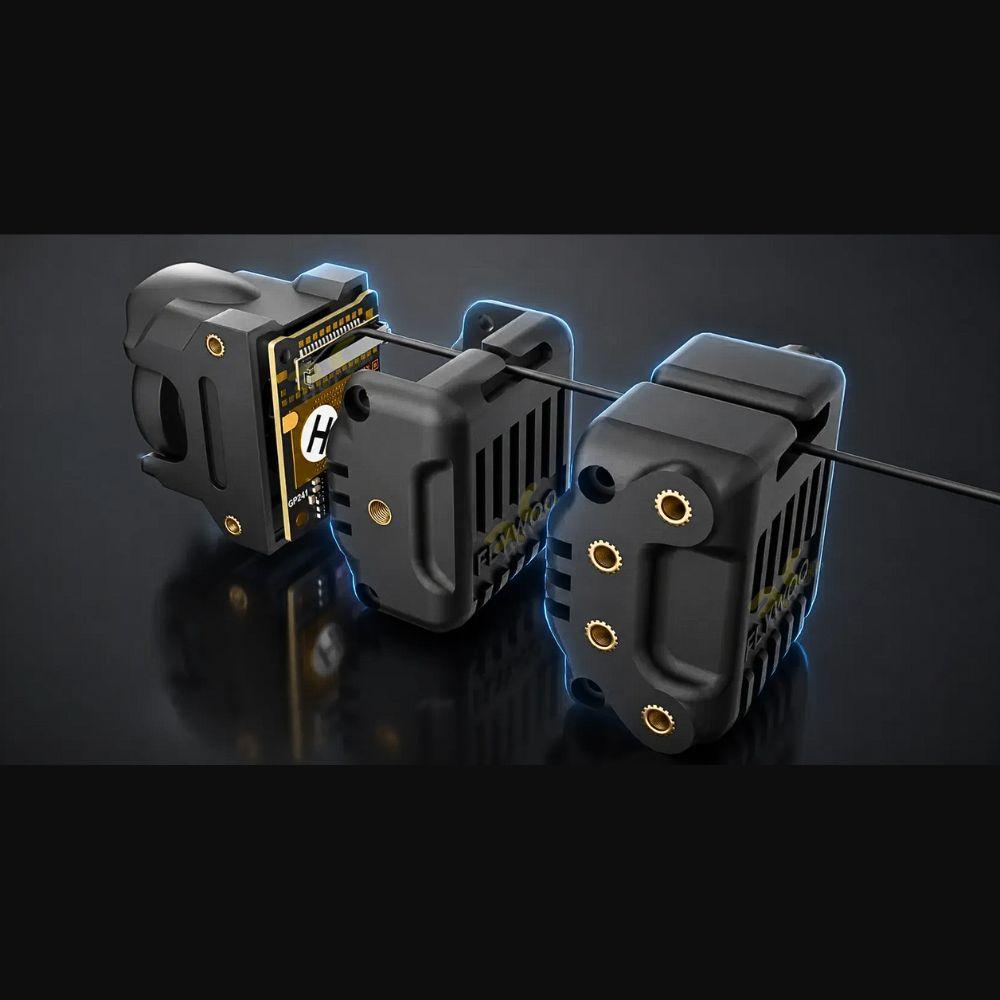

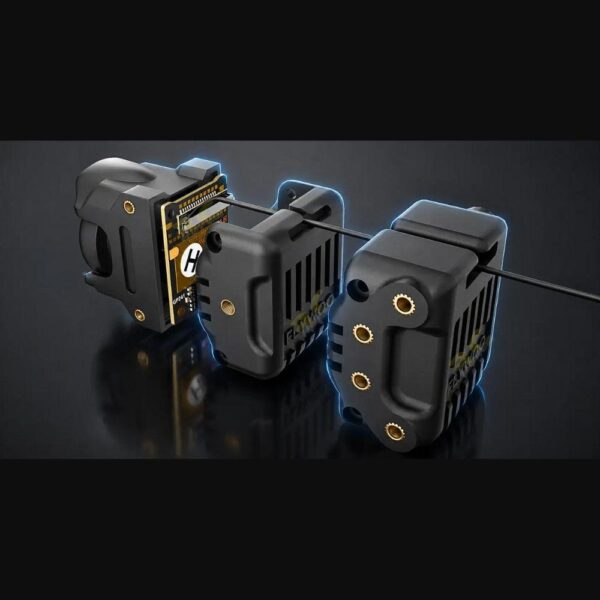

FLYWOO DJI O4 Wide Camera Protective shell is made for the DJI O4 Wide Air Unit camera. It covers the exposed rear section of the camera, helping protect the rear PCB and coaxial cable connection board from direct impact during a crash.

The shell also adds useful mass to the camera assembly. On lighter standard O4 builds, this can reduce the demand on an overly soft damping setup and make it easier to tune for steadier footage.

Choose the 18mm version for frames with 18mm or 19mm camera mounts. Choose the 20mm version for frames designed around DJI O3 or O4 Pro camera mounting. Both versions are available in black or purple.

Highlights

1. Rear PCB and cable protection
Covers the exposed rear camera area to help protect the PCB and coaxial cable connection board from crash impact.

2. Added weight for easier tuning
Adds 1.8g on the 18mm version or 3.7g on the 20mm version, helping balance lighter O4 Wide camera setups.

3. Two frame-mount options
The 18mm housing fits 18mm and 19mm camera mounts. The 20mm housing fits O3 and O4 Pro camera mounts.

4. POM construction
Made from durable POM for a secure, lightweight camera housing.

5. Black or purple
Available in two color options to match your build.

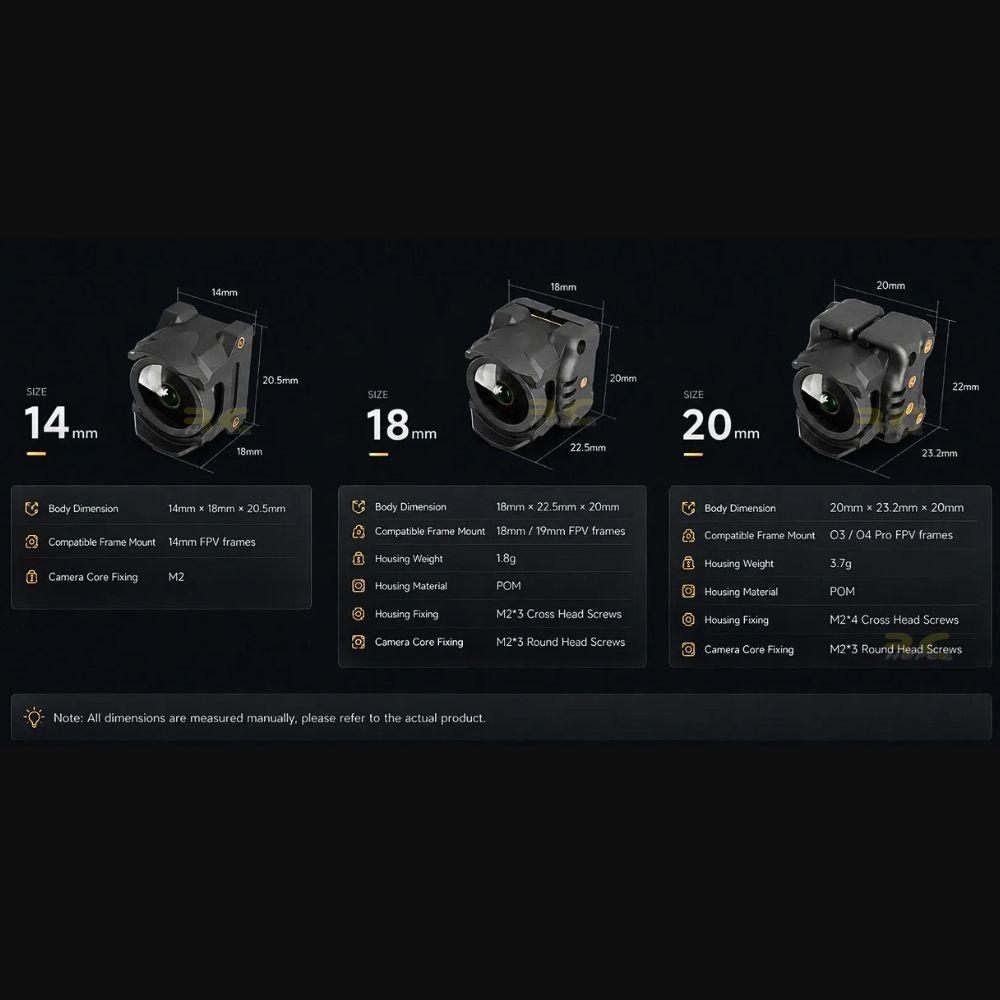

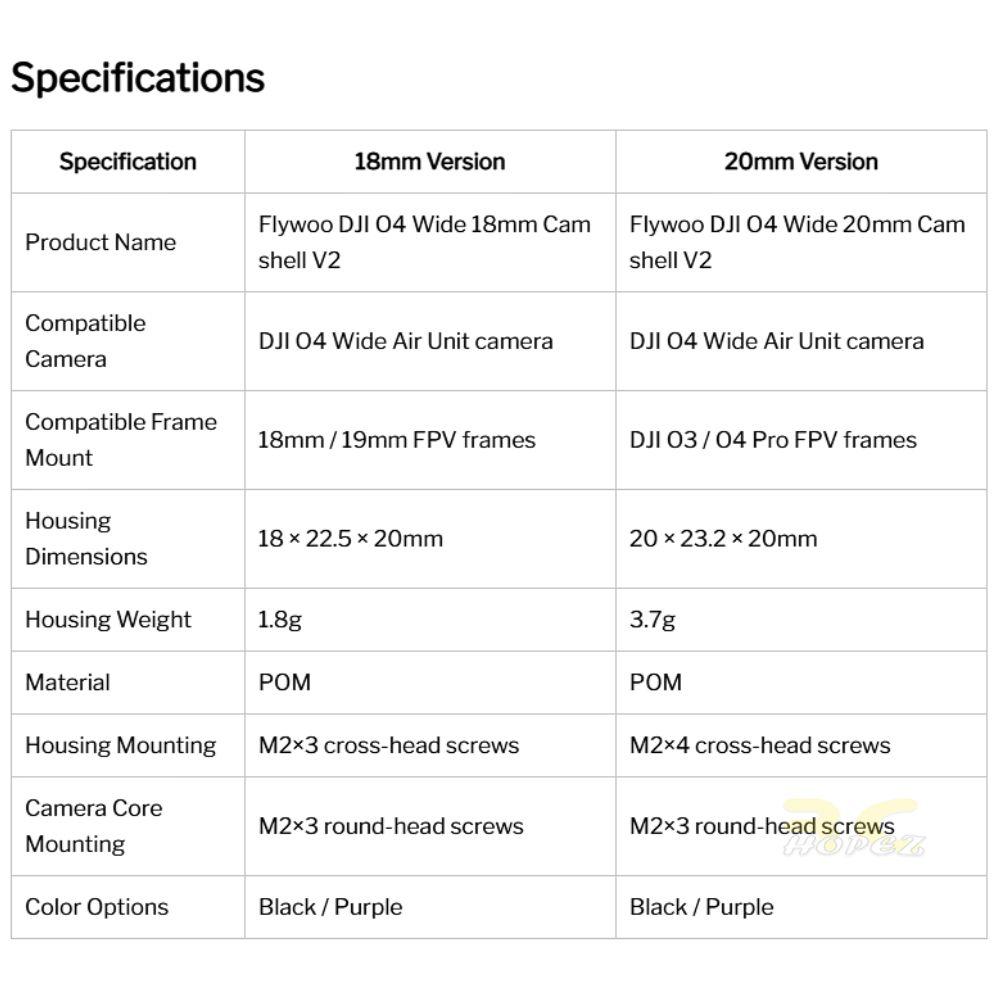

Specifications

Product Name :
Flywoo DJI O4 Wide 18mm Cam shell V2 // Flywoo DJI O4 Wide 20mm Cam shell V2

Compatible Camera :
DJI O4 Wide Air Unit camera // DJI O4 Wide Air Unit camera

Compatible Frame Mount :
18mm / 19mm FPV frames // DJI O3 / O4 Pro FPV frames

Housing Dimensions     :
18 × 22.5 × 20mm // 20 × 23.2 × 20mm

Housing Weight :
1.8g // 3.7g

Material :
POM

Housing Mounting :
M2×3 cross-head screws // M2×4 cross-head screws

Camera Core Mounting :
M2×3 round-head screws // M2×3 round-head screws

Color Options :
Black / Purple

Package Included :
1* Cam Shell V2 18mm / 20mm (Optional)
1* Screws
