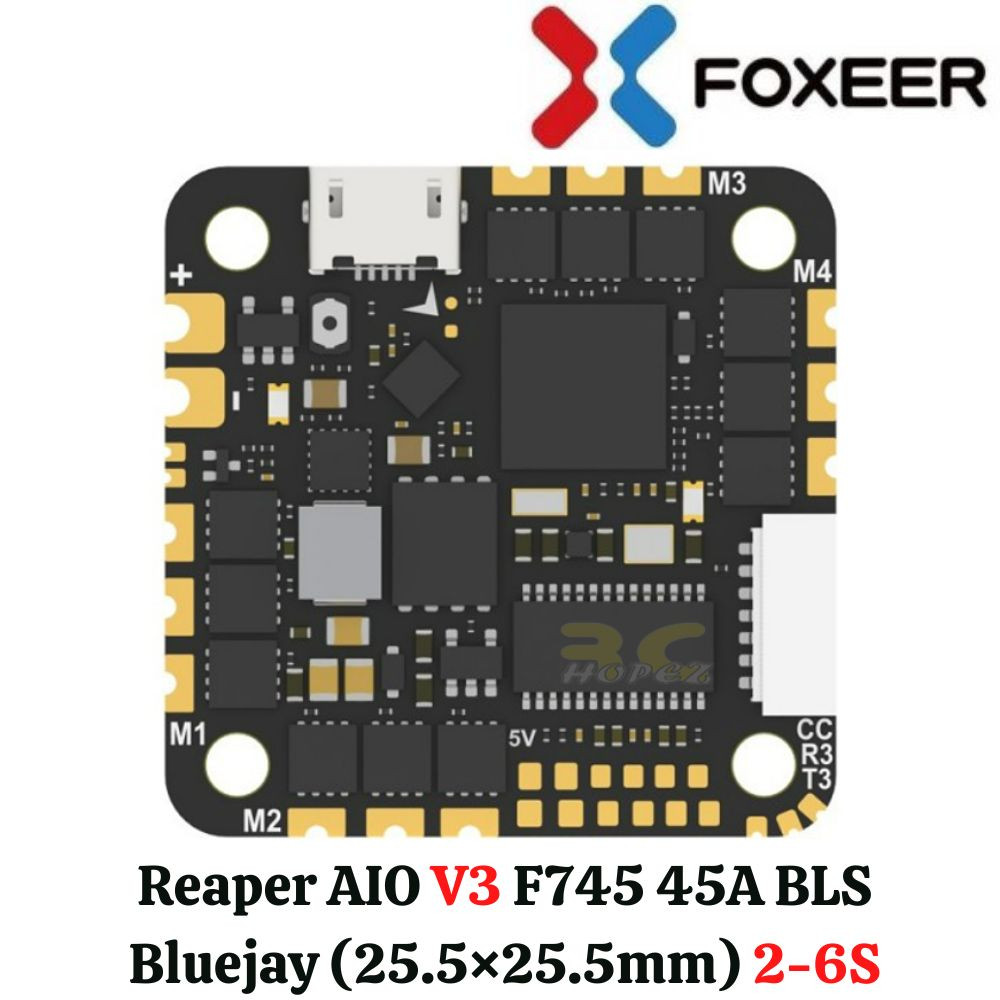

Foxeer Reaper AIO V3 F745 45A BLS Bluejay 2-6S 25.5×25.5mm 2-6S for FPV Racing Drone MR1687

Foxeer Reaper AIO V3 F745 45A BLS Bluejay 2-6S 25.5×25.5mm 2-6S for FPV Racing Drone MR1687

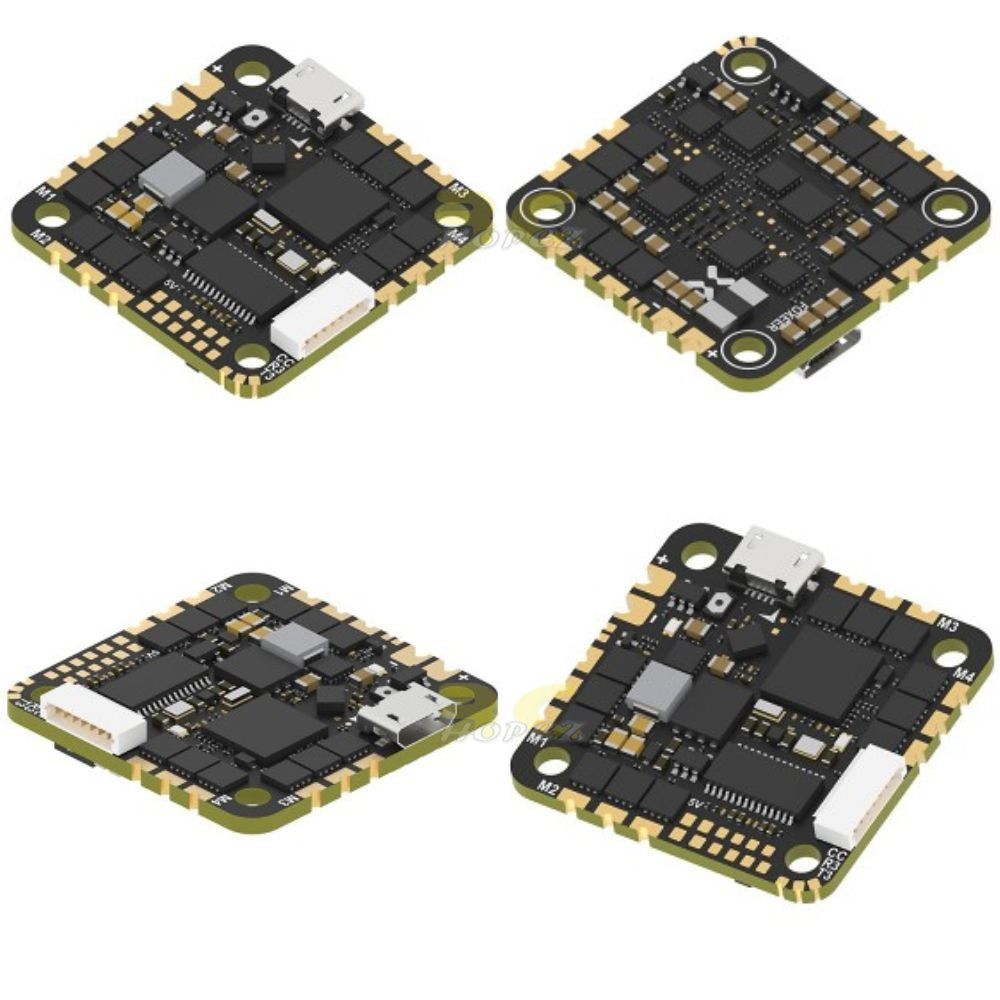

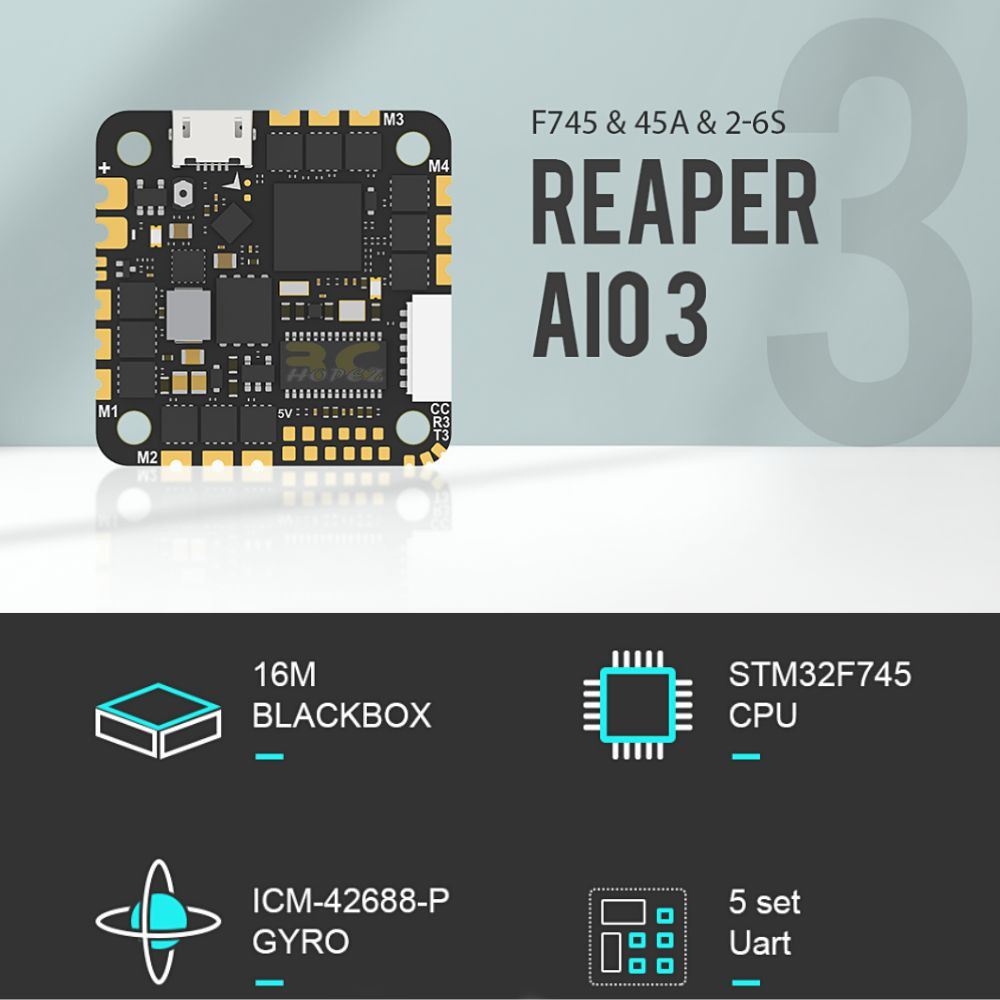

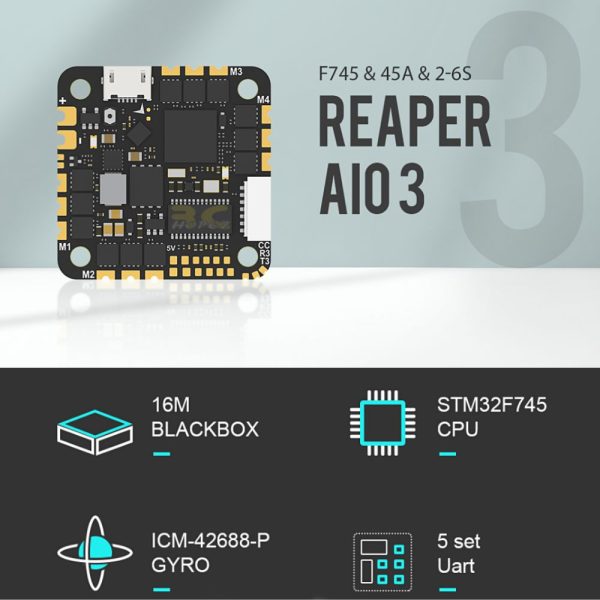

The Foxeer Reaper AIO V3 is an F745 Flight Controller with a 45A BLHeli_S 4-In-1 ESC on a single board.  This AIO board supports 2-6S, has a powerful STM32F745 MCU, ICM-42688-P gyro, 5 available UARTs, and even 16M built-in BlackBox. Perfect for those looking to simplify with fewer separate components or to save space and weight. Foxeer's Reaper line of electronics has become some of the highest quality components available.

Specifications :
Model : FOXEER Reaper AIO V3

FLIGHT CONTROLLER

CPU : STM32F745
Power Supply : 2~6S Lipo(8.4~25.2V)
BEC Output : DC5V/2.5A
OSD : BF OSD
Black Box : 16M Flash Memory

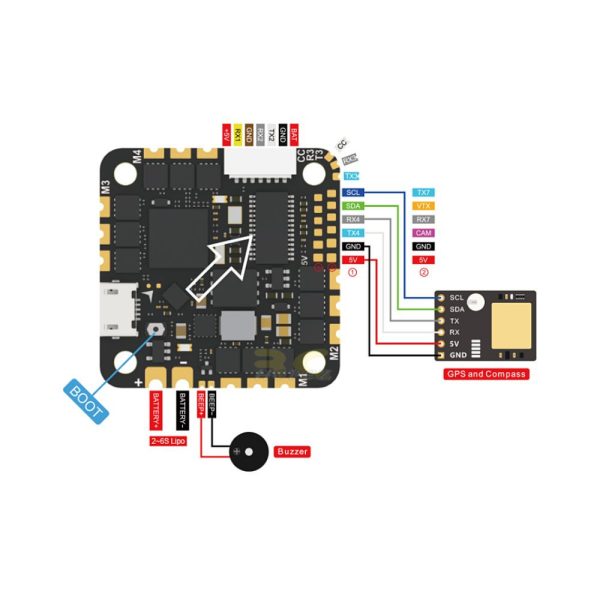

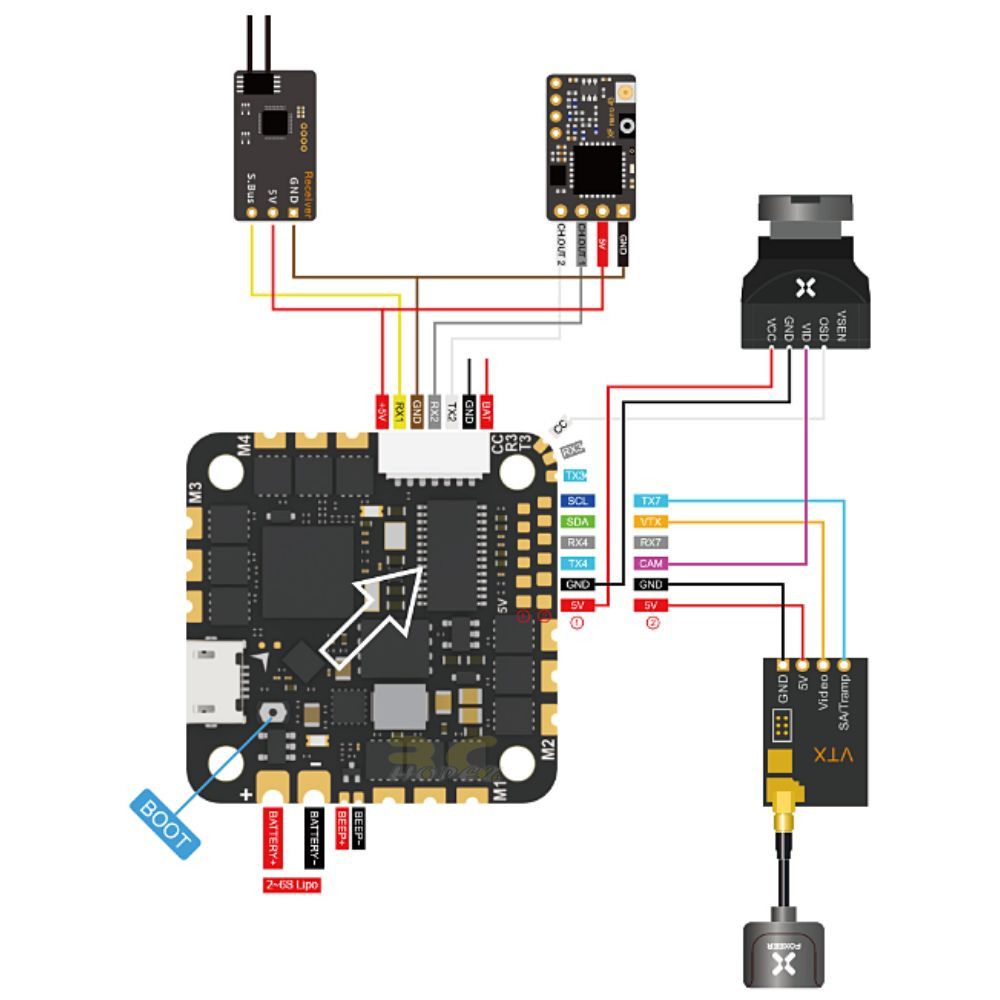

UART : 5 Set
USB : Micro USB
Fireware : BF:FOXE-FOXEERF745V3_AIO

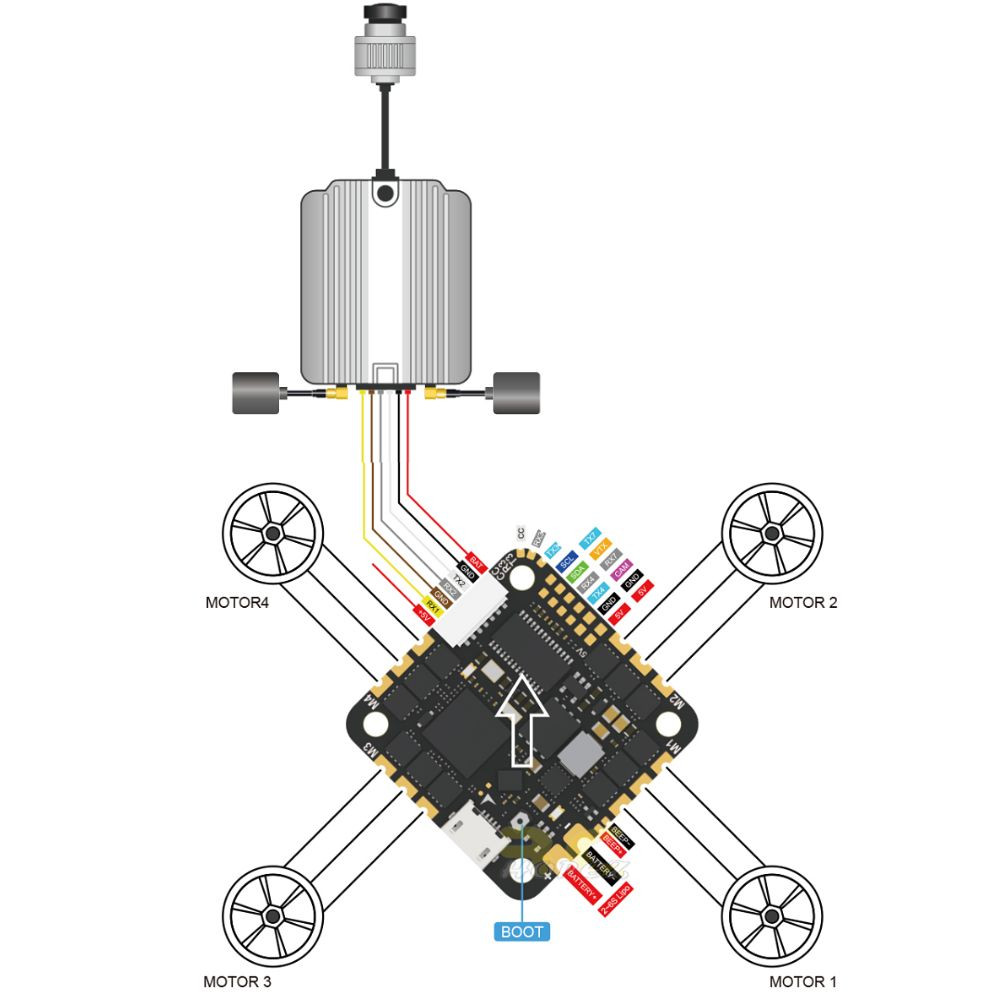

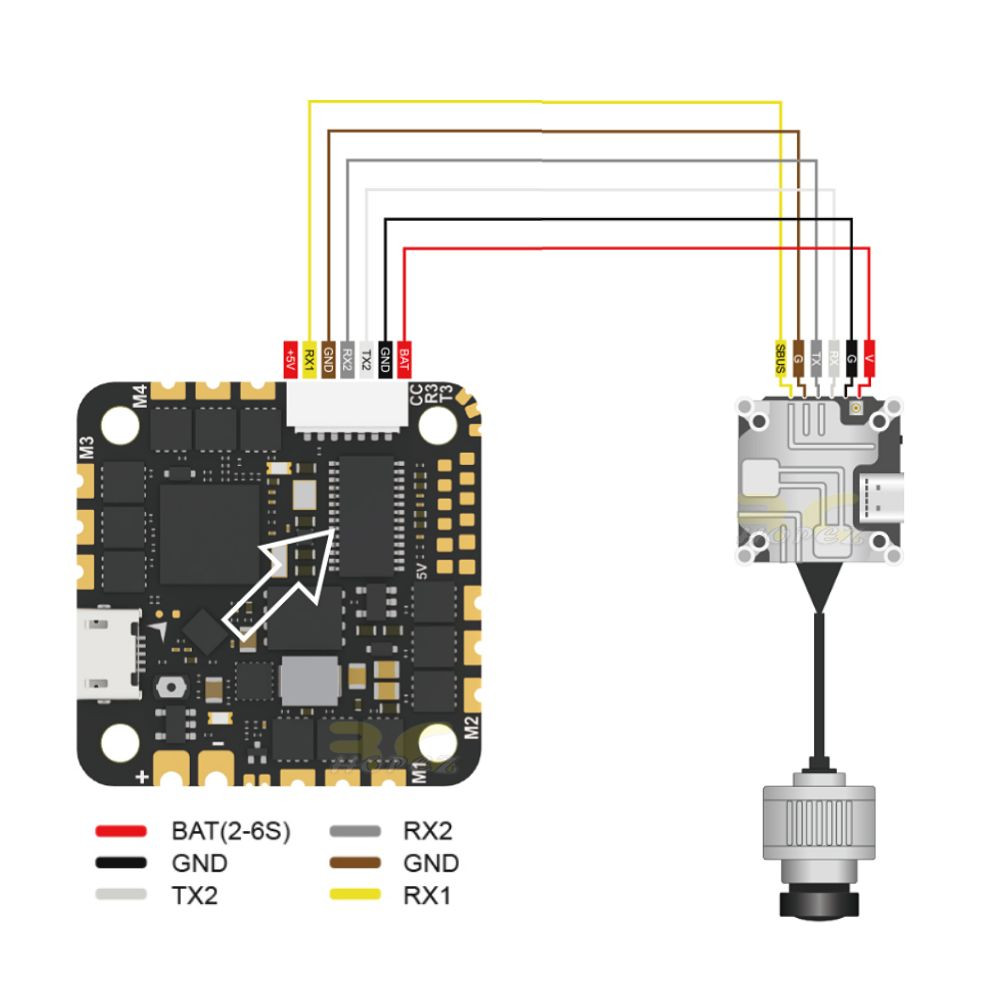

DJI/Vista Connector : Supported, 7pin

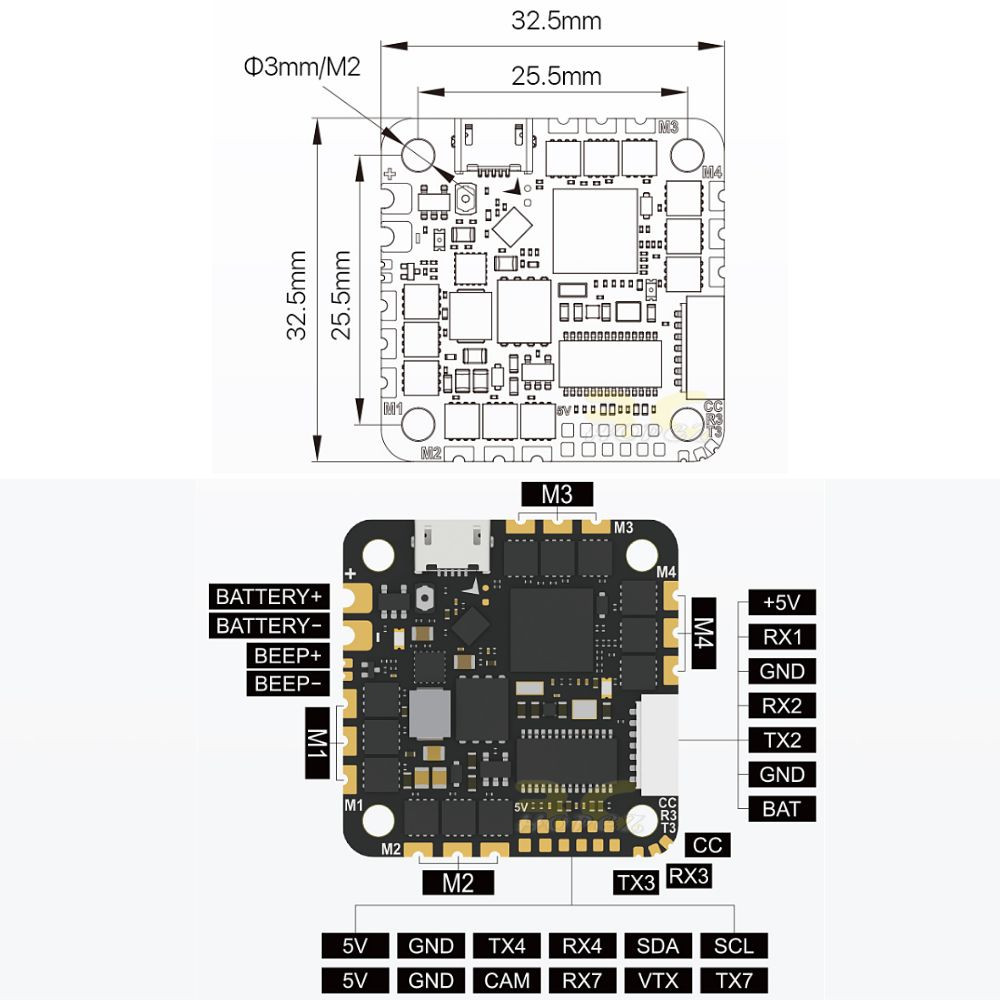

Size : 32.5X32.5mm
Mounting Hole : 25.5X25.5mm,Φ3mm/M2
Weight(g) : 8.9g
Working Temperature : -20℃ ~ +55℃
Working Humidity : 20～95%
Storage Temperature : -20℃ ~ +70℃

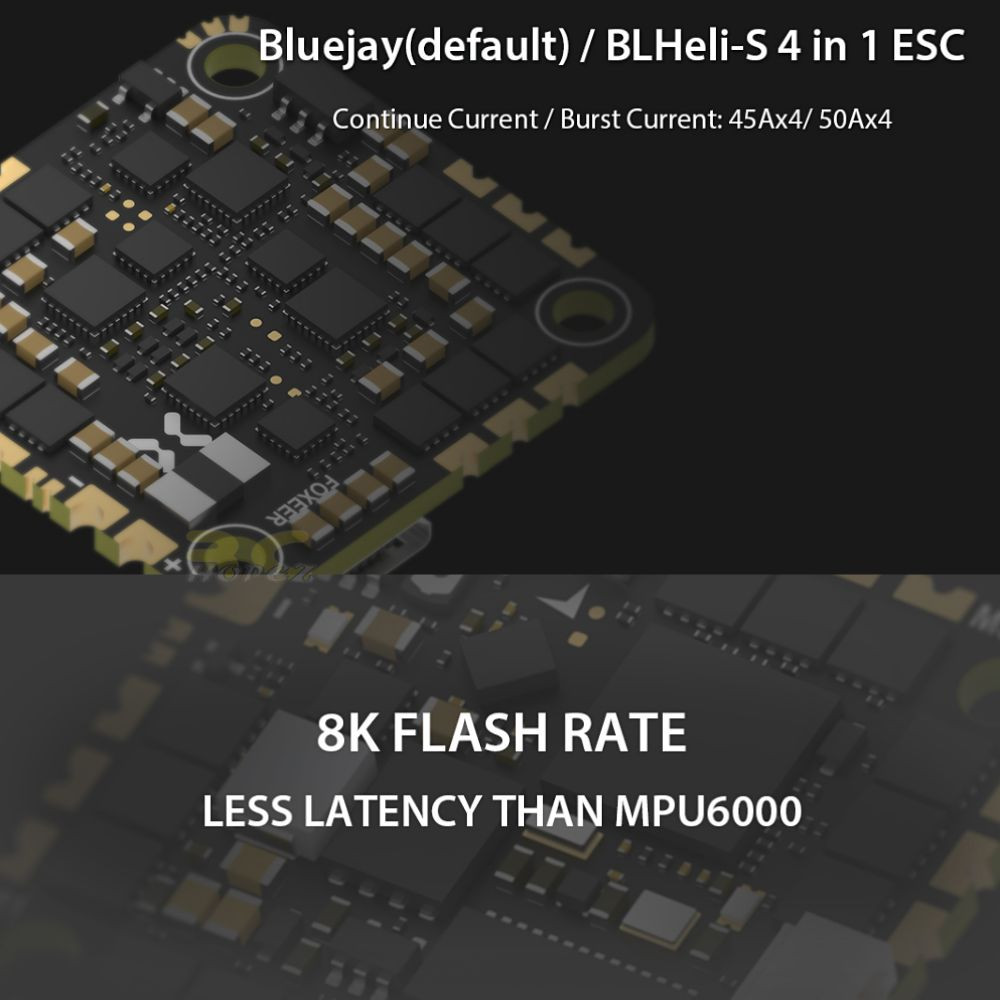

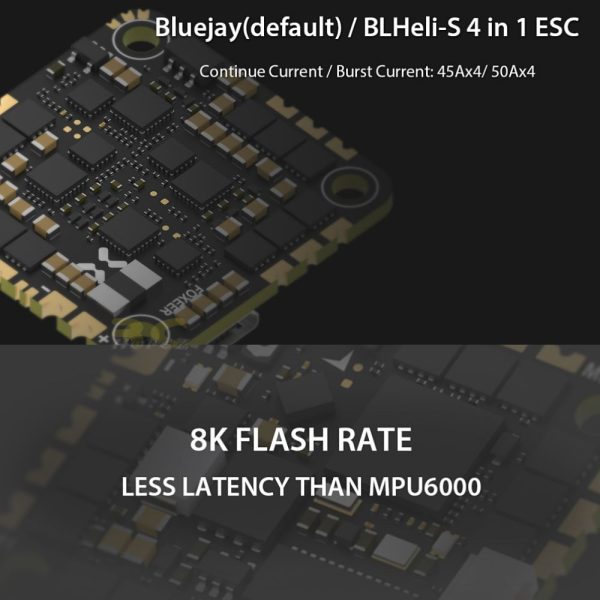

4-IN-1 ESC

Firmware:  Bluejay – G-H-30-96-v0.16 / BLHeli_S – G-H-30 16.7
Current:  45A Continuous / 50A Burst
Input Voltage:  2~6S LiPo (8.4~25.2V)
Telemetry:  No
Current Sensor:  Supported
Current Scale:  100
Input Signal:  DShot300/600

Package Includes :
1 x Reaper AIO V3 F745 45A BLS Bluejay 2-6S 25.5×25.5mm
1 x Mounting Rubbers Columns
1 x XT30/XT60 connector + Cable
1 x Vista Cable
1 x Capacity
