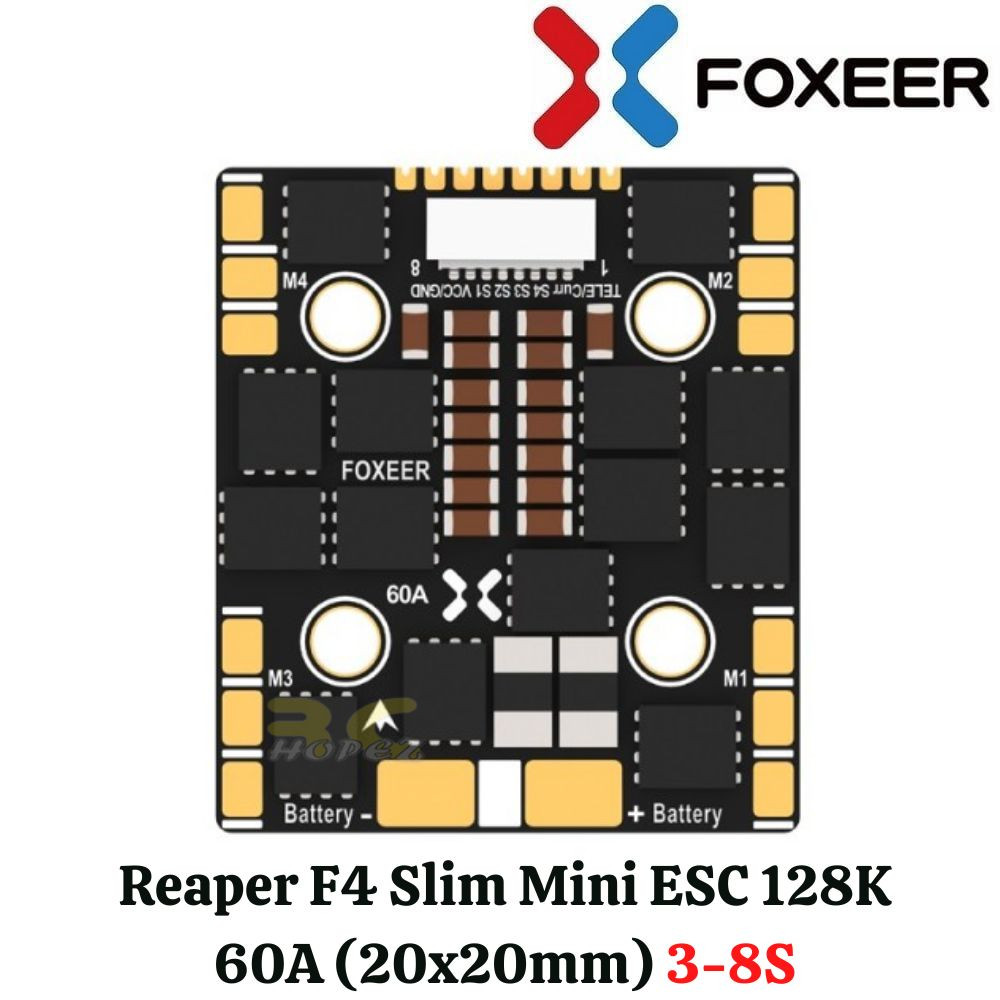

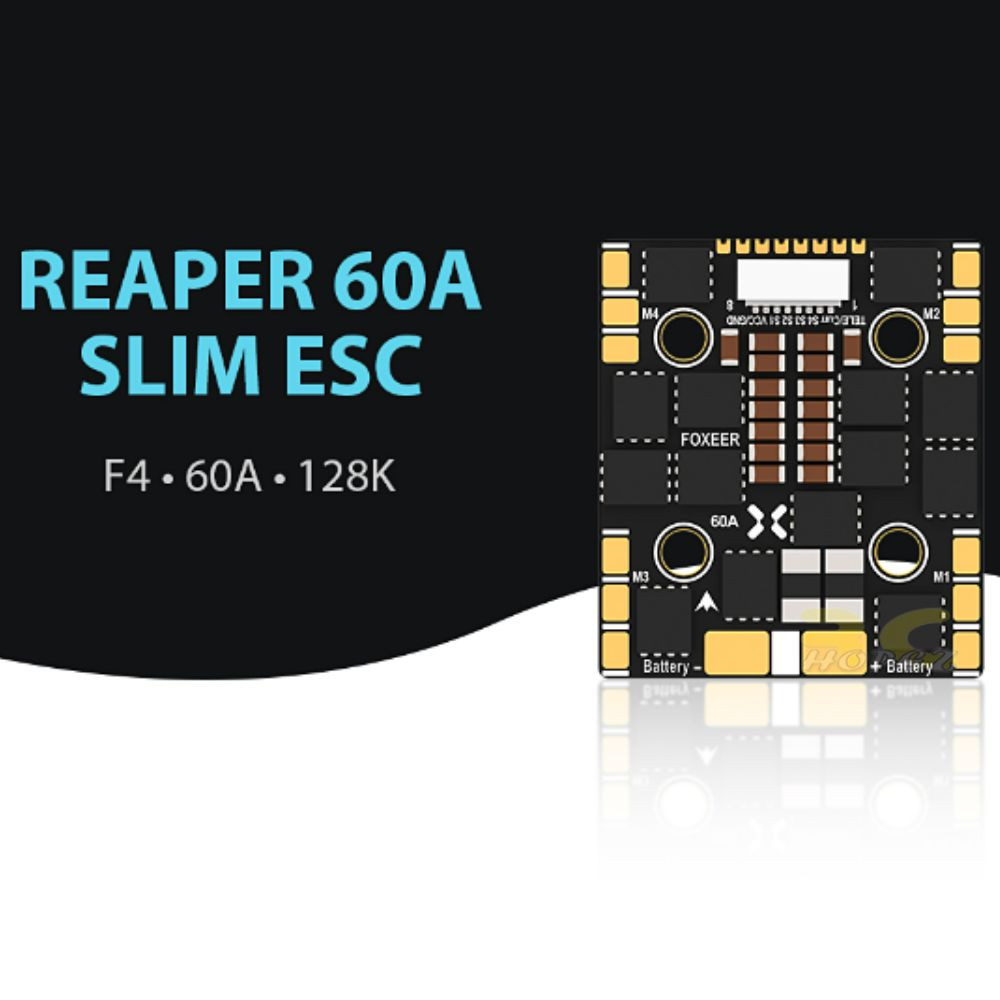

Foxeer Reaper F4 Slim Mini ESC 128K 60A BL32 4in1 3-8S 9~40V 20x20mm MR1682

Foxeer Reaper F4 Slim Mini ESC 128K 60A BL32 4in1 3-8S 9~40V 20x20mm MR1682

Description

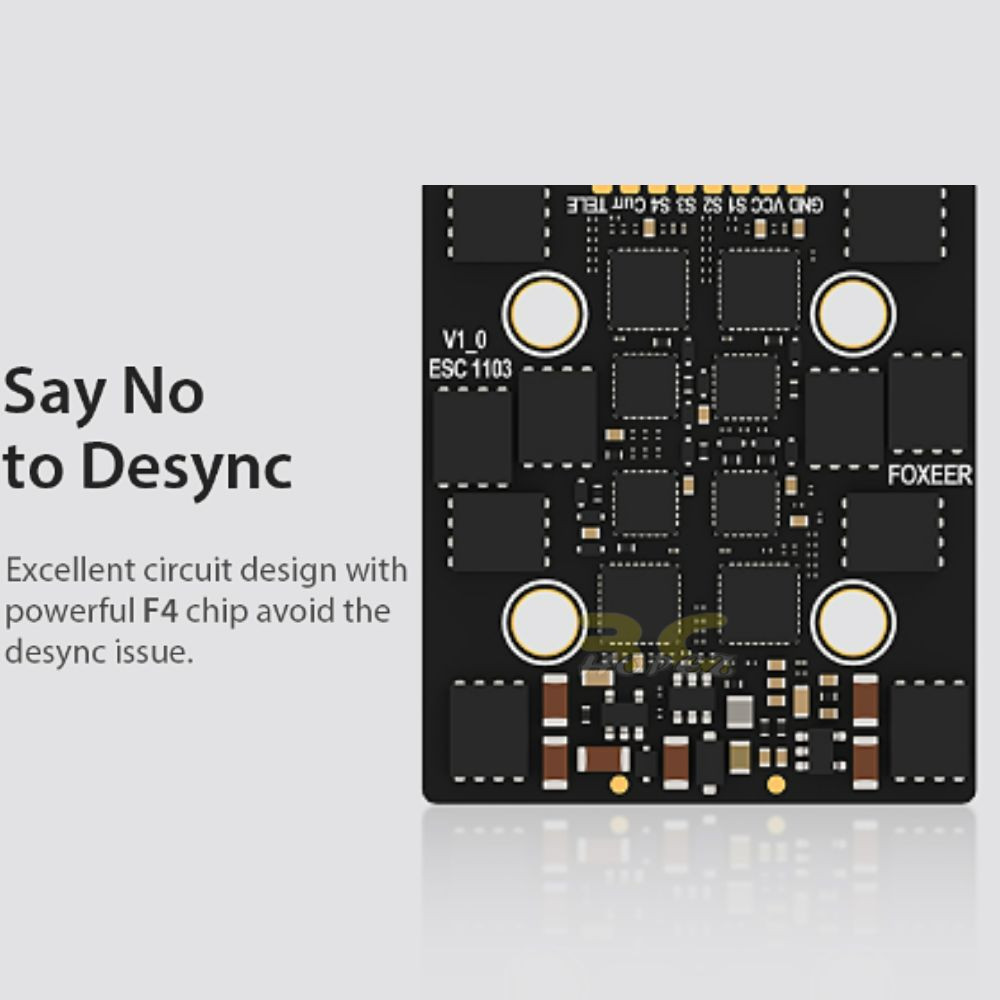

The Reaper F4 128K 60A Slim Mini 4-In-1 ESC from Foxeer is another addition to the popular line of electronics from Foxeer.  With a slimmer profile, it can be better protected in frames as it won't be sticking out as far as the original non-slim Reaper ESCs.  It also has all the features and quality expected of a Foxeer Reaper ESC, including high-quality MOSFETs, F4 chip on-board, wide 9-40V power input, and more!

Specifications

-Firmware : FOXEER_ReaperM4IN1_F4_60A_128_Multi_32_9

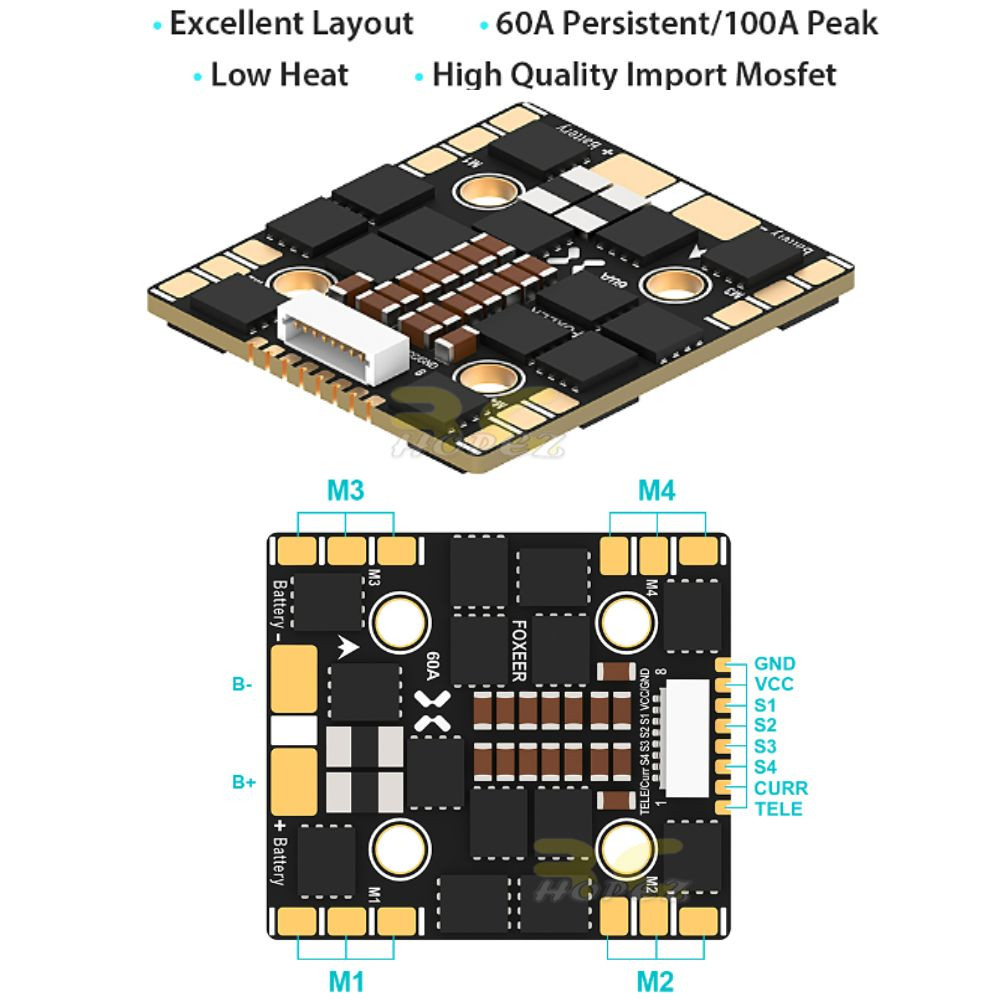

-Continuous /Burst Current : 60A*4 / 100A*4

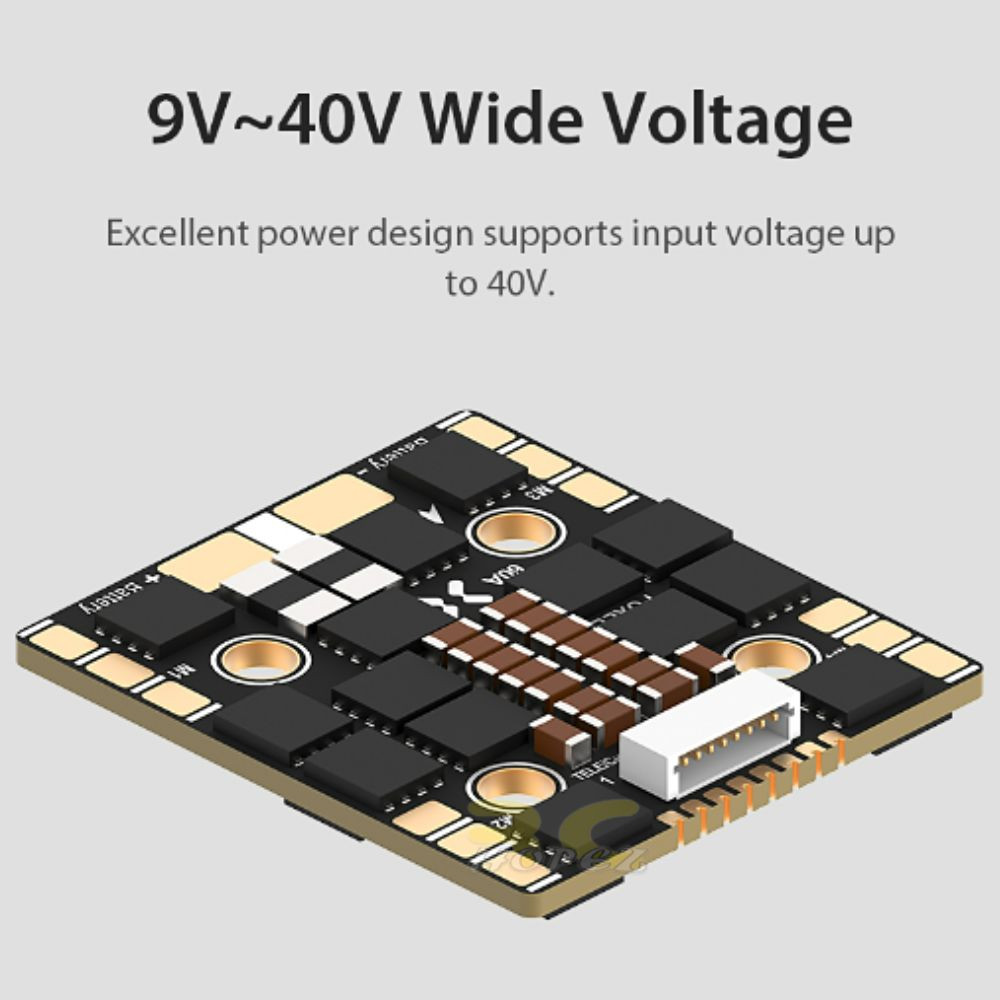

-Input Voltage :    DC 9V~40V (3-8S Lipo)
-BEC : No
-Telemetry : Supported
-ESC Programming : BLHeli32
-Current Scaling : 70
-Input Signal : D Shot 150/ 300/ 600/ 1200 /MultiShot/ One Shot etc.
-Working Temperature     : -20℃ ~ +55℃
-Working Humidity : 20～95%
-Storage Temperature : -20℃ ~ +70℃

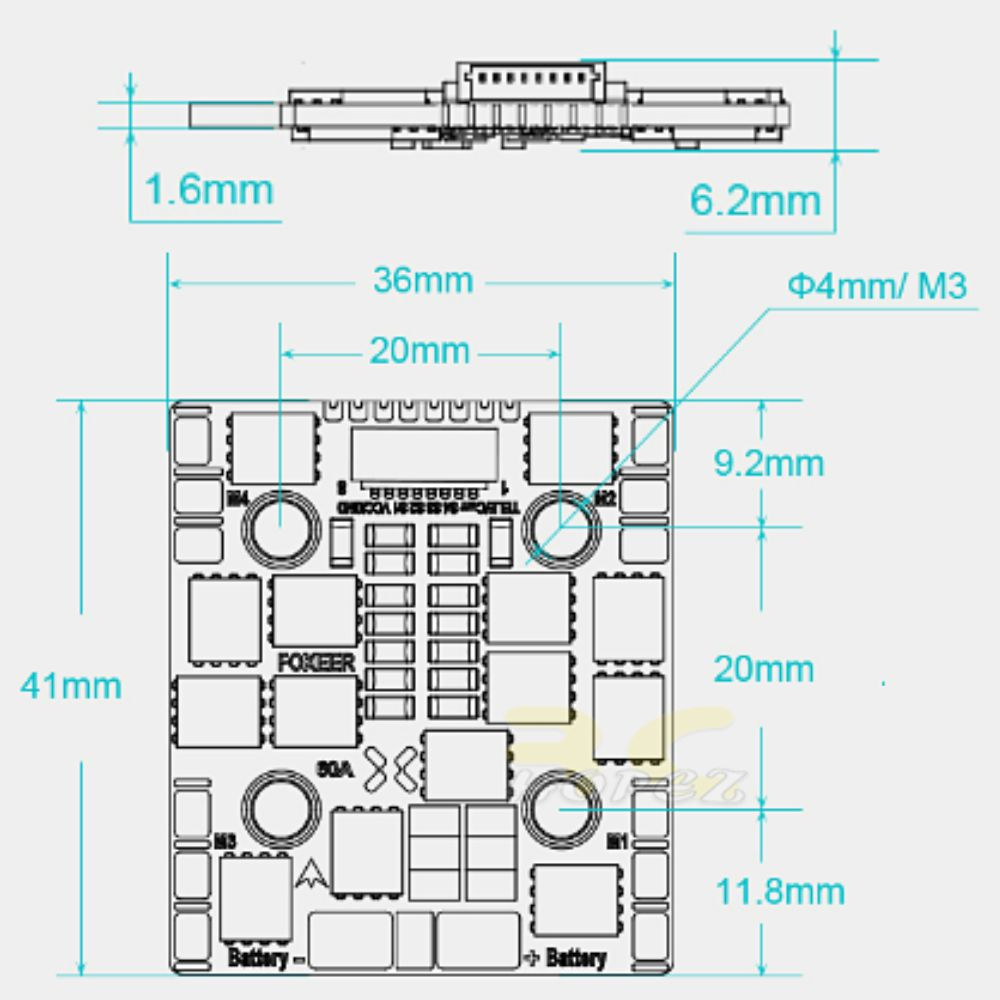

-Mounting Hole : 20×20mm, Φ4mm/ M3
-Dimension    : 36*41mm
-Weight : 13g

Includes :
1x Foxeer Reaper F4 Slim Mini 128K 32 Bit 60A 3-8S 20×20 4in1 ESC
1 x AMASS XT60 Pigtail
1 x 560uf 35V Capacitor
8 x Grommet
1 x ESC to FC Cable
