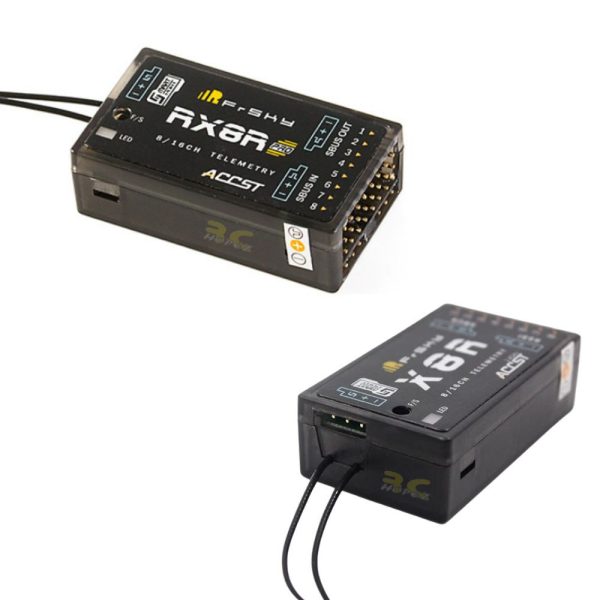

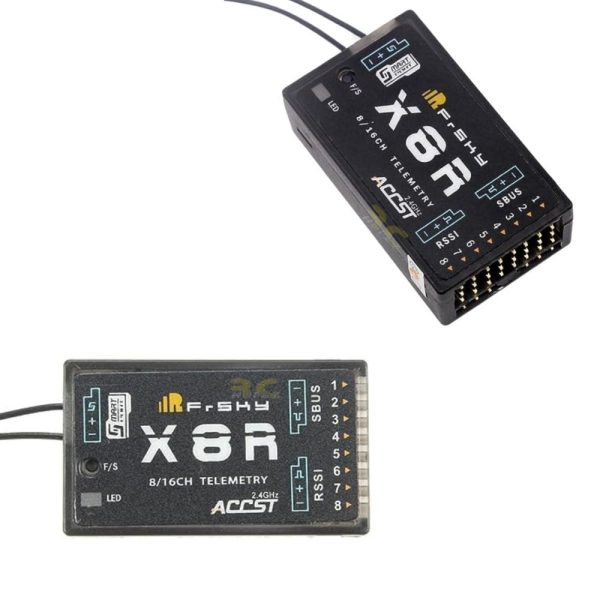

Frsky X8R 8/16Ch S.BUS ACCST 2.4GHZ Telemetry Receiver W/Smart Port GZ-X8R

Frsky X8R 8/16Ch S.BUS ACCST 2.4GHZ Telemetry Receiver W/Smart Port GZ-X8R

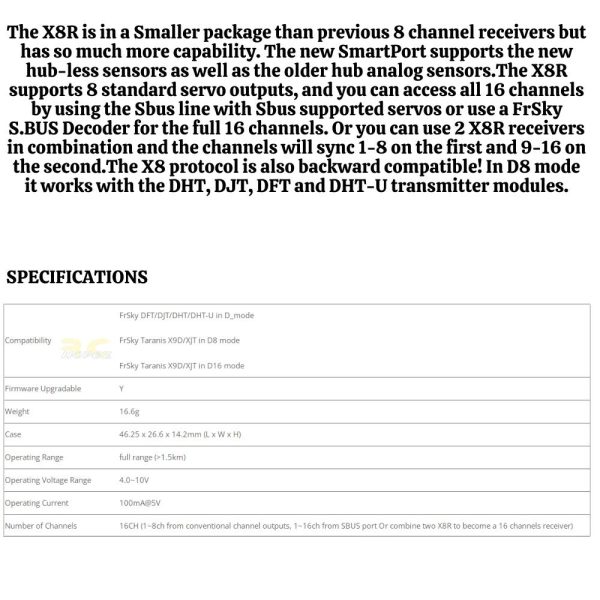

The X8R is in a Smaller package then previous 8 channel receivers, but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The X8 protocol is also backward compatible! In D8 mode it work with the DHT, DJT, DFT and DHT-U transmitter modules.

Specifications:
Number of Channels: 16CH

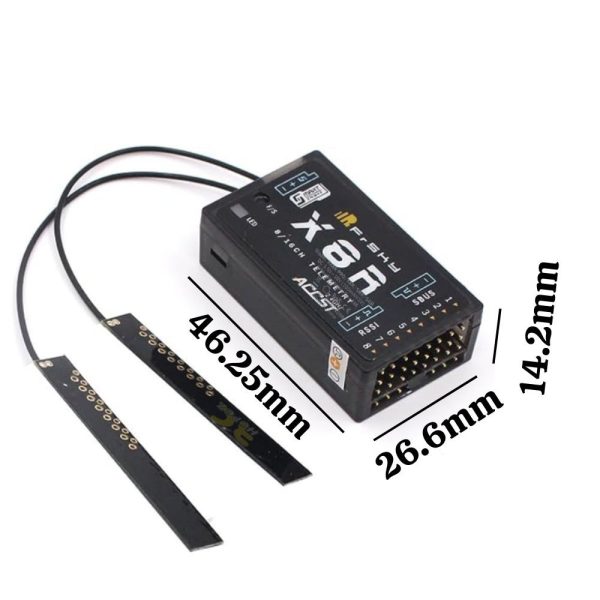

Dimension: 46.25mm x 26.6mm x 14.2mm  (L x W x H)
Weight: 16.8g
Operating VoltageRange: 4.0V-10.0V
Operating Current: 100mA@5V
Operating Range: >1.5km (Full Range)
RSSI output: analog voltage output (0~3.3V)
compatibility: Ruisky DFT/ DJT/ DHT/ DHT-U
                         Risesky X9D/XJT D8 mode
                         Risesky X9D/XJTD16 mode
Firmware Upgradable: Y

Features:
-More number of channels: 1~8ch from conventional channel outputs, -1~16ch from SBUS port, or combine two X8R to become a 16 channels receiver.
-Parallel two X8R to become a 16 channel receiver.
-With RSSI PWM output (0~3.3V)
-SmartPort enabled, realizing two-way full duplex transmission.

Compatibility:
-All 16 channels require the Taranis, or the XJT module.
-For 8 channels in D8 Mode you can use the Taranis or XJT, DJT, DFT, DHT and DHT-U modules.

How to work:
The X8R receiver communicates and binds with an X8 module via the 2.4ghz spectrum, giving the user unprecedented performance and glitch free reliability never seen before in R/C FM/AM based systems.

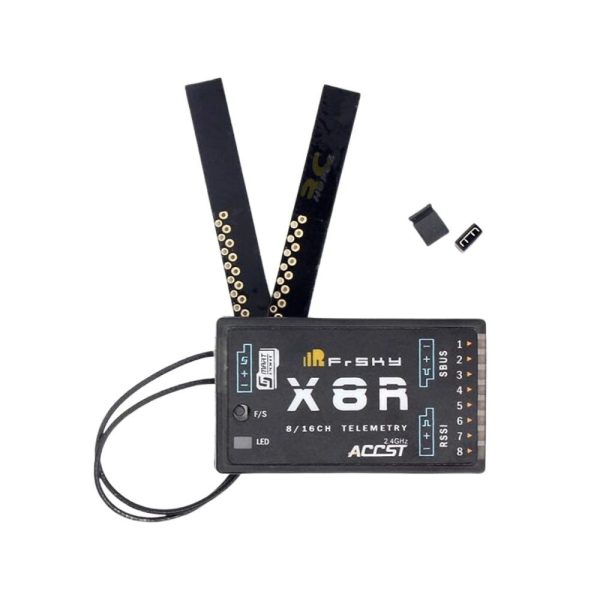

Package Included:
1 x Frsky X8R 8/16Ch S.BUS ACCST 2.4GHZ Telemetry Receiver
2 x Short Tool
1 x Manual
