GEPRC GEP-M8U GPS Module GLONASS BDS Support GEP-M8U

GEPRC GEP-M8U GPS Module GLONASS BDS Support GEP-M8U

Summary
Hello FPV fans, GEPRC team has developed a GPS module to upgrade the user experience.

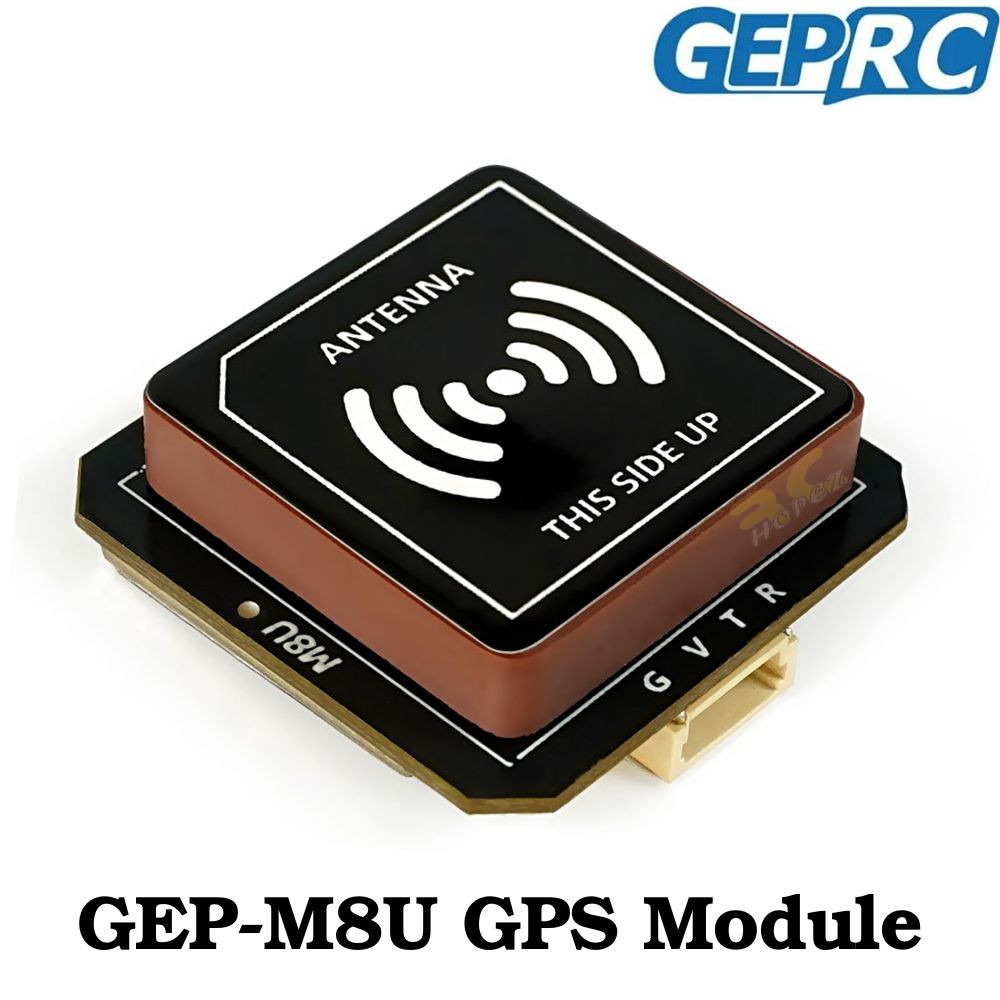

GEP-M8U GPS module features as small size, light weight, fast positioning and stable connection. Suitable for FPV, fixed-wing and other products.

Specifications

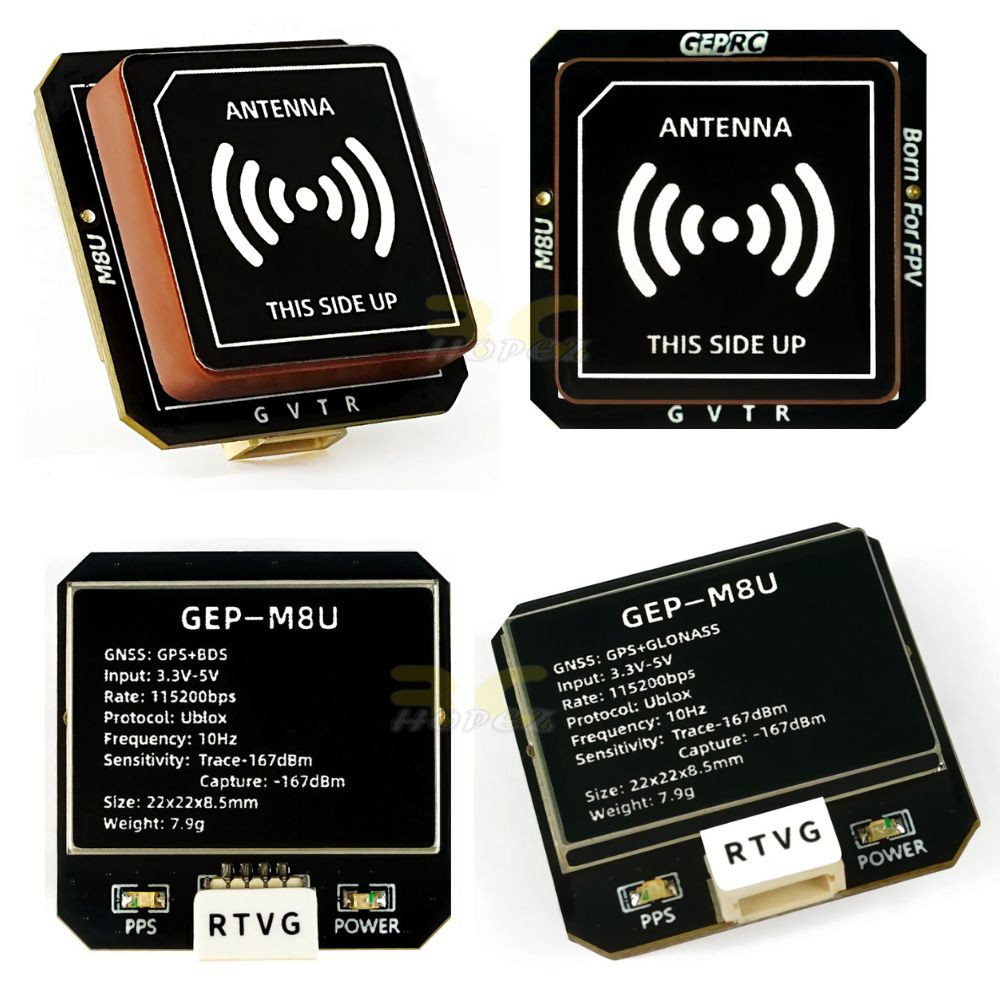

Model: GEP-M8U GPS module
Input Voltage: 3.3V-5V
Receiving Format: GPS, GLONASS, BDS(Choose GLONASS or BDS)
Channel: 72ch
Compass: None
Baud Rate: 115200bps

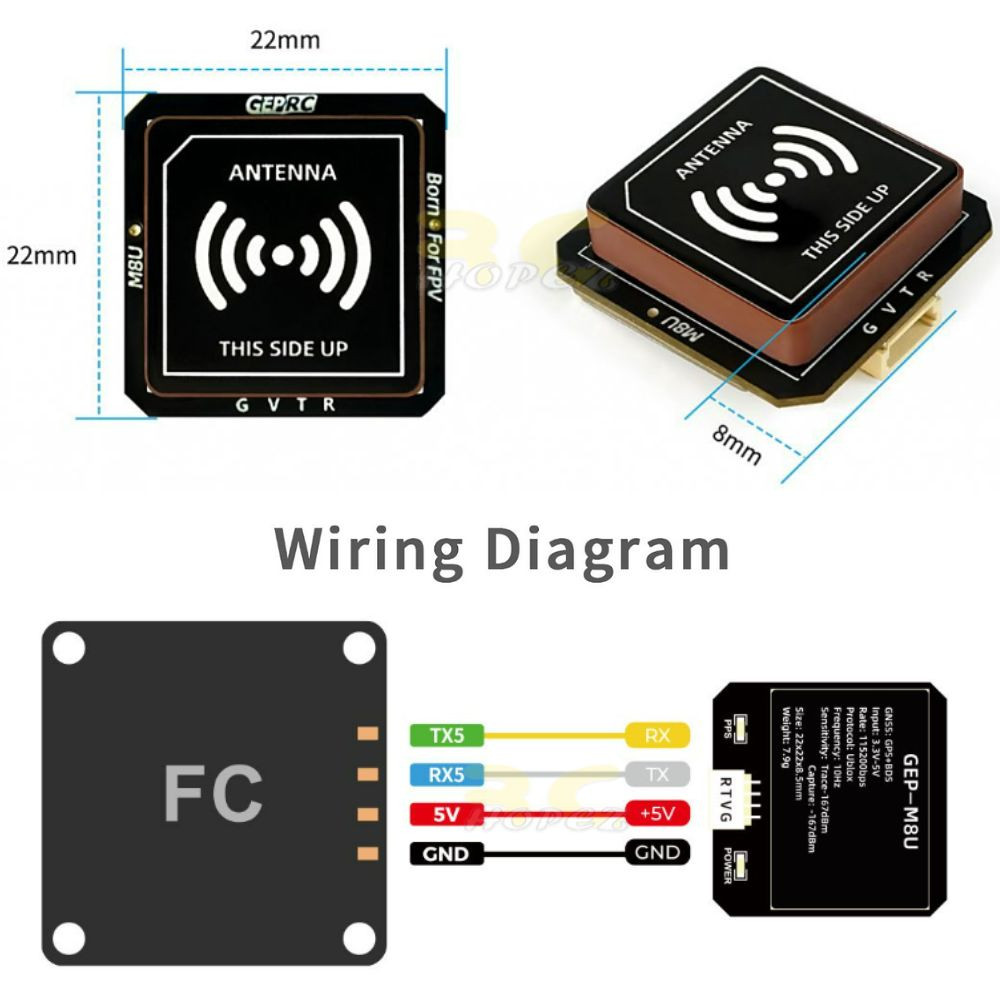

Output Connector: SH1.0-4P
Communication Protocol: UART
Output Protocol: UBLOX
Output Frequency: 10Hz
Speed Accuracy: 0.05 m / s
Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
Timing Accuracy: 30 ns
Receiving Sensitivity: Trace -162dBm, Capture-160dBm
Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
Max Acceleration: 4G

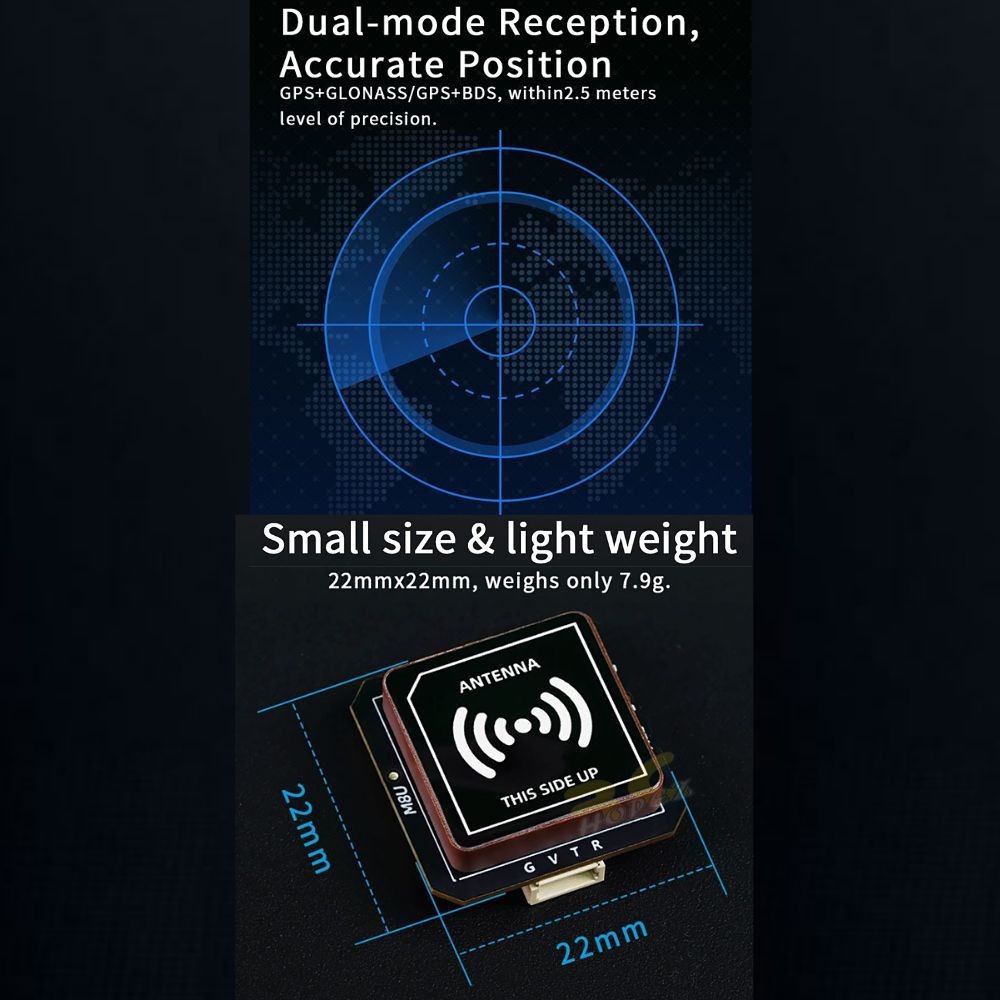

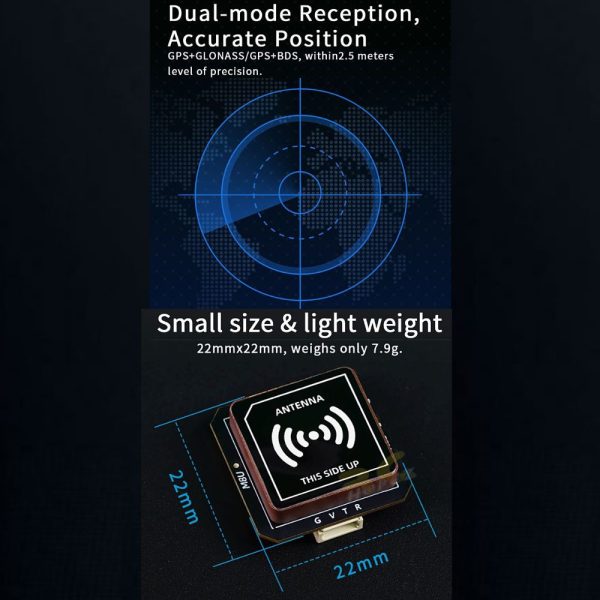

Size: 22mm x 22mm x 8mm
Weight: 7.9g

Feature

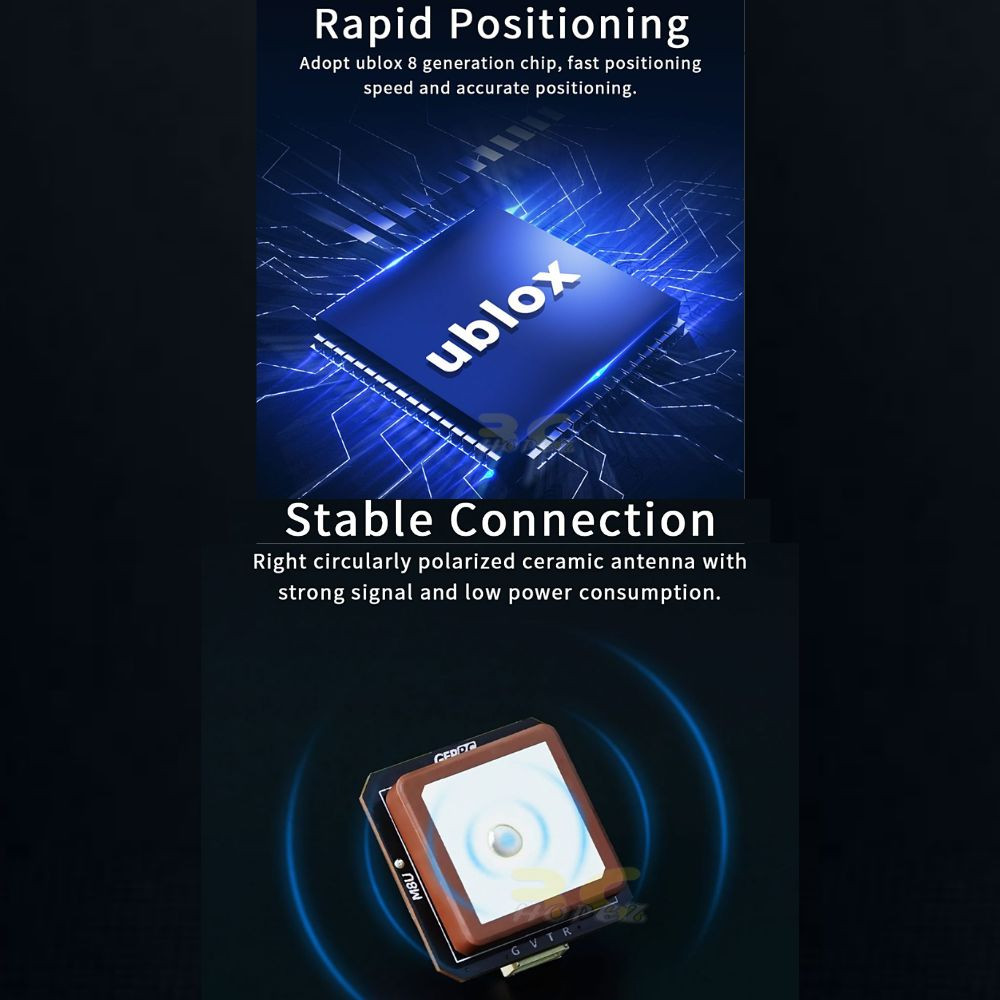

1. Fast positioning speed

2. Stable connection

3. Unique appearance design

4. Small size and light weight

5. SH1.0-4Pin terminal design, no soldering required.

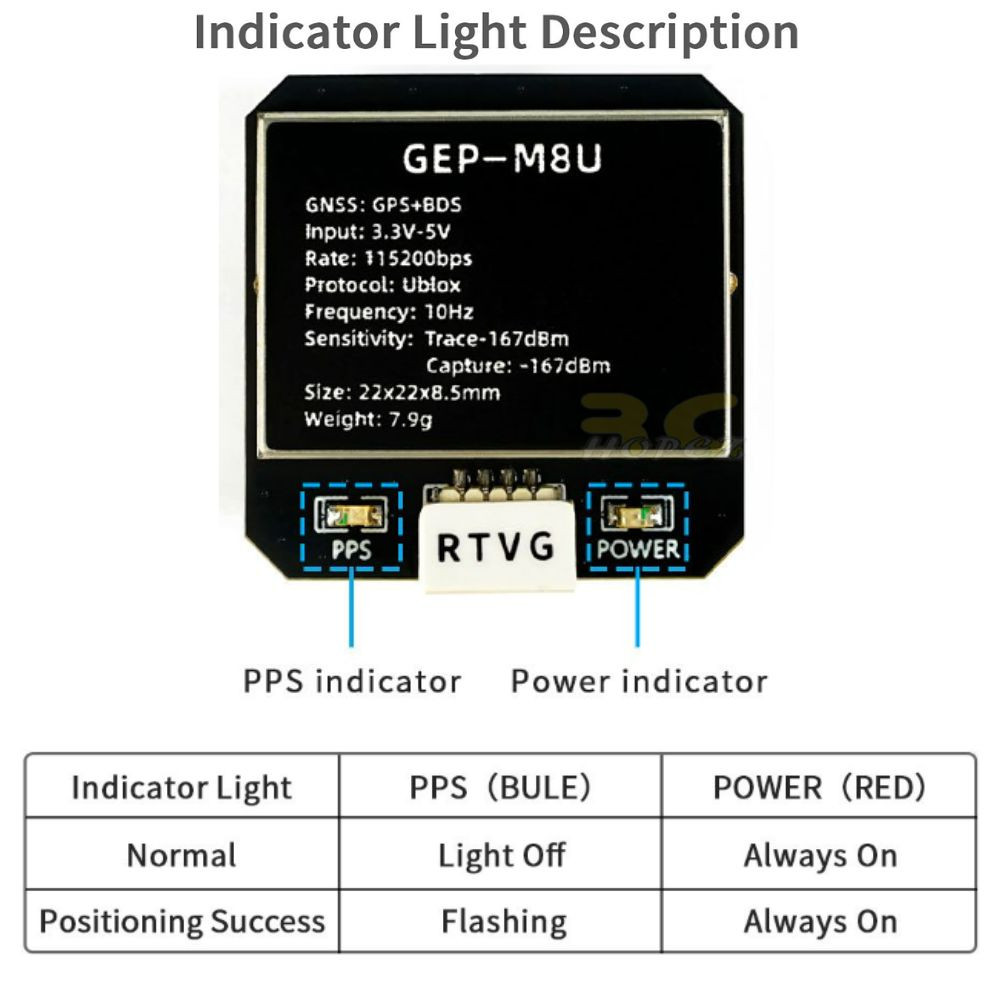

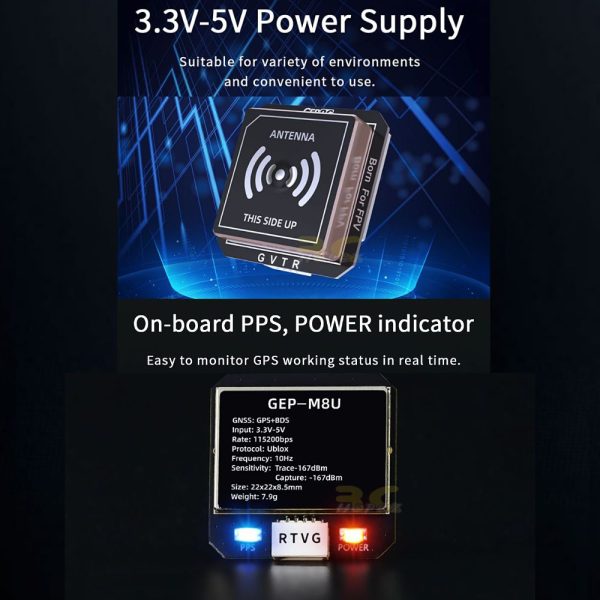

6. On-board PPS positioning and power indicator, easy to use.

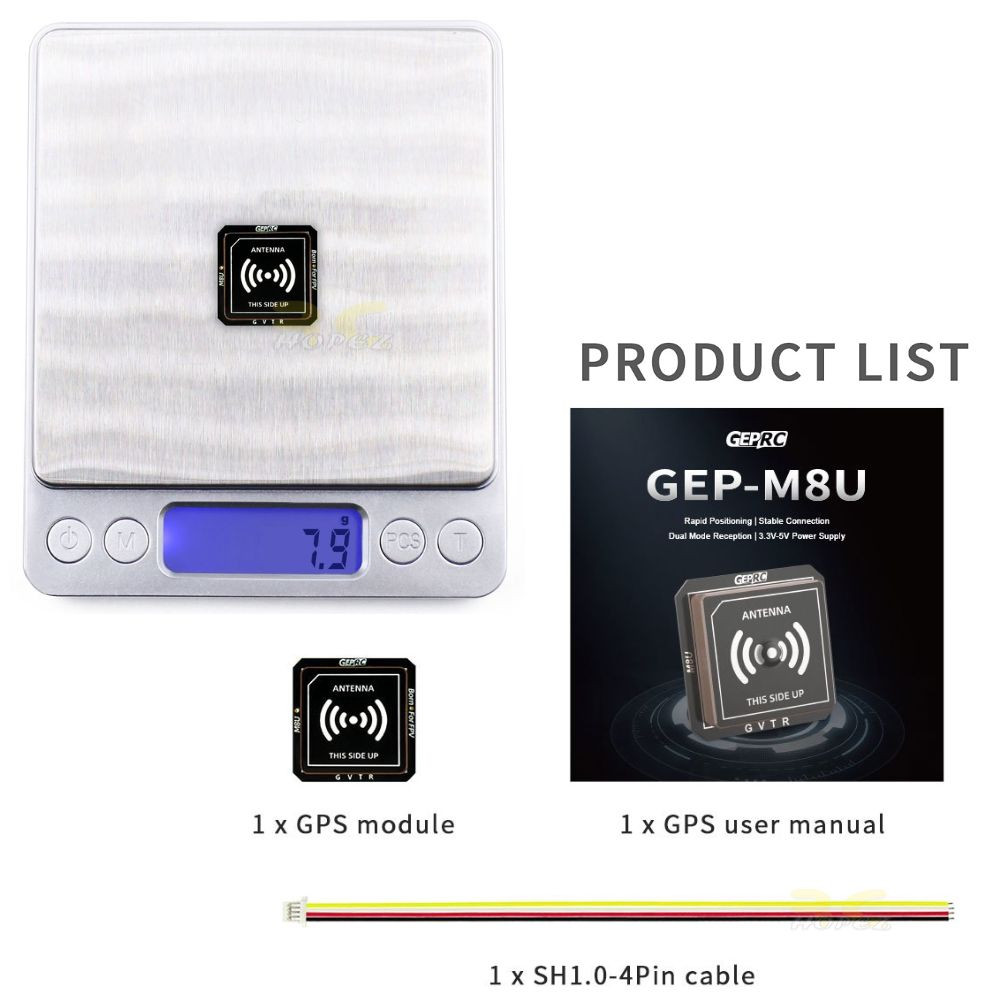

Includes
1 x GEP-M8U GPS module
1 x SH1.0-4Pin terminal cable
1 x GPS user manual
