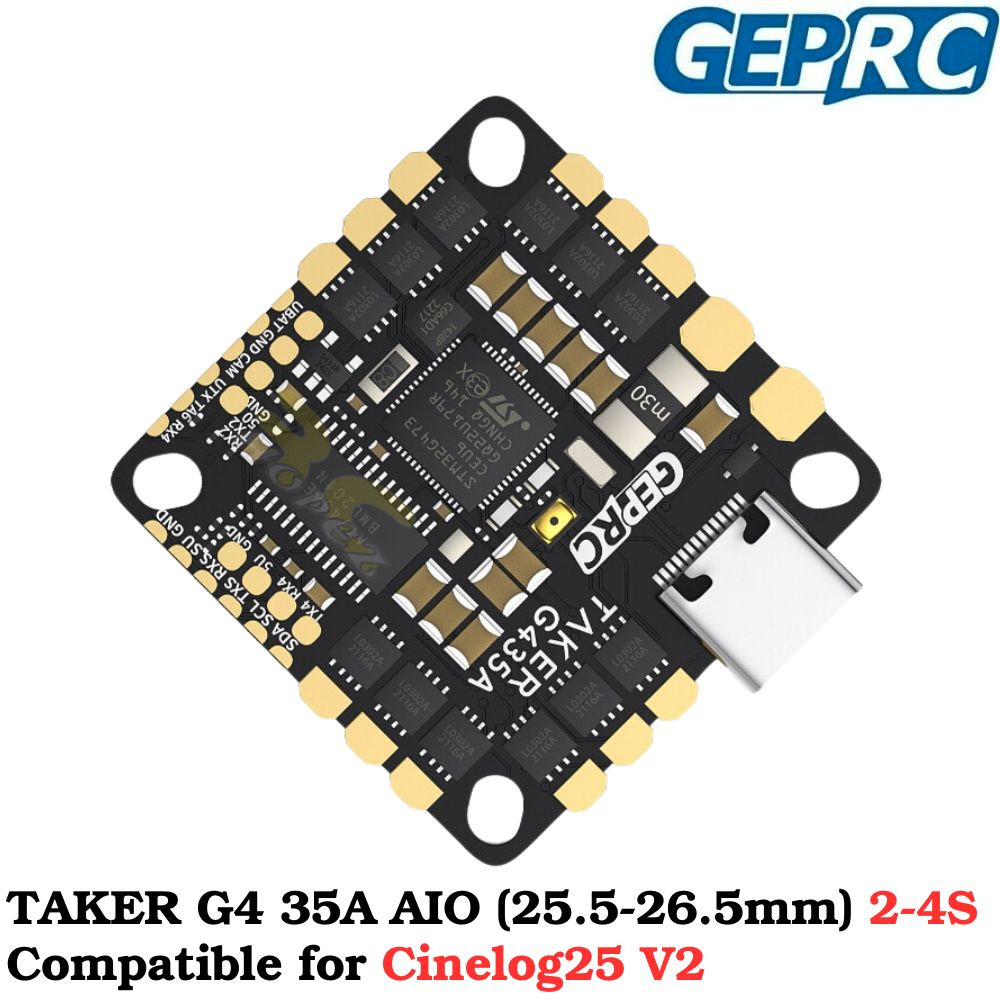

GEPRC TAKER G4 35A AIO 2-4S G4 FC 35A 4in1 ESC 25.5-26.5mm for Cinelog25 V2 FPV Racing Drone GEP-G4-35

RM269.00

2 in stock

SKU: GEP-G4-35 Categories: ,

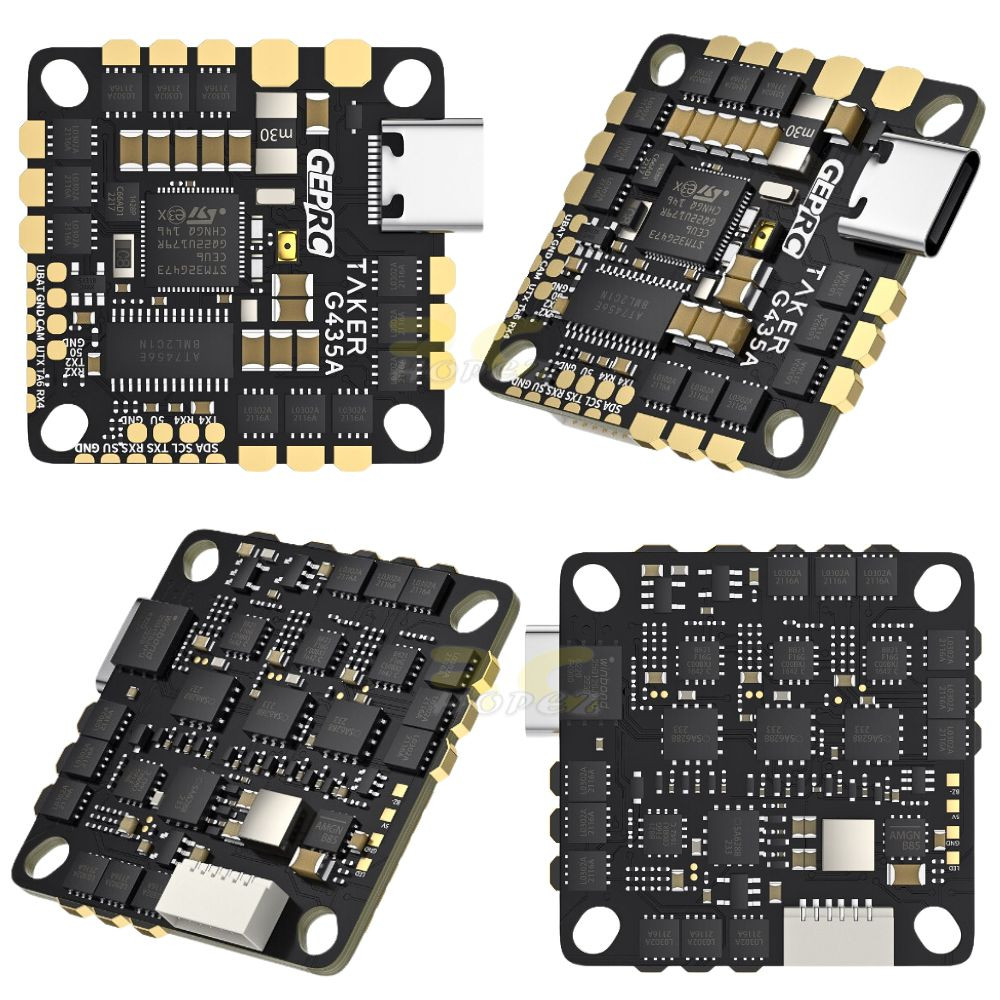

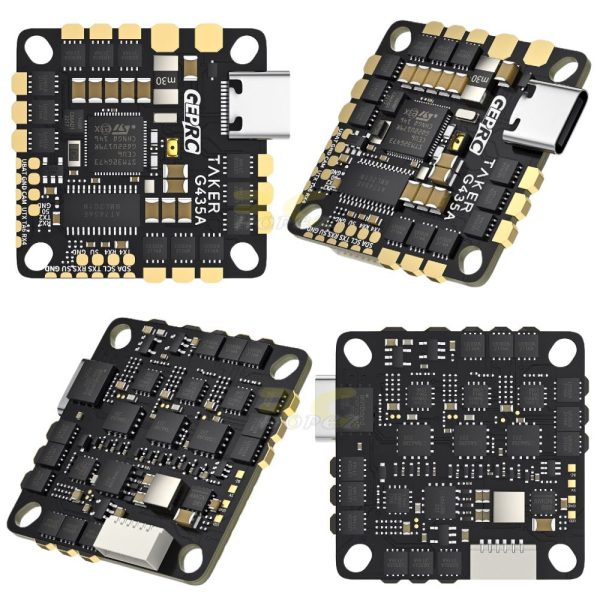

GEPRC TAKER G4 35A AIO 2-4S G4 FC 35A 4in1 ESC 25.5-26.5mm for Cinelog25 V2 FPV Racing Drone GEP-G4-35

Summary
TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.

In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.

We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.

Feature
1. Compact size and compatible mounting holes make installation convenient.

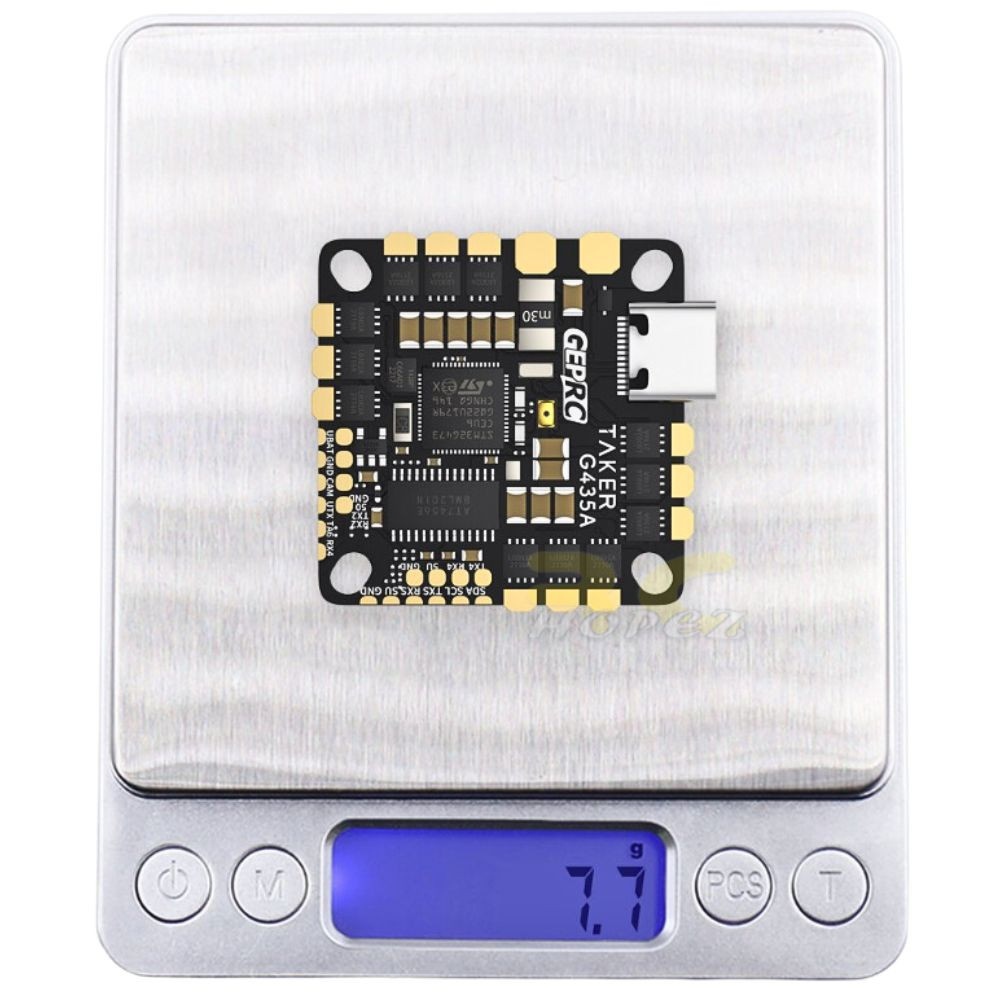

2. Light weight only 7.7g.
3.G473 main control, 170MHz operating frequency, abundant computing power.
4. Upgraded Type-c USB for better versatility.

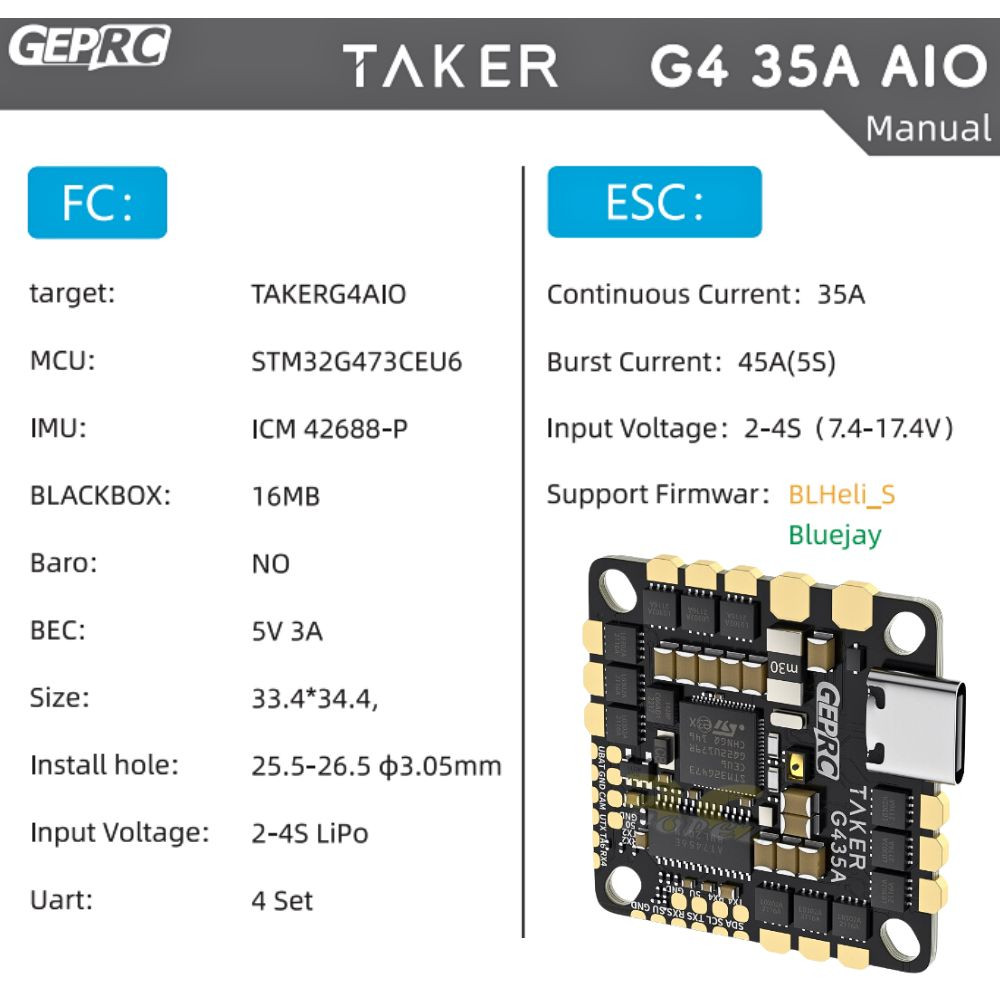

Specifications
Model Name:TAKER G4 35A AIO
MCU:STM32G473CEU6
IMU:ICM 42688-P
Firmware target:TAKERG4AIO
OSD:Betaflight OSD w/ AT7456Ev

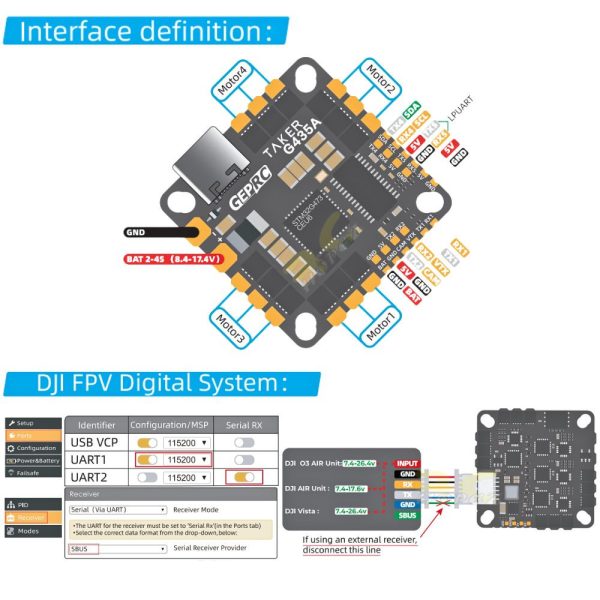

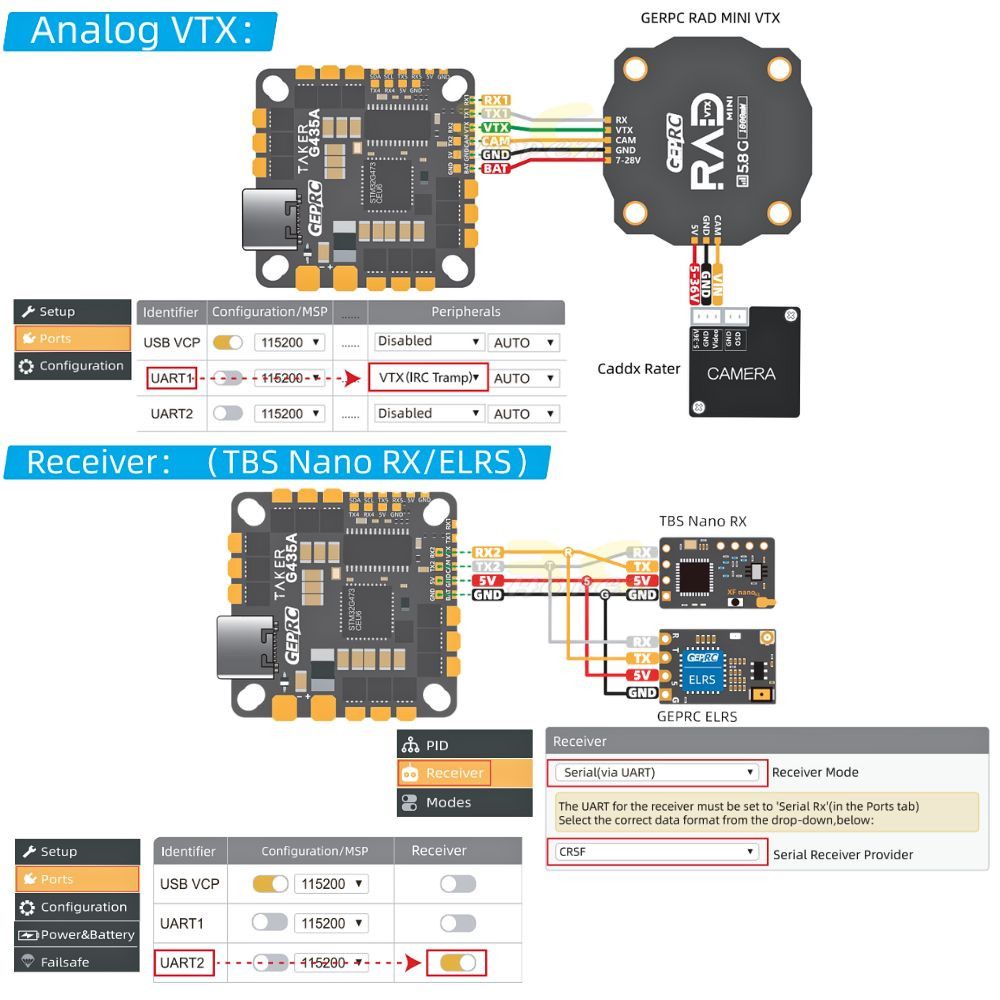

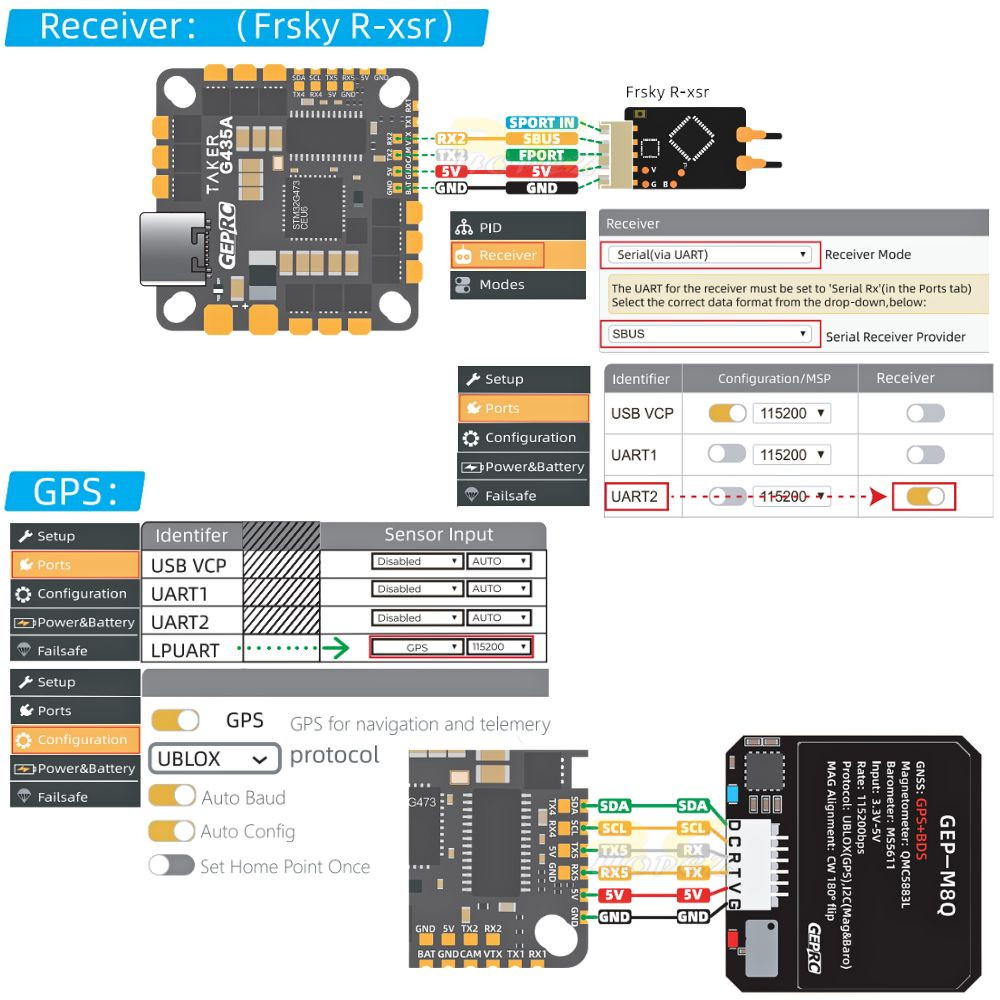

Uart:R1 T1 / R2 T2 / R4 T4 / R5 T5

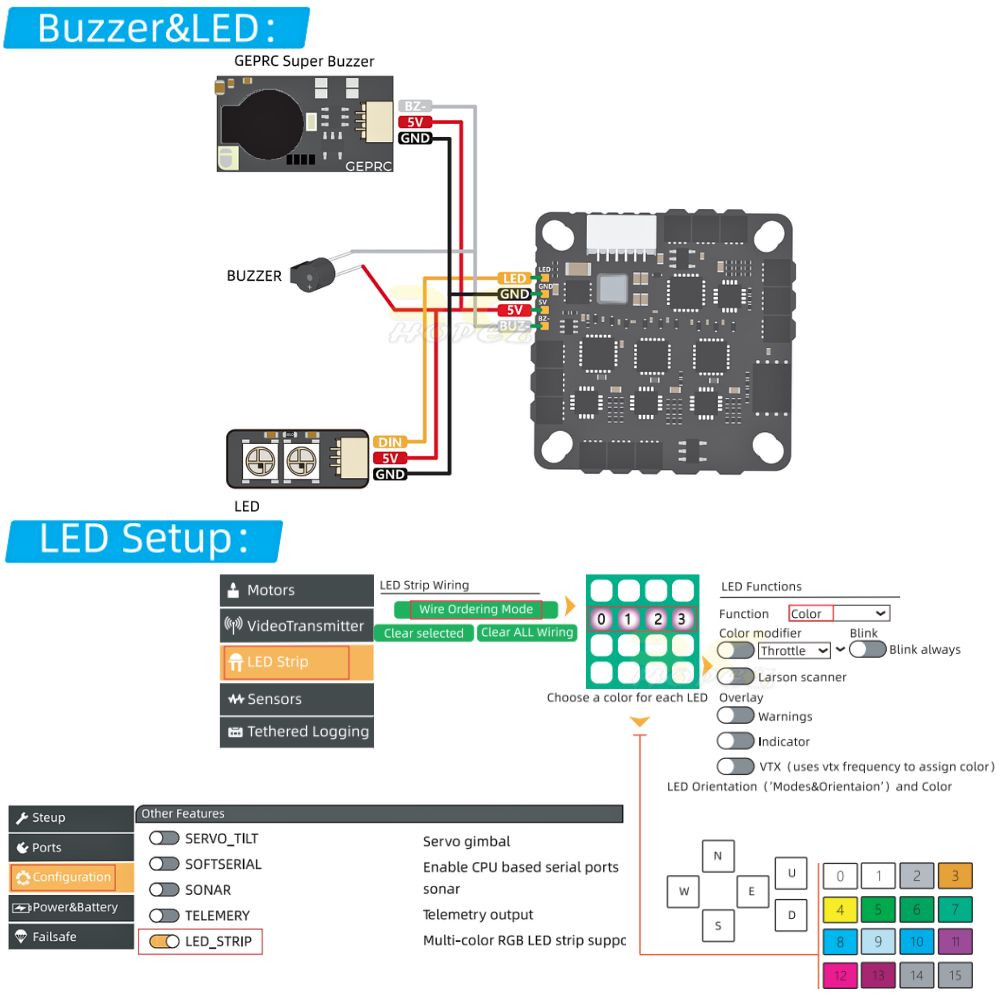

Buzzer:YES
LED :YES
USB :Type-c USB
BEC output:5V@3A
ESC MCU:BB21F16G
Continuous Current:35A
Burst Current:45A(5″)
lnput Voltage:2~4S (LIPO Battery)
Supports:Dshot600,Oneshot,Multishot
Current meter:210
target:J -H -15

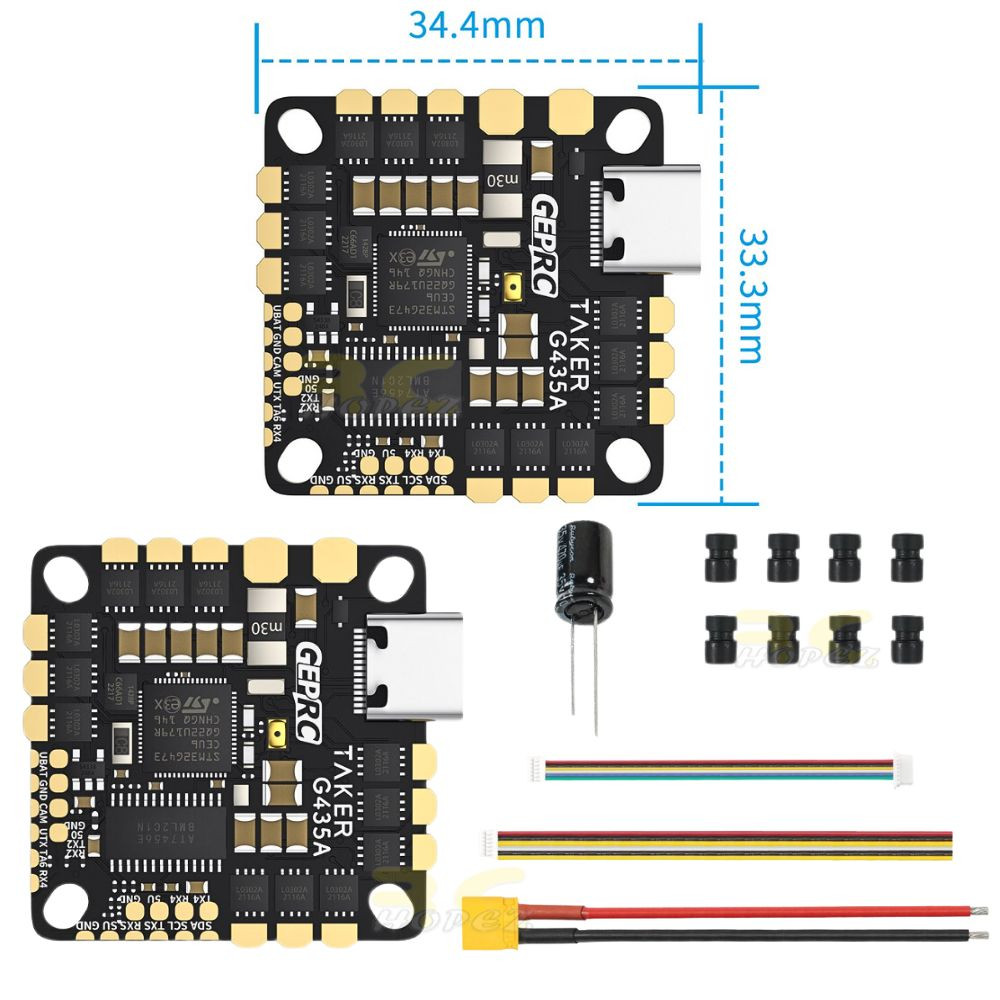

Size:33.4×34.4mm Board
Install hole::25.5-26.5 Φ3.05mm
Weight:7.7g

Packing Include:
1 x GEP-TAKER G4 35A AIO
1 x Cable Set

Weight 0.05 kg
Dimensions 5.00 × 3.00 × 3.00 cm
