Summary
The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Feature

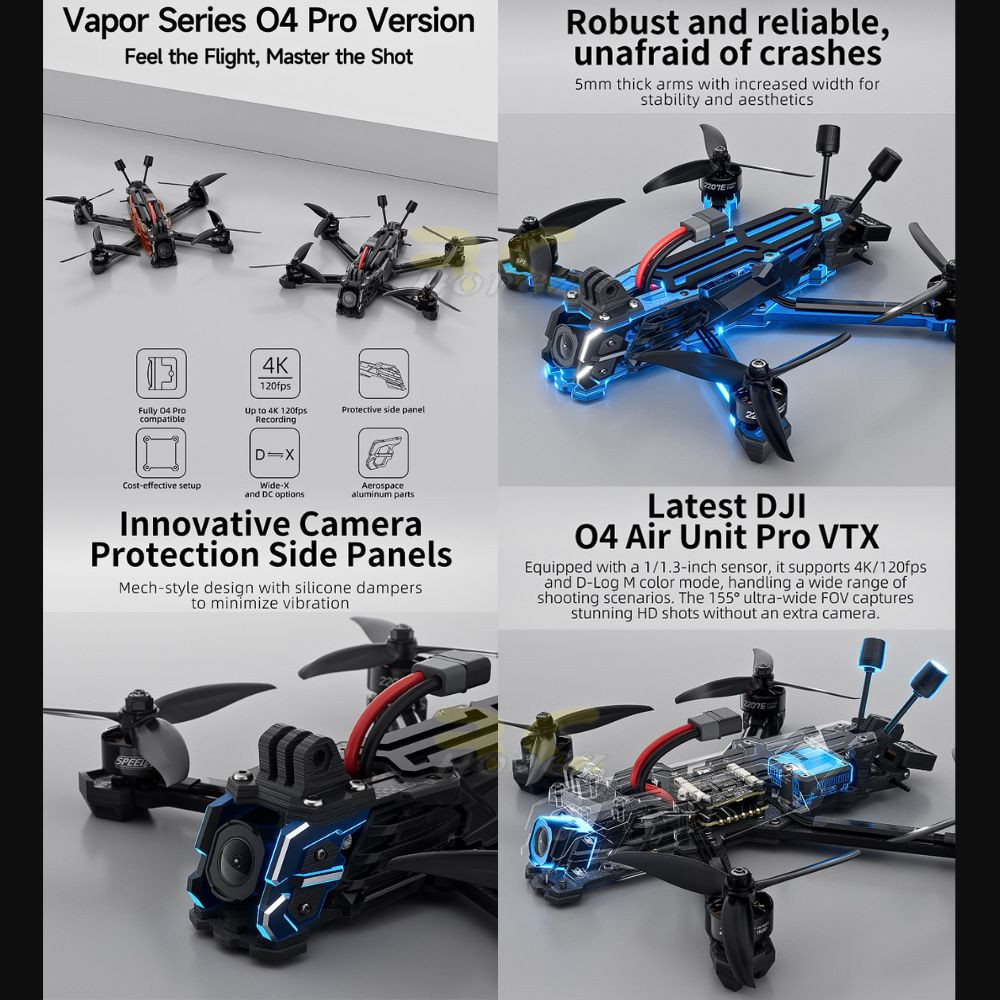

1. DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
2. CNC aluminum lens housing for a durable, bold design.
3. GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
4. Front lip design provides extra lens protection for confident flying.
5. Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specifications
Model: Vapor-D5 O4 Pro
Frame: GEP-Vapor-D5 O4 Pro frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: YES
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: DJI O4 Air Unit Pro
Camera: O4  Pro Camera
Antenna: O4  Pro original antenna
Connector: XT60
Optional GPS: GEP-M10 GPS
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: Gemfan Vannystyle 5136 3-Blade Propeller
Vapor-D5 O4 Pro PNP  Version Weight: 428 g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX

Recommend battery (NOT Included) :
6S LiPo1300mAh – 1800mAh
Flight Time: 14-19 min (The reference time is based on low-speed flight. The actual time depends on individuals)

*Recommend (NOT Included) :
GEPRC 6S 1300mAh 120C 22.2V LiPo Battery With XT60 Plug

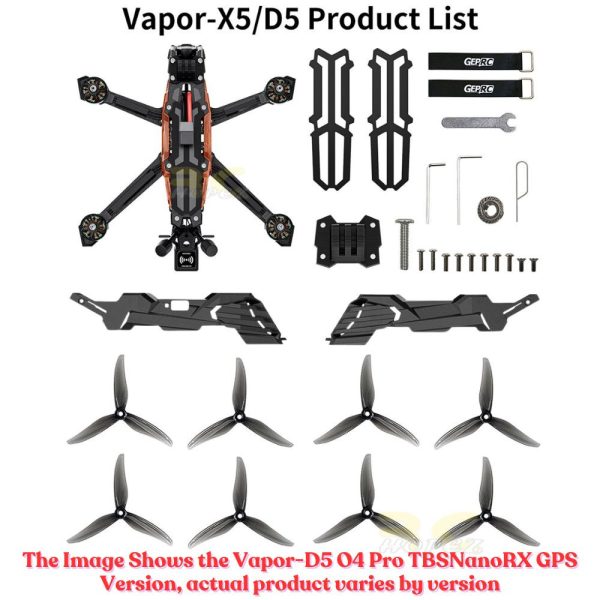

Included
1 x Vapor-D5 O4 Pro
4 x Gemfan Vannystyle 5136 3-Blade Propeller (Pairs)
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount

The Spare Screws Include
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
