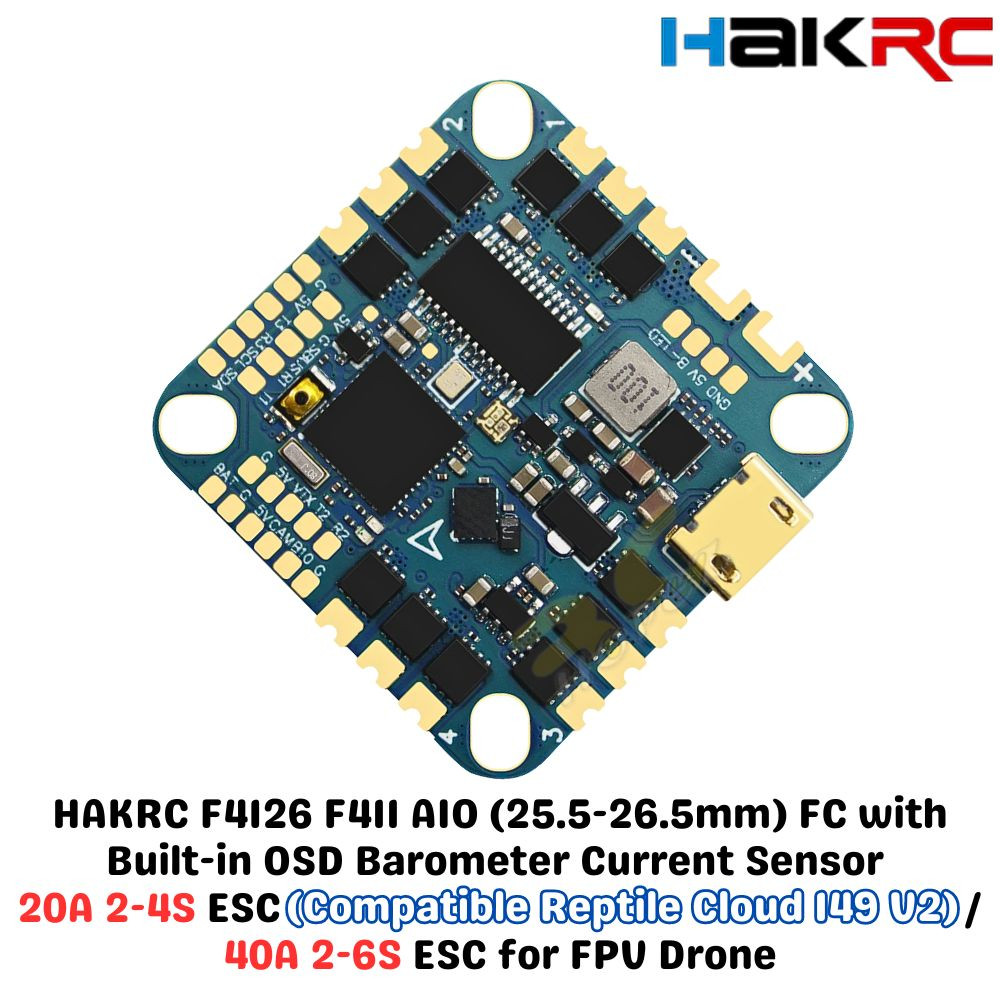

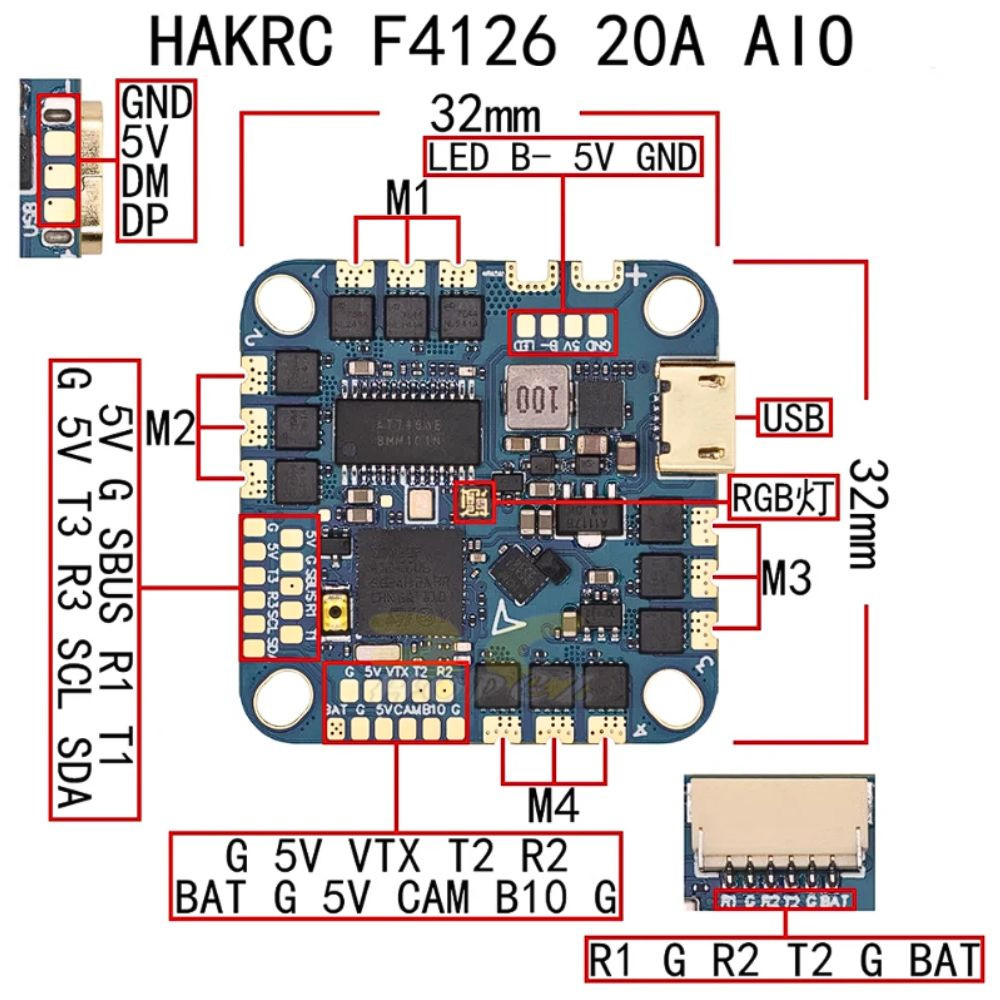

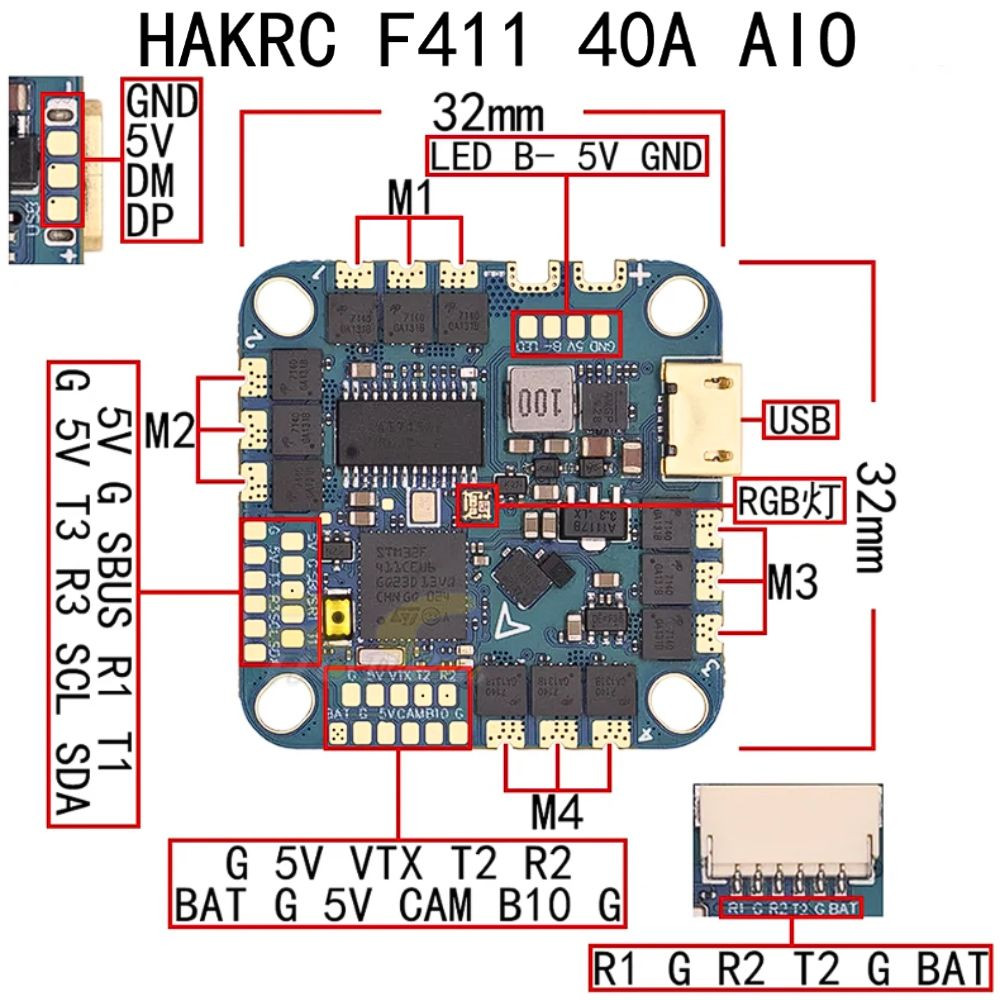

HAKRC F4126 F411 AIO 25.5-26.5mm OSD Barometer Current Sensor 20A 2-4S for Reptile Cloud 149 V2/40A 2-6S for FPV Drone
Feature:
1. The PCB uses high-end 8 layers of 2oZ thick copper, which has stronger over current capability and good heat dissipation.
2. MOS adopts imported 30V high current resistance MOS, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance.
4. Using high-quality Japanese Murata capacitors, strong filtering performance.
Specifications:
Brand: HAKRC
Item Name: HAKRC F411 20A / 40A AIO

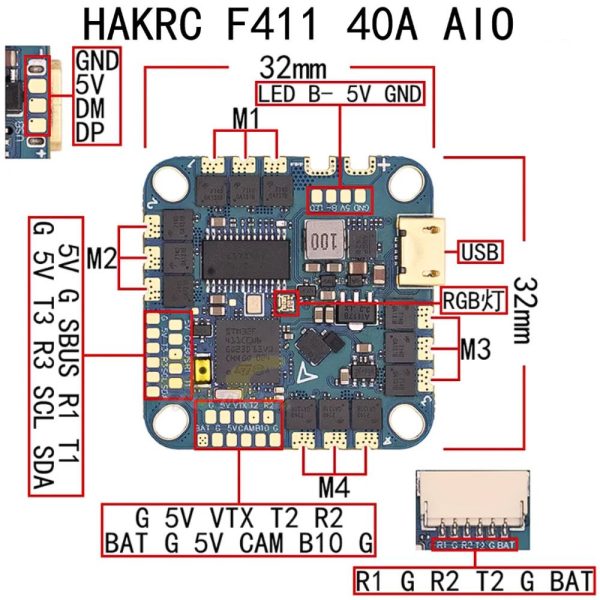

Mounting Hole: 25.5*25.5mm/26.5*26.5mm
Product net weight: 8.5g
Package weight: 50g
Size: 31*31mm
Flight Controller:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer: SPL06

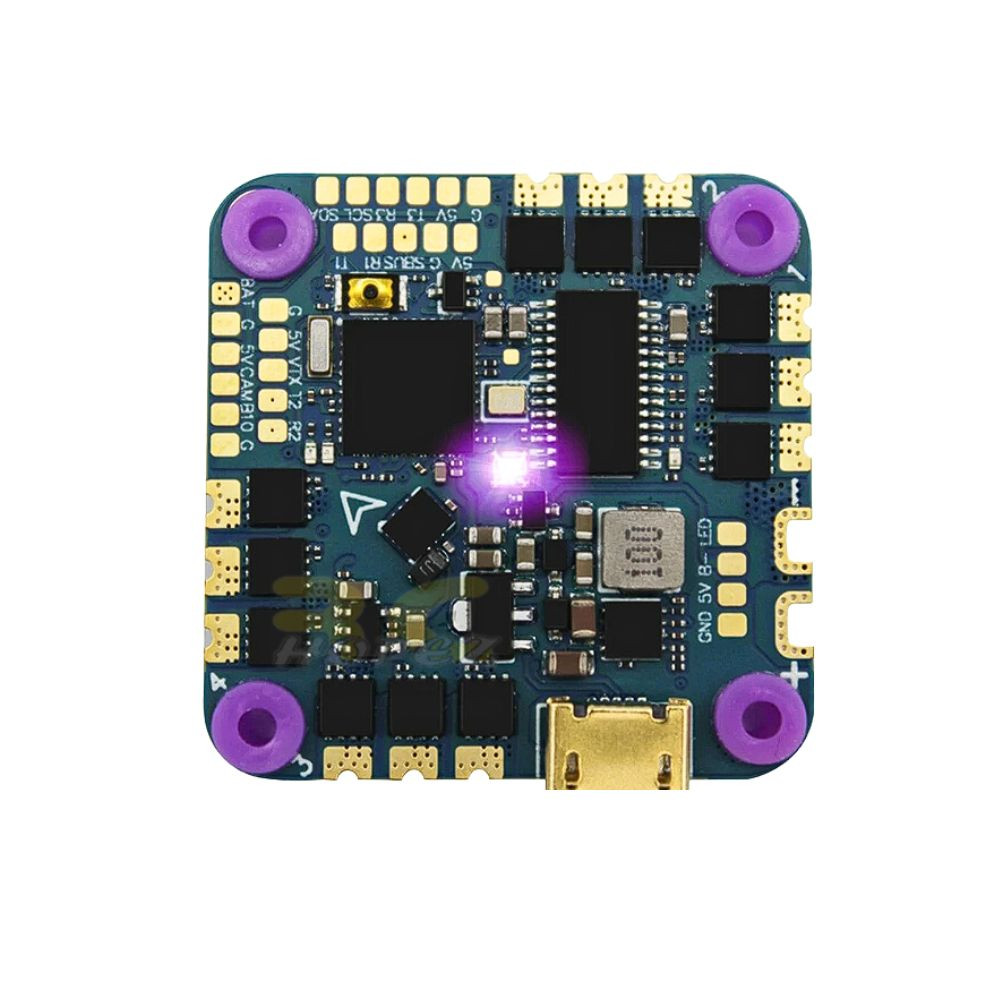

LED: Suppotr programmabled such as WS2812
Current meter: Yes
Firmware: HAKRC F411D
Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2/ELRS 2.4G
ESC 20A:
Firmware: BLHELI_ S (G- H-20)
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150,Dshot300,Dshot600
Input: 2S-4S Lipo
Con. Current: 20A
Peak Current: 25A
ESC 40A:
Firmware: BLHELI_ S (G- H-30)
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150,Dshot300,Dshot600
Input: 2S-6S Lipo
Con. Current: 40A
Peak Current: 45A

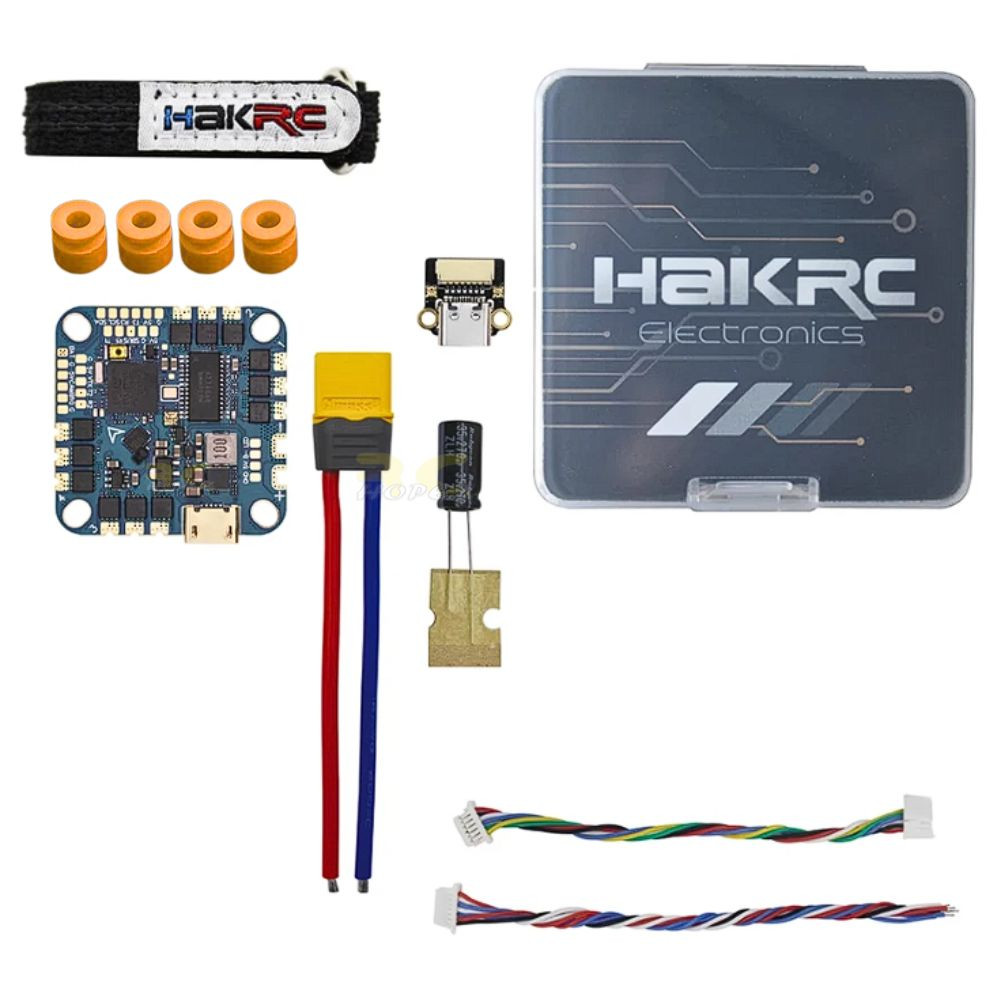

Package Included:

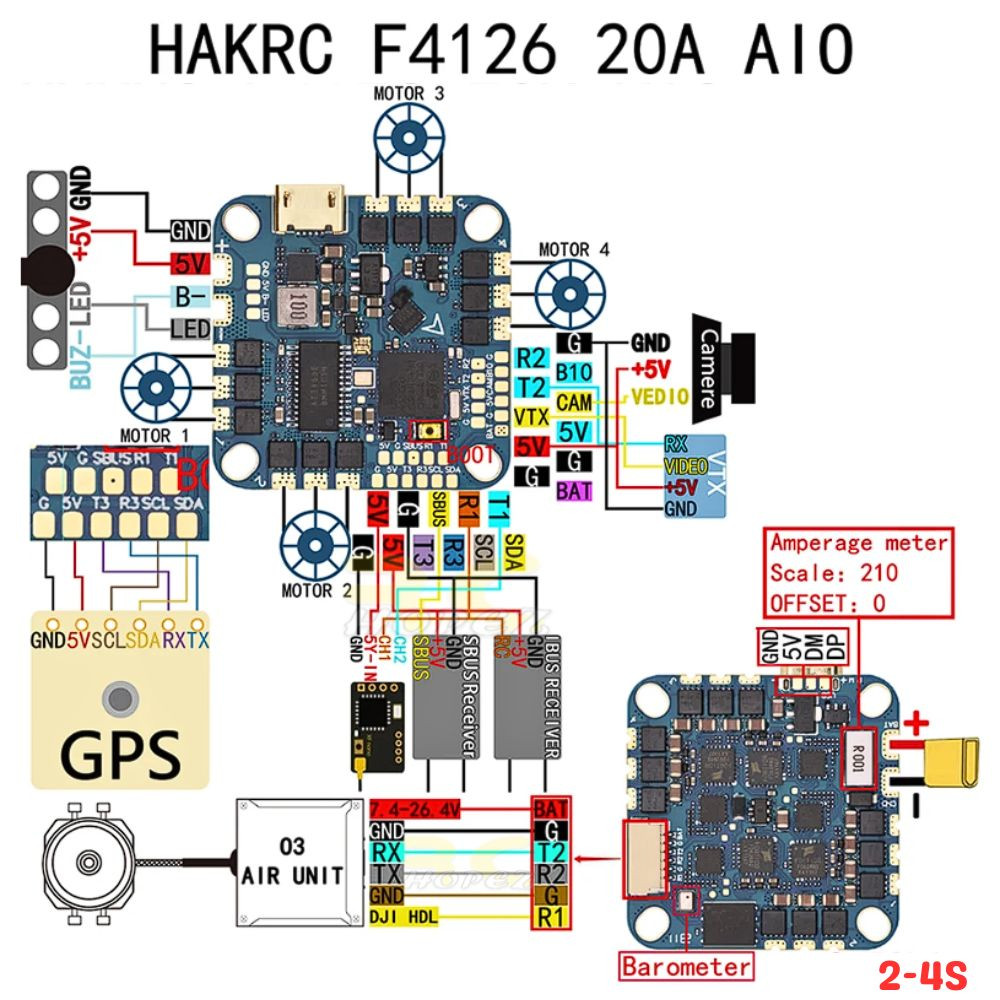

F4126 F411 20A AIO
4x M2 Shock absorber
1x XT30 power cord
1x Small bandage
1x Type-C USB
1x USB cable
1x 270uf/35V capacitor
1x DJI FPV Cable
1x DJI O3 Air Unit 3-in-1 Cable
1x Instructions
OR

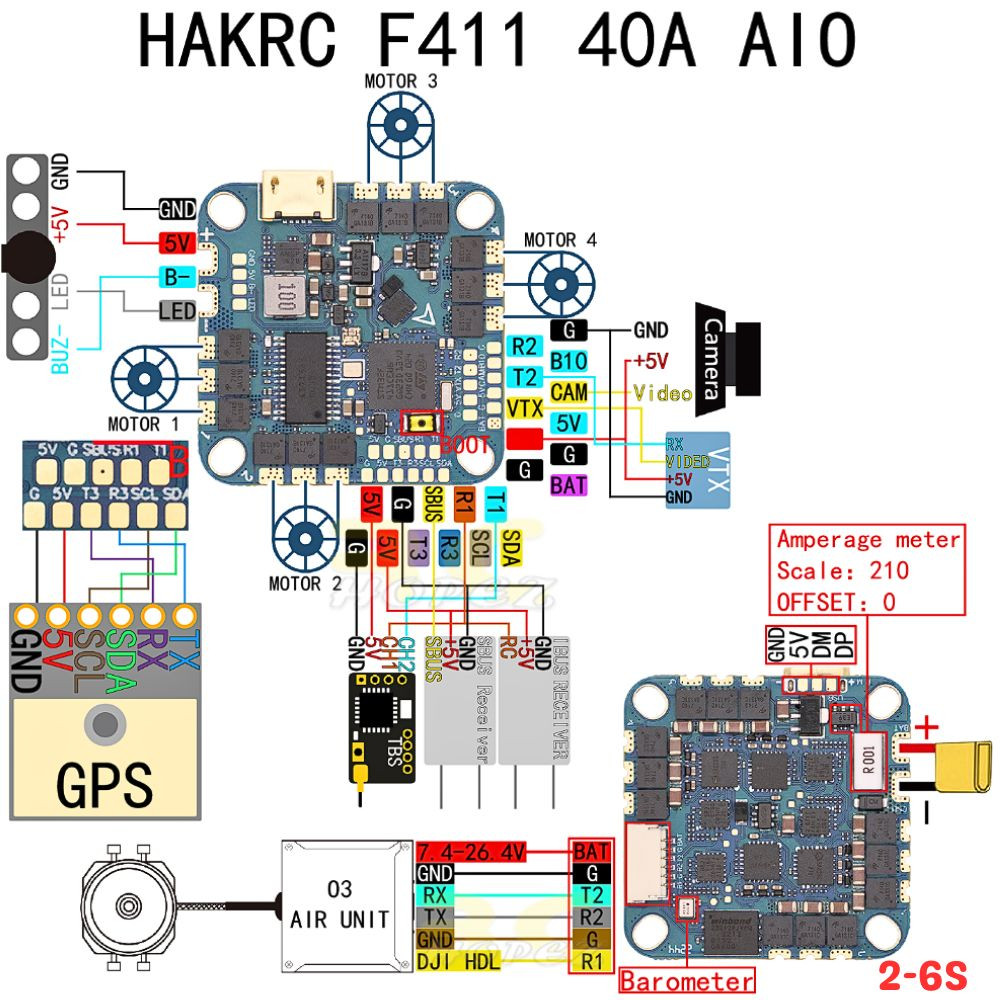

F4126 F411 40A AIO
4x M2 Shock absorber
1x XT60H power cord
1x Small bandage
1x Type-C USB
1x USB cable
1x 270uf/35V capacitor
1x DJI FPV Cable
1x DJI O3 Air Unit 3-in-1 Cable
1x Instructions
