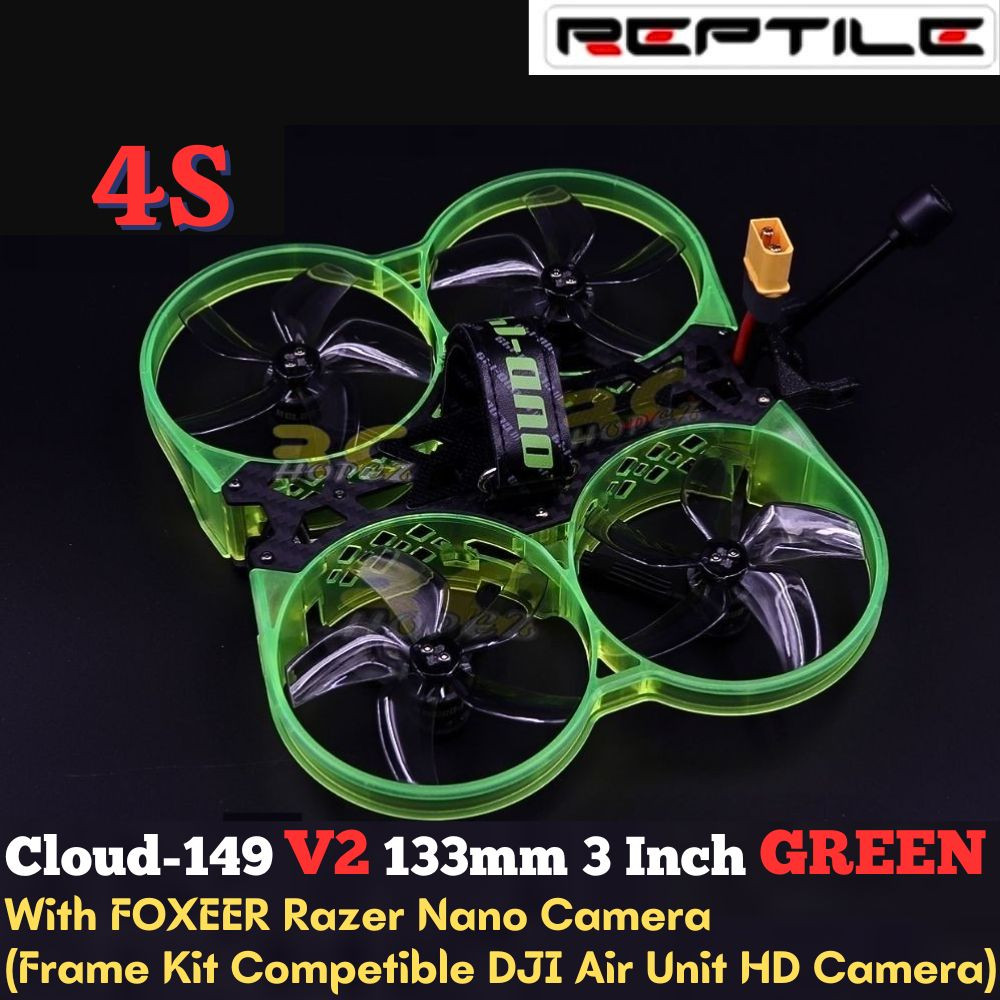

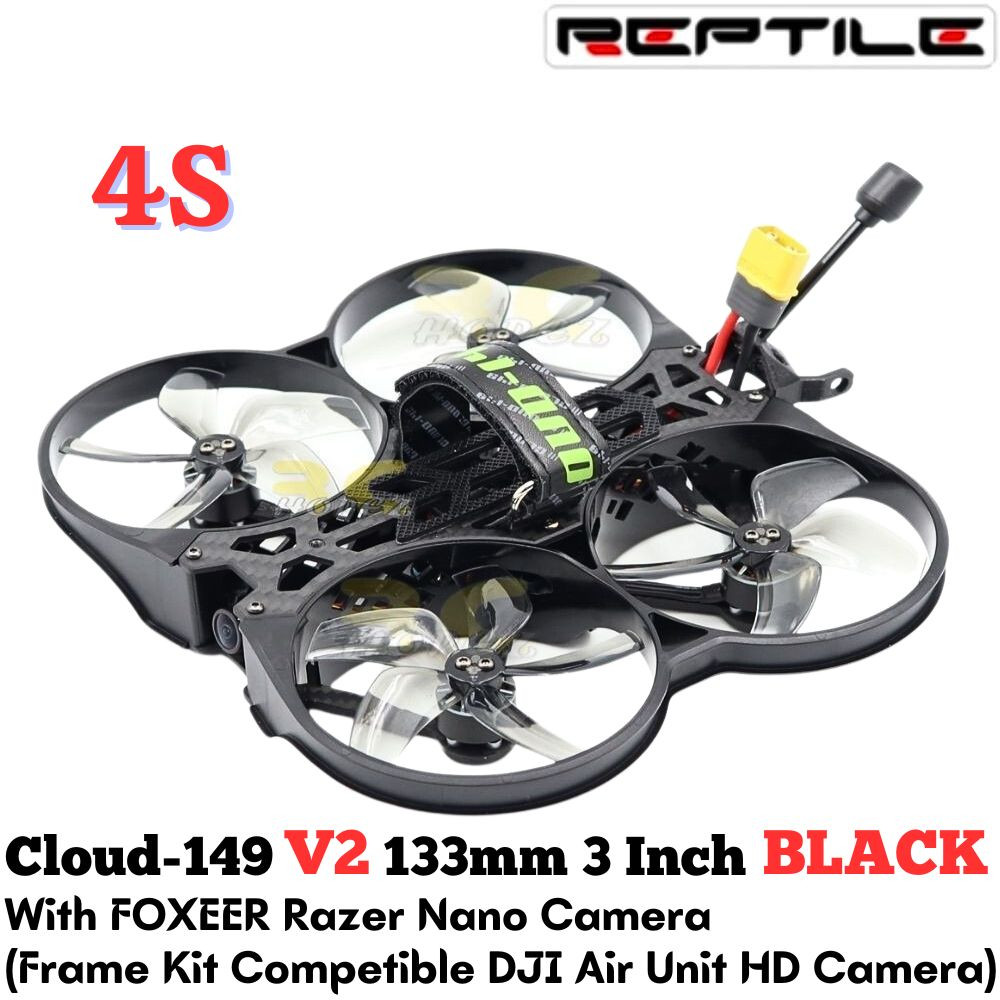

Reptile CLOUD-149 V2 133mm 3 Inch 4S F4 20A BL_ S ESC FOXEER Razer Nano Cam CineWhoop (Black/Blue/Green) C149V2

Description

Reptile CLOUD-149 V2 133mm 3 Inch 4S F4 20A BL_ S ESC FOXEER Razer Nano Cam CineWhoop (Black/Blue/Green) C149V2

Notice:

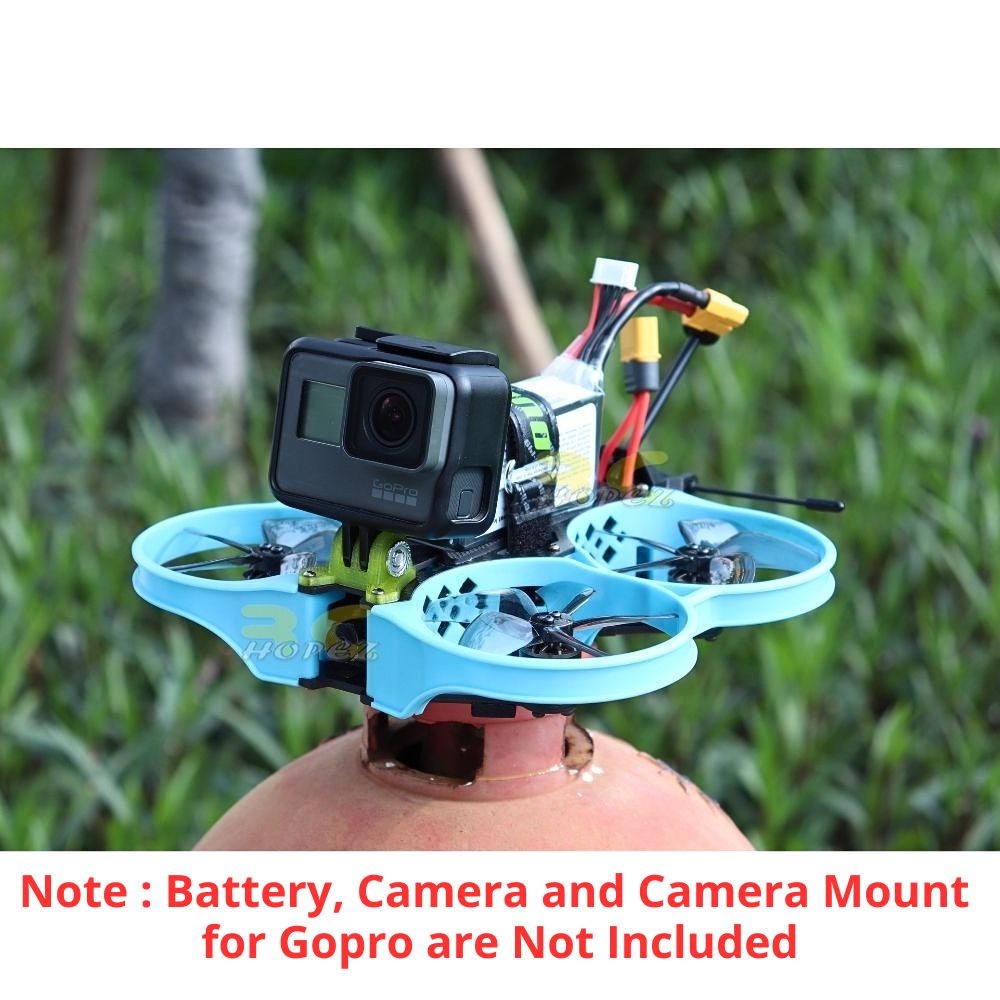

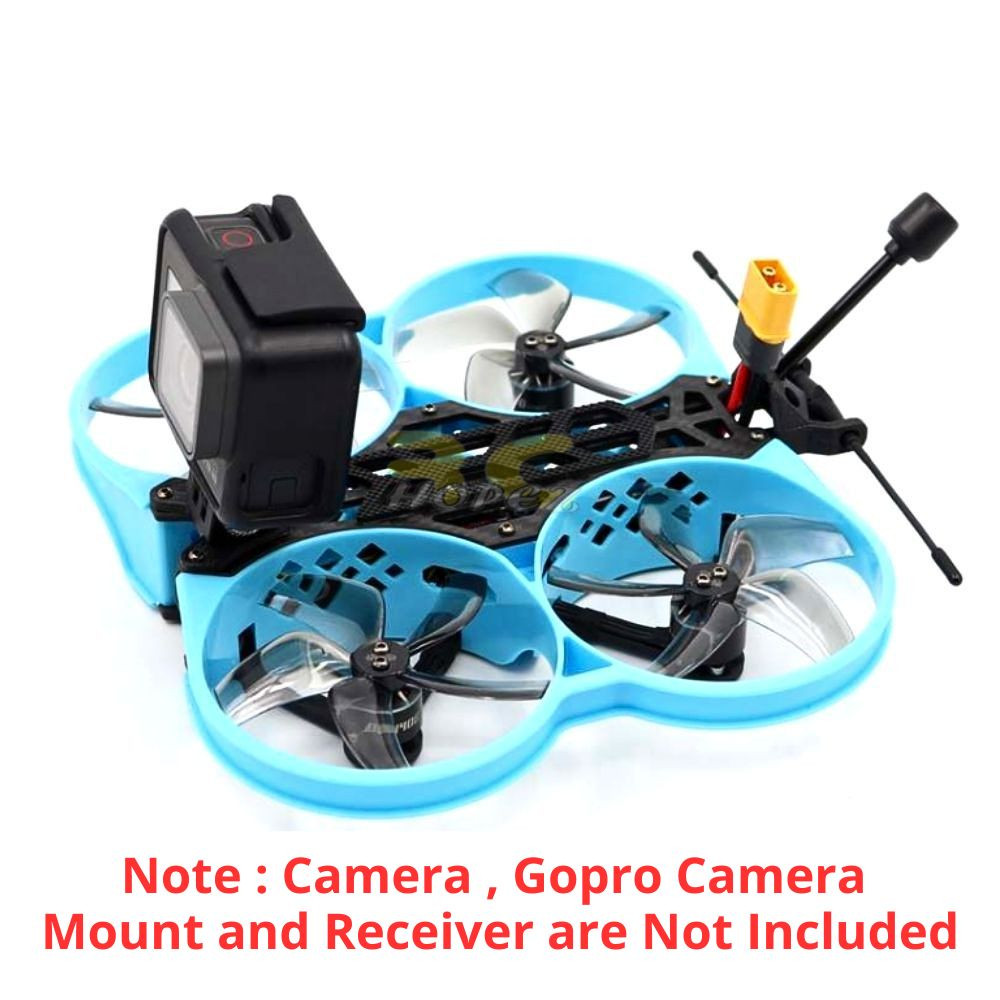

The Camera and Camera Mount for Gopro are NOT Included.

Features:
1. The 3-inch propeller has higher efficiency and strength; this product is easy to disassemble and easy to carry; reasonable power configuration, longer battery life.
2. Excellent structural design brings a more enjoyable control feel to flight.
3. Can drive full-size GOPRO, battery life up to about 6 minutes.
4. The tail of the drone is equipped with LED lights with adjustable colors. There is a buzzer to control the alarm.
5. There is a type-c interface, which can be used to adjust the flight control parameters.

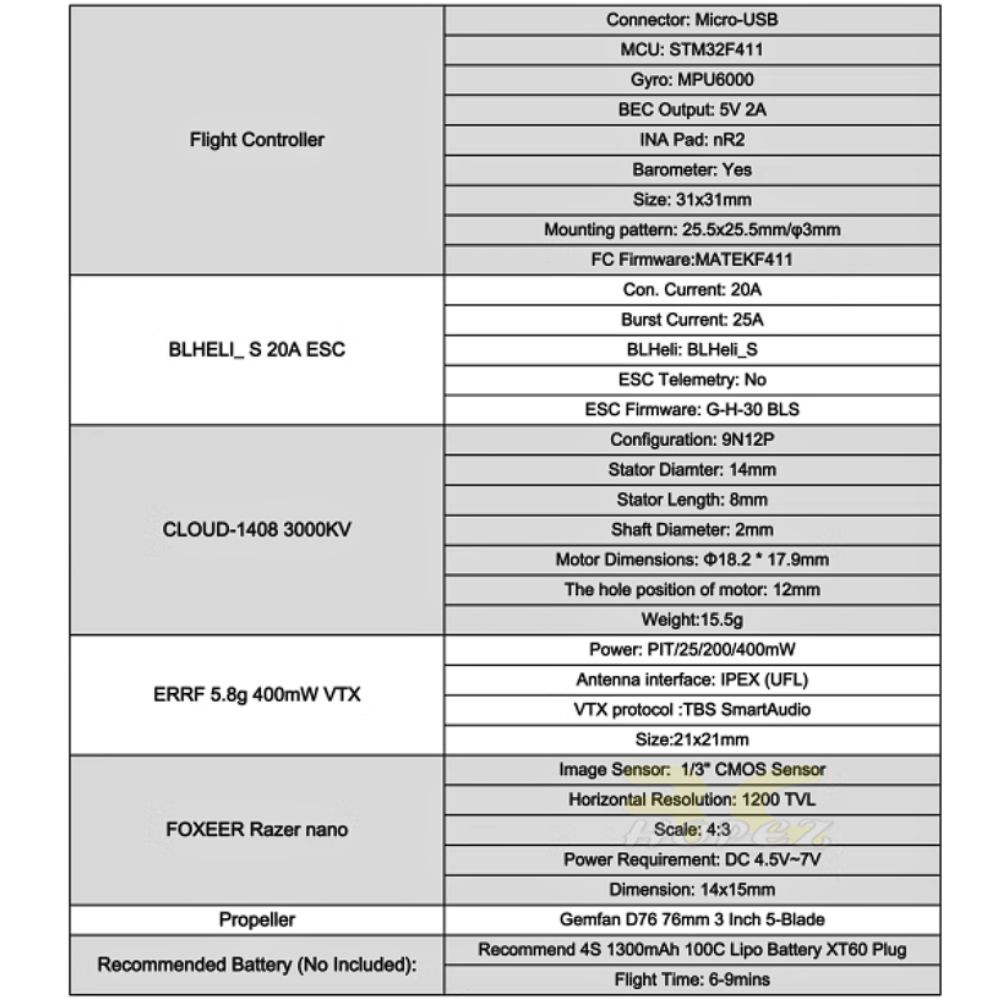

Description:
Brand: Reptile
Model: Cloud-149 V2
Wheelbase: 133mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Size: 195x200mm
Weight: 217±10g

Flight Controller :
Connector: Type-C
MCU: STM32F411
Gyro: MPU6000
BEC Output: 5V 2A
INA Pad: nR2
Barometer: Yes
Size: 31x31mm
Mounting pattern: 25.5×25.5mm/φ3mm
FC Firmware:MATEKF411
BLHELI_ S 20A ESC
Con. Current: 20A
Burst Current: 25A
BLHeli: BLHeli_S
ESC Telemetry: No
ESC Firmware: G-H-30 BLS

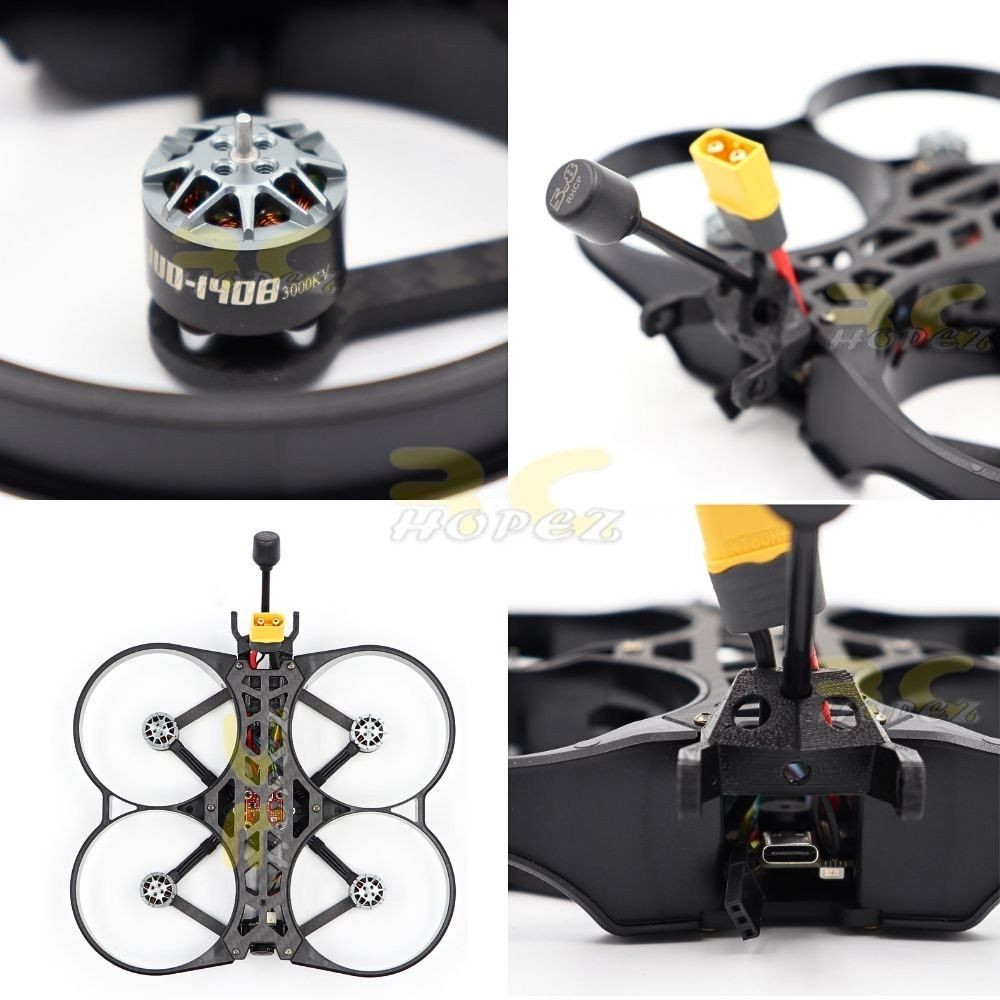

CLOUD-1408 3000KV Motor
Configuration: 9N12P
Stator Diamter: 14mm
Stator Length: 8mm
Shaft Diameter: 2mm
Motor Dimensions: Φ18.2 * 17.9mm
The hole position of motor: 12mm
Weight:15.5g

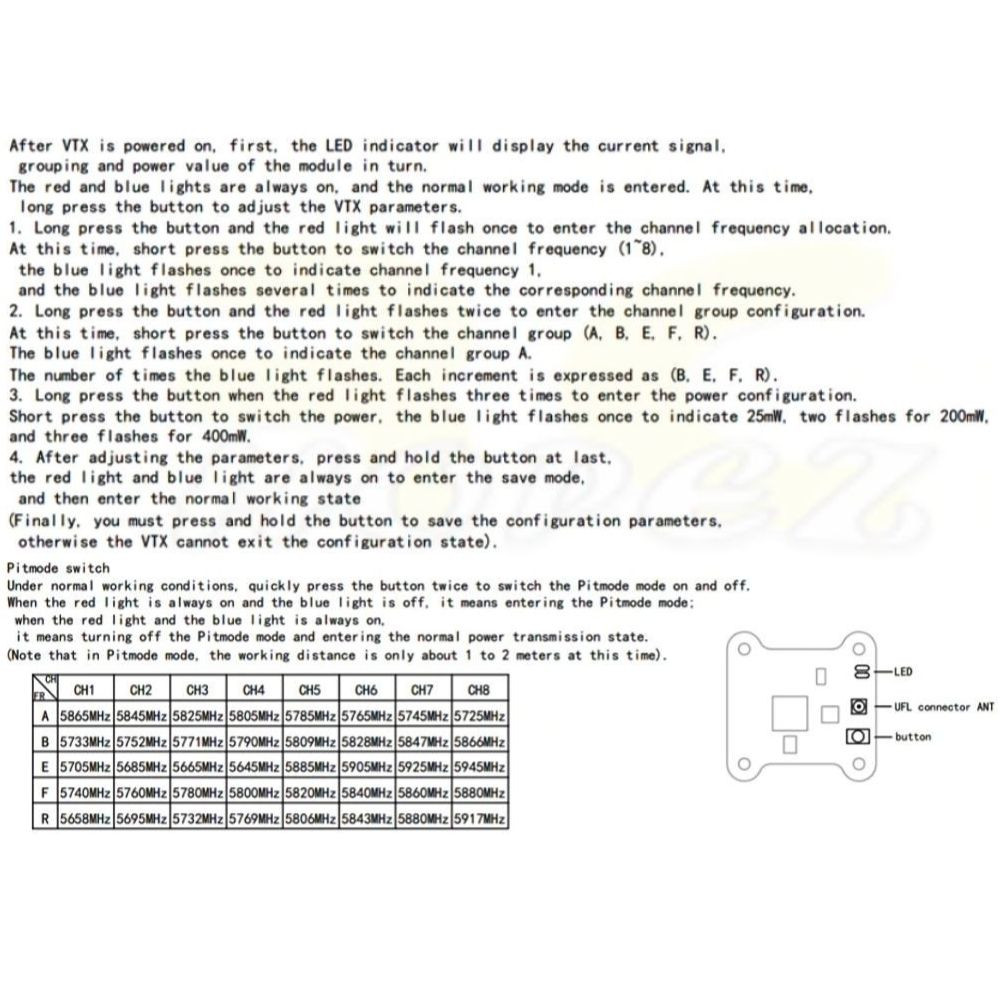

ERRF 5.8g 400mW VTX:
Power: PIT/25/200/400mW
Antenna interface: IPEX (UFL)
VTX protocol :TBS SmartAudio
Size:21x21mm

FOXEER Razer nano camera
Image Sensor: 1/3 CMOS Sensor
Horizontal Resolution: 1200 TVL
Scale: 4:3
Power Requirement: DC 4.5V~7V
Dimension: 14x15mm

Propeller : Gemfan D76 76mm 3 Inch 5-Blade

Recommended(Not Included):
Battery: 4S 1300mAh 100C Lipo Battery XT60 Plug

Flight Time: 6 mins

Package Included:
1x REPTILE CLOUD149 V2 Frame kit
1x 5.8G Antenna
1x 1200TVL camera
4x 1408 3000KV motor
1x 5-blade three-inch propeller
1x Battery strap
1x Battery non-slip
2x EVA anti-collision strip
1x Hexagonal screwdriver
1x Corner pad
1x M2 screw
1x Fixing Mounting Base
