Happymodel Mobeetle6 1S 65mm Whoop/Toothpick 2IN1 Racer Drone + Jumper T Lite V2/BETAFPV LiteRadio 3/3Pro BNF ELRS/Frsky

Happymodel Mobeetle6 1S 65mm Whoop/Toothpick 2IN1 Racer Drone + Jumper T Lite V2/BETAFPV LiteRadio 3/3Pro BNF ELRS/Frsky Mobeetle6

NOTE : For Jumper T Lite V2 , please notify and remarks for us if you need in Mode 1 (Throttle Right)

Features:
The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone
Comes with tooth pick frame for convert
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 FC
New Unibell SE0702 brushless motors with pcb wire board
Built-in OPENVTX up to 400mw
Low profile Canopy design

Spec:
Happymodel
Mobeetle6 whoop and toothpick 2-IN-1 FPV Racer Drone
Wheelbase: 65mm
Size: 80mm*80mm*30mm

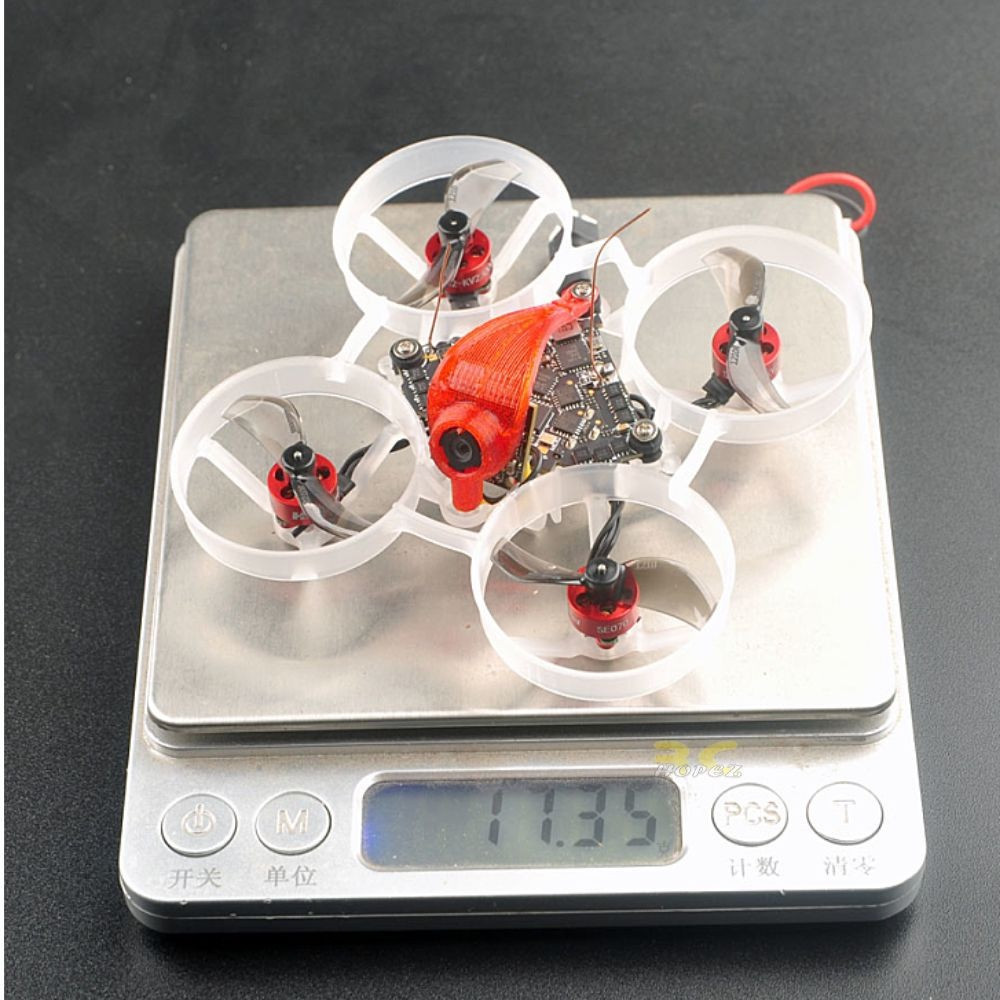

Weight: 17.5g (without battery)

Motor
SE0702 KV23000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo):1S only

Propeller
Weight:0.19g
Material:PC
Pitch:1 inchProps Dia:30mm
Center Hole Dia:1mm

FC
(ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OPEN VTX
Built-in SPI ELRS V2.0/Frsky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz RX
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module

Onboard Frsky SPI D8 RX Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support

Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Couldn’t flash separately ExpressLRS firmware

Runcam Nano3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.3mm(M6.5) FOV 140°
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14*W14*H9mm

Lipo Battery
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Connector: PH2.0
Weight: 7.5g
