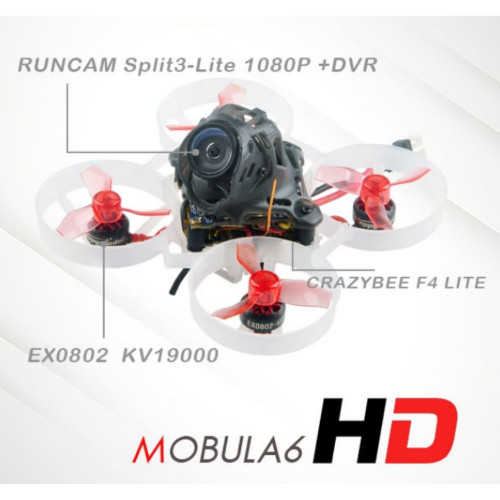

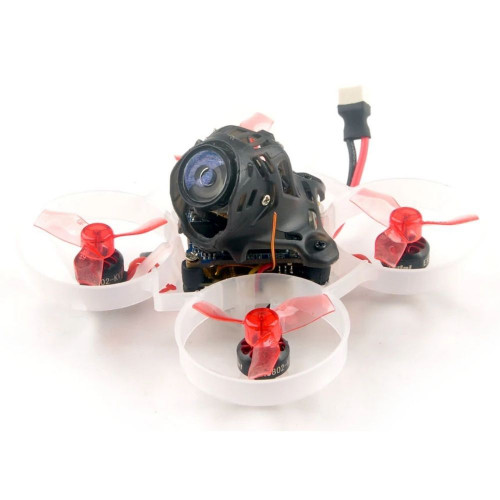

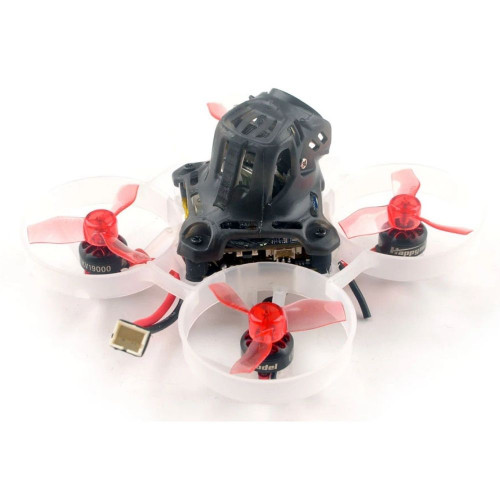

Happymodel Mobula6 HD 27g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Split3-lite 1080P HD DVR Camera – Frsky HP600-FR

Happymodel Mobula6 HD 27g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Split3-lite 1080P HD DVR Camera – Frsky HP600-FR

Note : The flight controller updated to CrazybeeF4 Lite v3.1 since 17th Feb 2022 ,please check the update log :
https://www.happymodel.cn/index.php/2022/02/14/mobula6-v2-0-upgraded-flight-controller-crazybeef4fr-lite-crazybeef4fs-lite-v3-1-version-update-log/

Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless HD whoop only 27g
Come with Runcam Split3-lite 1080P HD DVR
Smooth and agile
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Size: 80mm*80mm*40mm
Weight: 27g

 Motor:
Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only

Propellers:
Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g

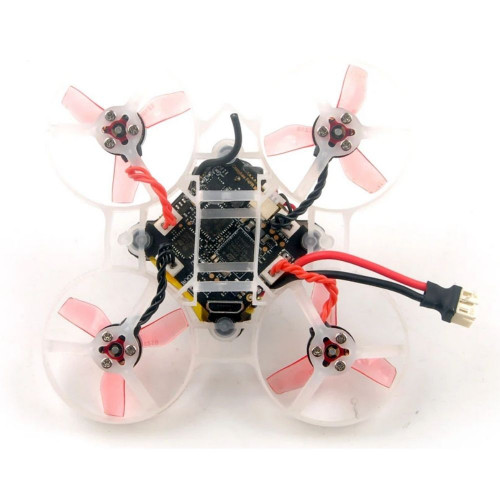

Flight controller *CrazybeeF4 Lite v3.1 (updated since 17th Feb 2022)
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 RX
SPI BUS receiver Frsky D8 Compatible with ACCST D8/D16 (Recommend D8 mode)
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX (Openvtx)
Output power: 0mw~400mw
Frequency: 48CH
Input voltage: 3.3V~5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 48 channels
With Race band Smartaudio ready

Runcam Split3-Lite:
Model: RunCam Split3-Lite
Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format: MOV
Image Resolution:2 MP
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: JST 1.25mm / UART and SH 1.0mm
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation: 25.5*25.5mm
PCB Size: 29*29mm
Lens Module Size: 14*14mm
Lens Specs: M9
Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
Working Current: 450mA @5V

Lipo Battery:
Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0
 

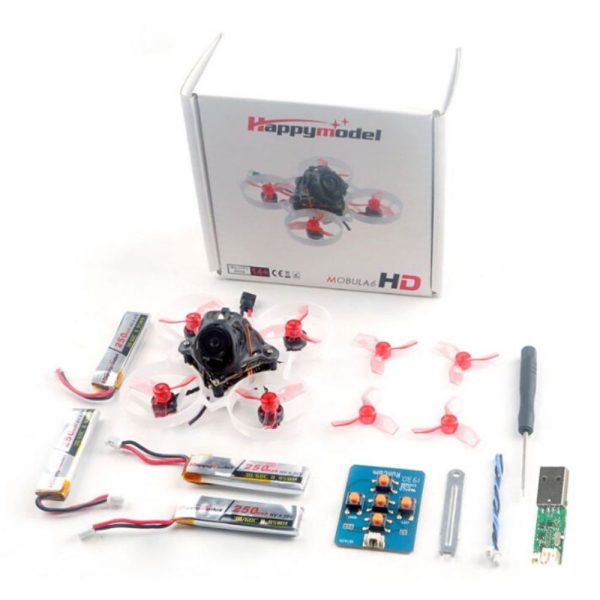

 Included:
 1 x Mobula6 1S 65mm Whoop Drone Frame
 1 x Crazybee F4 Lite FC Built-in Frsky SPI D8 RX
4 x EX0802 KV19000 Brushless Motor
 1 x Gemfan 1219-3 Propellers(4cw+4ccw)
 1 x Runcam Split3-lite 1080P HD Camera +DVR
1 X 5.8G 0-400mw 48ch vtx (Flight controller built-in)
4 x 1S 250mah 30C LiHV Battery
 1 x 1S Lipo/LIHV USB Charger
 1 x Propeller Disassemble Tool
