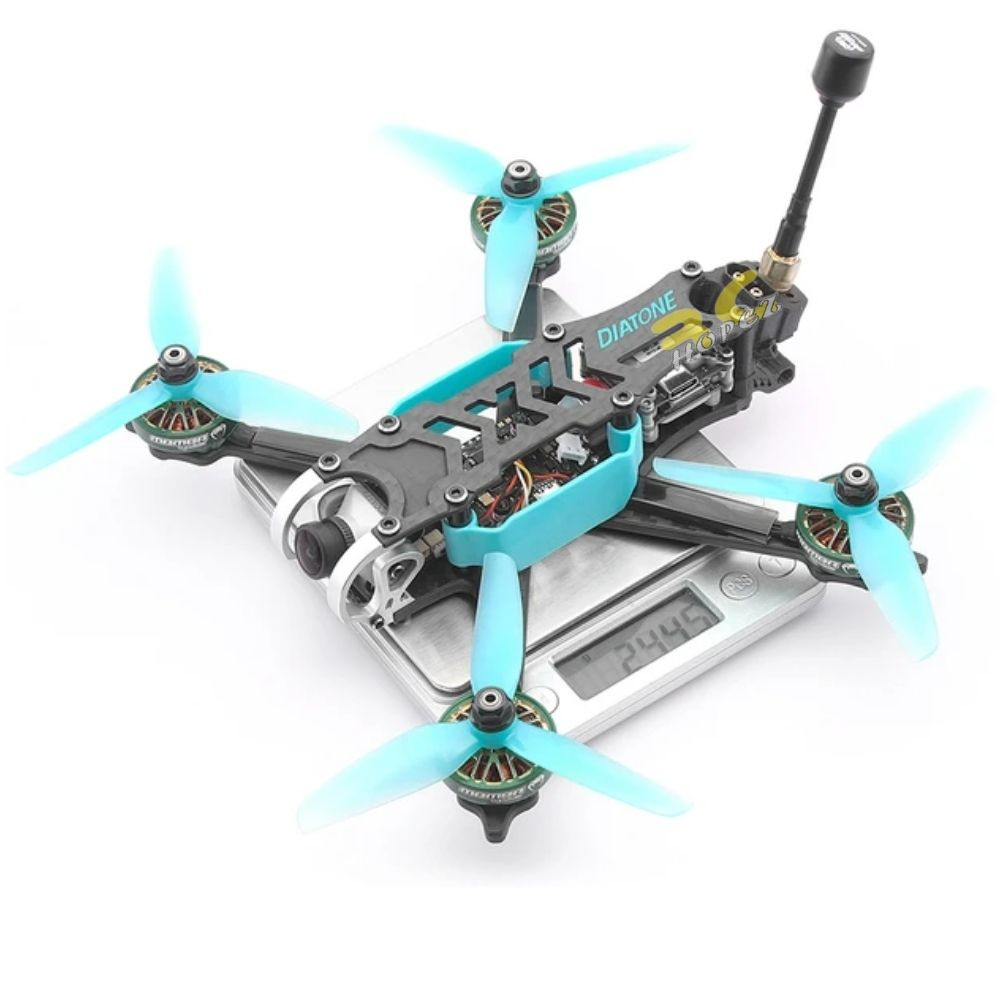

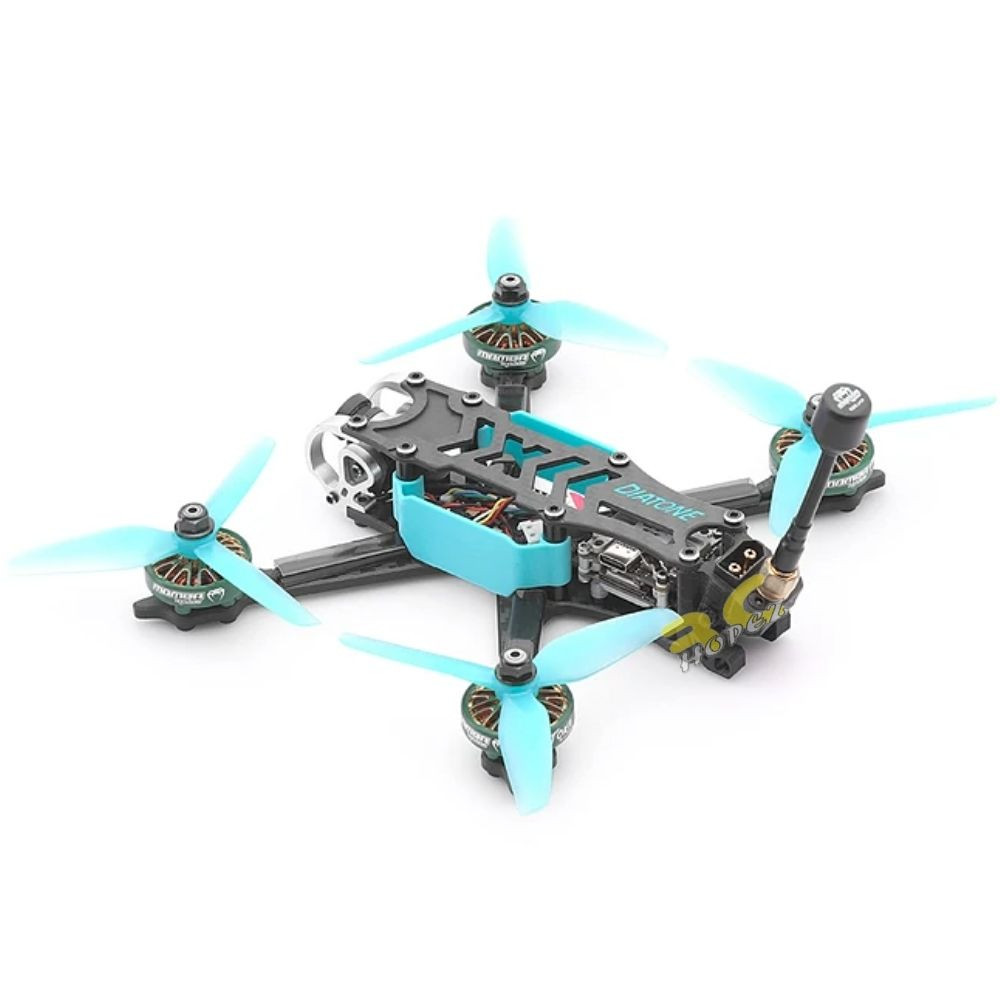

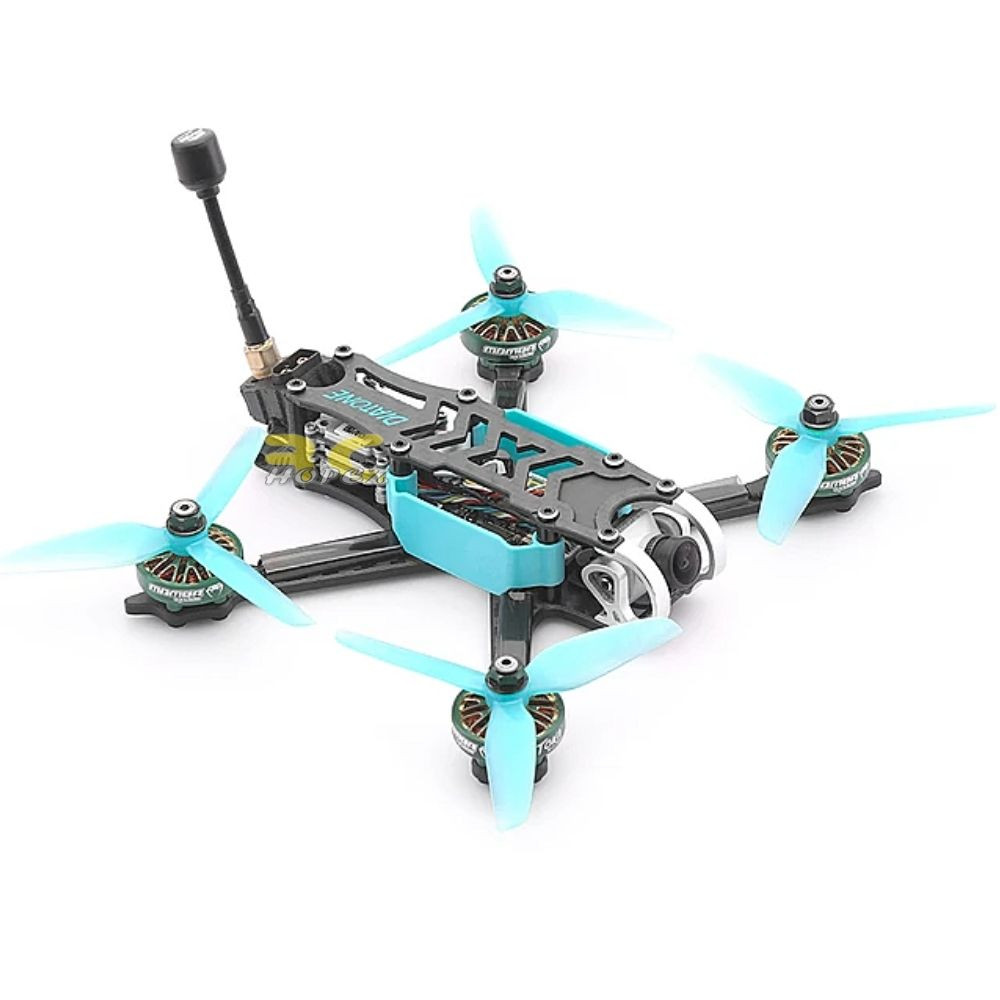

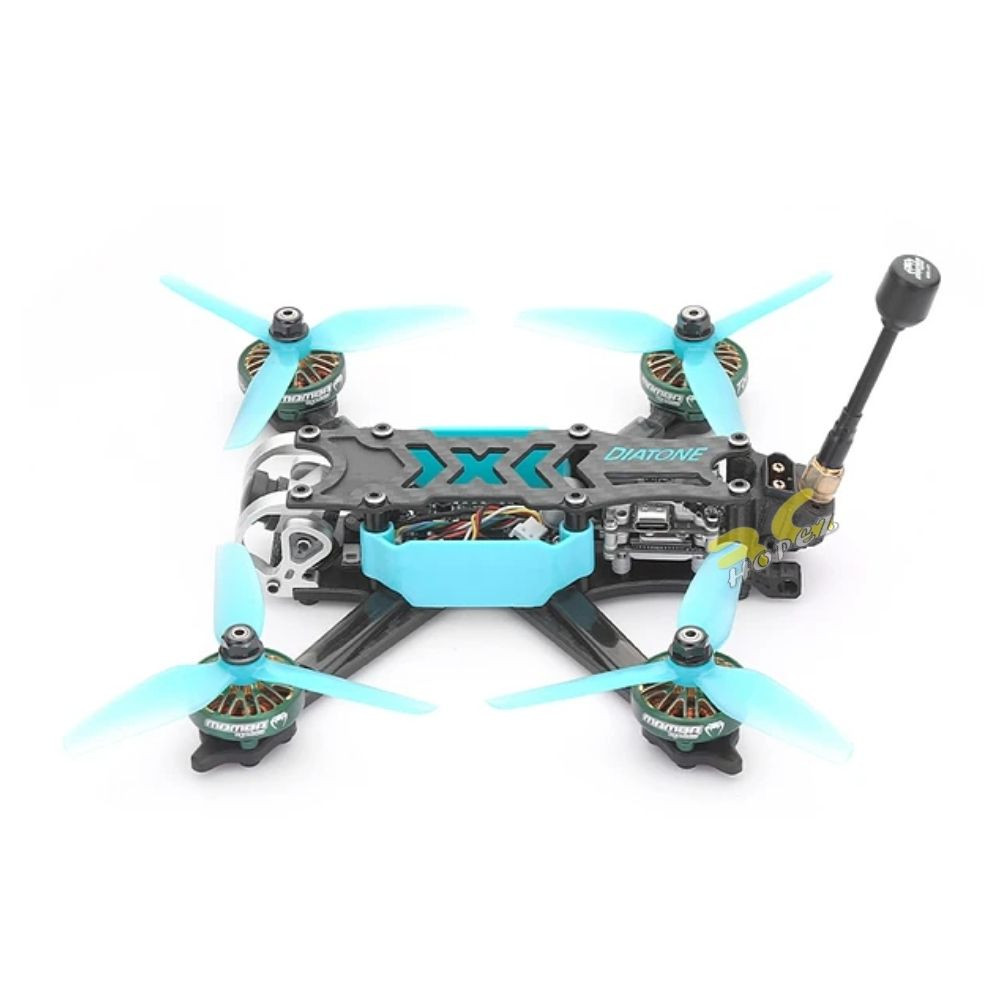

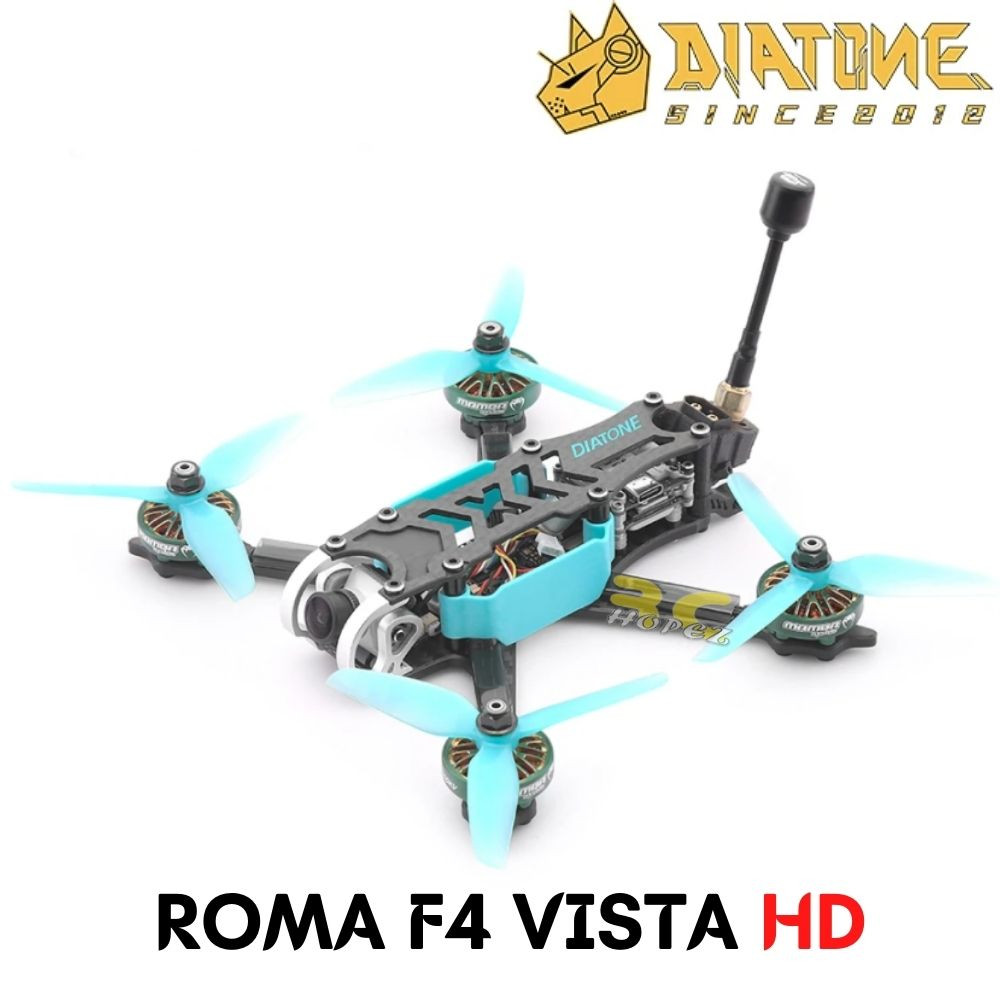

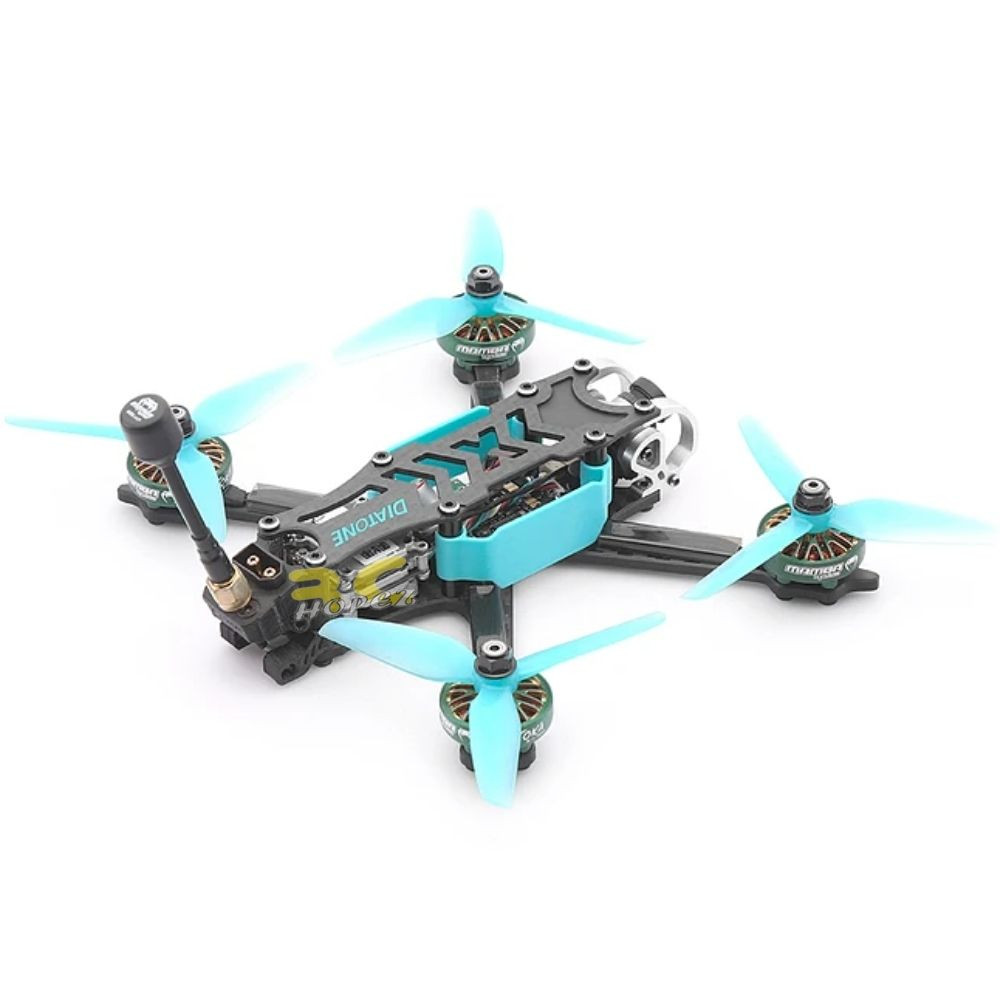

DIATONE Roma F4 Vista HD 4Inch 4S/6S (Optional) FPV Racing Drone With Caddx Polar Vista HD Camera RomaF4HD

DIATONE Roma F4 Vista HD 4Inch 4S/6S (Optional) FPV Racing Drone With Caddx Polar Vista HD Camera RomaF4HD

Brand: Diatone
Item Name: Roma F4 VISTA HD 4/6S (Optional) FPV Drone
Camera: CADDX POLAR
Antenna: MAMBA ULTRA LHCP
Flight control: MAMBA AIO F411 35A / 20MM
ESC: 35A 8BIT
Size: 4 Inch
Voltage: MAMBA TOKA 2203.5 2200 KV for 6S /
              MAMBA TOKA 2203.5 3300 KV for 4S (Optional)
Wheelbase: 175mm
Weight: 244.5g

FC Specifications
MAMBA AIO F411 35A /20mm
MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:42×33×6mm
MOUNTING: 20×20,M2

ESC Specifications
MAMBA AIO F411 35A /20mm
Input: 3~6S Lipo (12.6~25.2V)
CONTINUE CURRENT: 35A×4
BURST CURRENT: 40A (10S)
Target： BLHeli_S CH40
SOFT: Dshot300/600

Caddx Polar Vista HD Specifications
Features
Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones

Specifications
Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps<32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D); 138°(H); 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6 & 8Mega
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

MAMBA TOKA 2203.5 2200KV Motor (6S)
Overall Dimension: Φ28.9×29.4mm
prop mounting shaft diameter: 5mm
Installation hole position: 16×16mm，M3
Prop:  4 inch
Bearing： 9*4*4
Shaft Diameter: 4.0mm
Lead Wire Size：24AWG×190mm
slots/poles: 12N14P
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 19.43A
ldle Current：1.0A
Maximum Power: 466.5W

Mamba TOKA 2203.5 3300KV Motor (4S)
Overall Dimension:Φ28.9×29.4mm
Prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 29.78A
ldle Current：10V/1.5~2.2A
Maximum Power: 475.1W

Recommend Battery (NOT Included)：
6S 650-850mah   6-7 mins
4s 850-1000mah   6-7 mins

Package Included:
1x Roma F4 Vista HD 4Inch 4S/6S (Optional) FPV Racing Drone
1x HQ 4*3*3 propeller
1x Buzzer
2x Battery belt
1x M2 screw accessory kit
1x M3 screw accessory kit
1x 20mm PC isolation plate
1x Receiver (Optional)
