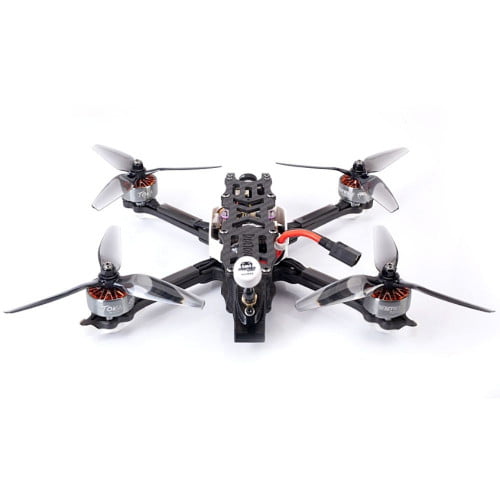

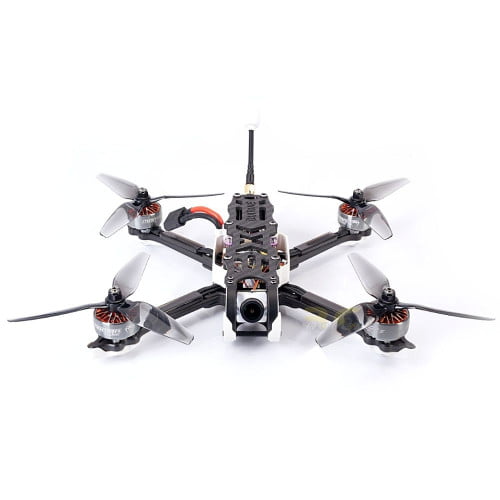

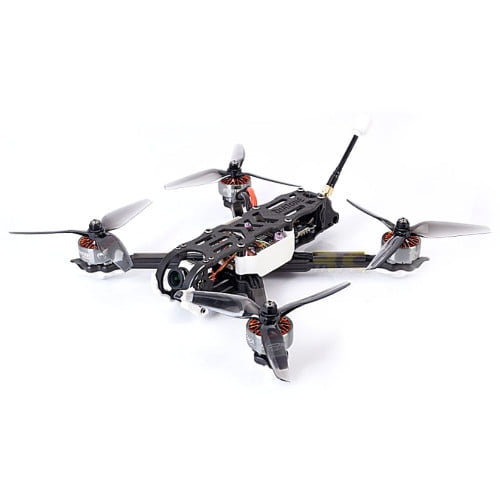

Diatone Roma F5 6S Freestyle Mamba F722S FC F50PRO ESC With Runcam Phoenix 2 FPV Camera PNP – RomaF5-P6

Diatone Roma F5 6S Freestyle Mamba F722S FC F50PRO ESC With Runcam Phoenix 2 FPV Camera PNP – RomaF5-P6

Specification:
Item name: Roma F5 6S 5 Inch Freestyle FPV Racing Drone BNF Runcam Phoenix 2 FPV Version
Frame Wheelbase: 218mm
Camera: Runcam Phoenix 2
Antenna: MAMBA Ultras
VTX: MAMBA TX400 400MW
FC: MAMBA F7222S
ESC: MAMBA F50PRO
Motor: MAMBA TOKA 2207.5 1700KV 6S
Propeller: HQ Props S5
Weight(without battery): 380.97g

Roma F5 Frame Specification :

Wheelbase :218mm
Weight ：120g
Prop Siza ：5 inch
FC Mounting: 30.5×30.5(M3)&20×20mm（M3）
Motor Mounting:16mm
Top Plate 2.5mm
Bottom Plate 2.5mm
Rated Voltage（Recommendation）：3-6S
bai Aluminum alloy：7075
carbon fiber:T300 3K
Injection Part：Camera Metal Mount Protector ，Arm Protector，Univeral Adjustable Gopro Mount

F722S FC Specificaiton:

Item name: MAMBA F722S 3-6S Flight Controller
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3V
Mounting: 30.5×30.5mm,Φ3
Weight: 22g
WS2812 LED Control: 4 Set 2812 LED
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
PDB Specifications
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)
FC Firmware
BetaFlight
Target: MAMBA F722

–

Mamba F50PRO ESC Specificaiton:

Input Voltage: 3~6S Lipo (12.6V~25V)

Continue Current: 50A×4 BURST

Current: 60A (10S)

BEC: NO

ESC: Dshot300/600/1200

Mounting: 30.5mm/M3

CURR: 210 A

Capacitance: Panasonic High Frequency 470uF/35V

Weight: About 15g

–

MAMBA TOKA 2207.5 1700KV Specificaiton:
Overall Dimension: Φ28.5×32.65mm
prop mounting shaft diameter :M5

Installation hole position :16×16mm，M3
Prop: 5inch~6inch
Bearing： 4*9*4
Shaft Diameter:4mm
Lead Wire Size：24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 38.5A
Maximum Power: 924W

Package Included:
1 x Roma F5 5 Inch Freestyle FPV Racing Drone BNF Runcam Phoenix 2 FPV Version
4 x HQ Ethix S5 Propeller
1 x Mamba FC 5V Buzzer
1 x Accessories Pack2 x Battery Strap
1 x Univeral Adjustable Gopro Mount Set
1 x Antenna Protective Tube + Caps5 x Cable Tie
1 x M2 Screws Pack
1 x M3 Screws Pack
1 x 20mm PC isolation Sheet
1 x 30.5mm PC isolation Sheet

(Note : NOT including Transmitter, Receiver, Battery, Charger and Goggles)
