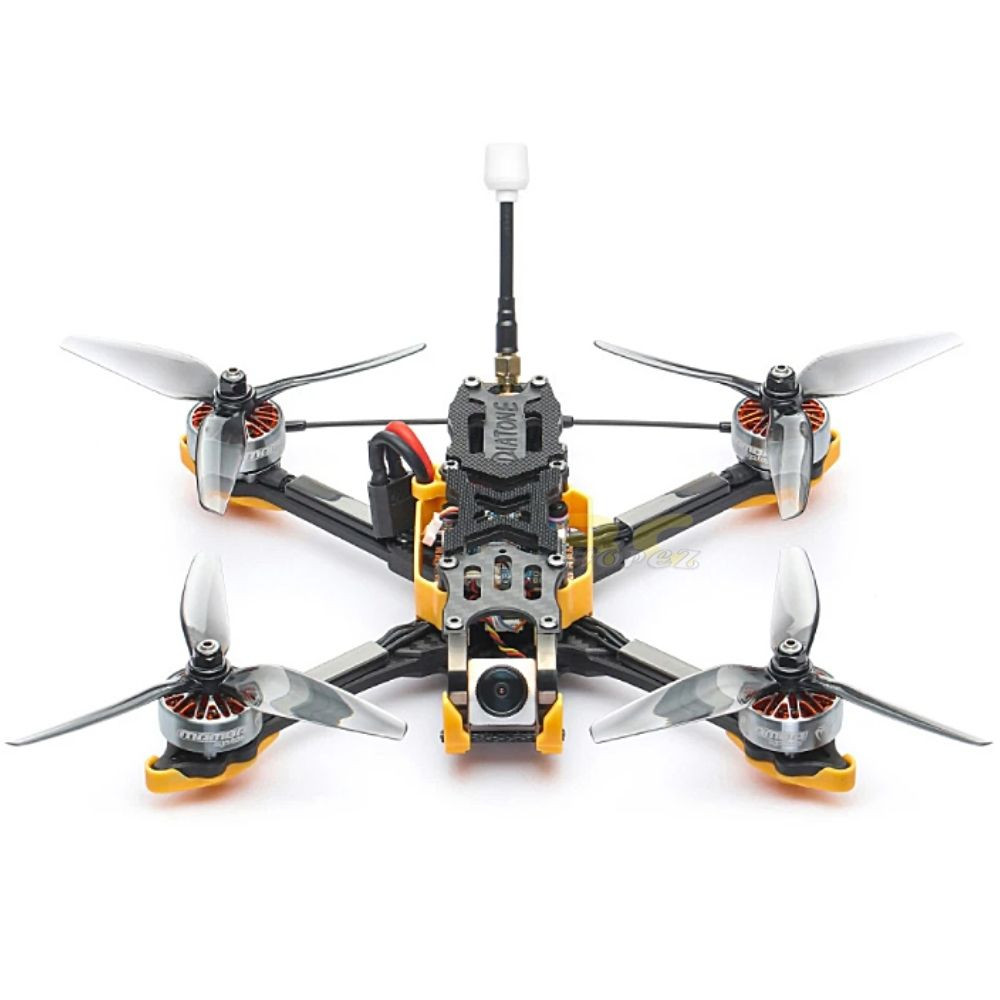

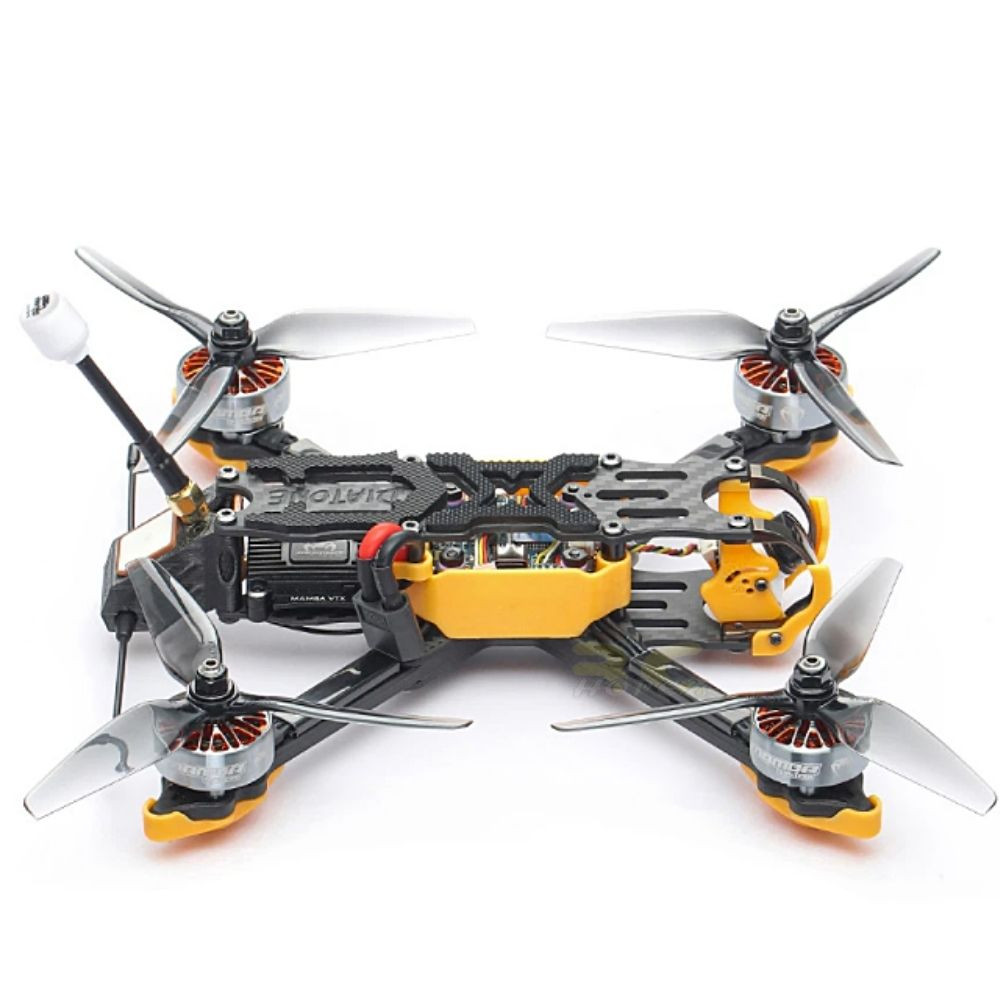

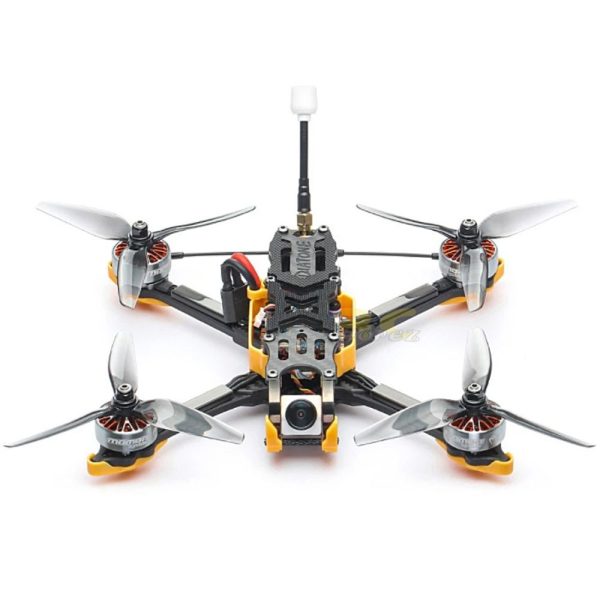

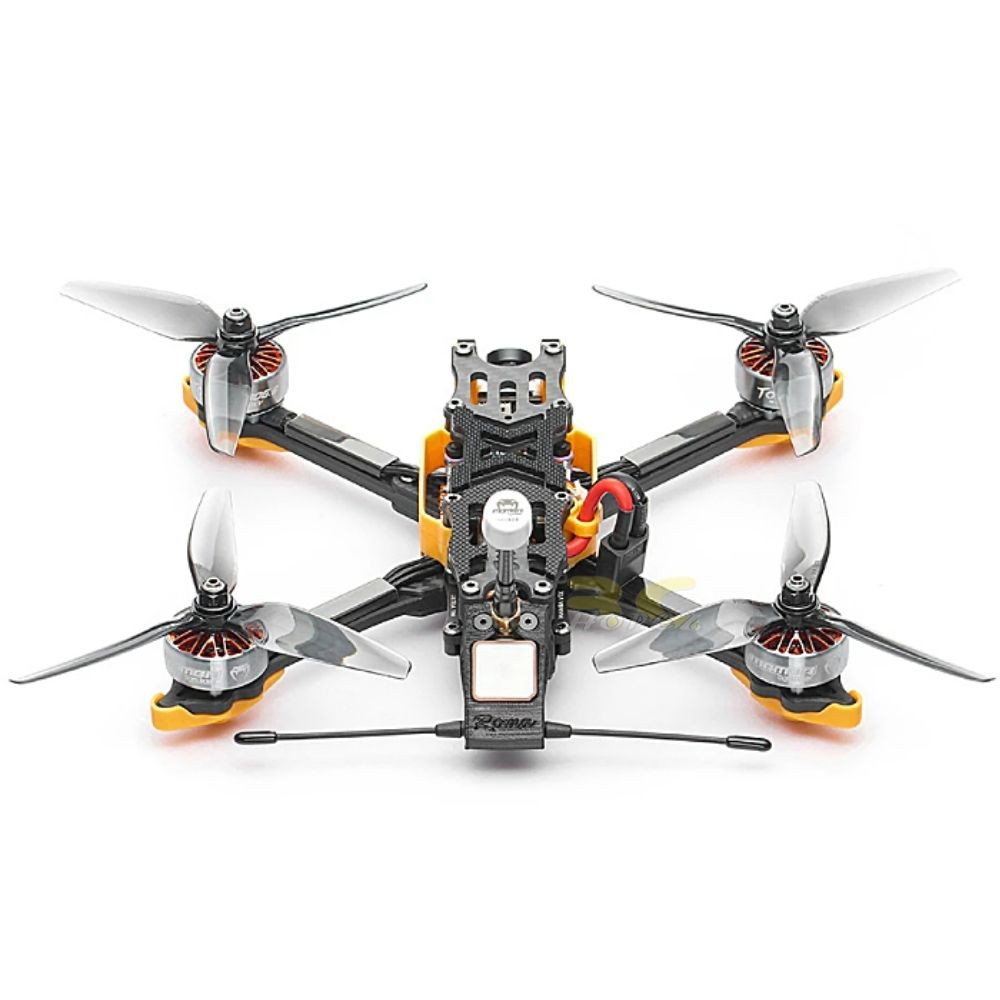

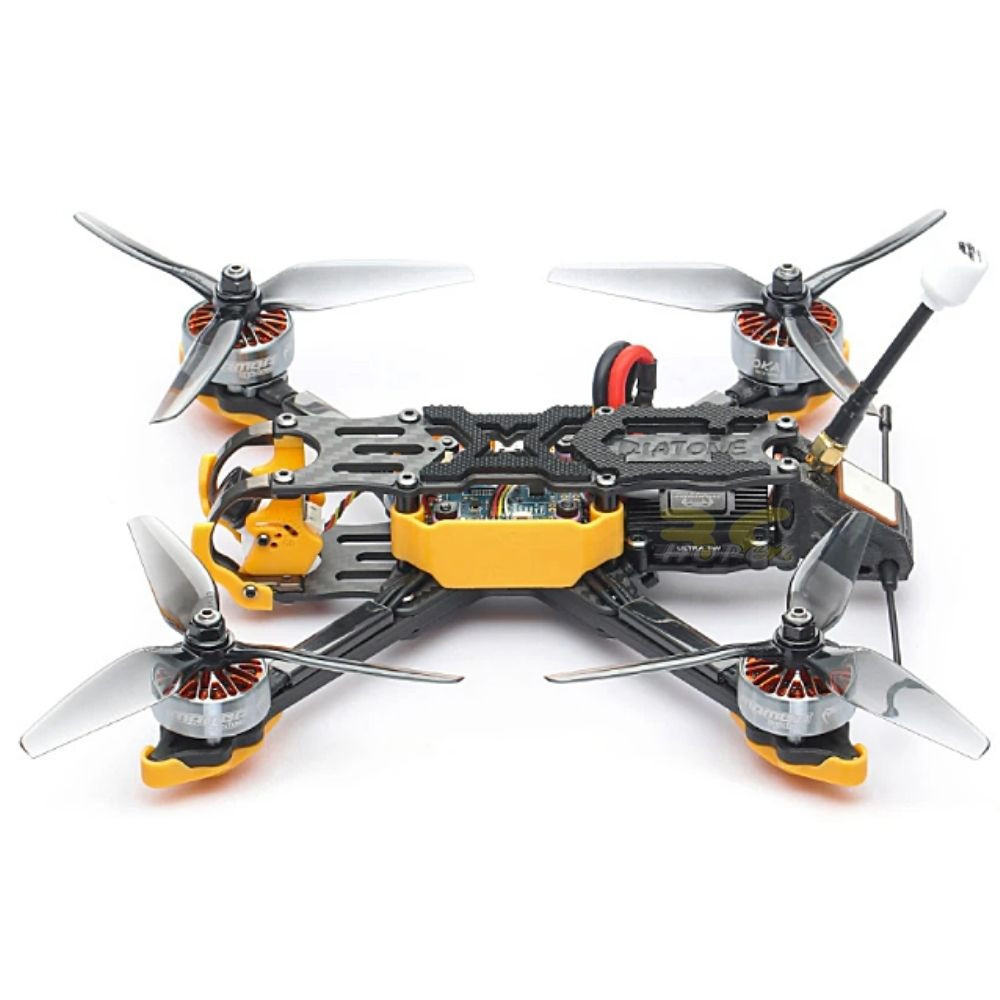

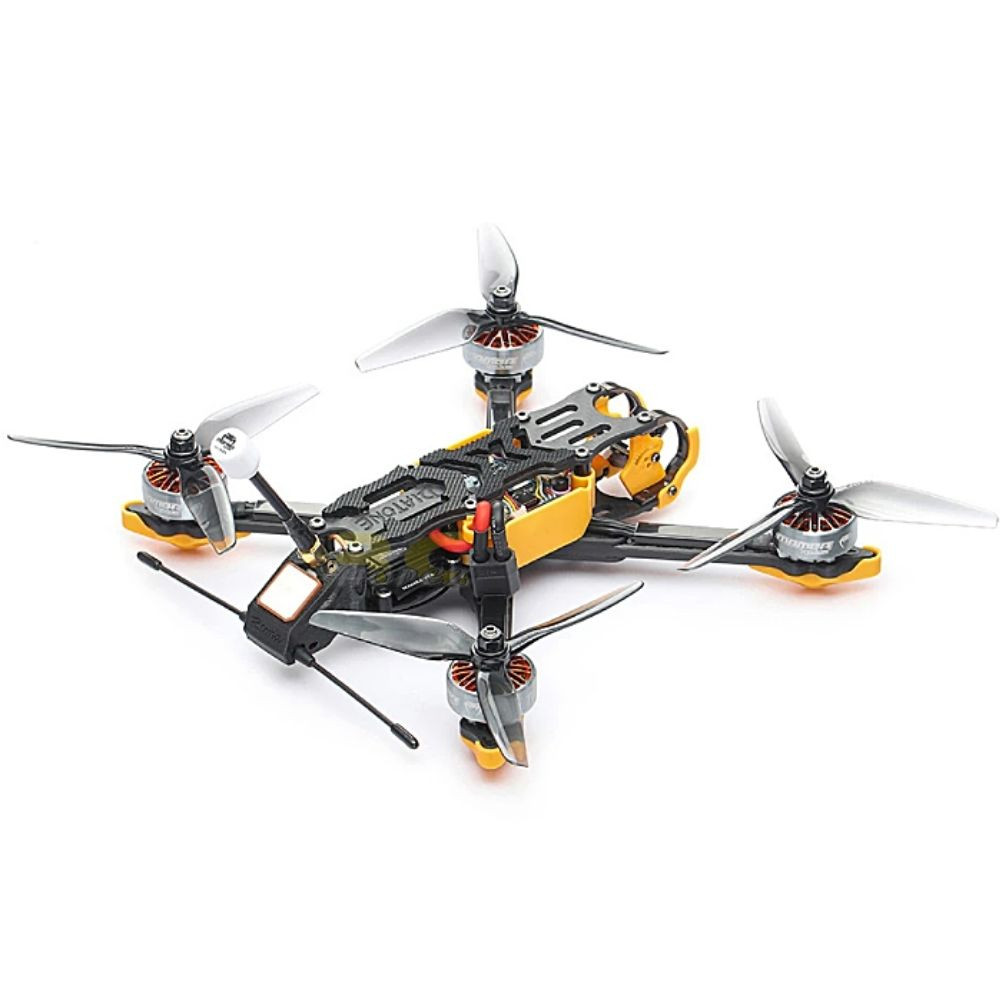

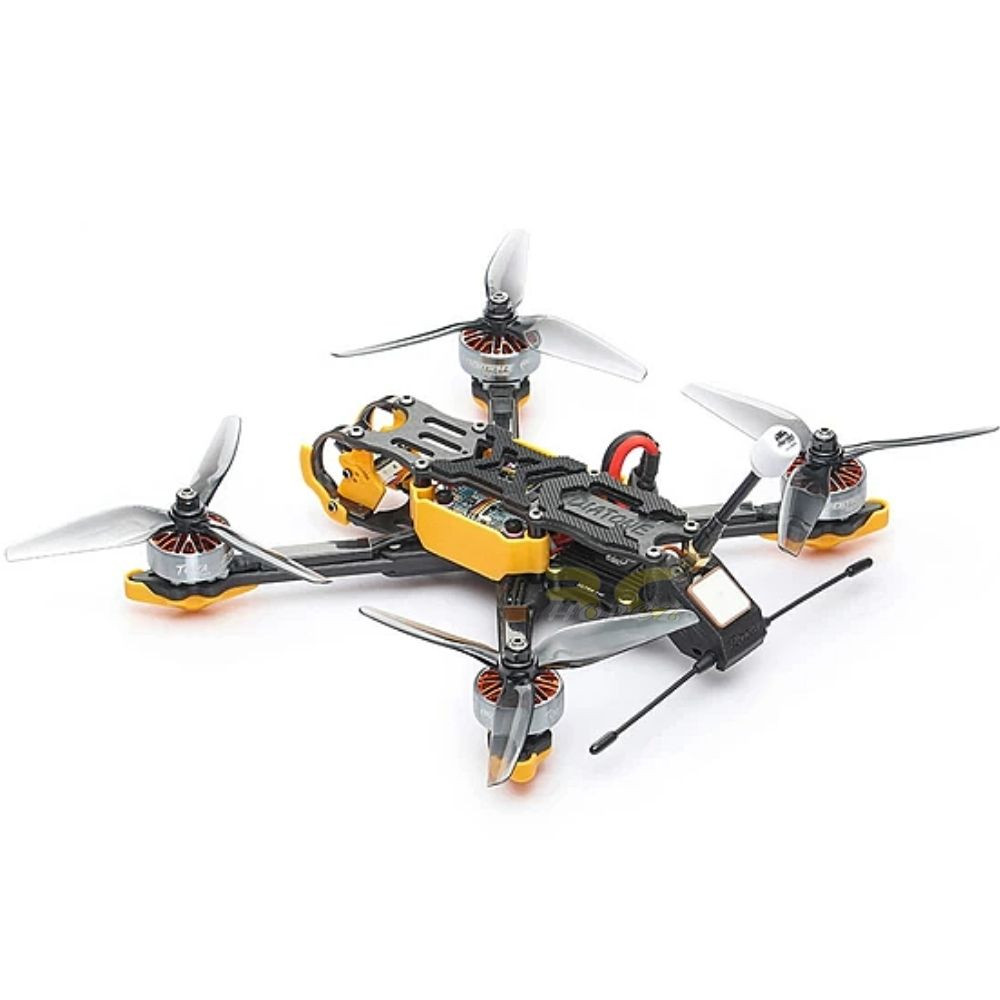

Diatone RomaF5 V2 4S 5 Inch FPV Racing Drone With RUNCAM PHOENIX 2 Camera PNP Without Receiver RomaF5V2-P4

Diatone Roma F5 V2 4S 5 Inch FPV Racing Drone With RUNCAM PHOENIX 2 Camera PNP Without Receiver RomaF5V2-P4

Specification:

Diatone has introduced a number of changes to the newly optimized Roma F5 V2, including the stiffness and strength of the frame arms. We've also strengthened the metal parts at the front of the frame and upgrade the alloy material from 7075 to titanium steel. For that extra high-end, tactile quality, we've treated the surface of the metal parts as well and changed the screws fixing the metal parts from M2 size to M3-sized specifications.

For our digital HD fans, we haven't forgotten you! This time, we've; added mounts for the twin DJI antennas.

Roma F5 V2's injection-molded protection parts not only add a dash of color with our new color options but also offer better protection for your gear. The GoPro mount angle can be adjusted for faster changes on the fly. For the best flying experience, the V2 comes in a slammed configuration for stability.

Roma F5 V2 4S PNP Version

Camera: RUNCAM PHOENIX2
Antenna: MAMBA Ultra RHCP
VTX: MAMBA Ultra 1000MW
FC: MAMBA APP F722 MK1
ESC: MAMBA F50 _BL32
Motor: MAMBA TOKA 2306.5 2450KV

Roma F5 V2 Frame Kit
Wheelbase 218mm
Prop Size ：5 inch
FC Mounting: 30.5×30.5(M3)&20×20mm(M2)
Motor Mounting:16mm
Top Plate 2.5mm
Bottom Plate 2.5mm
Rated Volitage（Recommendation）：3-6S
Camera Cage ：titanium steel
carbon fiber: T300 3K
Injection Part：Camera Metal Mount Protector,Arm Protector, Univeral Adjustable Gopro Mount

MAMBA F722 APP MK1

MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Barometer: No
OSD: BF OSD
Blacbox: 16M Flash Memory
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V
WIFI: SpeedyBee APP
Smartaudio: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
TVS Protection: Yes
BEC: 5V 2.5A & 9V 2A (Max 3A)
MOUNTING: 30.5mm/M3
WEIGHT: 9g

LIPO BATTERY 4S 1300mAH TO 4S 1550mAH

MAMBA F50 BL32
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 50A×4
BURST CURRENT: 60A (10S)
BEC: NO
ESC Dshot300/600/1200
MOUNTING: 30.5mm/M3

MAMBA Ultra 1000 VTX

Working Voltage:7- 36V
Working Current: 450mA (12V/1000mW)
Working Temp: -10~60 ℃
Video Input Impedance:75Ω
Size: 36×36×6.5mm
Antenna Connector: MMCX
Video Format: NTSC / PAL
Output Power: 25mw/200mw/400mw/800mw/1000mw/


MAMBA TOKA 2306.5 2450KV MOTOR
Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm，M3
Prop: 5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：23mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 45A
 ldle Current：10V/1.98A
Maximum Power: 730W
Internal Resistance：52Ω

Phoenix 2 Camera
Image Sensor: 1/2" CMOS Sensor
Horizontal Resolution: 1000TVL
Lens: 2.1mm ​(M12)​ FOV155°(4:3)
Screen Format: 4:3 / 16:9 switchable
Mirror/Flip: Available
Signal System: PAL / NTSC Switchable
S/N Ratio: >50dB (AGC OFF)
Electronic Shutter Speed: Auto
Auto Gain Control(AGC): Auto
Min. Illumination: [email protected]
WDR: Global WDR
Day/Night: Color/BW/EXT/Auto
Menu Control: Cable Control
Power: DC 5-36V
Current: 200mA@5V, 85mA@12V
Housing Material: ABS
Net Weight: 9g
Dimensions: 19mm*19mm*20mm

Package Included:
1 x Diatone RomaF5 V2 FPV Racing Drone PNP Version
4 x HQ Ethix S5 Propeller
2 x Battery Strap
1 x Univeral Adjustable Gopro Mount Set
1 x Antenna Protective Tube + Caps5
5 x Cable Tie
1 x Micro USB Data cable
1 x M2 Screws Pack
1 x M3 Screws Pack
1 x 20mm PC isolation Sheet
1 x 25.5mm PC isolation Sheet
