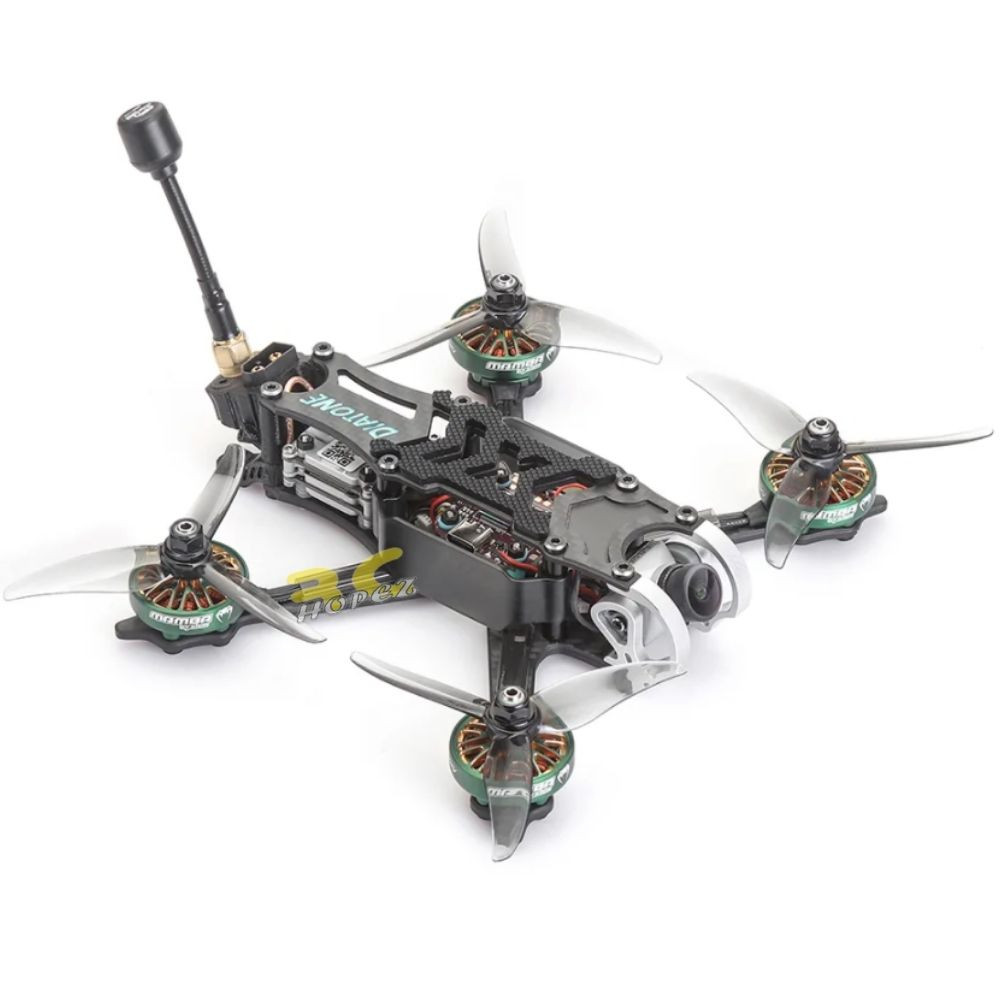

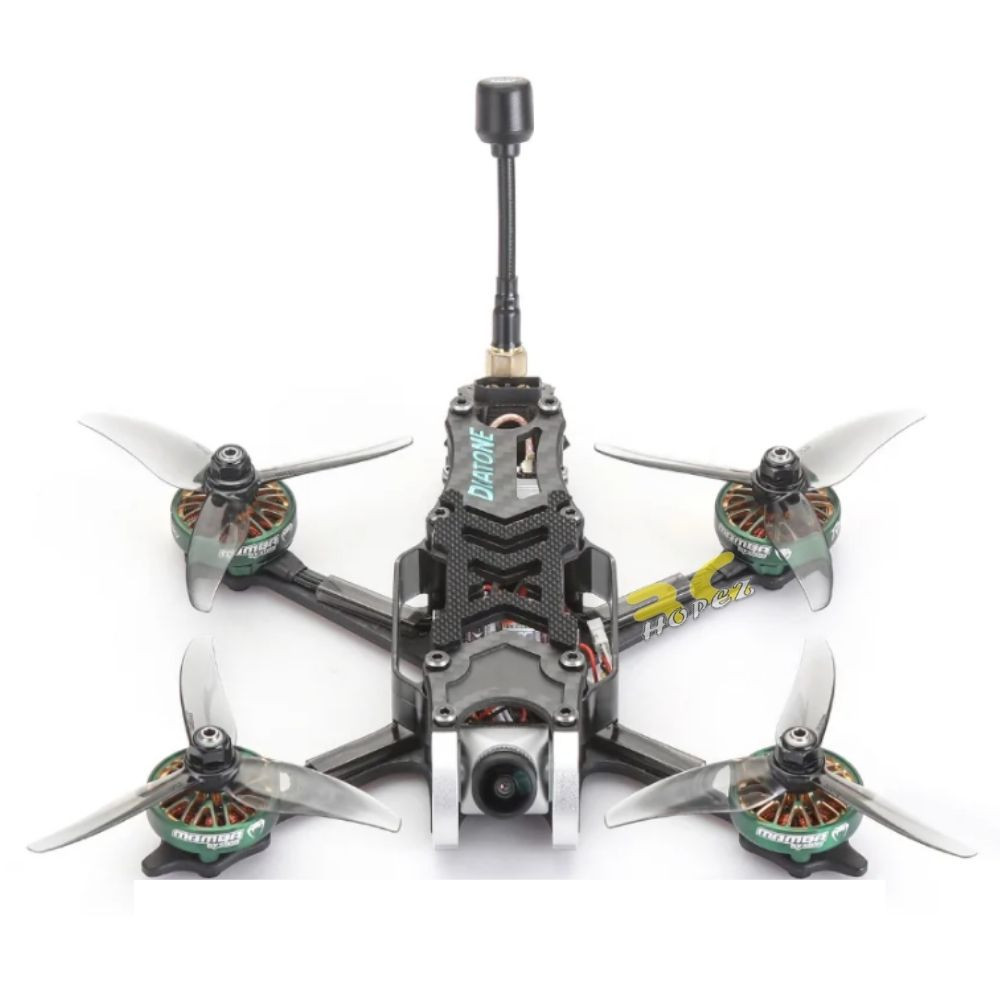

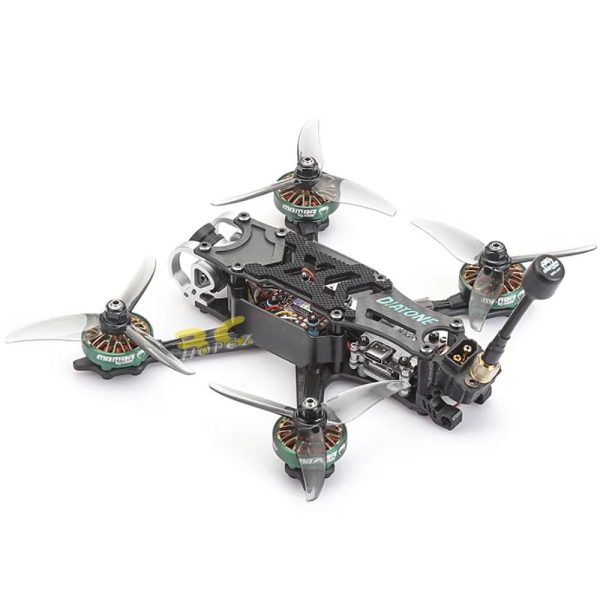

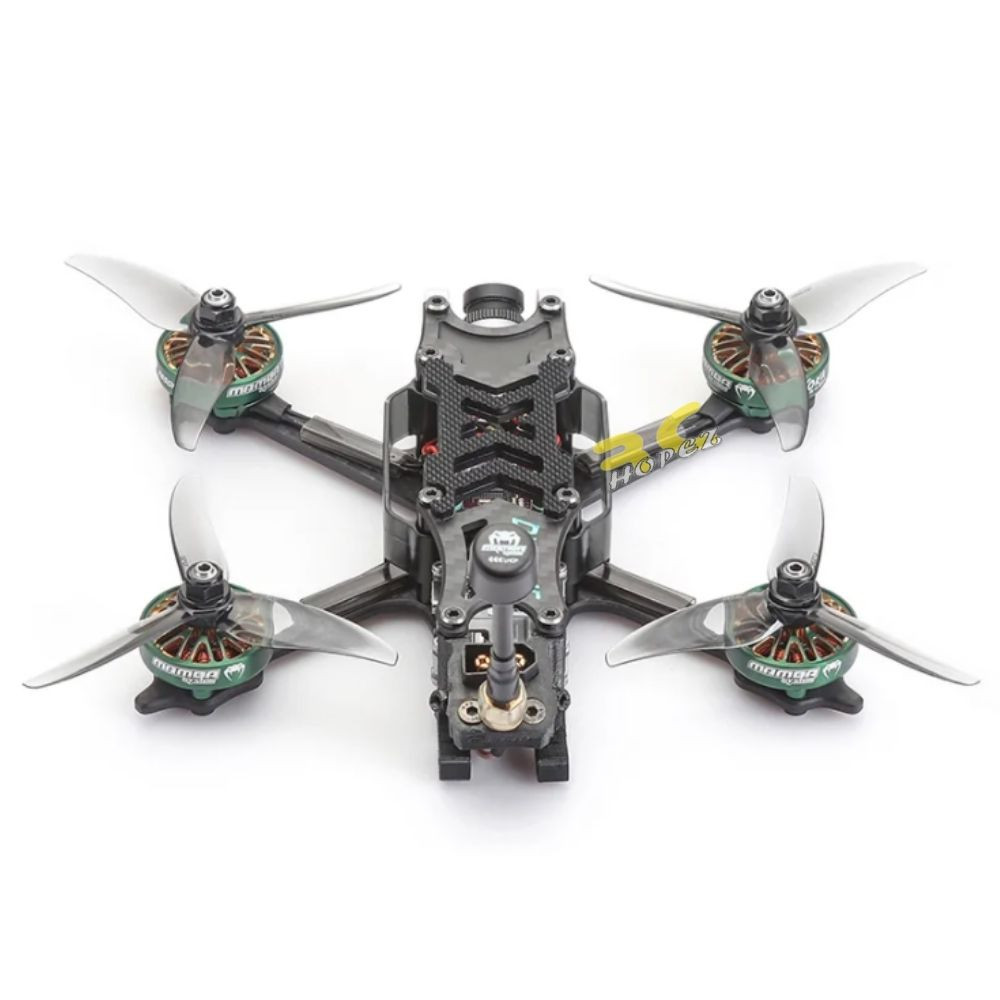

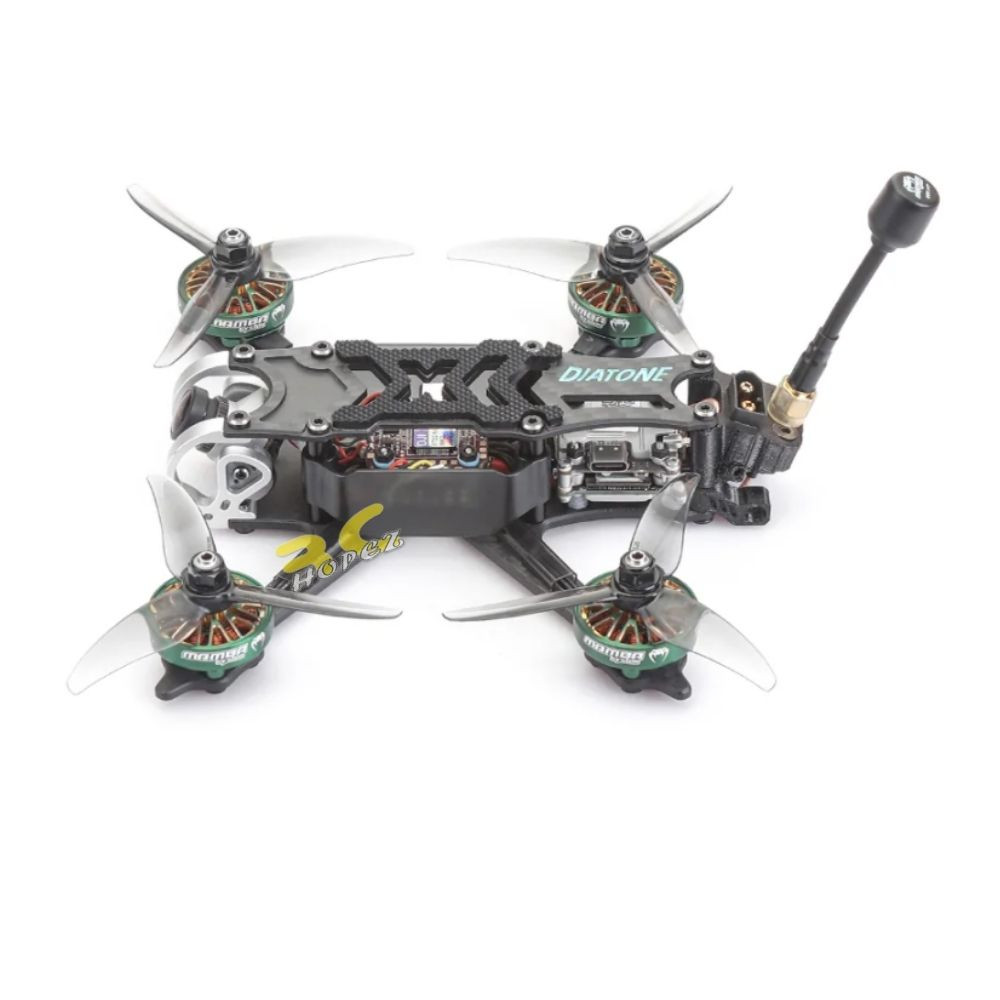

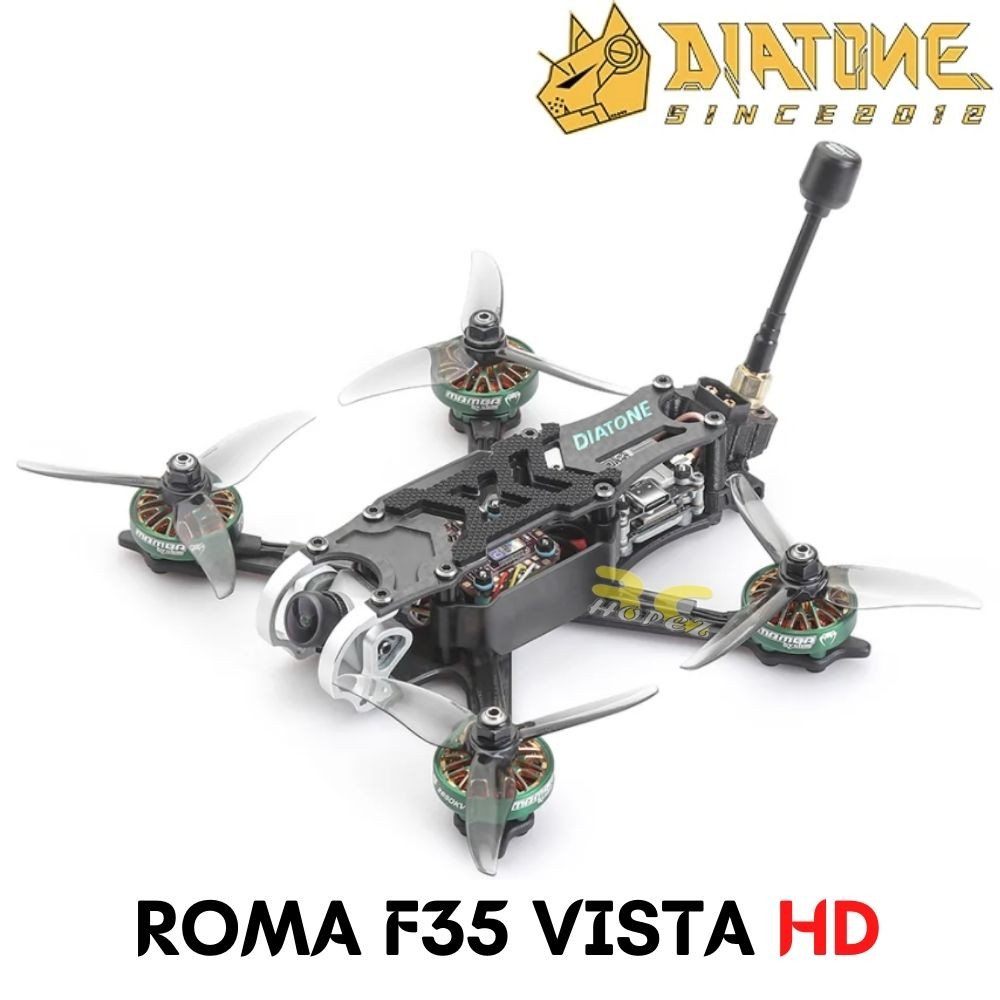

DIATONE Roma F35 Vista HD 3.5Inch 4S/6S (Optional) FPV Racing Drone With Caddx Polar Vista Camera RomaF35HD

DIATONE Roma F35 Vista HD 3.5Inch 4S/6S (Optional) FPV Racing Drone With Caddx Polar Vista  Camera RomaF35HD

Brand: Diatone
Item Name: Roma F35 Polar Vista 4/6S (Optional) FPV Drone
Camera: Caddx Polar
Antenna: MAMBA ULTRA LHCP
Flight control: MAMBA DJI F722 MINI MK2 / 20MM
ESC: F40_BLS MINI
Size: 3.5 Inch
Voltage: MAMBA TOKA 2203.5 2650 KV for 6S /
              MAMBA TOKA 2203.5 4200 KV for 4S (Optional)
Wheelbase: 158mm

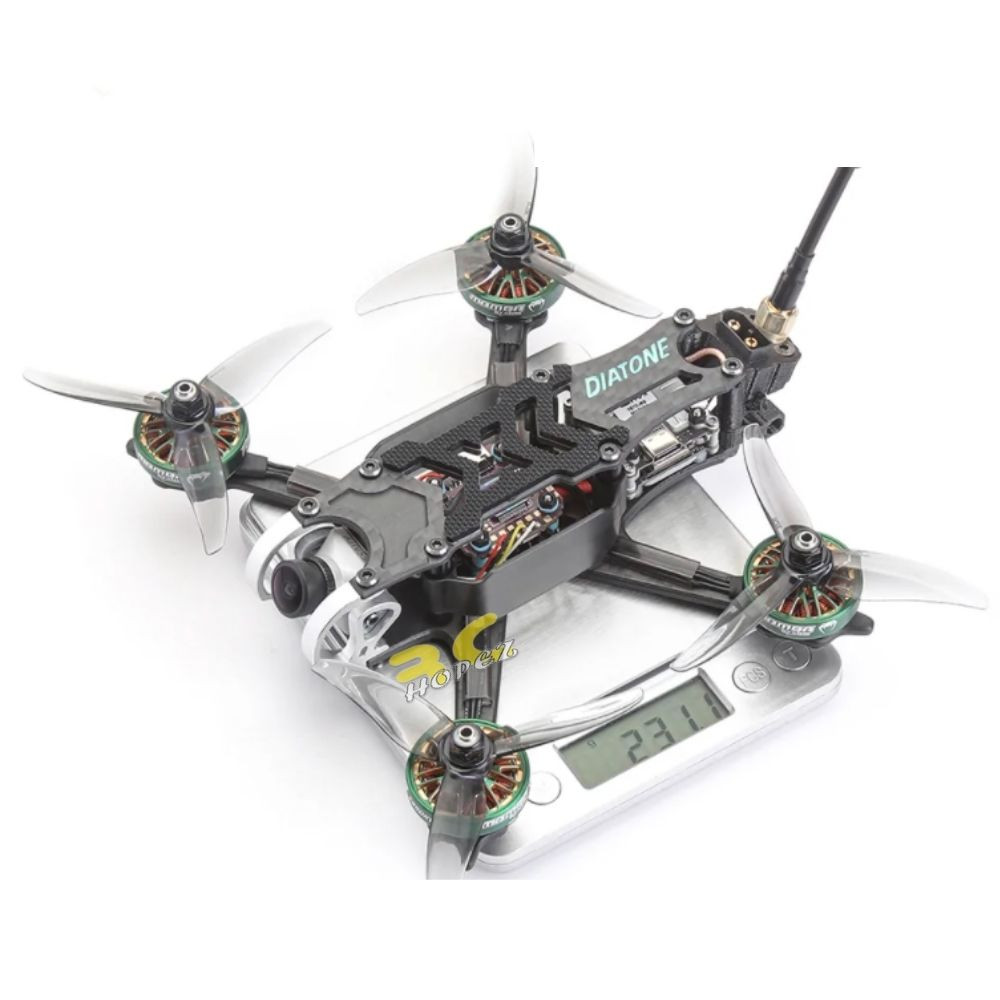

Weight: 231.1g

FC Specifications
MAMBA DJI F722 MINI MK2/20mm
MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:29×30.5×8mm
MOUNTING: 20×20,M2

ESC Specifications
MAMBA F40_BLS MINI /20mm
Input: 3~6S Lipo (12.6~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
Target： BLHeli_S CH40
SOFT: Dshot300/600
Size:29×29×5.5mm
MOUNTING: 20mm, M3/M2

Caddx Polar Vista HD Specifications
Features
Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones

Specifications
Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps<32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D); 138°(H); 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6 & 8Mega
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

MAMBA TOKA 2203.5 2650KV Motor (6S)

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current：10V/0.9~1.9A
Maximum Power: 441.24W


Mamba TOKA 2203.5 4200KV Motor (4S)

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 35.21A
ldle Current：2.2A
Maximum Power: 567.23W

Recommend Battery (NOT Included)：
6S 650-850mah   6-7 mins
4s 850-1000mah   6-7 mins


Battery Connector: XT60

Package Included:
1x Roma F35 Analog 3.5Inch 4S/6S (Optional)  FPV Racing Drone
1x GF-3520 propeller
1x Buzzer
2x Battery belt
1x M2 screw accessory kit
1x M3 screw accessory kit
1x 20mm PC isolation plate
1x Data Cable
1X Receiver (Optional)
