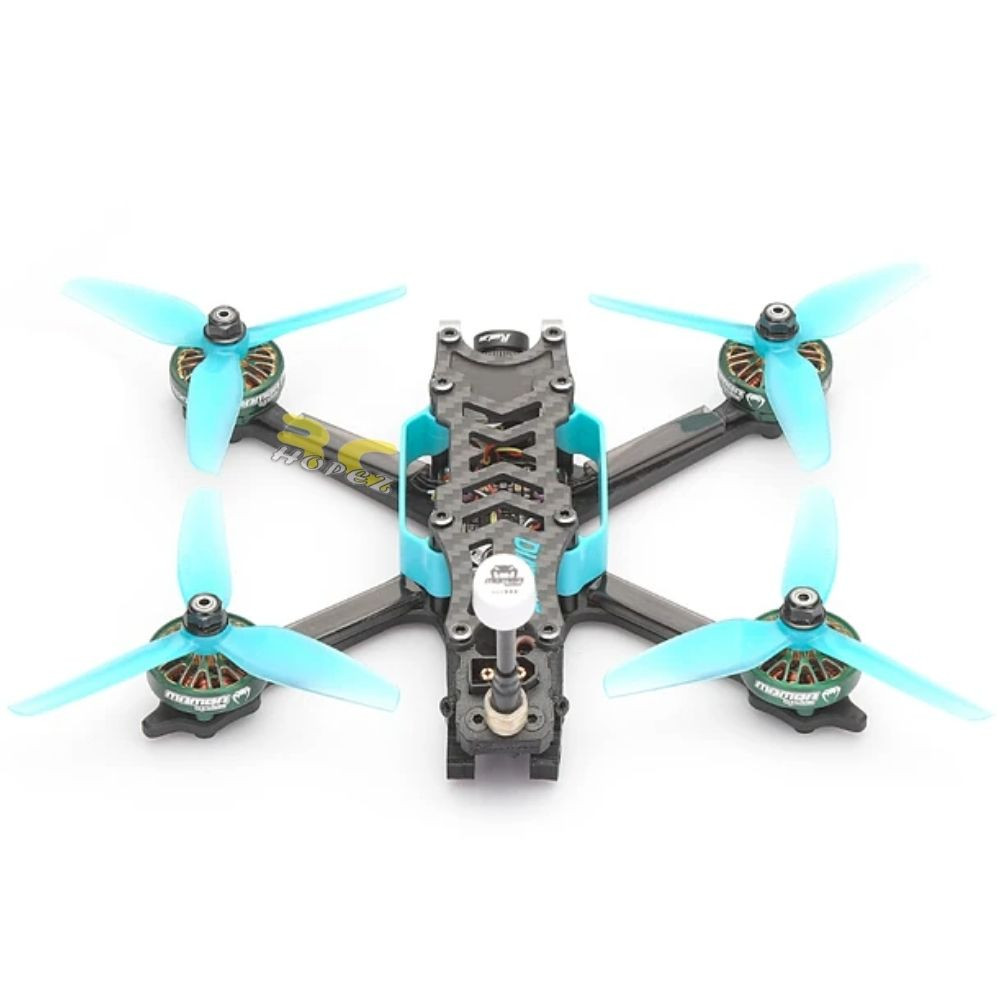

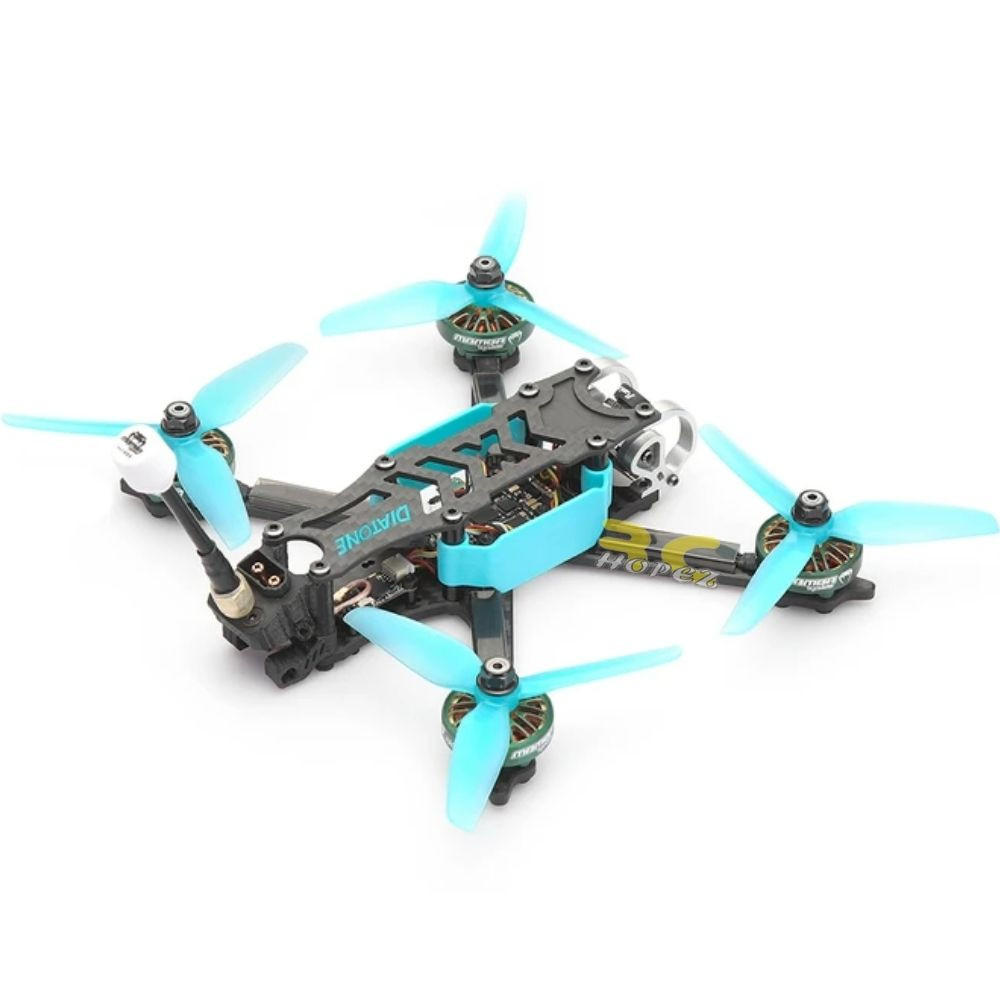

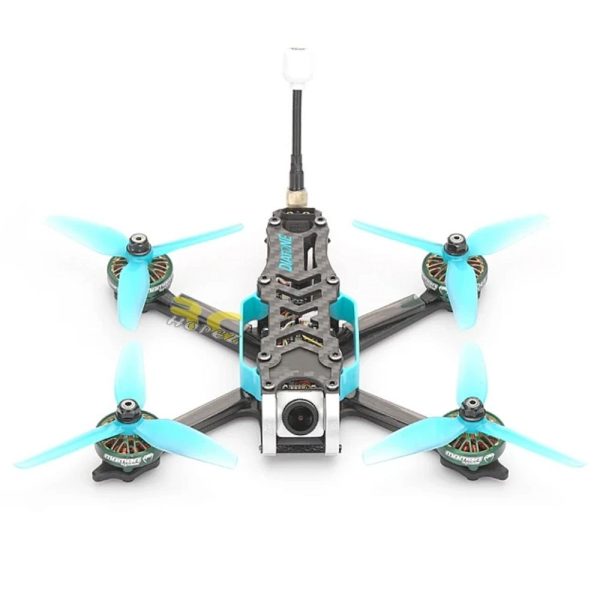

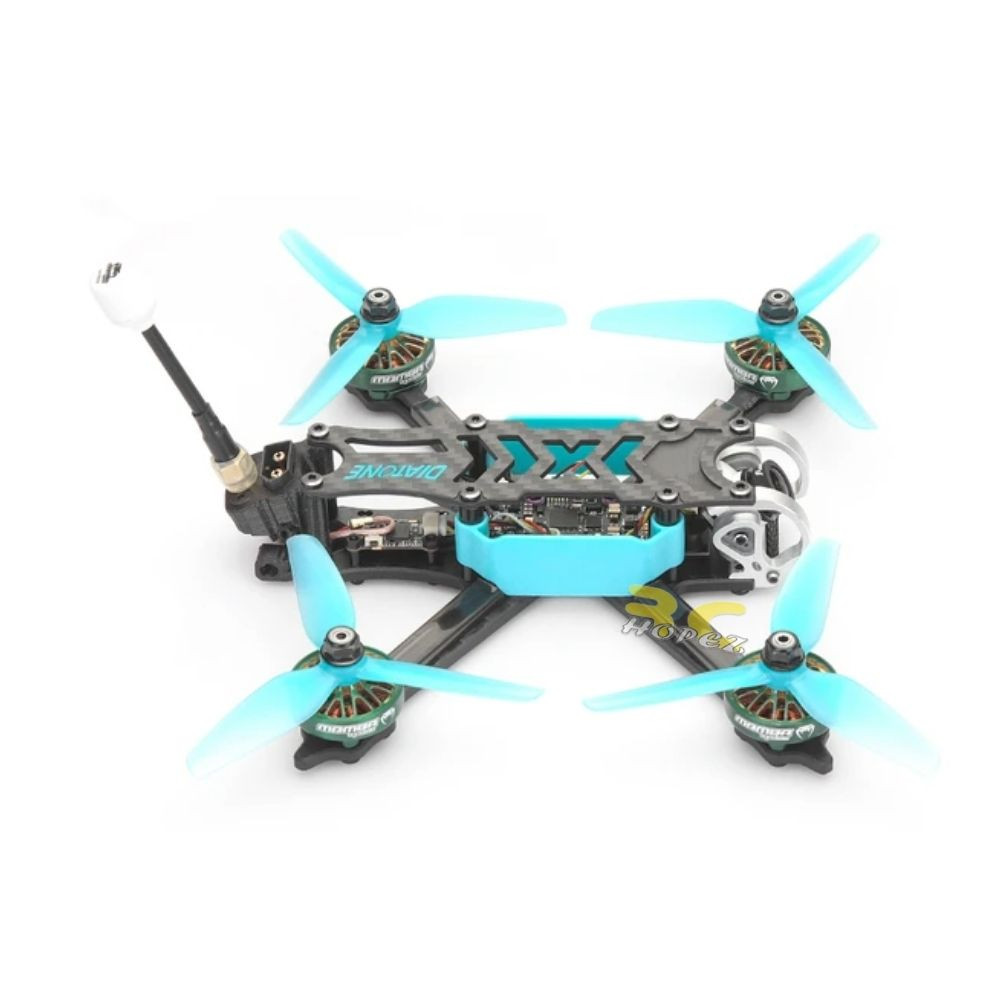

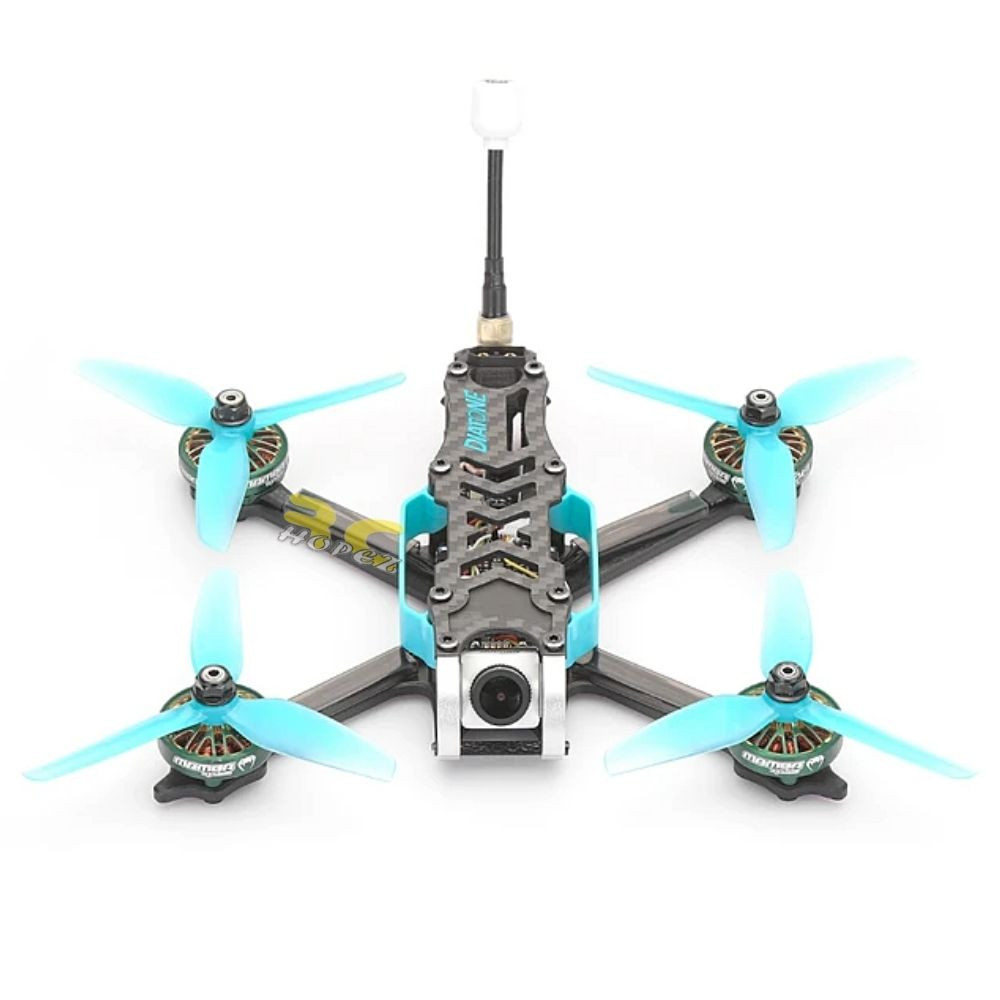

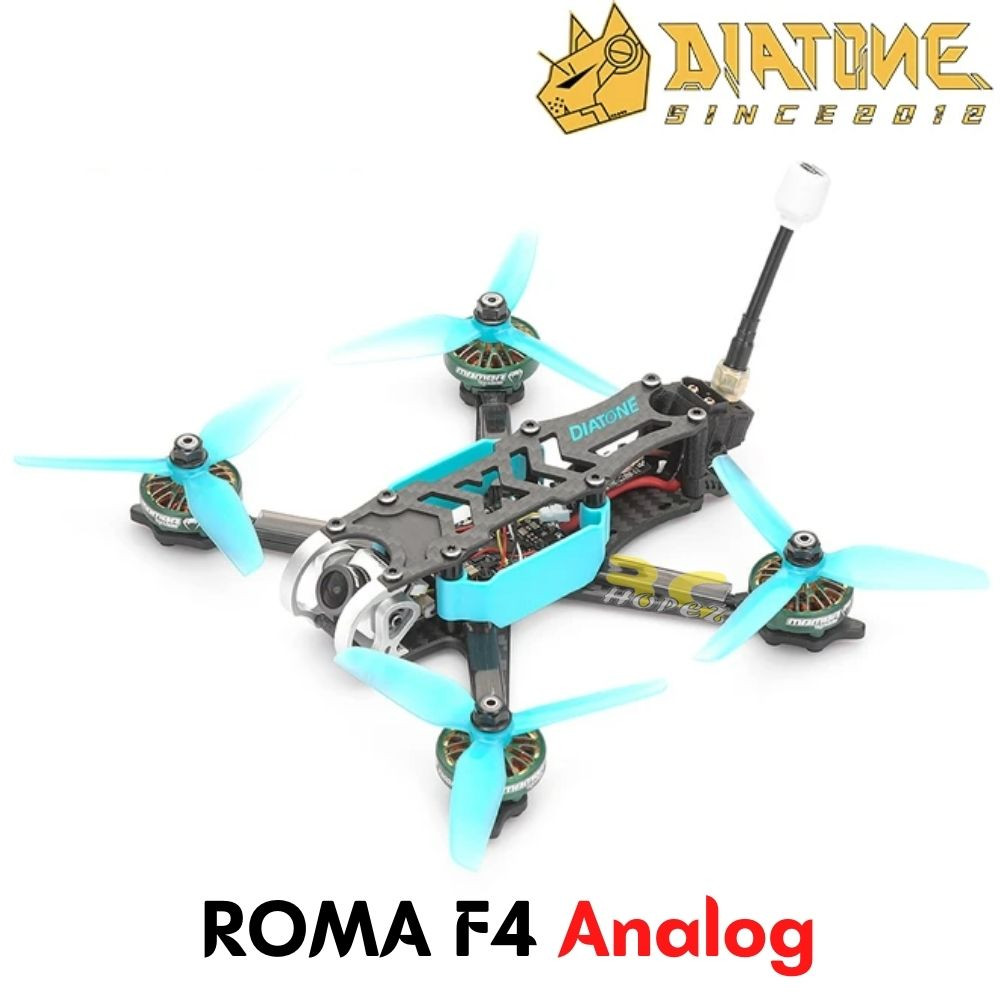

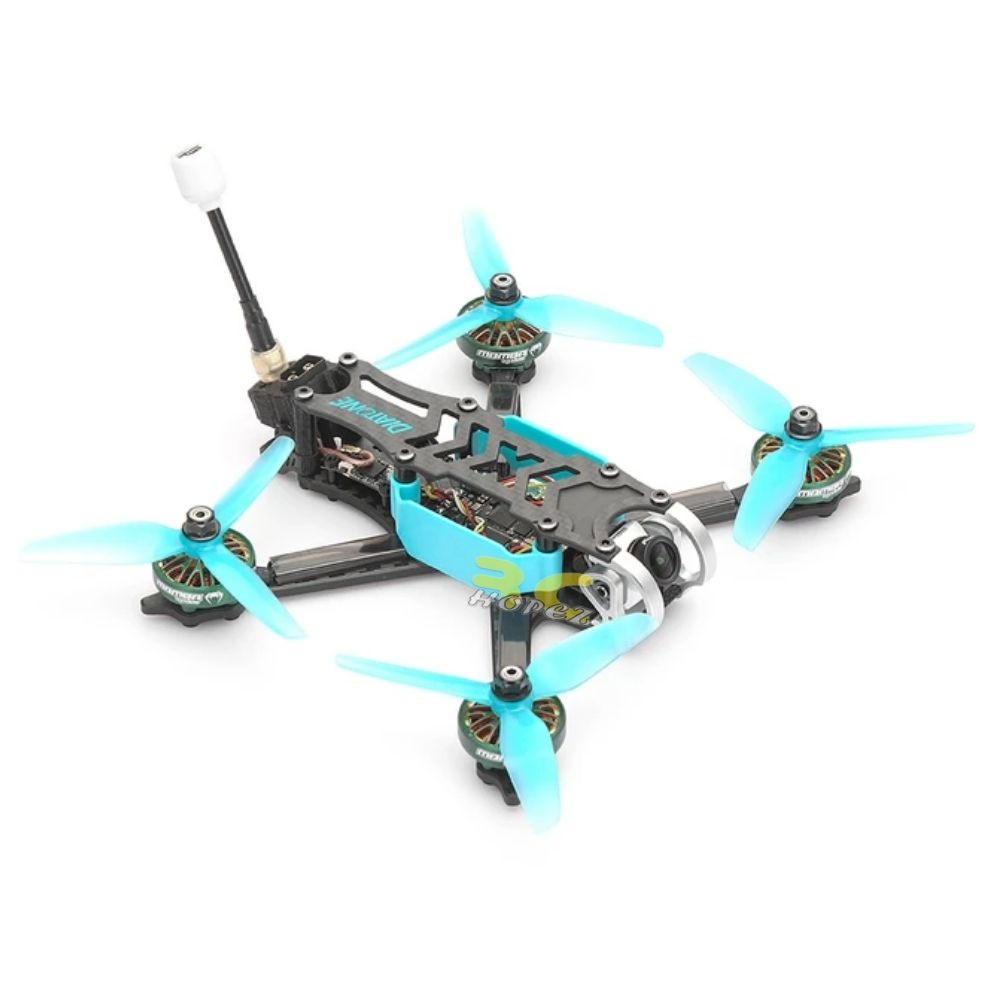

DIATONE Roma F4 Analog 4Inch 4S/6S (Optional) FPV Racing Drone With RUNCAM PHOENIX 2 Camera RomaF4AN

DIATONE Roma F4 Analog 4Inch 4S/6S (Optional) FPV Racing Drone With RUNCAM PHOENIX 2 Camera RomaF4AN

Brand: Diatone
Item Name: Roma F4 Analog 4/6S (Optional) FPV Drone
Camera: RUNCAM PHOENIX 2
Antenna: MAMBA ULTRA RHCP
VTX: MAMBA TX500
Flight control: MAMBA AIO F411 35A / 20MM
ESC: 35A 8BIT
Size: 4 Inch
Voltage: MAMBA TOKA 2203.5 2200 KV for 6S /
              MAMBA TOKA 2203.5 3300 KV for 4S (Optional)
Wheelbase: 175mm

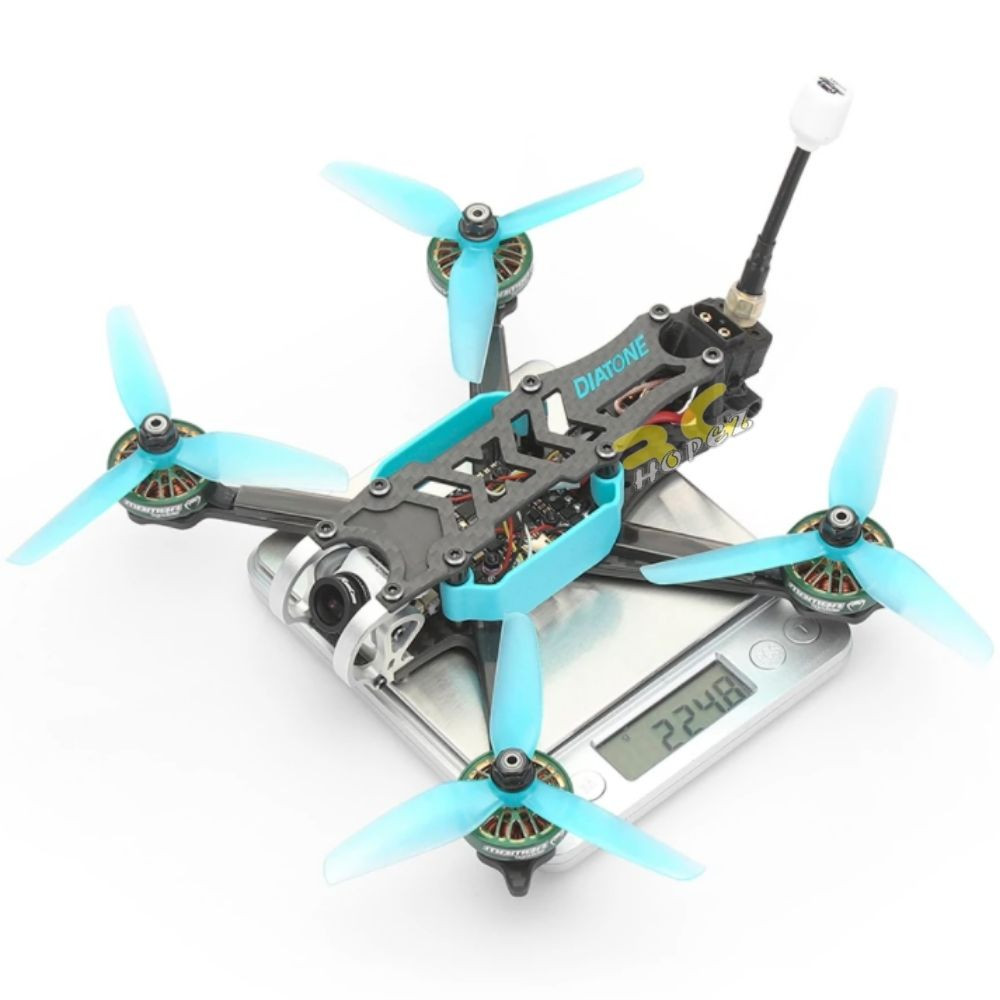

Weight: 224.8g

FC Specifications
MAMBA AIO F411 35A /20mm
MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:42×33×6mm
MOUNTING: 20×20,M2

ESC Specifications
MAMBA AIO F411 35A /20mm
Input: 3~6S Lipo (12.6~25.2V)
CONTINUE CURRENT: 35A×4
BURST CURRENT: 40A (10S)
Target： BLHeli_S CH40
SOFT: Dshot300/600

MAMBA TOKA 2203.5 2200KV Motor (6S)
Overall Dimension: Φ28.9×29.4mm
prop mounting shaft diameter: 5mm
Installation hole position: 16×16mm，M3
Prop:  4 inch
Bearing： 9*4*4
Shaft Diameter: 4.0mm
Lead Wire Size：24AWG×190mm
slots/poles: 12N14P
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 19.43A
ldle Current：1.0A
Maximum Power: 466.5W

Mamba TOKA 2203.5 3300KV Motor (4S)
Overall Dimension:Φ28.9×29.4mm
Prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 29.78A
ldle Current：10V/1.5~2.2A
Maximum Power: 475.1W

Runcam Phoenix 2 :
Brand Name: Runcam
Model Name: Phoenix 2
Image Sensor: 1/2″ CMOS Sensor
Horizontal Resolution: 1000TVL
Lens: 2.1mm ​(M12)​ FOV155°(4:3)
Screen Format: 4:3 / 16:9 switchable
Mirror/Flip: Available
Signal System: PAL / NTSC Switchable
S/N Ratio: >50dB (AGC OFF)
Electronic Shutter Speed: Auto
Auto Gain Control(AGC): Auto
Min. Illumination: [email protected]
WDR: Global WDR
Day/Night: Color/BW/EXT/Auto
Menu Control: Cable Control
Power: DC 5-36V
Current: 200mA@5V, 85mA@12V
Housing Material: ABS
Net Weight: 9g
Dimensions: 19mm*19mm*20mm

Recommend Battery (NOT Included)：
6S 650-850mah   6-7 mins
4s 850-1000mah   6-7 mins

Package Included:
1x Roma F4 Analog 4Inch 4S/6S (Optional) FPV Racing Drone
1x HQ 4*3*3 propeller
1x Buzzer
2x Battery belt
1x M2 screw accessory kit
1x M3 screw accessory kit
1x 20mm PC isolation plate
1X Receiver (Optional)
