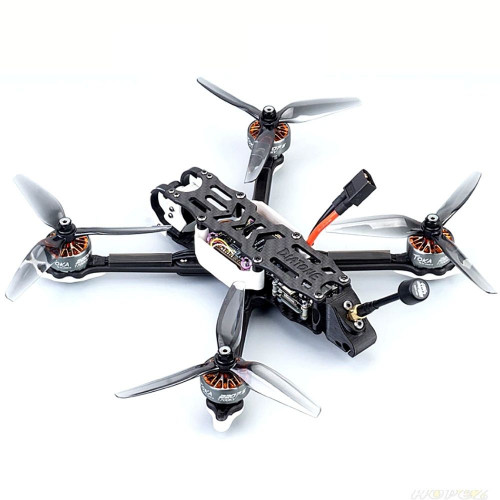

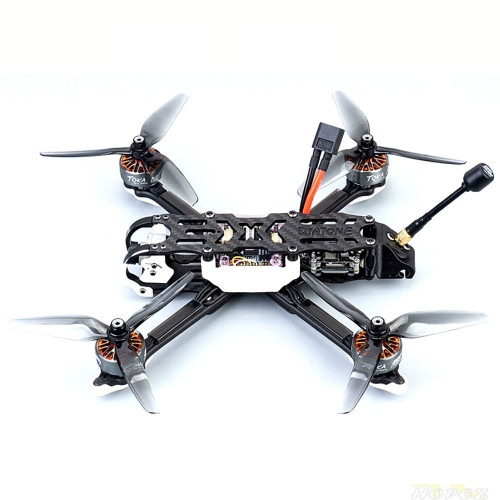

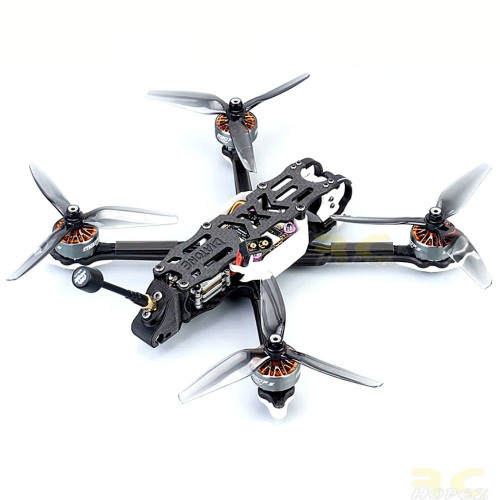

Diatone Roma F5 6S Freestyle Mamba F405DJI FC 50A With Caddx Vista HD Camera PNP – RomaF5-V6



Specification:
Item name: Roma F5 6S 5 Inch Freestyle FPV Racing Drone BNF Caddx VISTA Version
Frame Wheelbase: 218mm
Camera:CADDX VISTA KIT
Antenna: MAMBA Ultras
VTX: CADDX VISTA KIT (LHCP Antenna)
FC: MAMBA F405DJI
ESC: MAMBA F50PRO
Motor: MAMBA TOKA 2207.5 2450KV 4S
Propeller: HQ Props S5
Weight(without battery): 380.97g





Roma F5 DJI Frame Specification :





Wheelbase ：226mm
Weight ：135g
Prop Siza ：5 inch
FC Mounting: 30.5×30.5 (M3) & 20×20mm（M2）
Motor Mounting:16mm
Top Plate 2.5mm
Bottom Plate 2.5mm
Rated Voltage（Recommendation）：3-6S
bai Aluminum alloy：7075
carbon fiber:T300 3K
Injection Part：Camera Metal Mount Protector ，Arm Protector，Univeral Adjustable Gopro Mount





Caddx Vista Digital HD System for DJI HD FPV :





• Dimensions
• Module: 30.45 x 29 x 13mm
• Camera: 27.4 x 21.1 x 20.1mm
• Weight: 29g (inc. camera); Module: 19g
• Antenna Connector: u.FL
• Operating Frequency: 5.725-5.85GHz
• Transmitter Power (EIRP)
• FCC/SRRC/MIC: <20dBm
• CE: <14dBm
• I/O Interface: USB-C, IPEX, 3-in-1 Port
• Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
• High-Quality Mode (720p 60fps): 30-40ms
• Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7k
• Input Power: 7.4-26.4v













DJI Camera





• Sensor: 1/3.2" CMOS
• Effective Pixel: 4M
• Lens: 2.1mm f/2.1
• Shutter: Rolling Shutter
• ISO: 100-25600
• FOV: 150(D);122(H);93(V)























































































Package Included:
1 x Roma F5 5 Inch Freestyle FPV Racing Drone BNF Caddx VISTA Version
4 x HQ Ethix S5 Propeller
1 x Mamba FC 5V Buzzer

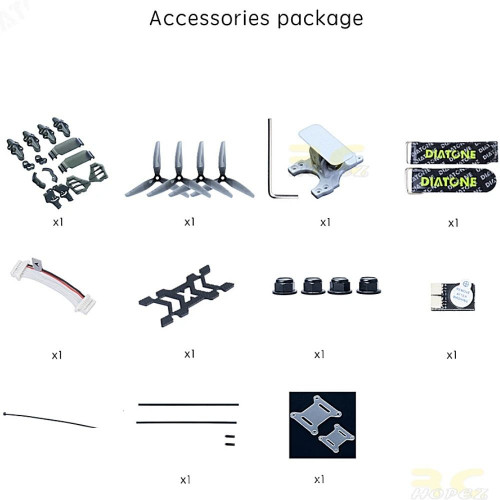

1 x Accessories Pack2 x Battery Strap
1 x Univeral Adjustable Gopro Mount Set
1 x Antenna Protective Tube + Caps5 x Cable Tie

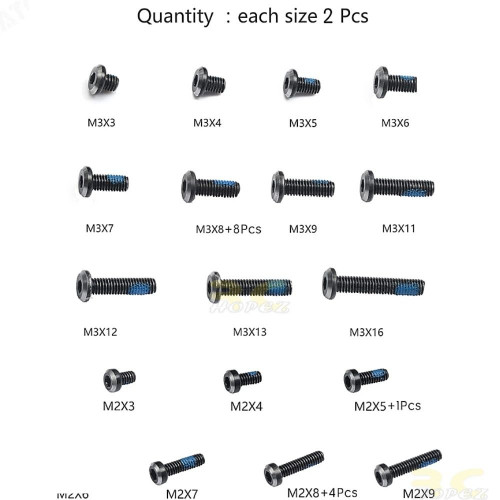

1 x M2 Screws Pack
1 x M3 Screws Pack
1 x 20mm PC isolation Sheet
1 x 30.5mm PC isolation Sheet
