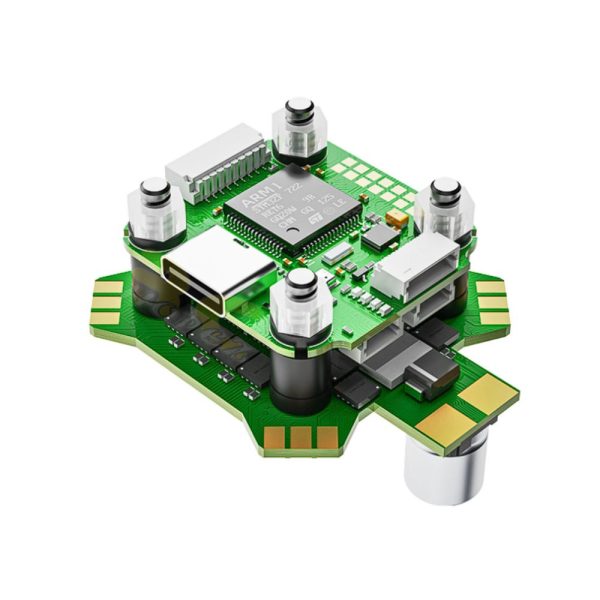

iFlight 20x20mm BLITZ Mini F7 V1.2 Flight Controller & E55 55A 2-6S 4In1 BLHeli32 ESC for Nazgul Evoque F5 F6 MX5573

iFlight 20x20mm BLITZ Mini F7 V1.2 Flight Controller & E55 55A 2-6S 4In1 BLHeli32 ESC for Nazgul Evoque F5 F6 MX5573

Features
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging

Changelog
October 20, 2023: Flight control Blackbox flash capacity changed from 16MB to 8MB
April 6, 2024: The flight control is updated to version V1.2, and the gyroscope is changed from BMI270 to ICM42688.
June 27, 2024: Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" in the "Download" column of this page.

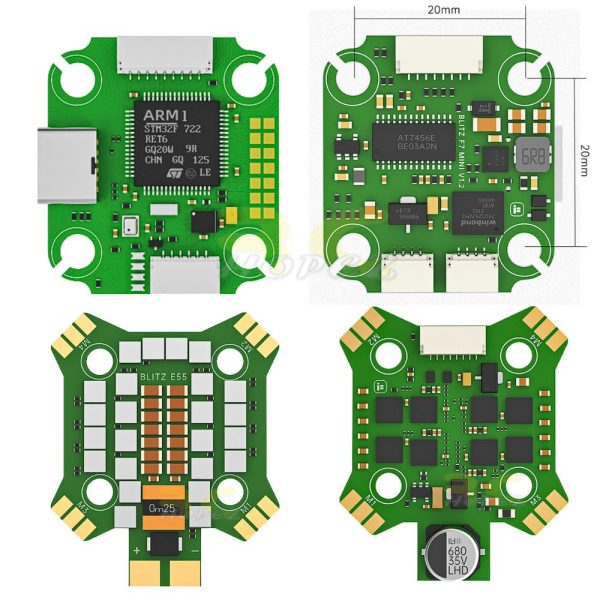

BLITZ Mini F7 V1.2 FC

Specifications
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

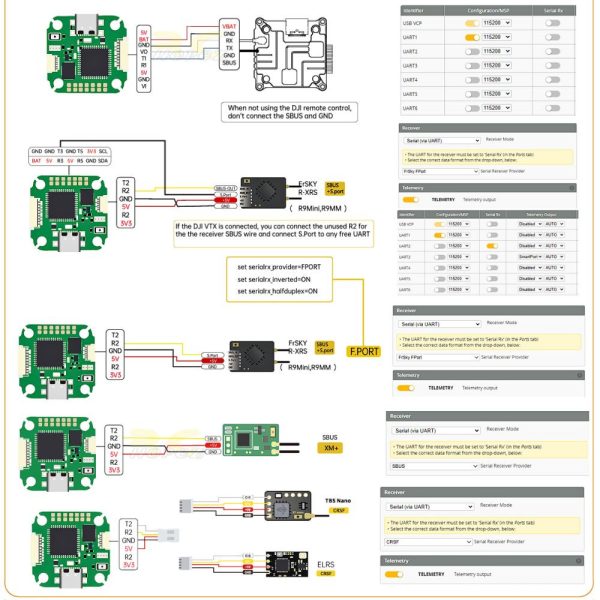

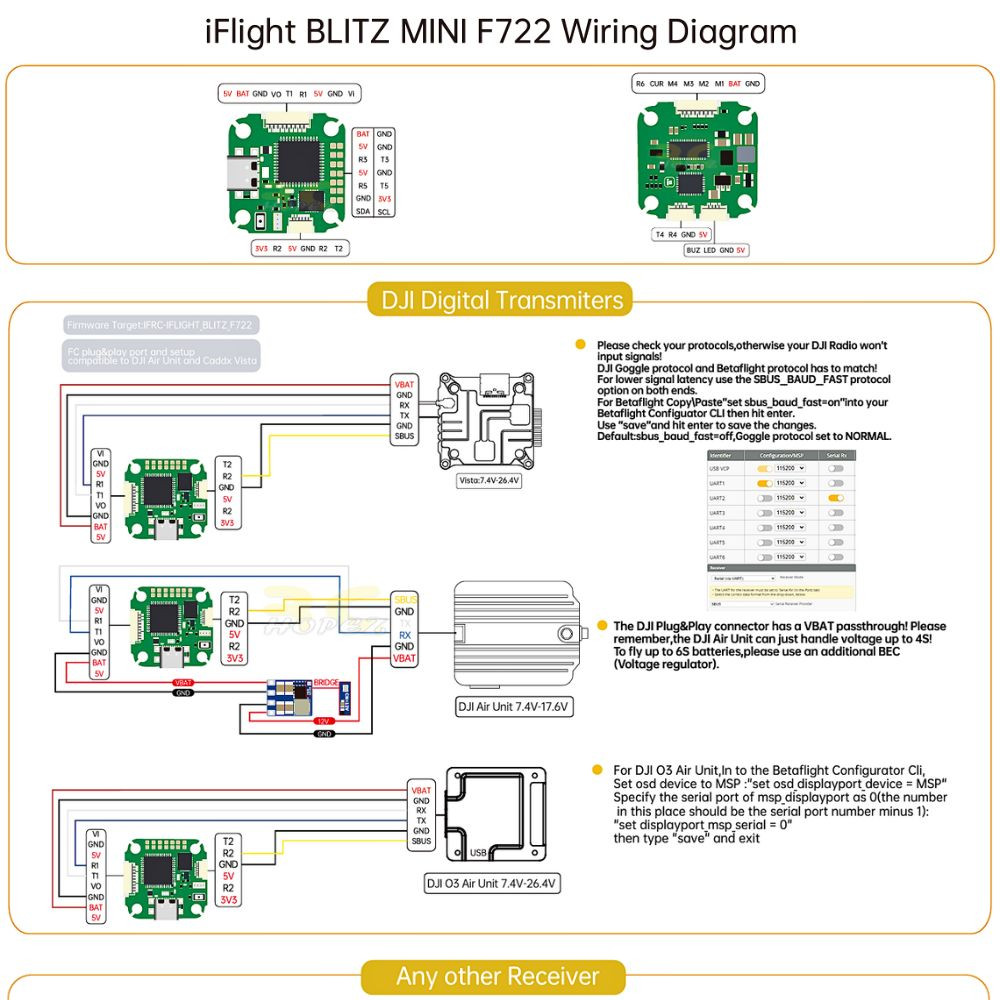

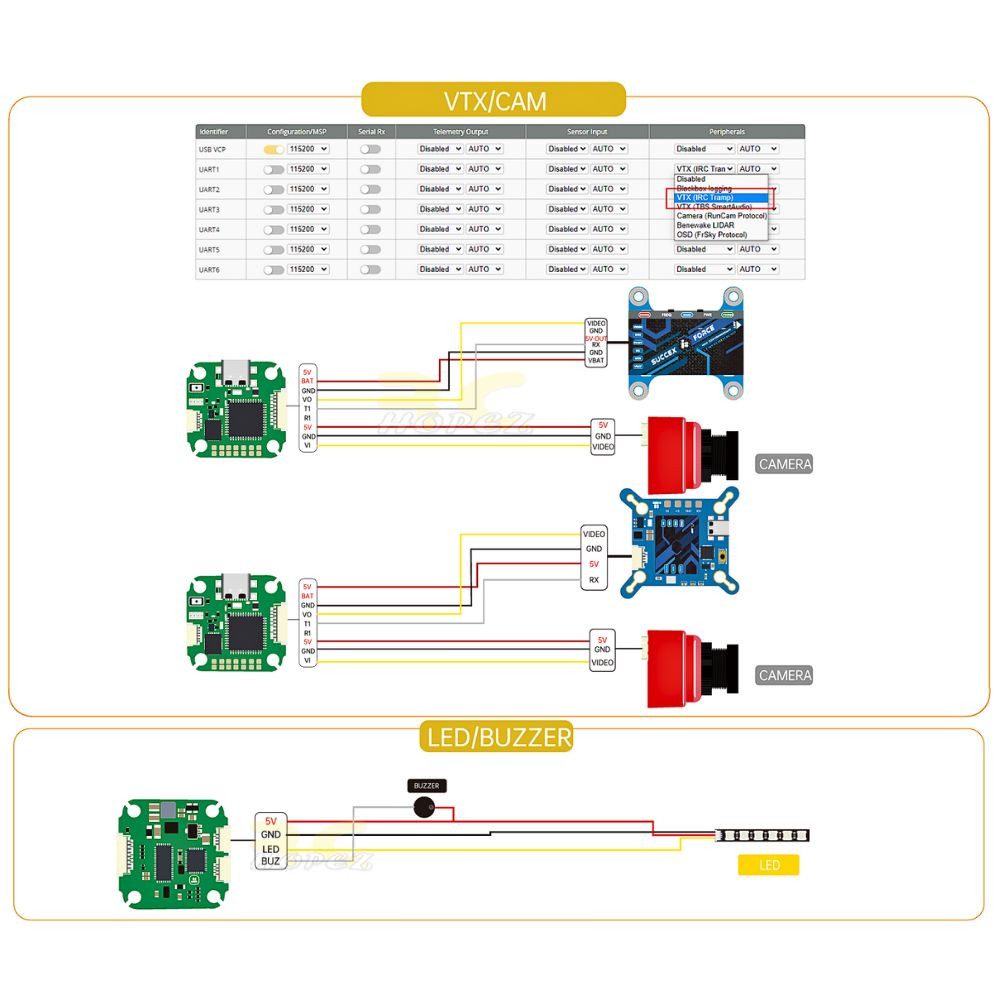

Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

ESC // BLITZ Mini E55 4-IN-1 ESC

Specifications
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU： G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9
Firmware: BLHeli 32

Note:
If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.

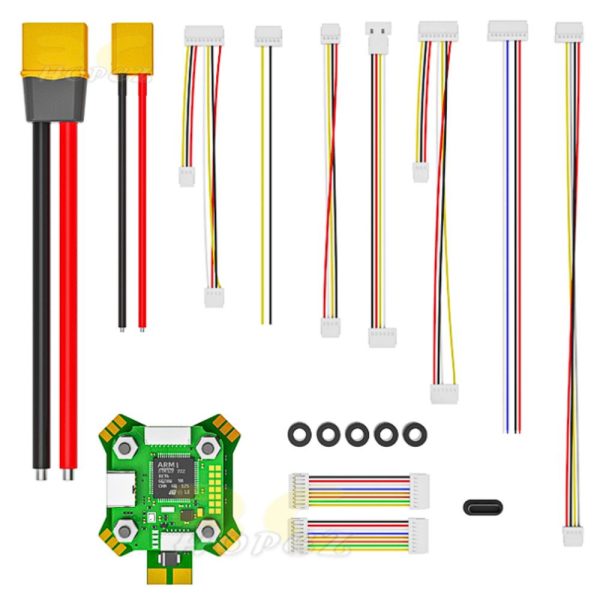

Package included (Optional) :

FC
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x Silicon Grommets
1 x Wire Harness for F7 Flight controller

OR

ESC
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x  Power cables & ESC signal wires

OR

FC + ESC
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x Silicon Grommets
1 x Wire Harness for F7 Flight controller
1 x  Power cables & ESC signal wires
