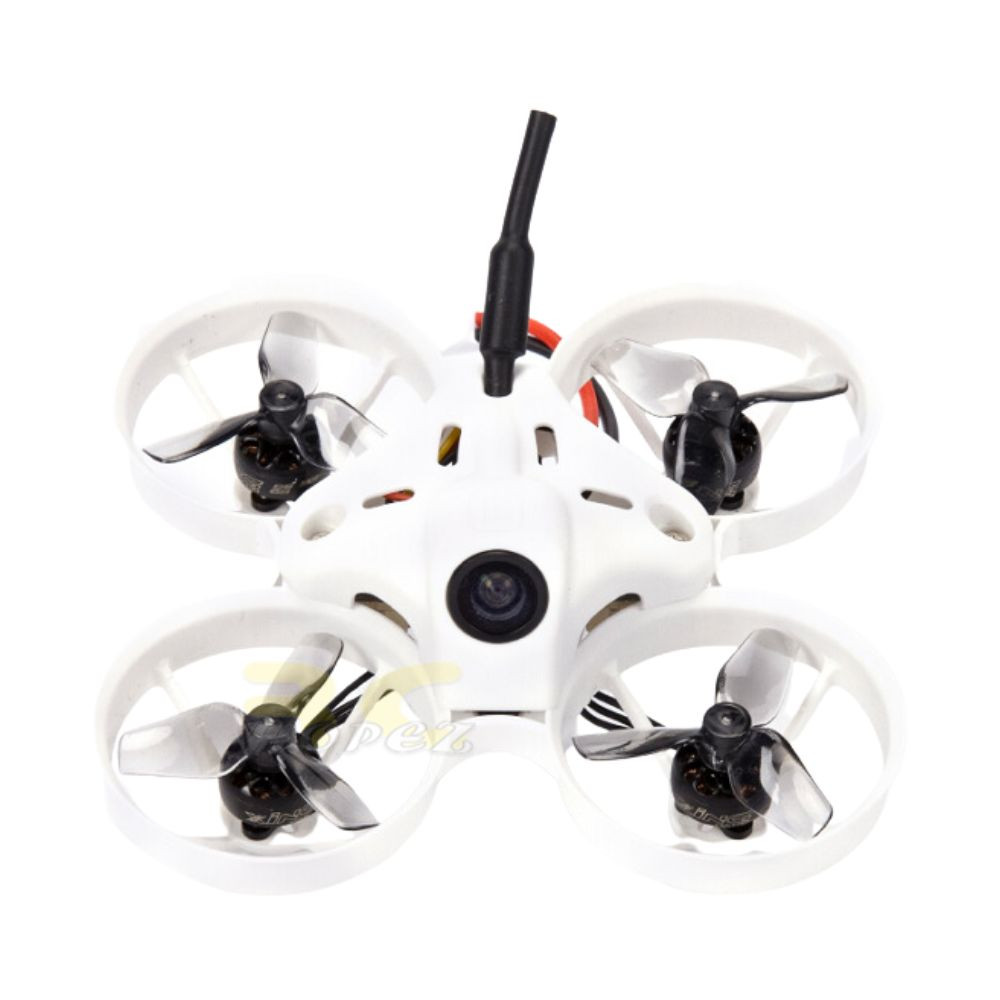

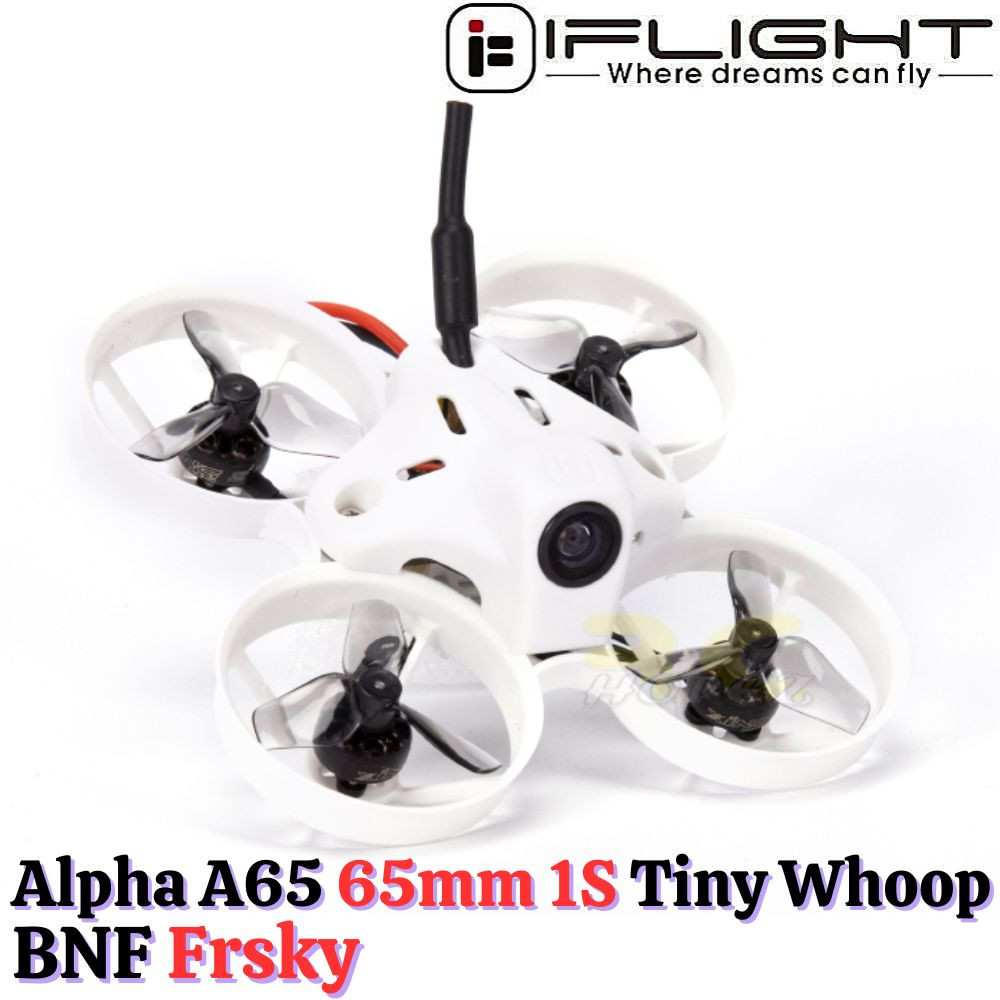

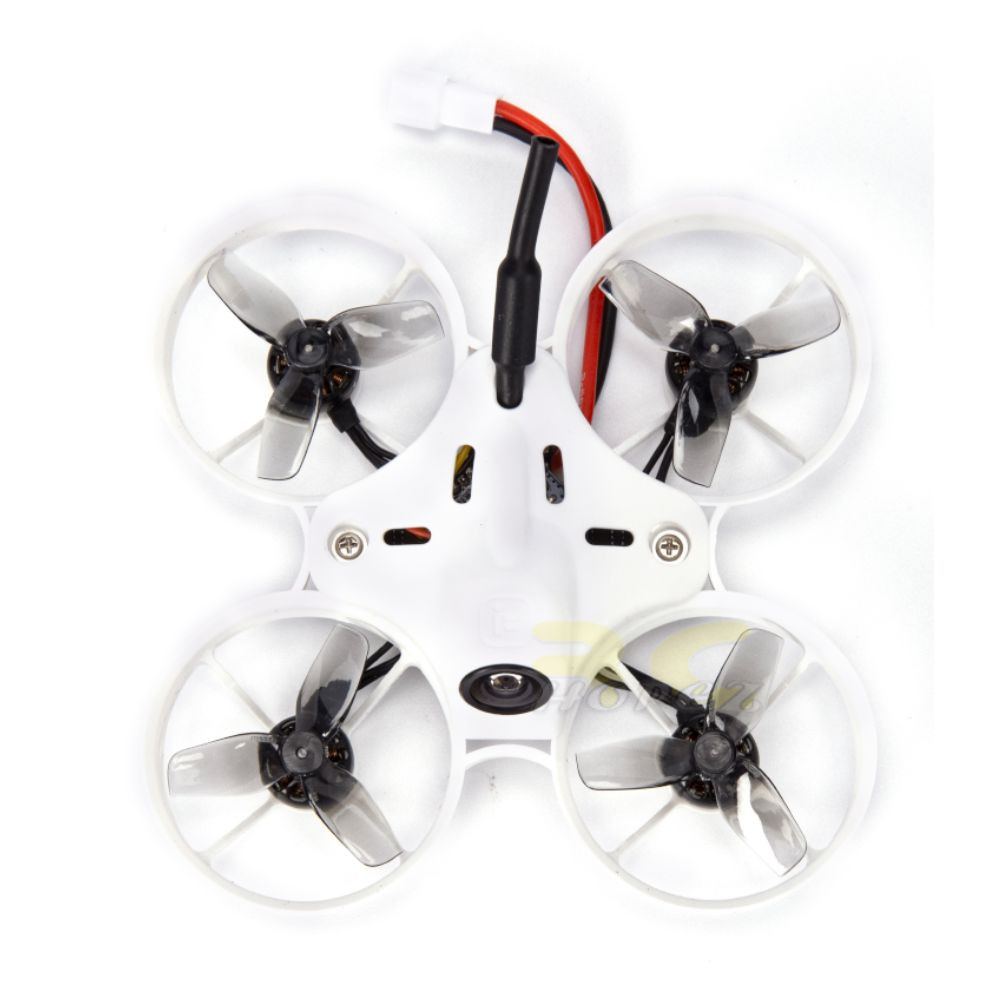

iFlight Alpha A65 65mm 5.8G 1S Tiny Whoop w/800TVL Camera BNF Frsky Receiver MX1694

iFlight Alpha A65 65mm 5.8G 1S Tiny Whoop w/800TVL Camera BNF Frsky Receiver MX1694

Let's welcome the iFlight Alpha series, a new way to fly FPV. The Alpha A65 is an even smaller size 65mm lightweight 24.5g whoop. Stuffed with our newest electronic components and technology, this thing will guarantee hours of practice or racing across even the smallest spaces.

The Alpha A65 is our answer to the problem of flight time efficiency while maintaining sufficient power.

Features
24.5 grams (without battery)
Butter smooth XING 0802 (more torque and efficiency with longer flight times)
Ducts to protect the sensitive environment or yourself
Pre-tuned with smooth cinematic settings

Specifications
SucceX F4 1S 5A AIO Whoop Board w/VTX
XING 0802 22000kv FPV Micro Motor
Wheelbase: 65mm
Body size: 46*46mm
Ducted propeller size: 31mm
FC pattern: 25.5*25.5mm
Weight: 24.5g (without battery)
Flight time: 3-4 min cruising (1S 300mAh)
FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

FC // SucceX F4 1S 5A AIO Whoop Board
Size：29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
Connector：Micro-USB
Weight: 5.4g (with power cable, vtx, and vtx antenna)
MCU：STM32F411
Gyro：MPU6000
Blackbox：no
BEC output：5V 1.2A
INA pad：n uart2
Barometer：no
FC Firmware：MatekF411RX
ESC Firmware：O-H-30 BLS 16.8

ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input：1S
Signal Support: Dshot，Oneshot，Multishot
Current sensor：yes
BLHeli：BLHeli-S
ESC Telemetry：no

FPV Camera
Power DC: 5V
Size: 14*12.2*12mm
Net weight: 1.6g
800TVL 150°

VTX
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX

Reciever : iFlight iF8 R81 8CH Receiver w/ SBUS
(The iF8 R81 Receiver by iFlight is a nano receiver that is compatible with Frsky D8, and comes with 8CH and SBUS)

Battery Recommendation (Not Included)
Alienmodel 1S HV 3.8V 300mAh 30C
Gaoneng GNB 3.8HV 380mAh 60C 1S

Includes
Alpha A65 w/800TVL 150° Camera Quad BNF Included Components and Parts
Prebuilt and tested Quadcopter
1x Alpha 65mm Frame
1x 800TVL 150° Camera
1x SucceX F4 1S 5A AIO Whoop Board (MPU6000) w/VTX
1x Whip antenna
2sets HQ 31mmx3 1mm (Set of 4 – Color May Vary)
1 x Battery charge hub
