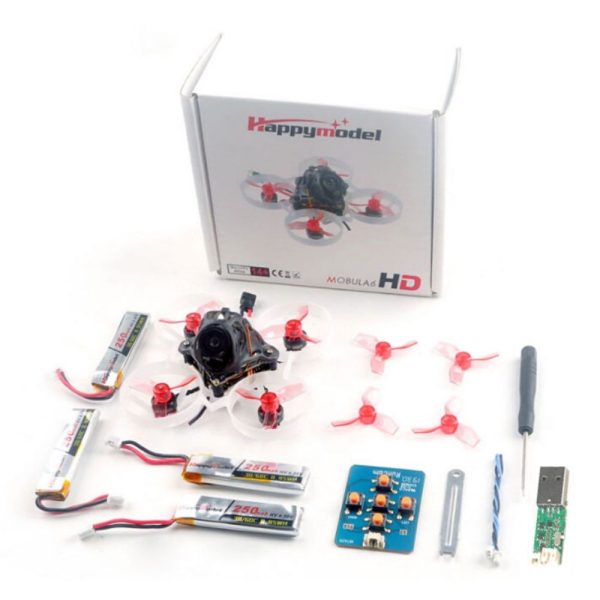

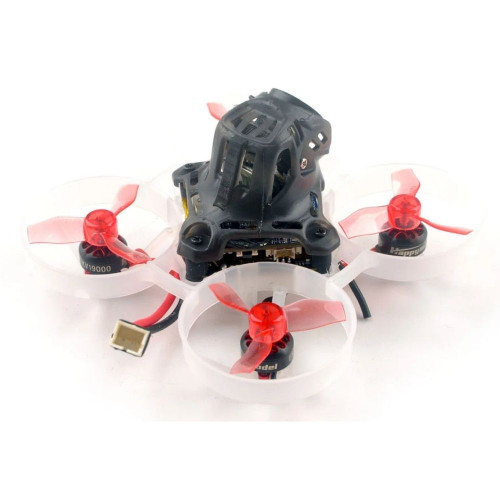

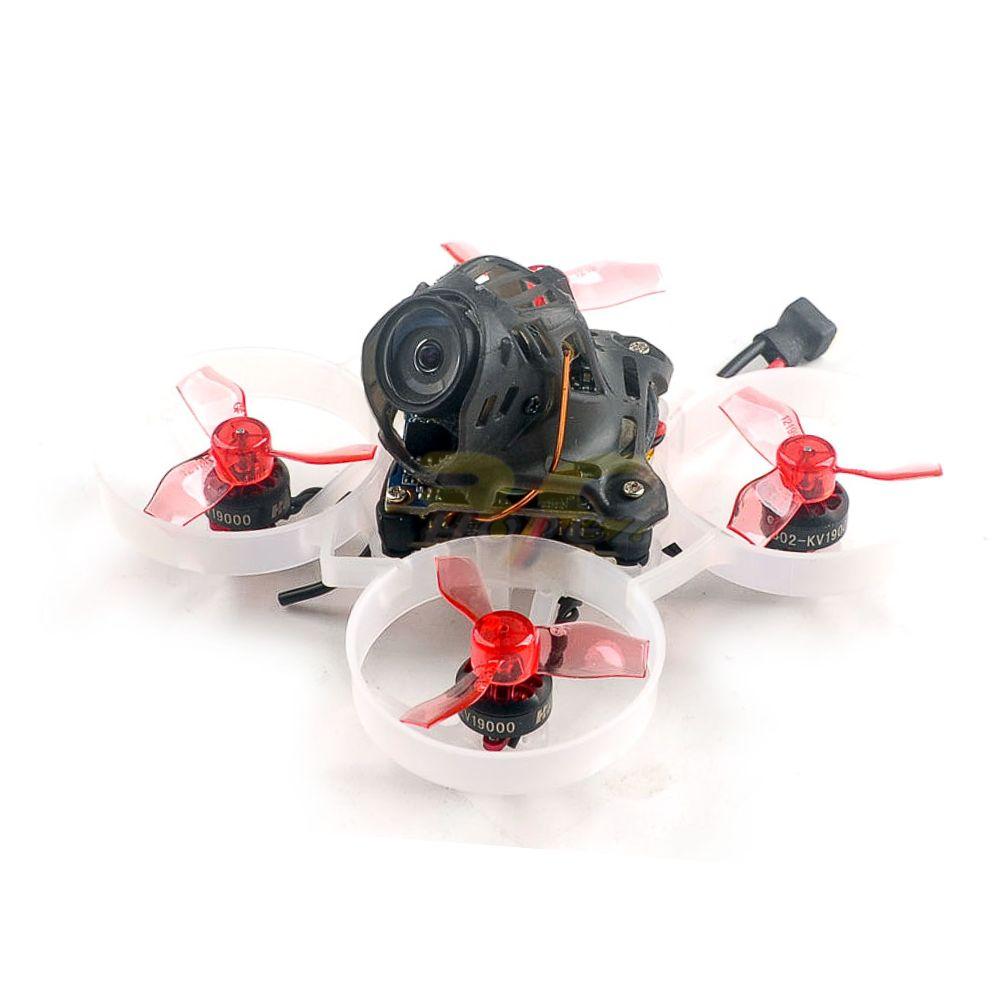

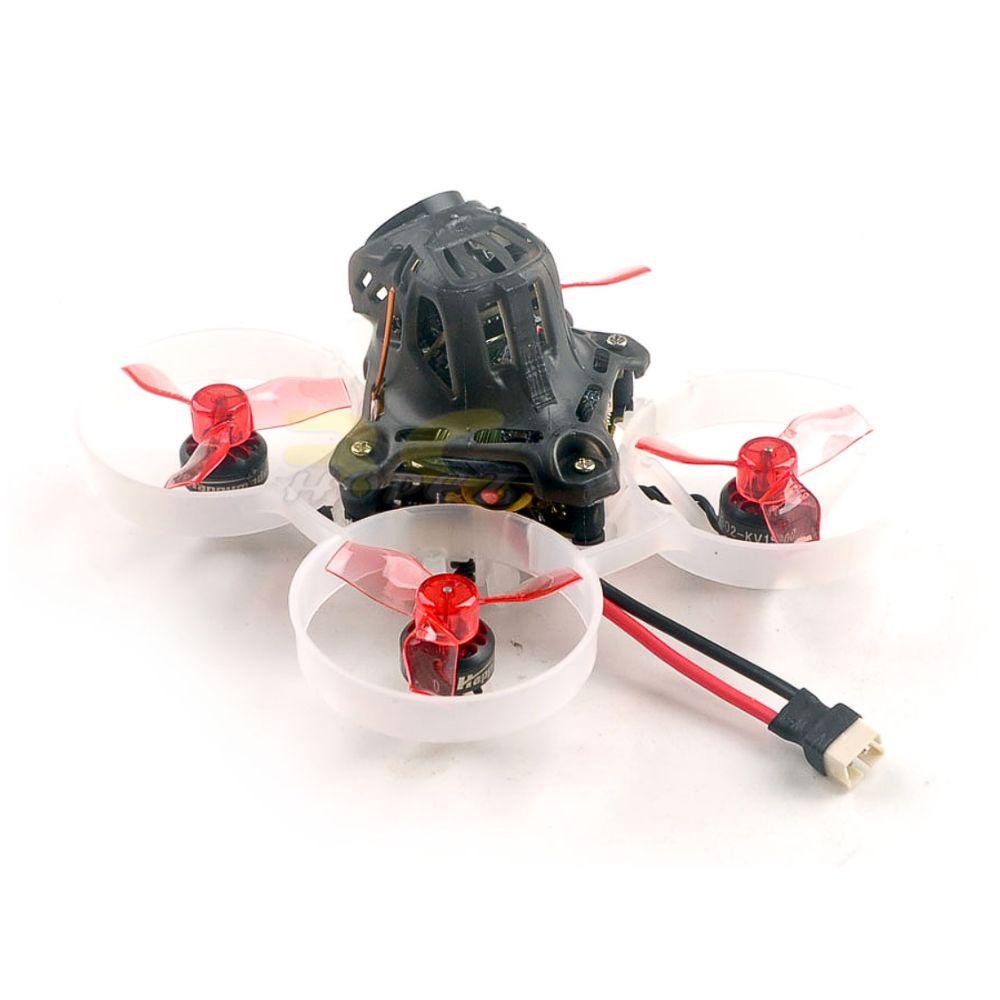

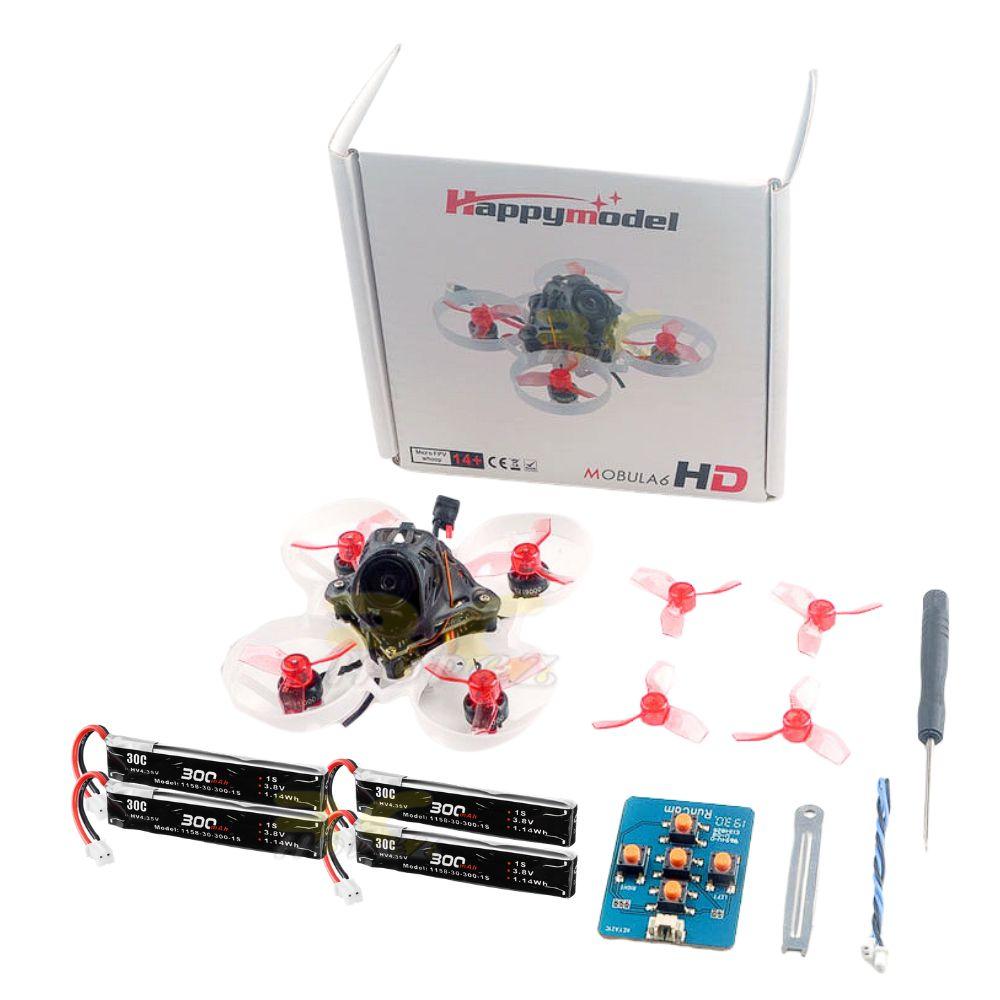

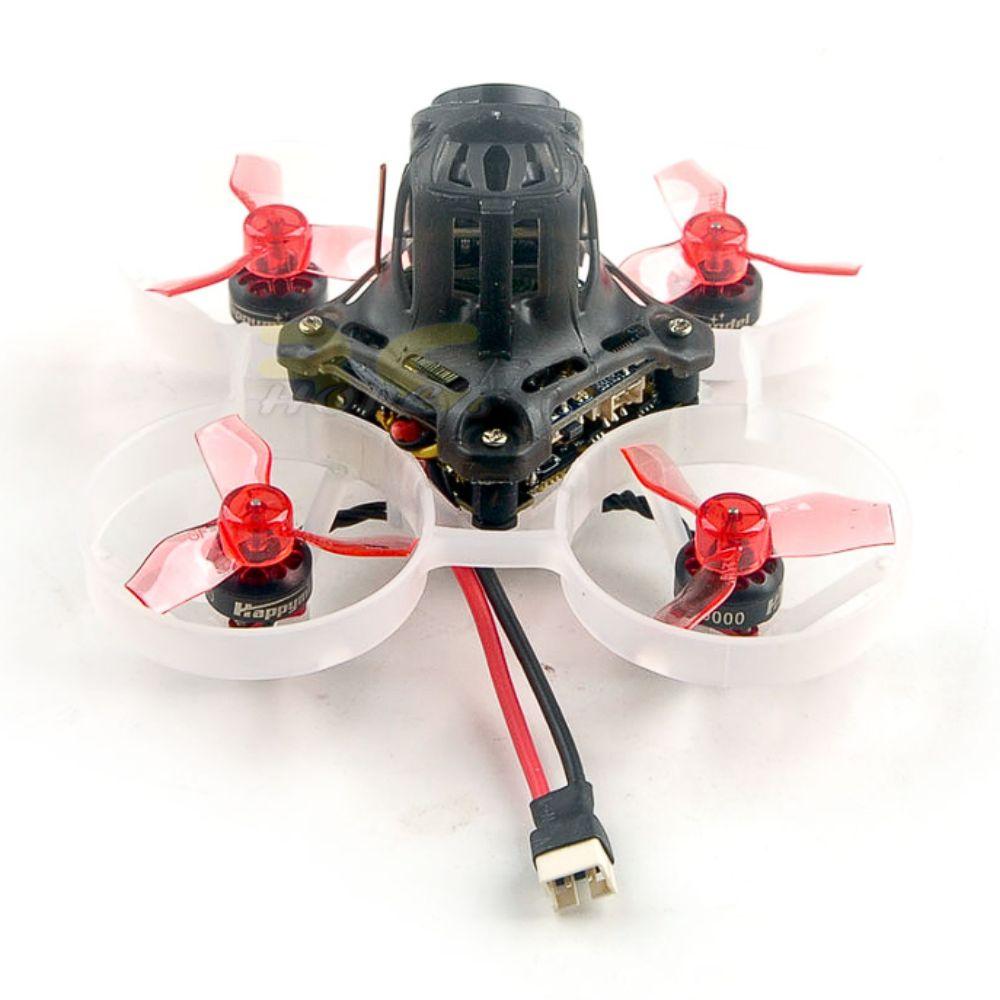

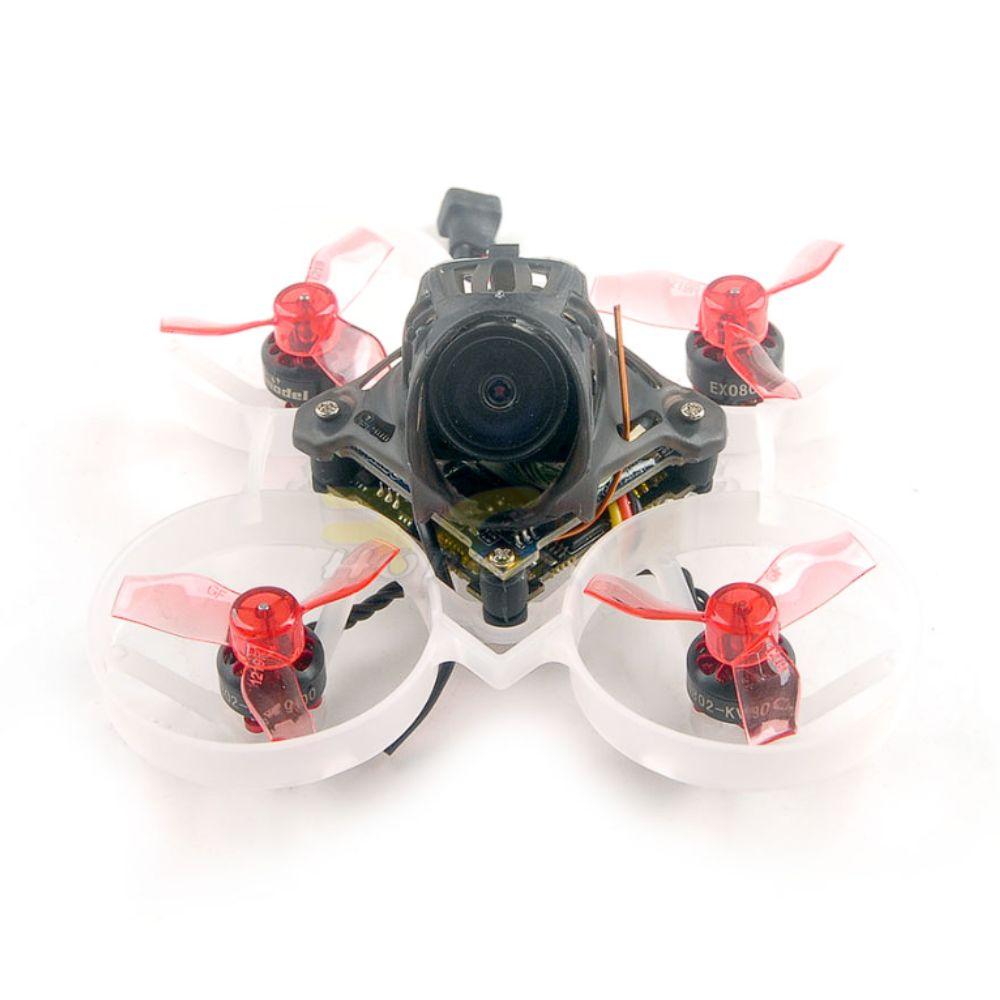

Happymodel Mobula6 HD 27g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Split3-lite 1080P HD DVR Camera – Flysky HP600-FL

Happymodel Mobula6 HD 27g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Split3-lite 1080P HD DVR Camera – Flysky HP600-FL

Note: The flight controller of DSM2/DSMX version Mobula6 HD has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.

DXE / DX6E users are advised to purchase with caution, because the SPI program included in the current Betaflight firmware is not applicable to DXE / DX6E radio transmitters. We are working hard to improve and look forward to fixing it in the next version of Betaflight.

Features:

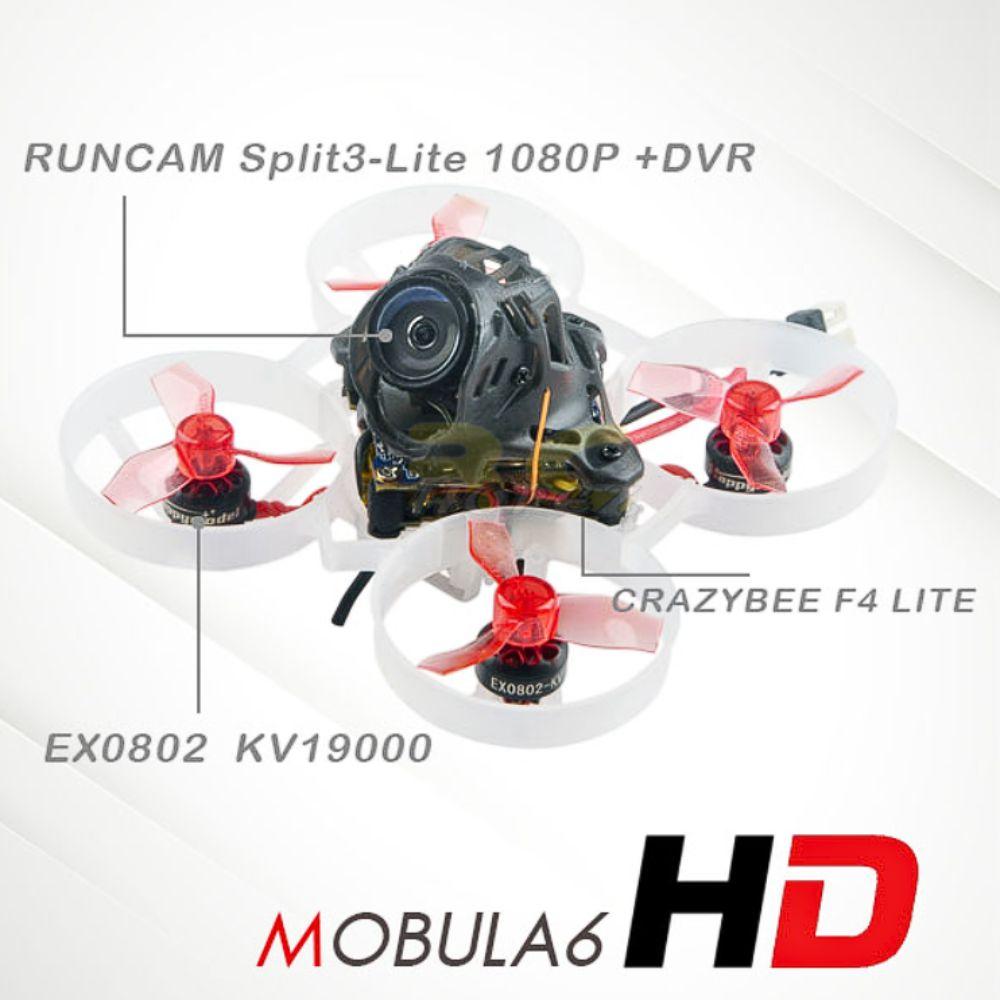

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless HD whoop only 27g

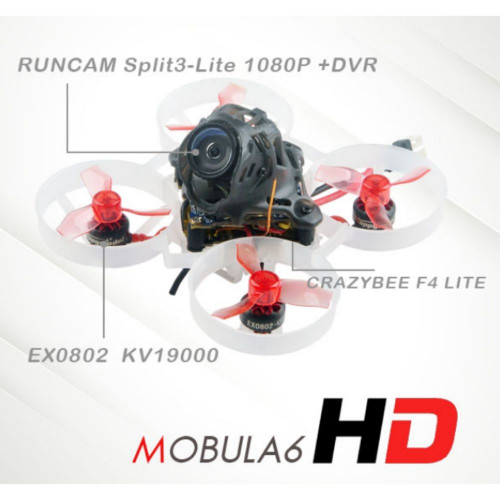

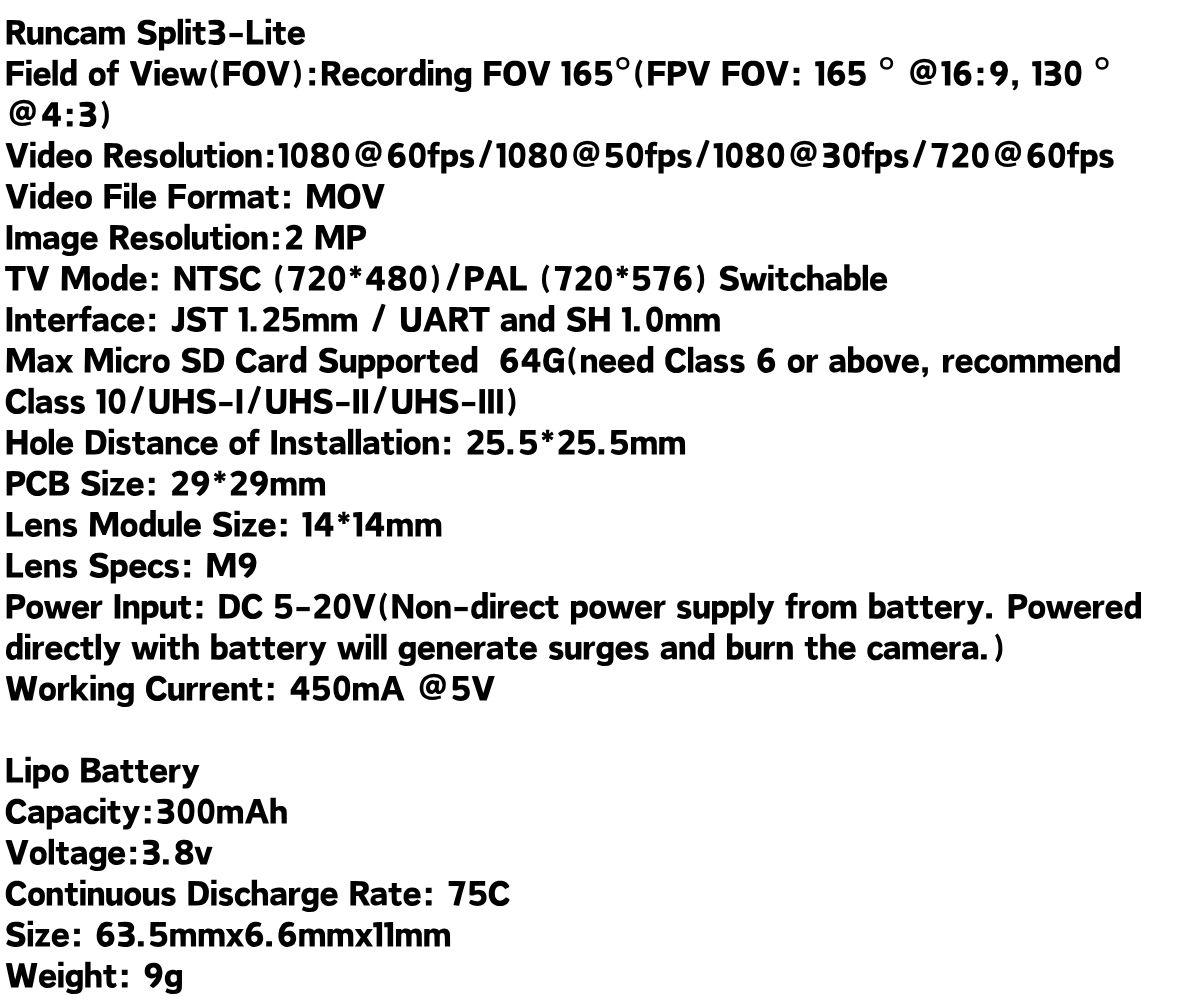

Come with Runcam Split3-lite 1080P HD DVR
Smooth and agile
Compatible for 1S Lipo/LIHV
Camera Angle adjustable

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*40mm

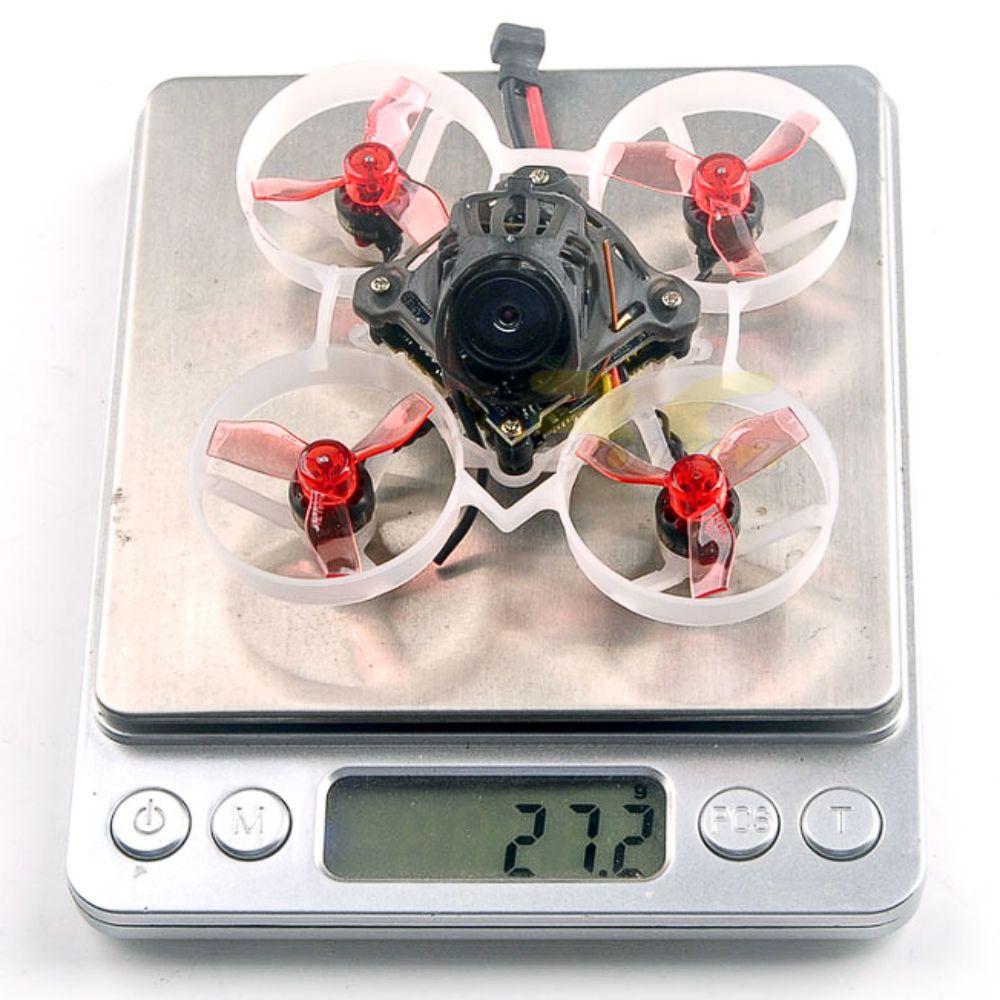

Weight: 27g
Receiver: Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

Motor
EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only

Propellers
Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g

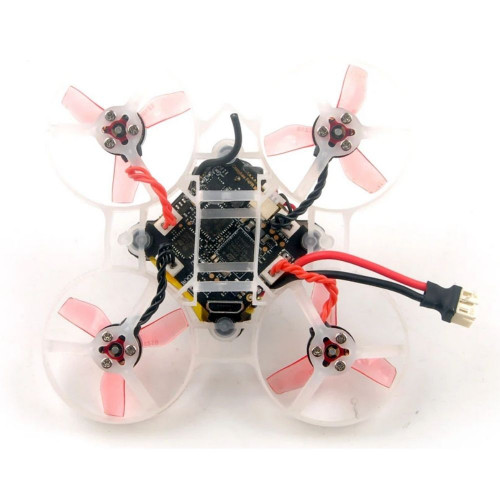

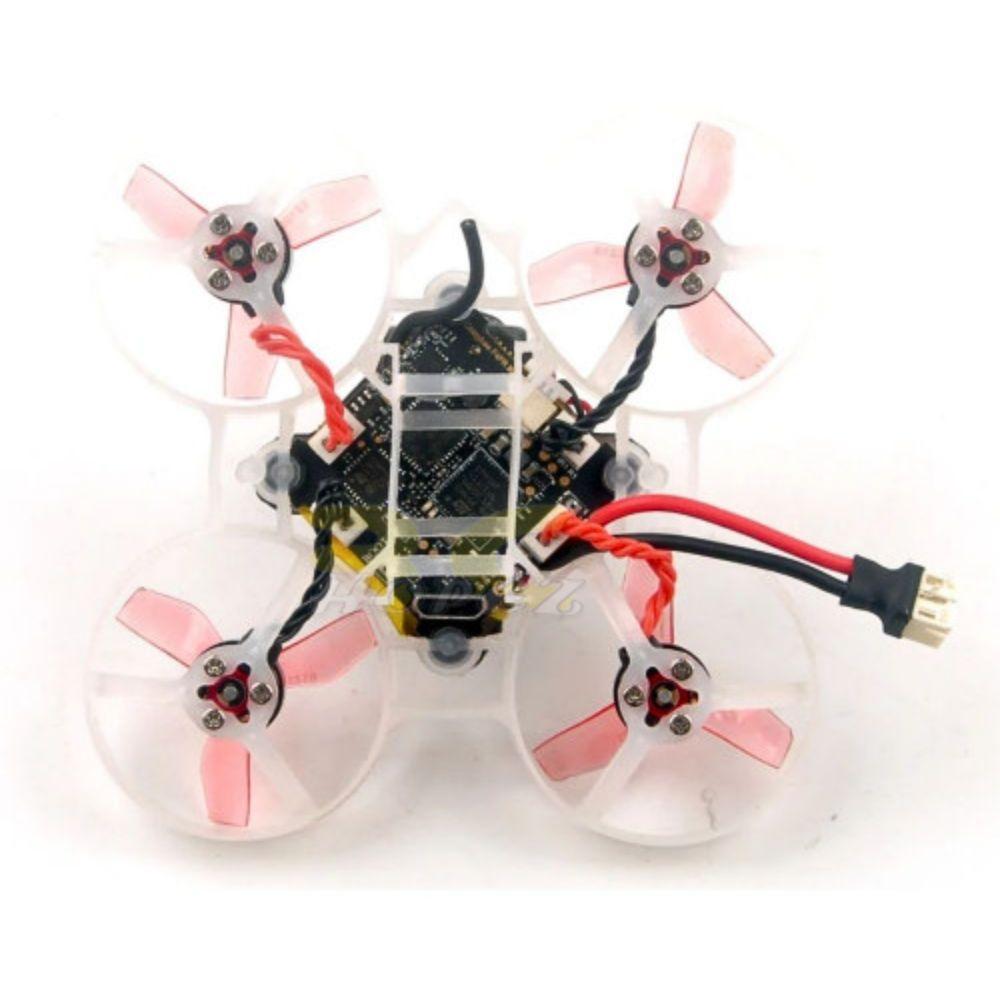

Flight controller
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Frsky/Flysky/TBS version Factory firmware: O_H_5_REV16_7.HEX
DSM2/DSMX version Factory firmware:S_H_50_REV16_8.HEX
Default protocol: DSHOT600

Onboard Flysky SPI receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support

Onboard 5.8g VTX
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band Smartaudio ready
