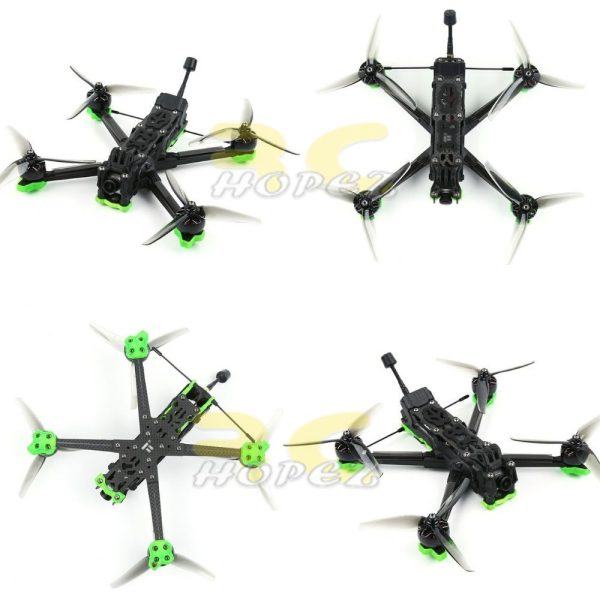

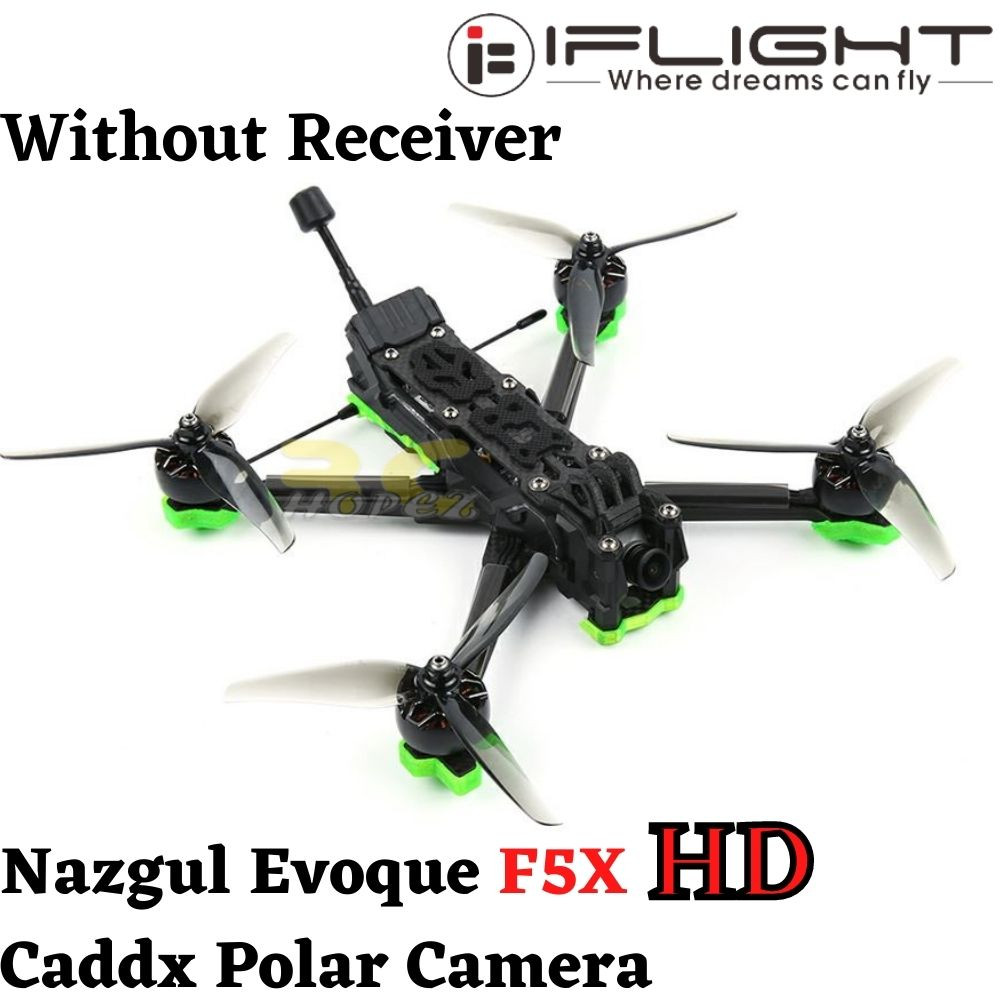

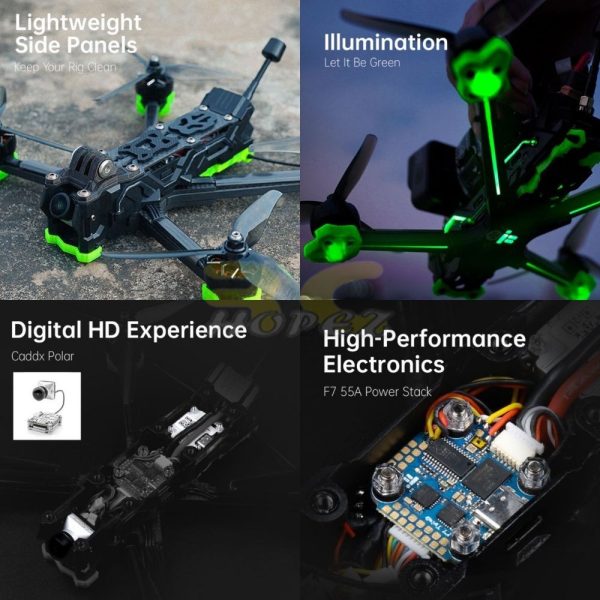

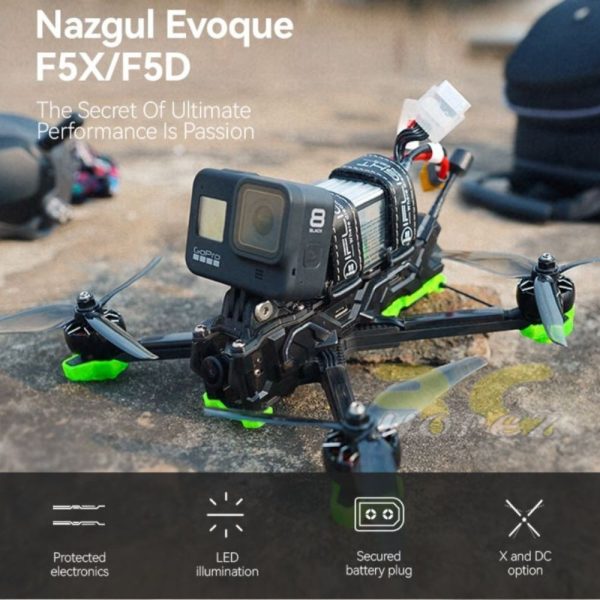

iFlight Nazgul Evoque F5X Squashed X HD 5Inch Drone 4S (Caddx Polar Vista)/6S (Caddx Nebula Pro Vista) Without Receiver F5X-HD

Changelog:
6/9/22: BLITZ MINI F7 V1(MPU6000) changed to BLITZ MINI F7 V1.1 (BMI270)
6/9/22 : DJI Camera Vista HD System changed to Nebula Pro Vista HD System (6S)

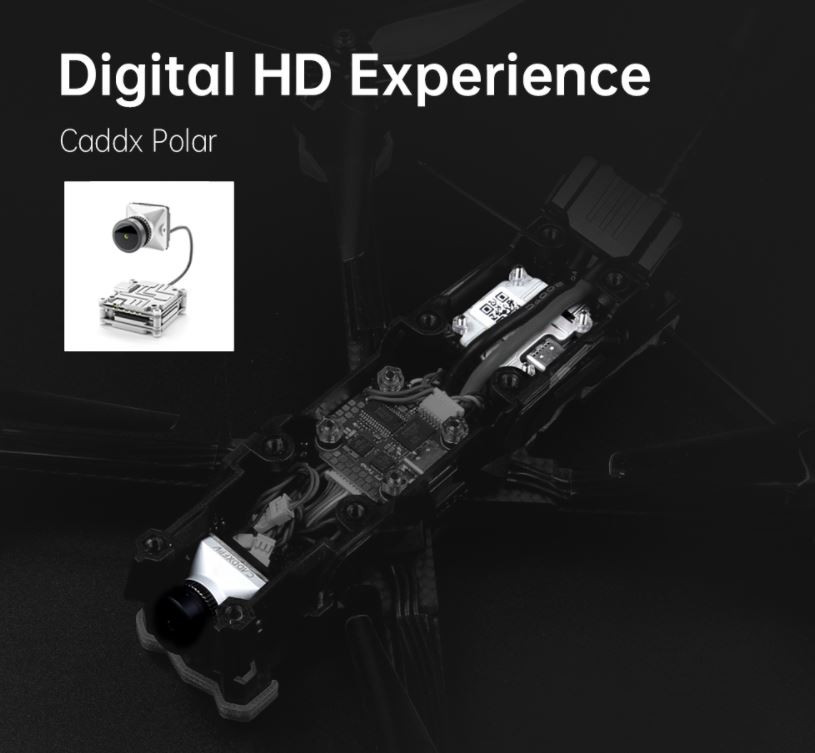

Digital HD – Caddx Polar Vista (4S)
                 Caddx Nebula Pro Vista  (6S)

Specs:
– Total Dimensions: 136*190mm (body dimension)
– Geometry: Squashed-X
– Bottom to top distance: 28mm
– Arm Thickness: 6mm
– Bottom plate thickness: 3mm
– Top plate thickness: 3mm
– Upper(middle) plate thickness: 3mm
– XING2 2207 motors 2750KV(4S), 1750KV(6S)
– Nazgul F5 propellers

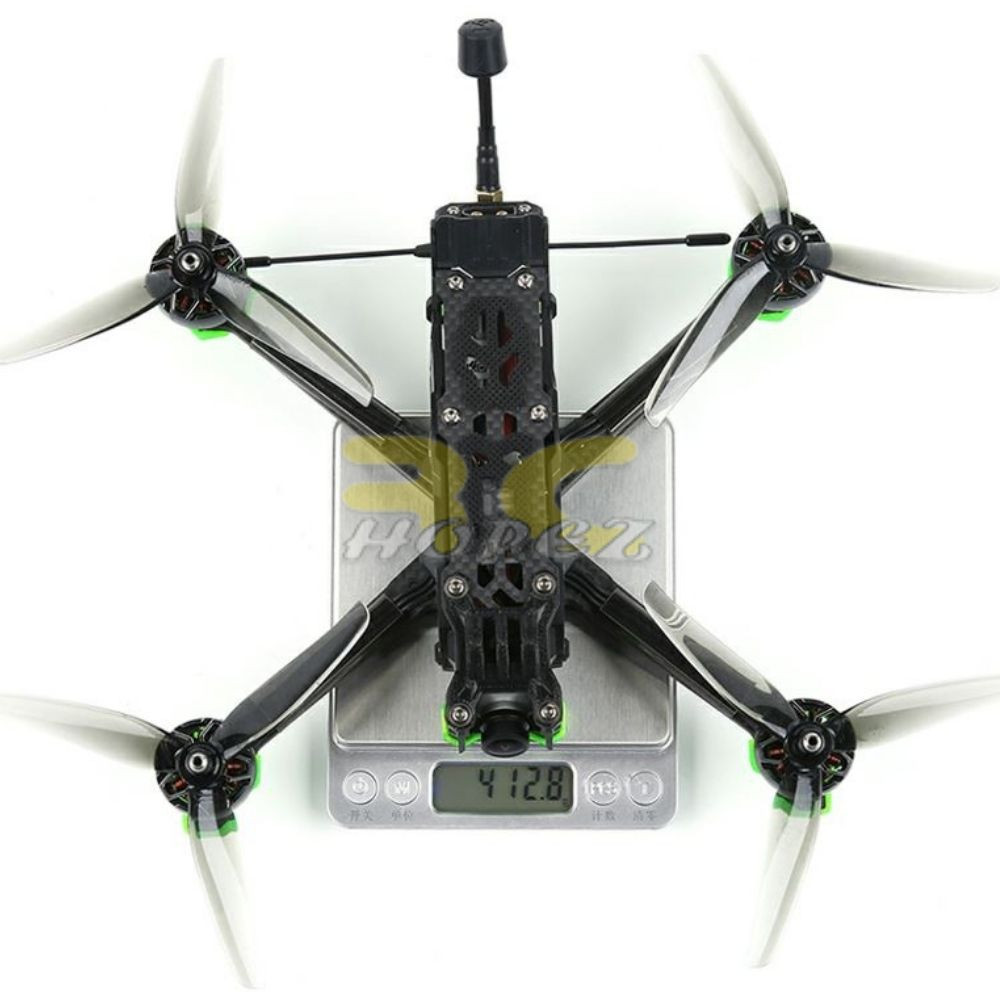

– Weight: 412g (without battery and GoPro mount)

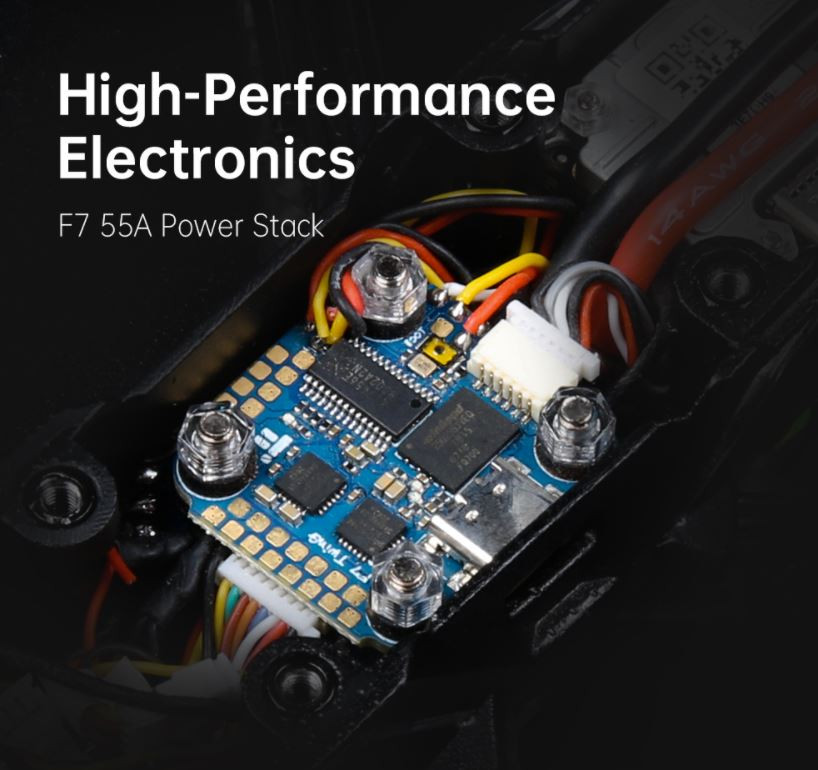

FC // SucceX-D Mini F7 (4S)
– MCU: 216MHz STM32F722
– Gyro：2x ICM20689
– Blackbox：32MB
– Betaflight OSD: YES
– BEC: 5V 2.5A / 9V 2.5A
– Current sensor scale: 100
– Inverter for SBUS input (UART2-RX)
– Smart audio & Tramp VTX protocol supported
– Beeper pad: Yes
– RSSI input pad: No
– UARTs：5
– Motor outputs: 4
– 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
– 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
– BLHeli32 Telemetry：Yes
– Input voltage：recommended 2-6S, MAX 6S
– Firmware target: IFLIGHT_F722_TWING
– Mounting pattern: 20*20mm φ4
– Dimensions:  29*29mm
– USB Type-C

ESC // SucceX Mini 55A (4S)
– Dimension: 31*29.5mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 10.8g
– Supports 2-6S Lipo input
– MCU： G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target: iFlight-G071-4IN1

FC // BLITZ MINI F7 V1.1 (6S)
– MCU：STM32 F722
– Gyro： BMI270
– Baro: DPS310
– Betaflight OSD：IFLIGHT OSD （AT7456E)
– Blackbox：16MB
– 5 X Uarts
– UART1 for VTX HD/Analog
– UART2 for  Receiver
– UART3、UART4 for GPS or 0ther sensors that require a serial port
– UART6 for ESC Telemetry
– 4×Dshot/PWMoutputs
– 1×I2C
-1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）
– 1 xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)
– 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）
– 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)
– 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
– Smartaudio&IRCTramp  VTX protocol supported
– WS2812ledStrip：Yes
– Bepper：Yes
– Firmware: IFRC-IFLIGHT_BLITZ_F722
– Mounting：20*20mm/φ4
– Dimensions：30.5*27mm
– Weight：5.0g

ESC // BLITZ Mini 55A  (6S)
– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target:   IFLIGHT_BLITZ_G1

Additional Suggested Parts (NOT Included)
Battery 4S 1550mAh
Battery 6S 1300mAh
GoPro Mounts

Includes：
1 x Nazgul Evoque F5X 4S/6S (Optional)
2 sets x Nazgul F5 Prop
2 sets x Battery Pads
2 x Battery straps
1 x Screws bag

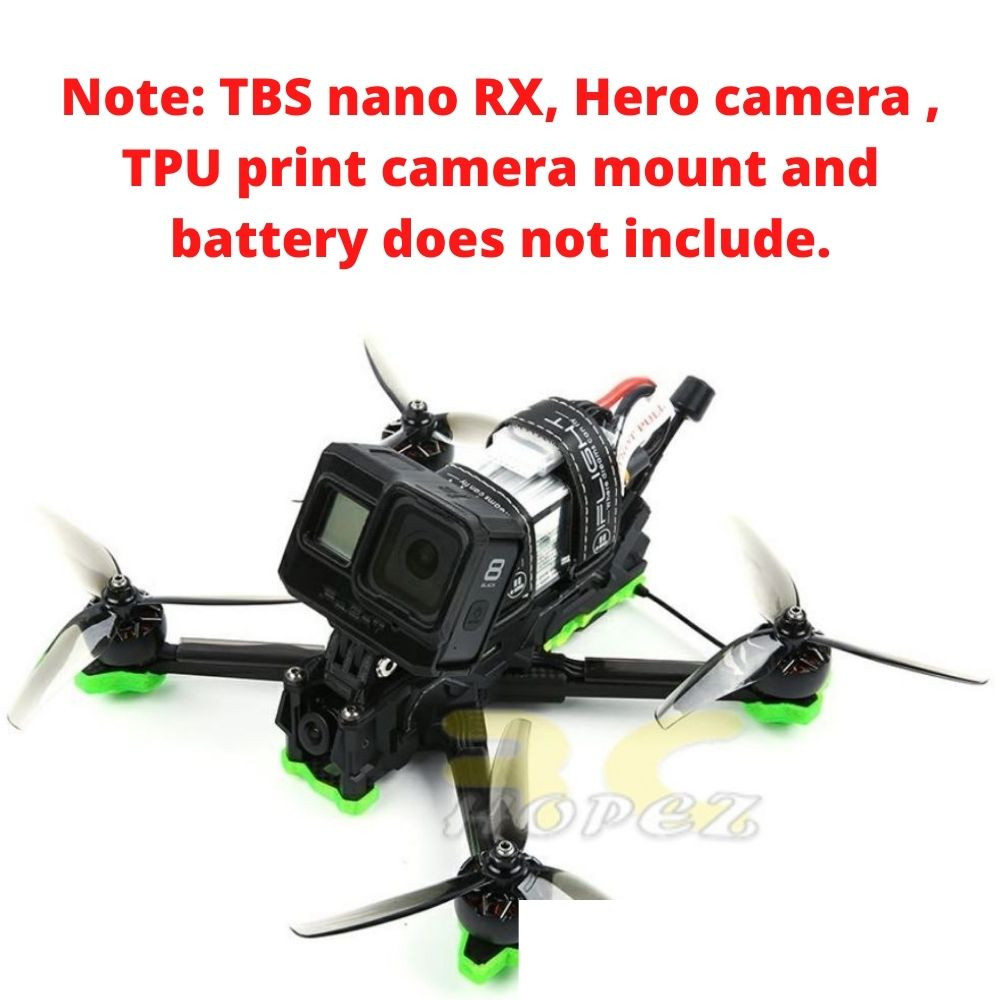

Note: TBS nano RX, Hero camera , TPU print camera mount and battery does not include.
