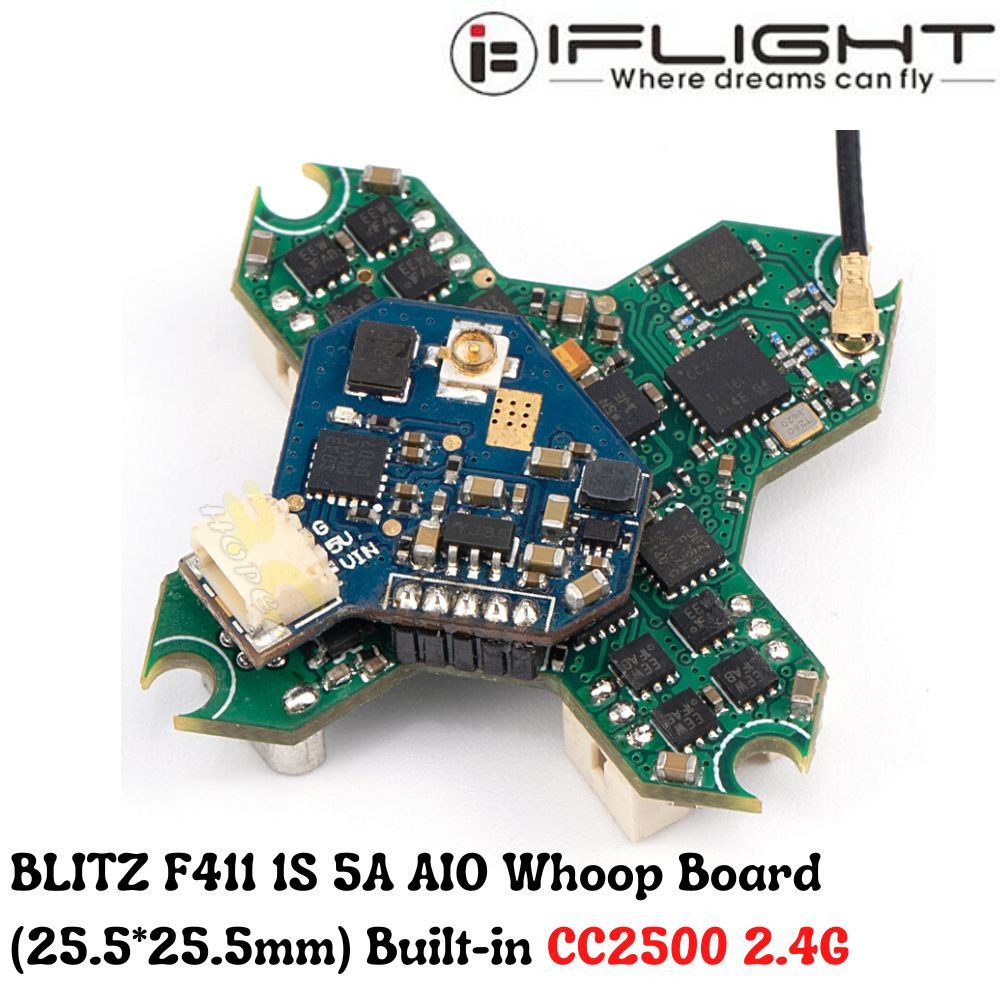

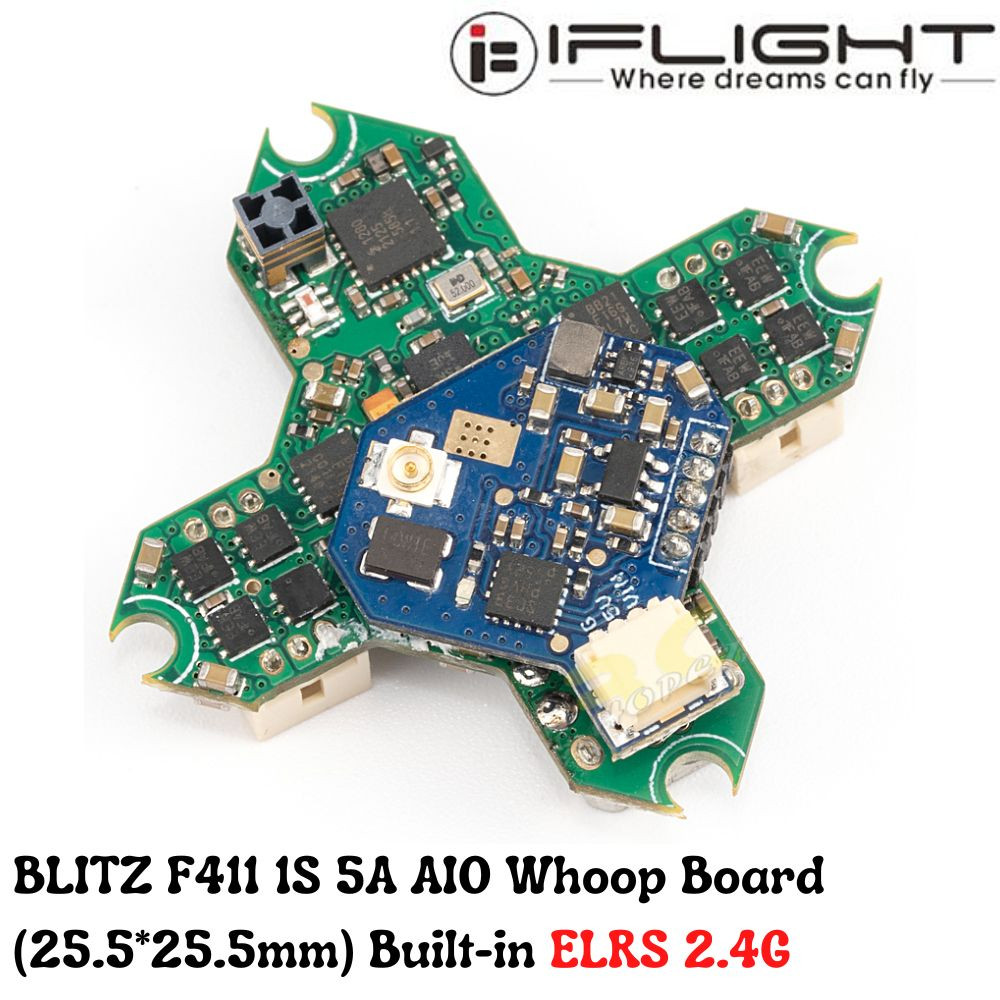

iFlight BLITZ F411 1S 5A AIO Whoop Board 25.5×25.5mm with Built-in ELRS 2.4G /CC2500 2.4G Receiver SX2031

iFlight BLITZ F411 1S 5A AIO Whoop Board 25.5×25.5mm with Built-in ELRS 2.4G /CC2500 2.4G Receiver SX2031

PRODUCT DESCRIPTION

TOP FEATURES:

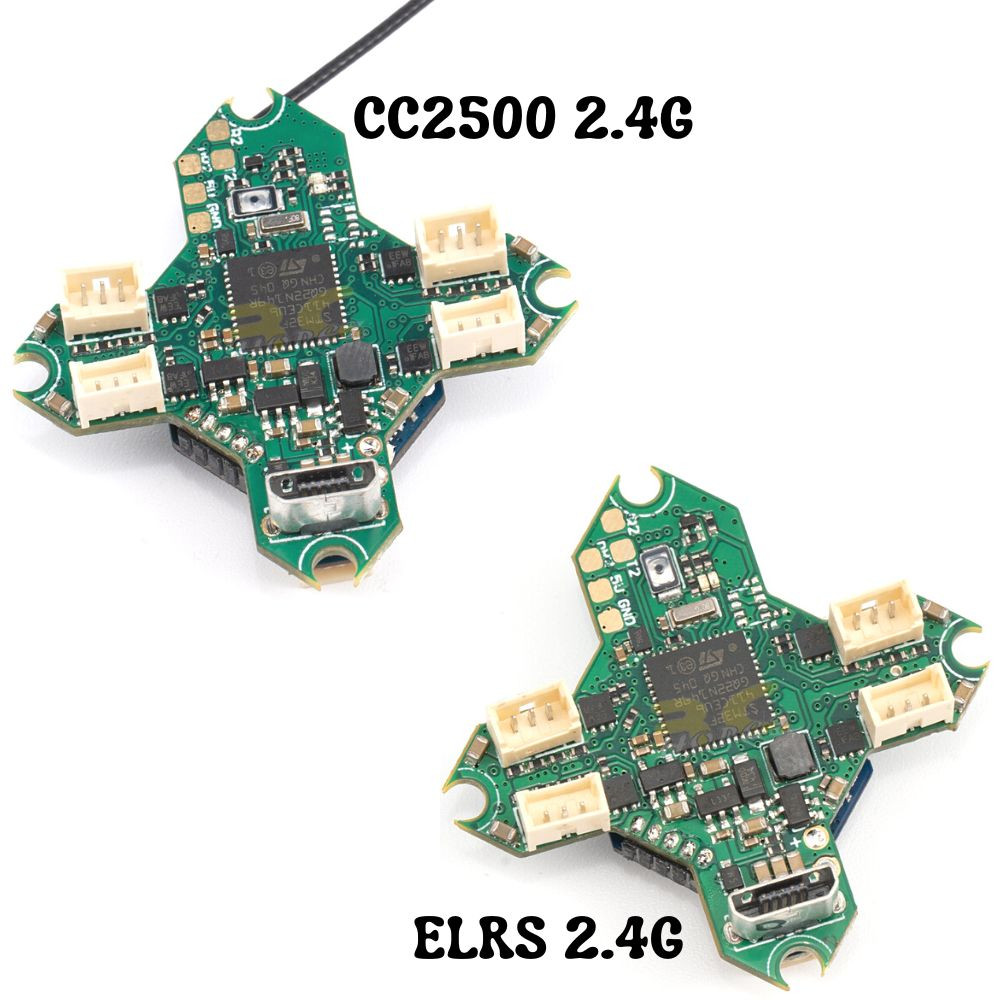

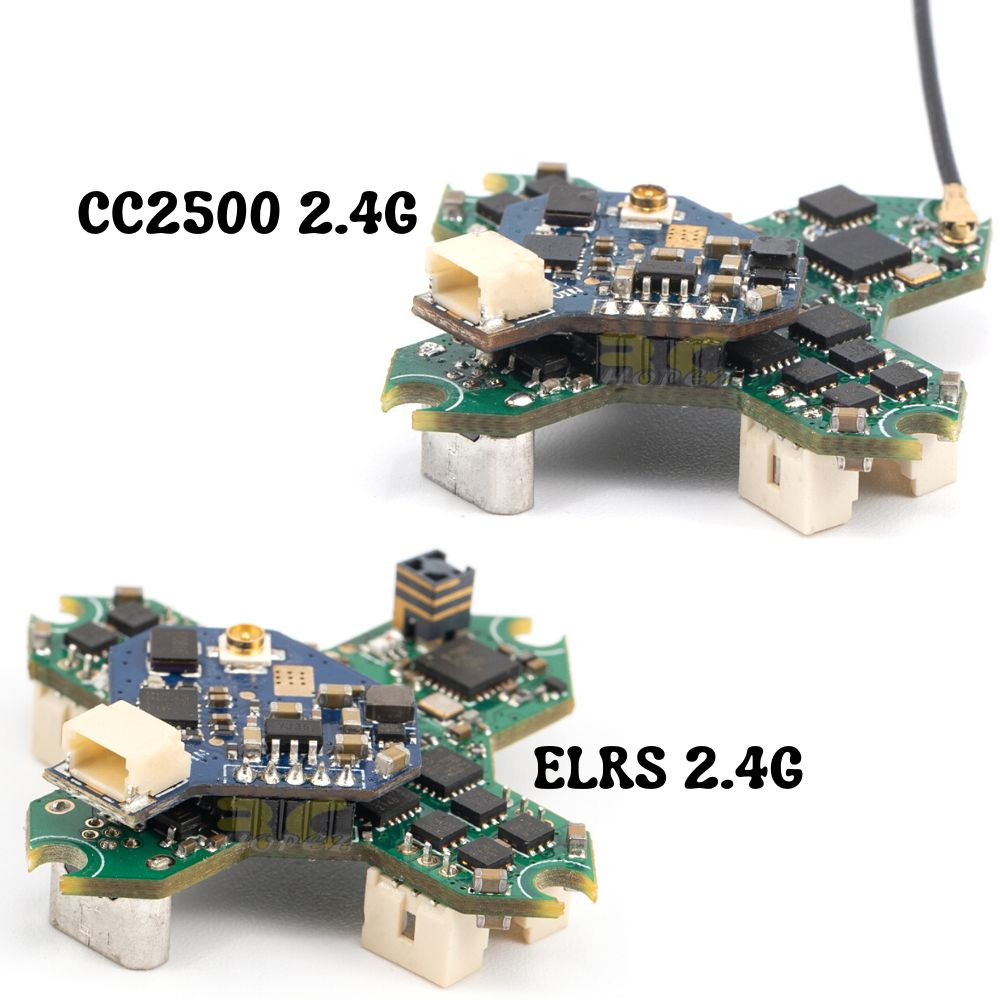

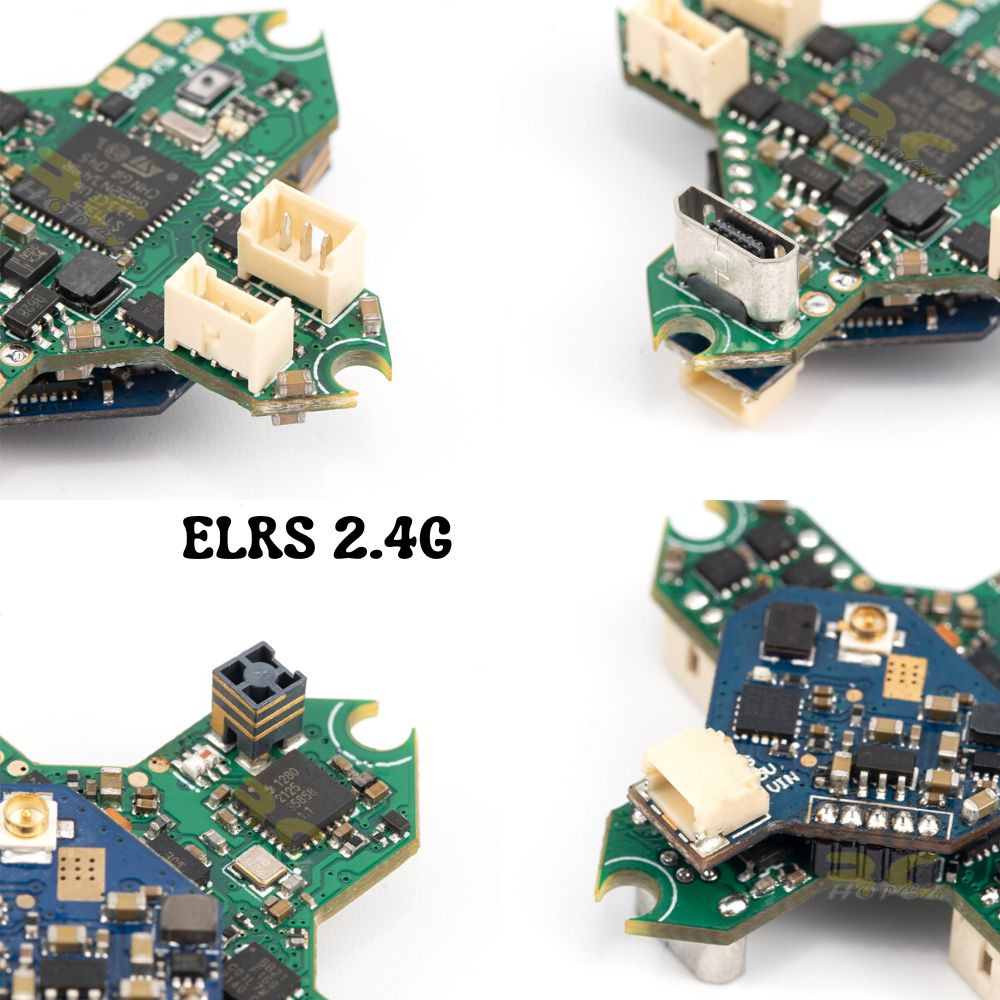

Built in 2.4G CC2500 Receiver/ 2.4G ELRS W/SMD Antenna (Optional)
Support BLHeliSuite programmable
5A continuous current
Super light only 4.8g
MCU：STM32F411
Power supply: 1S
Gyro: BMI270
Build in VTX

FC // BLITZ F411 1S 5A Whoop AIO Board

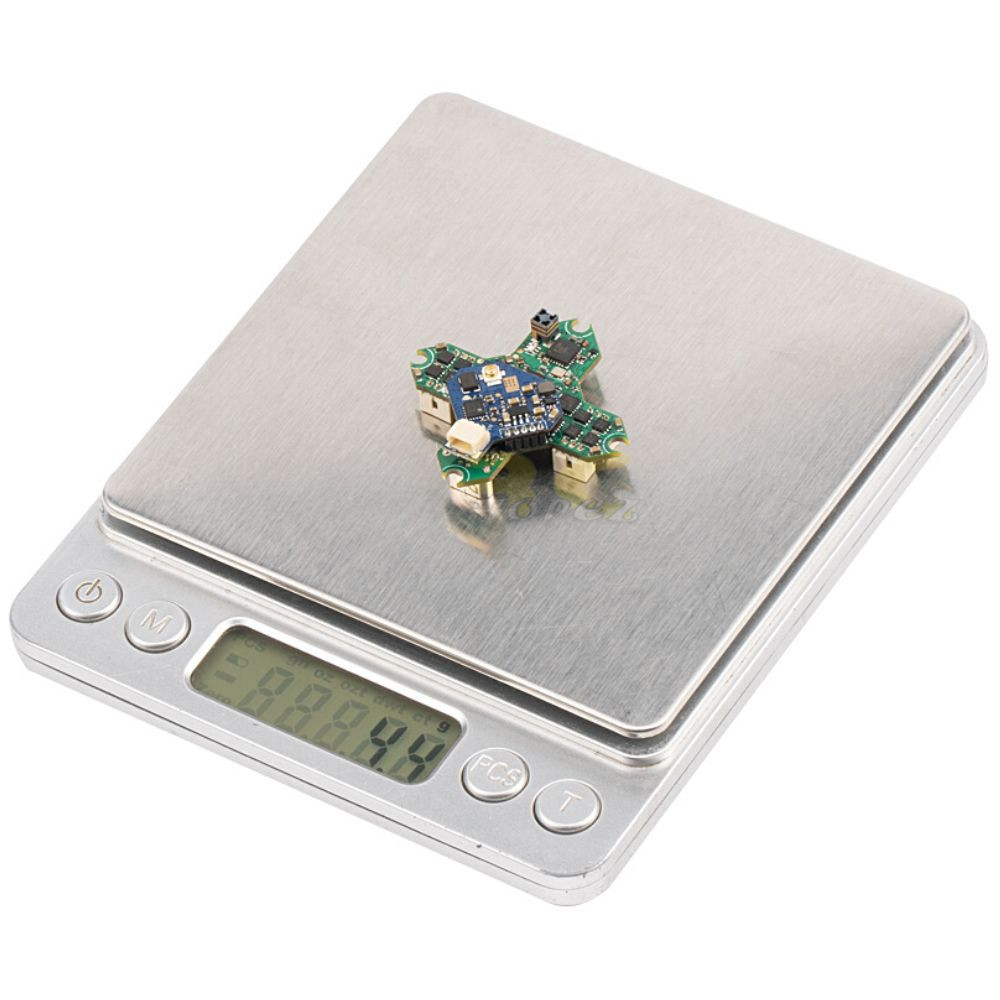

Weight: 4.8g (with power cable, VTX, and VTX antenna)
Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
Supported Protocols: CC2500, SPI, D8, S-FHSS
FC Firmware: IFLIGHT_BLITZ_F411RX
BEC output: 5V 500mA

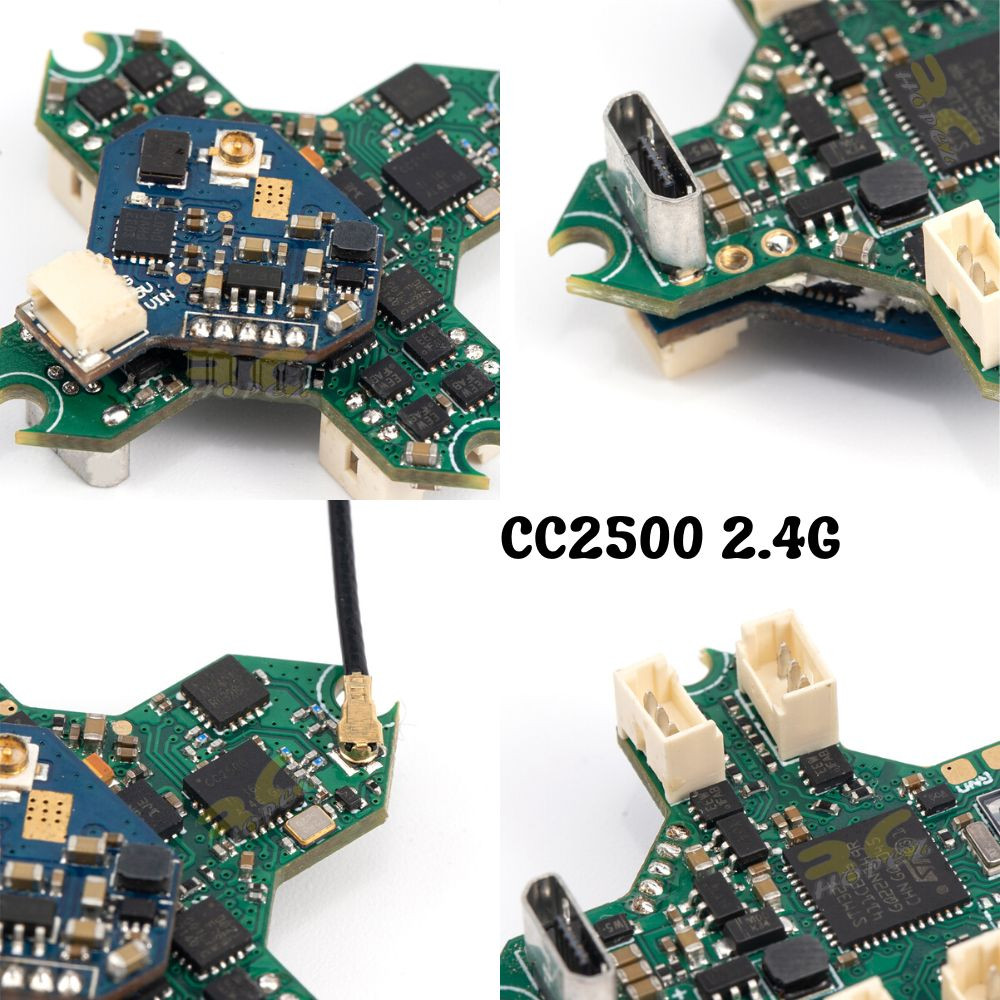

Connector: Micro-USB
MCU: STM32F411
INA pad: n uart2
Barometer: NO
Size: 29*29mm
Gyro: BMI270
Blackbox: NO

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Signal Support: Dshot, Oneshot, Multishot
Current: 5A continuous and peak 6A
ESC Firmware: O-H-30 BLS 16.8
Current sensor: yes
ESC Telemetry: NO
Current scale: 400
BLHeli: BLHeli-S
Input: 1S

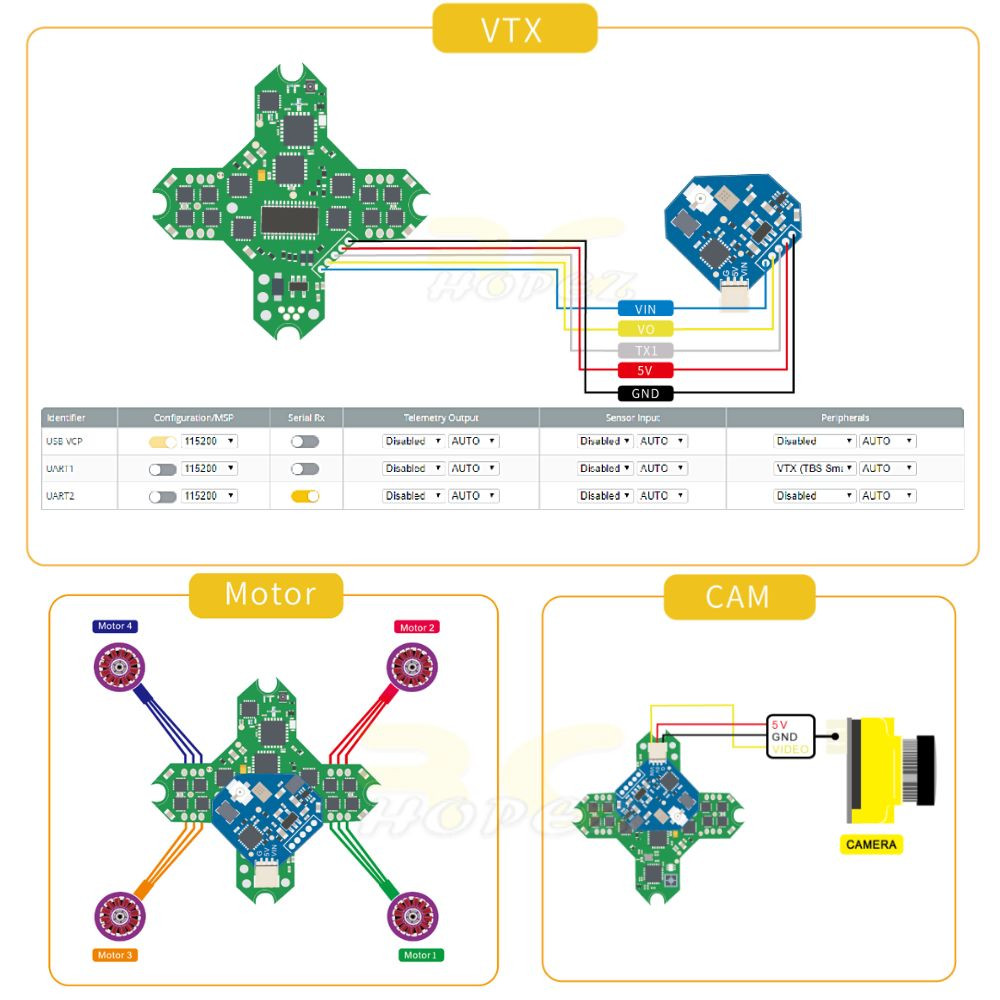

VTX：

Protocol: Smart audio
Power: PIT/25/50mW
Connector: UFL/IPEX
Input voltage: 5V
Channels: 48CH

Package Includes:
1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G CC2500 Receiver / 2.4G ELRS w/SMD Antenna (As optional)
4 x M2 Rubber Balls
1x Whip antenna
