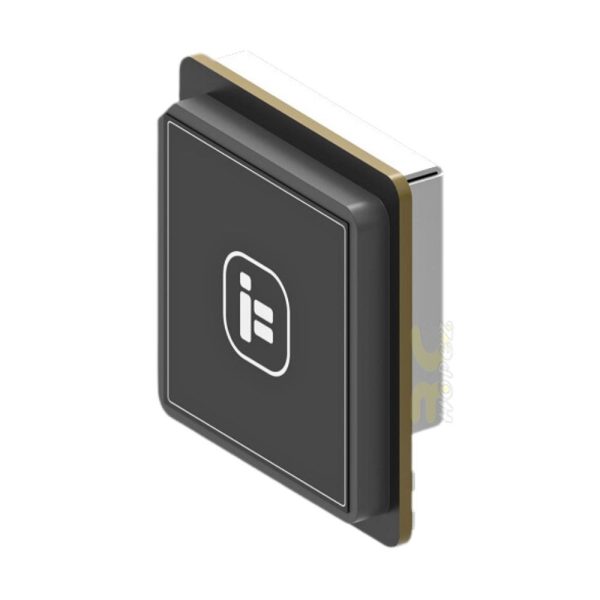

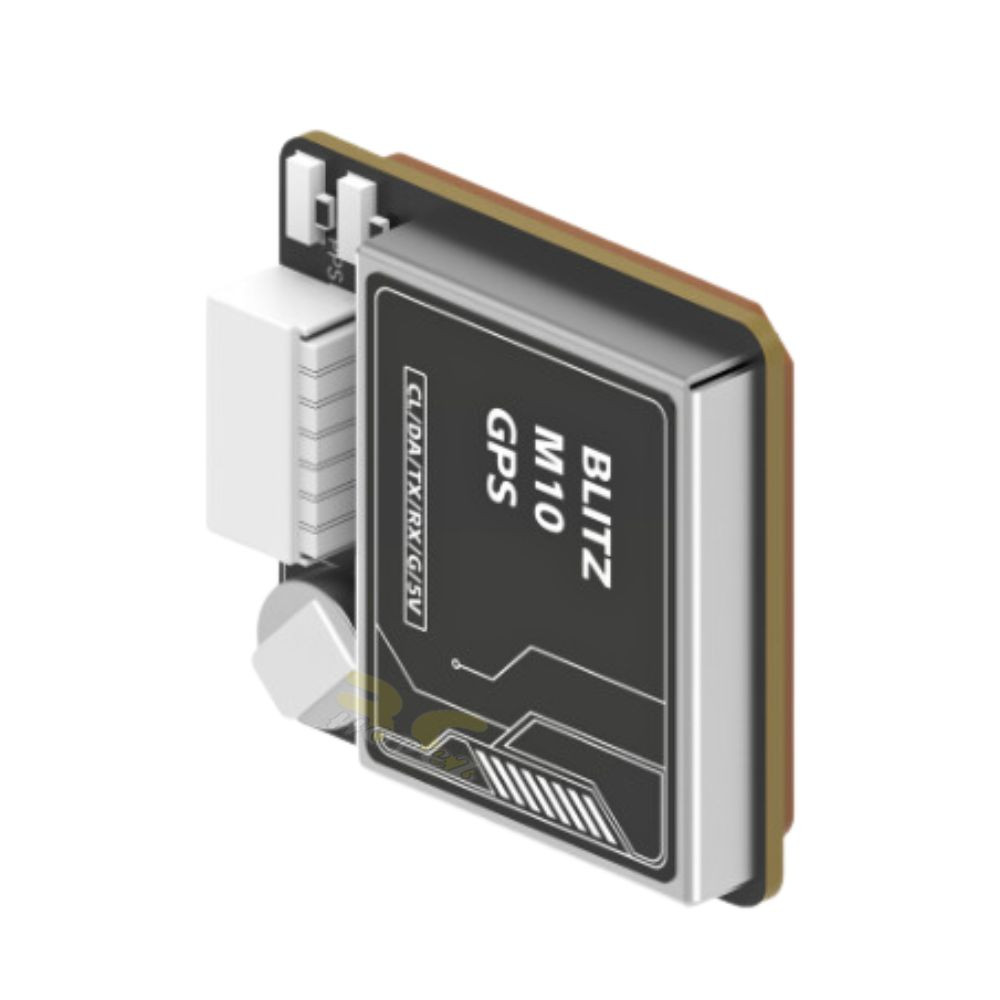

iFlight BLITZ M10 GPS Module Built-in QMC5883L Compass for FPV Racing Drone MX3908

iFlight BLITZ M10 GPS Module Built-in QMC5883L Compass for FPV Racing Drone MX3908

Features
UBLOX M10 chip
Compass module QMC5883L integrated
Built-in farad capacitor for faster hot start
Onboard LNA (Low Noise Amplifier)
10 Hz Refresh rate
Built-in Flash

High sensitivity 18x18mm GPS patch antenna, low power consumption, strong signal, lightweight.

Specifications
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 26s
Hot start: 1s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18 x 18 mm
Total dimensions: 20 x 21 x 6.5 mm
Weight: 5.2 g（±0.5g）
Input Voltage: 3.3-5.5 V, current 40mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA

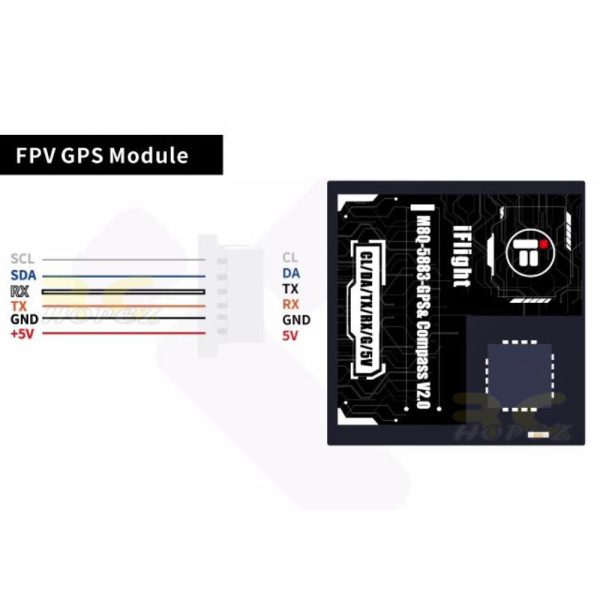

Pin Definition:
1.VCC: system main power supply, supply voltage is 5V, current is about 40mA when working
2.GND: Ground
3.RXD: data input
4.TXD: Data output
5.SDA: Serial Data – I2C Master/Slave Data
6.SCL: Serial Clock – I2C Master/Slave Clock

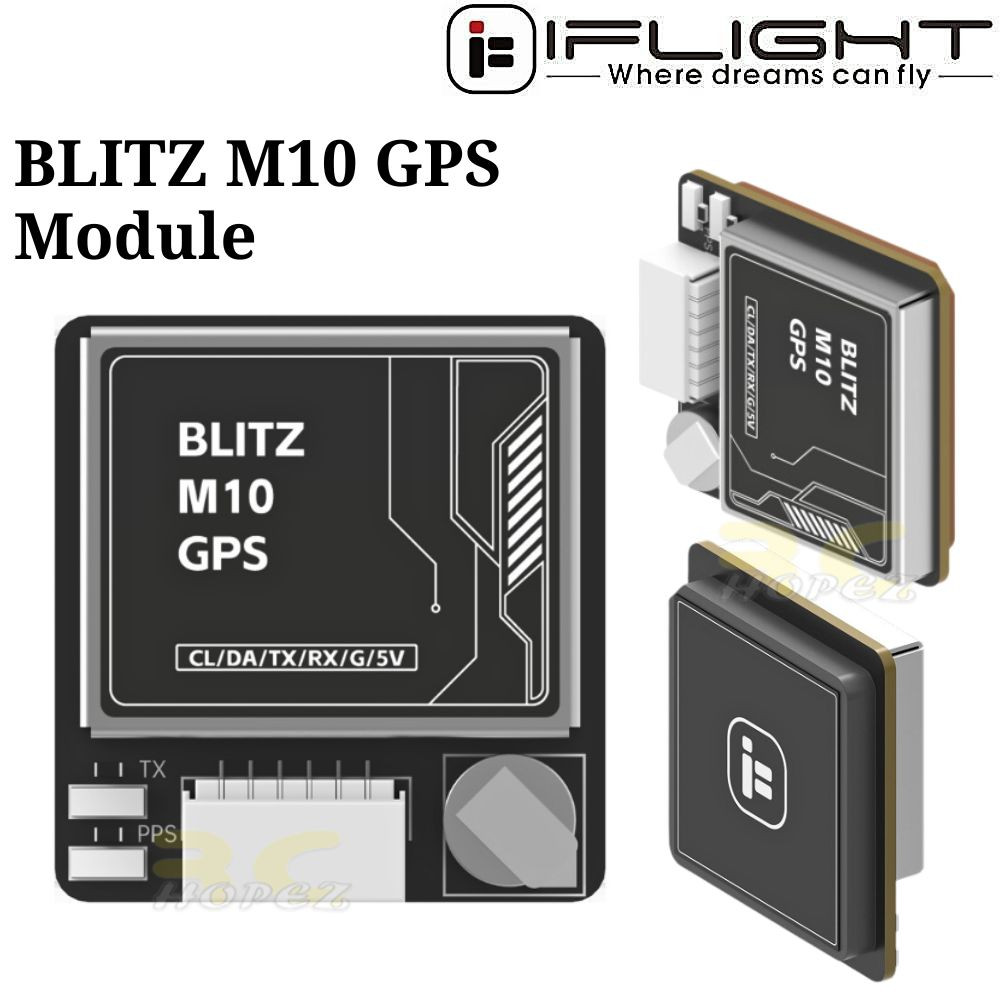

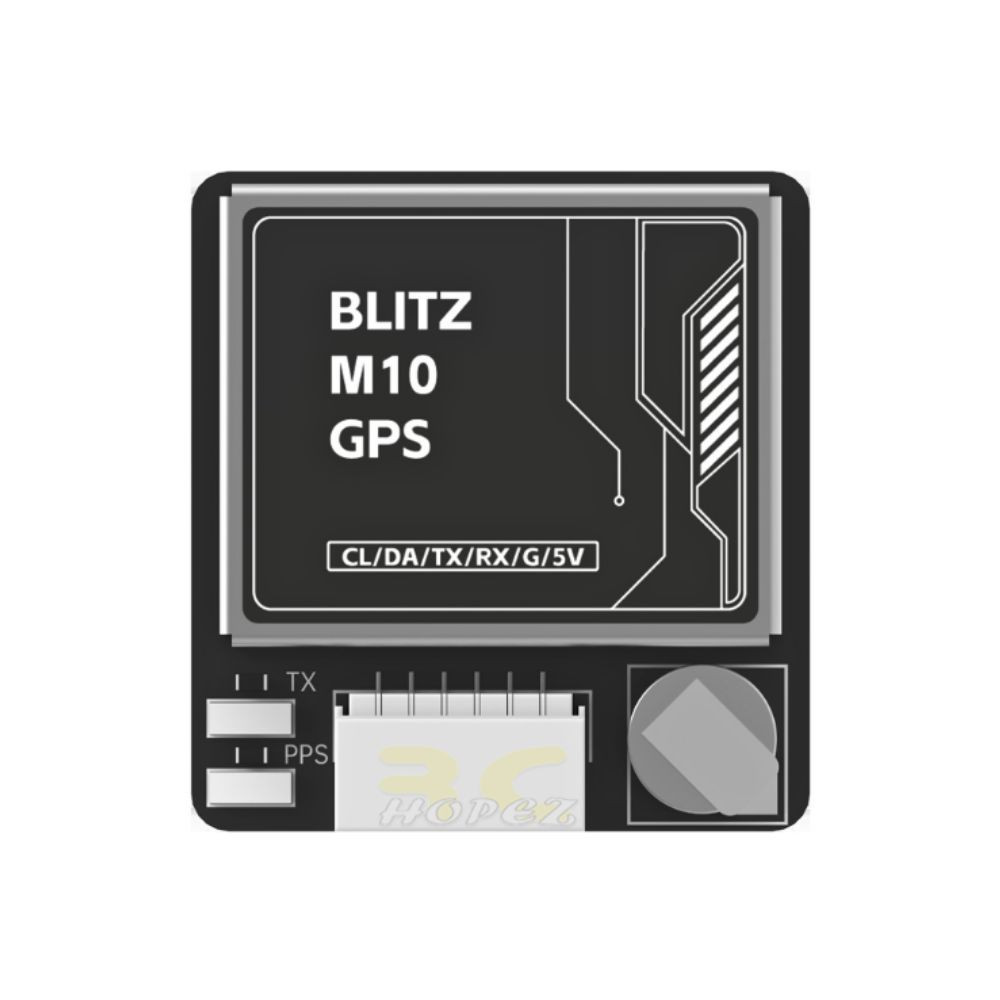

Definition of indicators:
Blue light, TX light, the blue light blinks on power up, indicating that there is data output.
Red light, PPS light, not positioned red light is not lit, 3D positioning, the red light began to flash.

Packing List
1 x BLITZ M10 GPS Module Built-in QMC5883L Compass
1 x Cable set
