iFlight BLITZ Mini M10 GPS V2 Built-in QMC5883L Compass for FPV Racing Drone MX1534

iFlight BLITZ Mini M10 GPS V2 Built-in QMC5883L Compass for FPV Racing Drone MX1534

Description
The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features
– UBLOX M10 chip, low power consumption, strong signal
– Compass module QMC5883L integrated
– Built-in farad capacitor for faster hot start
– High-precision positioning
– Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
– 10 Hz Refresh rate
– Built-in Flash

Specifications
Compass module: QMC5883L
Baud Rate: 9600-460800 (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8g
Input Voltage: 3.3-5.5 V

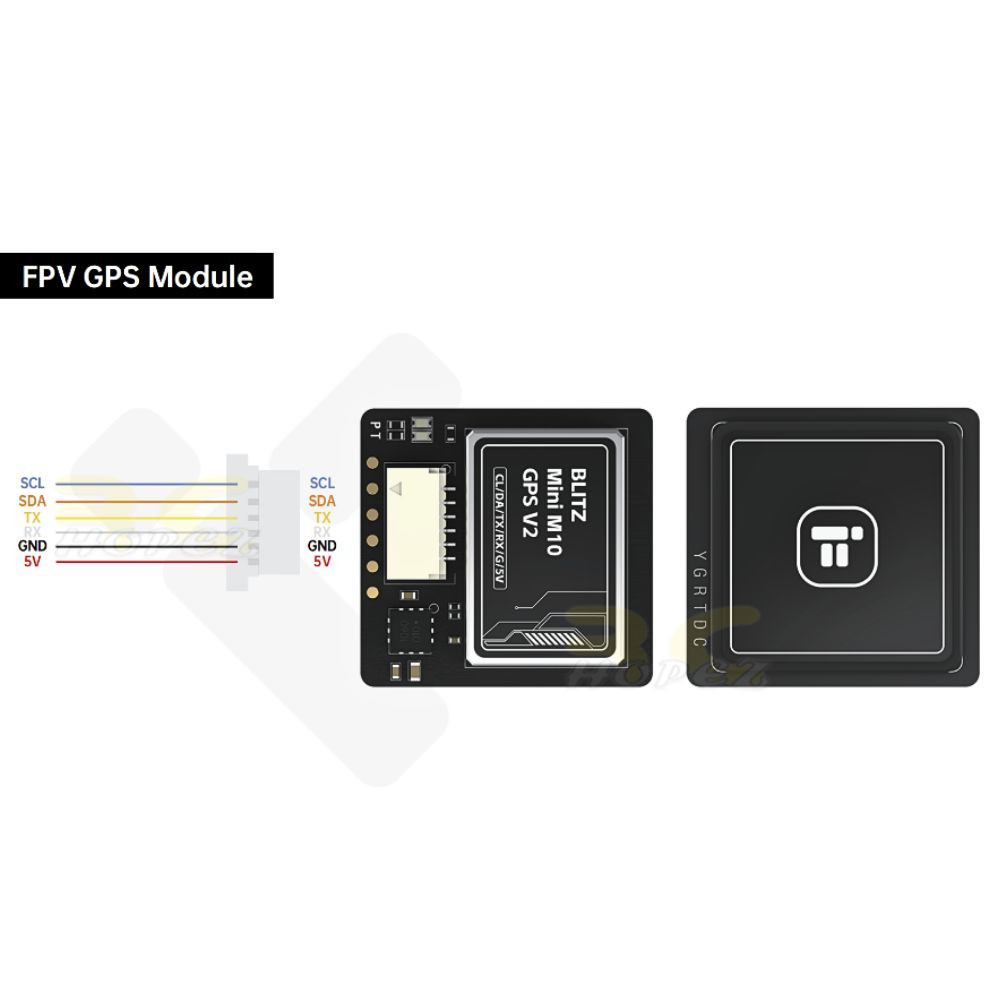

GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Compatibility
Mini Version compatibility:

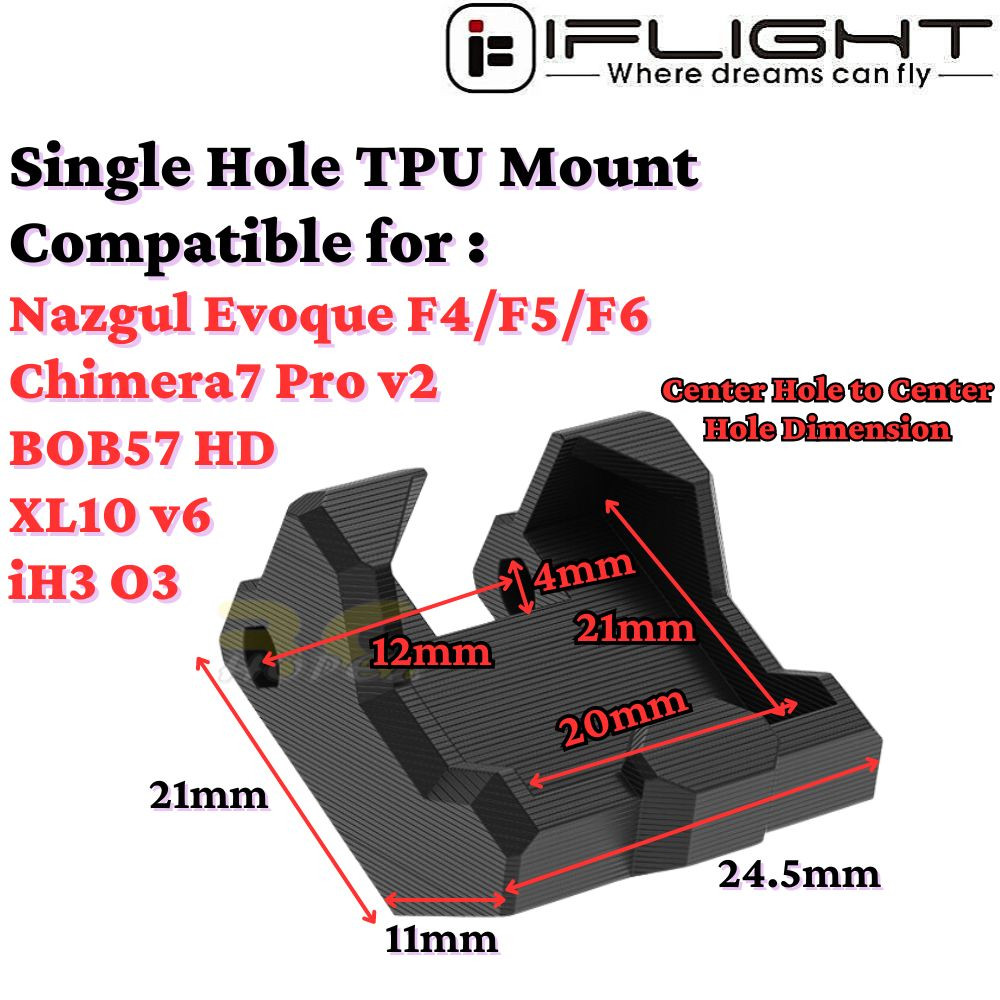

Single Hole TPU Mount
Compatible for :
– Nazgul Evoque F4/F5/F6
– Chimera7 Pro v2
– BOB57 HD
– XL10 v6
– iH3 O3

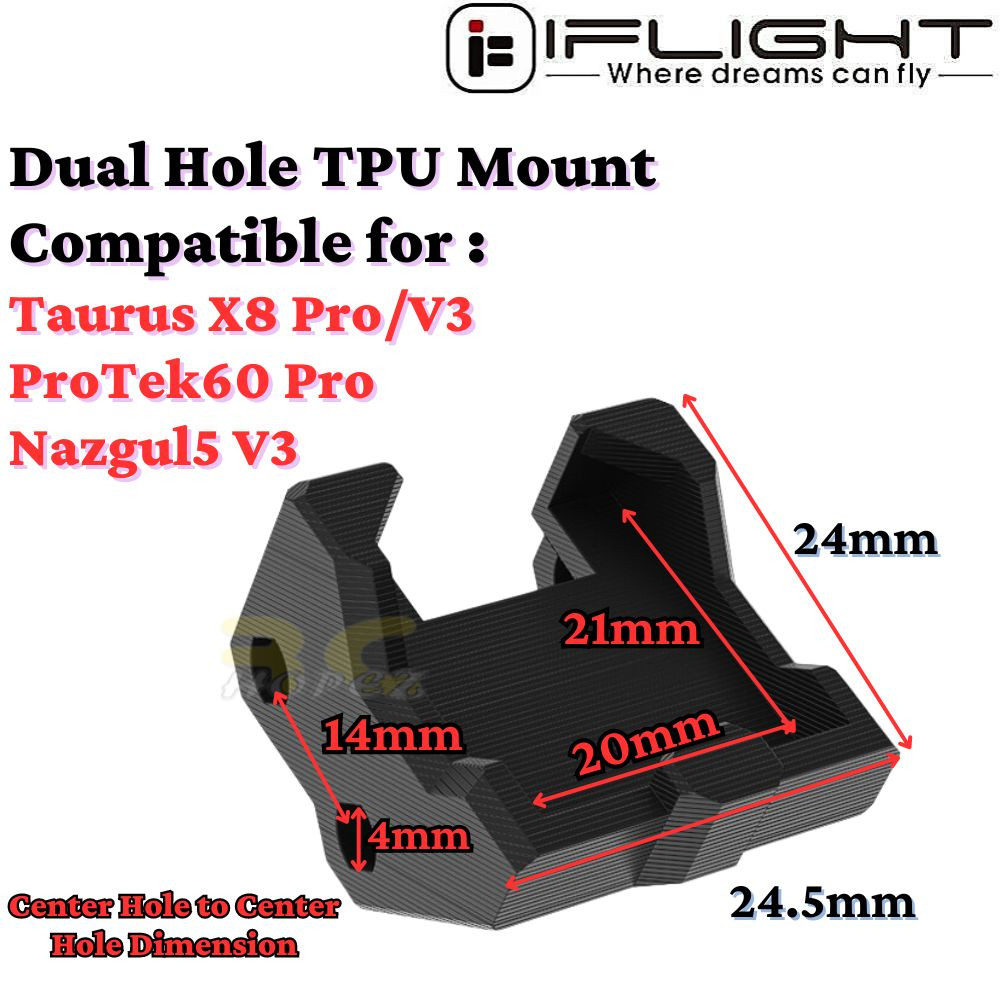

Dual Hole TPU Mount
Compatible for :
– Taurus X8 Pro/V3
– ProTek60 Pro
– Nazgul5 V3

GPS TPU mount is not required:
Helion 10

Package Included (Optional) :

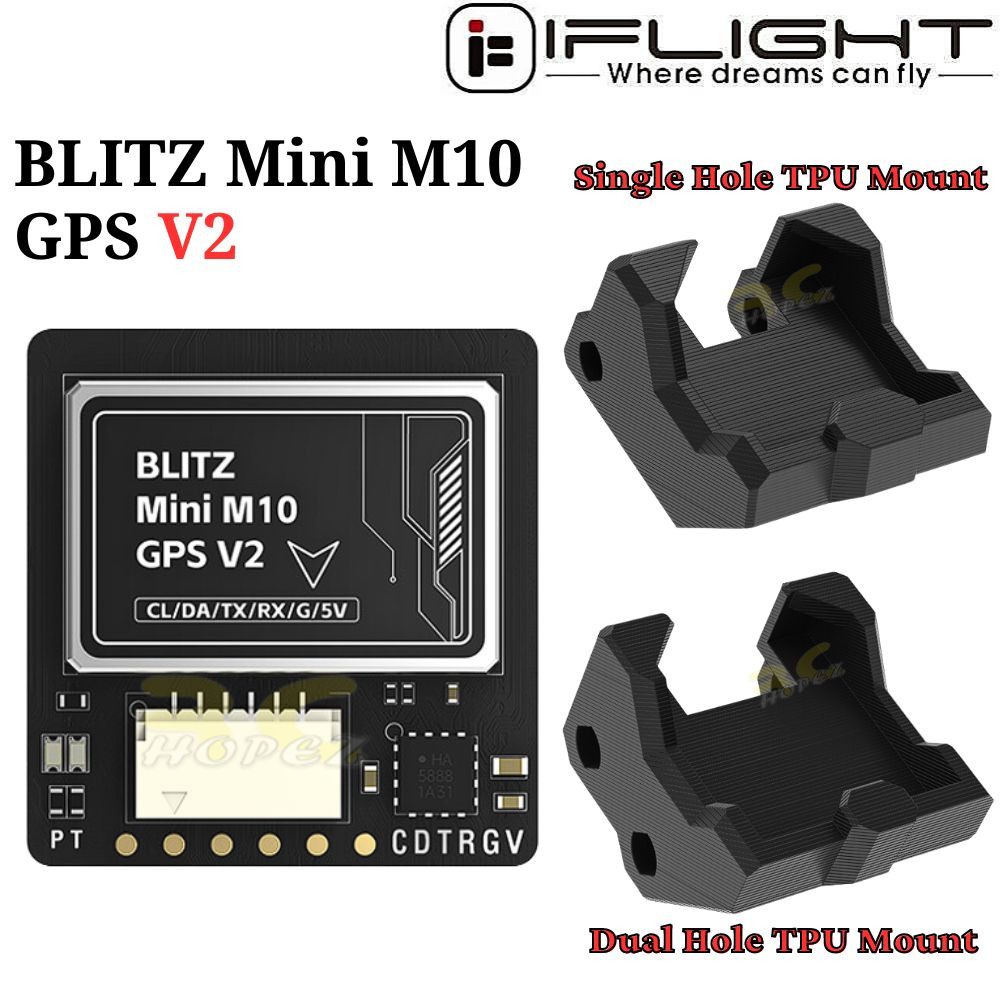

1 x BLITZ Mini M10 GPS V2
1 x Cable set

OR

1 x Single Hole TPU Mount

OR

1 x Dual Hole TPU Mount
