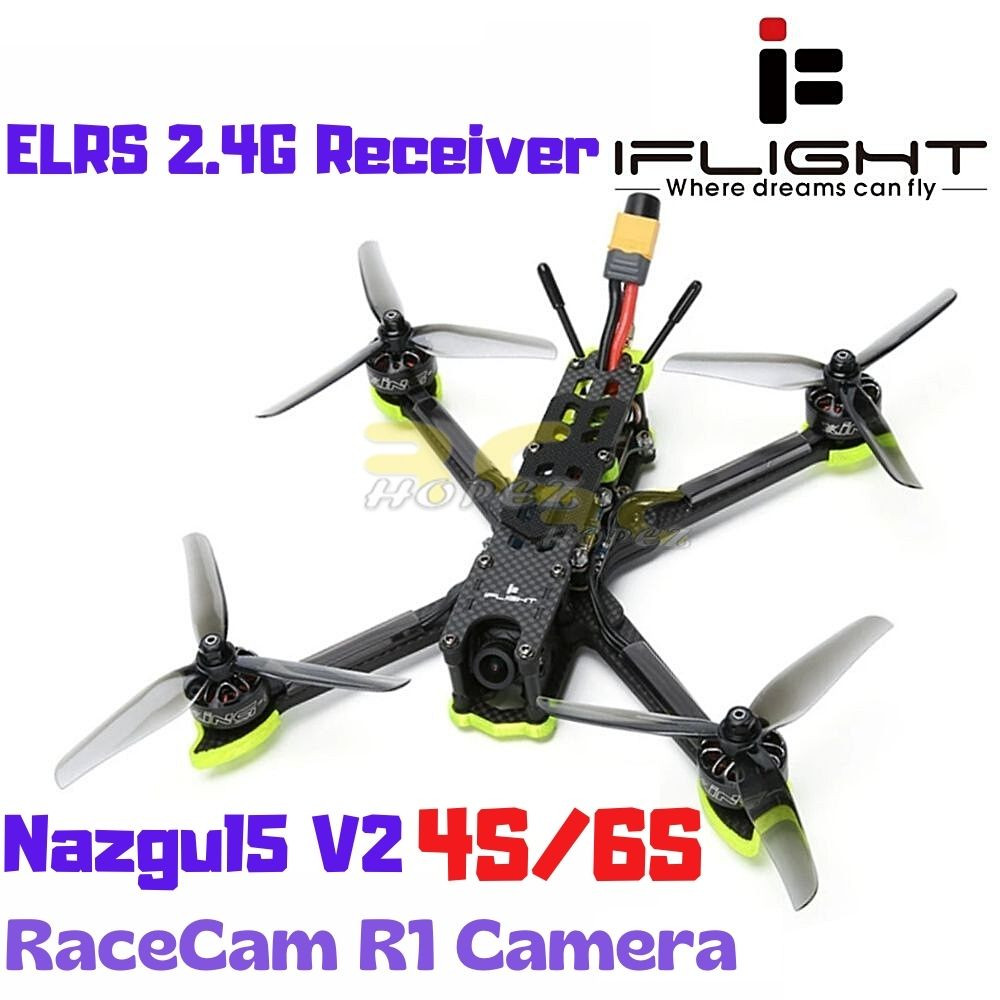

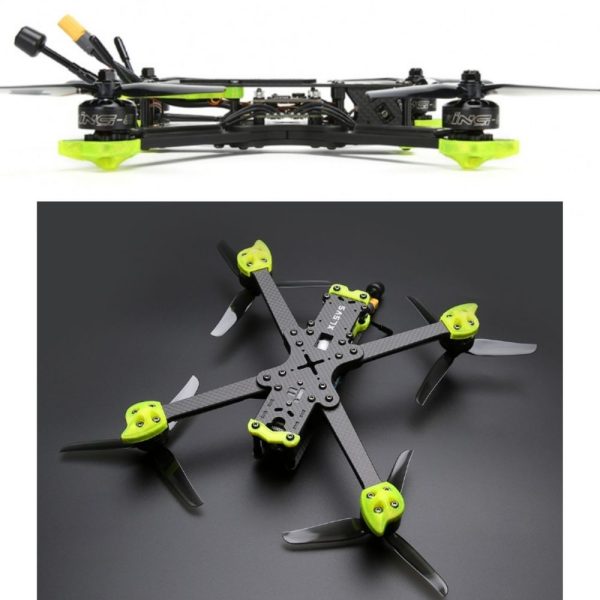

iFlight Nazgul5 V2 240mm 4S/6S 5 Inch FPV Racing Drone With RaceCam R1 ELRS 2.4G Receiver MX8540-ELRS

iFlight Nazgul5 V2 240mm 4S/6S 5 Inch FPV Racing Drone With RaceCam R1 ELRS 2.4G Receiver MX8540-ELRS

Changelog:
24/8/22 : BLITZ MINI F7 V1(MPU6000) changed to BLITZ MINI F7 V1.1 (BMI270)
24/8/22 : SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC changed to BLITZ E45S 4-in1 ESC

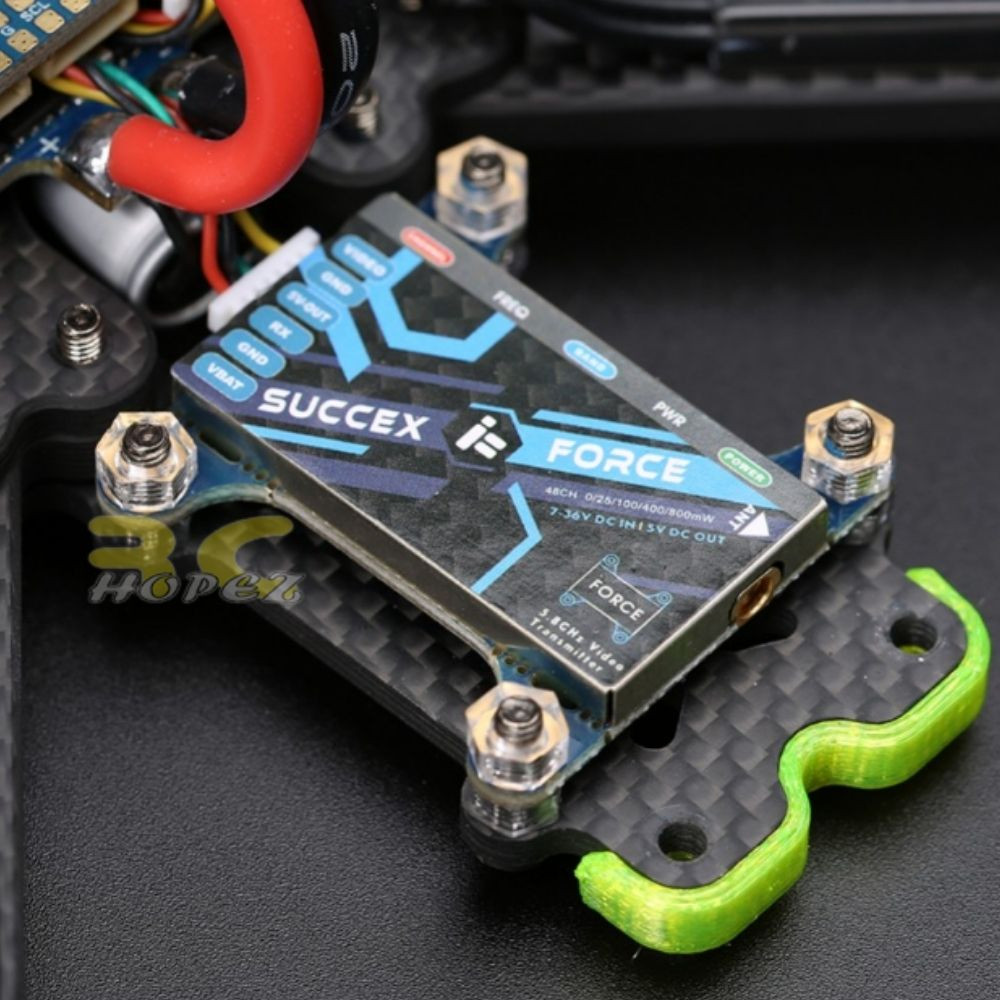

20/1/23 : SucceX Force 5.8g 800mW VTX changed to BLITZ 1.6W VTX

PRODUCT DESCRIPTION
Nazgul5 V2 is a 5" size BNF (Bind-and-Fly) quadcopter. it is updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easy-swap out in field.

HIGHLIGHTS:
– 5mm arm design for more durability
– Easy-Swap arms
– LED illuminated Logo

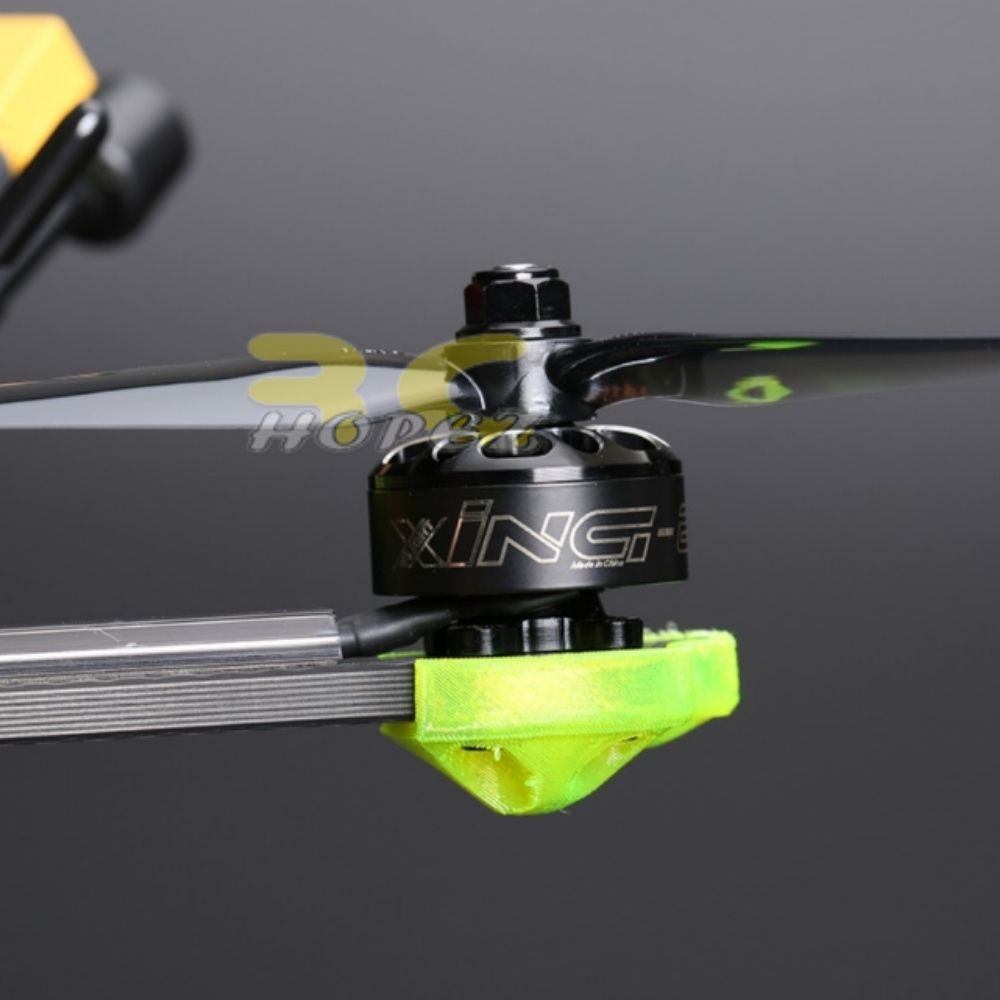

– XING-E Pro 2207 motors and NAZGUL 5140 props
– 5" version also fits 5.1" style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks

XL5 V5 frame specs:
BLITZ E45S 4-IN-1 45A 2-6S ESC
BLITZ F7 FC
XING-E Pro 2207 2750KV (4S) / 1800KV (6S) (Optional)

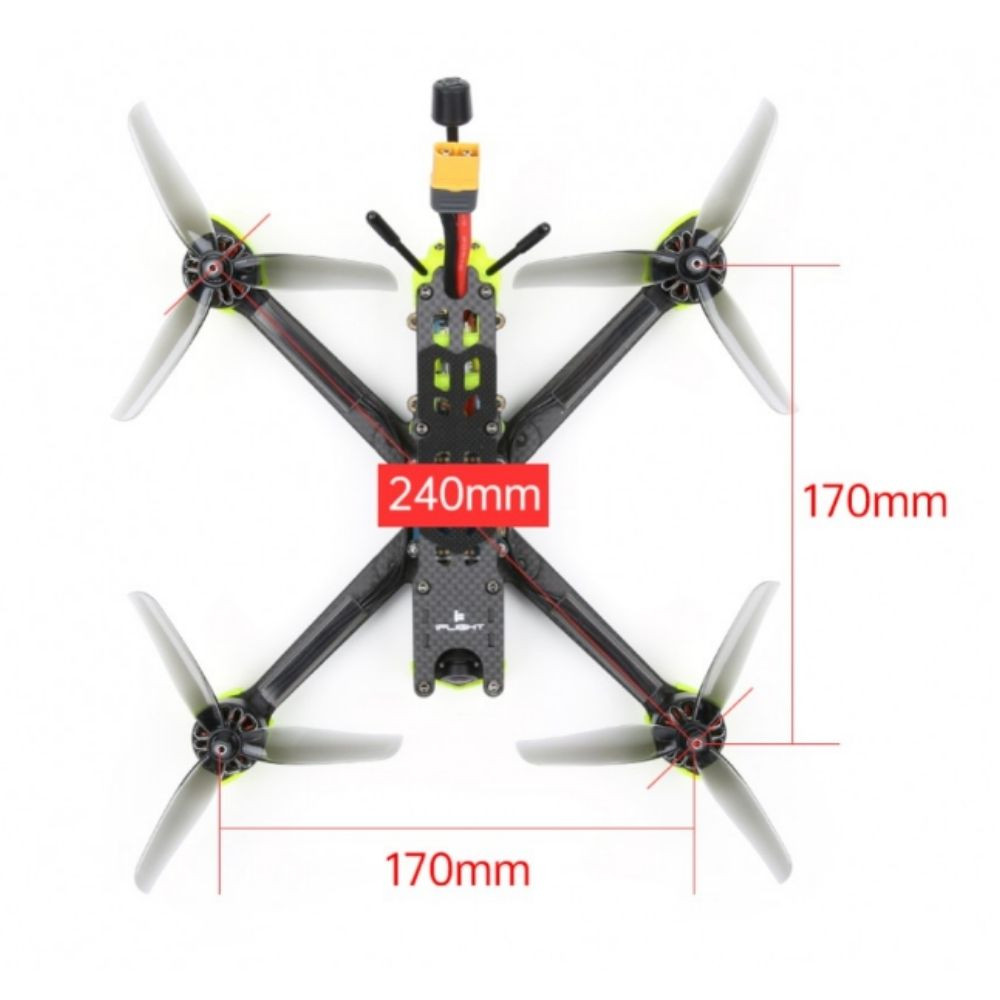

Wheelbase:   240mm*240mm
Body size: 170*170mm
Propeller size: 5 inch /5.1 inch
FC pattern: 30.5*30.5/20*20 mm
FPV cam spacing: 19mm

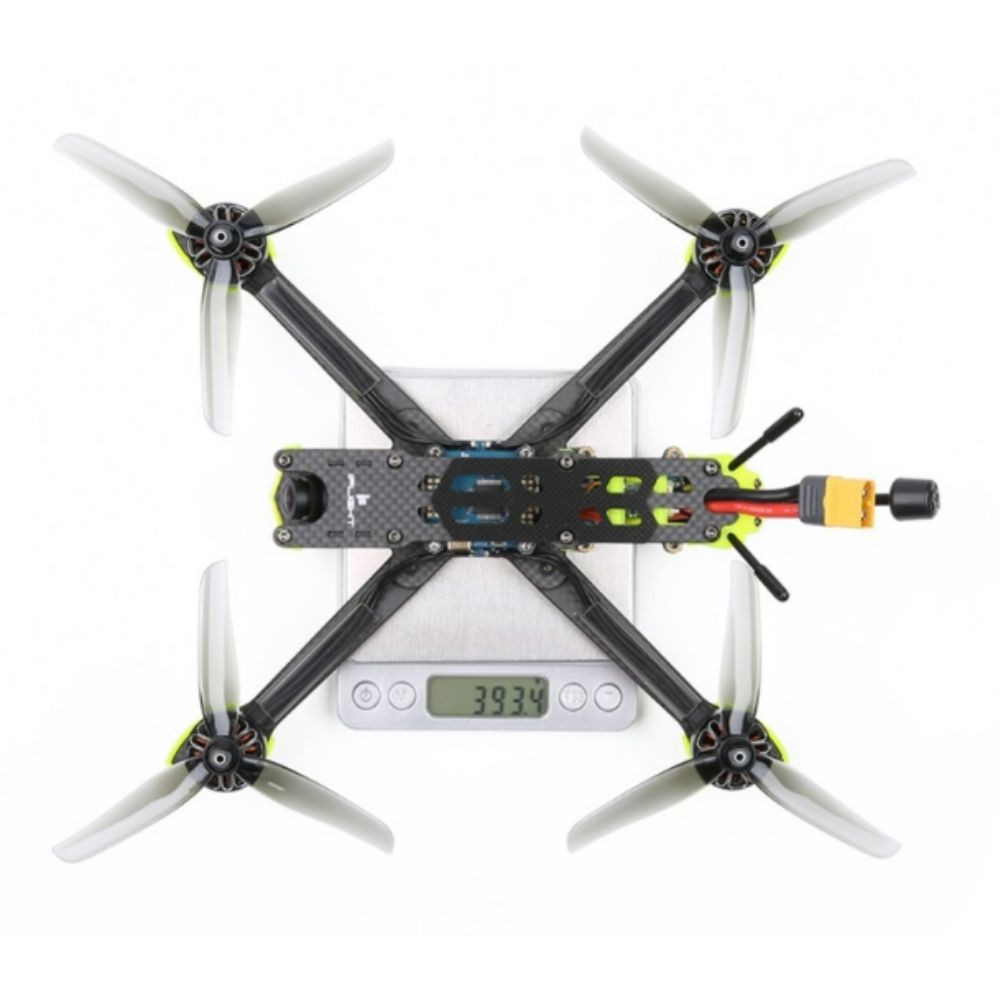

Weight: 393.4g (without battery)

FC // BLITZ F7 FC
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g

Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry

ESC // BLITZ E45S 4-IN-1 45A 2-6S ESC
– Supports: DShot150/300/600/MultiShot/ OneShot etc.
– Mounting Holes: 30.5*30.5mm/Φ4mm
– Supports 2-6S lipo input
– Telemetry Output: NO
– Target: QH-40 16.7
– Current sensor: Yes
– Constant: 45 Amps
– Current rate: 200
– Burst: 55 Amps
– Weight: 14.7g
– MCU: BB21
– BEC: NO

VTX// BLITZ 1.6W VTX System
Output Power：0-25-400-800-1000-1600mw
Input Volts：6-36V
Working Current：≤450mA@12V,800mW; ≤850mA@12V,2500mw
Transmission fre：40CH(A-B-E-F-R)
Antenna Interface：MMCX
Mounting Hole： 30.5*30.5mm–20*20mm
Weight： 11 gram (W/O antenna)
Dimensions：L38mm*W36.5mm*H7.2mm

Additional Suggested Parts (NOT Included)
Battery 4S 1550mAh
Battery 6S 1300mAh
GoPro Mounts

-Receiver: ELRS 2.4GHz Receiver

Includes
Prebuilt and tested Quadcopter
1x XL5 V5 Frame

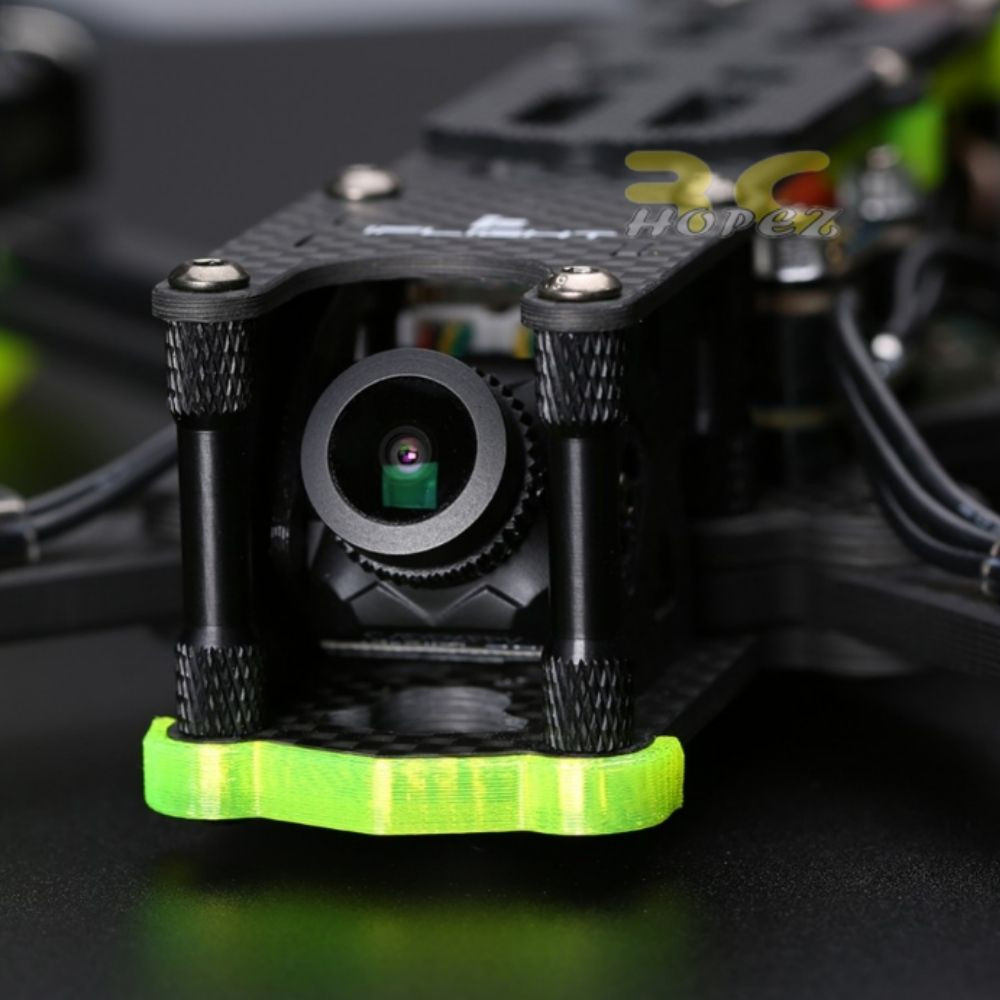

1x RaceCam R1, 2.1mm lens 19x19mm camera
1x Albatross RHCP SMA 5.8g antenna
2sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)
1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

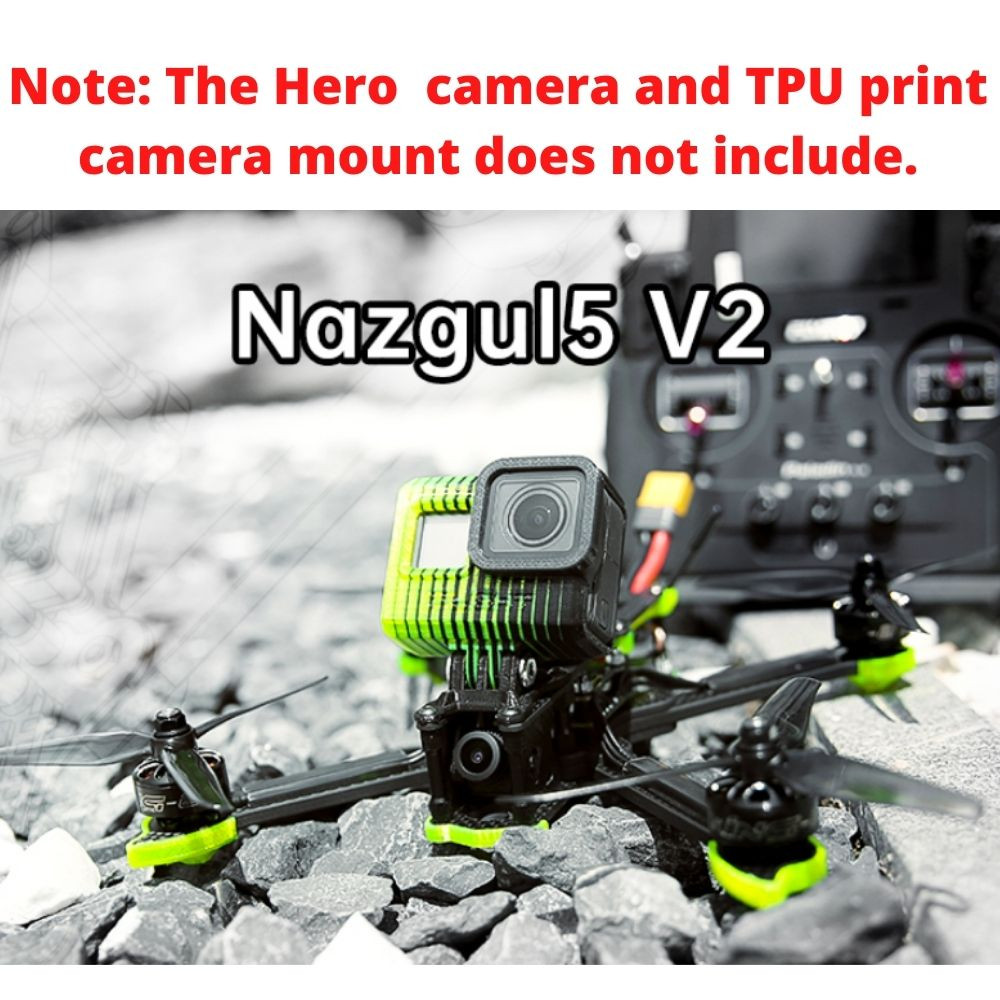

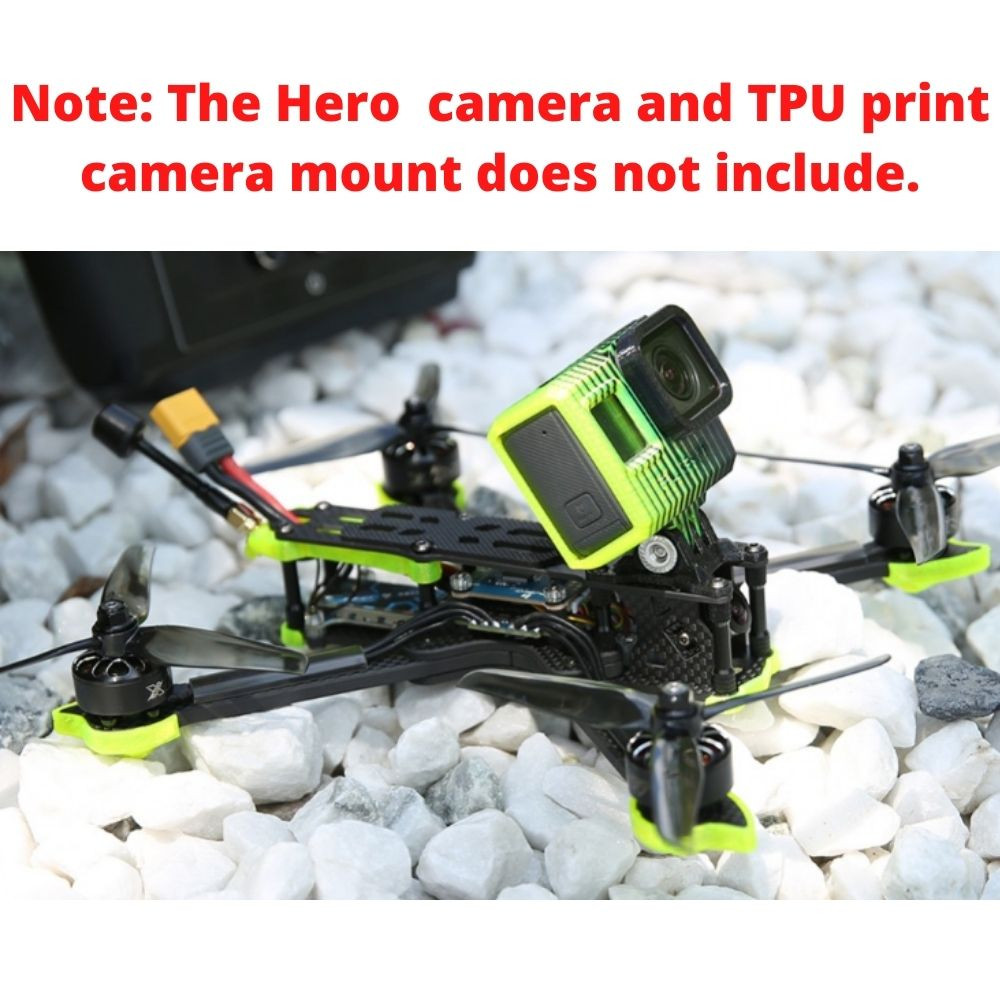

Note: The Hero camera and TPU print camera mount does not include.
