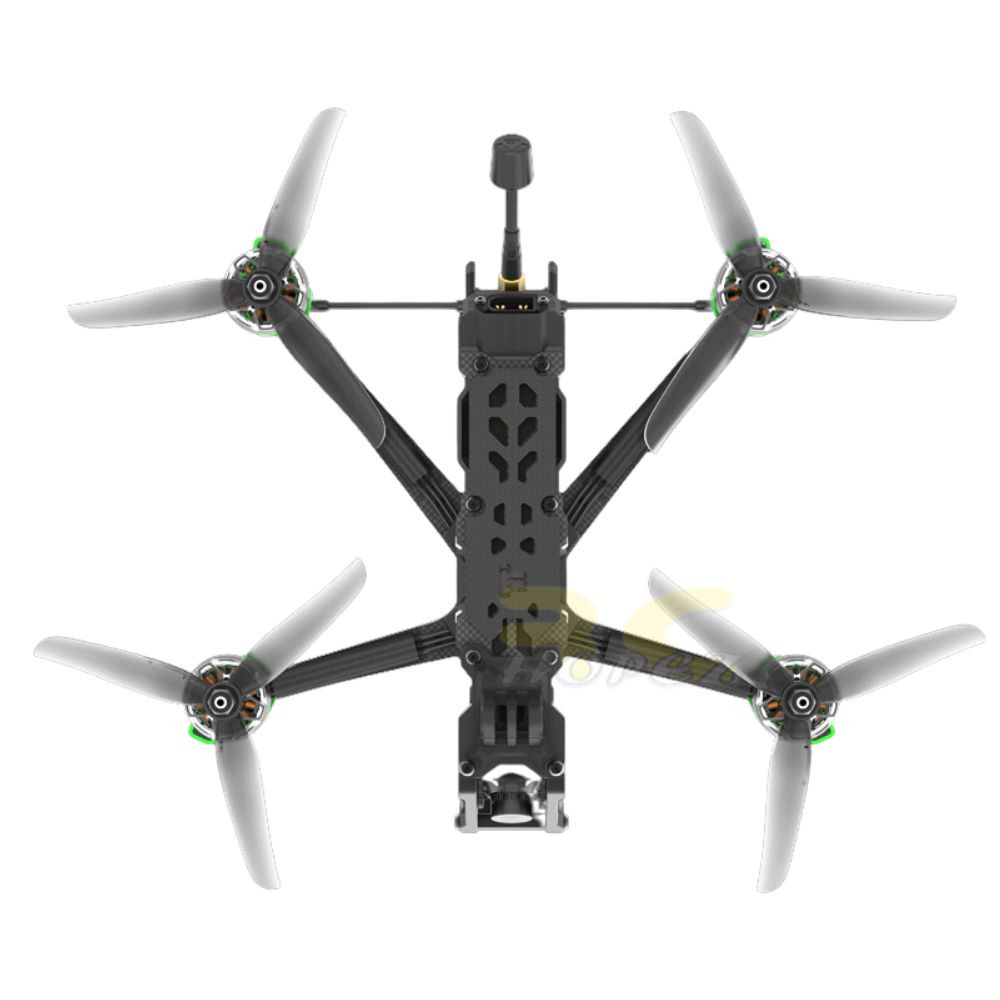

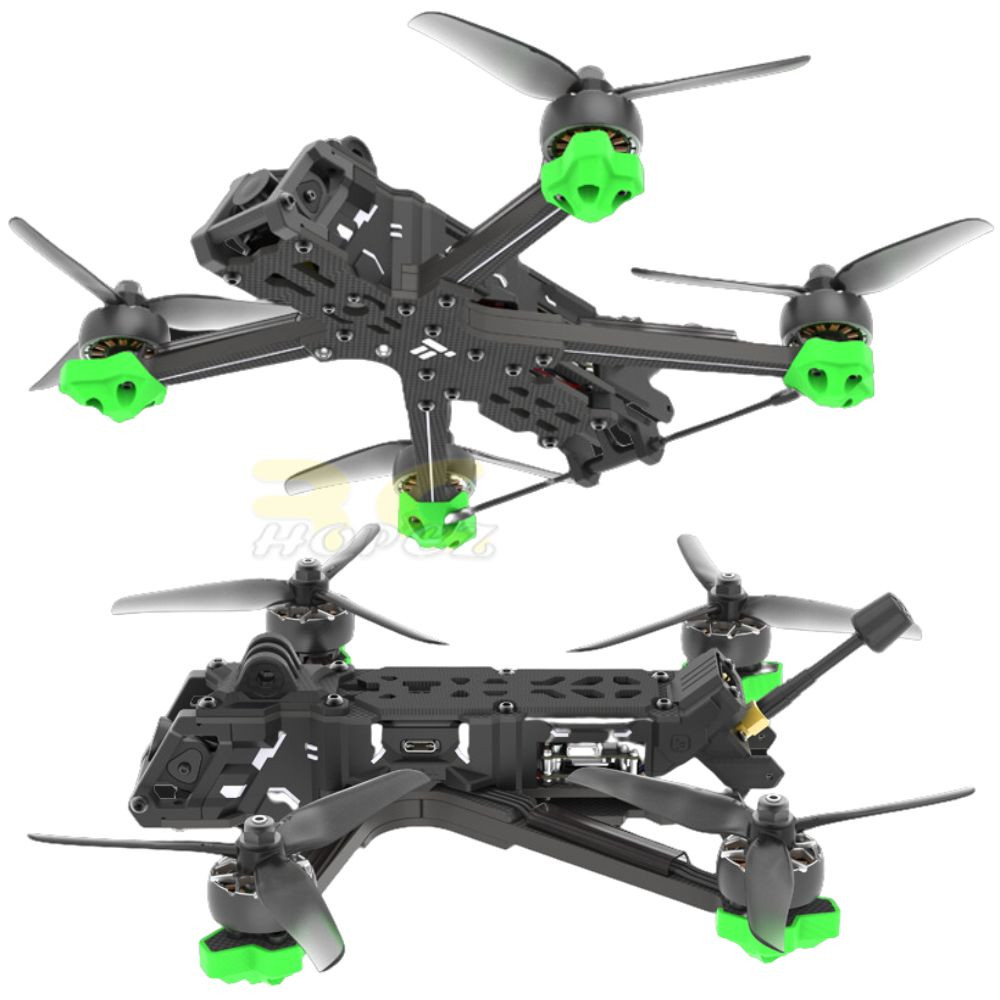

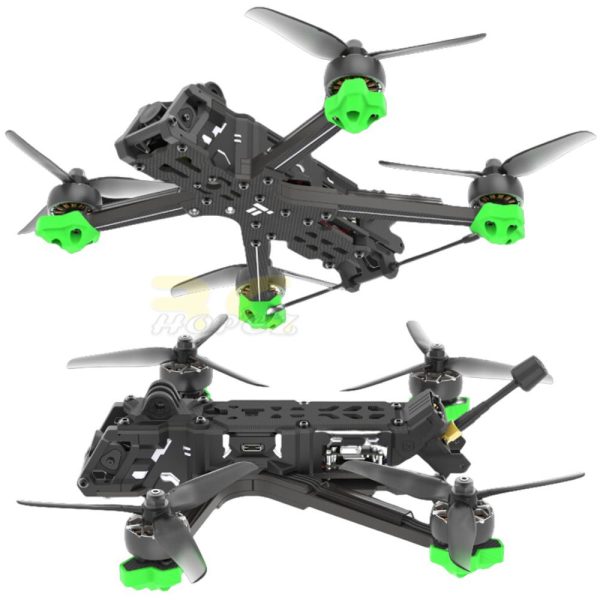

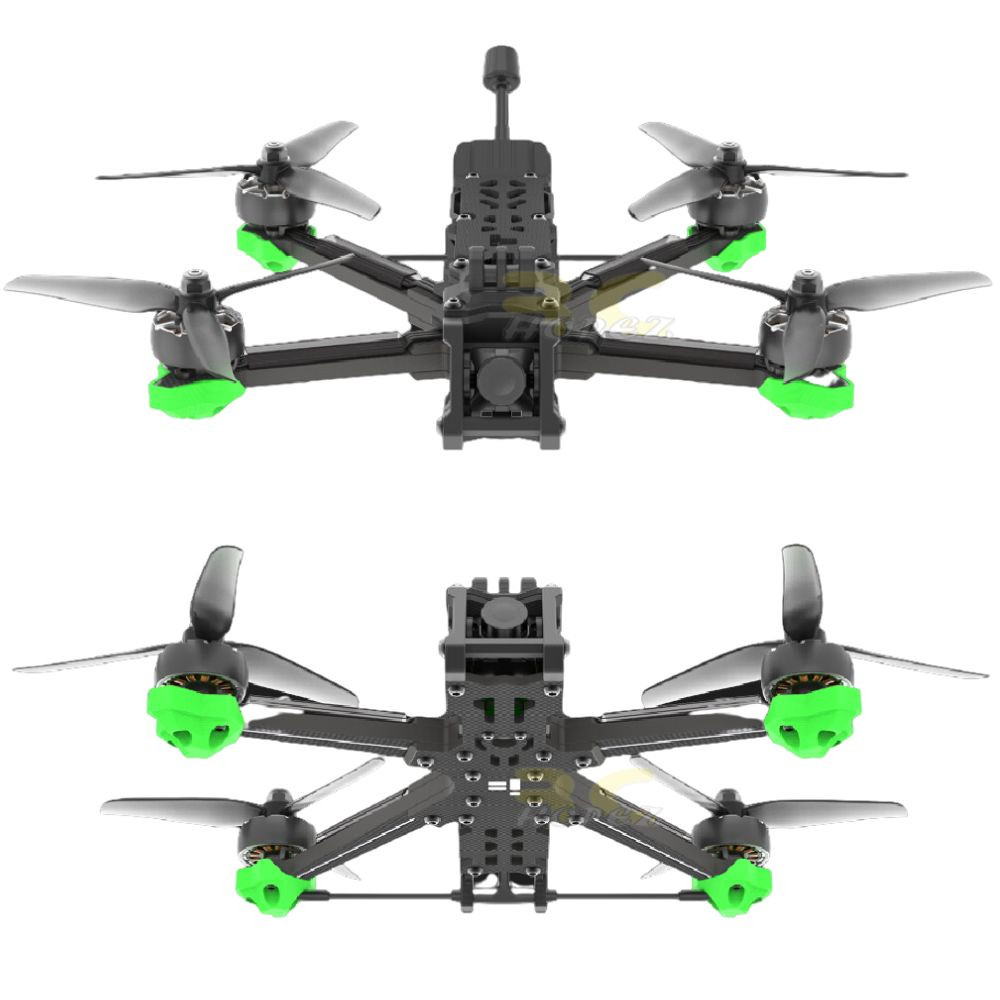

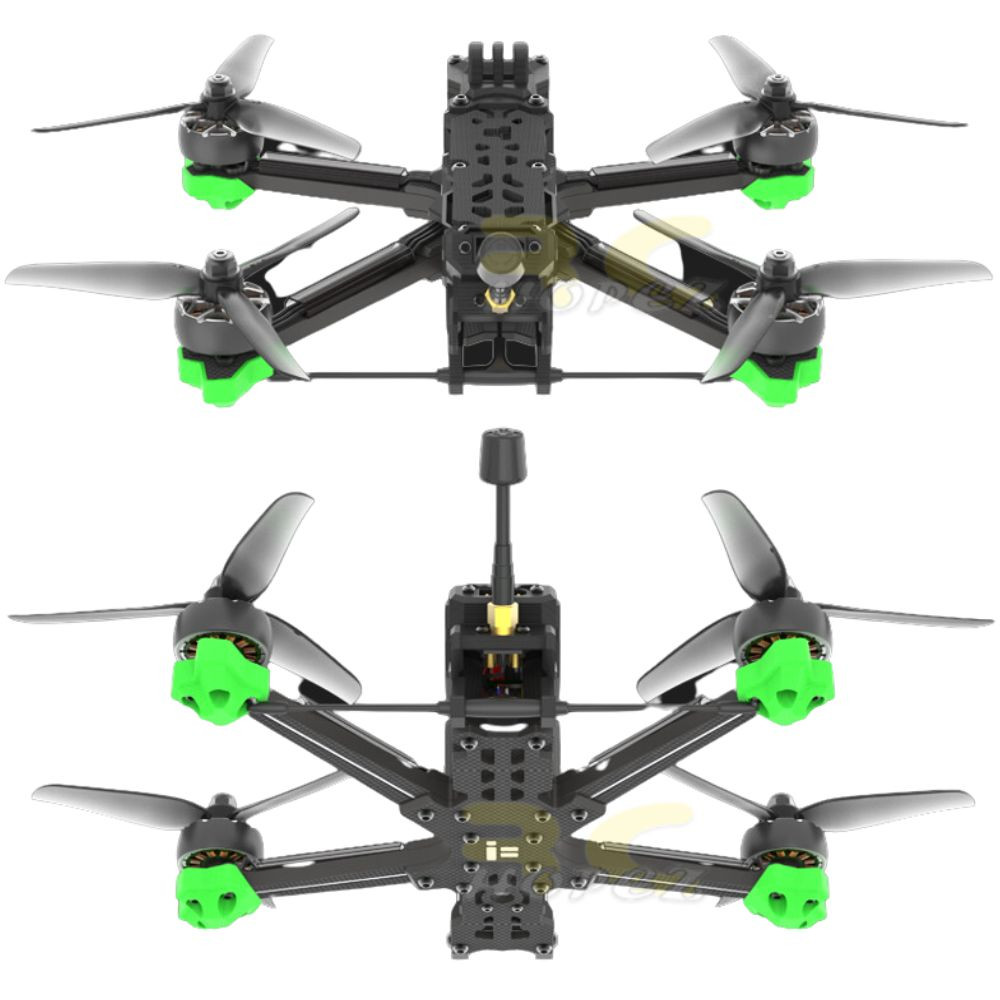

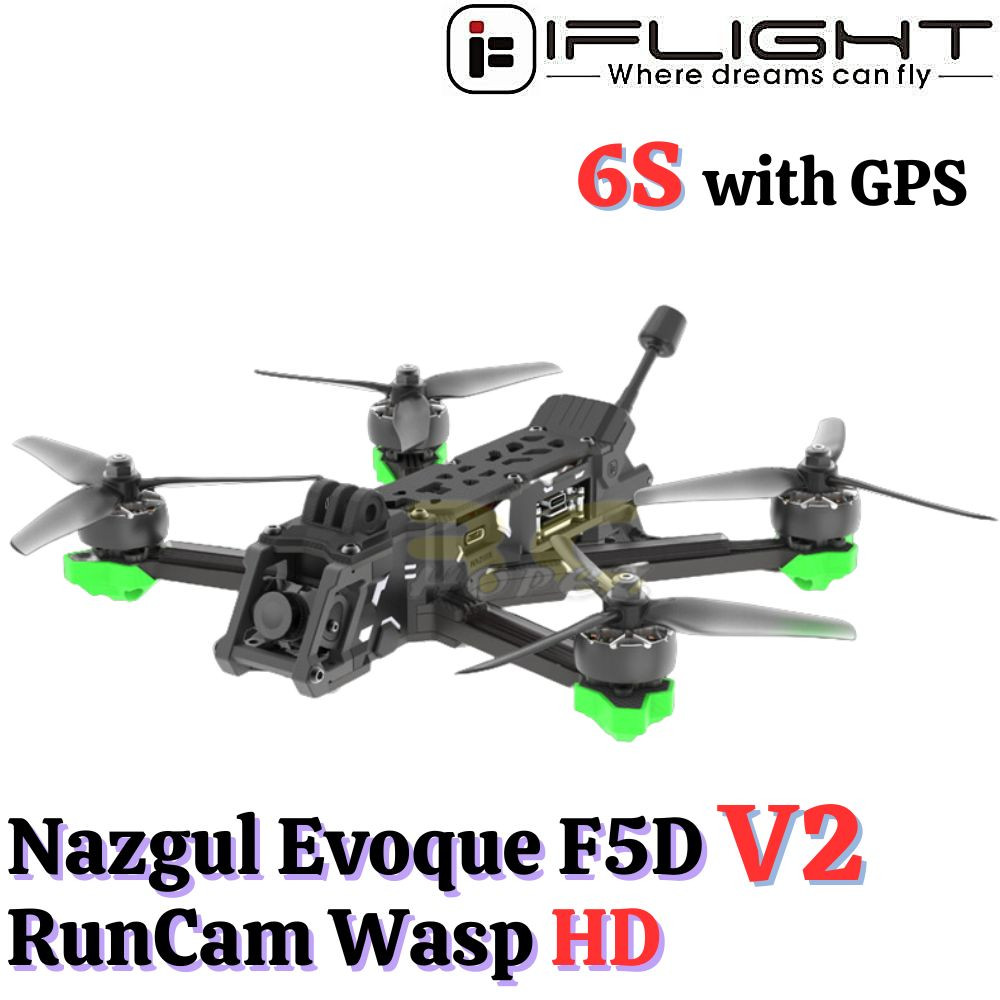

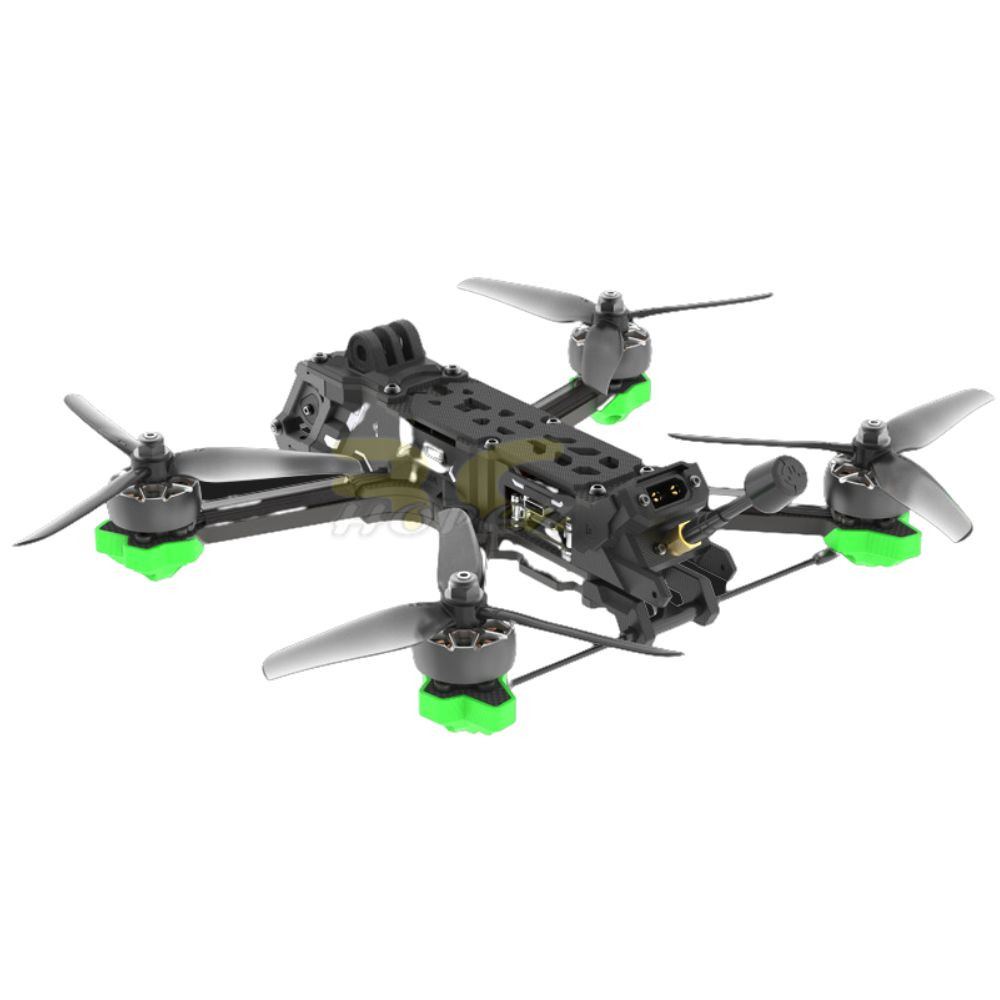

iFlight Nazgul Evoque F5D V2 DeadCat HD 6S with GPS 5 Inch FPV Racing Drone RunCam Wasp HD Camera F5DV2-Wasp

iFlight Nazgul Evoque F5D V2 DeadCat HD 6S with GPS 5 Inch FPV Racing Drone RunCam Wasp HD Camera F5DV2-Wasp

Specifications
Nazgul Evoque F5D V2 HD Vista
Model: F5D V2 HD Link Wasp HD
Flight control: BLITZ Mini F7 FC
ESC: BLITZ Mini E55 4-IN-1 ESC
Video Transmission: RunCam Link wasp HD

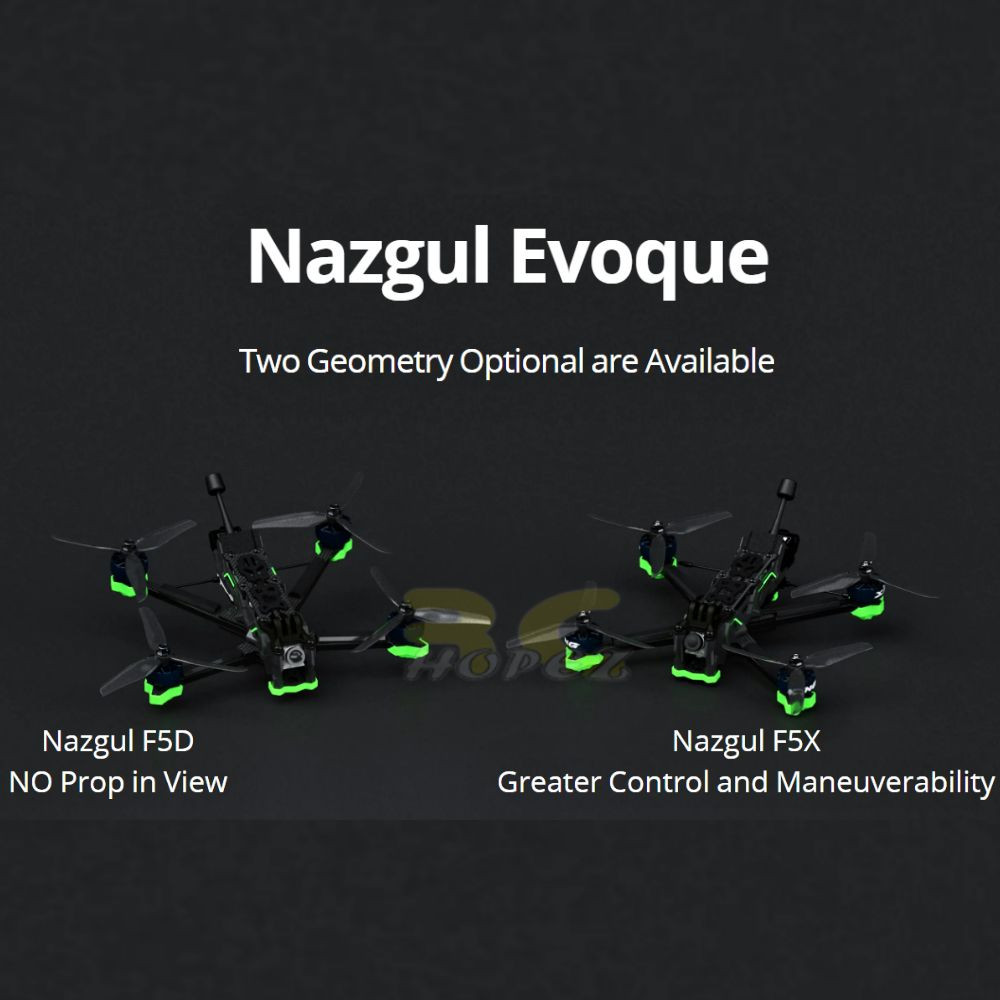

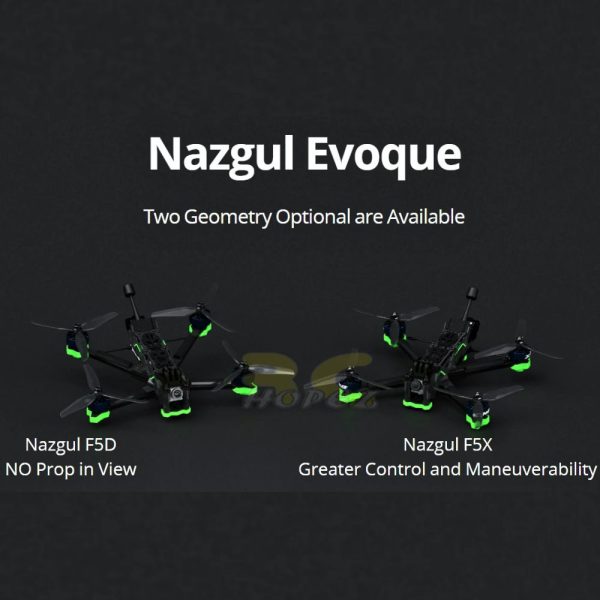

Frame: DC type (DeadCat)
Frame wheelbase: 223 mm
Motor: XING2 2207 1750KV(6S)
Propeller: Nazgul F5
Weight: 436±5g
Take-off weight (casing+blade+motor nut): 470±5g.
[Lithium battery 6S 1400mAh battery, 470+225 = 695±10g] Size (l× w× h): 190× 136× 36±2mm. (Battery Not Included)
Maximum horizontal flight speed: 190km/h
Maximum altitude: 3200m (on this basis, it will fly to about 3600m, with a total flying altitude of 7000m).
Maximum Wind Resistance Grade: Grade 7 (DJI avata is Grade 5)
Working Environment Temperature:-10℃-40℃ (refer to DJI avata).
Number of Antennas: Single Antenna
GNSS (optional): GPS+Galileo

FC // BLITZ MINI F7 V1.1
– MCU：STM32 F722
– Gyro： BMI270
– Baro: DPS310
– Betaflight OSD：IFLIGHT OSD （AT7456E)
– Blackbox：16MB
– Firmware: IFRC-IFLIGHT_BLITZ_F722
– Mounting：20*20mm/φ4
– Dimensions：30.5*27mm
– Weight：5.0g
– 5 X Uarts
– UART1 for VTX HD/Analog
– UART2 for Receiver
– UART3、UART4 for GPS or 0ther sensors that require a serial port
– UART6 for ESC Telemetry
– 4×Dshot/PWMoutputs
– 1×I2C
– 1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）
– 1 xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)
– 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）
– 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
– 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
– Smartaudio&IRCTramp VTX protocol supported
– WS2812ledStrip：Yes
– Bepper：Yes

ESC //BLITZ Mini E55
– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target: IFLIGHT_BLITZ_G1

GPS //BLITZ M10 GPS Module Built-in QMC5883L Compass
UBLOX M10 chip
Compass module QMC5883L integrated
Built-in farad capacitor for faster hot start
Onboard LNA (Low Noise Amplifier)
10 Hz Refresh rate
Built-in Flash
Baud Rate: 4800bps-115200bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 26s
Hot start: 1s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18 x 18 mm
Total dimensions: 20 x 21 x 6.5 mm
Weight: 5.2 g（±0.5g）
Input Voltage: 3.3-5.5 V, current 40mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA

Additional Suggested Parts (NOT Included)
Battery 6S 1400mAh
GoPro Mounts

Package included：
1 x Nazgul Evoque F5D V2 6S HD With GPS
2 sets x Nazgul F5 Prop
2 sets x Battery Pads
2 x Battery straps
1 x Screws bag
