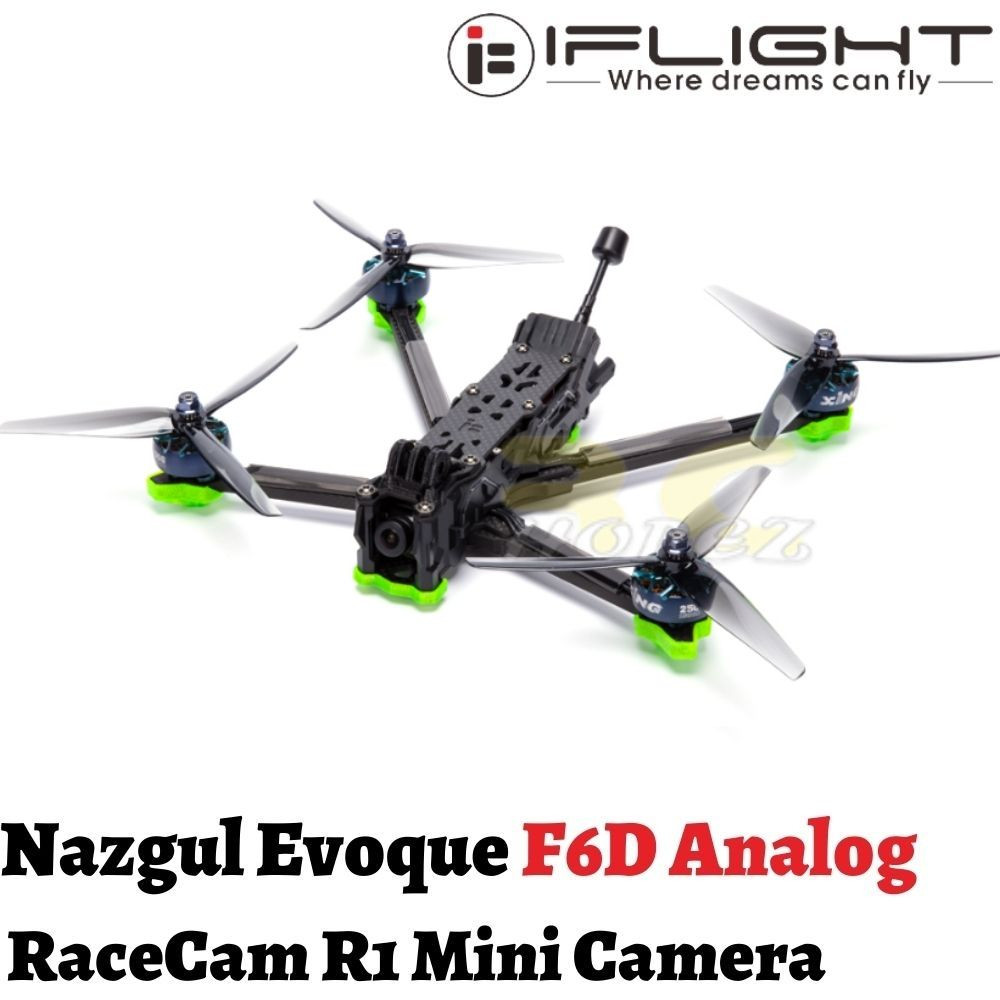

iFlight Nazgul Evoque F6D DeadCat Analog 6S 6 Inch FPV Racing Drone With RaceCam R1 Mini Camera F6D

iFlight Nazgul Evoque F6D DeadCat Analog 6S 6 Inch FPV Racing Drone With RaceCam R1 Mini Camera F6D

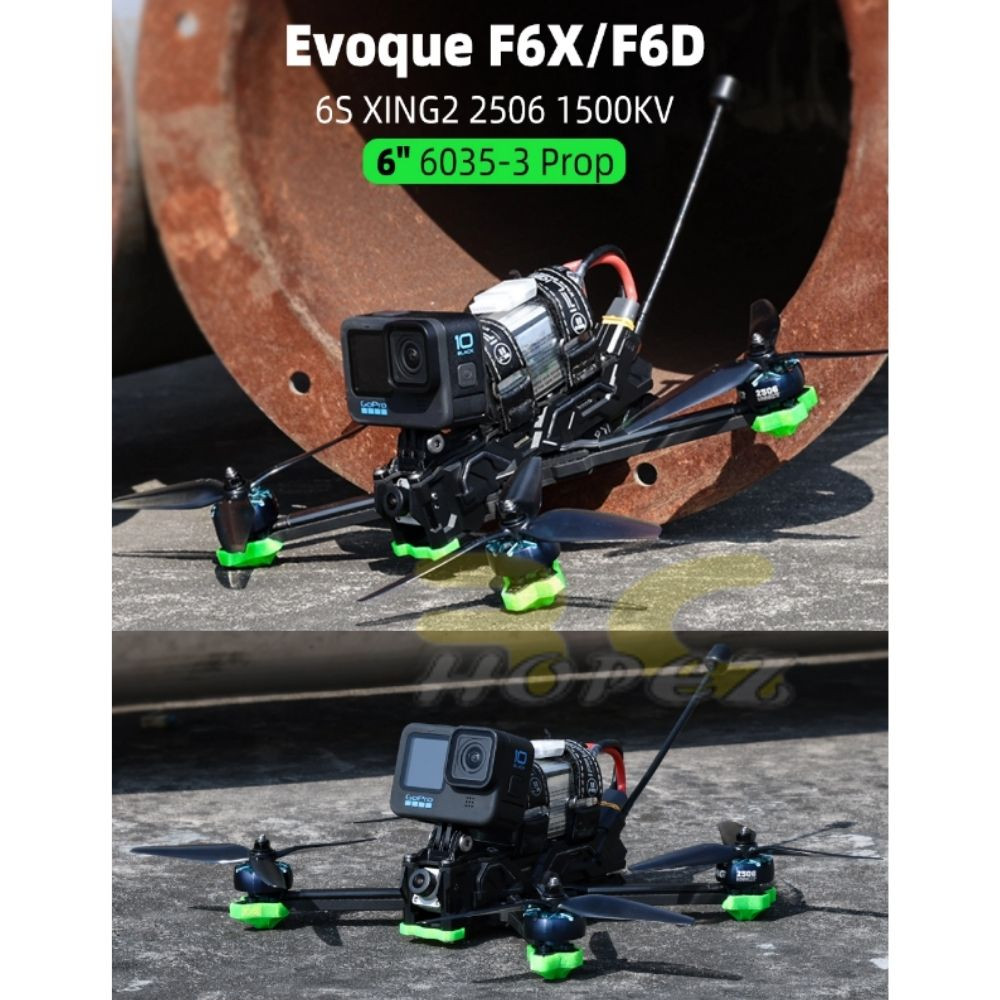

Top Features
The Secret Of Ultimate Performance Is Passion

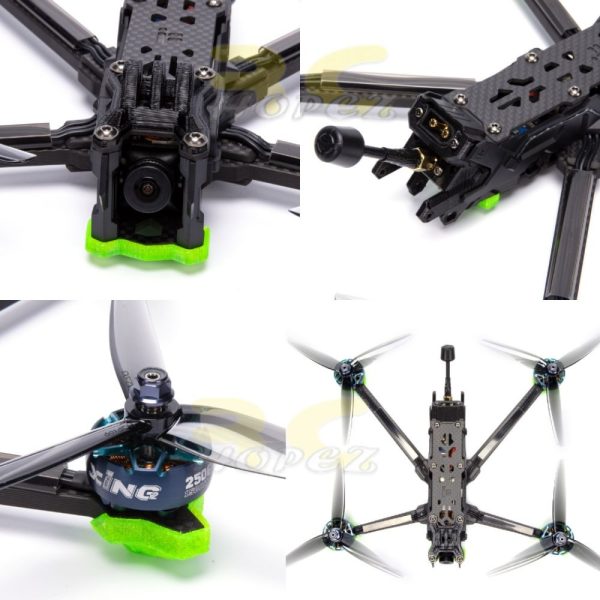

Lightweight Side Panels – Keep Your Rig Clean
Secured Integrated XT60 Battery Plug – As Safe, It Can Be
High-Performance Electronics – F7 45A Power Stack
XING2 Performance Motors – The Best Motors Just Got Better
Illumination – Let It Be Green
SucceX Force 600mW – Analog Reliable Power

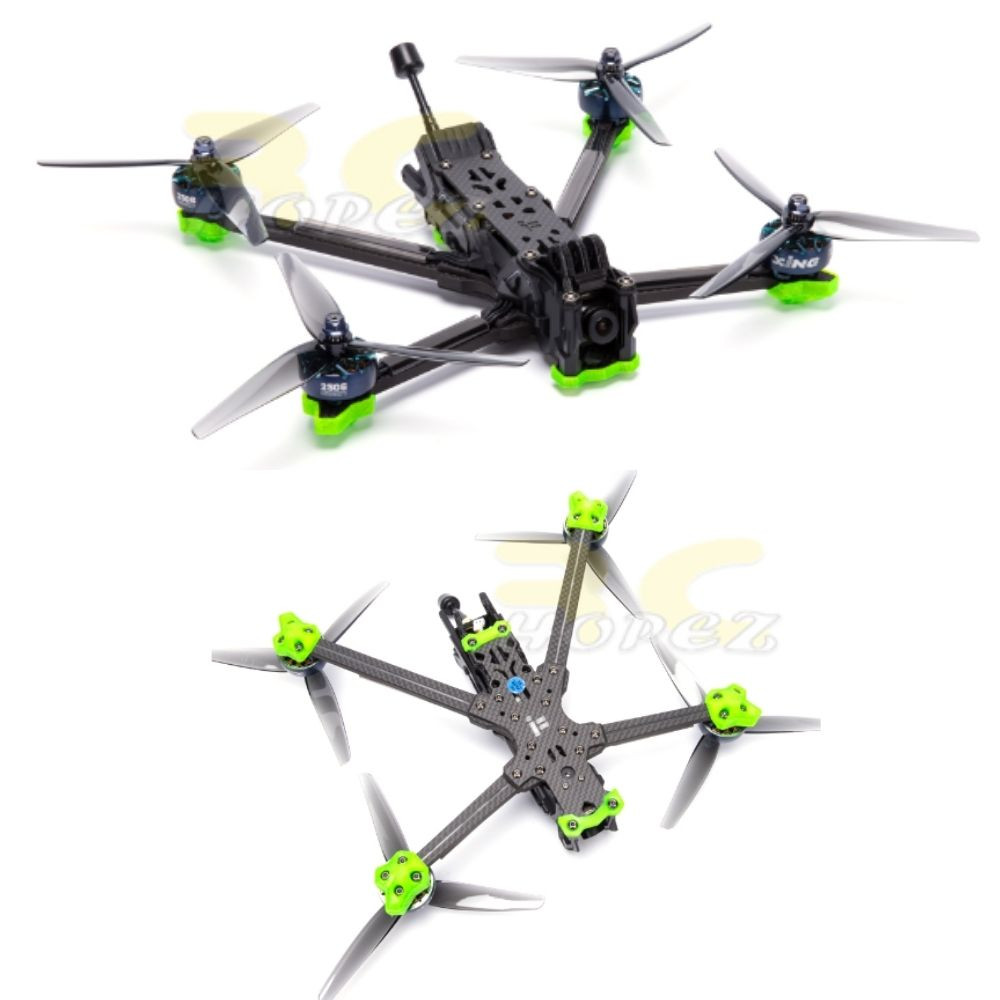

Specifications:
– Total Dimensions: 262.6mm

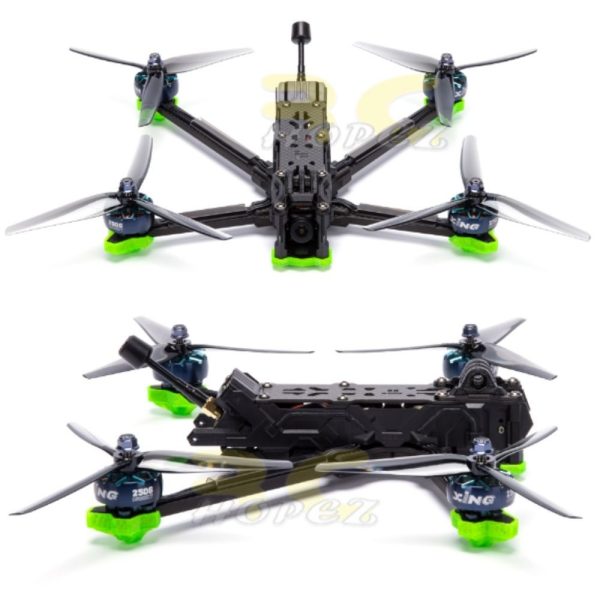

– Geometry: DeadCat frame
– Bottom to top distance: 28mm
– Arm Thickness: 6mm
– Bottom plate thickness: 2.5mm
– Top plate thickness: 2mm
– Upper(middle) plate thickness: 3mm
– FC // BLITZ Mini F7
– ESC // BLITZ E55S Mini 4-in-1
– XING2 2506 1500KV motors
– 6035 propellers
– RaceCam R1 Mini (Analog Version)

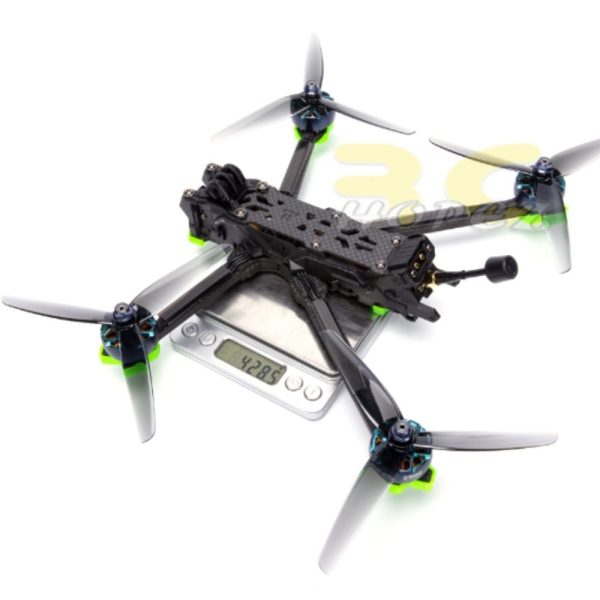

– Weight: 428.5g (without battery and GoPro mount)

FC // BLITZ MINI F7

Top Features:
– IMPROVED CIRCUIT DESIGN, BETTER COMPONENTS AND LOWER ELECTRICAL NOISE!
– DJI HD VTX CONNECTOR (PLUG-AND-PLAY / NO SOLDERING REQUIRED)
– FC INDICATOR LEDS FOR VISUAL DEBUGGING

Specs:
MCU:   STM32 F722
GYRO:   MPU6000
BAROMETER:   NO
OSD CHIP:   AT7456
FLASH:   16MB (BLACKBOX FLASH)
UARTS:   6
MOTOR OUTPUTS:   4X (SH1.0 CONNECTOR)
I2C SERIAL:   SDA / SLA PADS
SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED
LED CONTROLLER:   YES
BEEPER PAD:   YES
FIRMWARE TARGET:   IFRC-IFLIGHT_BLITZ_F722
MOUNT PATTERN:   20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWS
DIMENSIONS:   30.5X27 MM
WEIGHT:   5G

WIRING SUGGESTION:
– UART 1 FOR VTX HD / ANALOG
– UART 2 FOR A RECEIVER
– UART 3/4/5 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
– UART 6 FOR ESC TELEMETRY

TIPS
1. F722 MCU HAS AN INNER INVERTER.
2. SBUS, CRSF, ELRS, IBUS, DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2
3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
4. F.PORT CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX2

ESC // BLITZ Mini E55 4-IN-1
– Input: 2-6s LiPo
– Constant: 55 Amps (per channel)
– MCU: BB21
– Burst: 60 Amps (per channel)
– BEC: No
– BlHeli32 telemetry: Yes
– Dimensions: 42*35mm
– Mounting Holes: 20*20mm φ3mm with Grommets φ2mm
–  Weight: 11.3g
– Target: QH-50 16.7

VTX // 5.8GHz SucceX Mini Force 600mW VTX
– Power: PIT/25/200/400mW/600mW
– Antenna Interface: MMCX
– VTX protocol: IRC Tramp
– Output:  40 channels

Additional Suggested Parts (NOT Included)
Battery 6S 1300mah-1550mAh
GoPro Mounts

Package included：
– 1 x Nazgul Evoque F6 Analog DeadCat
– 2 sets of 6035 Propellers
– 2 sets of Battery pads
– 3 x Battery straps
– 1 Screw bag
– 1 iFlight M8Q-5883-GPS Module V2.0 (Optional)

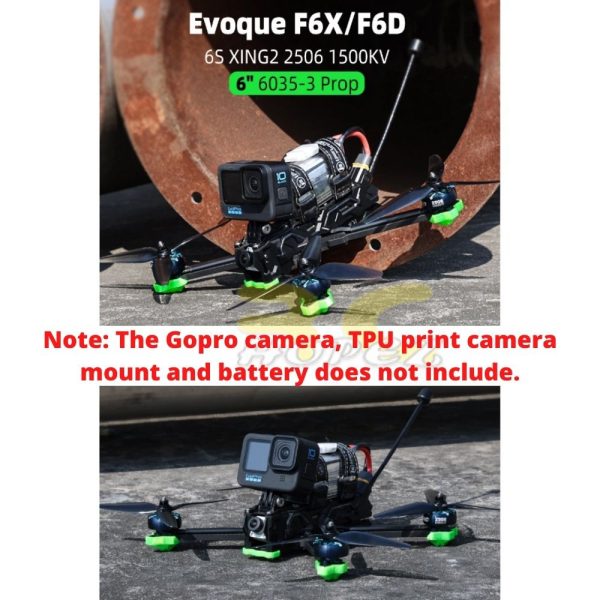

Note: The Gopro camera, TPU print camera mount and battery does not include.
