iFlight Protek R25 HD 2.5 Inch 114mm 4S CineWhoop With Caddx Polar Nano Vista HD Camera TBS Nano RX/ELRS 2.4G R25-HD

iFlight Protek R25 HD 2.5 Inch 114mm 4S CineWhoop With Caddx Polar Nano Vista HD Camera TBS Nano RX/ELRS 2.4G R25-HD

Features
ProTek R25 BNF Specs:
*Motor: XING 1404 4600KV

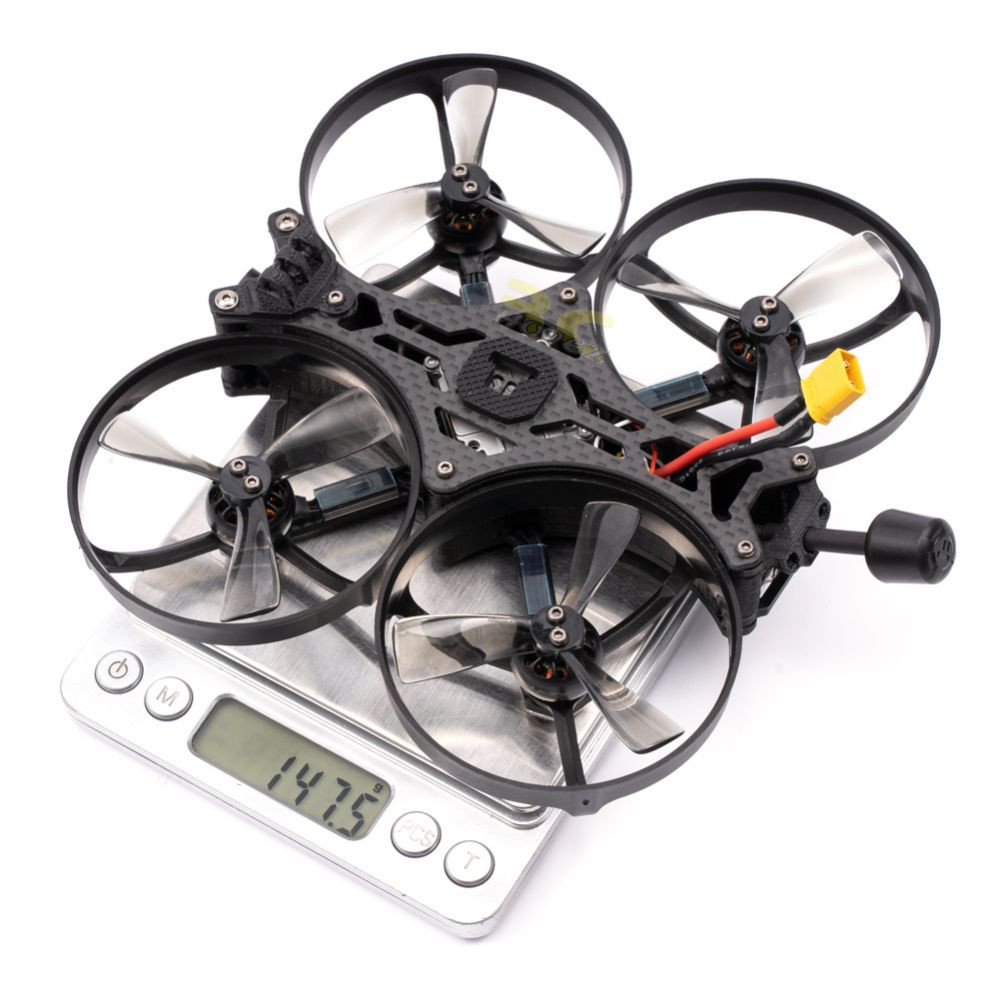

*Weight: 147.5g (without battery)
*Bottom plate thickness: 2.5mm
*Top plate thickness: 1.5mm
*Body Size: 143mm*158mm
*FC pattern: 25.5*25.5mm
*FPV cam spacing: 14mm
*Whoop F4 AIO 1.1
*Propeller size: 2.5 inch
*Arm Thickness: 2.5mm
*Wheelbase: 113mm

Specifications:

AIO//Whoop AIO F4 V1.1 AIO
Mounting pattern: 25.5*25.5mm/φ3mm
Firmware Target: IFLIGHT_F411_PRO
Constant current: 20A，25A (Burst)
Config：IFLIGHT_F411_PRO.config
Connector: Micro-USB
ESC Firmware: G-H-50
Current sensor: yes
BEC output: 5V 2A
ESC Telemetry: NO
Size: 30.5*30.5mm
MCU: STM32F411
BLHeli: BLHeli-S
Barometer: NO
Blackbox: 8MB
Gyro: BMI270
INA pad: nR2
Weight: 7.4g
Input: 2-4S

XING X1404 4600KV Motor
Voltage: 2S-4S
KV: 4600KV
-Configuration: 9N12P
-Stator Diameter: 14mm
-Stator Length: 4mm
-Shaft Diameter:2mm
-Motor Dimensions(Dia.*Len): Φ18.3×12.5mm
-No.of Cells(Lipo): 2-4S
-Max Continuous current(A): 11.8A
-Max Continuous Power(W): 174.6W
-Internal resistance: 0.28Ω
-Weight: 8.5g(without cable)
-Mounting pattern: 9*9*φ2mm
-Bearing: 5*2*2.5mm

Caddx Polar nano vista kit:
Weight: Vista Kit(camera included): 22g; Antenna: 1.5g
Dimensions: Vista Kit: 30×29×13mm; Camera: 14×14×15.8mm; Coaxial Cable: 80mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm; CE: <14dBm
Min.latency(end-to-end): 720p 60fps: <32ms
Max.Transmission Distance: FCC/SRRC: 4km;CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1port
Supported Flight control System: F3.F4.F7
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-26.4V
Power Output: 25mW/200mW/500mW/700mW
Hardware Included: Polar nano vista kit /m2 screw/bracket/3-in-1 cable/antenna
Goggles: Work with DJI goggles
Camera: Sensor: 1/1.8”inch starlight cmos; Min. Illumination: 0.00003Lux;
Lens: F/1.8; Shutter: Rolling shutter; ISO: 100-25600; FOV: 162°(D);138°(H);75°(V);Aspect Ratio: 16:9
Packaging Information: 23.5g(N.W.),53g(G.W.); 145mm*57mm*27mm

Caddx Polar nano camera:
Image Sensor: 1/1.8”inch starlight sensor
Aperture: F/1. 8
FOV: 162°(D); 138°(H); 75°(V)
Min. Illumination: 0.00003Lux
Min.Latency: 720p/60fps<32ms
Aspect Ratio: 16:9
S/N Ratio: >65dB (AGC OFF)
Dimensions: 15.8mm*14mm*14mm
Weight: 2.7g(N.W.),13g(G.W.)
Package dimensions:76mm*56mm*25mm

Additional Suggested Parts (NOT including)
DJI Digital FPV Goggles V2
Battery 4S 650-850mAh XT30

-Receiver: ELRS 2.4G / TBS Crossfire Nano RX (Optional)

Package Included:
1 x iFlight Protek R25 HD FPV Drone
1 x Caddx Polar Nano Vista Digital HD System Kit
1 x Albatross ipex LHCP 5.8g 75mm antenna
2 x Nazgul 2525 propeller (Set of 4 – Color May Vary)
1 x iFlight Lipo Strap 15*180mm (Color May Vary)
