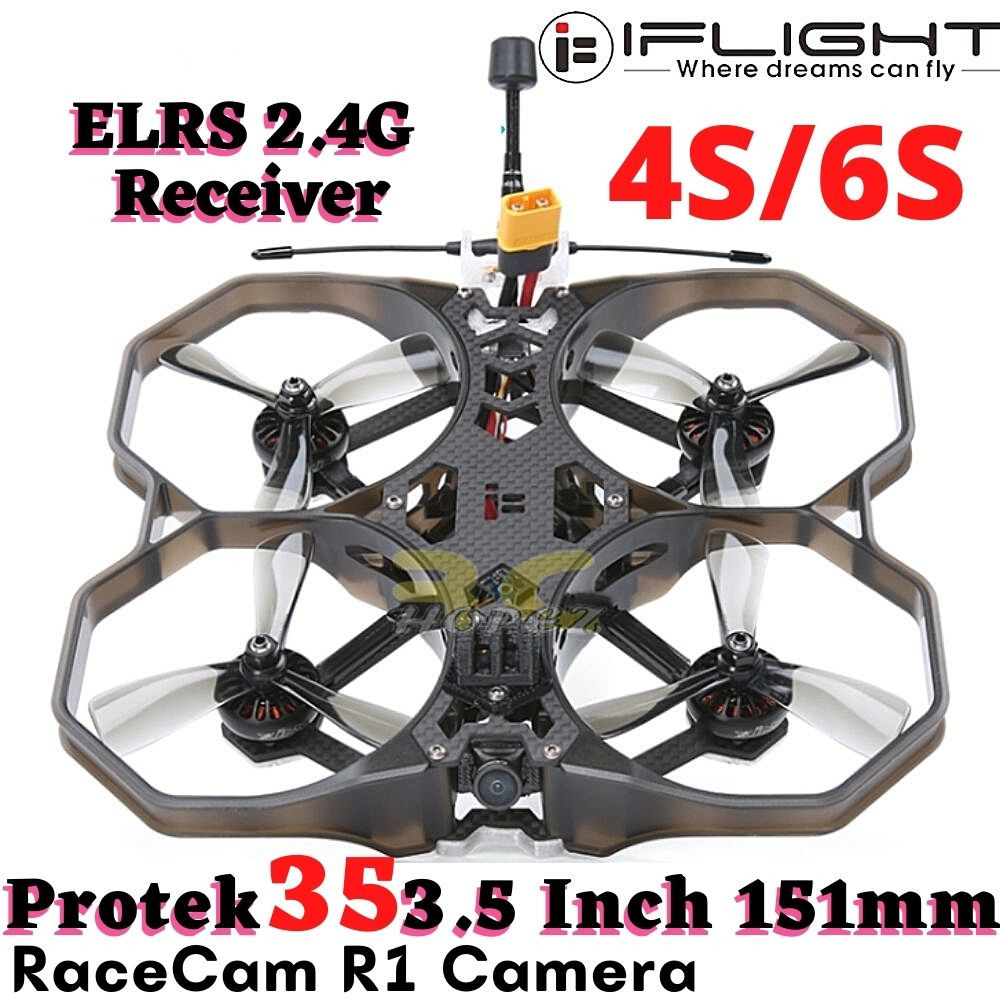

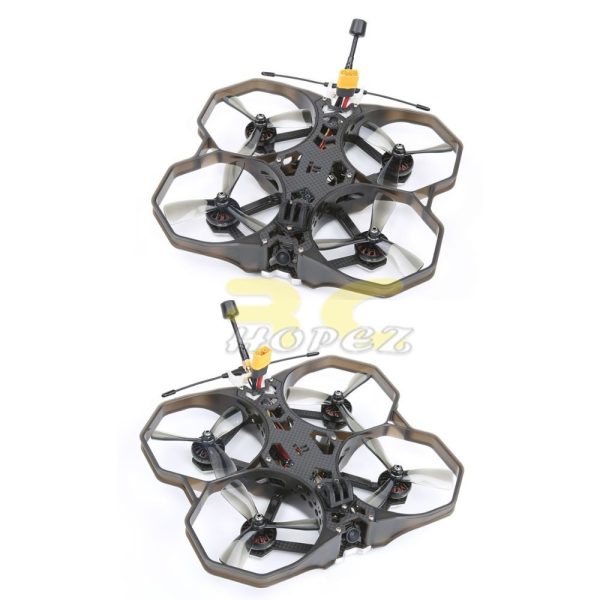

iFlight Protek35 3.5 Inch 151mm 4S/6S CineWhoop With RaceCam R1 Camera BNF ELRS 2.4G Receiver P35-ELRS

iFlight Protek35 3.5 Inch 151mm 4S/6S CineWhoop With RaceCam R1 Camera BNF ELRS 2.4G Receiver P35-ELRS

Features:

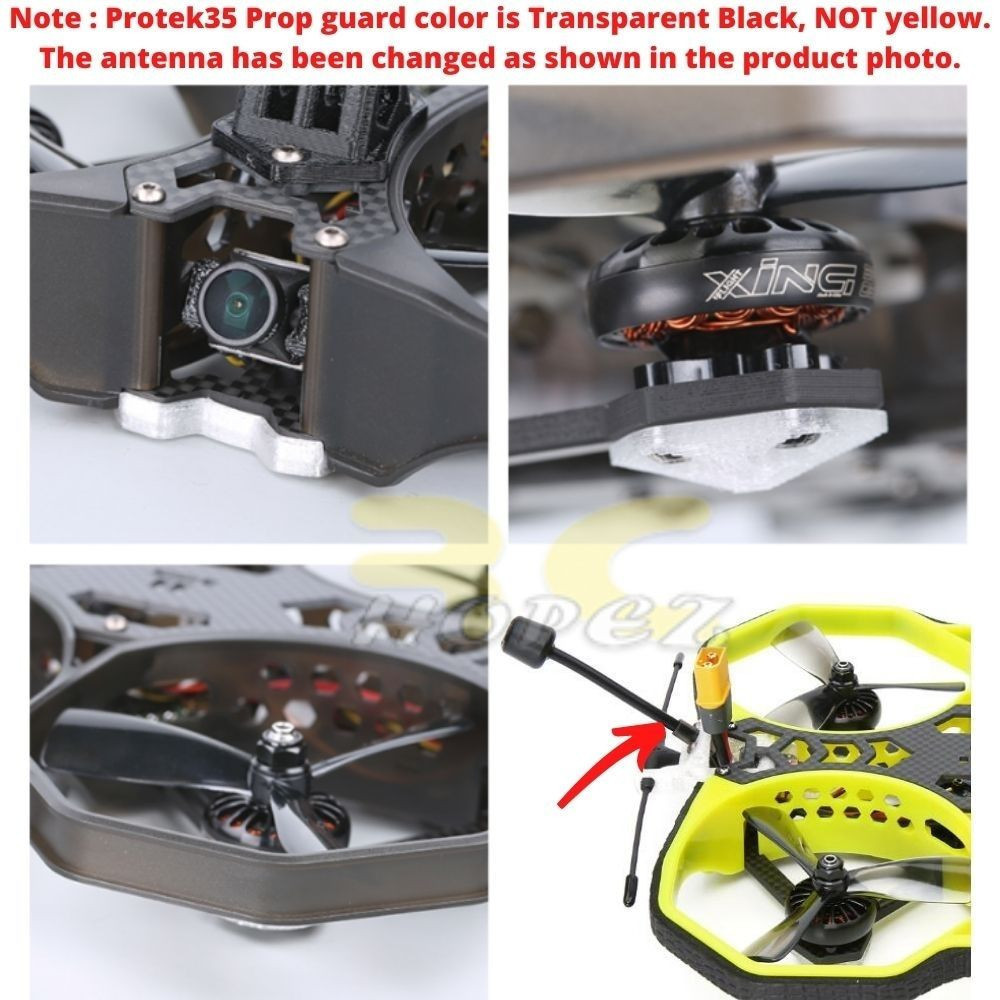

– UPGRADED PROP GUARDS V2.0 (Material optimized)
– No Props or frame in view!
–  High performance True-AIO Board Beast Whoop F7 AIO 55A to save weight and space
– T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
– Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
– Low Resonance frame construction (Less Jello, more Cinematic footage)
– RaceCam R1 Mini 1200TVL 2.1mm 19*19
– Better smooth XING 2205 3200KV (4S)/2300KV (6S) 12x12mm /Φ2 (Black)
– Pre-tuned with smooth freestyle settings

ProTek35 BNF Specs:
– Board Beast Whoop F7 AIO 55A
– Motor: XING 2205 3200KV (4S)/2300KV (6S) 12x12mm /Φ2 (Black) (Optional)

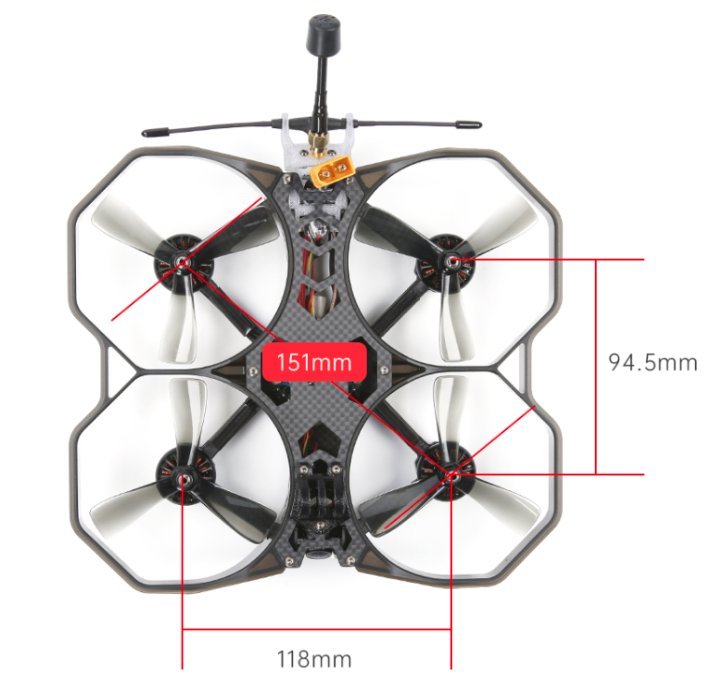

– Wheelbase: 151mm
– Body Size: 118*94.5mmmm
– Bottom plate thickness: 3.5mm
– Top plate thickness: 2mm
– Top and bottom plate spacing: 20mm (aluminum standoff height)
– Propeller size: 3.5 inch
– FC pattern: 25.5*25.5mm / 20*20mmmm
– FPV cam spacing: 20mm

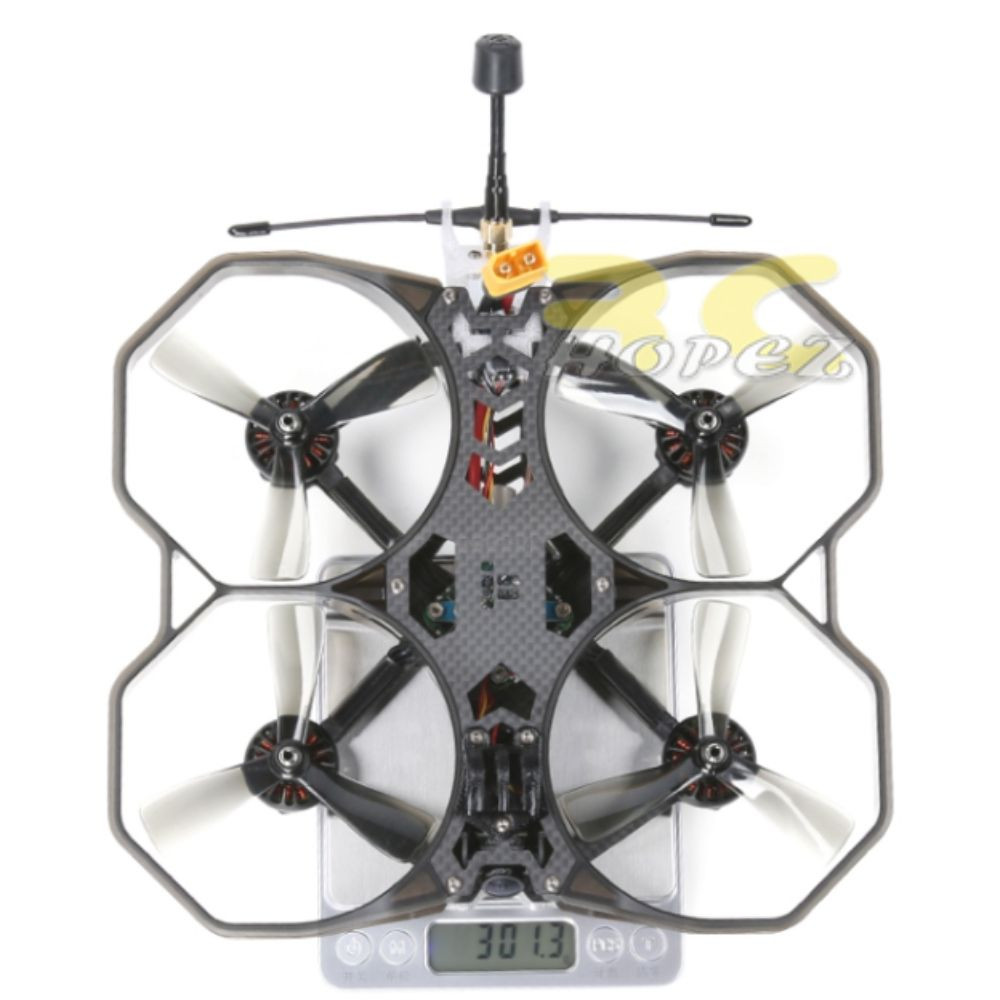

– Weight: 305g (without battery)

FC // Beast F7 AIO 55A V2
MCU: BGA-STM32F745
Gyro: BMI270
Blackbox: 16MB Onboard Flash
BEC output: 5V 2.5A
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E）
FC Firmware：IFLIGHT_F745_AIO_V2
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Weight: 8.5g

ESC // 55A 2-6S
Uarts: 5
Current Sensor: Yes
Input: 2-6S LIPO
Current scale: 100
Constant: 55A / Burst: 60A
BLHeli: BLHeli-S
Telemetry: no
ESC Firmware: G-H-30 BLS
Mounting pattern: 25.5*25.5mm/Φ3mm
Dimensions: 32.5*32.5mm

VTX // SucceX Mini Force 5.8GHz 600mW VTX Adjustable
-Power: PIT/25/200/400mW/600mW
-Antenna interface: MMCX
-VTX protocol : IRC Tramp
-Output 40 channels.
-Size: 29*29mm
-Mounting pattern: 20*20Φ3/25*25 mmΦ2
-Weight: 4g

Additional Suggested Parts (NOT including)
iFlight FPV Goggles with DVR Function
Battery 4S 95C 1300mAh
Battery 6S 95C 1300mAh

Receiver：ELRS 2.4GHz

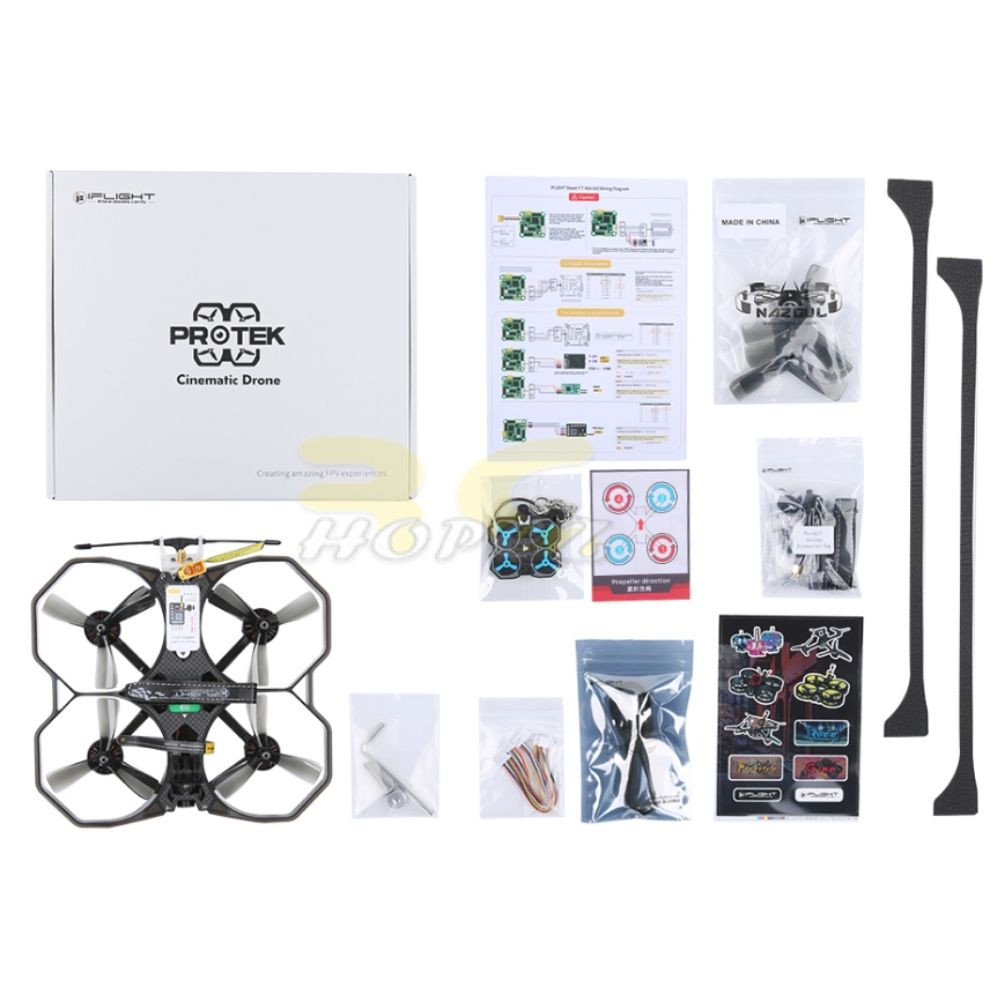

Includes
1 x ProTek35 Frame V1.2 Version (Motor mounting hole : 12x12mm /Φ2)
1 x RaceCam R1 Mini 1200TVL 2.1mm 19*19
2 x TPU camera side plate soft mount
2 x Nazgul 3535 propeller (Set of 4 – Color May Vary)
1 x iFlight Lipo Strap 15*150mm (Color May Vary)
1 x iFlight Lipo Strap 15*250mm (Color May Vary)
1 x GoPro TPU bottom stand black (GoPro Protector not included)
1 x EVA Cotton Strip

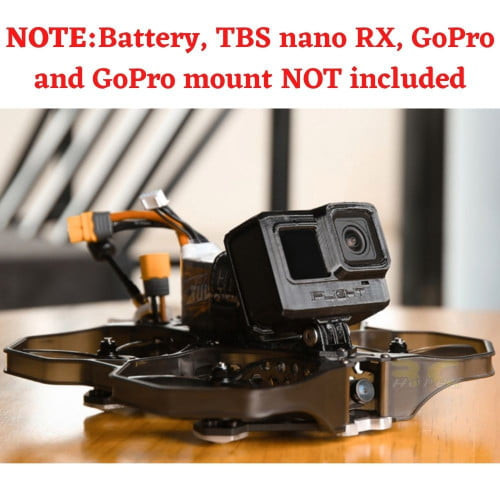

Note:
Battery, TBS nano RX, GoPro and GoPro mount NOT included
