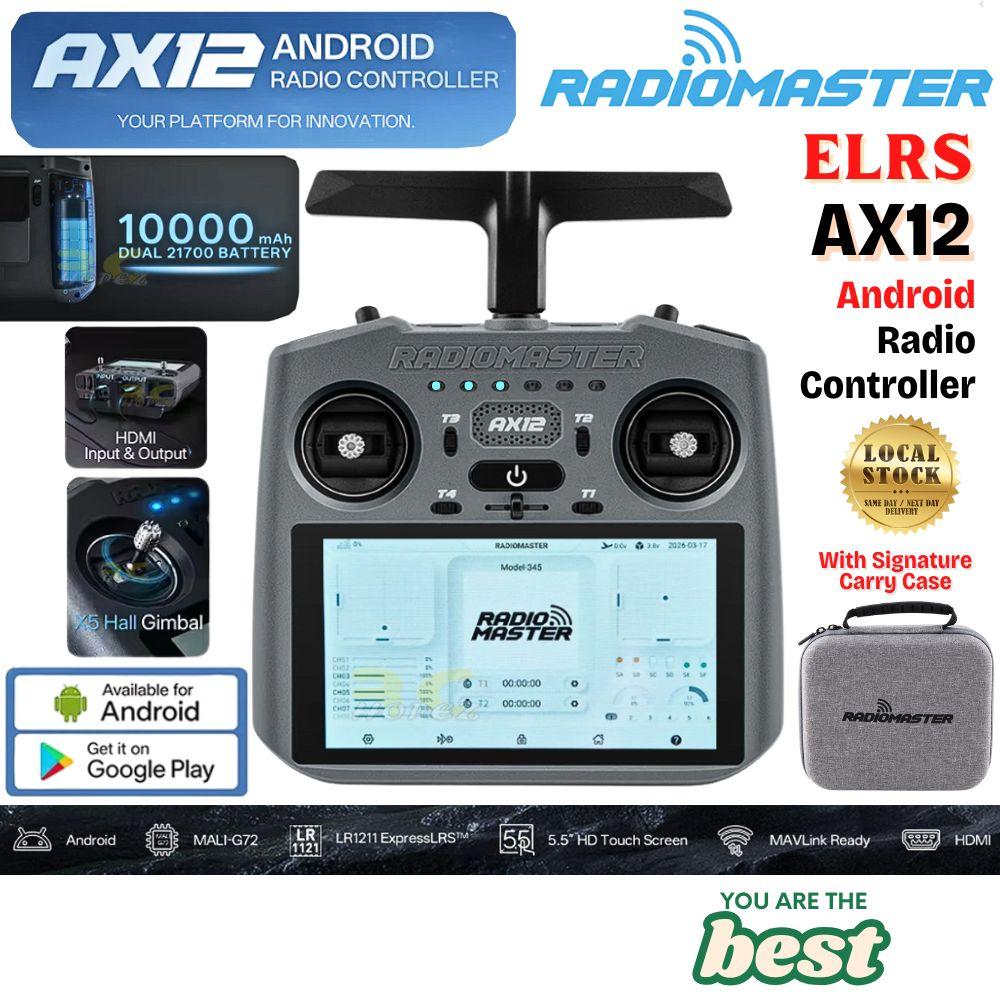

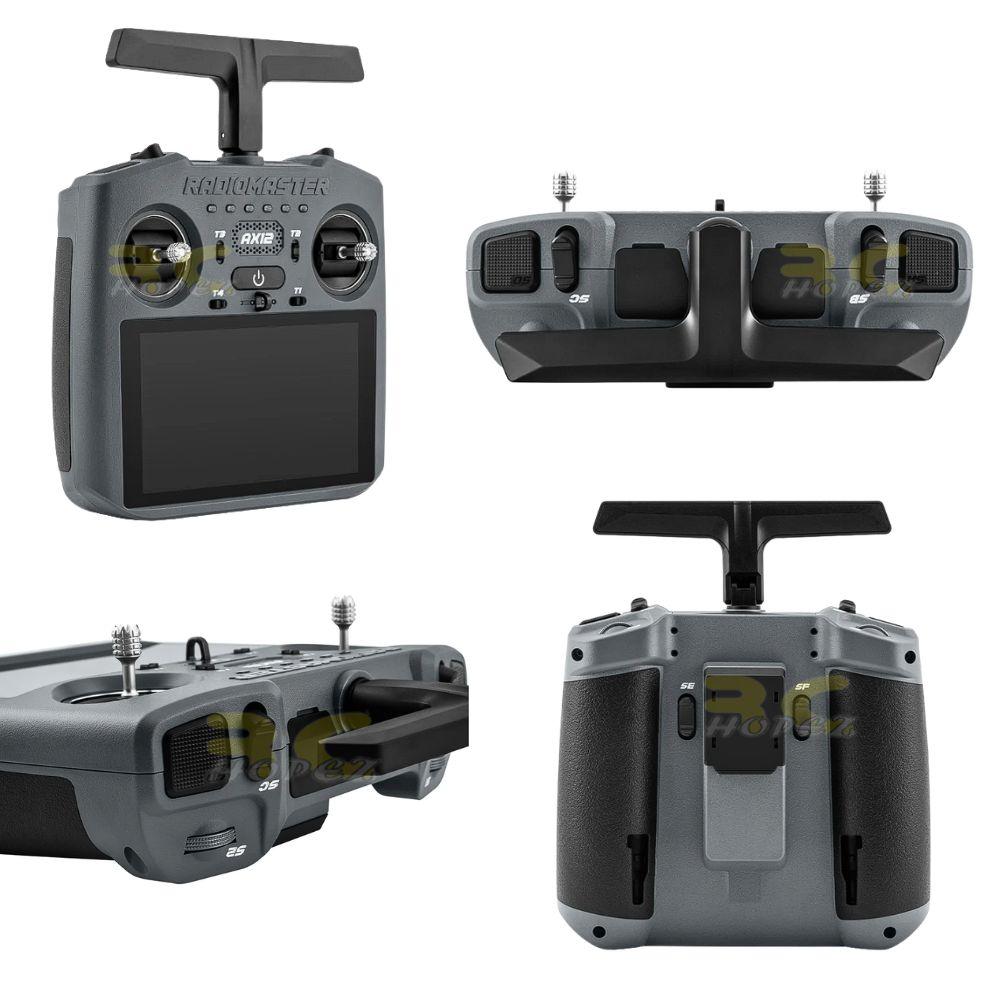

Radiomaster AX12 Android Radio Controller ELRS Dual Band X5 Hall Gimbals 16CH 5.5inch HD Touchscreen (Mode 2)

Radiomaster AX12 Android Radio Controller ELRS Dual Band X5 Hall Gimbals 16CH 5.5inch HD Touchscreen (Mode 2)

RadioMaster introduces the AX12 — Step into unlimited potential. AX12: Your Platform for Innovation.

Where Precision Meets Possibility. Experience advanced Android performance, built-in ExpressLRS connectivity, HDMI video, powerful computing, and full app support — all working together to unlock new ways to build, and innovate.

The AX12 is a brand-new tool for pilots, filmmakers, rover builders, boat captains, and creators who want the familiarity of Android combined with RadioMaster’s legendary build quality and RF performance.

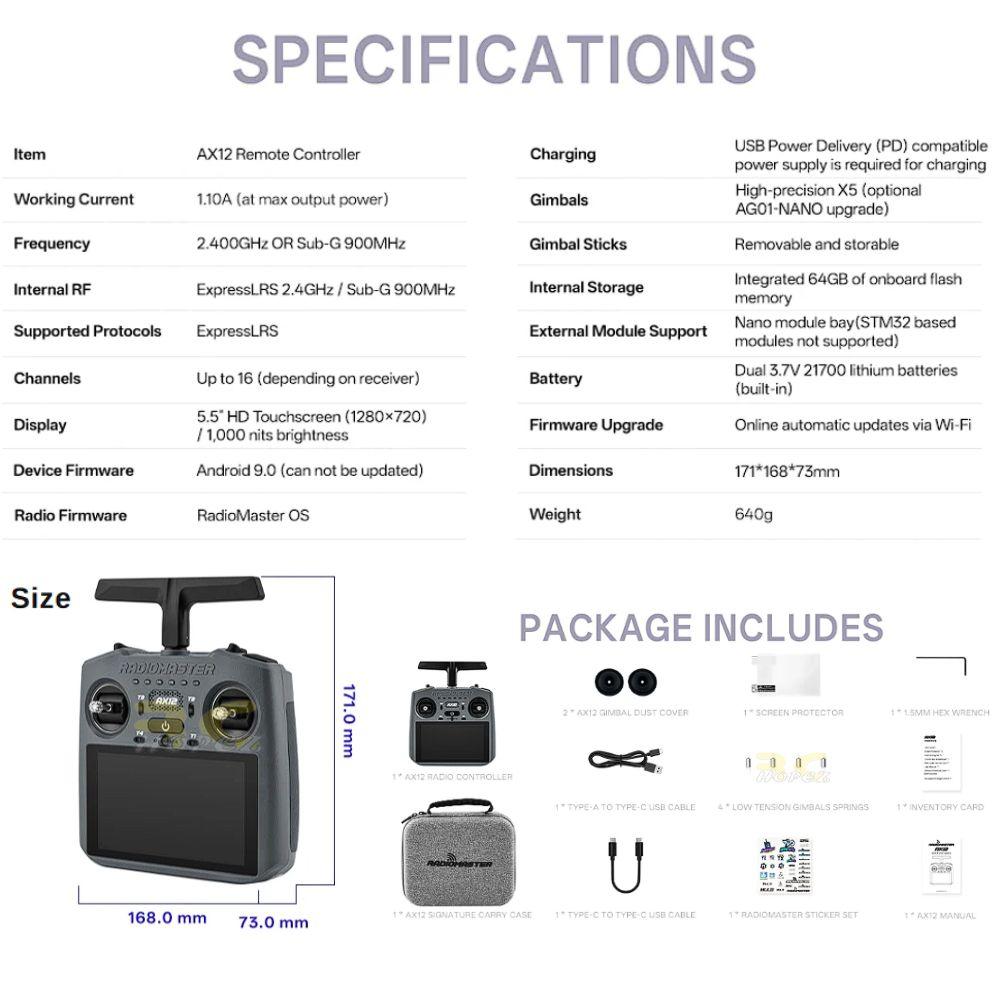

Specifications
Item: AX12 Remote Controller
Working Current: 1.10A (at max output power)
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ExpressLRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Channels: Up to 16 (depending on receiver)
Display: 5.5" HD Touchscreen (1280×720) / 1,000 nits brightness
Device Firmware: Android 9.0 (can not be updated)
Radio Firmware: RadioMaster OS
Charging:  USB Power Delivery (PD) compatible power supply is required for charging
Gimbals: High-precision X5 hall effect gimbal
Gimbal Sticks: Removable and Storable
Internal Storage: Integrated 64GB of onboard flash memory
External Module Support: Nano module bay (STM32 based modules not supported)
Battery: Dual 3.7V 21700 lithium batteries (built-in)
Firmware Upgrade: Online automatic updates via Wi-Fi
Dimensions: 171*168*73mm
Weight: 640g

Features

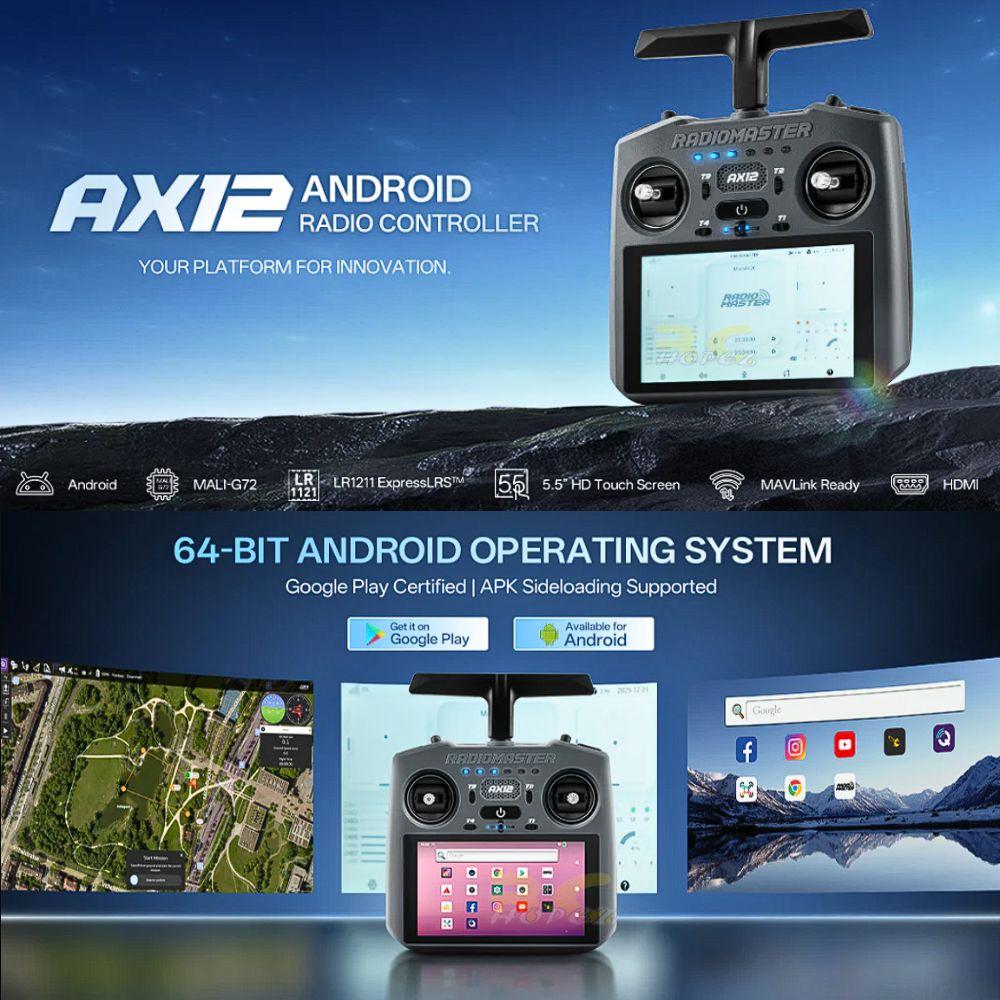

1. RadioMasterOS (Android 9.0): Google Play certified with full APK sideloading support. Install compatible ground station, configuration, and utility apps directly on the radio.
2. 5.5-inch High-Brightness HD IPS Touchscreen: 1280 × 720 resolution with 1000 nits brightness for clear outdoor visibility, combined with a responsive touchscreen interface for fast and intuitive control.

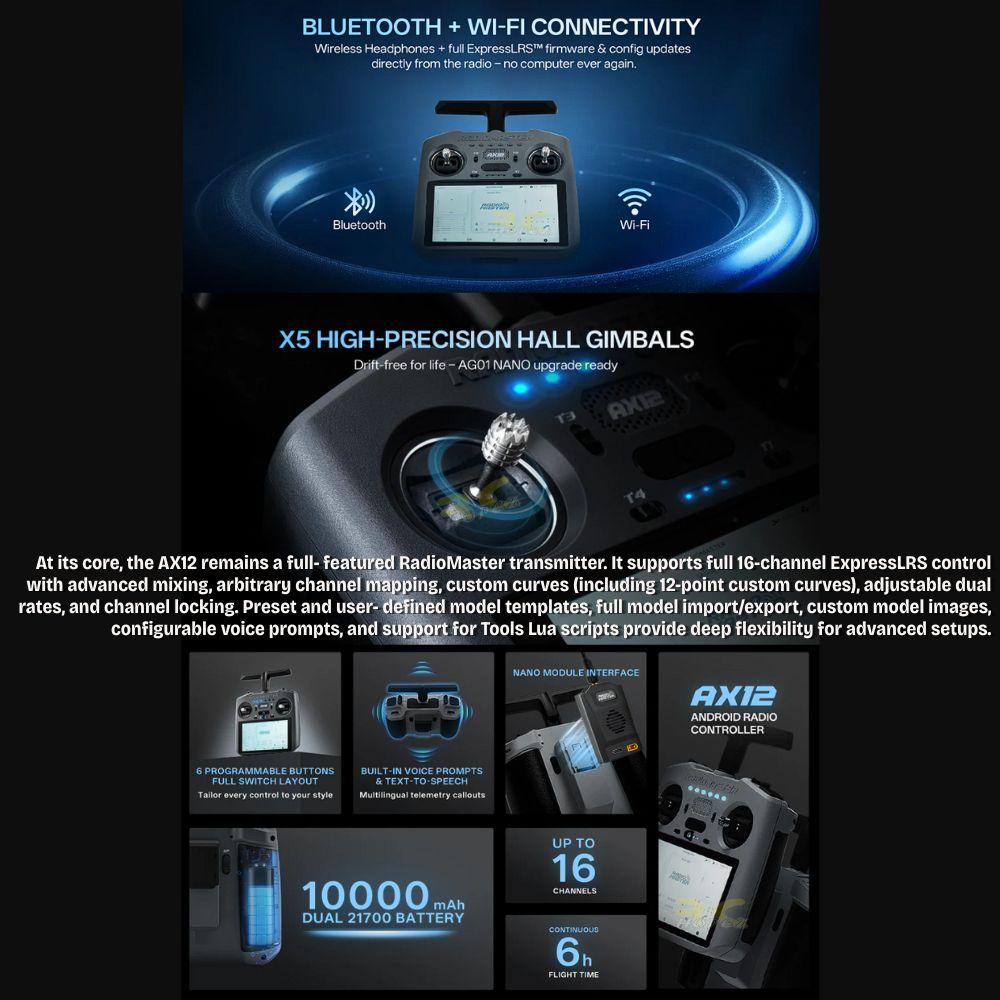

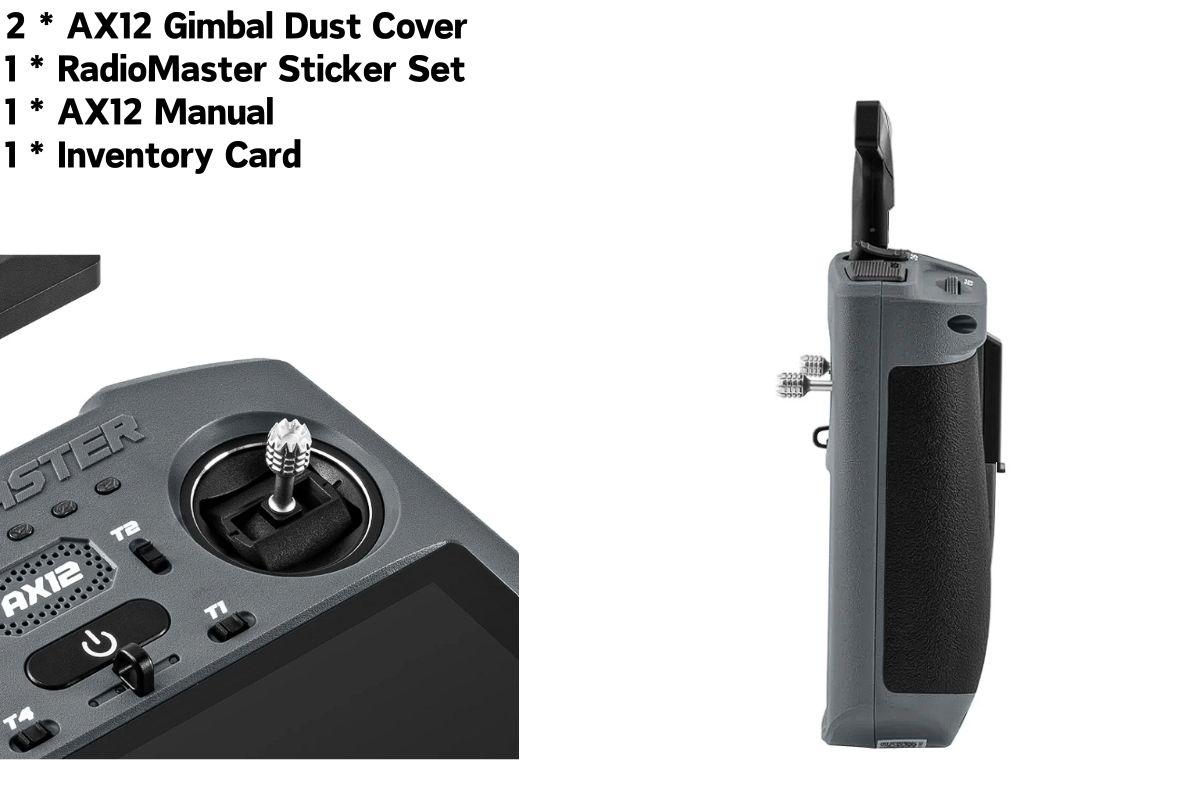

3. X5 Hall-Effect Gimbals: Contactless Hall sensors for precise, stable control with onboard stick storage.
4. Octa-Core Processor: 8-core CPU with 4 GB RAM and 64 GB storage, optimized for radio configuration, telemetry display, supported Android apps, and multitasking.

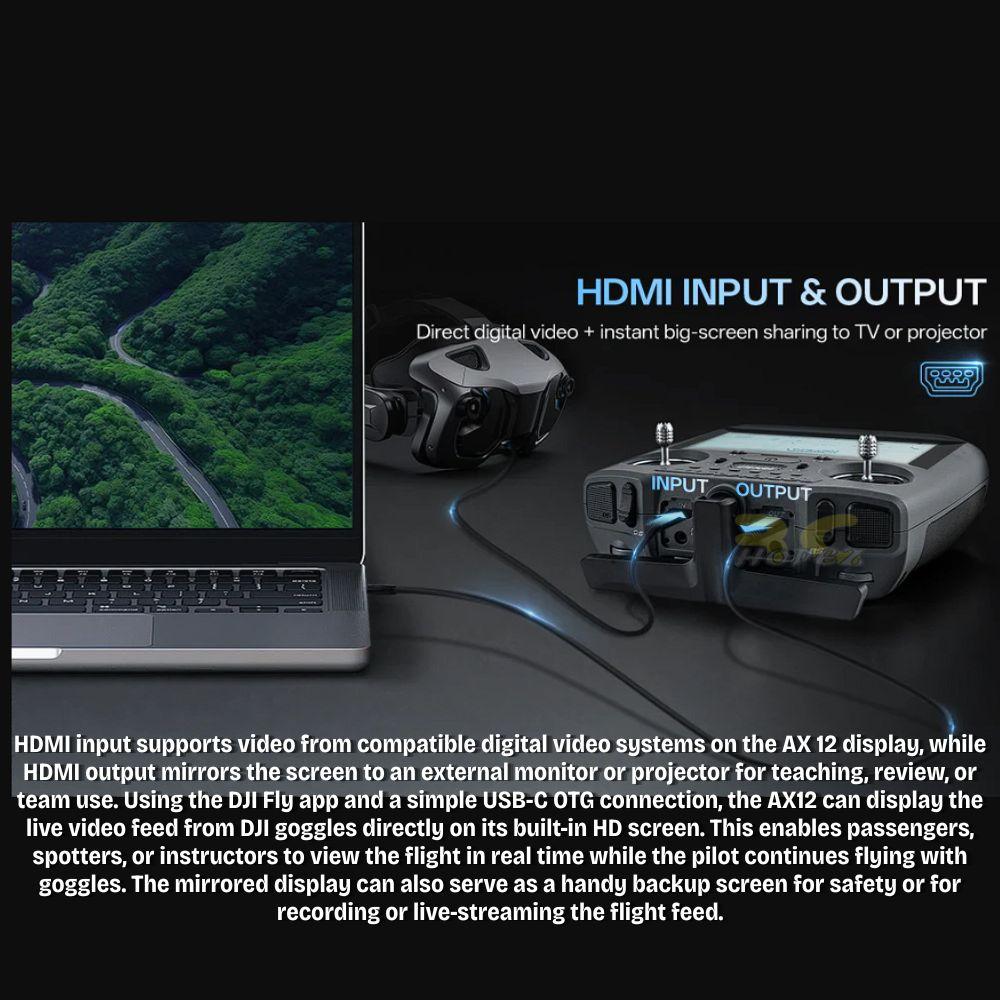

5. HDMI Input for Digital Video Systems: View video from compatible digital video systems directly on the AX12 screen.
6. HDMI Output: Mirror or extend the display to a TV or projector for teaching, review, or team use.

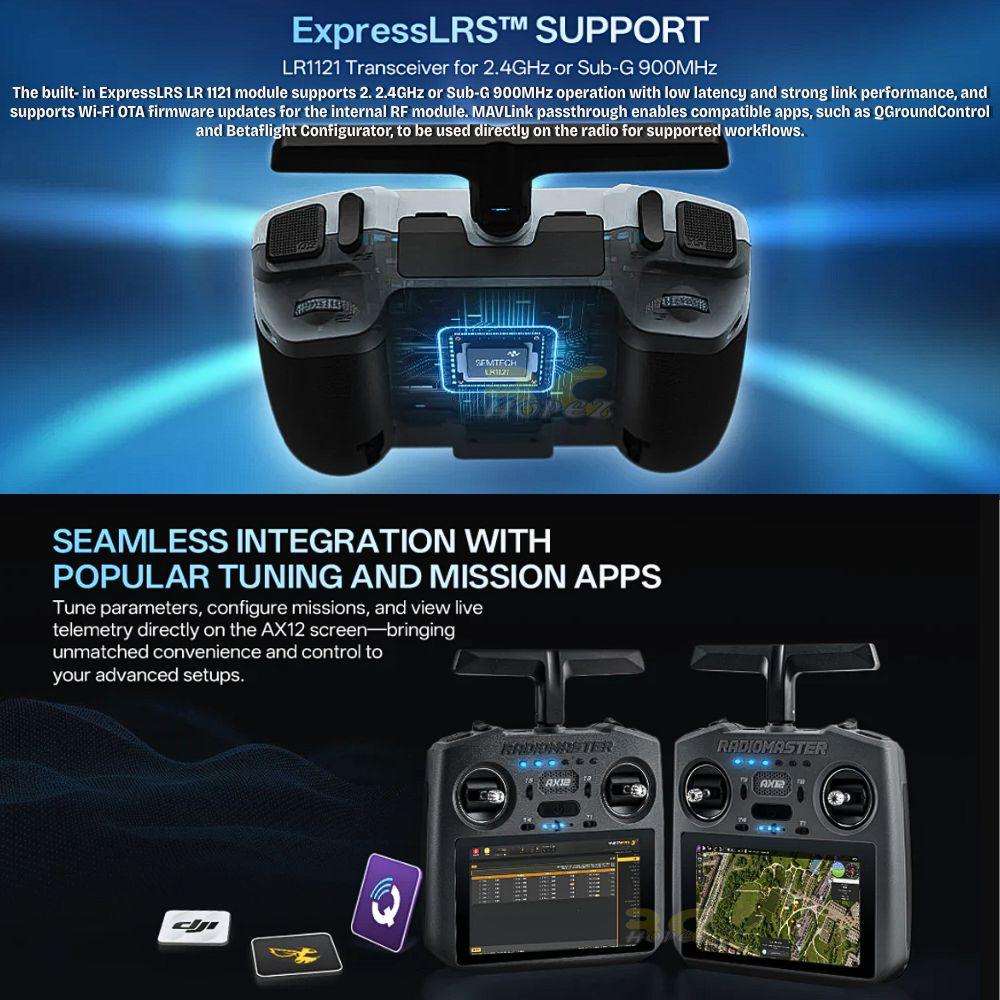

7. Built-in ExpressLRS (Single LR1121 Module): Supports 2.4 GHz or Sub-G 900 MHz operation with low latency, strong link performance, and Wi-Fi OTA firmware updates.
8. MAVLink Passthrough (Wi-Fi): Enables compatible apps, such as QGroundControl and Betaflight Configurator, to be used directly on the radio for supported workflows.
