RadioMaster Ranger 2.4GHz ELRS Module with Nano Micro Adapter for Zorro Boxer Tx12/ TX16S MKII Remote Control TX-Ranger

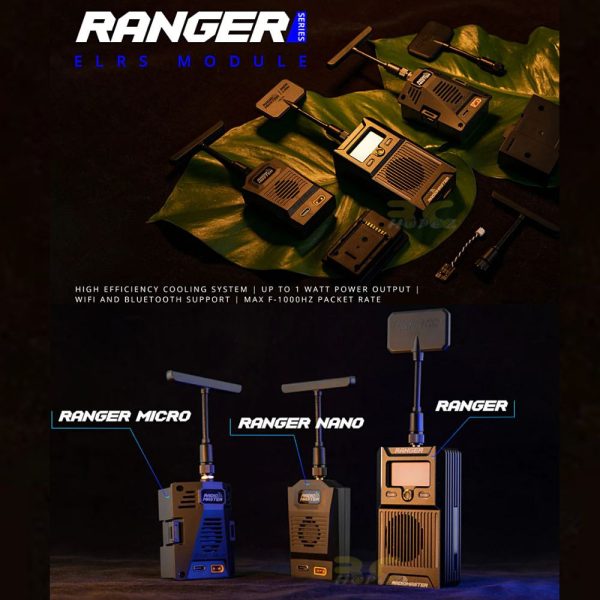

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

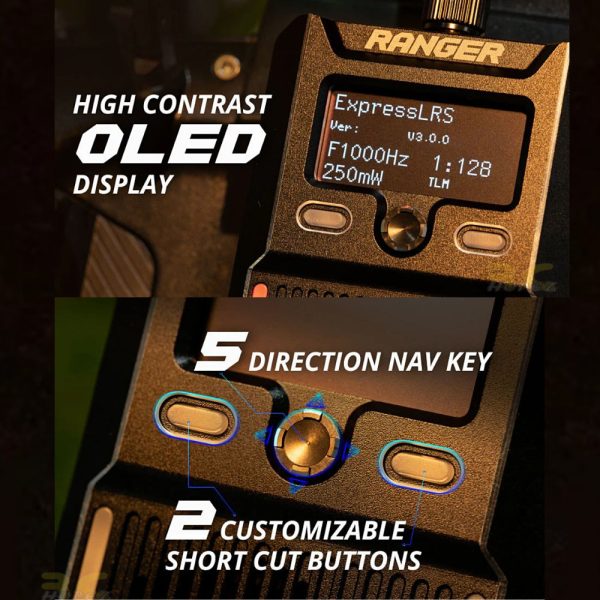

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

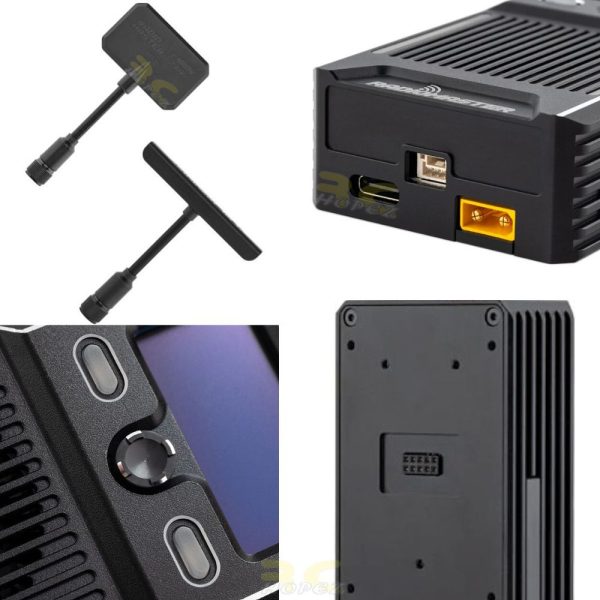

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features
OLED Display
Rugged CNC Case
Built-in Accelerometer
Packet rates up to F-1000Hz
Up to 1 Watt Power output
Wifi and Bluetooth support
High-efficiency cooling system
5 Direction Nav key and customizable shortcut buttons
Micro and Nano adapters included
Moxon and T-antenna included
CRSF cable for compatible Futaba radios included
Combo Package includes 1 x Ranger Module, 2 x RP1 Receiver, 1 x RP2 Receiver (Optional)

Specification
Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen:  64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Power supply voltage: DC 6V – 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)

Package Includes (Optional)
Ranger Only
1x Nano Standard 8pin Socket Module Bay Adapter
1x JR Standard 5pin Socket Module Bay Adapter
1x Radiomaster Ranger 2.4Ghz ELRS Module
1x 2.4GHz Moxon Antenna – RP-SMA
1x Hexagon Socket Screwdriver
1x 2.4GHz T Antenna – RP-SMA
1x Futaba CRSF socket cable
3x M2*5 Screws

Ranger Combo
1x Nano Standard 8pin Socket Module Bay Adapter
1x JR Standard 5pin Socket Module Bay Adapter
1x Radiomaster Ranger 2.4Ghz ELRS Module
1x 2.4GHz Moxon Antenna – RP-SMA
1x Hexagon Socket Screwdriver
1x 2.4GHz T Antenna – RP-SMA
1x Futaba CRSF socket cable
3x M2*5 Screws
2x Radiomaster RP1 Receiver
1x Radiomaster RP2 Receiver

Weight 0.10 kg
Dimensions 5.00 × 5.00 × 5.00 cm
Optional

Ranger, Ranger Combo
