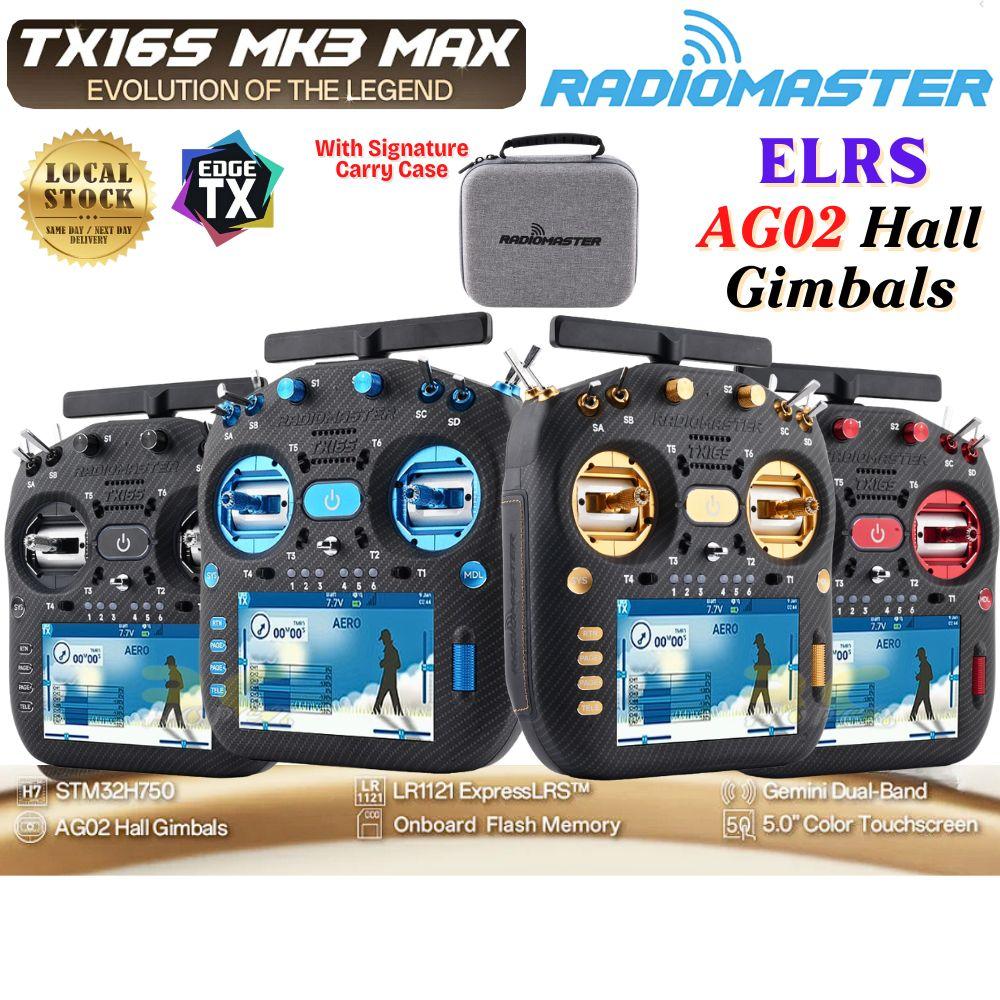

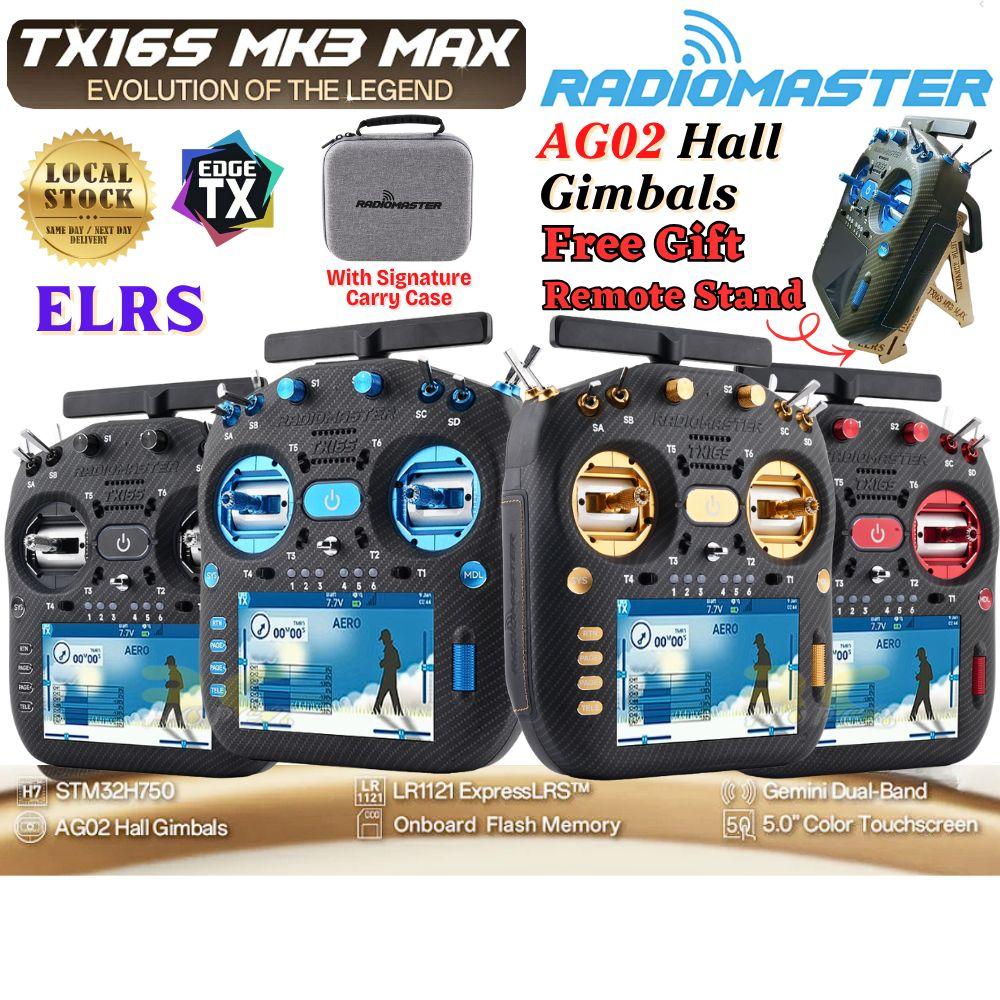

Radiomaster TX16S MK3 MAX Radio Controller AG02 CNC Hall Gimbals 16CH 5Inch IPS Touchscreen ELRS/Mode 2 (4GB Batch)

Radiomaster TX16S MK3 MAX Radio Controller AG02 CNC Hall Gimbals 16CH 5Inch IPS Touchscreen ELRS/Mode 2 (4GB Batch) TX16S-MK3 MAX

NOTE : Please notify and remarks for us if you need in Mode 1 (Throttle Right)

RadioMaster builds on the globally trusted TX16S legacy, continuing its commitment to open-source RC innovation. Built for pilots who expect more, the TX16S MK3 MAX represents the pinnacle of the TX16S platform—combining the proven full-size layout with premium materials, advanced controls, and uncompromising attention to detail.

The MAX edition is defined by materials, precision, and feel. For those who value performance over polish, the TX16S MK3 Standard delivers the same power, speed, and precision in a clean, functional design with our new V6 Hall gimbals.

Features

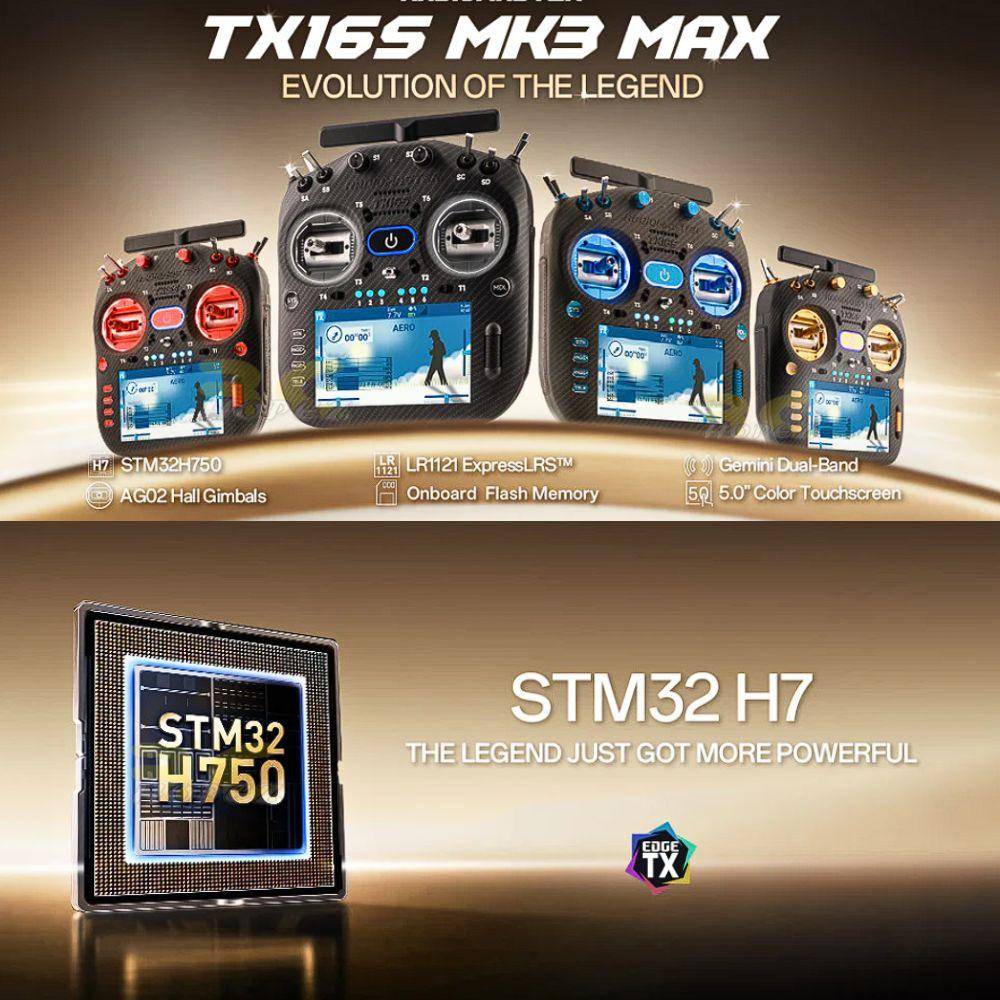

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

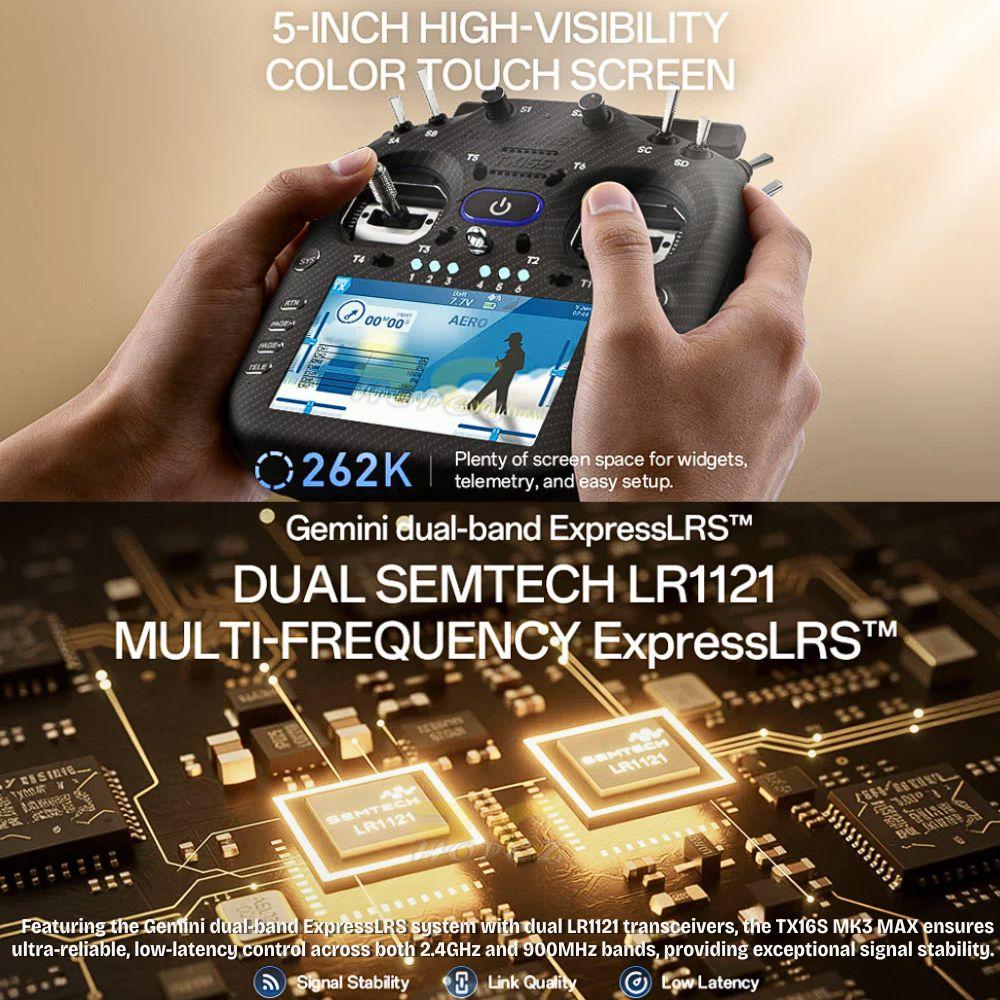

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

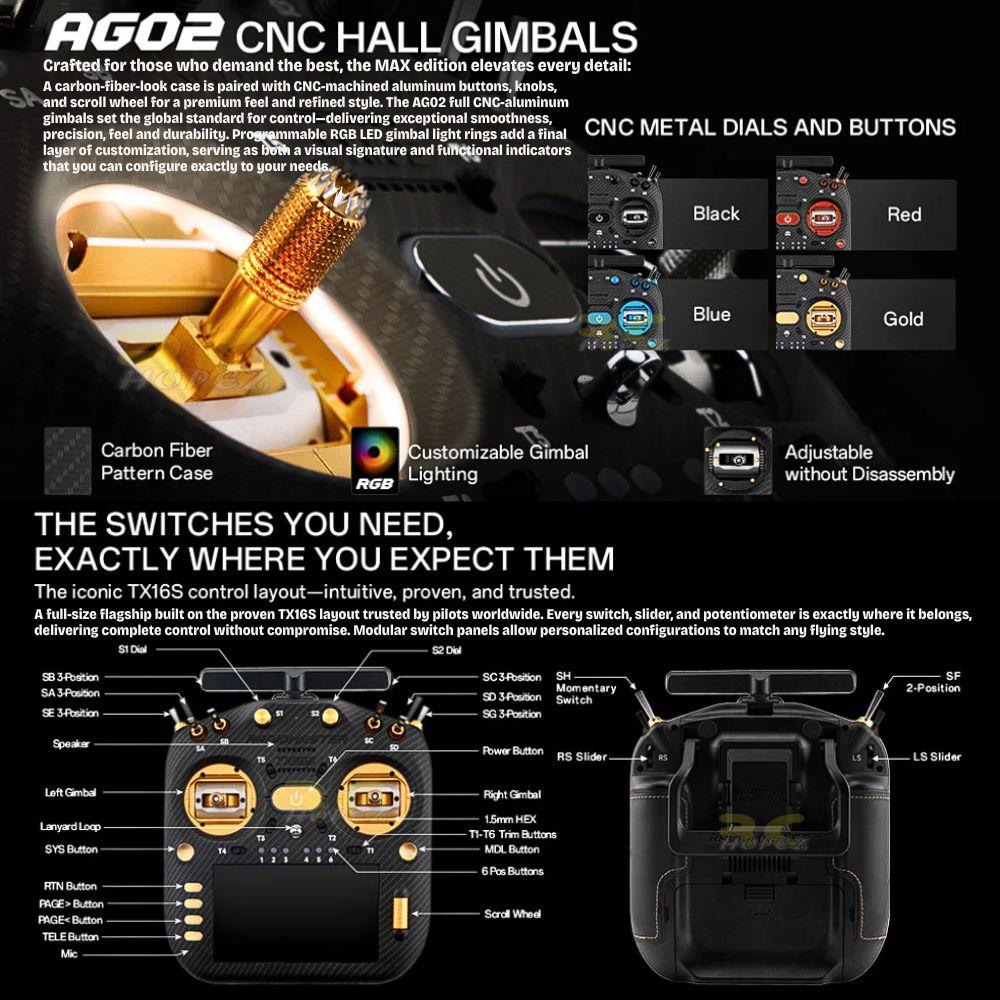

Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

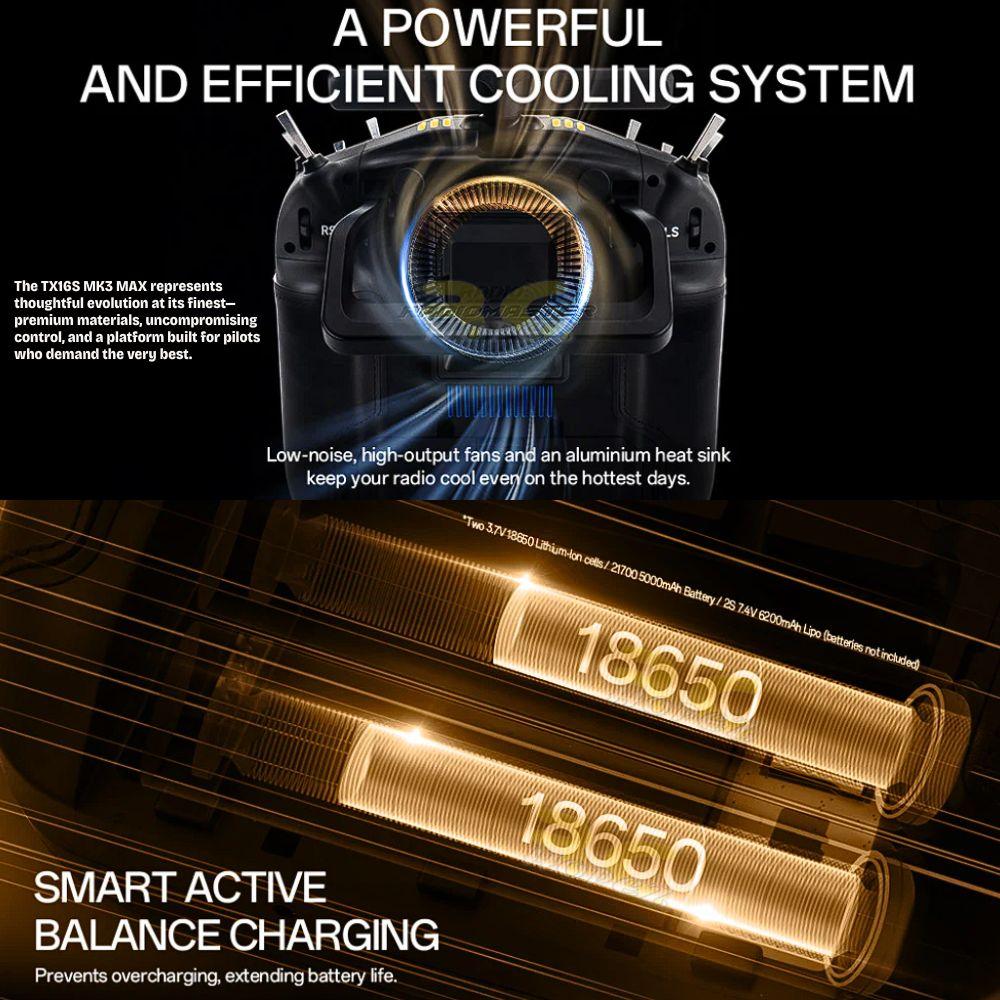

Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.

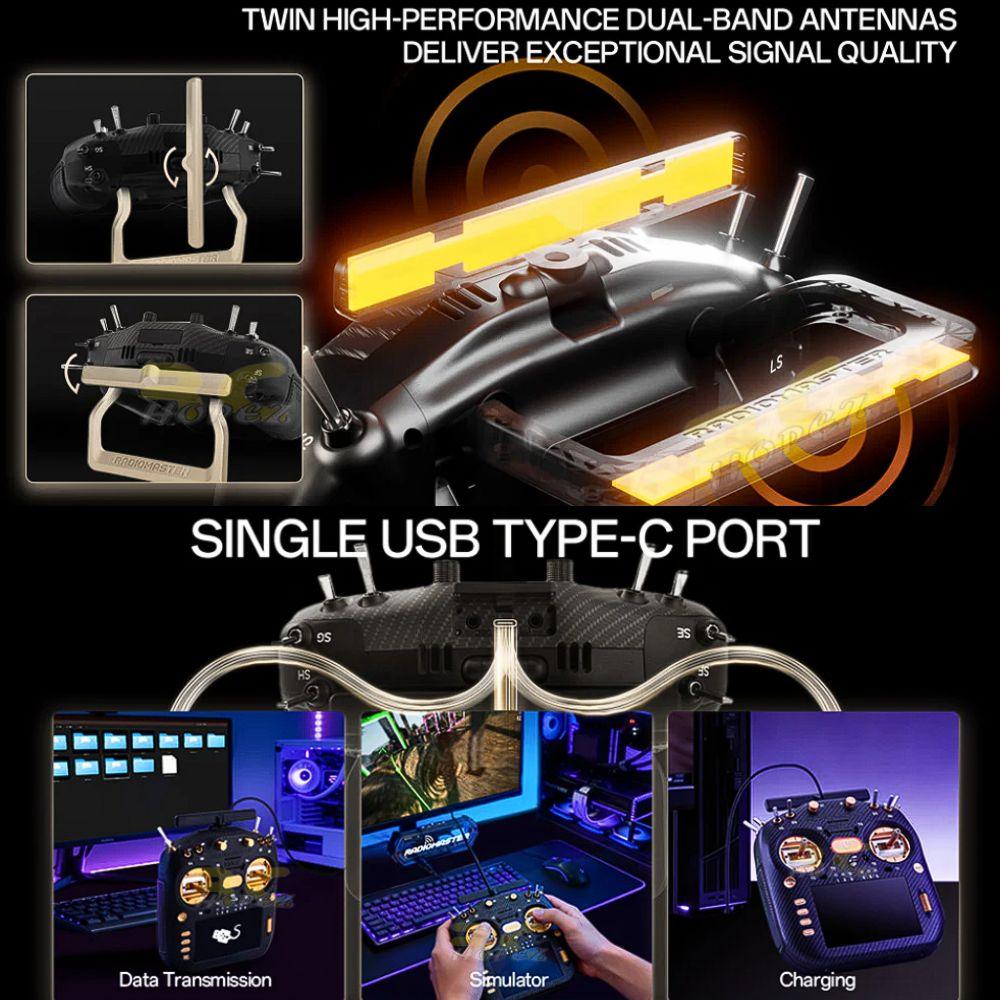

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Storage: Built-in flash memory with external SD card support. Storage:  Built-in flash memory with external SD card support.
Removable shoulder switch panels: Customize your setup with modular switch panels.

Specification
Item: TX16S MK3 MAX Radio Controller
Color: Black / Red / Blue / Gold (Optional)
Voltage Range: 6.6 – 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: AG02 CNC Hall sensor gimbals
MicroSD Card Slot: Yes (card not included)
Built-in Flash: Yes
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules

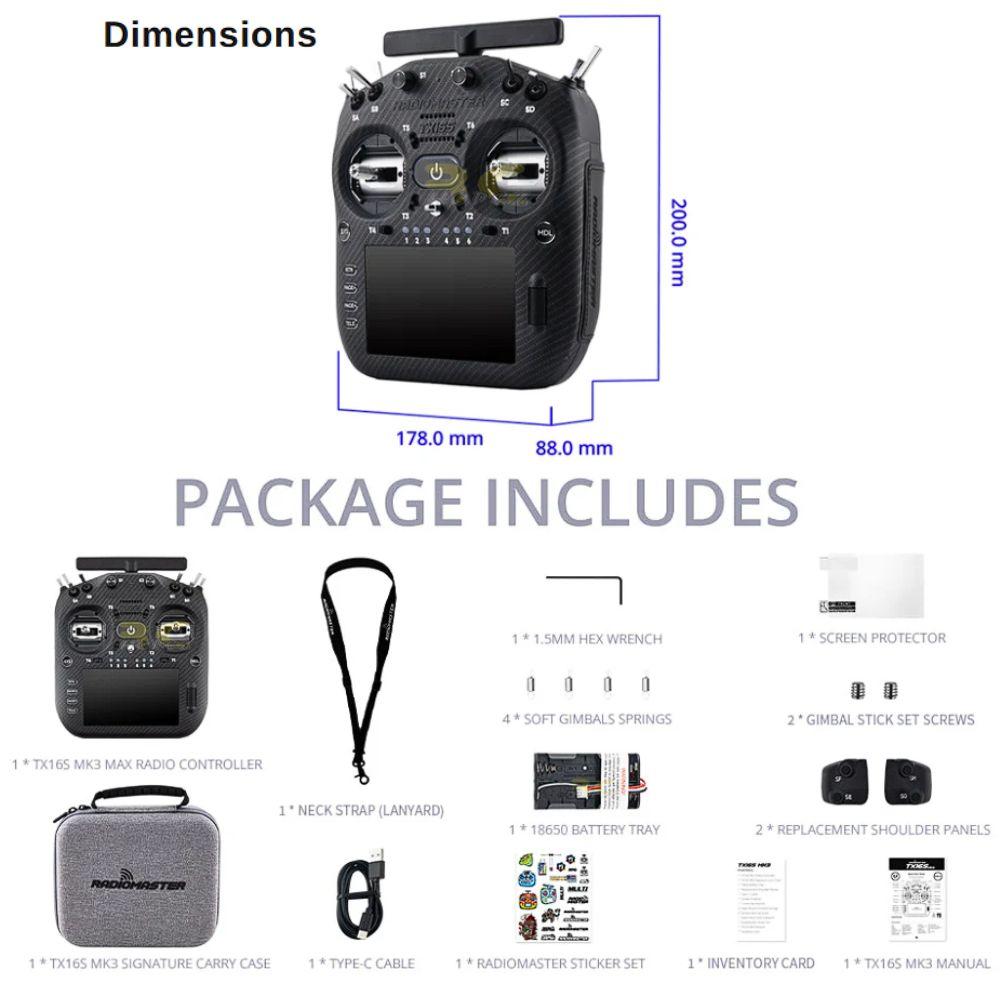

Dimensions: 200*178*88mm
Weight: 864g  (without battery)
