BetaFPV 112mm Brushless Whoop Frame Kit For Pavo25 V2 Brushless BT-Pavo25

RM39.00RM160.00

BetaFPV 112mm Brushless Whoop Frame Kit For Pavo25 V2 Brushless BT-Pavo25

Pavo25 V2 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5" cinewhoops.

Bullet Point

  • Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.

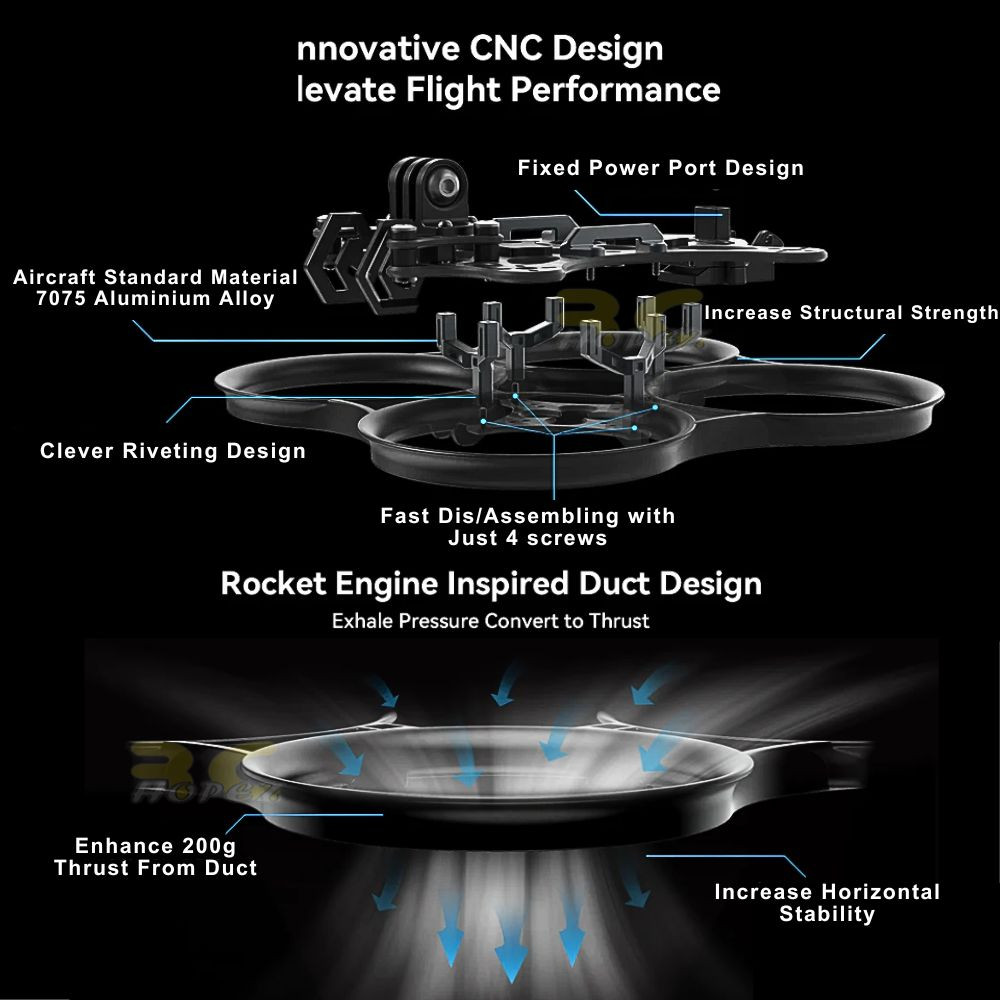

  • The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
  • Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
  • The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.

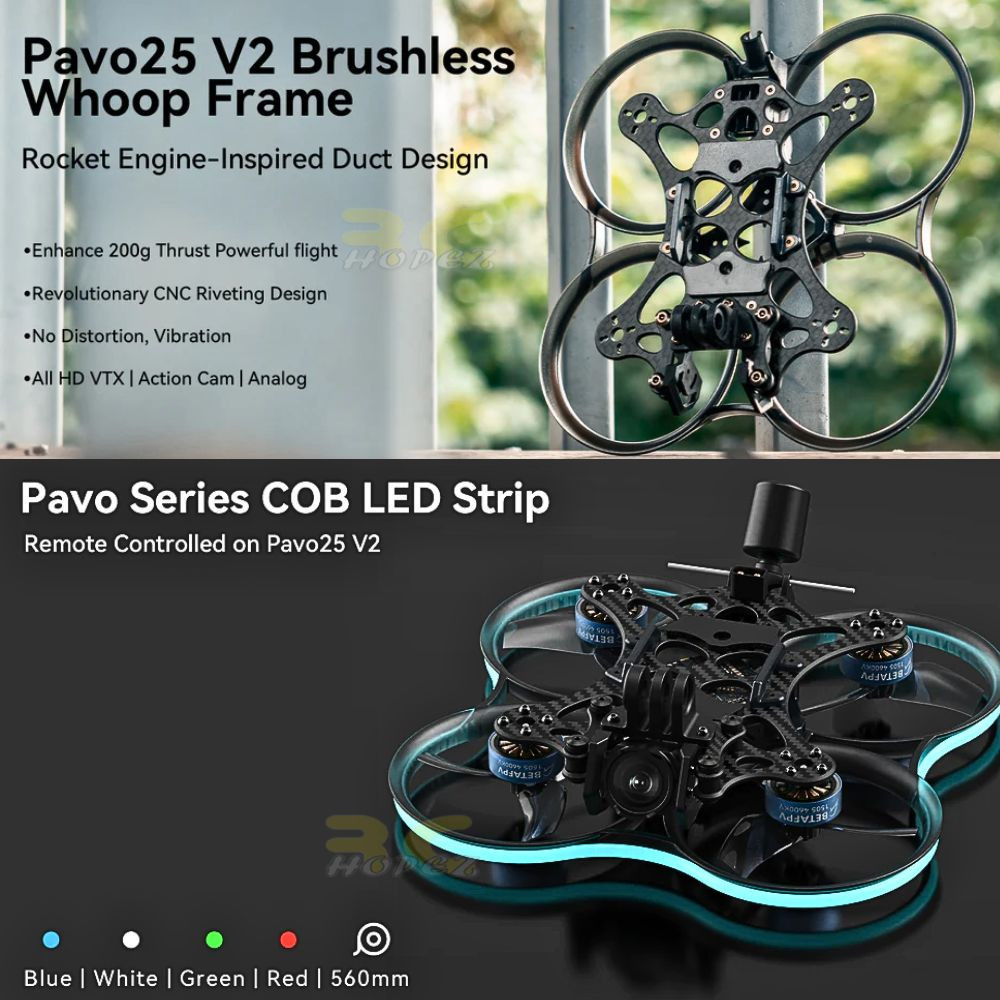

  • The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

Specification

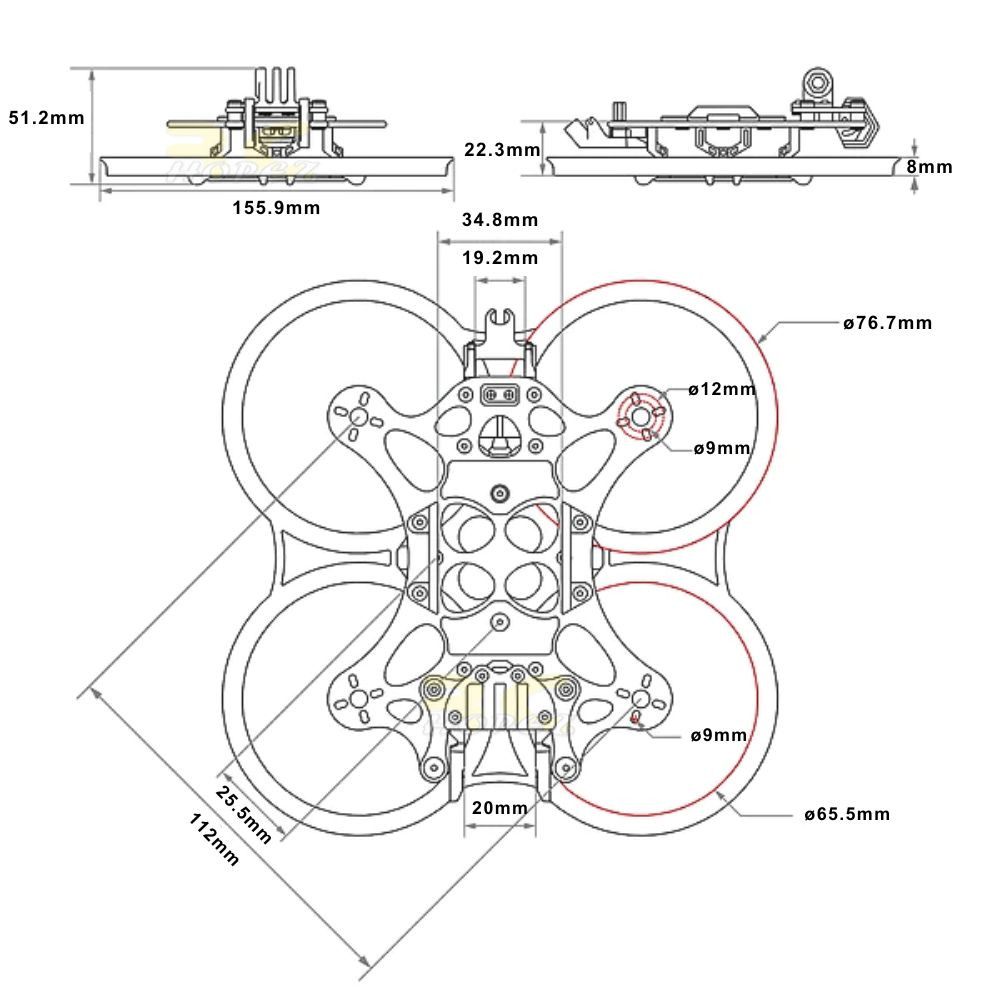

Item: Pavo25 V2 Brushless Whoop Frame
Wheelbase: 112mm
Top Plate: 2.5mm T700 carbon fiber
Base Plate: 1.5mm T700 carbon fiber
Gimbal Carbon Plate: 2mm T700 carbon fiber
Column: 7075 aluminum alloy CNC
Battery Holder: 7075 aluminum alloy CNC
Whoop Duct: PC injection-molded translucent gray
Whoop Duct Diameter: 65.5mm
Battery Connector: Fixed XT30
Camera Installation Size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX Antenna Mounting Hole Size: 4mm
Flight controller Mounting Hole Size: 25.5*25.5mm
Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm

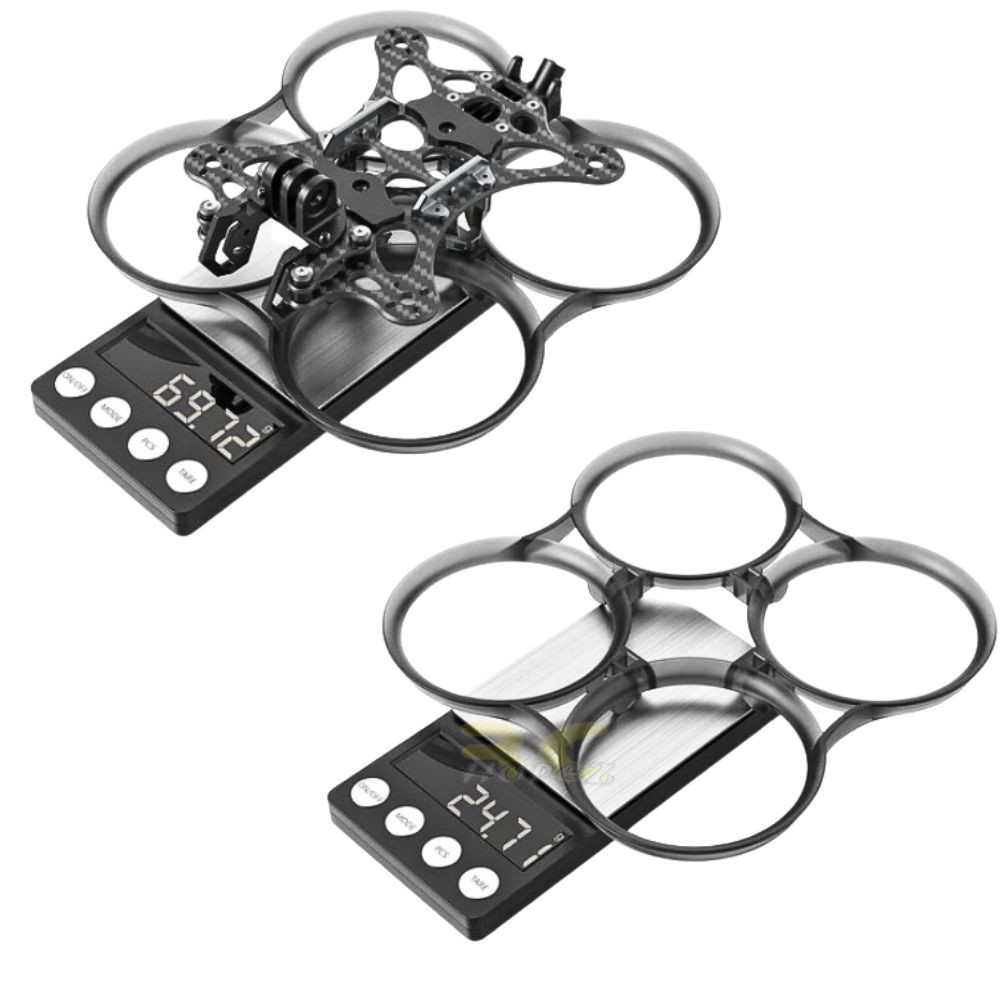

Weight: 70g/25g

Recommend Parts (Not Included)

FC: F722 35A AIO V2
Motor: 1505 4600KV Brushless Motor
Propellers: Gemfan D63 3-Blade Propellers 1.5mm Shaft
Battery: LAVA Series 4S 850mAh LiPo Battery
Battery Strap: Pavo Series Battery Strap(2PCS)
Filter: BETAFPV ND Filter for DJI O3 Camera
VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

Packing Included:

Frame Only
1 x Pavo Pico Frame

OR

Duct With Carbon Fiber Plate
1 x Top Plate
1 x Gimbal Carbon Plate
1 x Base Plate
2 x Battery Tie Holder
4 x Y-shaped Aluminum Alloy Bracket
1 x Whoop Duct
1 x Receiver Holder
1 x Socket Holder
1 x Amass XT30U-M Socket (Black)
1 x XT30 Socket Adapter Board





Weight 0.20 kg
Dimensions 3.00 × 5.00 × 5.00 cm
Optional

Black Duct Only, Black Duct w/Plate
