BETAFPV Pavo Pico II Brushless Whoop Frame Whoop Duct VTX Bracket For Pavo Pico II DJI O4 and O4 Pro Drone

BETAFPV Pavo Pico II Brushless Whoop Frame Whoop Duct VTX Bracket For Pavo Pico II DJI O4 and O4 Pro Drone BT-Pico II Frame

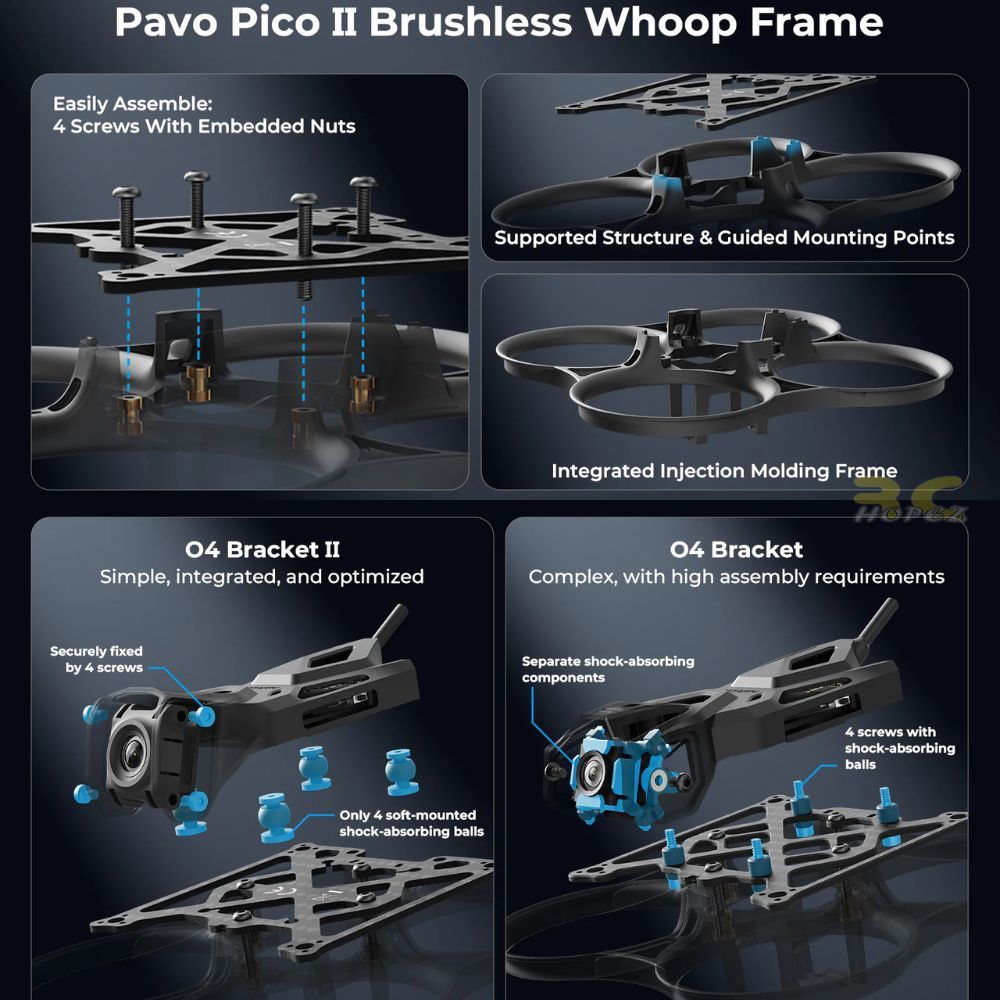

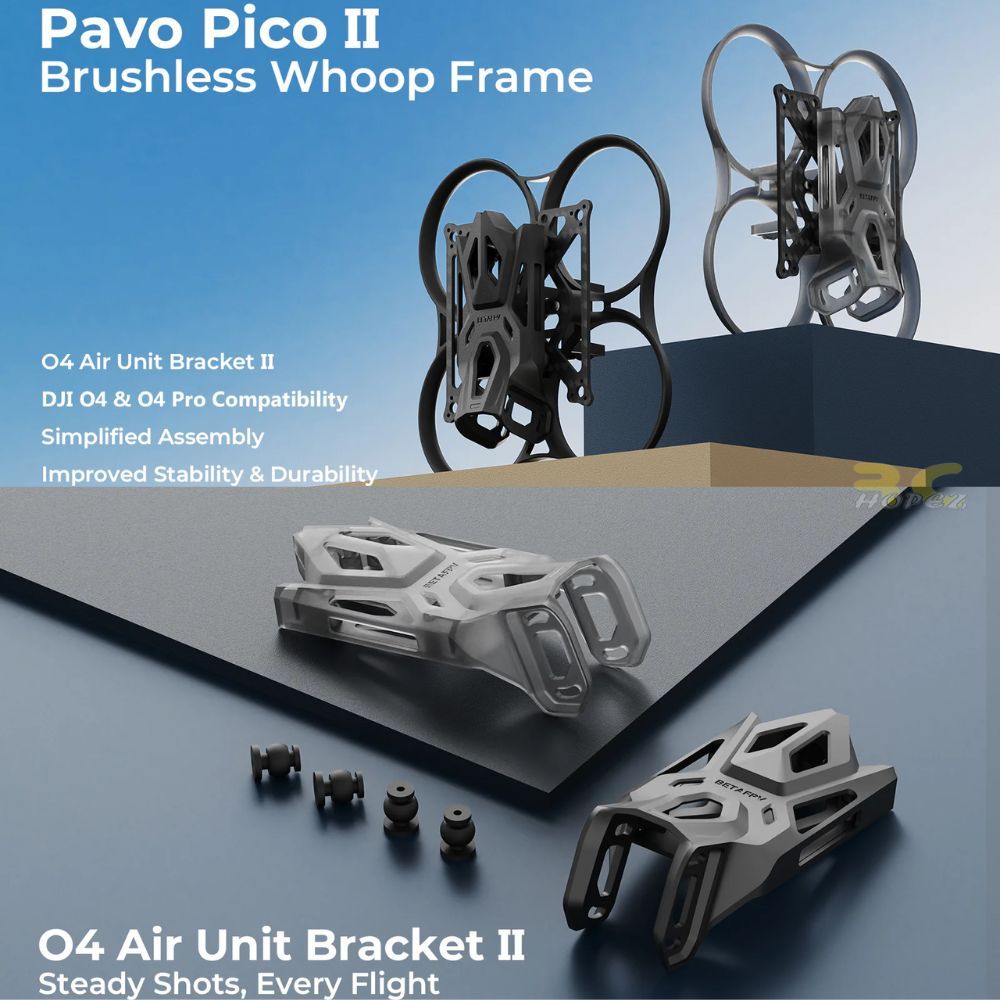

The Pavo Pico II Brushless Whoop Frame delivers the ultimate DJI O4 integration, combining effortless assembly with just four screws and a supported structure with guided mounting points for exceptional rigidity. The newly designed carbon plate seamlessly accommodates both DJI O4 and O4 Pro, future-proofing your investment while maintaining perfect compatibility. This precision-engineered foundation perfectly complements the vibration-damping O4 Bracket II, working in unison to eliminate jello effect and ensure buttery-smooth, professional video footage.

Bullet Points
-O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
-Simplified Assembly: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.

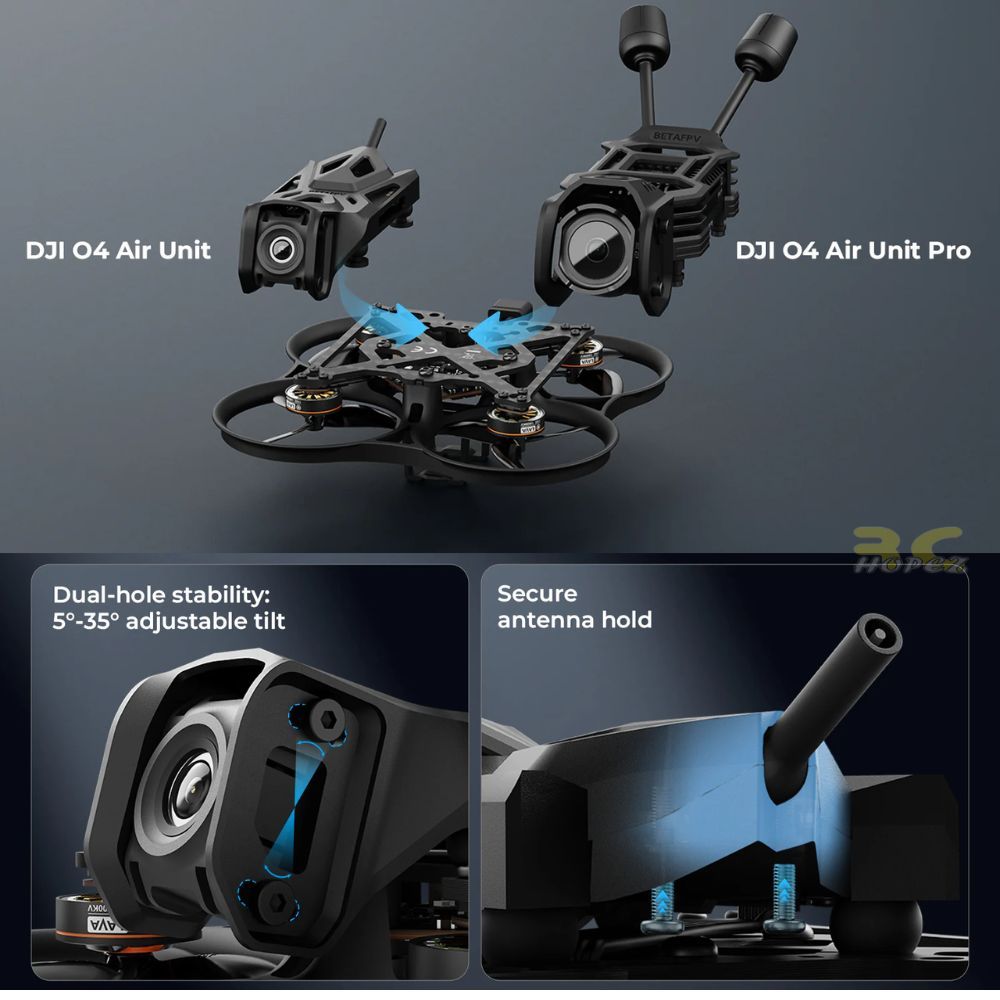

-O4 & O4 Pro Ready Carbon Plate: A redesigned baseplate provides seamless compatibility with both DJI O4 and O4 Pro, offering stunning HD footage and ultimate build versatility.
-Unmatched Durability: The integrated injection molding and supported design create a rock-solid, lightweight foundation for confident flying.
-Total Vibration Elimination: Introduces a fully integrated vibration-damping system. Four soft-mounted shock-absorbing balls comprehensively isolate the O4 camera from all vibrations, guaranteeing perfectly smooth and jello-free video
-Precision Tilt Adjustments: Dual fixing holes optimize the camera's center of rotation for smooth and stable 5°-35° tilt adjustments, allowing you to perfectly frame your shot.
-Unwavering Signal Strength: An extended locking tail with two screws secures the antenna firmly in place, ensuring a robust and flawless digital video link for maximum transmission reliability.

Specifications

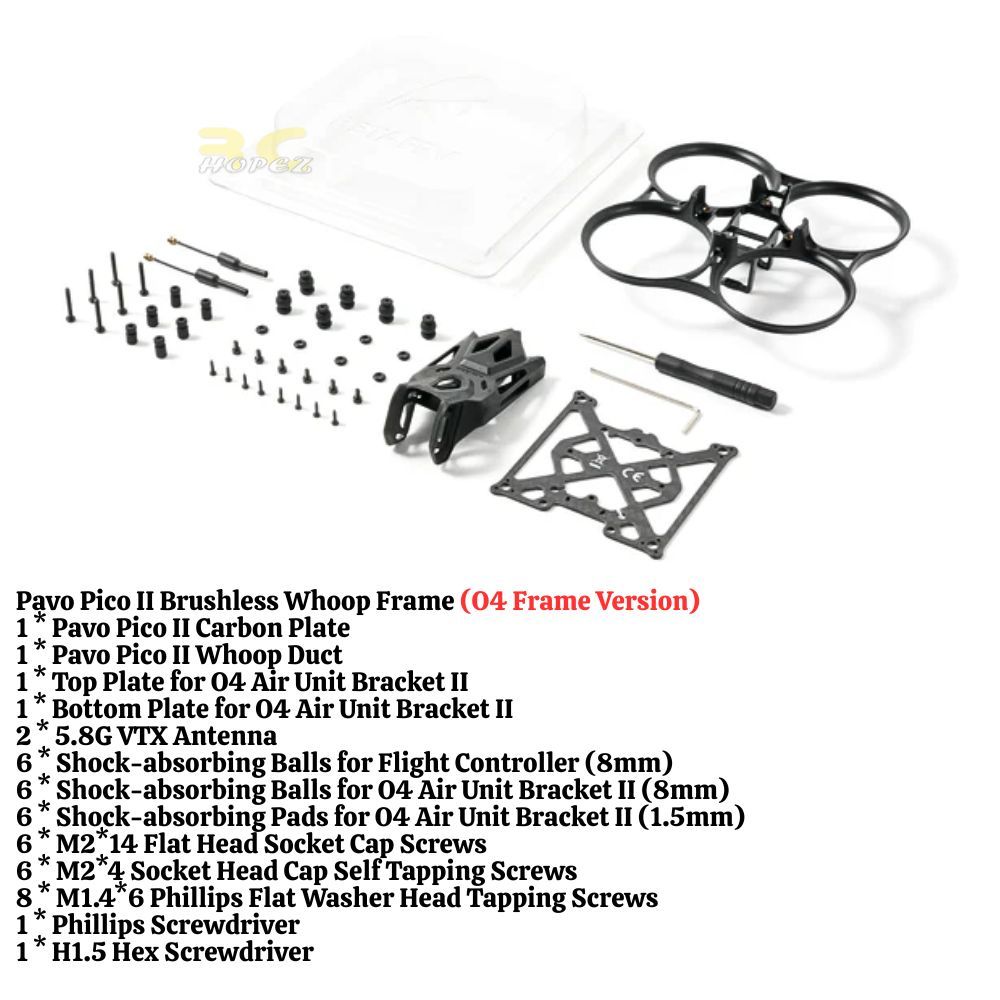

***Item: Pavo Pico II Brushless Whoop Frame
Material: PA12/PP
Wheelbase: 80mm
Color: Black/Transparent Gray (Optional)
Carbon Plate Thickness: 1.5mm
Camera Mounting Spacing: 14mm
Flight Controller Mounting Hole Size: 25.5×25.5mm, compatible with regular whoop FCs
Motor Mounting Hole Size: 3-M1.4-φ6.6mm
Battery Slot Size: 16*12.7mm
Weight: 19g (O4 Frame), 9g (Whoop Duct)

Recommended Parts (Not Included)
Quadcopter: Pavo Pico II Brushless Whoop Quadcopter
Bracket: O4 Air Unit Bracket II
Motor: LAVA1102 | 14000kv Brushless Motor
Propeller:  GF 45mm 3-Blade Propeller (1.5mm Shaft)
Battery: LAVA 2S 450mAh 75C Battery, LAVA 2S 550mAh 75C Battery
FC: F4 2-3S 20A AIO FC V1
Supported HD VTX: DJI O4 Air Unit, O4 Air Unit Pro (not included in the package)

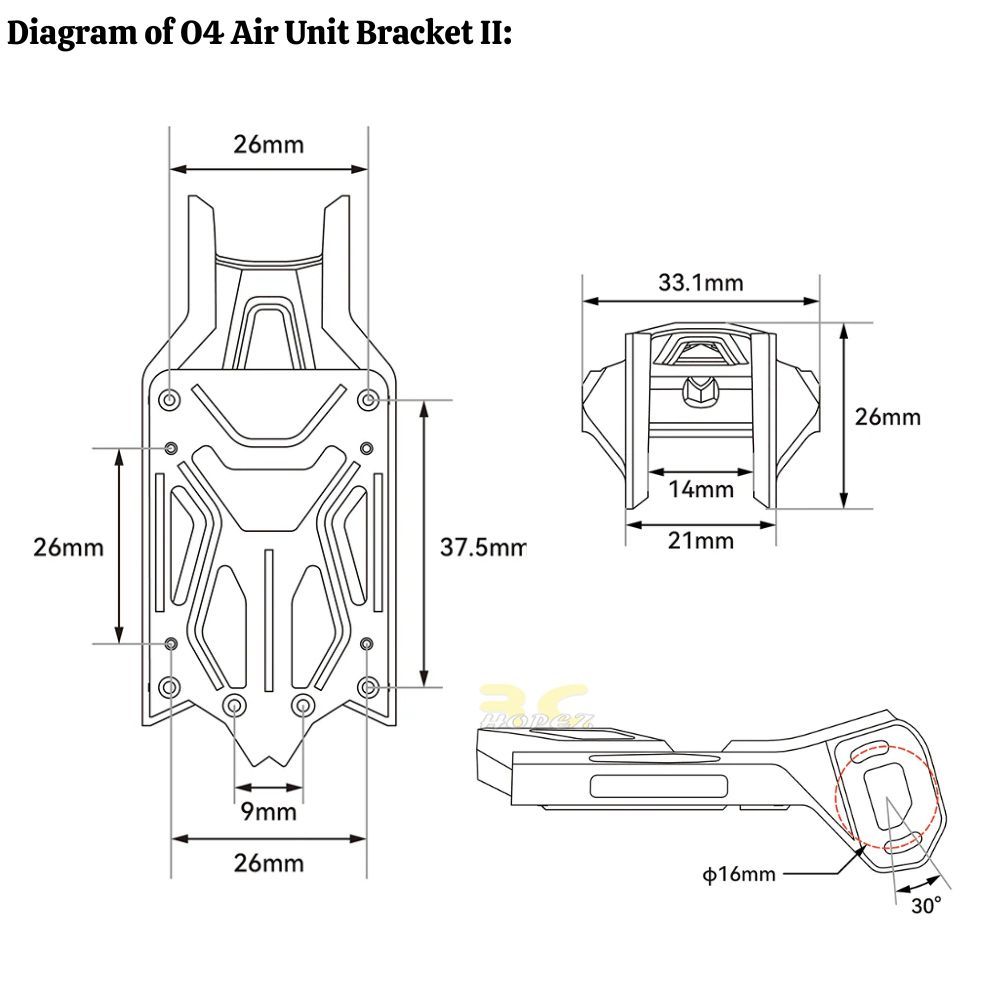

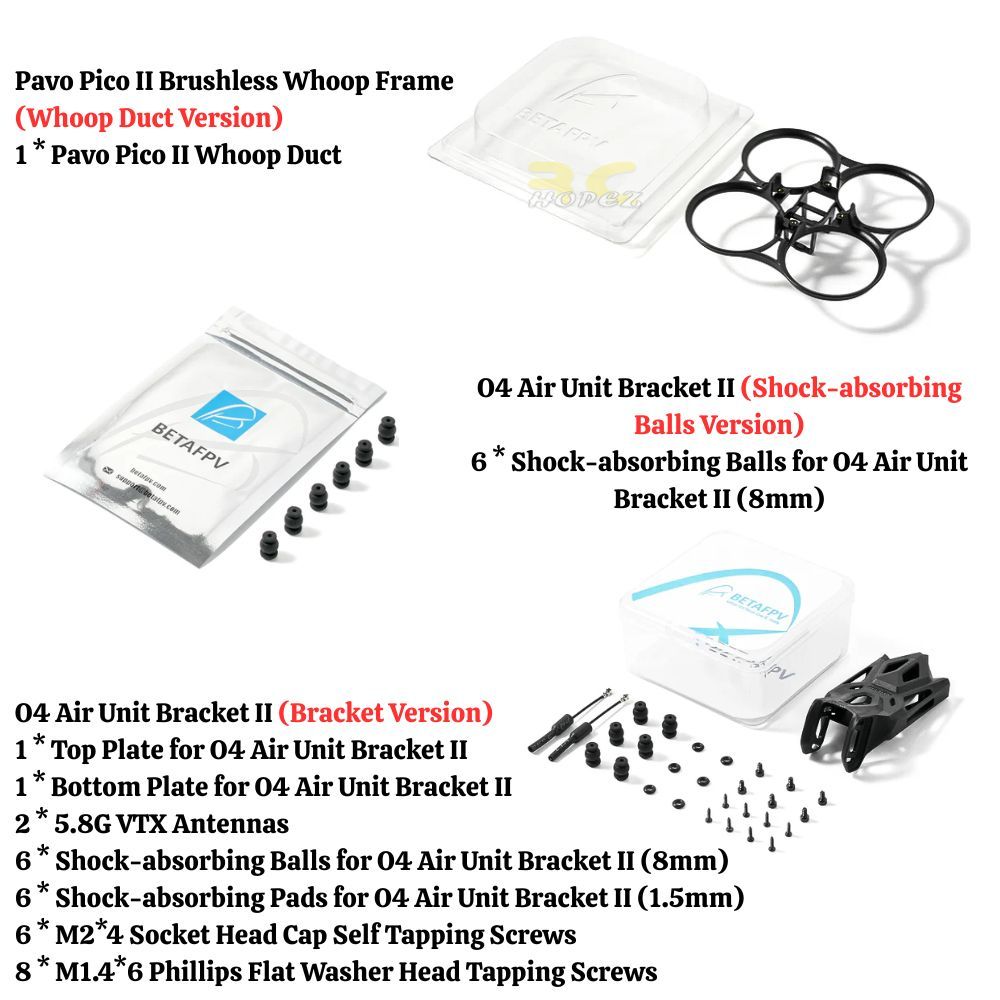

***Item: O4 Air Unit Bracket II
Material: PP
Color: Black/Transparent Gray (Optional)
Weight: 4.1g
Compatible Frame: Pavo Pico II Frame

Recommended Parts (Not Included)
Quadcopter: Pavo Pico II Brushless Whoop Quadcopter
Frame: Pavo Pico II Brushless Whoop Frame
Supported HD VTX: DJI O4 Air Unit
