DarwinFPV Baby Ape Pro V3 V2 FPV Drone RTF Ready To Fly 3 Inch 2-3S + Radiomaster Pocket Jumper Bumblebee ELRS 2.4G

DarwinFPV Baby Ape Pro V3 V2 FPV Drone RTF Ready To Fly 3 Inch 2-3S + Radiomaster Pocket Jumper Bumblebee ELRS 2.4G

NOTE : Radiomaster Pocket Radio Controller Remote ELRS/Jumper Bumblebee 2.4GHz ELRS Remote both are Mode 2 (Throttle Left Hand)
** Please notify and remarks for us if you need in Mode 1 (Throttle Right)

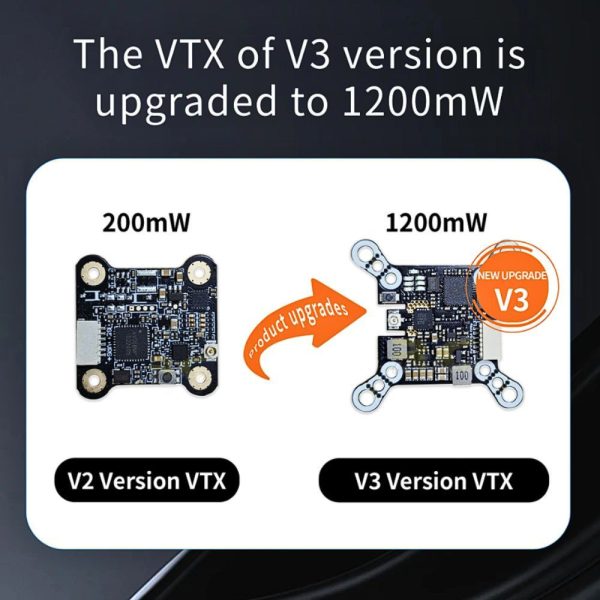

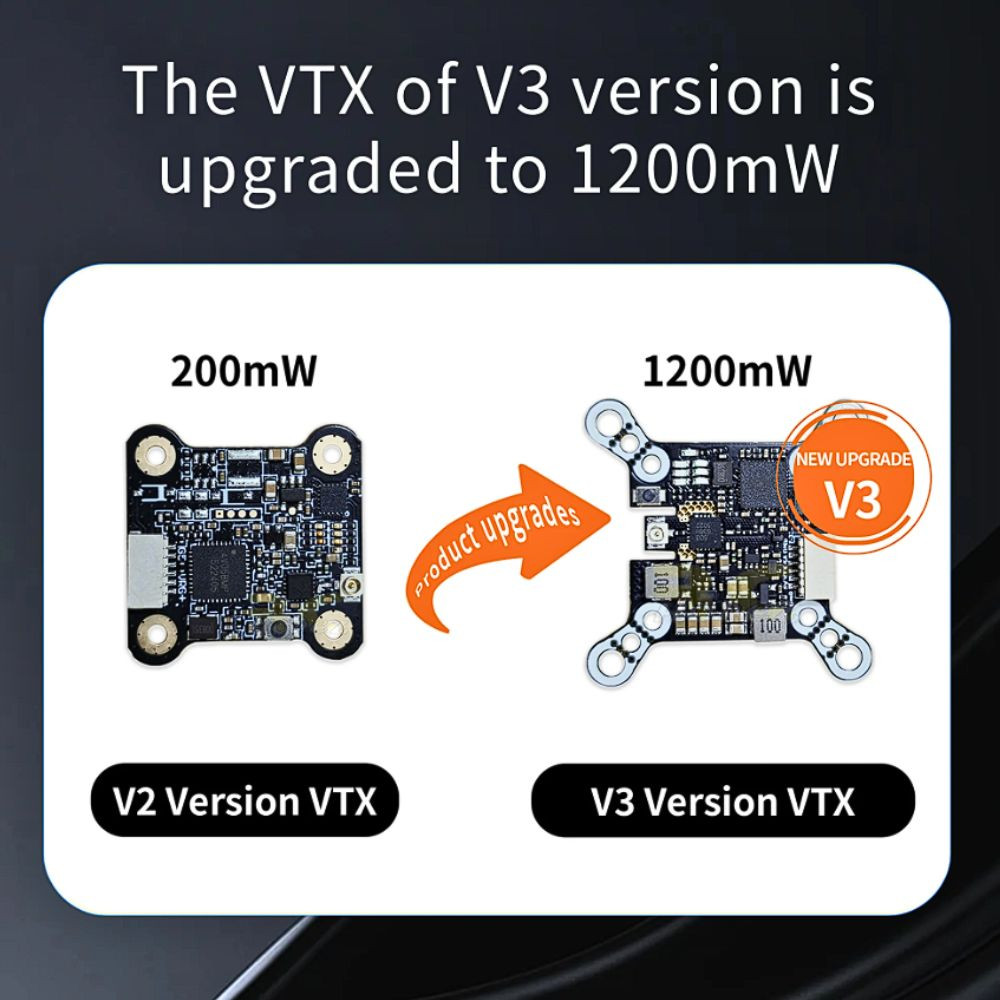

Changelog： 2025.4.1 the BabyApe Pro V3 version. The VTX power has been greatly increased from 200mW to 1200mW.

Description:

Brand: DarwinFPV
Item Name: Baby Ape Pro V3 / V2 3 Inch FPV Drone

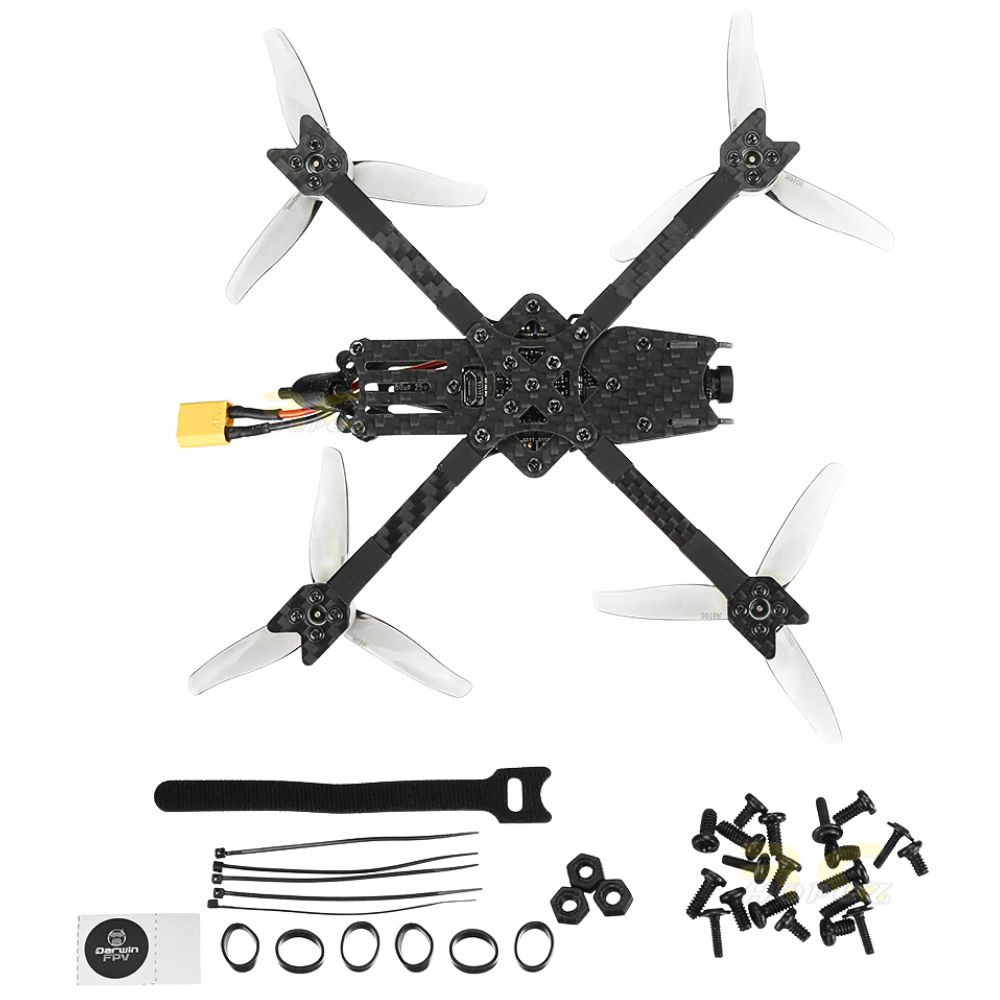

Frame : V3 / V2 143mm Racing Frame Kit
Receiver: ELRS 2.4G / PNP (Optional)
Camera: Caddx Ant 1.8mm 1200TVL 16:9 Global WDR
Propeller : Gemfan 3016 3-Blade Propeller Shaft 1.5mm (2 pairs)
Motor : 1104 4300KV 2-3S Brushless Motor Shaft 1.5mm
Weight: 74.1g(+/-5g)

AIO 4 IN 1 15A BLHeli_S ESC
Input voltage: 1-3SLiPo
Continuous current: 15A
Pe ak current:17A (10S)
BEC output: no
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3

F411 AIO Flight Controller
Main control chip: STM32F411
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
IMU: MPU6500 (SPI)
Mounting holes distance: 25.5*25.5mm
Supports Betaflight firmware
Baro: No
Black Box: No

5.8G 40CH 0mW/25mw/200mw switchable VTX (for Baby Ape Pro V2)
Supports SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
Mounting Hole : 20x20mm(M2)

5.8G 40CH 400mW/800mw/1200mw switchable VTX (For Baby Ape Pro V3)
Supports SmartAudio
Transmitting power: 400mW/800mW/1200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input Power: DC 7~33V
Output voltage: 5V/1A
Current: 10V/[email protected]
Size: 37 × 37 ×4.5mm
Weight: 4.2g+/-2g (except antenna)
With 5.8G-IPEX1/U.FL-RF113-80mm Copper Tube Antenna
Mounting Hole : 20x20mm(M2)/ 25.5×25.5mm(M2) / 30.5×30.5mm(M3)

Specifications

Item: Pocket Radio
Internal RF: ELRS 2.4GHz
Supported protocols: Module dependent
Operational voltage: 6.6-8.4v DC
Operating system: EdgeTX
Control channels: Maximum 16 (Receiver dependent)
Display: 128*64 Monochrome LCD
Battery: 2pcs 18650 batteries (Included)
Charging: Built in USB-C QC3 Charging
Upgradable Firmware: Via USB or the included SD card
Gimbal: Hall-effect
Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Item: Jumper Bumblebee
Internal RF: ELRS 2.4GHz
Working Voltage: DC6V-8.4V
Compatible Firmware: EdgeTX
Screen: 1.3 OLED 128*64 Resoluton
Gimbals: Hall Sensor Gimbals
Simulator: 3.5mm Standard ppm output or usb-c
Battery: 2pcs 18650 batteries (Included)
SD Card: Built-in chip (officially recommended by EDGETX)
