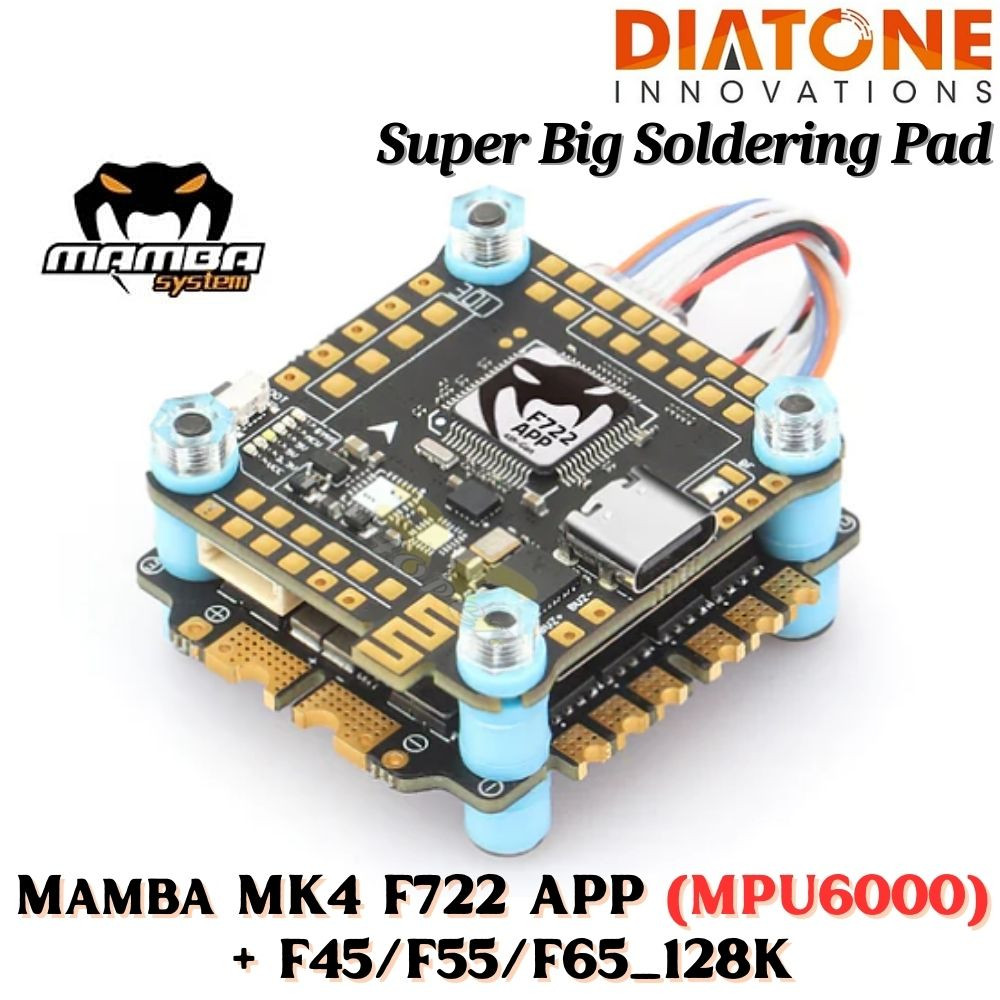

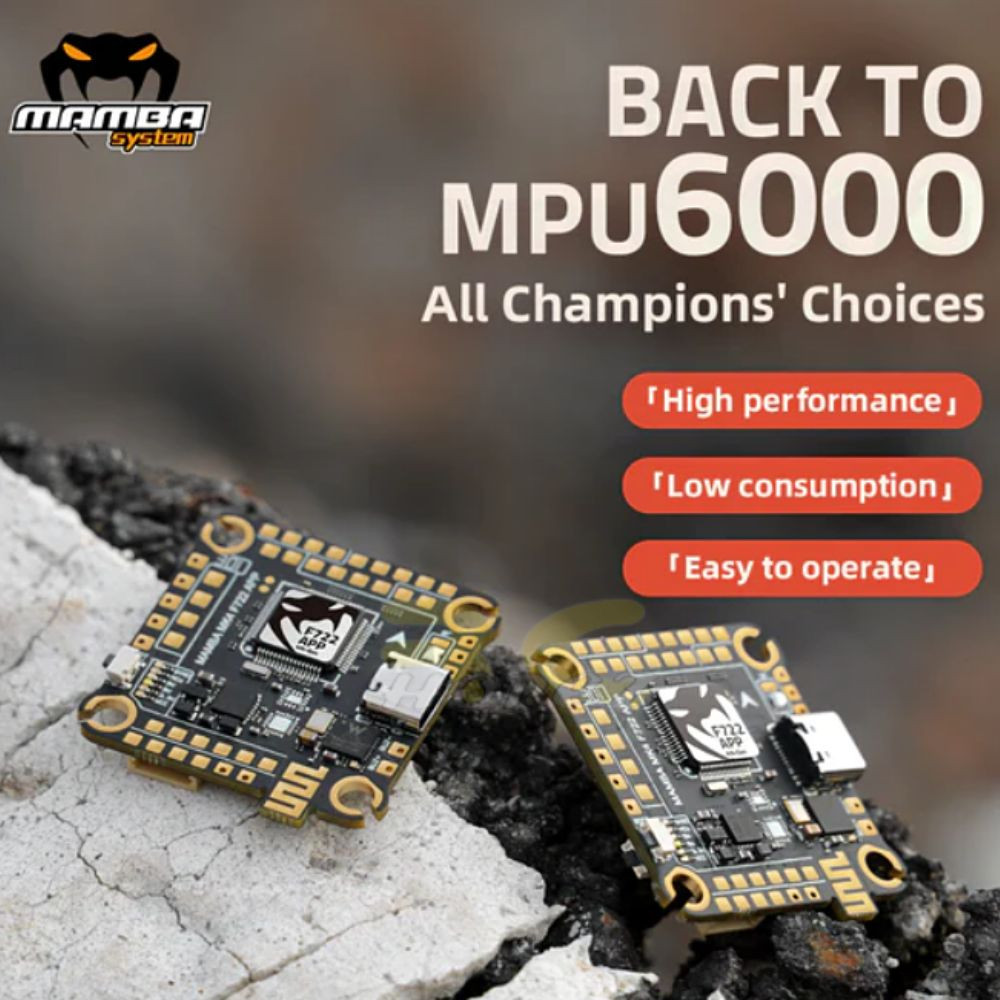

Diatone MAMBA (30.5×30.5) Mamba MK4 F722 APP (MPU6000) + F45/F55/F65_128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-61155

Diatone MAMBA (30.5×30.5) Mamba MK4 F722 APP (MPU6000) + F45/F55/F65_128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-61155

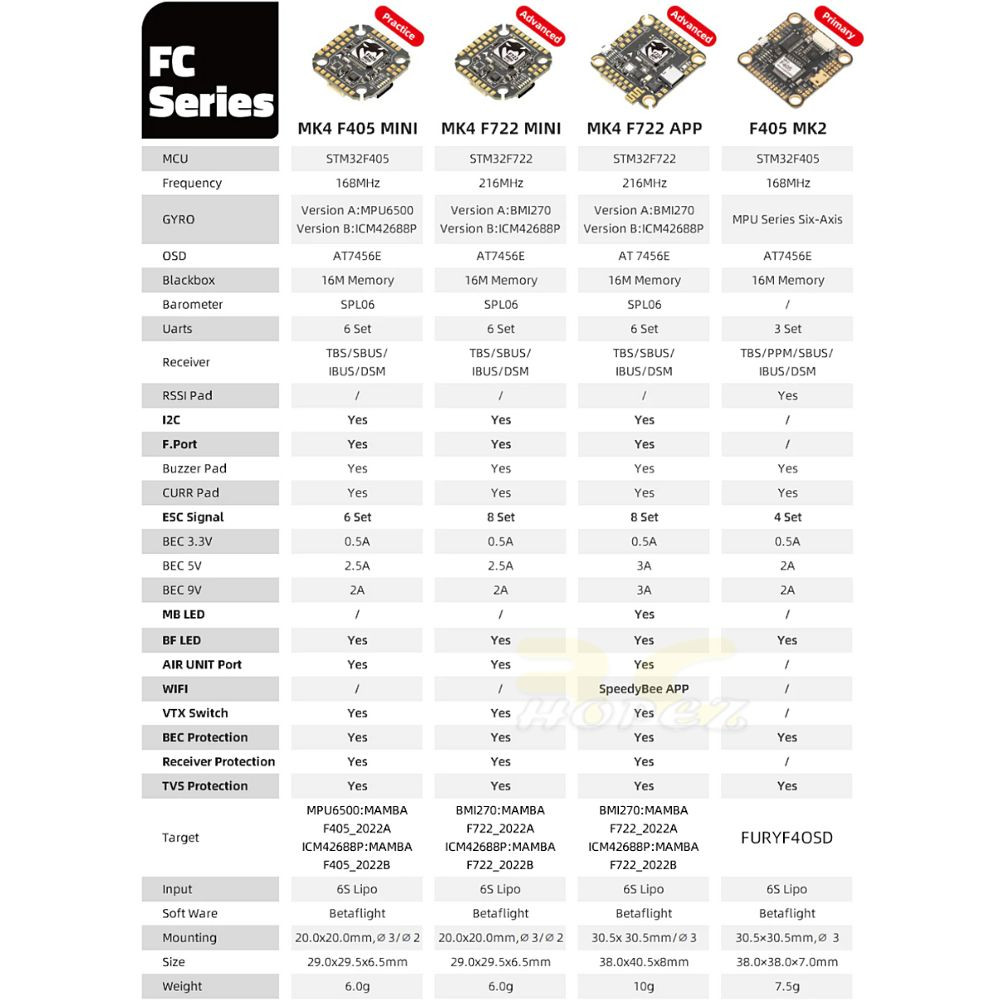

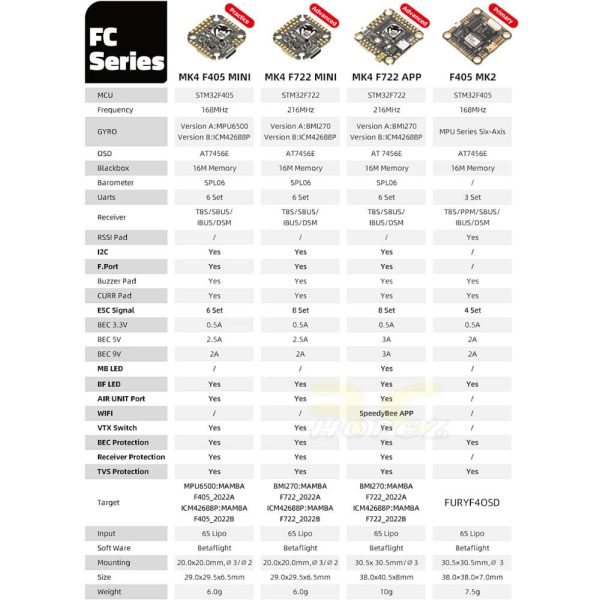

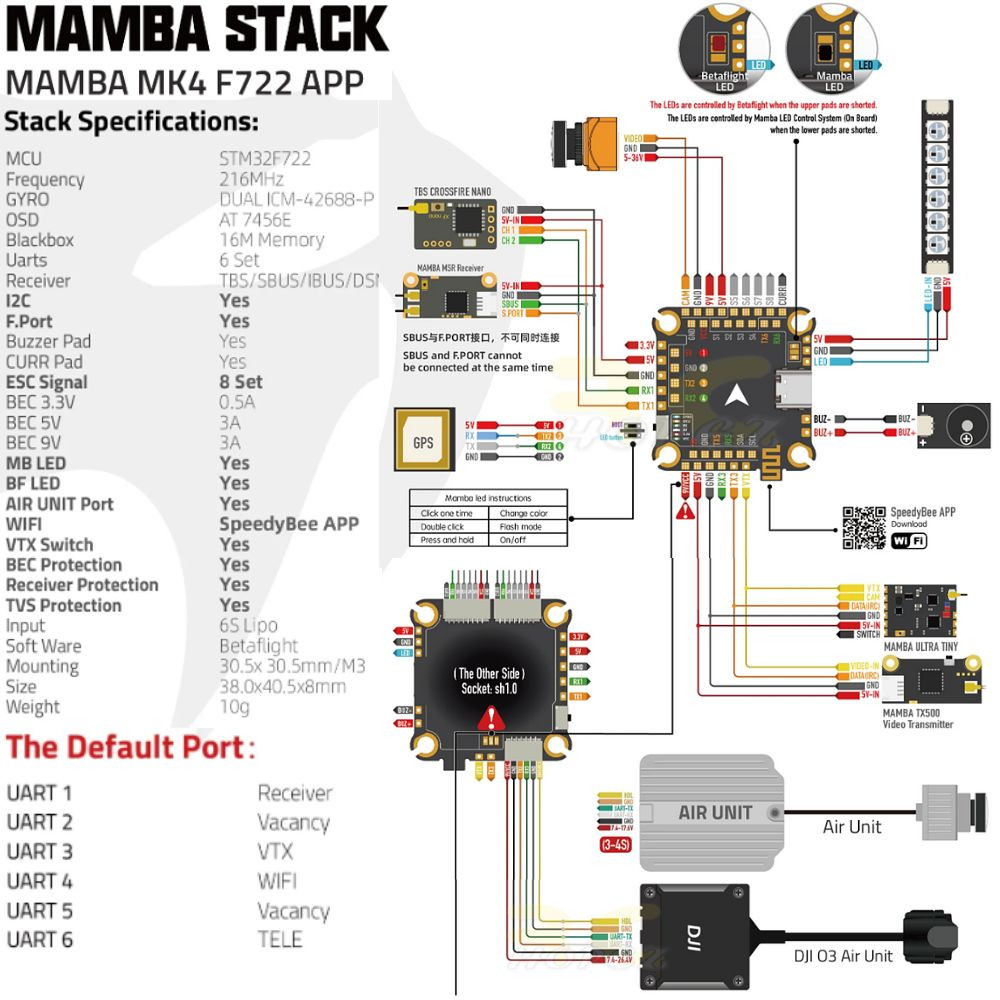

FC Specifications :
Mamba MK4 F722 APP Flight Control 30mm/M3
MCU: STM32F722
Frequency: 216MHz
GYRO: MPU6000
OSD: AT 7456E
Blackbox: 16M Memory
Uarts: 6Set

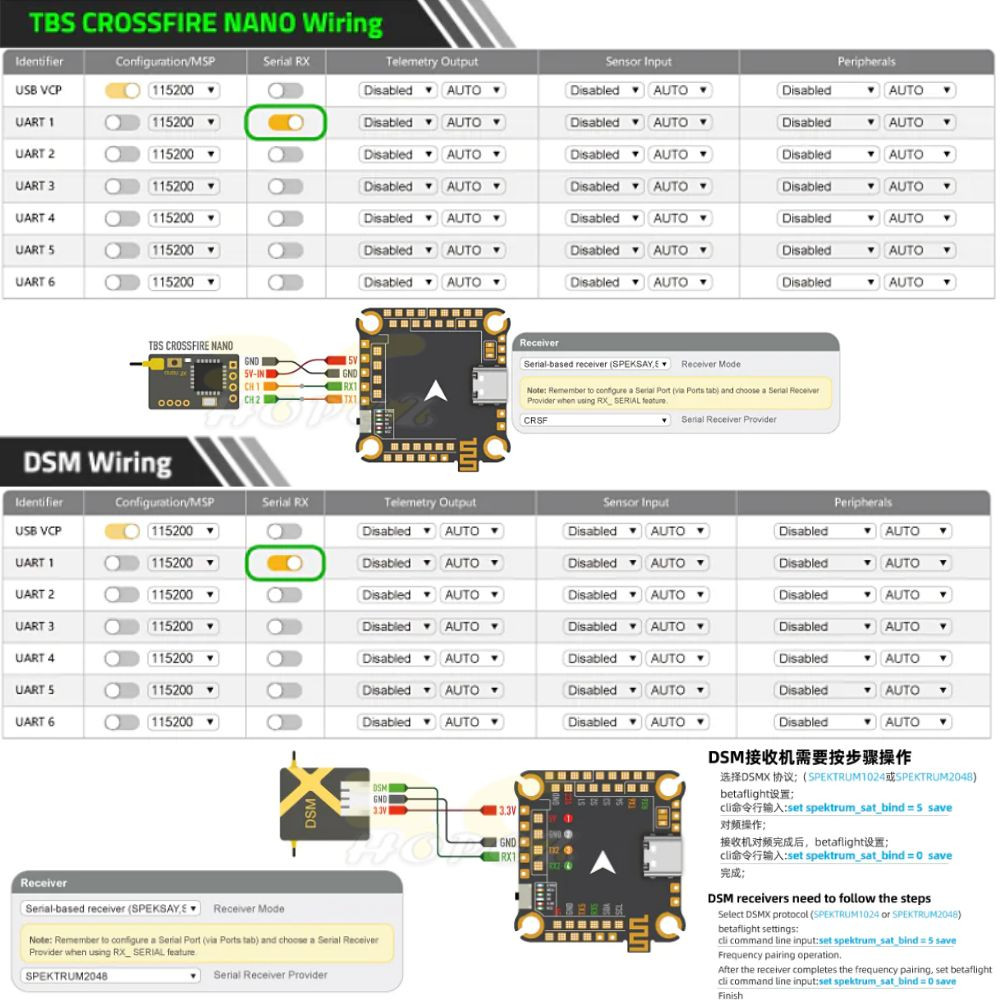

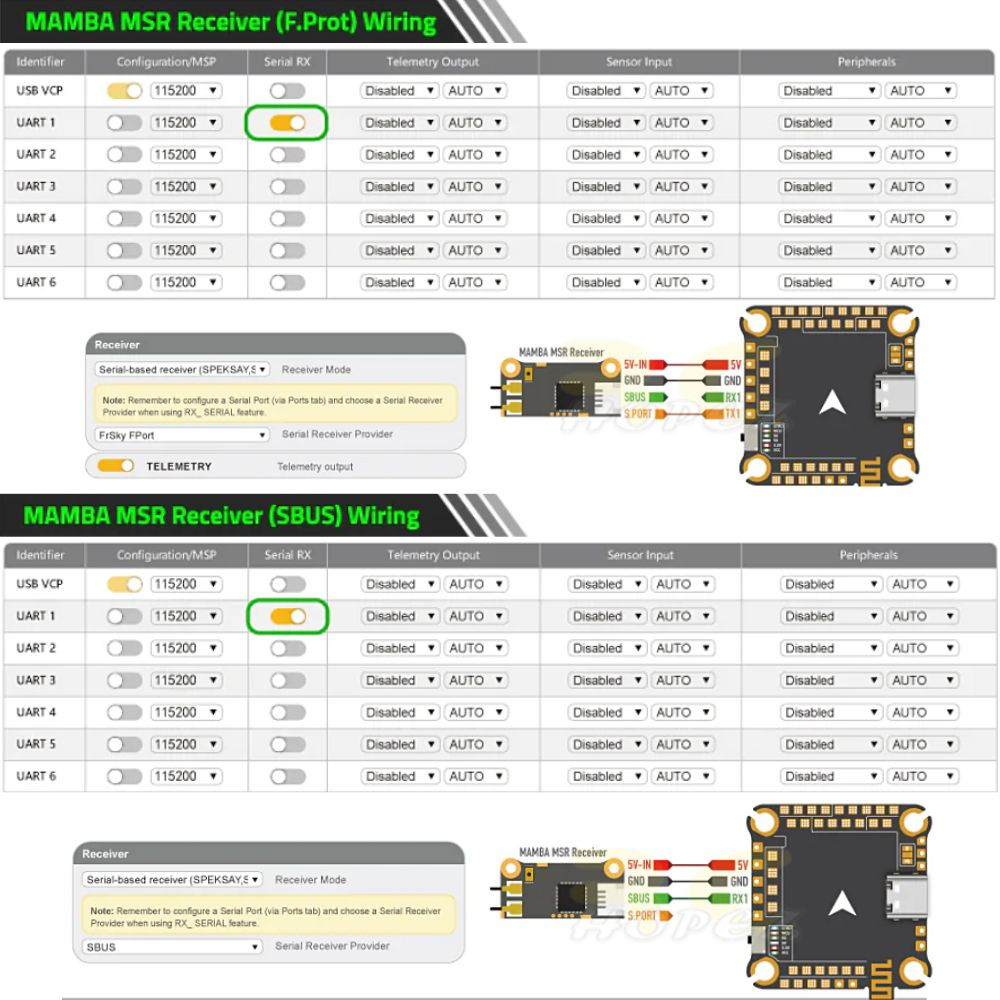

Receiver: TBS/SBUS/IBUS/DSM
I2C: Yes
F.Port: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
BEC:3.3V 0.5A& 5V 3A& 9V 3A
MB LED: Yes
BF LED: Yes

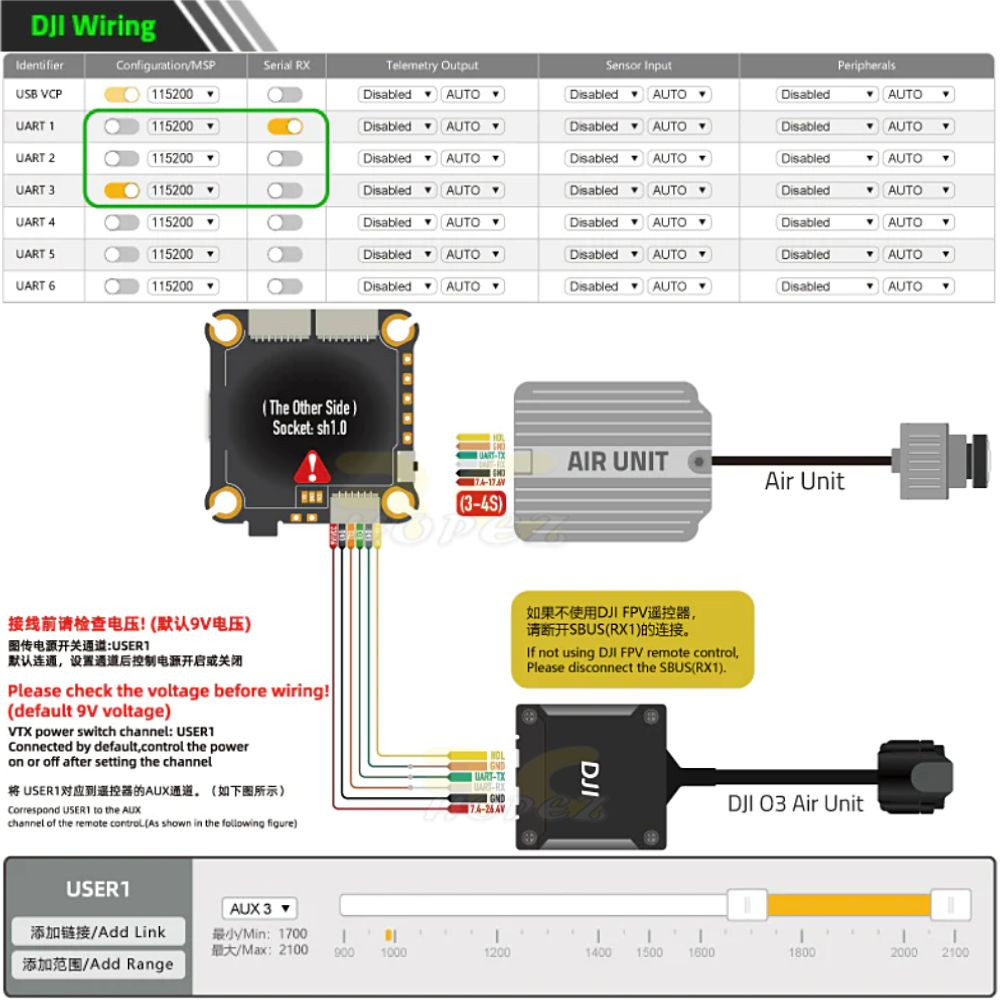

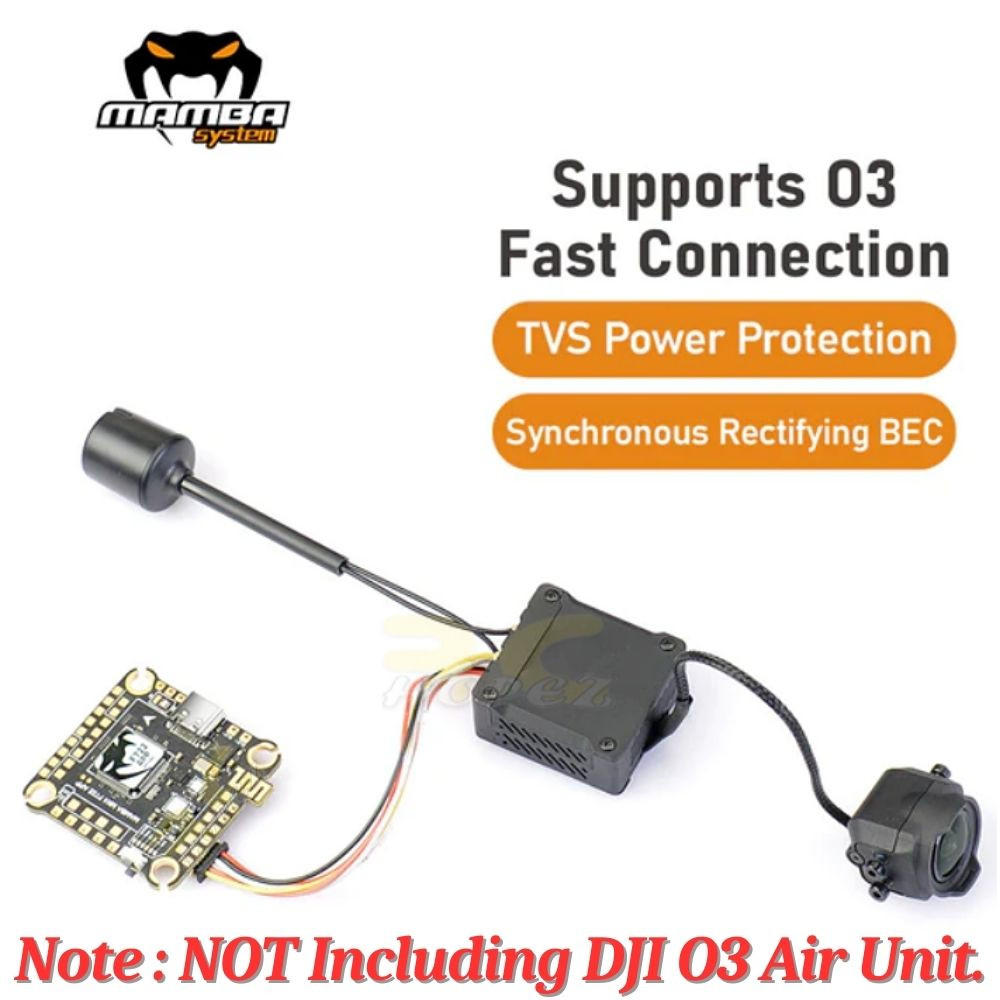

AIR UNIT Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
Input: 6S Lipo (25.2V)
Soft Ware: Betaflight
Mounting: 30.5×30.5mm/M3
Size: 38×40.5x8mm
Weight: 10g

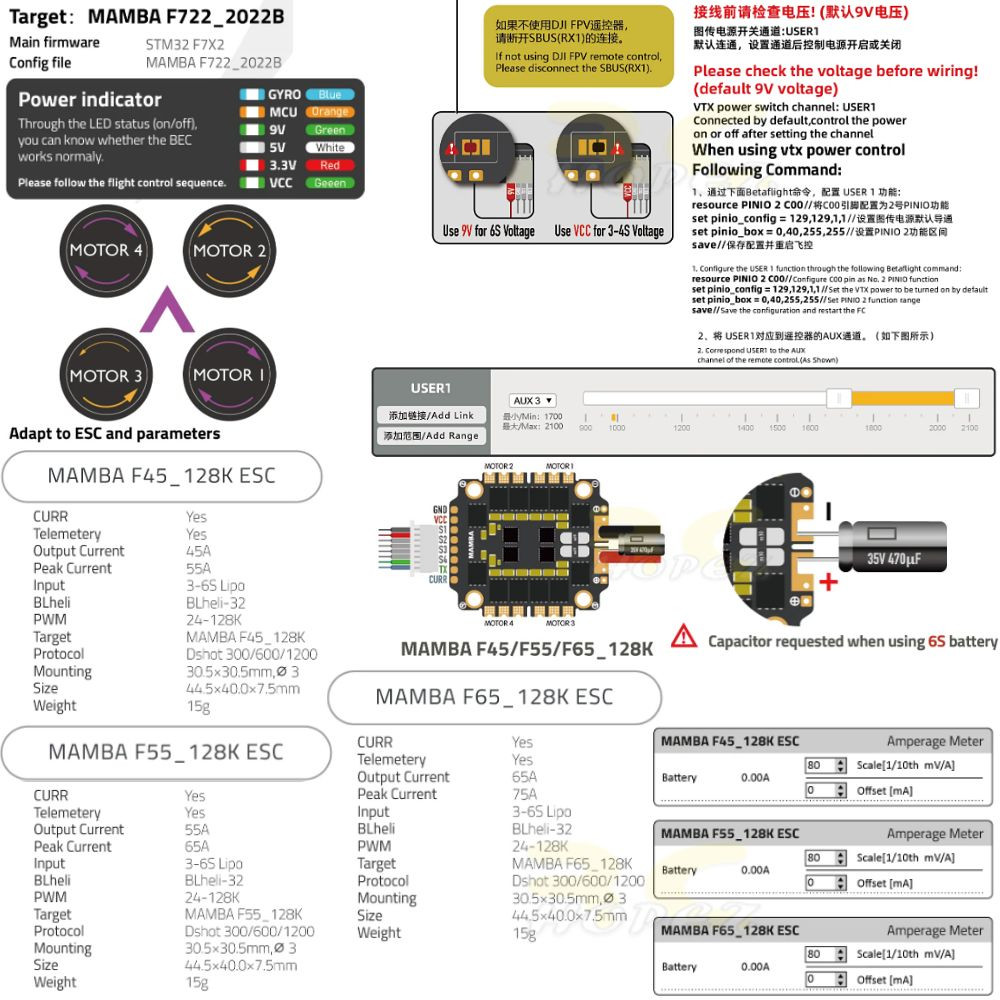

ESC Specifications (Optional) :

MAMBA F45_128K
CURR: Yes
Telemetery: Yes
Output Current: 45A
Peak Current: 55A
Input: 3~6S Lipo
BLheli: BLheli-32
PWM: 24~128K
Target：MAMBA F45_128K
Protocol: Dshot 300/600/1200
Mounting: 30.5×30.5mm/M3
Size: 44.5x40x7.5mm
Weight: 15g

MAMBA F55_128K
CURR: Yes
Telemetery: Yes
Output Current: 55A
Peak Current: 65A
Input: 3~6S Lipo
BLheli: BLheli-32
PWM: 24~128K
Target：MAMBA F55_128K
Protocol: Dshot 300/600/1200
Mounting: 30.5×30.5mm/M3
Size: 44.5x40x7.5mm
Weight: 15g

MAMBA F65_128K
CURR: Yes
Telemetery: Yes
Output Current: 65A
Peak Current: 75A
Input: 3~6S Lipo
BLheli: BLheli-32
PWM: 24~128K
Target：MAMBA F65_128K
Protocol: Dshot 300/600/1200
Mounting: 30.5×30.5mm/M3
Size: 44.5x40x7.5mm
Weight: 15g

Package Included (Optional) :

FC
1 x MAMBA MK4 F722 APP FC (MPU6000)
1 x 8Pin sh1.0
1 x AIR UNIT sh1.0

OR

ESC
1 x MAMBA F45/F55/F65_128K (Option)
2 x 8 Pin Cable
1 x 6 Pin Air Unit Cable
1 x 8 Pin Single-ended Cable for Flight Control

OR

FC+ESC
1 x MAMBA MK4 F722 APP FC (MPU6000)
1 x MAMBA F45/F55/F65_128K (Option)
5 x M3 Sicicone Damping
5 x M3 ESC Isolation Column
2 x 8 Pin Cable
1 x 6 Pin Air Unit Cable
1 x 8 Pin Single-ended Cable for Flight Control
1 x Packaging Box
1 x MAMBA Brand Cards
1 x After-sales Support Card
