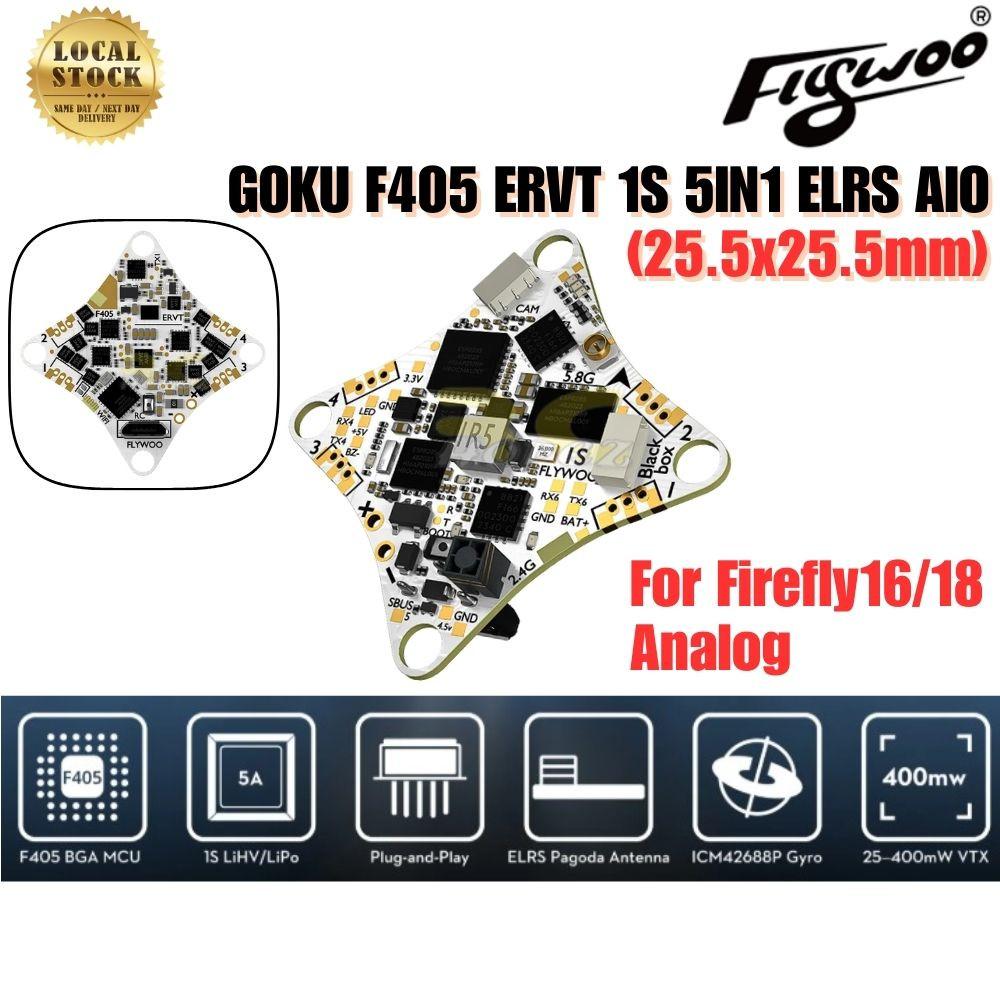

Flywoo GOKU F405 ERVT 5in1 AIO F405 FC 1S 5A ESC 400mw VTX ELRS RX OSD 25.5×25.5mm for Firefly16/18 Analog Drone FW4272

Flywoo GOKU F405 ERVT 5in1 AIO F405 FC 1S 5A ESC 400mw VTX ELRS RX OSD 25.5×25.5mm for Firefly16/18 Analog Drone FW4272

Description:

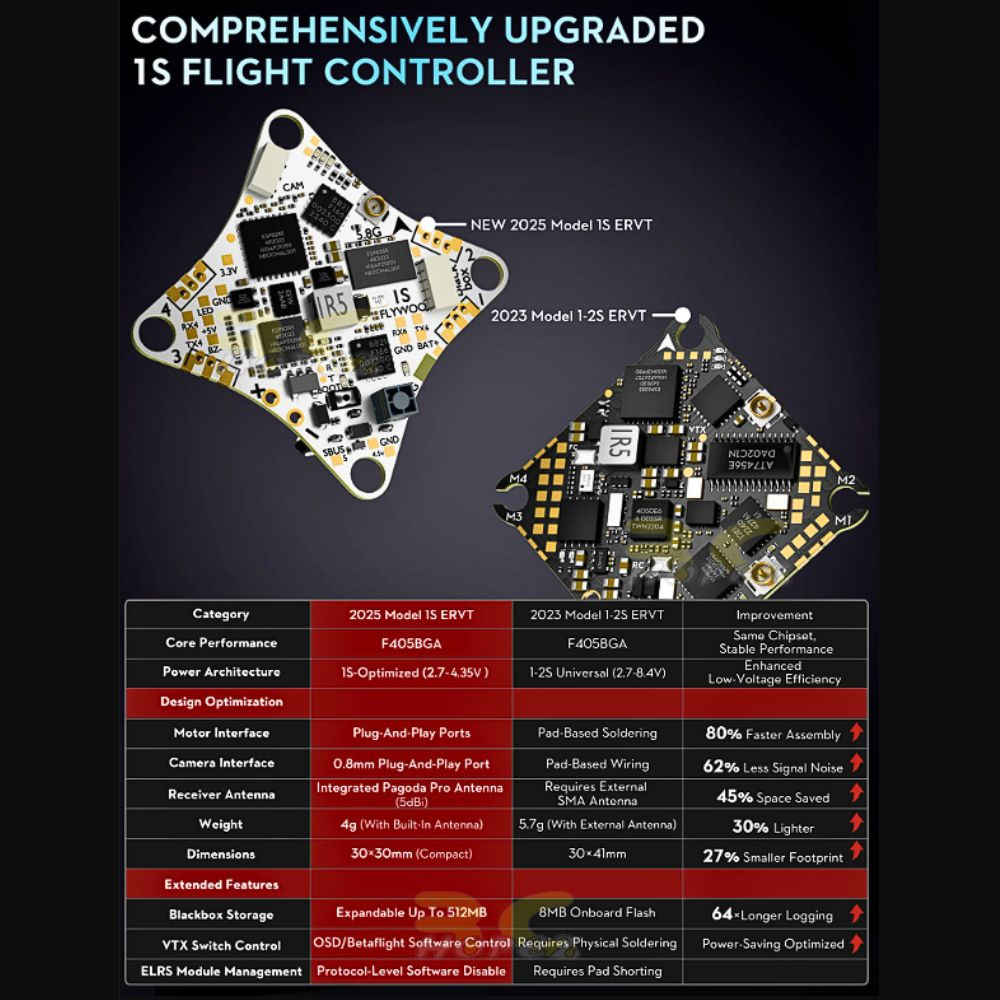

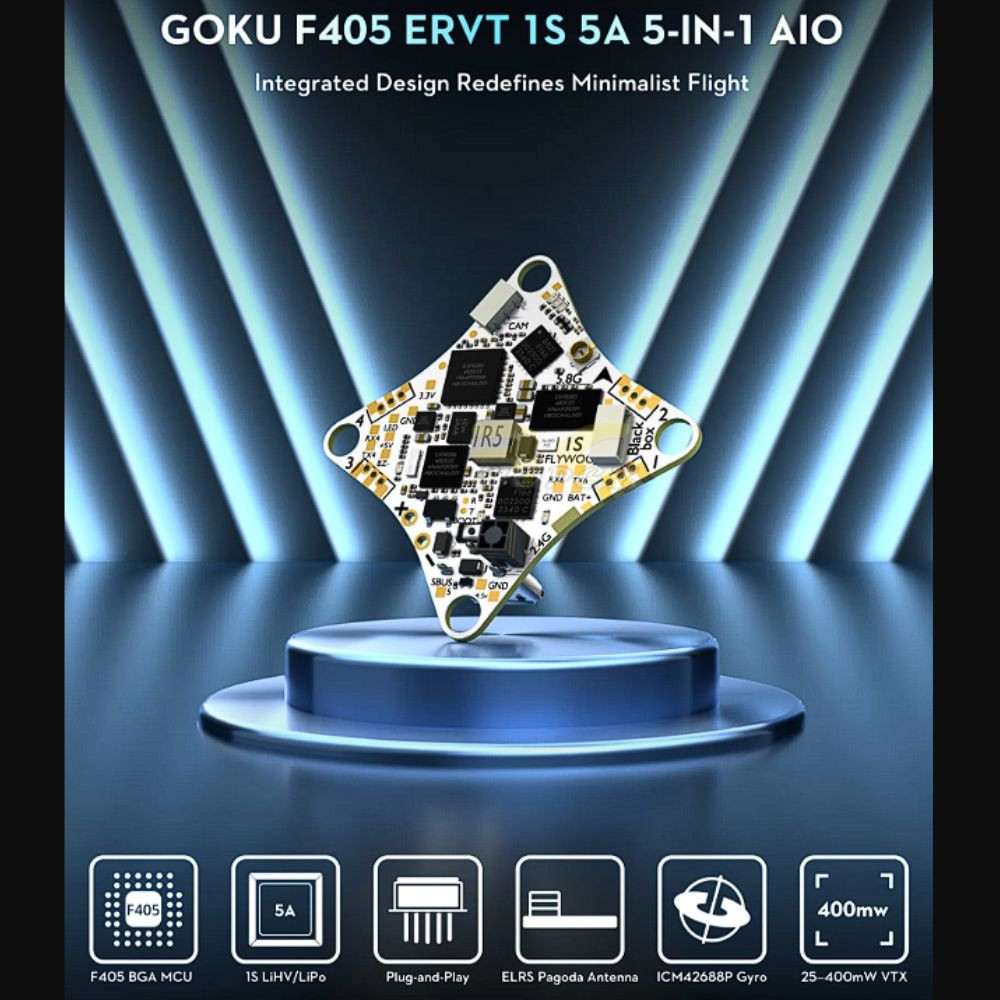

GOKU F405 ERVT 1S 5A 5-in-1 AIO Flight Controller – A revolutionary all-in-one solution integrating flight controller, ESC, VTX, receiver, and OSD. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.

Highlights
– Integrated Design: Modular plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox.

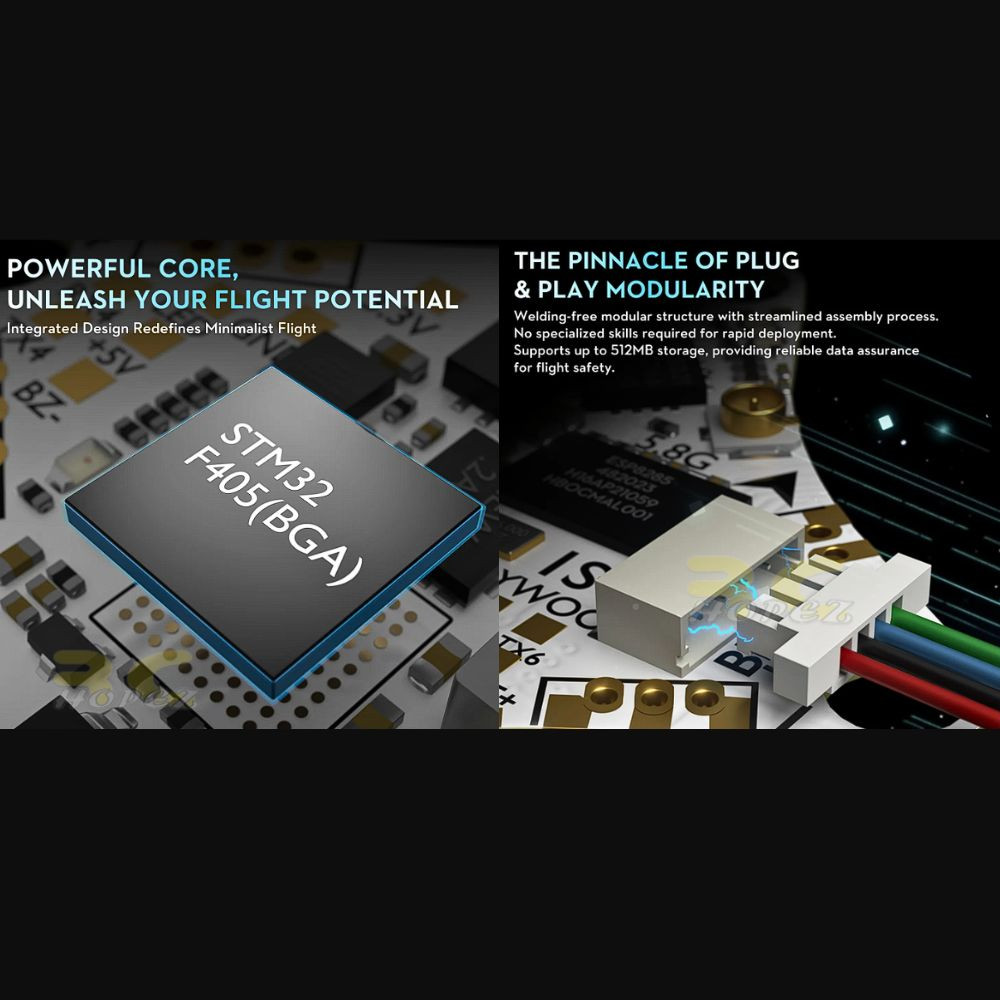

– Unmatched Processing:
 1. F405BGA chipset with 68% faster clock speed for lightning-fast response.
2. 1S LiPo, 5A continuous current output ensures stable power delivery (supports Bluejay firmware).
3. Built-in 4kHz gyro

– Video Transmission Switch:
1. Featuring adjustable 25-400mW transmission power and electronic switch
2. The pagoda-style integrated antenna delivering ≥1.5km range
3. 1S-optimized circuitry for sub-50ms video latency

– Professional Expandability:
1. Optional Flywoo plug-and-play Flight Blackbox (512MB storage) .
2. Fully compatible with Betaflight, INAV, and other mainstream firmware

Configuration
MCU: STM32F405BGA
IMU: ICM42688P
Barometer: No
Black Box: No (Up to 512M external)
OSD Support: AT7456E (LGA16)

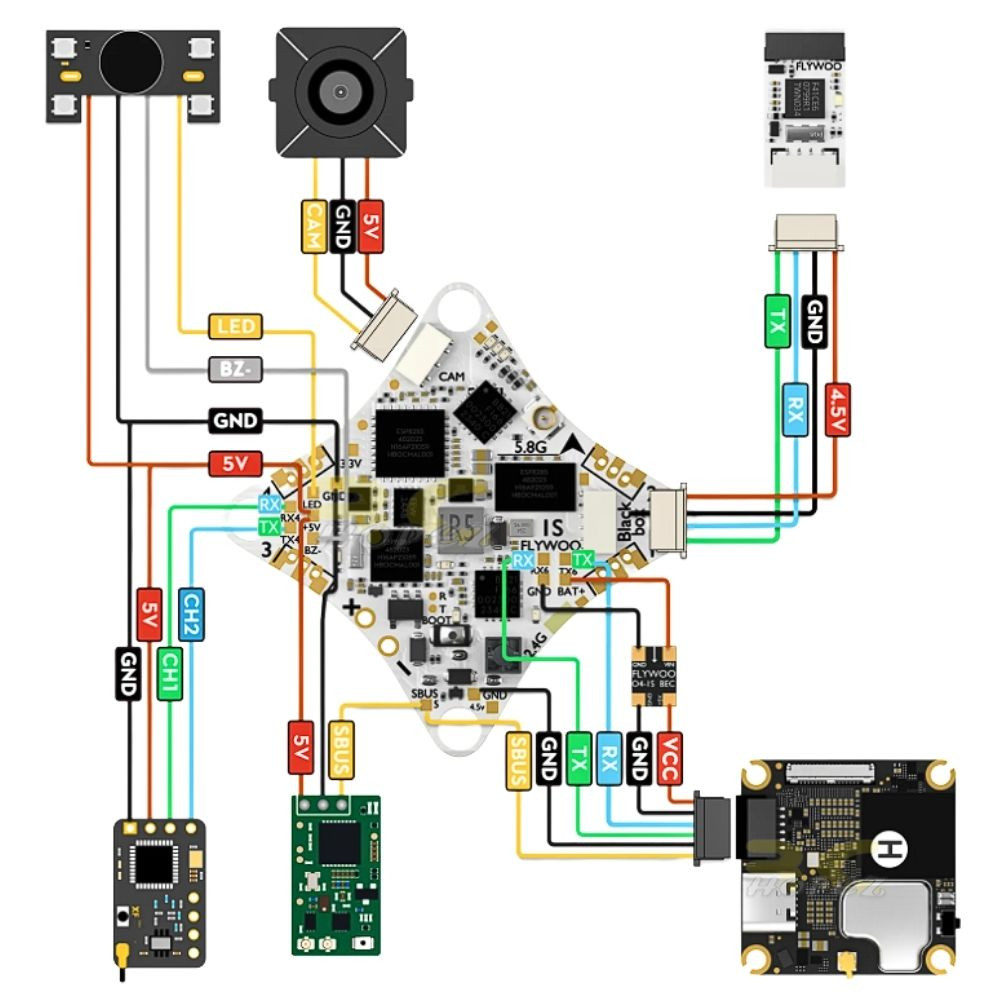

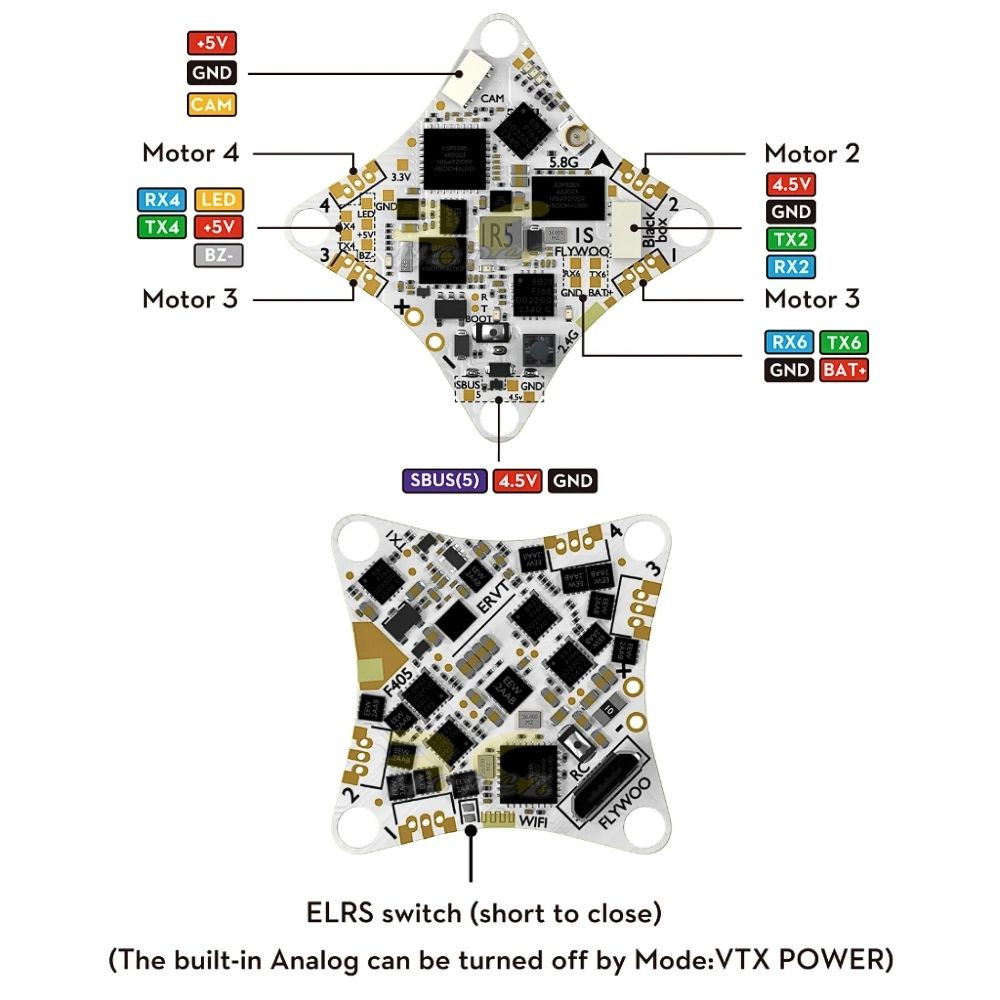

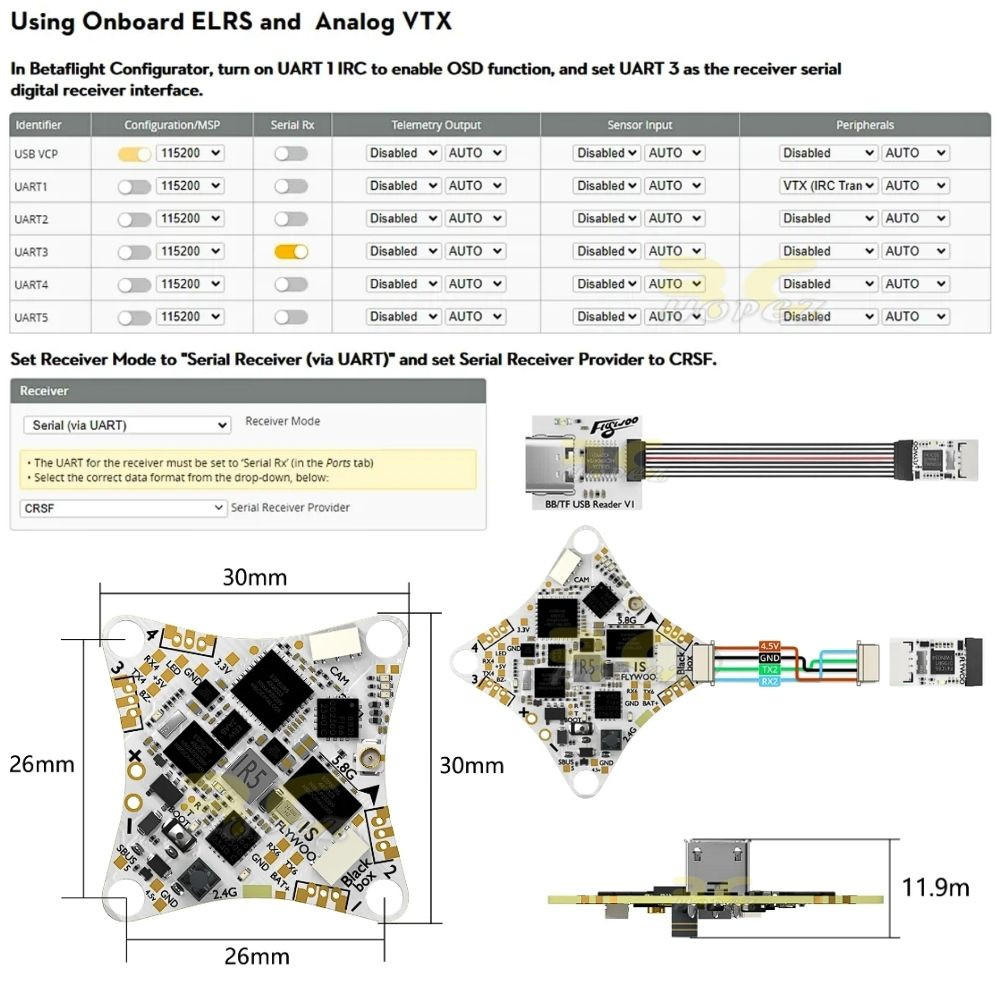

UART:UART1 (VTX IRC),UART2(Blackbox),UART3 (ELRS RX),UART4,UART5 (SBUS),UART6
Supported Protocols: CRSF, SBUS, iBus, Spektrum
BEC: 5V 2.0A max
RX: Flywoo EL24E 2400 RX 3.0.0
FC Firmware: FLYWOOF405S_AIO
Dimensions: 30.5 x 30.5mm
Mounting Holes: Standard 25.5/25.5mm square to center of holes

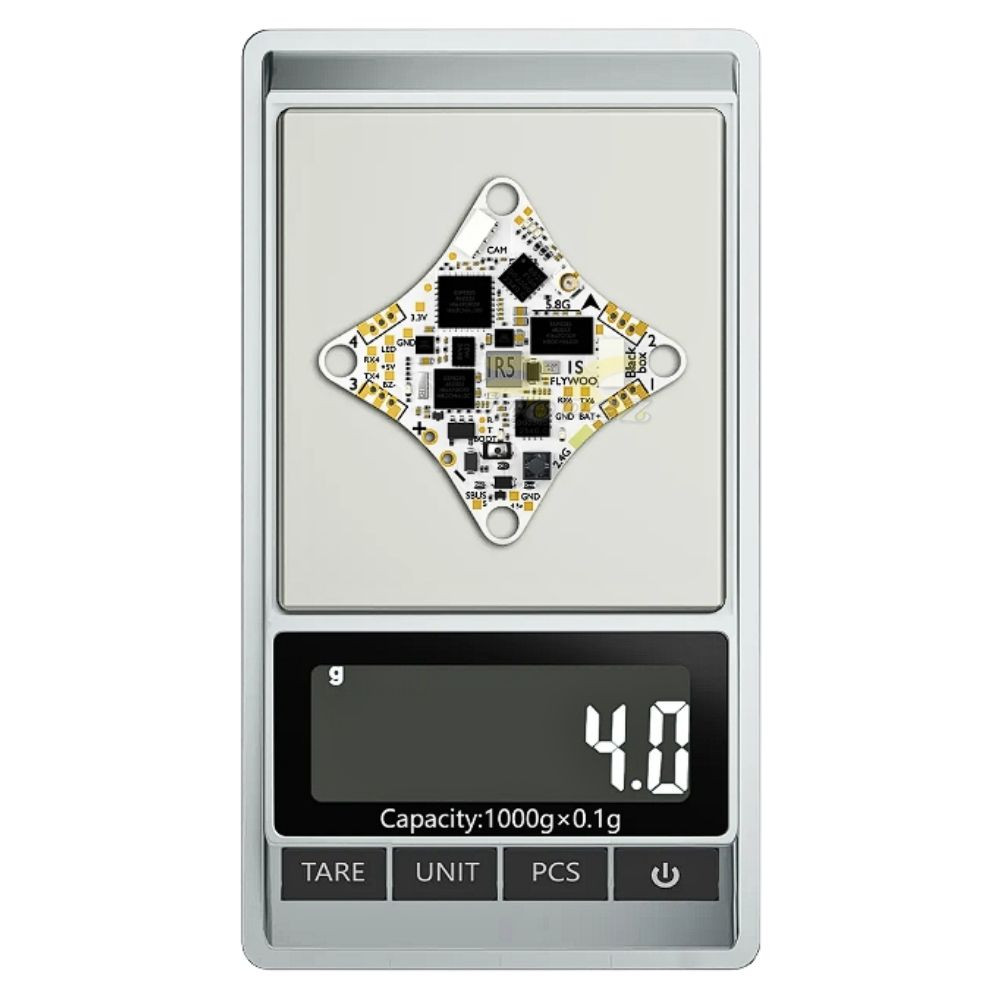

Weight: 4g

Onboard 4in1 ESC
Power input: 1S Only
Current: 5A continuous, 8A peak
ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
Digital signal protocol: DShot300, DShot600
Motor Connector: JST1.25
Battery connector: A30

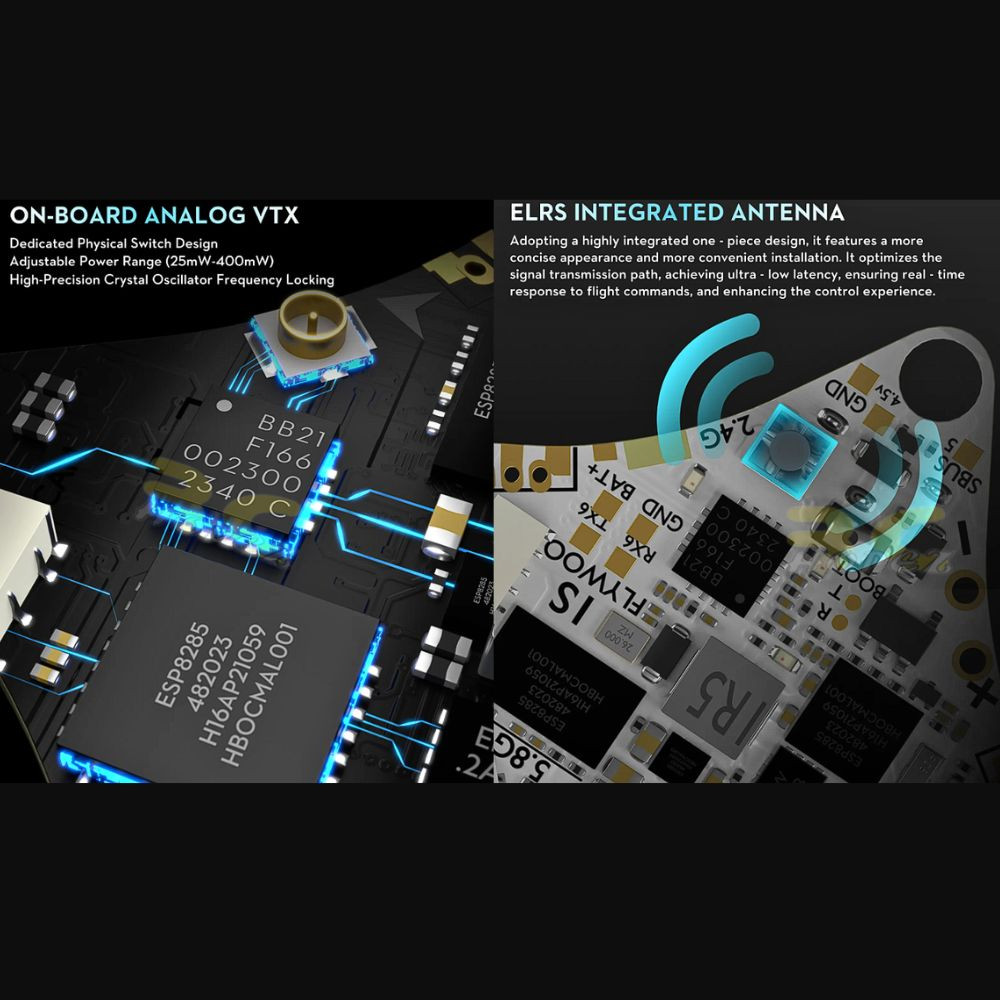

Onboard analog VTX
Built-in VTX : 25/50/100/200/400/0mw
VTX Protocol : IRC Tramp
Frequency:5.8GHz 40 channels
Raceband: 5658-5917MHz
Operating temperature:-15°~+80°

Compatible for Firefly16/ Firefly18 Analog FPV Drone

Package Included:
1 x GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
1 x A30 Power Cable
1 x JST-0.8 3pin 50mm Camera Cable
1 x Flywoo Black Box Connector Cable
4 x 1.25mm 3-Pin Vertical Straight Socket
4 x M2x6.6 Shock-Absoring Ball
