Summary

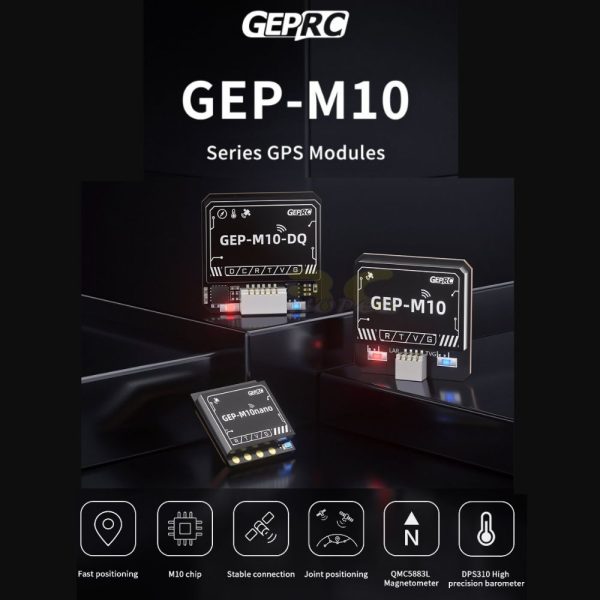

Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based on u-blox M10 chip: GEP-M10nano, GEP-M10-DQ.

GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of u-blox company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.

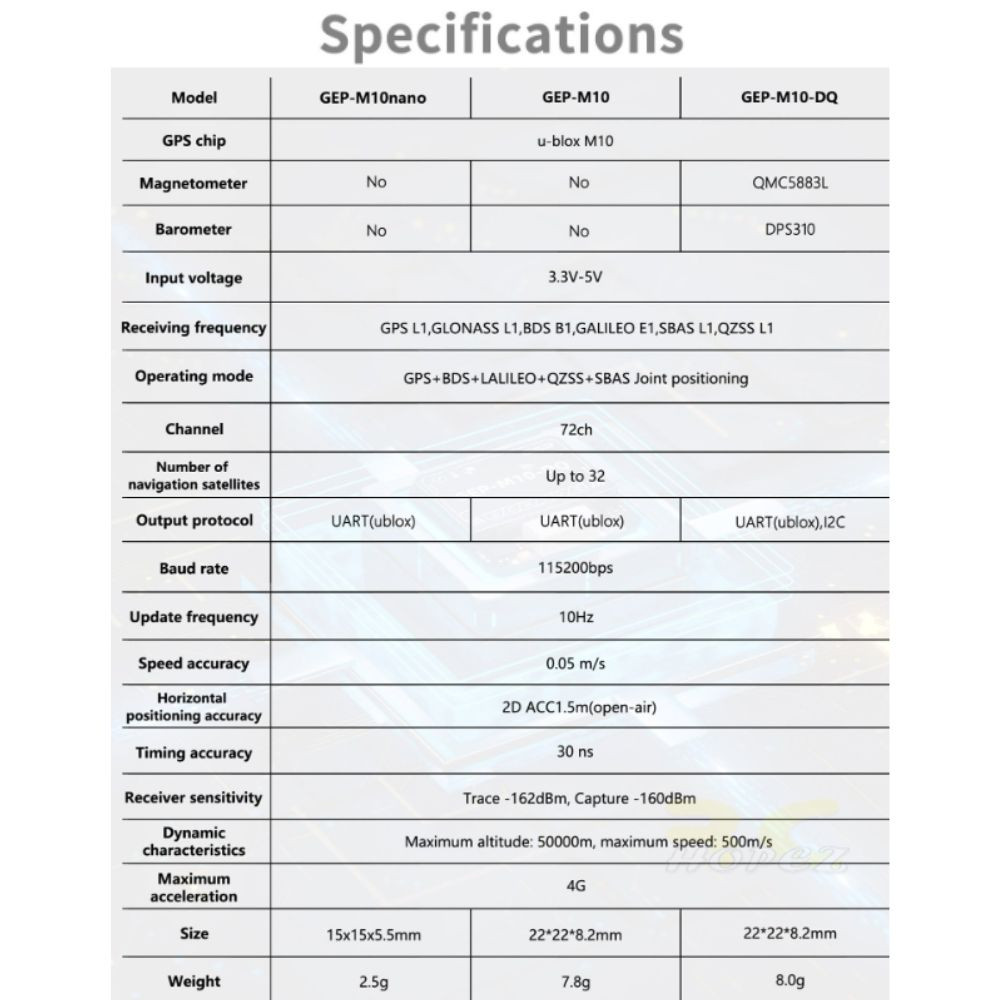

Specifications

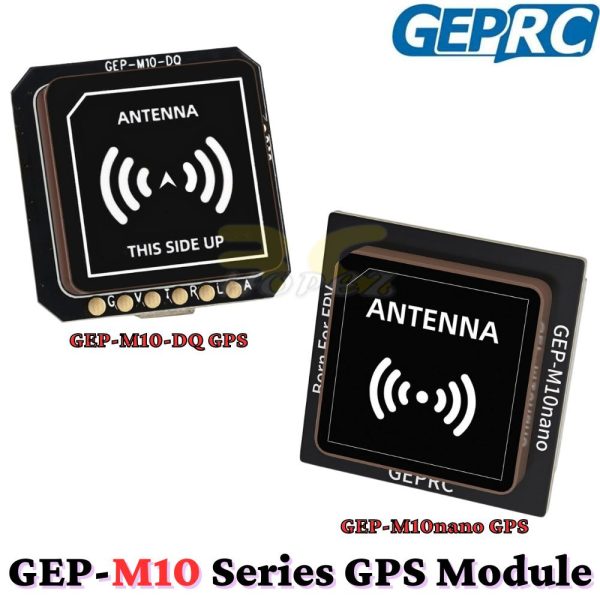

Model: GEP-M10nano / GEP-M10-DQ
GPS chip: u-blox M10
Magnetometer: GEP-M10nano: No / GEP-M10-DQ: QMC5883L
Barometer: GEP-M10nano: No / GEP-M10-DQ:DPS310
Input voltage: 3.3V-5V
Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
Channel: 72ch
Navigation satellites: Up to 32 pieces
Output protocol: GEP-M10nano: UART(ublox) / GEP-M10-DQ: UART(ublox),I2C
Baud rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m(Weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum acceleration: 4G

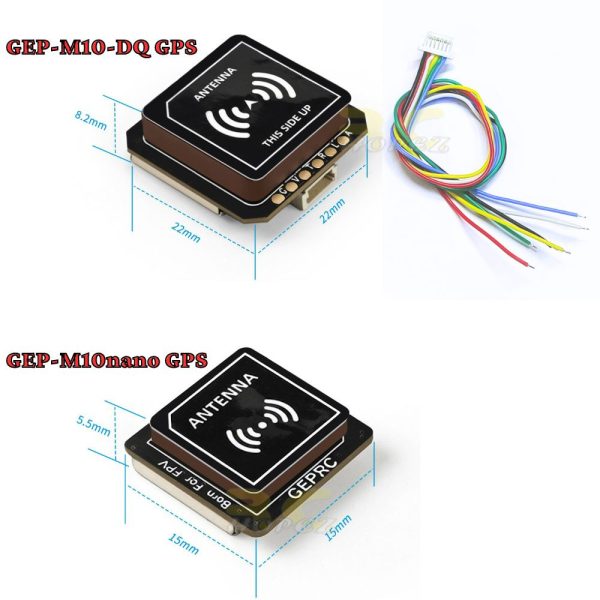

Size: GEP-M10nano: 15x15x5.5mm / GEP-M10-DQ: 22*22*8.2mm

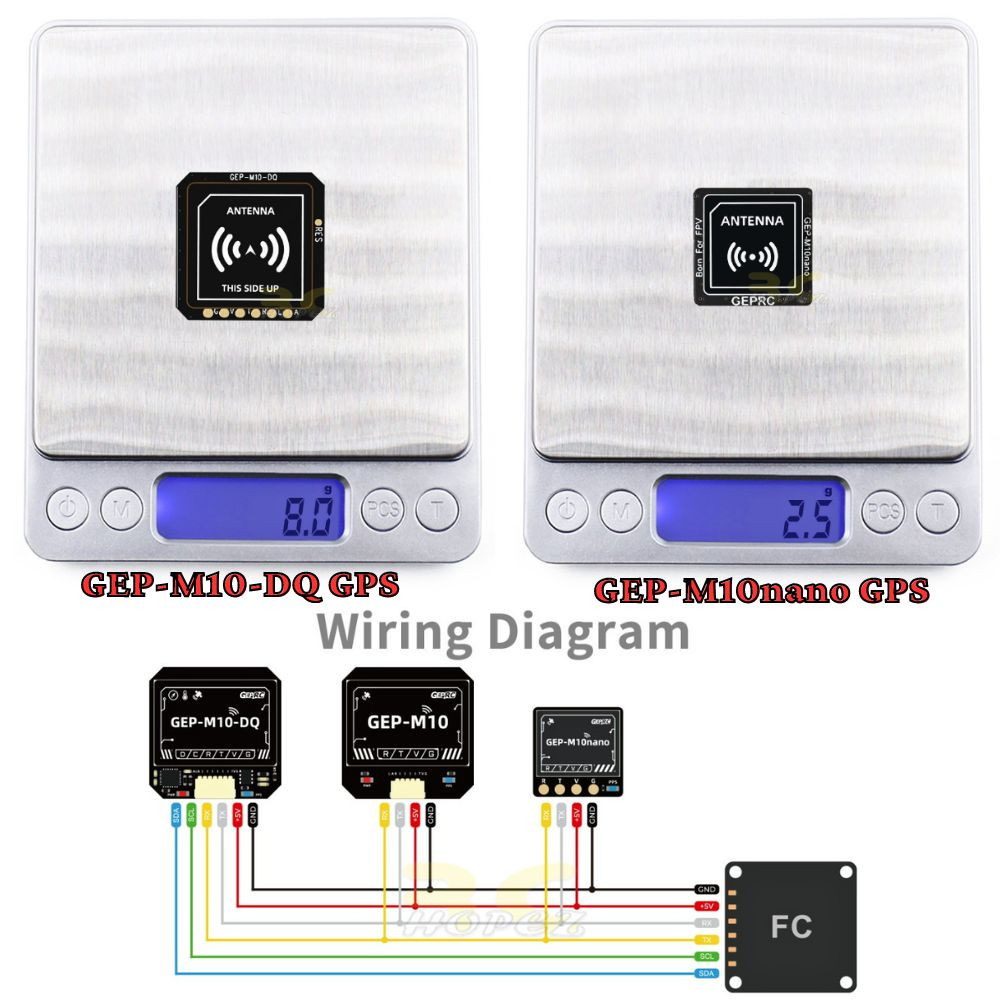

Weight: GEP-M10nano: 2.5g / GEP-M10-DQ: 8.0g

Features

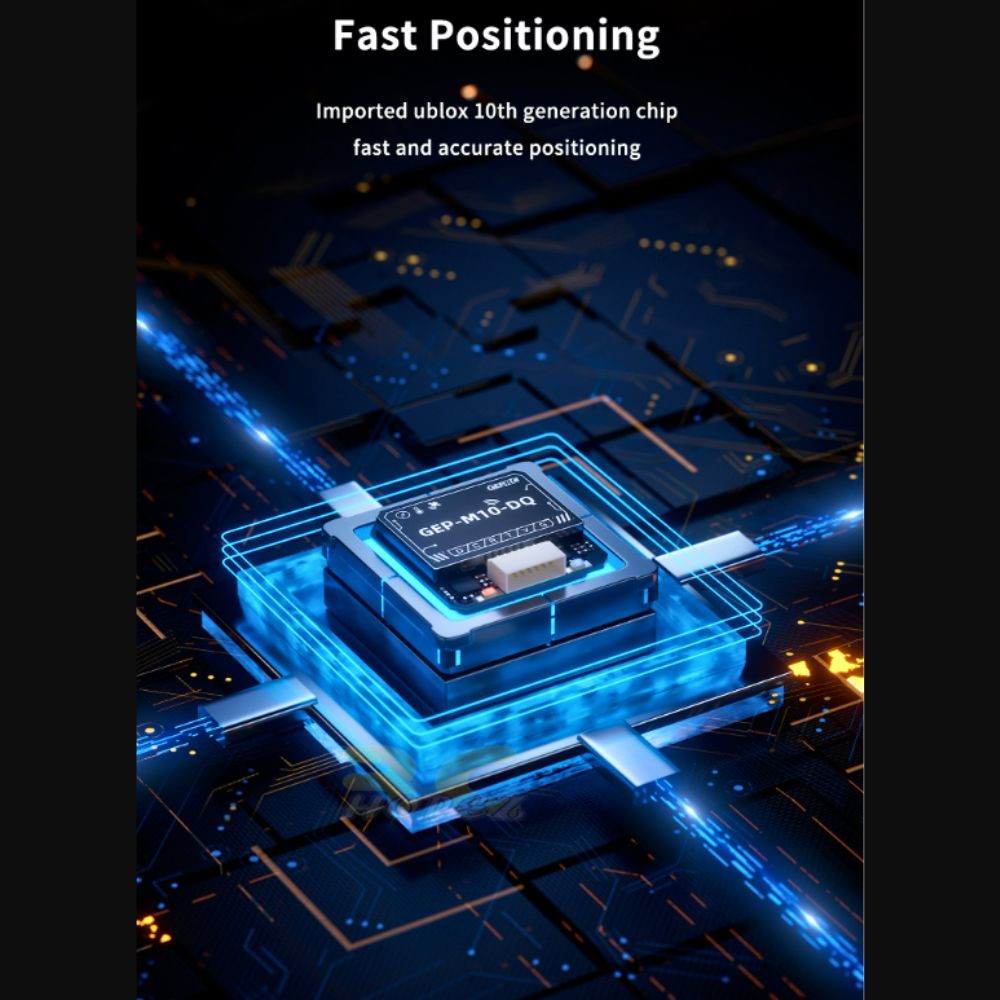

U-blox M10 series chip
Fast positioning speed
GPS+BDS+Galileo+QZSS+SBAS joint positioning
Up to 32 satellites
Stable connection quality
Unique appearance design
Small size and light weight
Built-in Flash chip and Farad capacitor

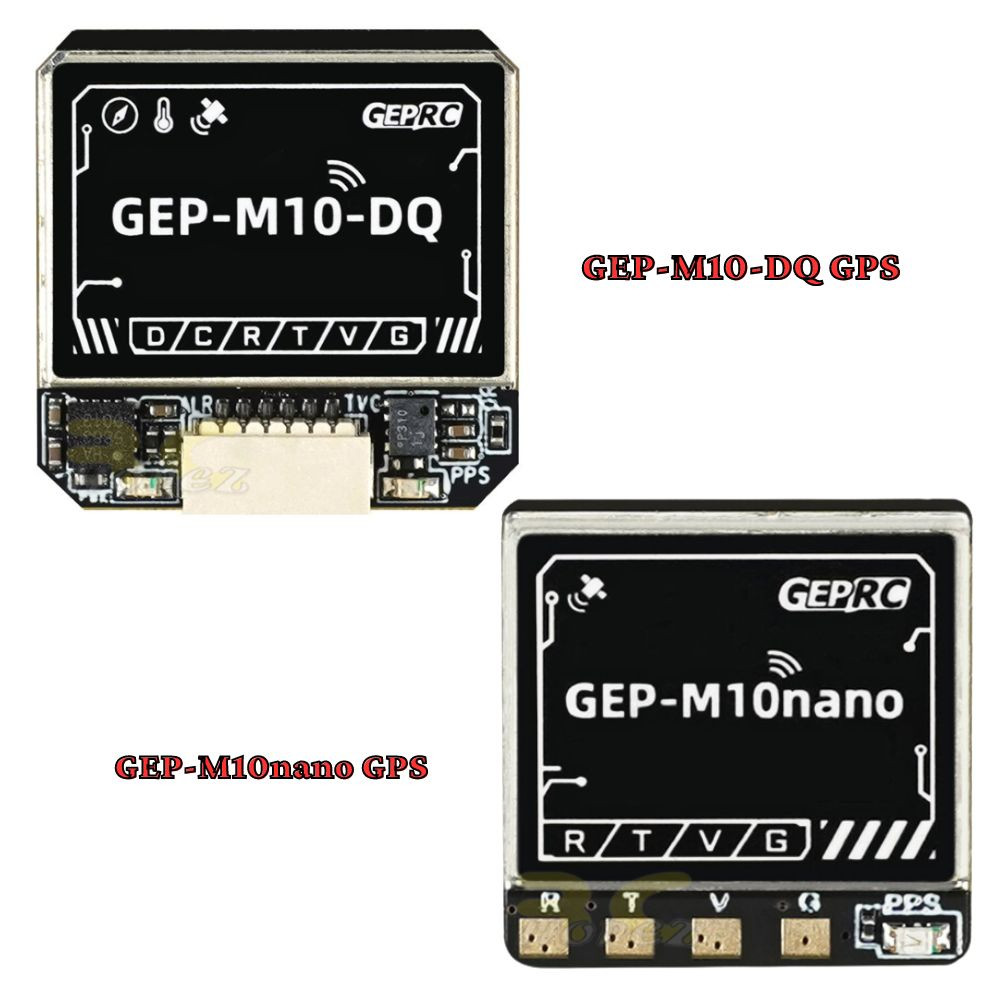

Onboard indicator light, easy to use

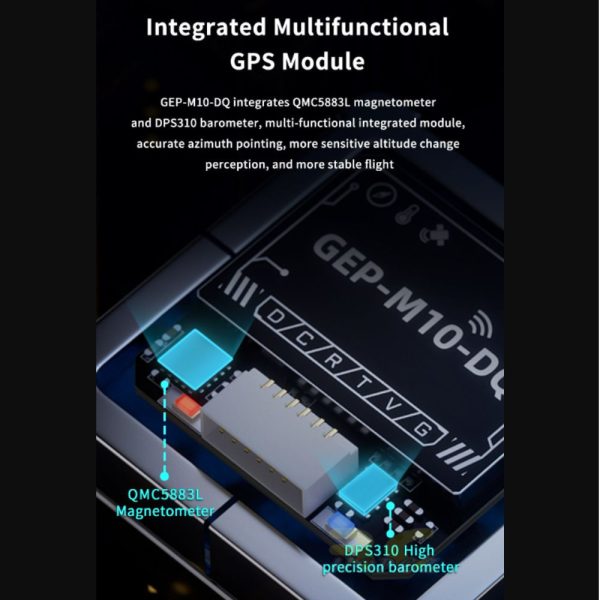

Integrated magnetometer+barometer,integrated module (only GEP-M10-DQ)

Includes
1 x GPS module GEP-M10nano /GEP-M10-DQ (Optional)
1 x Terminal wire
1 x Instruction manual
1 x GEPRC sticker
1 x Heat shrink tubing
