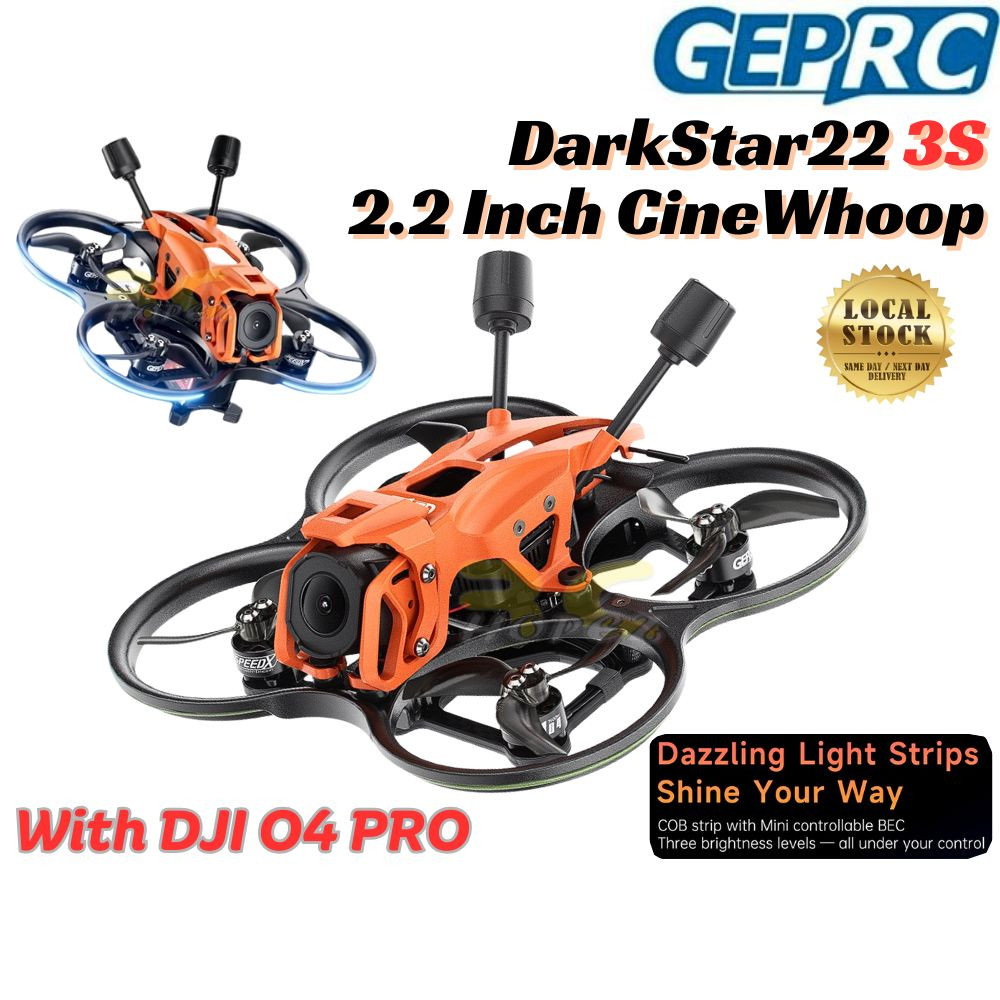

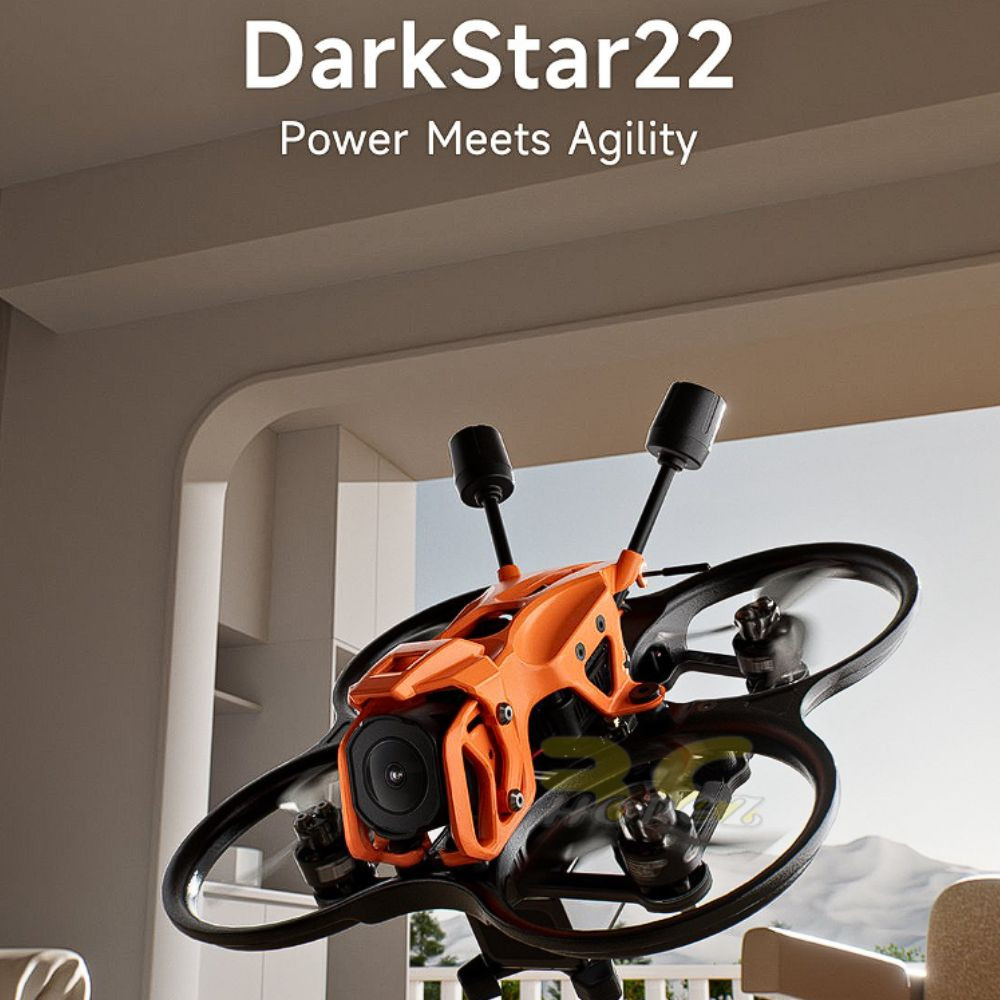

GEPRC DarkStar22 FPV Drone DJI O4 PRO /WTFPV Without Camera VTX 3S 2.2 Inch PNP/ELRS 2.4G Freestyle CineWhoop GEP-DS22

GEPRC DarkStar22 FPV Drone DJI O4 PRO /WTFPV Without Camera VTX 3S 2.2 Inch PNP/ELRS 2.4G Freestyle CineWhoop GEP-DS22

Note : Please take note for variation WTFPV does NOT come with VTX /Camera and Antenna , you need to buy its separately and install it by your ownself.

Summary
The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.

It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.

With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.

The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

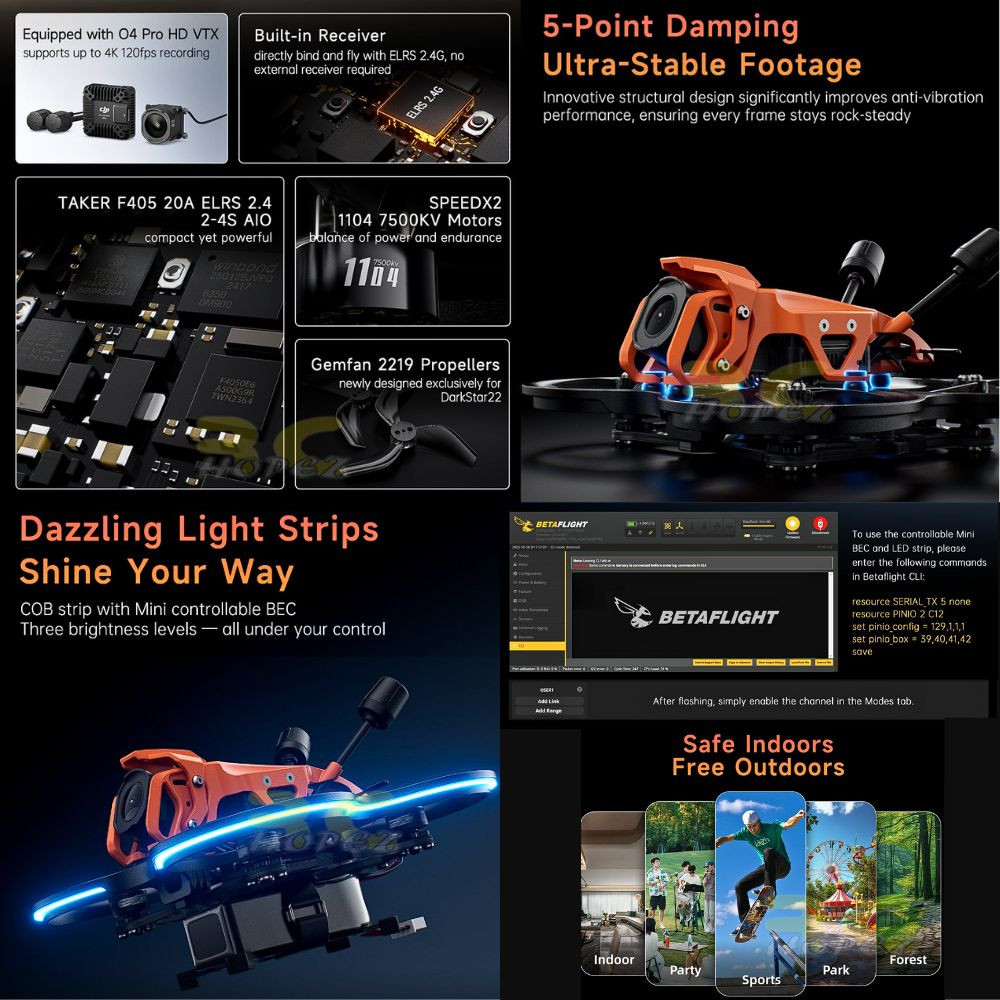

Feature
Mini-sized drone with DJI O4 Pro HD system, supporting up to 4K 120fps recording.
Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.
Camera protection canopy effectively shields the O4 Pro camera module.
All-new five-point damping design, enhancing stability for the O4 Pro camera module.
Simple body structure – only 4 screws to disassemble the frame.
LED strip powered by a mini controllable BEC – small in size, big in function.

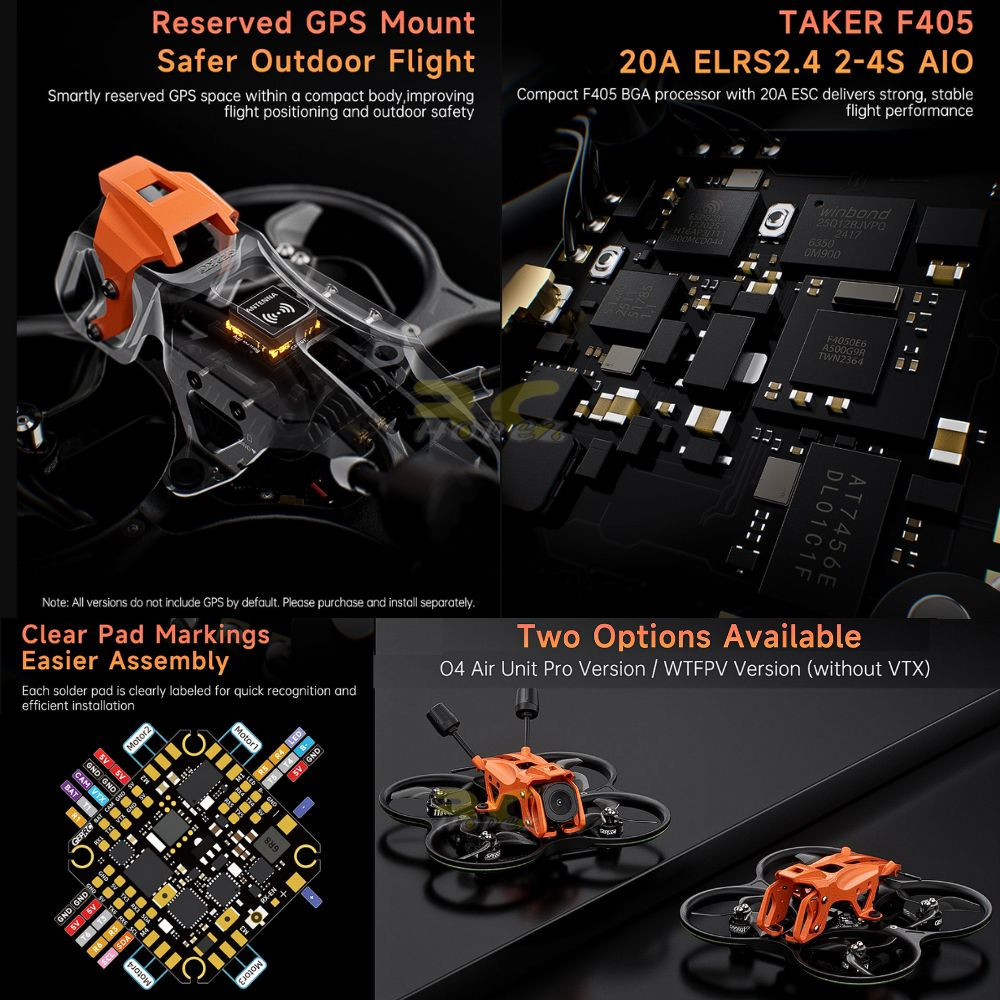

O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.

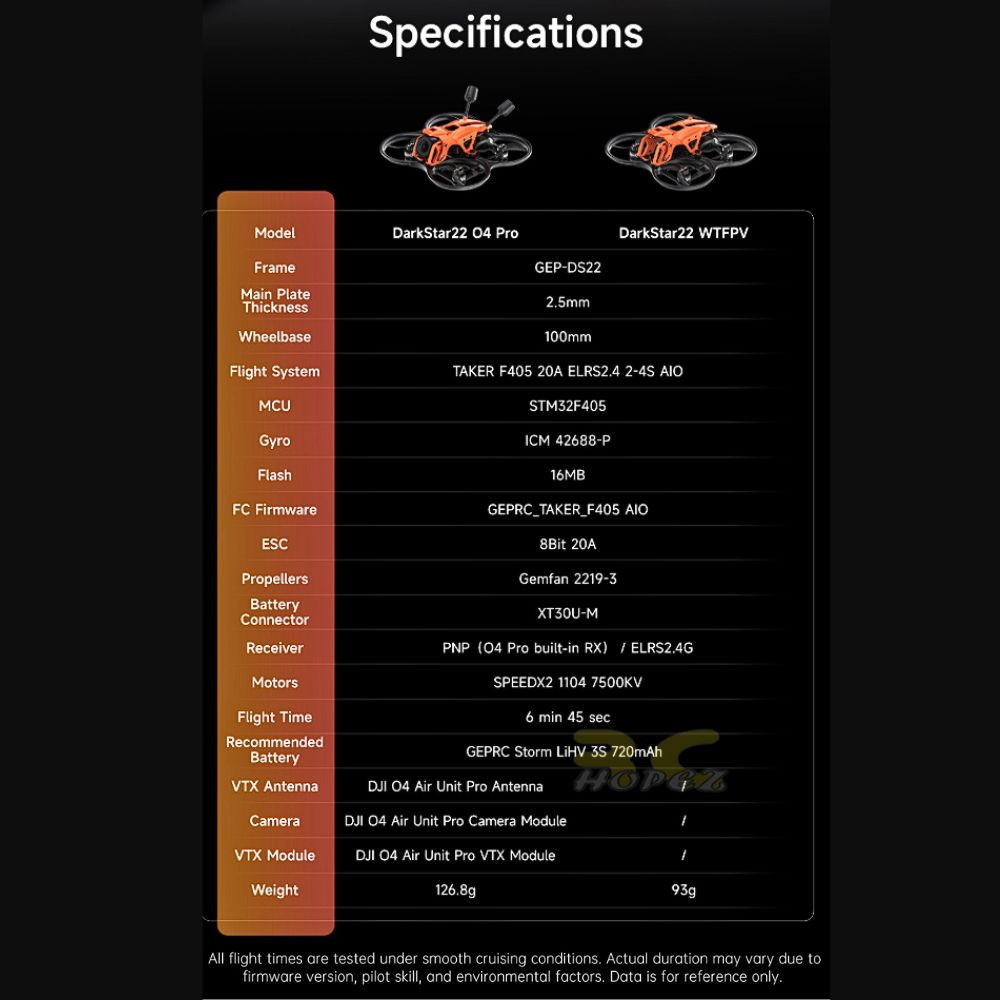

Specifications ***With O4 PRO
Model: DarkStar22 O4 Pro
Frame: GEP-DS22
Main Carbon Plate Thickness: 2.5mm
Wheelbase: 100mm
FC System: TAKER F405 20A ELRS2.4 2-4S AIO
MCU: STM32F405
Gyro: ICM42688-P
FC Firmware: GEPRC_TAKER_F405 AIO
Flash: 16MB
ESC: 8Bit 20A
Motor: SPEEDX2 1104 7500KV 1.5mm Shaft
Propellers: GEPRC x GEMFAN GP2219-3 1.5mm Shaft
Power Connector: XT30U-M
VTX: DJI O4 Air Unit Pro
Camera: DJI O4 Air Unit Pro camera module
Antenna: DJI O4 Air Unit Pro antenna
Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G (Optional)
Weight (ELRS 2.4G version): 126.8g

Specifications ***WTFPV – NOT come with VTX /Camera/Antenna
Model: DarkStar22 WTFPV
Frame: GEP-DS22
Main Carbon Plate Thickness: 2.5mm
Wheelbase: 100mm
FC System: TAKER F405 20A ELRS2.4 2-4S AIO
MCU: STM32F405
Gyro: ICM42688-P
FC Firmware: GEPRC_TAKER_F405 AIO
Flash: 16MB
ESC: 8Bit 20A
Motor: SPEEDX2 1104 7500KV
Propellers: GEPRC x GEMFAN GP2219-3
Power Connector: XT30U-M
VTX: None
Camera: None
Antenna: None
Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
Weight (ELRS 2.4G version): 98.0g
