GEPRC TAKER F411-12A-E AIO 1-2S F411 FC 12A 4in1 ESC  (25.5×25.5mm) for Darkstar20 FPV Racing Drone GEP-F411-12E

RM280.00

Out of stock

SKU: GEP-F411-12E Categories: ,

GEPRC TAKER F411-12A-E AIO 1-2S F411 FC 12A 4in1 ESC  (25.5×25.5mm) for Darkstar20 FPV Racing Drone GEP-F411-12E

Summary
TAKER F411-12A-E 1~2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.

The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.

Feature
1. Highly integrated and lightweight flight system
2. Supports 1-2S power supply and has higher battery compatibility
3. STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable
4. The motor wiring is reserved for welding or SH1
5. Integrated ELRS2

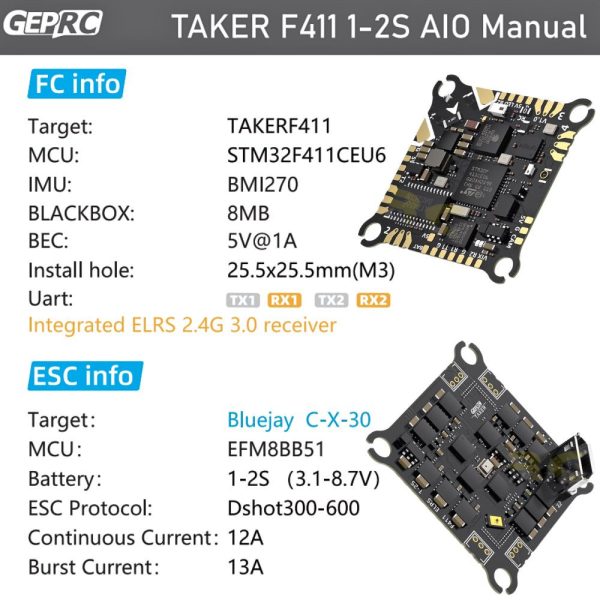

Specifications
Model: TAKER F411-12A-E 1~2S AIO
MCU: STM32F411
IMU: BMI270
Firmware Target: TAKERF411
OSD: Betaflight OSD w/ AT7456Ev
UART: T1 R1 / T2 R2
SBUS: R2
Receiver: ELRS2.4G 3.0

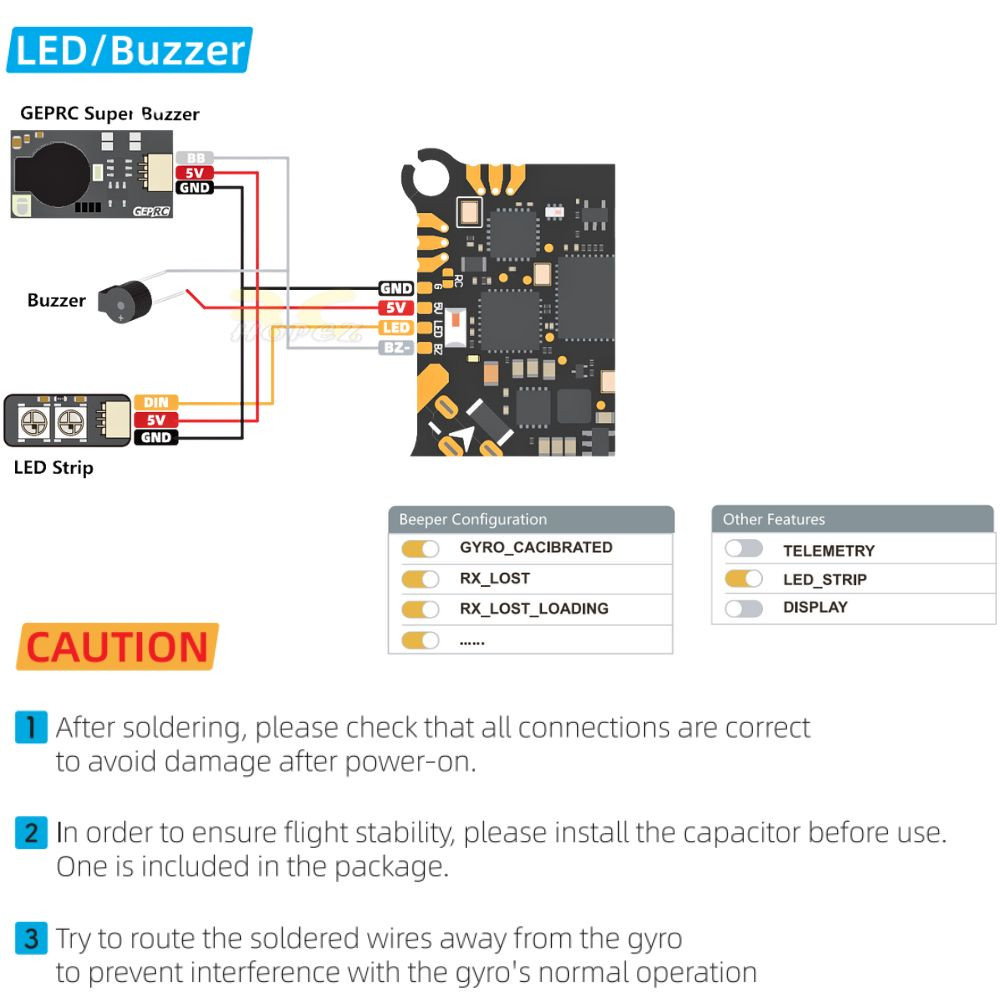

Buzzer: Support
LED: Support
USB: Micro USB
ESC MCU: EFM8BB21F16G
Continuous Current: 12A
Burst Current: 13A
Input Voltage: LiPo/LiHv 1S-2S
Support Protocol: Dshot300/600,Oneshot,Multishot
Blackbox: 8MB
Galvanometer: Support
Firmware Target: C-X-30

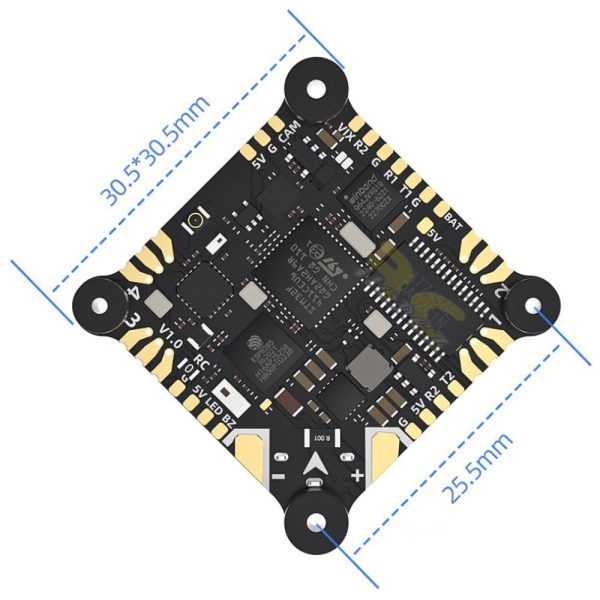

Size: 30.5mm*30.5mm
Fixing hole size:25.5mm*25.5mm(M2)
Weight: 4.2g

Includes
1 x TAKER F411-12A-E 1~2S AIO
1 x Cable Set

Weight 0.03 kg
Dimensions 3.00 × 3.00 × 3.00 cm
