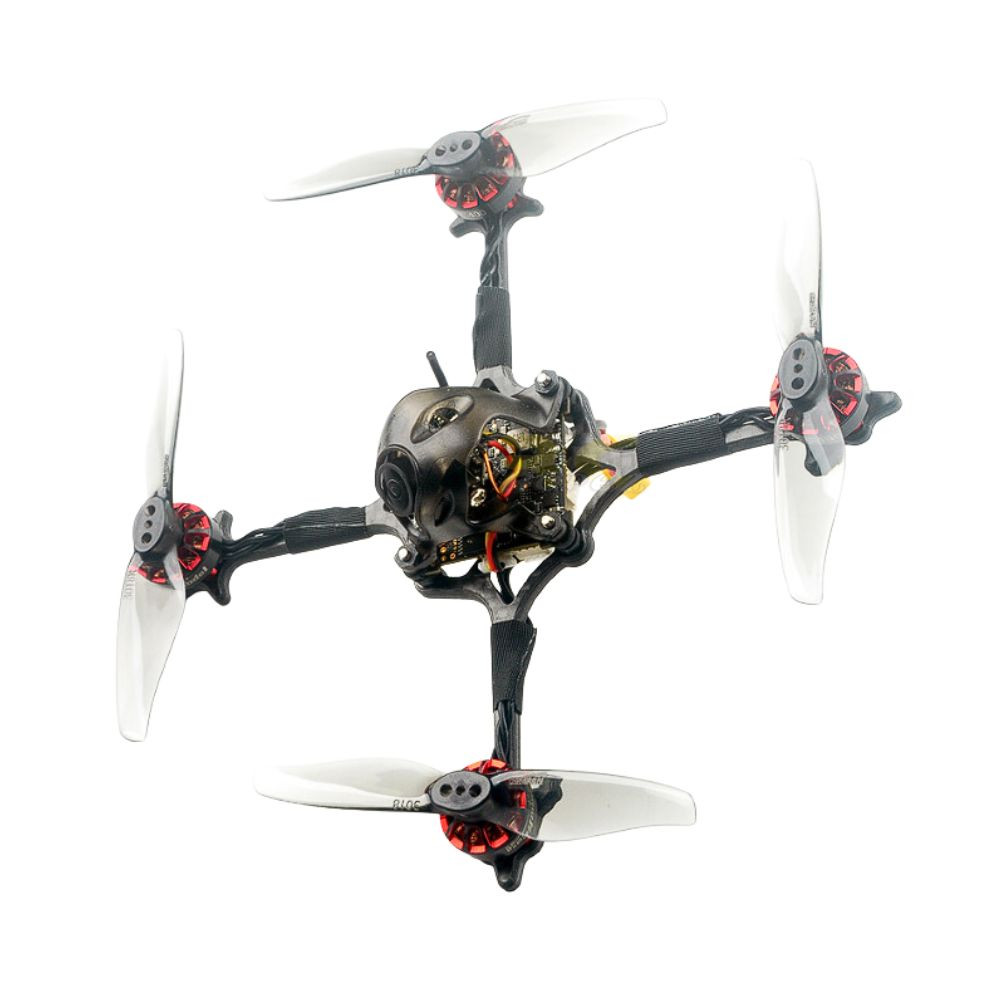

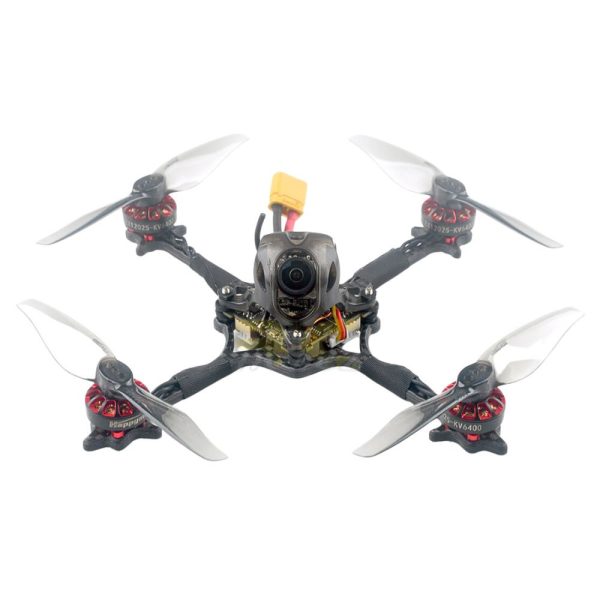

Happymodel Crux3 115mm 1-2S CrazybeeX V2.2 4In1 AIO w/Caddx ANT 1200tvl 3 Inch Toothpick FPV Racing Drone Crux3-Flysky

Happymodel Crux3 115mm 1-2S CrazybeeX V2.2 4In1 AIO w/Caddx ANT 1200tvl 3 Inch Toothpick FPV Racing Drone Crux3-Flysky

Features:
41gram 1-2s brushless Toothpick drone
New AIO 4in1 CrazybeeX flight controller
CADDX ANT Camera

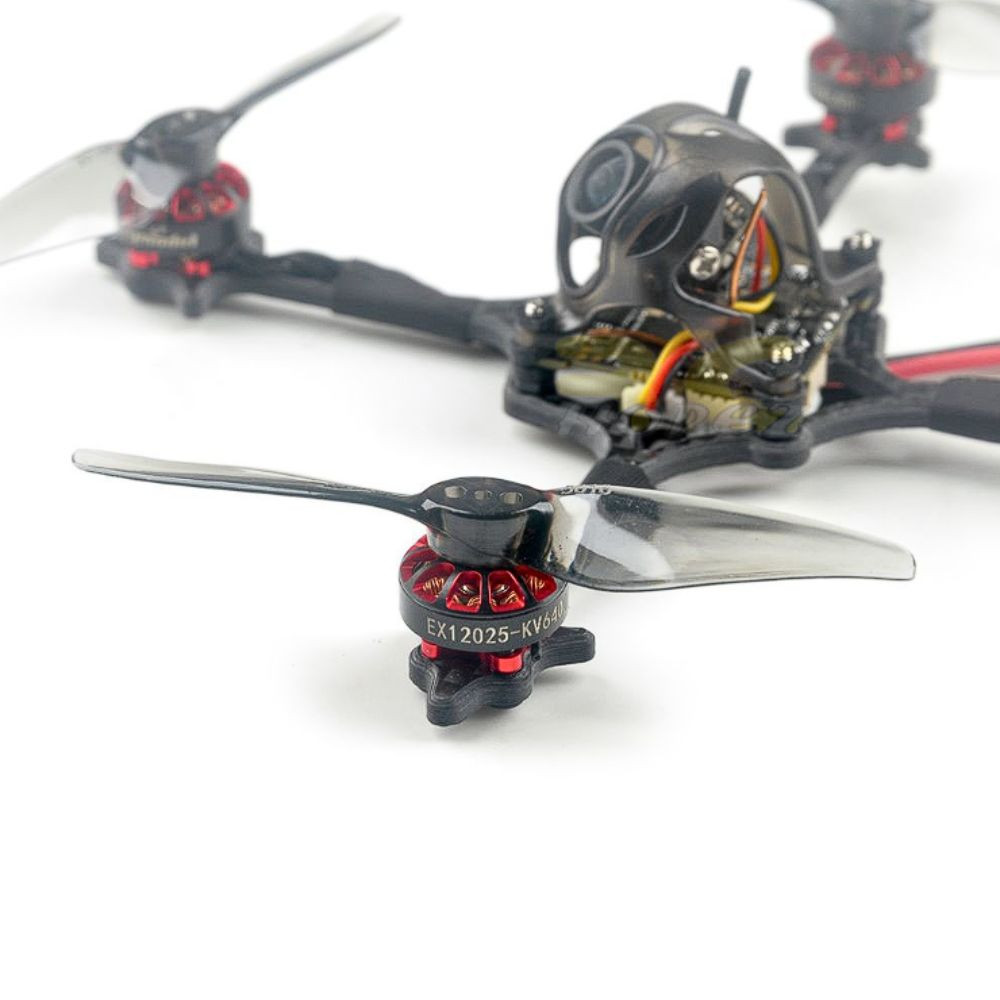

New 1202.5 brushless motor
XT30 connector
Recommend to use 2s 350mah/400mah/450mah/520mah battery (NOT Included)

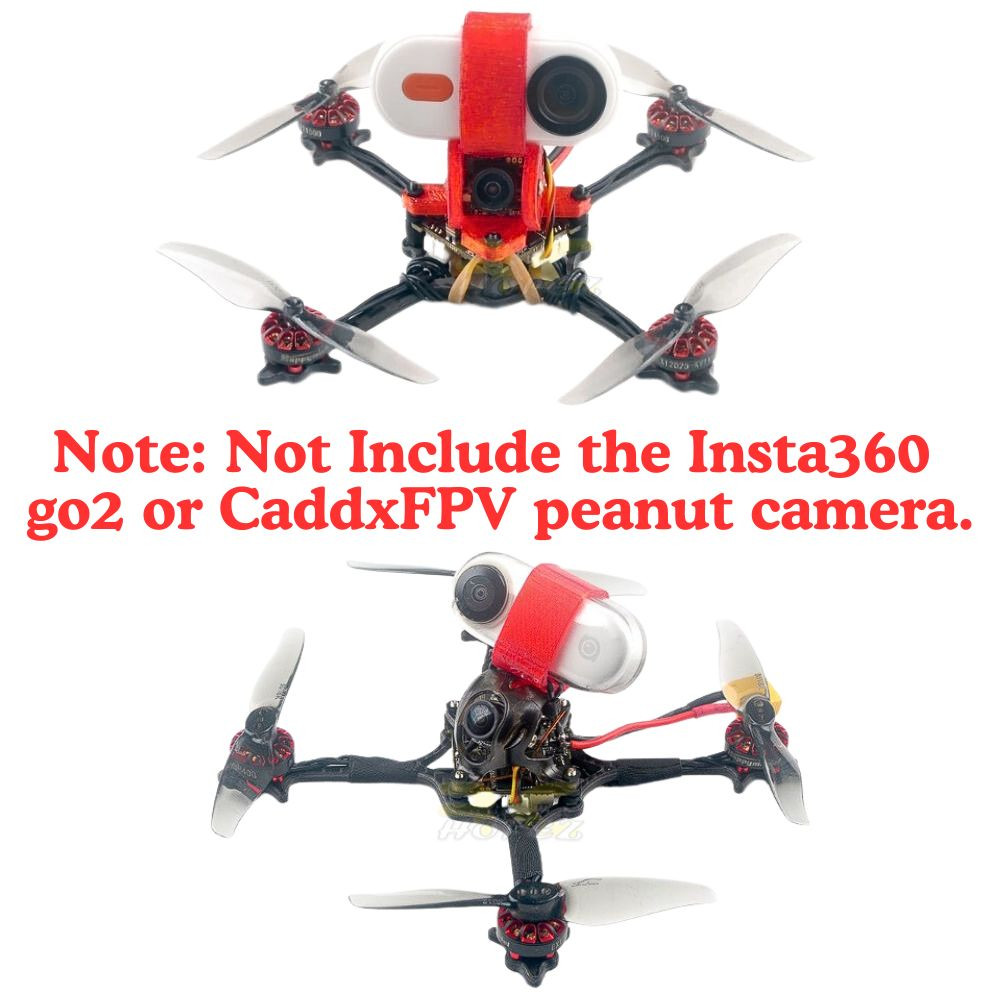

Compatible with Insta360 Go Camera

Specifications：
Brand Name: Happymodel
Item Name: Crux3
Wheelbase: 115mm
Size: 97mmx97mmx35mm(without propellers)

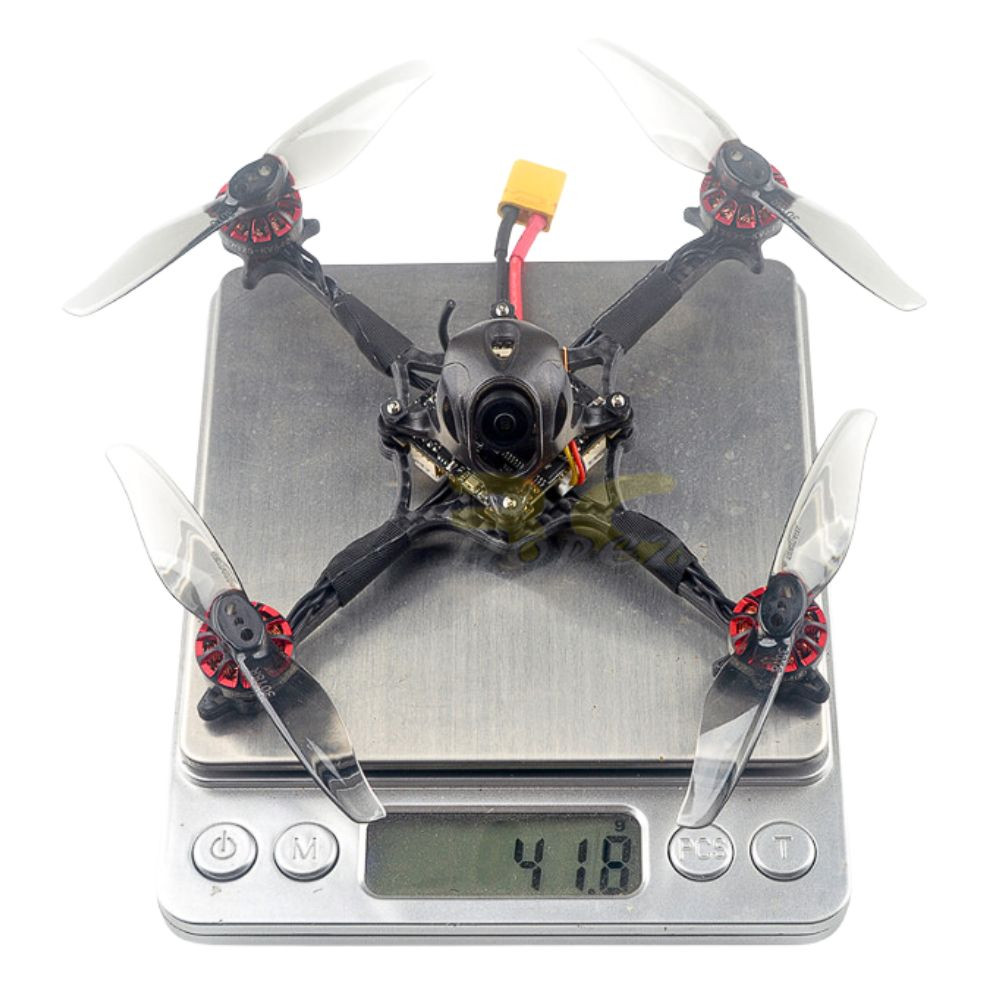

Weight: 41g(without battery)

Motor
Mode: EX1202.5 KV6400
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1-2S

Propellers
Gemfan 3018-2
Center Thickness:5.5mmProp Diameter:76.5mm
Center Hole diameter:1.5mm

Flight controller
Flysky SPI RX version -CRAZYBEEX FS V2.2 FC
Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver or no receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Default protocol: DSHOT600

Onboard Flysky SPI receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support

Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race bandSmartaudio ready

Caddx ANT 1200tvl camera
Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBSLens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

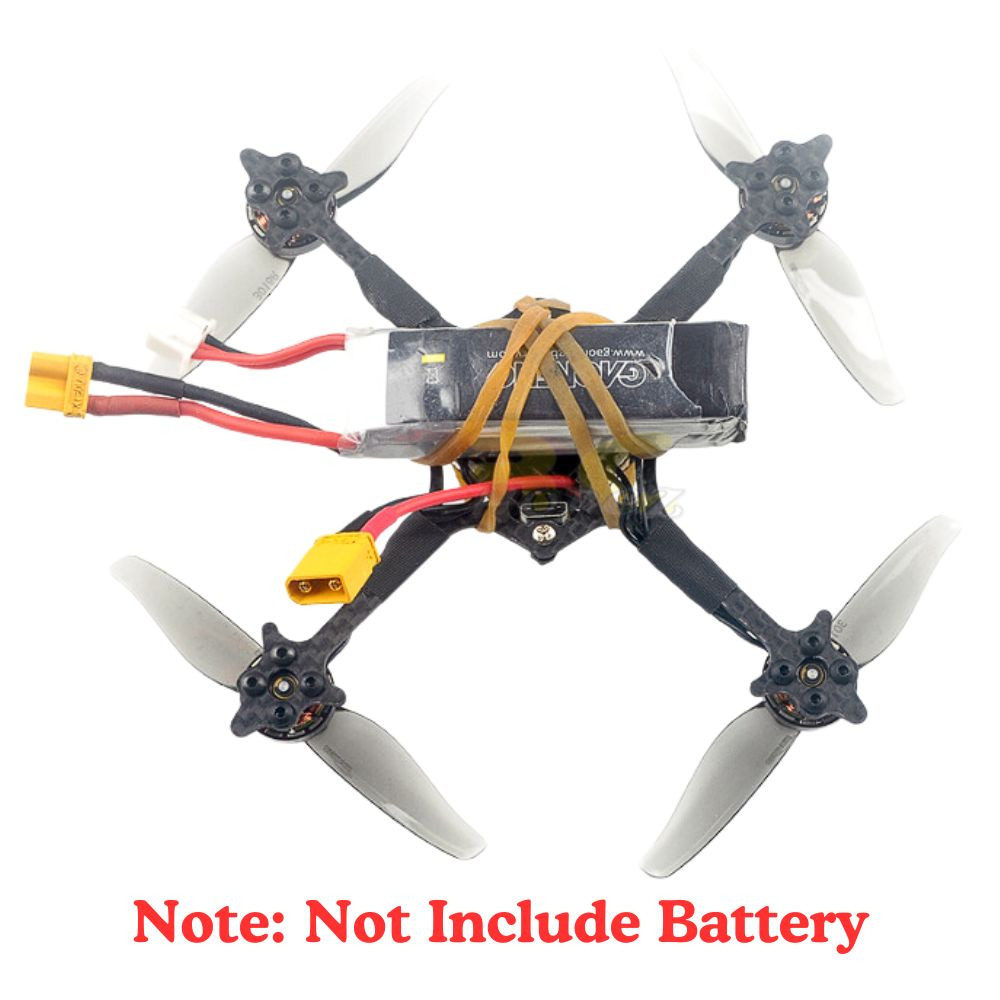

Recommend Lipo Battery: ( NOT Included)
2s 350mah/400mah/450mah/520mah battery XT30 connector

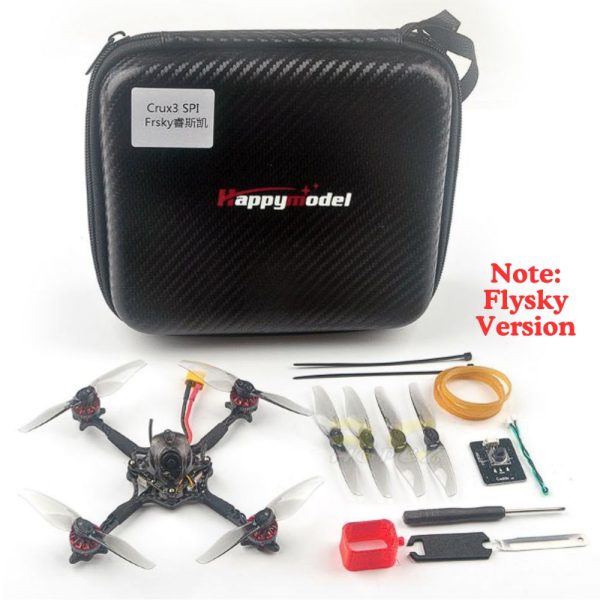

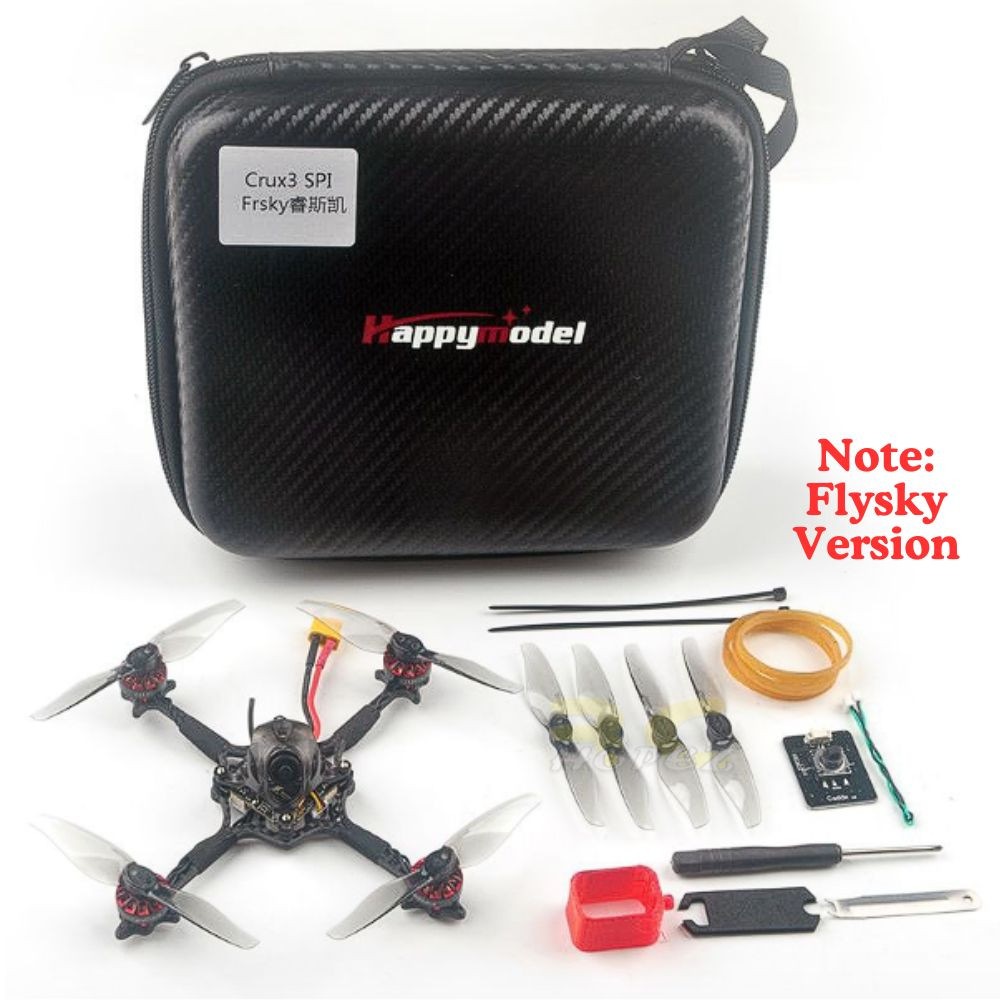

Includes
1 x Happymodel Crux3 Flysky 1-2S Toothpick FPV Racing Drone
1 x 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut
1x Happymodel Zippered Carrying Case
1x Gemfan 3018-2 Propellers (4cw+4ccw)
1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1x Screw Driver
1x Propeller disassemble tool
