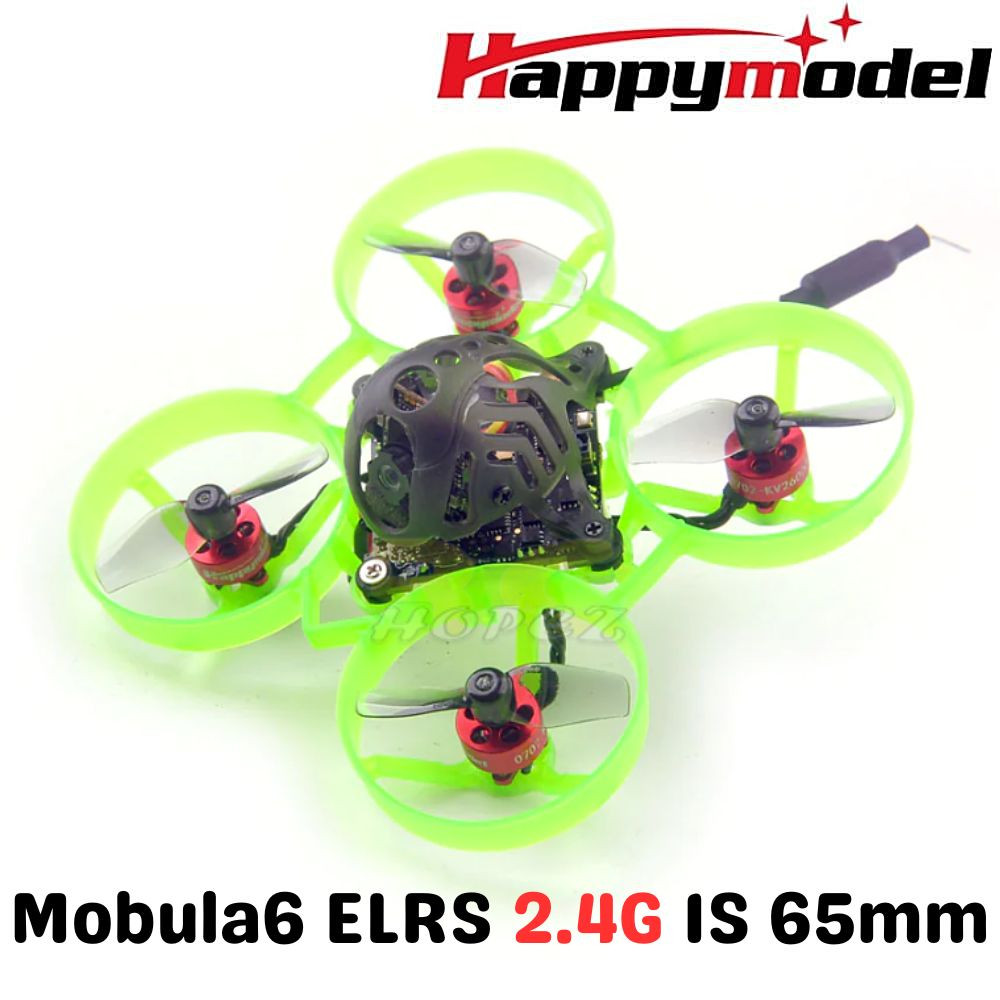

Happymodel Mobula6 ELRS 2.4G 1S 65mm ELRS F4 2G4 AIO BNF w/Runcam Nano 3 Brushless Whoop HP6-ELRS2.4(G)

RM405.00

Out of stock

SKU: HP6-ELRS2.4(G) Category:

Happymodel Mobula6 ELRS 2.4G 1S 65mm ELRS F4 2G4 AIO BNF w/Runcam Nano 3 Brushless Whoop HP6-ELRS2.4(G)

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season.

Specifications
Item Name: Mobula6 ELRS 1S 65mm Brushless whoop BNF version
Frame Color: ELRS 2.4GHZ- Green
Size: 80x80mx37mm
Brand: Happymodel
Wheelbase: 65mm

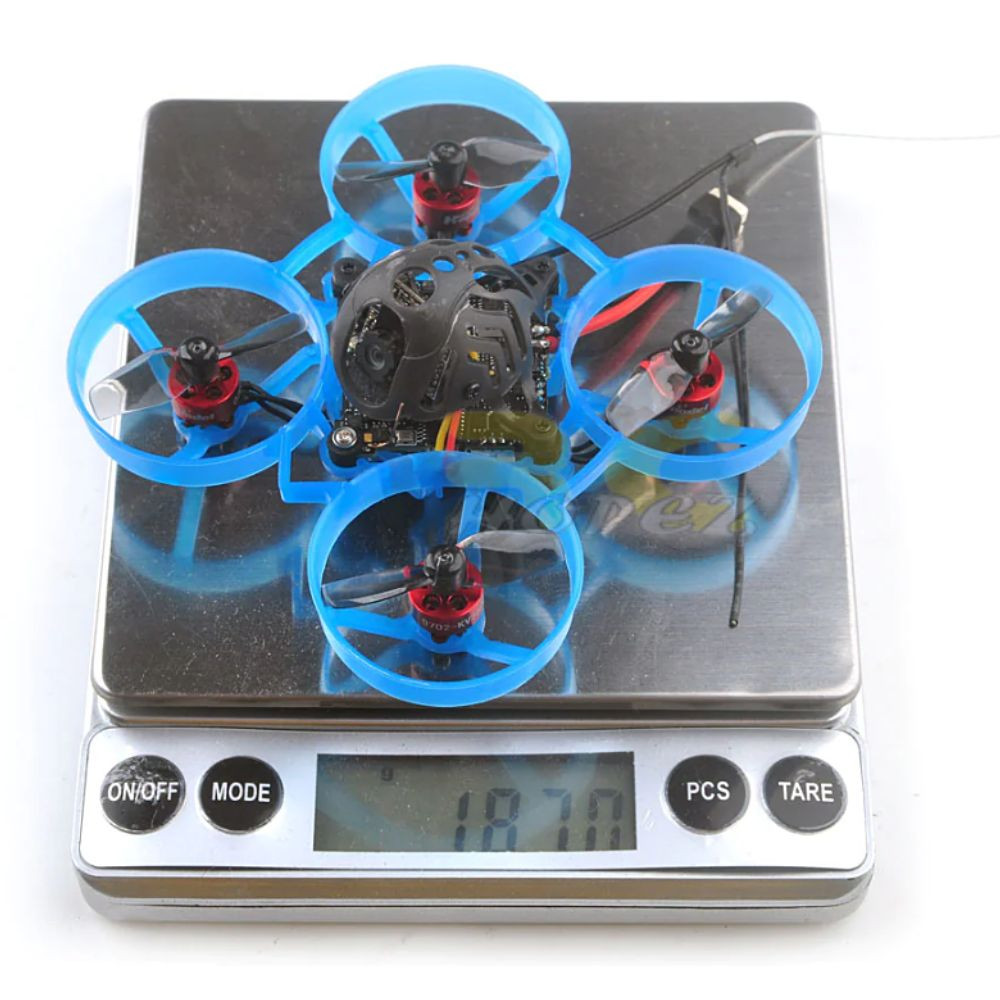

Weight: 18.7g
Voltage:1S

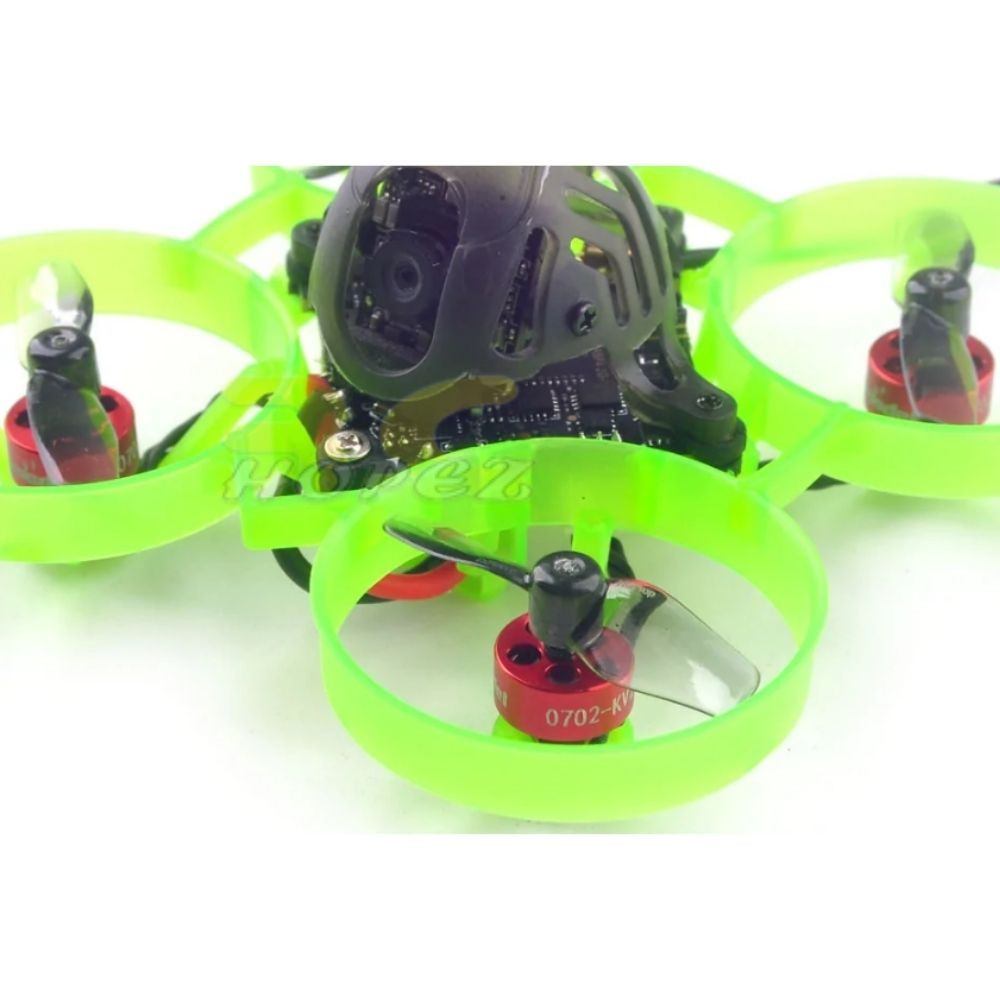

Motor:
Mode: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers:
HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g

Flight Controller:
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard 5.8g VTX
Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens: 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0

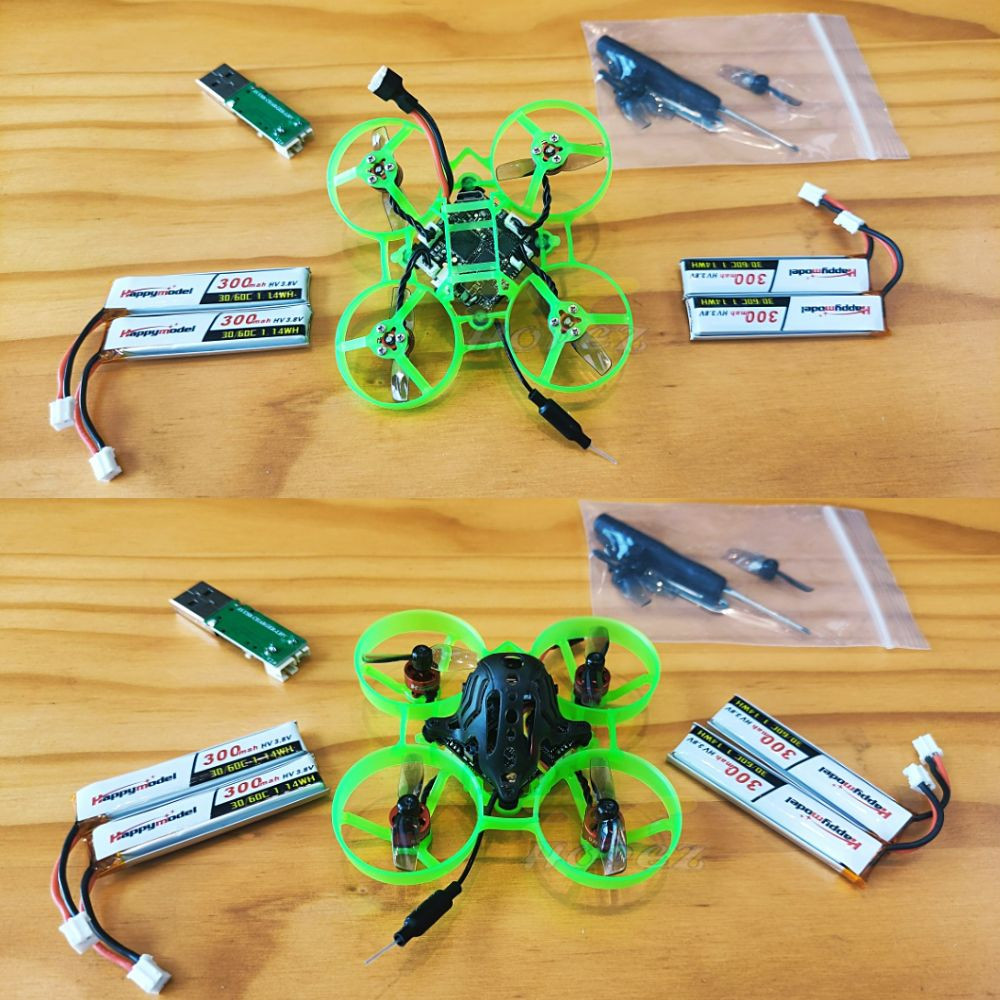

Includes :
1x Happymodel Mobula6 1S 65mm Brushless Whoop – ELRS 2.4GHz
1x  HQProp 31mm Bi-Blade Propeller (Set of 4)
4x 1S 300mAh 30C LiHV Battery
1x 1S Lipo/LIHV USB Charger
1x Screwdriver
1x Prop Tool





Weight 0.10 kg
Dimensions 5.00 × 5.00 × 5.00 cm
