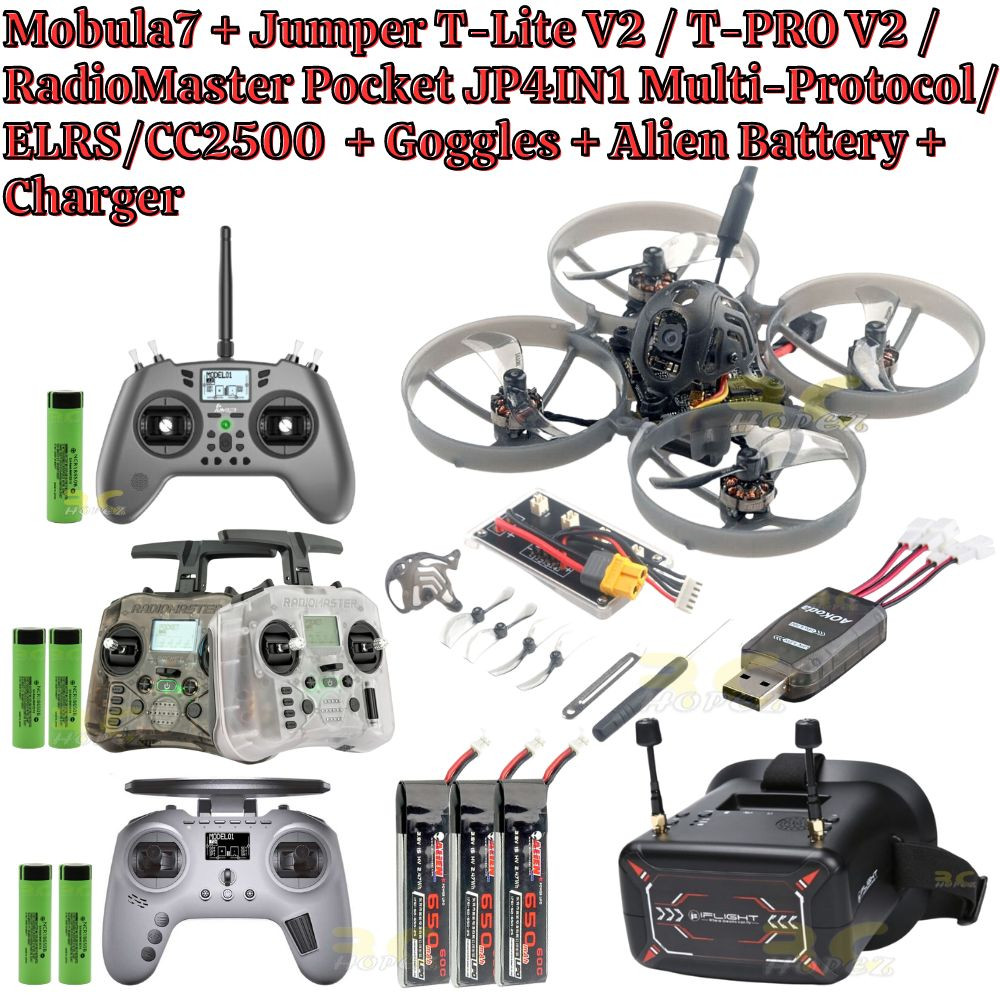

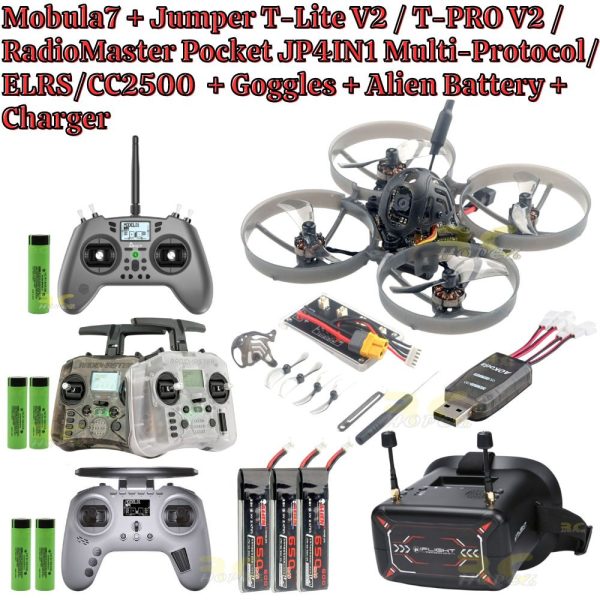

Happymodel Mobula7 75mm 1S X12 V3.0 5-IN-1 AIO Whoop + RadioMaster Pocket/Jumper T Lite V2/T-Pro V2 BNF ELRS/Frsky

Happymodel Mobula7 75mm 1S X12 V3.0 5-IN-1 AIO Whoop + RadioMaster Pocket/Jumper T Lite V2/T-Pro V2 BNF ELRS/Frsky

NOTE :

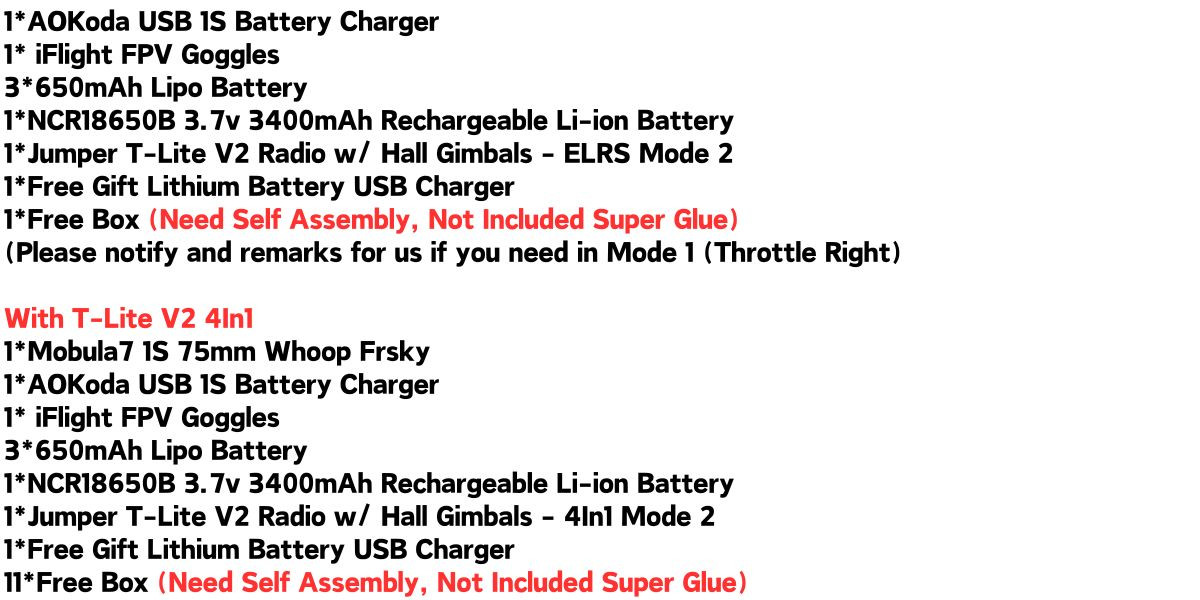

– For Jumper T Lite V2 / T-Pro V2 / RadioMaster Pocket , please notify and remarks for us if you need in Mode 1 (Throttle Right)

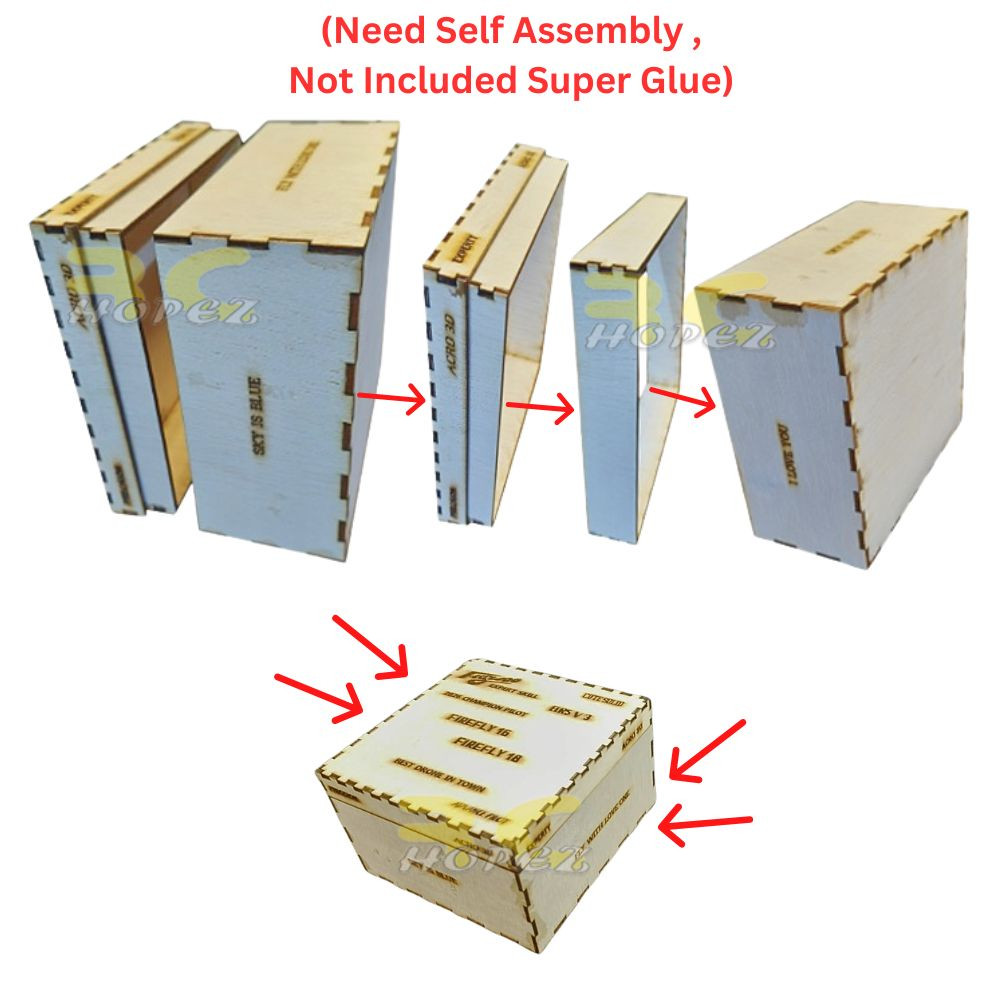

– Box need self assembly. Not Inclduded Super Glue

Spec:
Brand Name: Happymodel

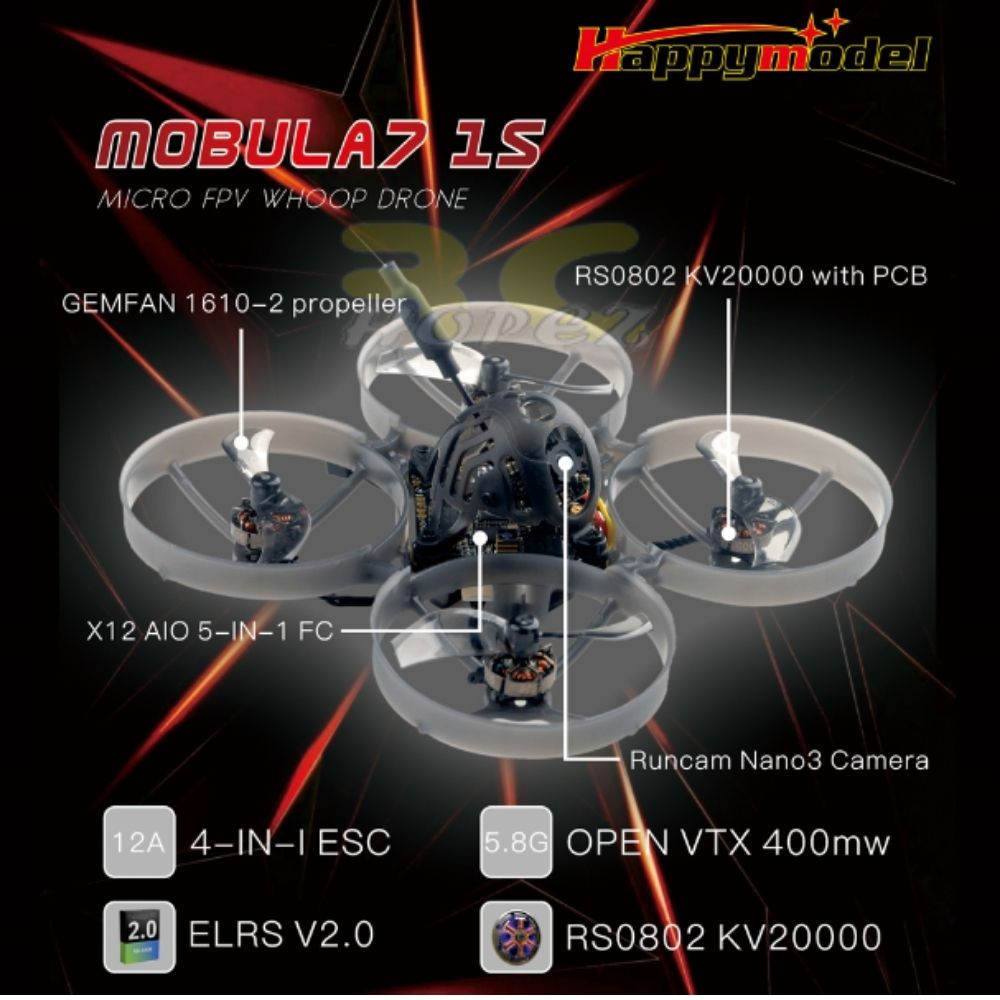

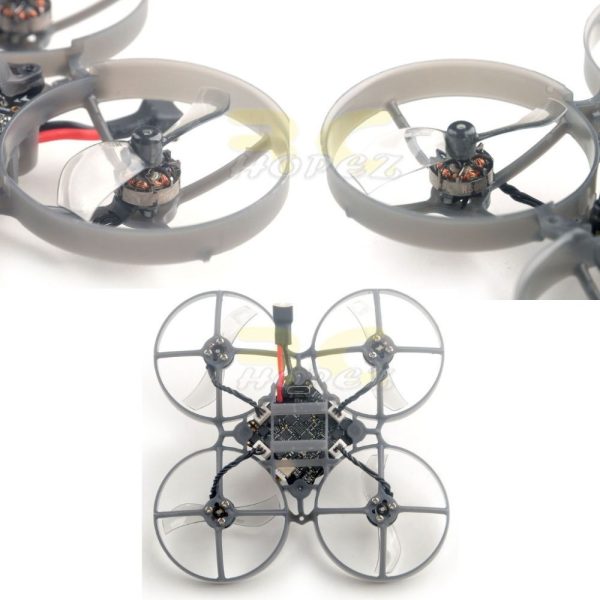

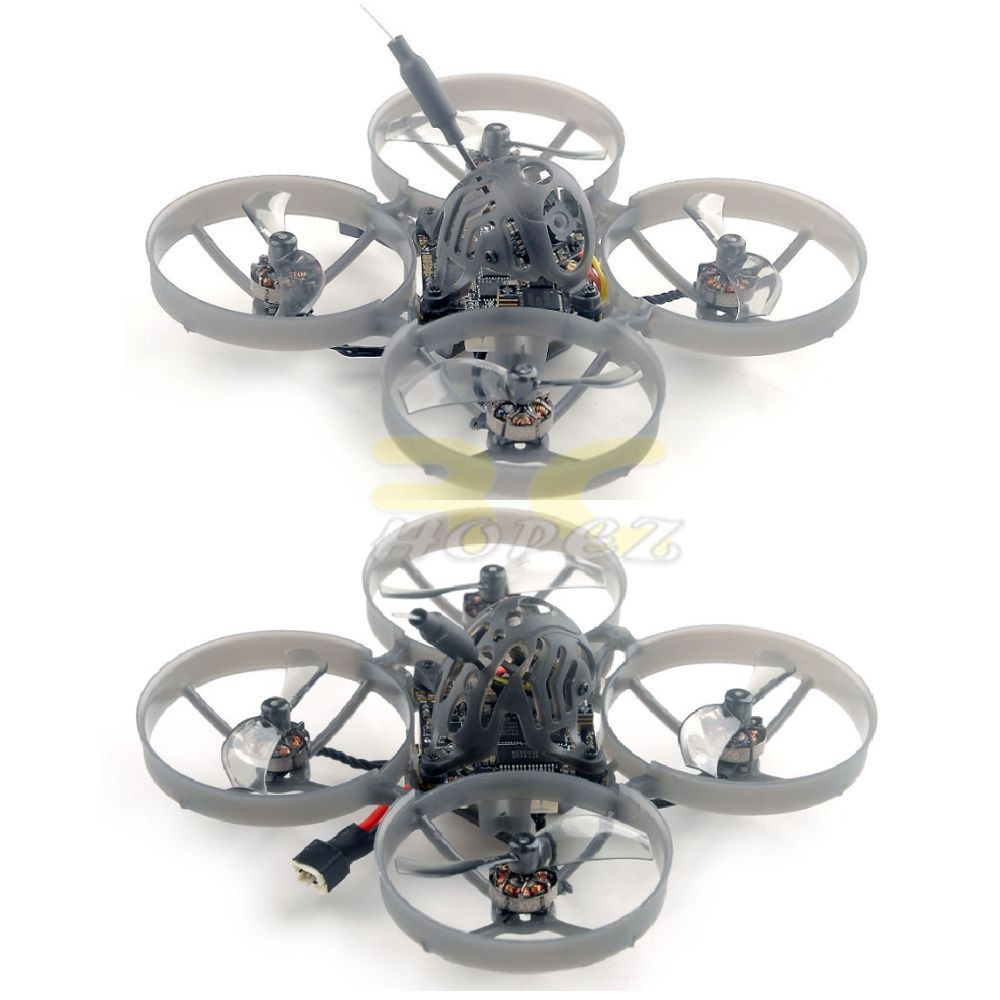

Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm

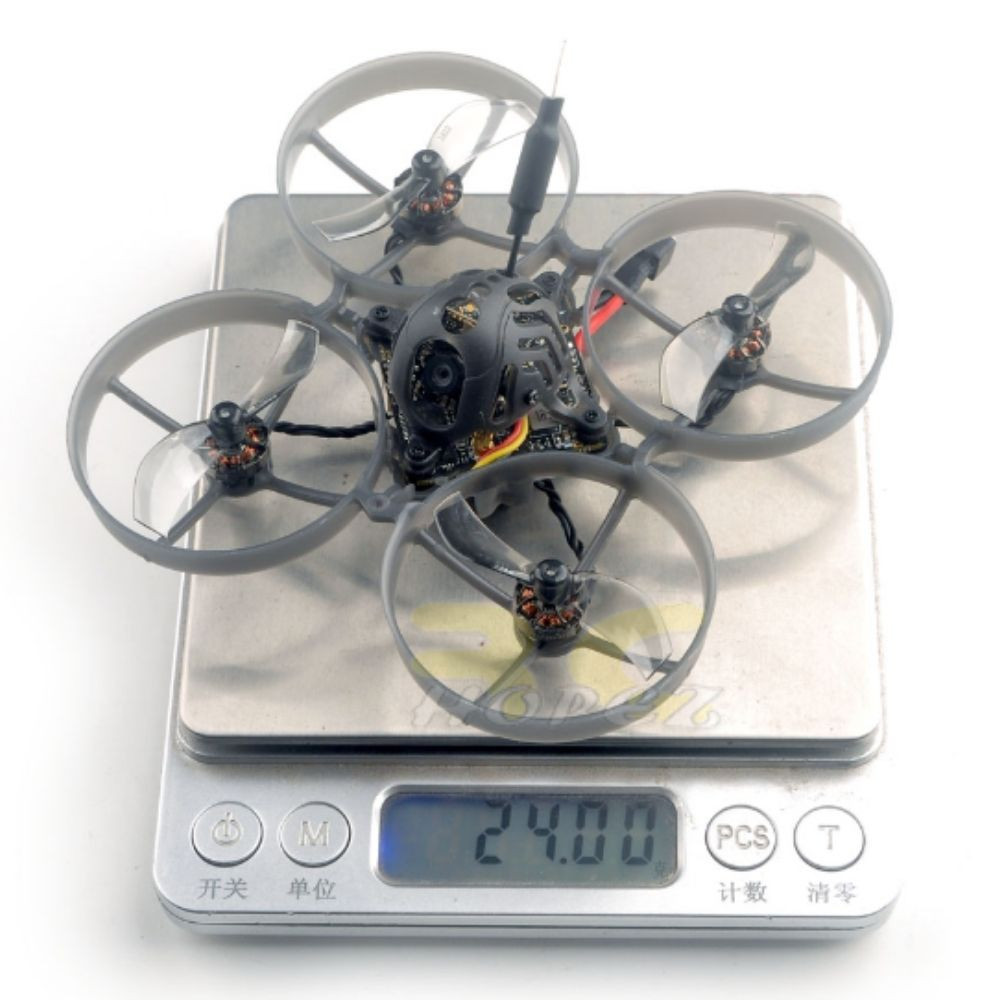

Weight: 24g

RX option:
2.4G ELRS SPI
SPI Frsky D8/D16

Motor：
RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only

Propellers：
Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm

FC ：
X12 ELRS V3.0 FC built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 FC built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC：
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard SPI ExpressLRS 2.4GHz RX：
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn't flash separately ExpressLRS firmware

Onboard Frsky SPI D8/D16 RX：
SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model
Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

Onboard 5.8g OPENVTX :
Firmware version: OPENVTX
Smart audio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Runcam Nano3:
Image Sensor: 1/3 CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14*W14*H9mm

Lipo Battery：(NOT Included)
Capacity:650mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60x18x8mm
Weight: 16g
Connector: PH2.0
