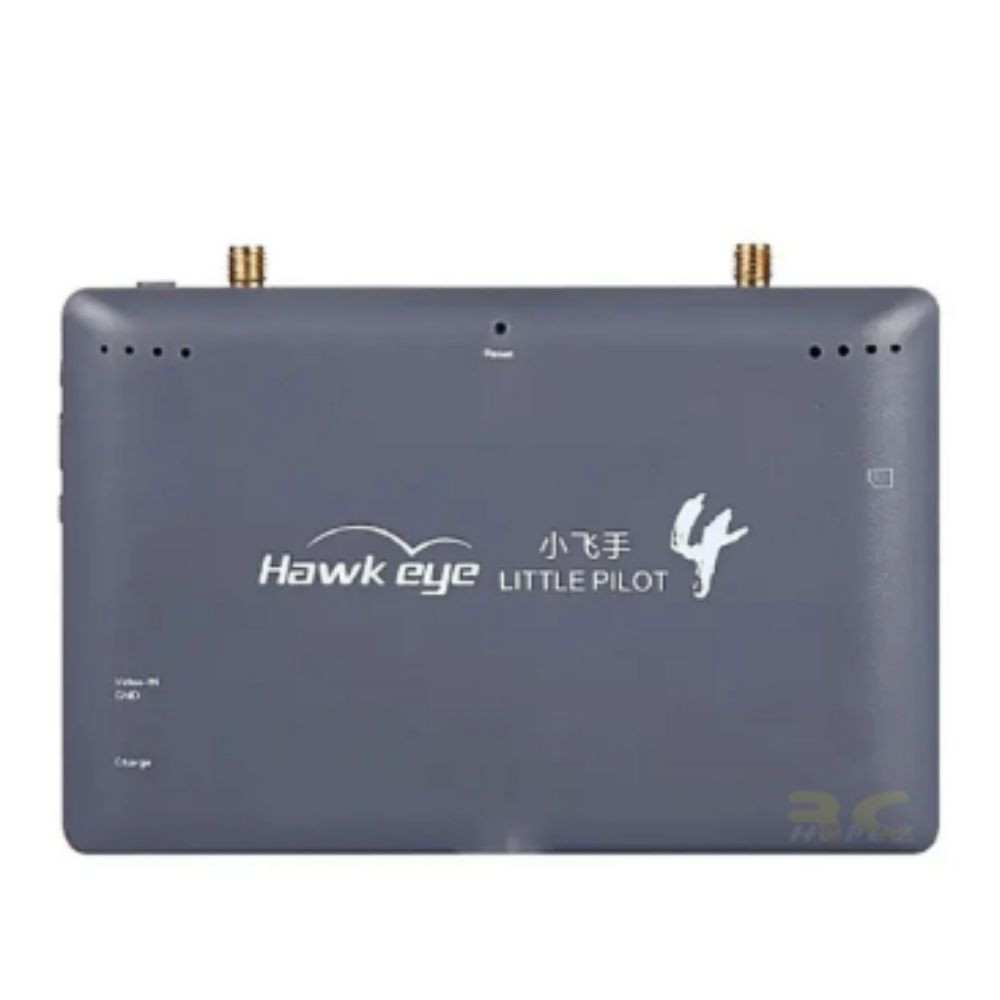

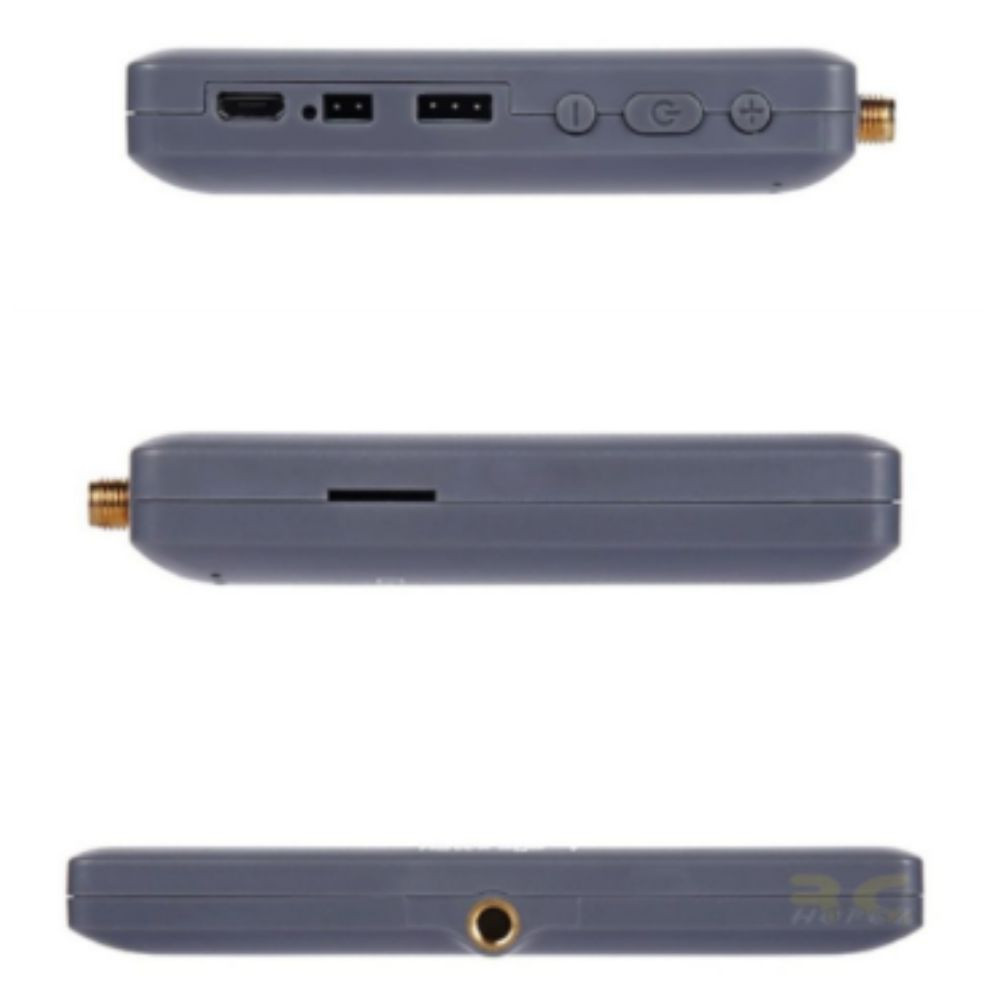

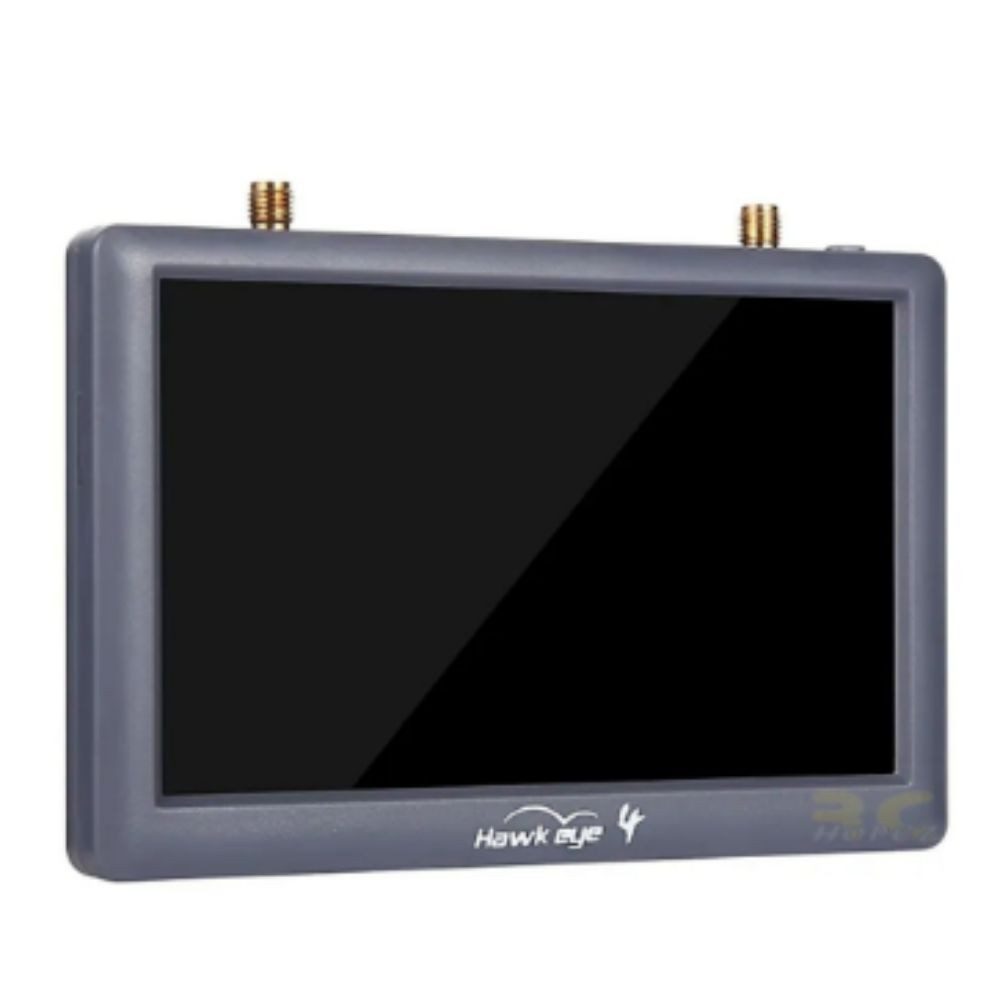

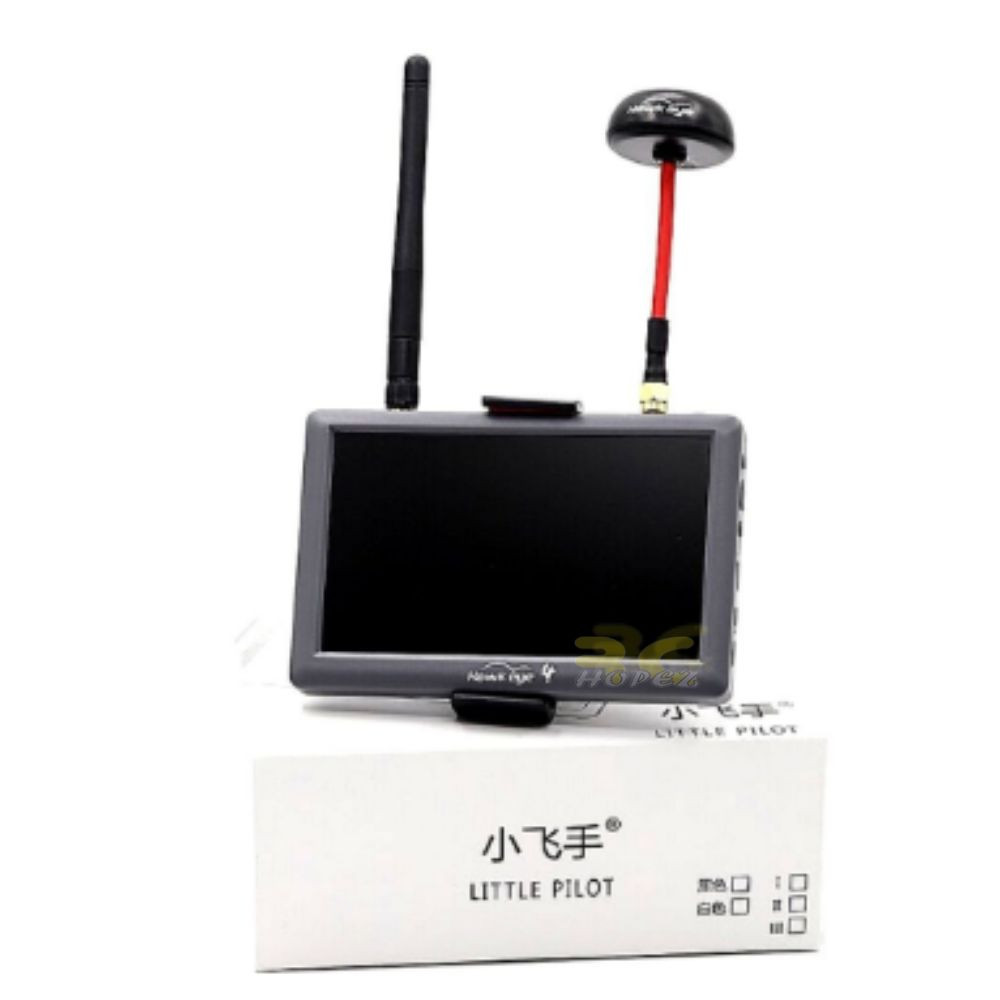

Hawkeye Little Pilot 4 Built-in DVR 5 inch Display 5.8G 48CH Dual Receiver FPV HD Monitor XJ393
Tips:
Newest Hawkeye Little Pilot 4 Built in DVR
Dual Receivers: 5.8GHZ 48CH
Battery inside: 2.5 Hours
DVR: 720*288/720*240
Features:
Specially designed for aerial photography system, Little pilot all-in-one monitor has the following features:
Video buffer. Can record and playback on the monitor.
Built in battery for 2.5 hours.
Dual receivers.
High brightness: 700 Lux.
No delay/blue /black screen.
Auto/manual channel scan: no need for DIP switch. Reminder: For better display/record quality, please set the camera to NTSC format.

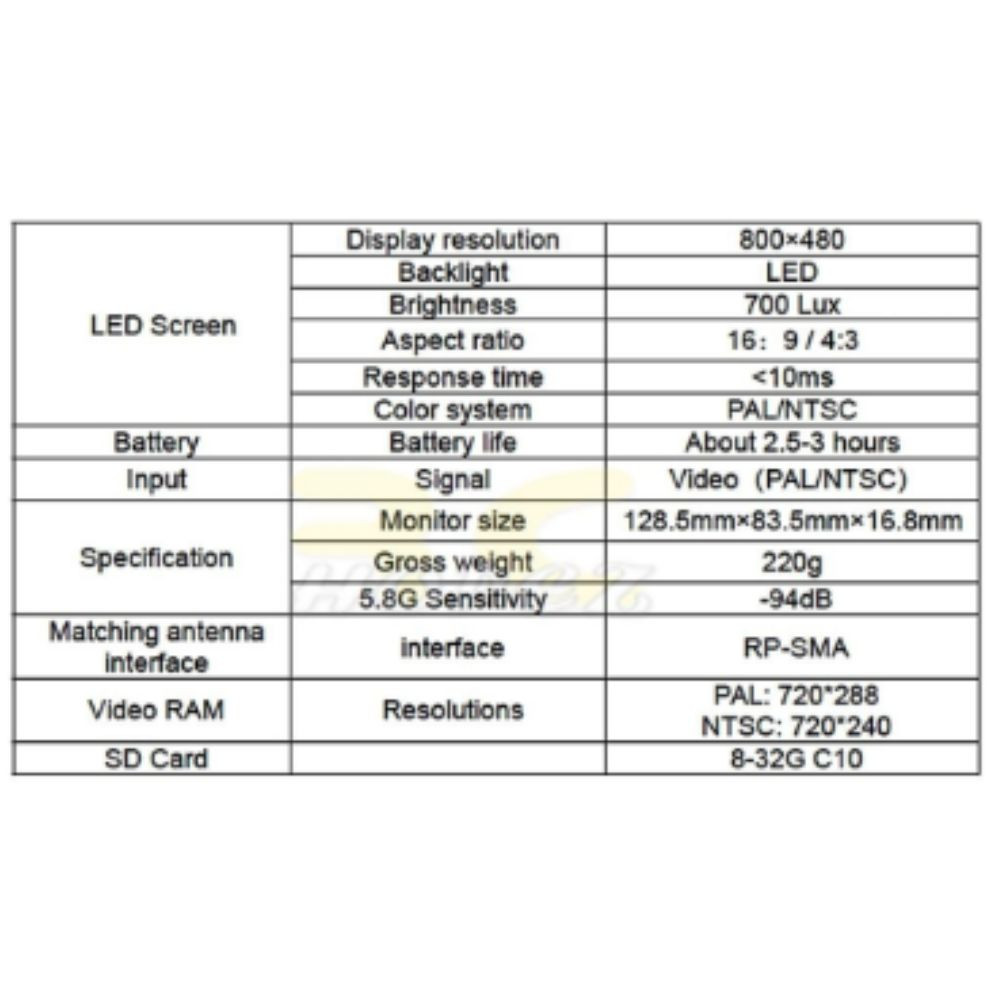

Specification
Display resolution : 800×480
Backlight : LED
Brightness : 700 Lux
Aspect ratio : 16:9 / 4:3
Response time : <10ms
Color system : PAL/NTSC
Battery life :About 2.5 hours
Signal : Video(PAL/NTSC)

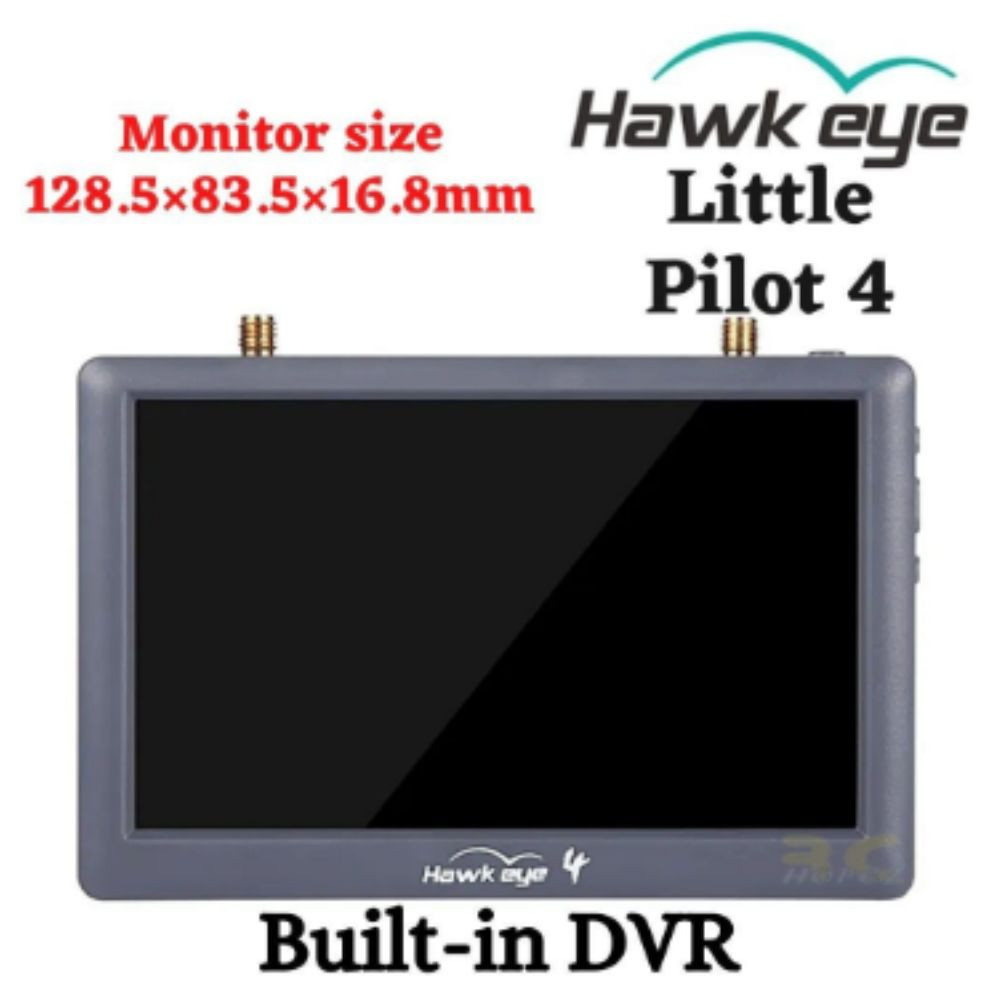

Monitor size : 128.5mm×83.5mm×16.8mm
Gross weight : 220g
5.8G Sensitivity : -94dB
Matching antenna : RP-SMA
DVR Resolutions : PAL: 720*288
NTSC: 720*240
SD Card : Support 8-32G C10 (not included)
Reminder: for better display/record quality, please set the camera to NTSC format.

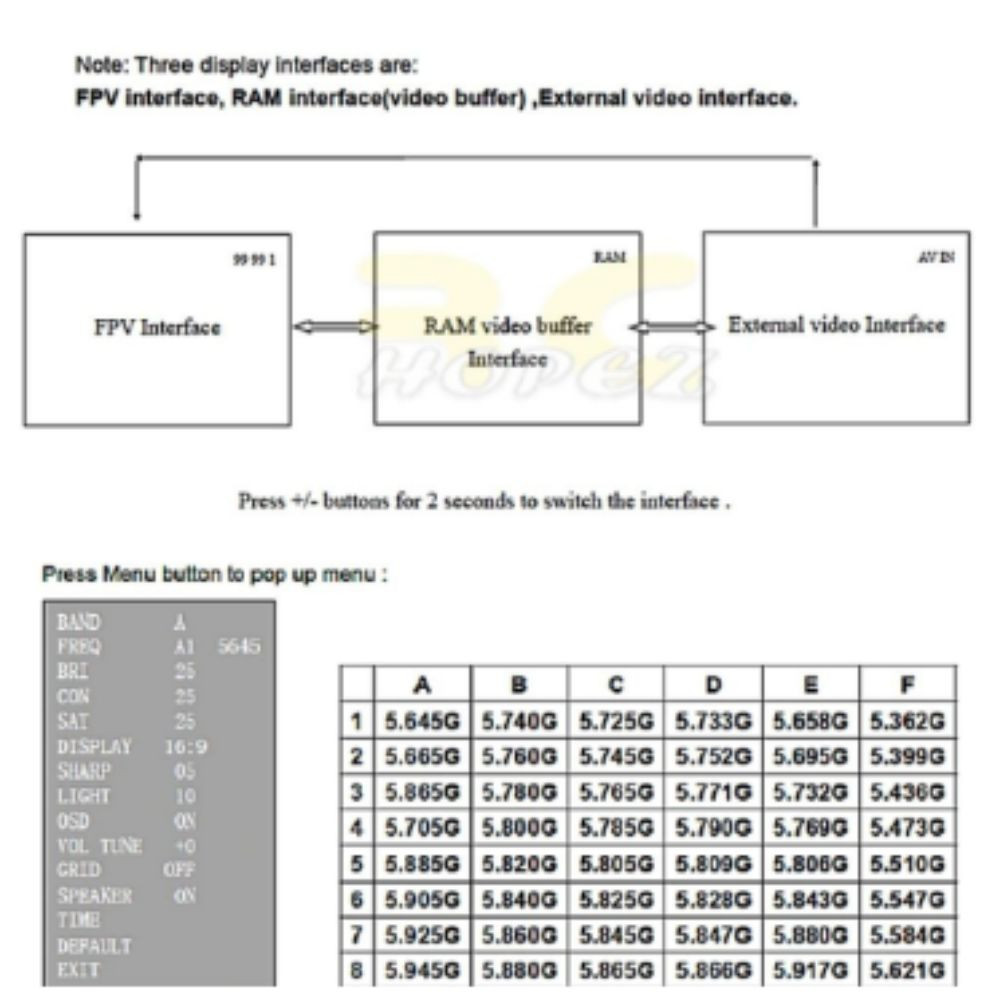

Frequency Group Selection:
You can select the desired frequency from 6 groups: A,B,C,D,E and F:
A B C D E F
1 5.645G 5.740G 5.725G 5.733G 5.658G 5.362G
2 5.665G 5.760G 5.745G 5.752G 5.695G 5.399G
3 5.865G 5.780G 5.765G 5.771G 5.732G 5.436G
4 5.705G 5.800G 5.785G 5.790G 5.769G 5.473G
5 5.885G 5.820G 5.805G 5.809G 5.806G 5.510G
6 5.905G 5.840G 5.825G 5.828G 5.843G 5.547G
7 5.925G 5.860G 5.845G 5.847G 5.880G 5.584G
8 5.945G 5.880G 5.865G 5.866G 5.917G 5.621G

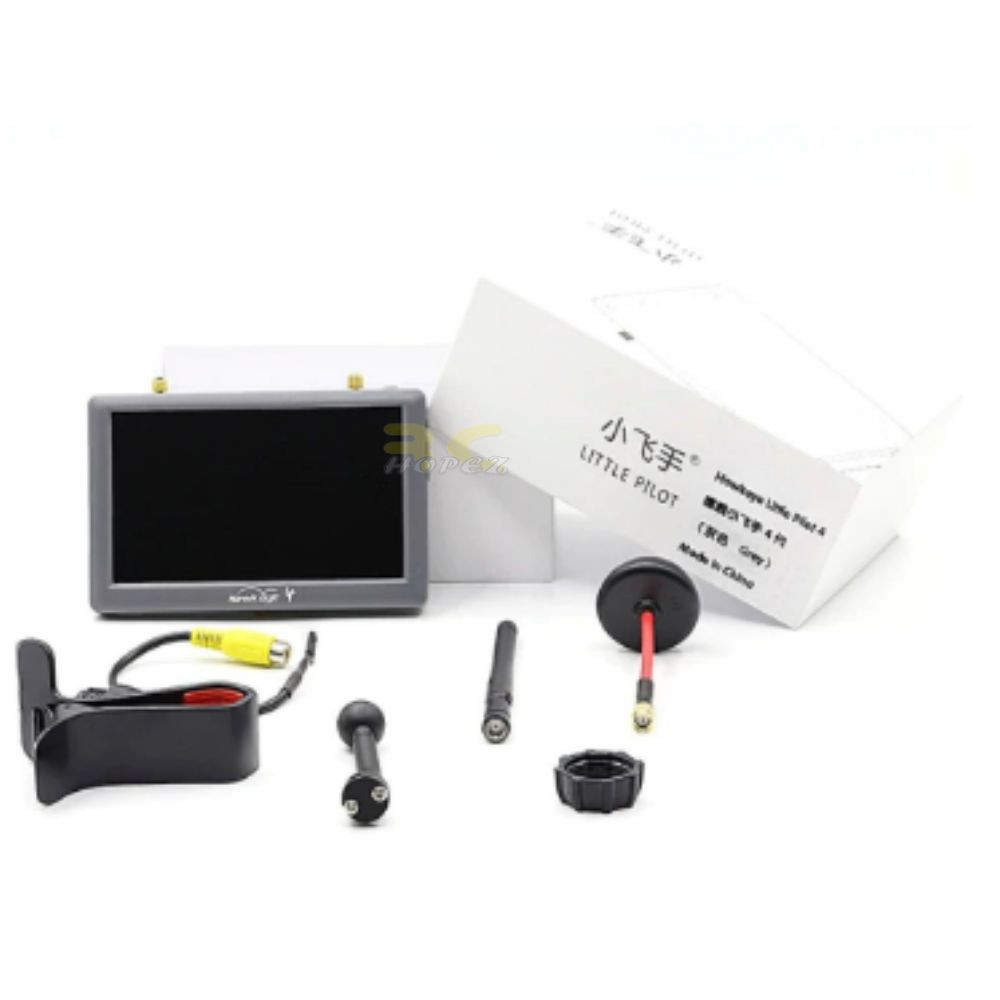

Package included
1 x Hawkeye Little Pilot IV 4 Built in DVR 5 inch Display HD Monitor

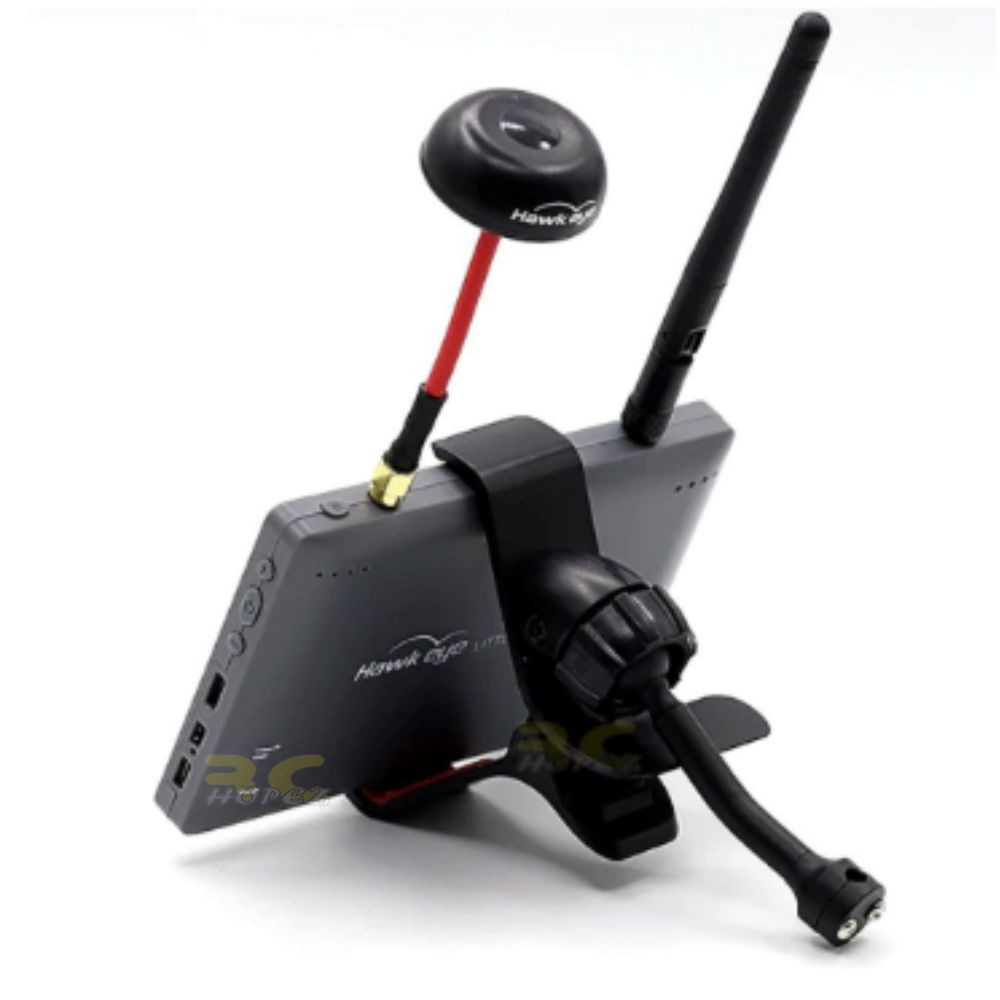

1 x Mounting Bracket
1 x Mushroom Antenna
1x Video Input Cable
1 x Video Out Cable
1 x Lever
1 x Stickers
1 x Manual
