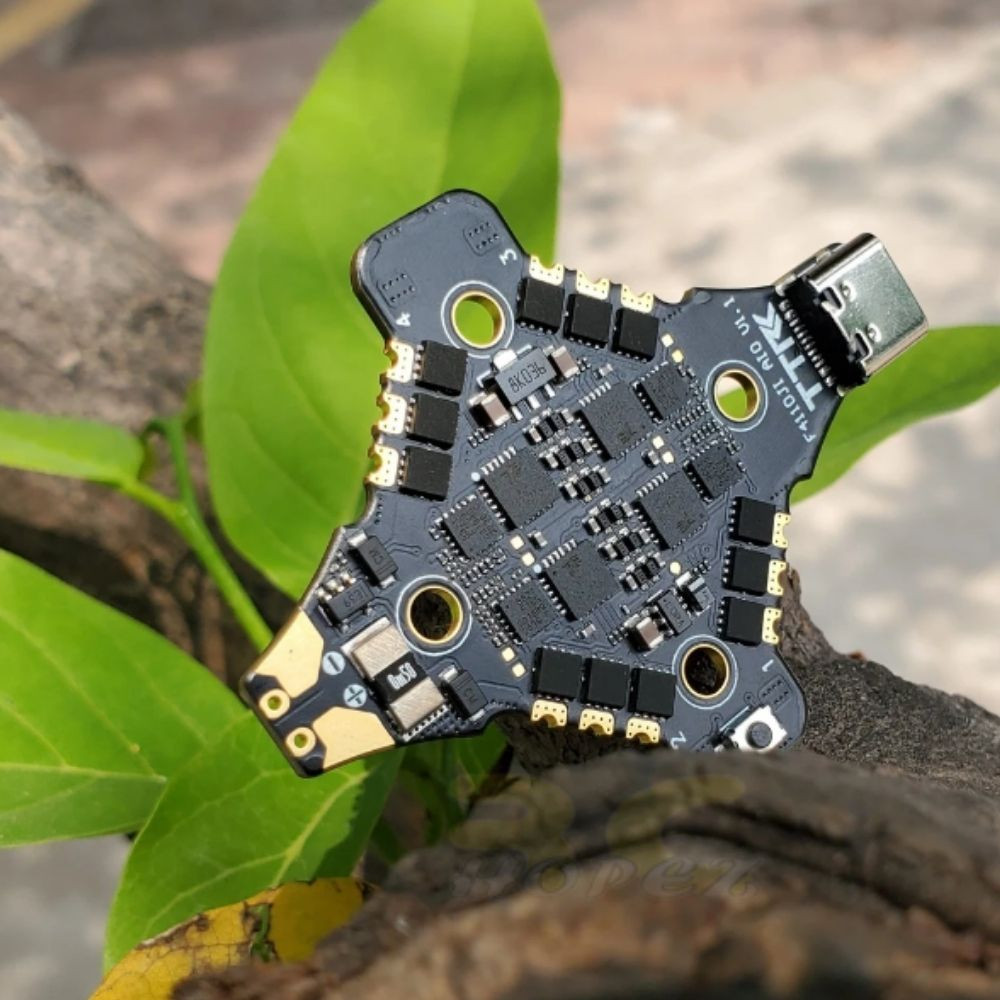

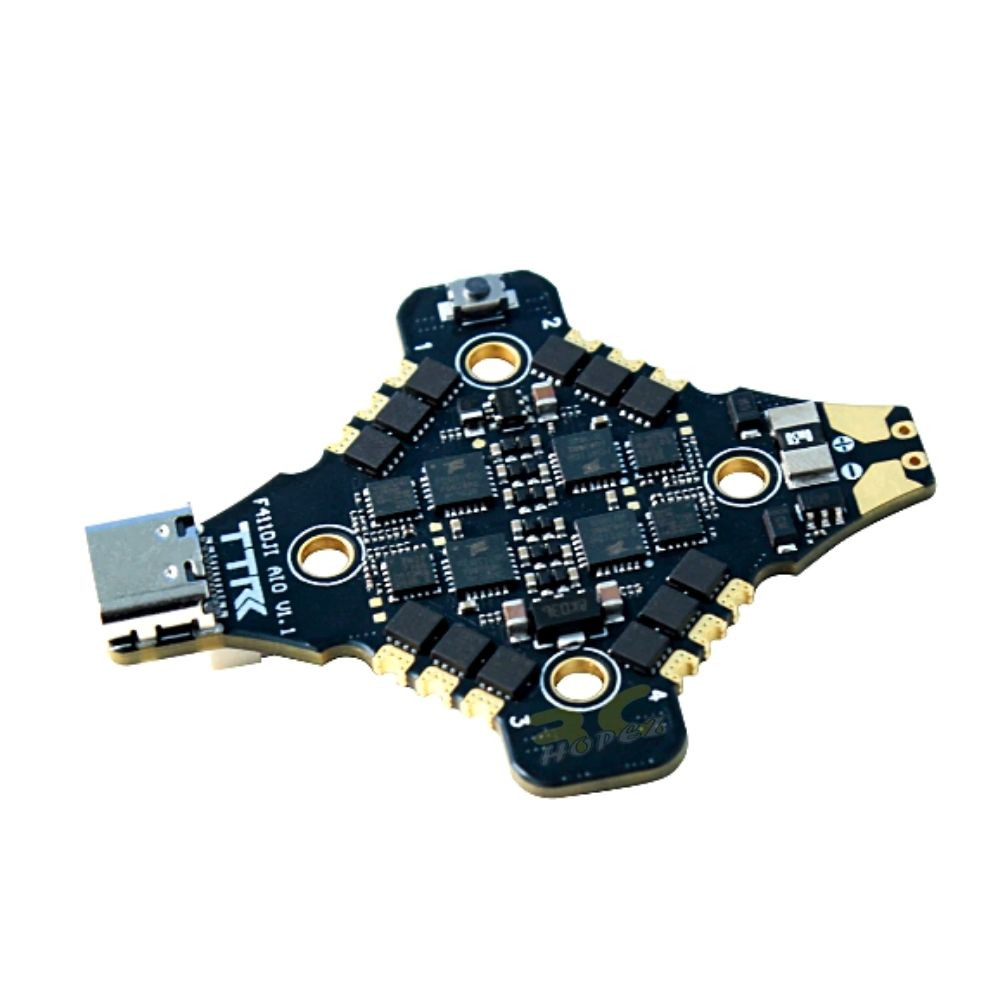

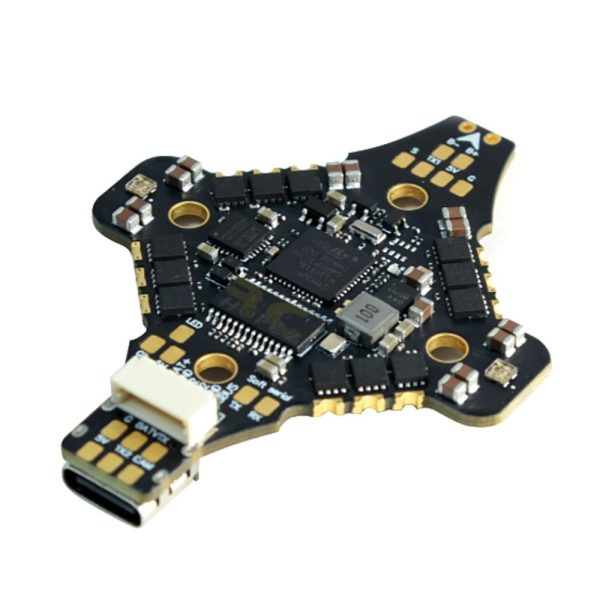

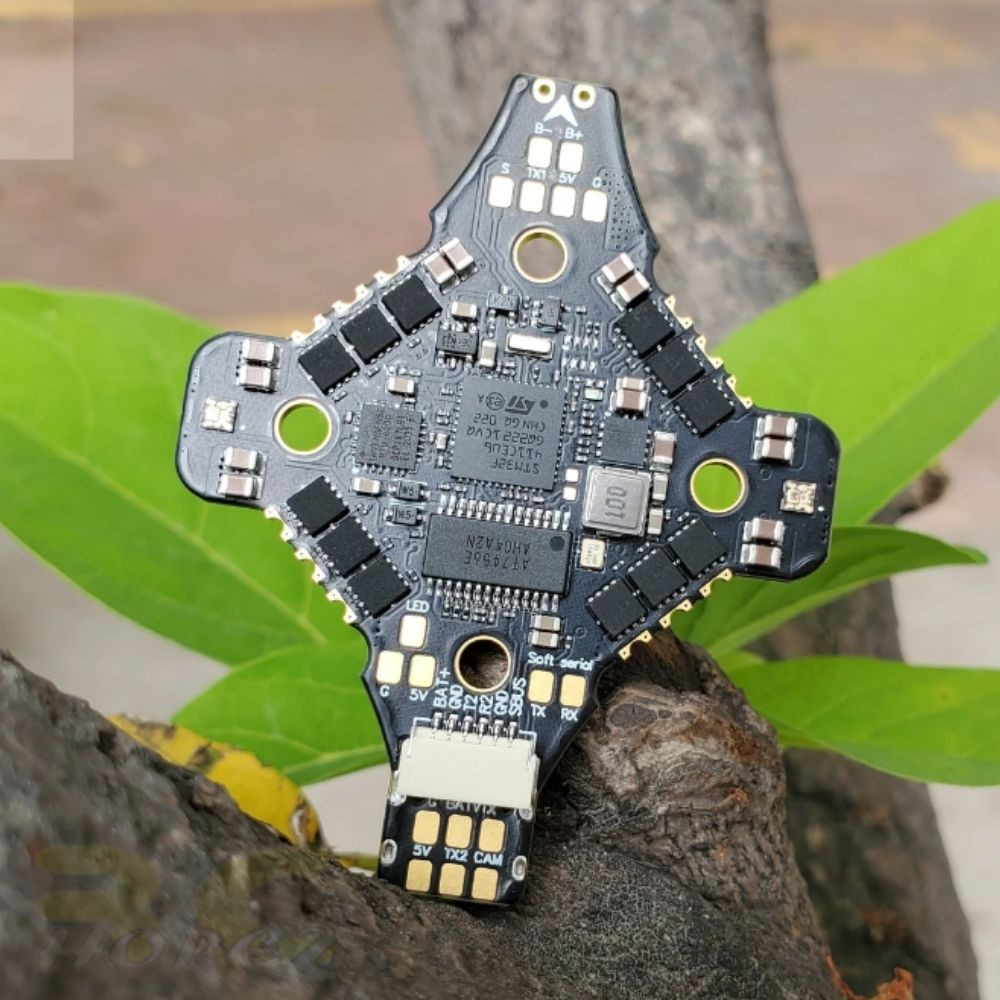

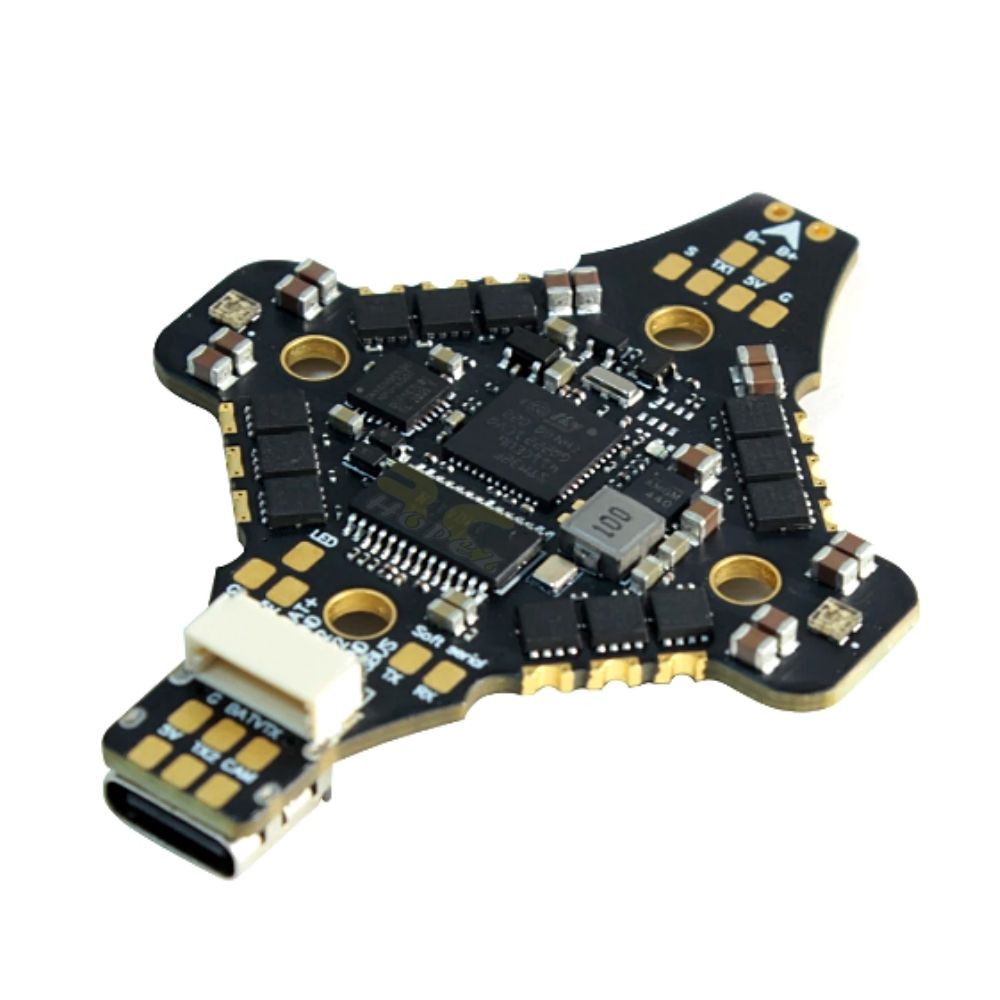

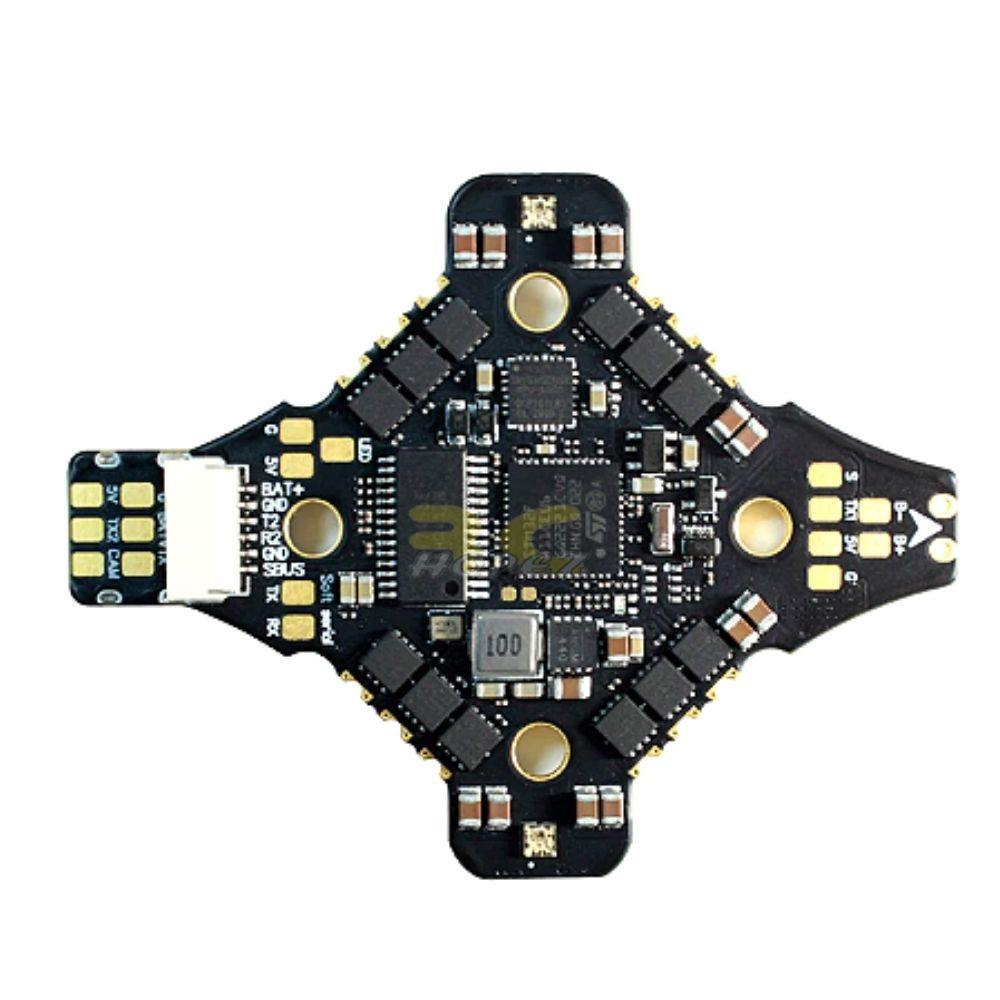

HOMFPV F411 35A 2-6S (20×20) Blheli_S AIO Flight Controller HOM-F411AIO

HOMFPV F411 35A 2-6S (20×20) Blheli_S AIO Flight Controller HOM-F411AIO

Description :
We have brought HOMFPV's first F4 2-6s AIO FC. It has strong power and supports 6S, which will bring you a thrilling flying experience. The functions are relatively complete, and rely on good MOS tube support, MOS tube is not easy to burn out.
F4 2-6s AIO FC is a special shape, appearance size: 56.8*45*1.4mm. The instantaneous current can reach 60A, and it can be installed on other types of FPV Drone.

F4 2-6s AIO FC can be used in Micron and Unicorn.

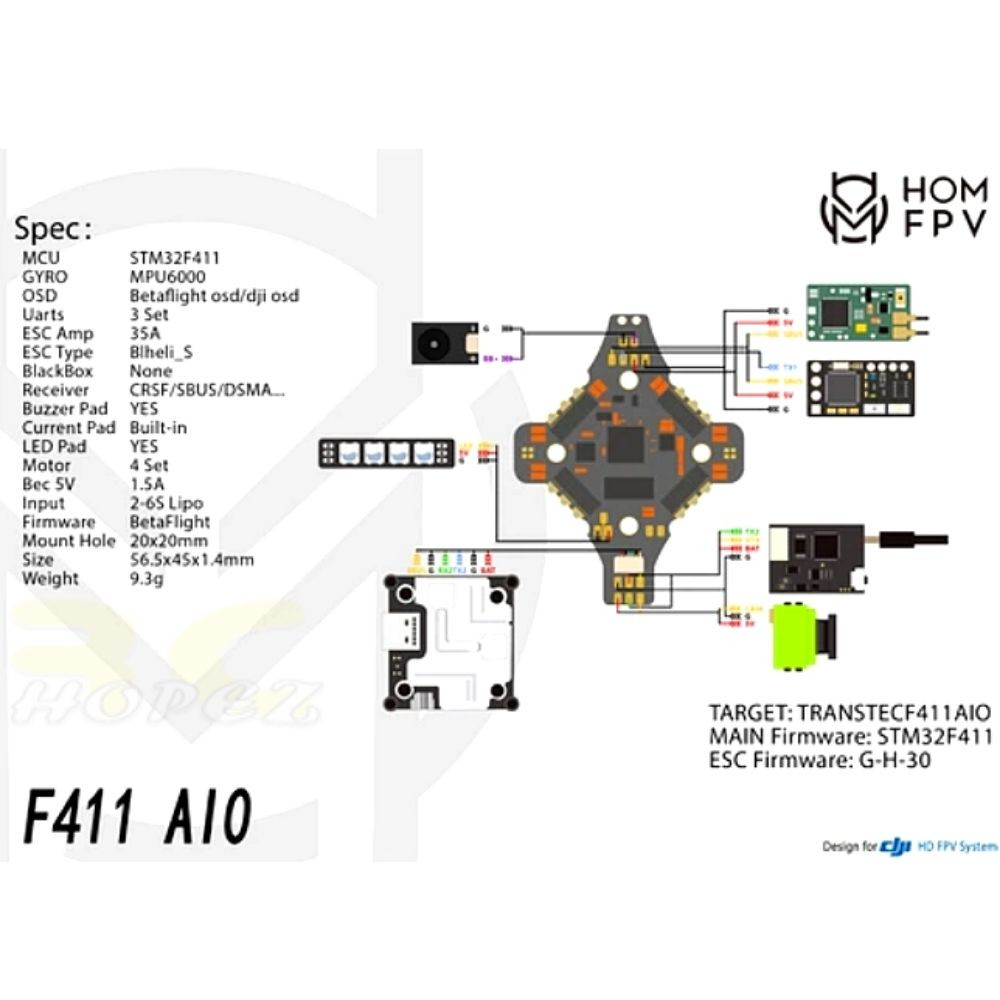

Specification：
Appearance size： 56.8*45*1.4mm
Hole distance： 20*20mm
USB type Type-c

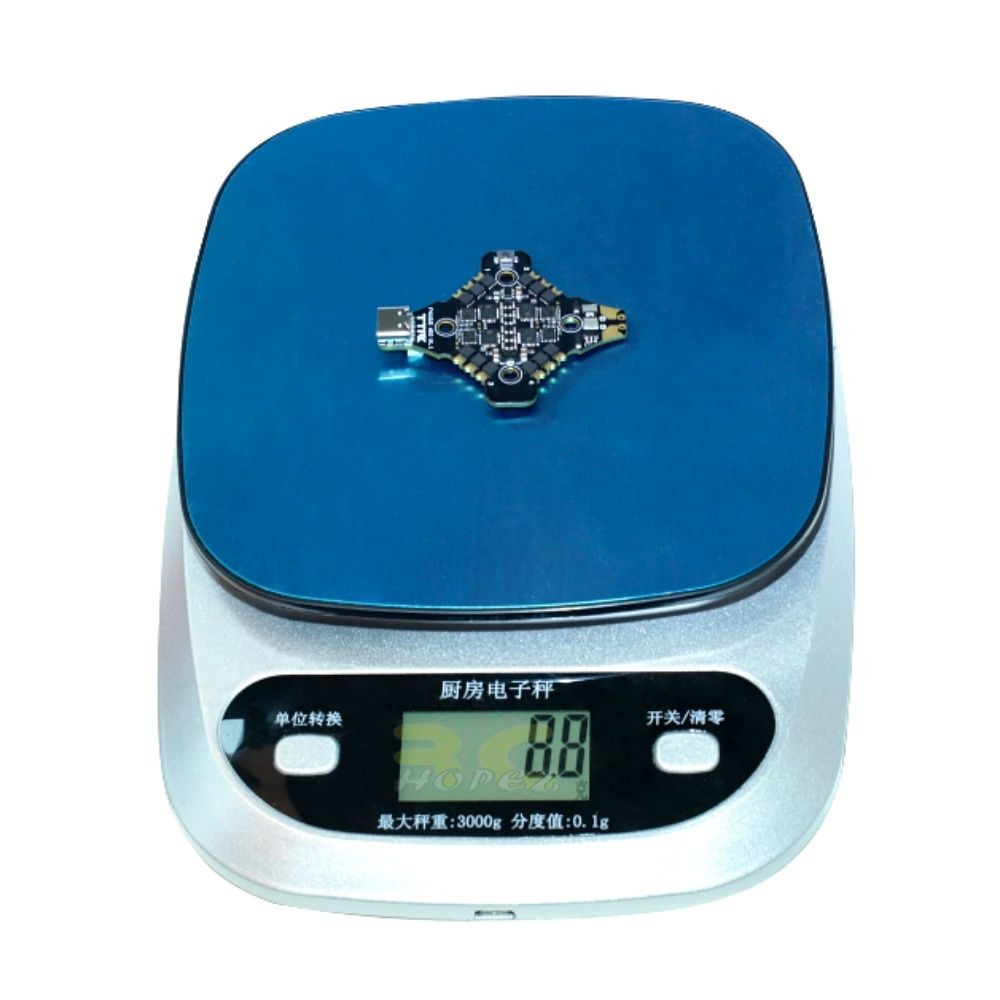

Weight： 8.9g
Master MCU： STM32F411
OSD： AT7456
Gyro： MPU6000
Blackbox： NO
BEC output： 5V/1.5A
Barometer： optional
ESC current： 35A
ESC input voltage： 2-6S
UART： 3 groups
RSSI： NO
BUZZ： NO
CURR ：yes
TVS power protection： yes
FC firmware： STM32F411AIO
ESC firmware： BLHeli_s G-H-30

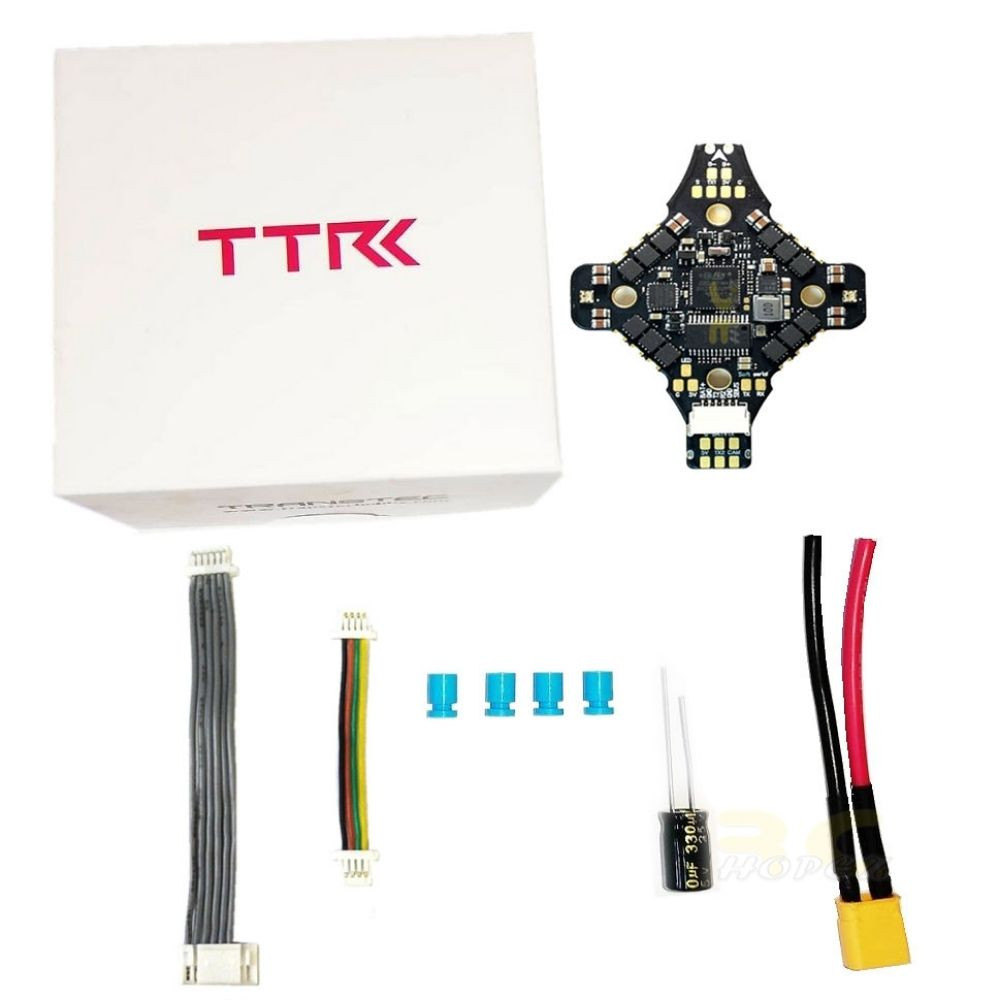

Package Included :
1 x AIO F4 35A Board
1 x Plug Connector-XT30
1 x Electrolytic capacitor-330UF/25V
4 x Anti-Vibration Ball (BLUE)
2 x Cables
