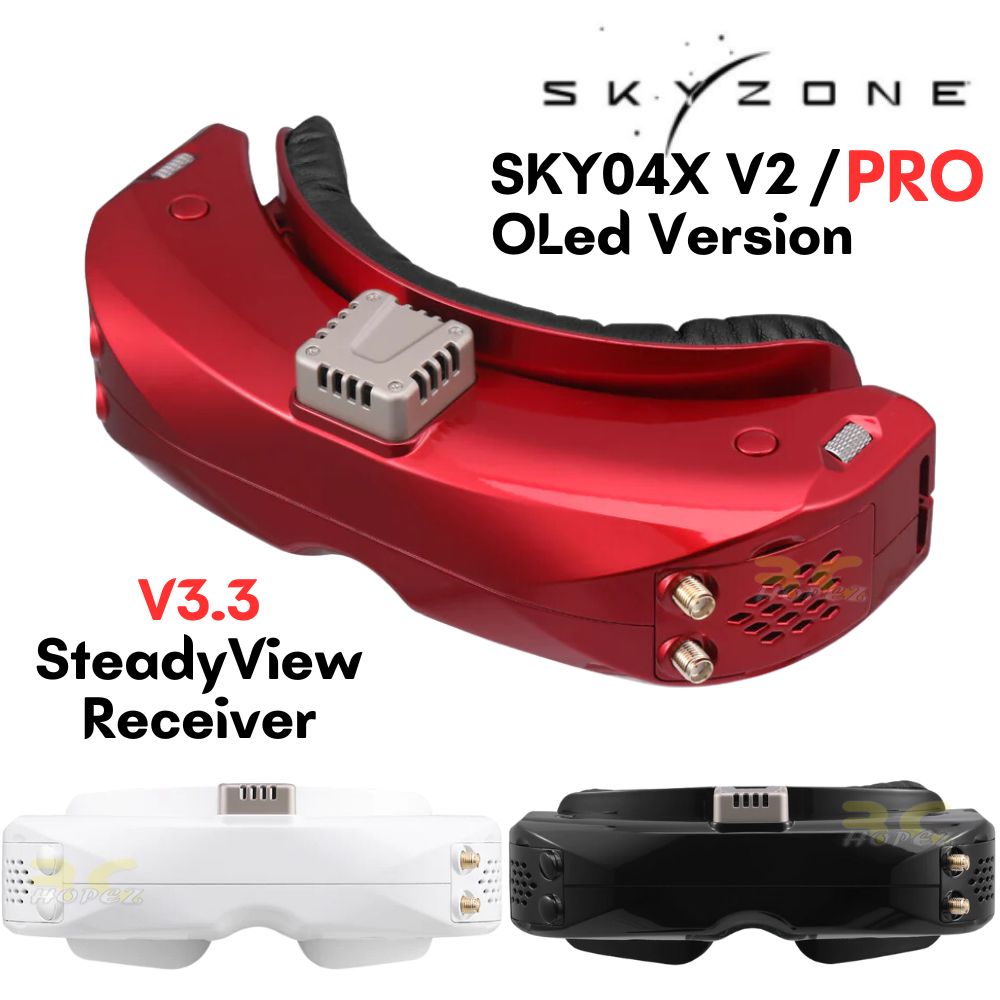

Skyzone 04X V2/PRO 5.8GHz OLED FOV 46/52 Degree V3.3 Steadyview Receiver Video FPV Goggles For RC Drones SKY04X

RM2,359.00RM2,389.00

SKU: SKY04X Category:

Skyzone 04X V2/PRO 5.8GHz OLED FOV 46/52 Degree V3.3 Steadyview Receiver Video FPV Goggles For RC Drones SKY04X

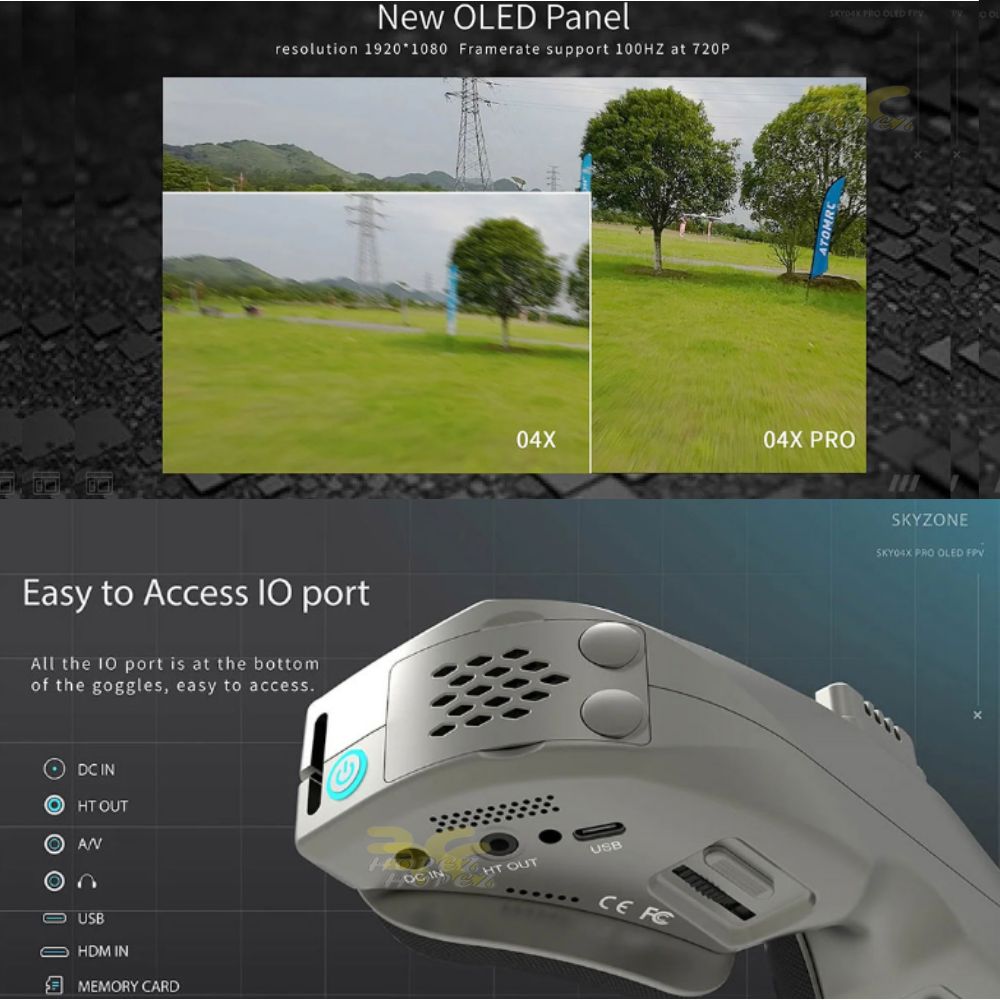

The SKY04X PRO is the upgrade version of SKY04X, with new optics and a new OLED panel, the SKY04X pro can give pilot 52 degrees of field of view, giving huge immersive fpv experience, also with a new OLED panel, the 1920*1080 resolution, and a 100FPS frame rate, use can have way better experience when using the digital VRX system.

The new matte painting also avoid fingerprints and reduces glare.

To be aware, To cool the high-performance OLED panel, the right side bay is installed with cooling fan, so SKY04 X PRO didn't support quadversity mode.

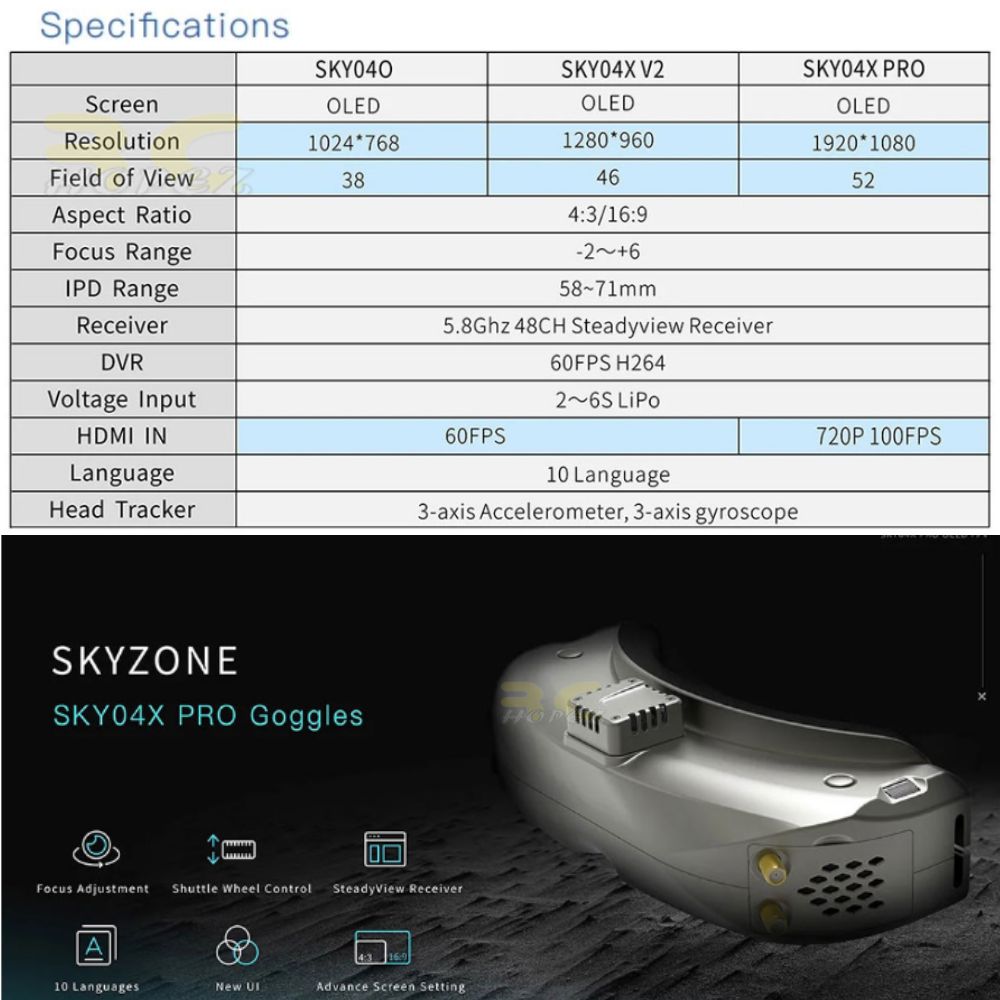

Specifications:
Model: SKY04X Pro
Screen: OLED
Resolution: 1920*1080
FOV (Diagonal): 52 Degree
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
DVR: H264, 60fps
Voltage Input: 2~6SLiPo/DC6.5-25.2V/USB5V
HDMI IN: 720P 100FPS
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

Specifications:
Model: SKY04X V2
Screen: OLED
Resolution: 1280*960
FOV (Diagonal): 46 Degree
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
DVR: H264, 60fps
Voltage Input: 2~6SLiPo/DC6.5-25.2V/USB5V
HDMI IN: 60FPS
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

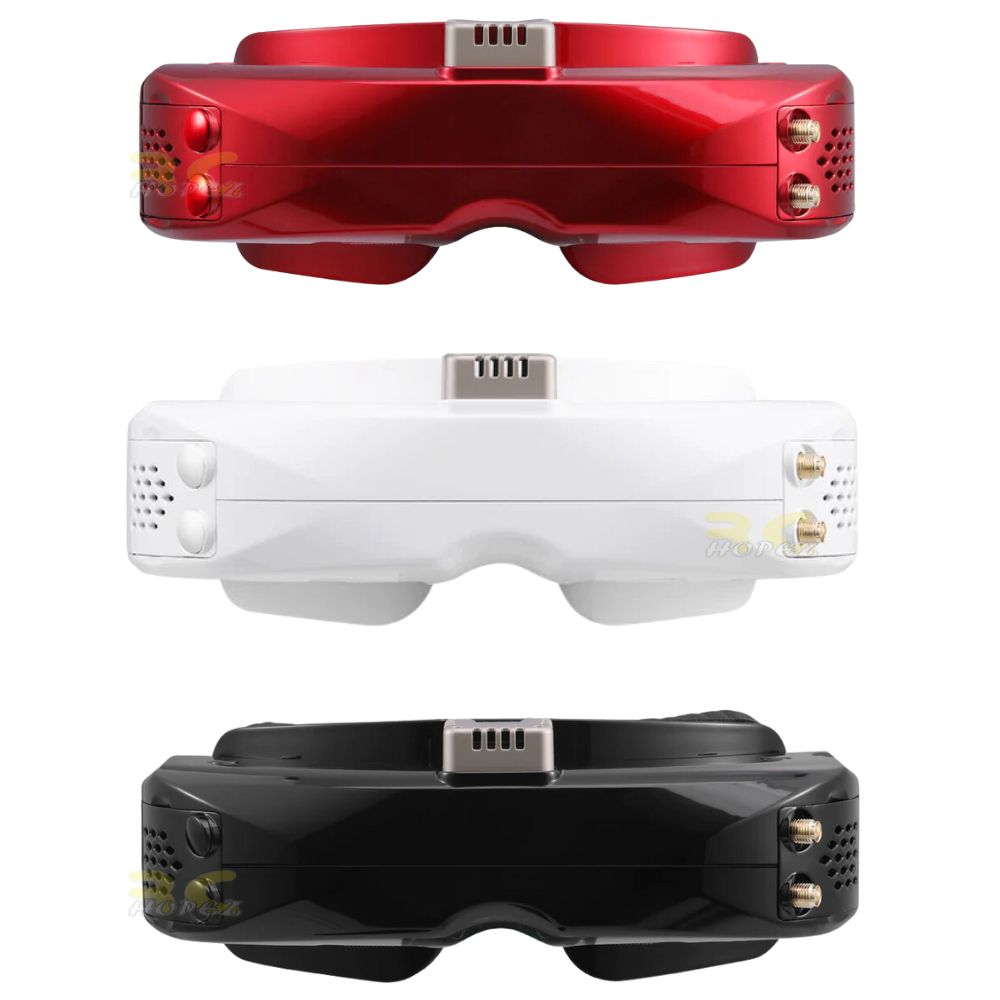

Color : Red / Black / White (Optional)

* SteadyView Receiver
SteadyView receiver merge two signal to one, make image more stable and clear in challenging condition.

With module bay, goggles have more capability to upgrade.

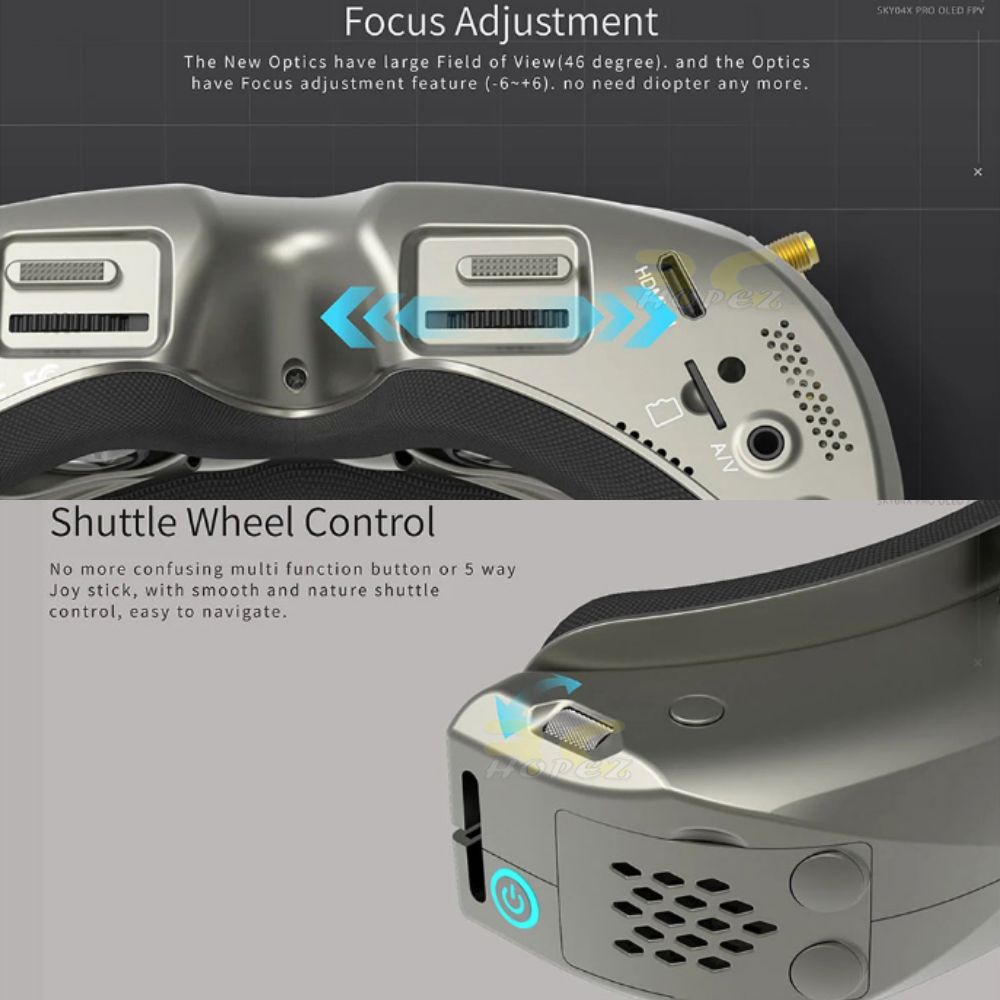

* Focus Adjustment.
The new Optics have large Field of View SKY04X PRO (52 degree) / SKY04X V2 (46 degree) . and the Optics have Focus adjustment feature (-6~+6), no need diopter any more.

* OELD Screen
The screen have high resolution and vivid color, high contrast ration, pilots can see more details.

* Advanced Screen Settings.
The aspect ration can is switchable, and 4 Preset screen setting and 3 customized setting for indoor, outdoor flight or different weather.

* Shuttle Wheel Control
No more confusing multi function button or 5 way Joy stick, with smooth and nature shuttle control, easy to navigate.

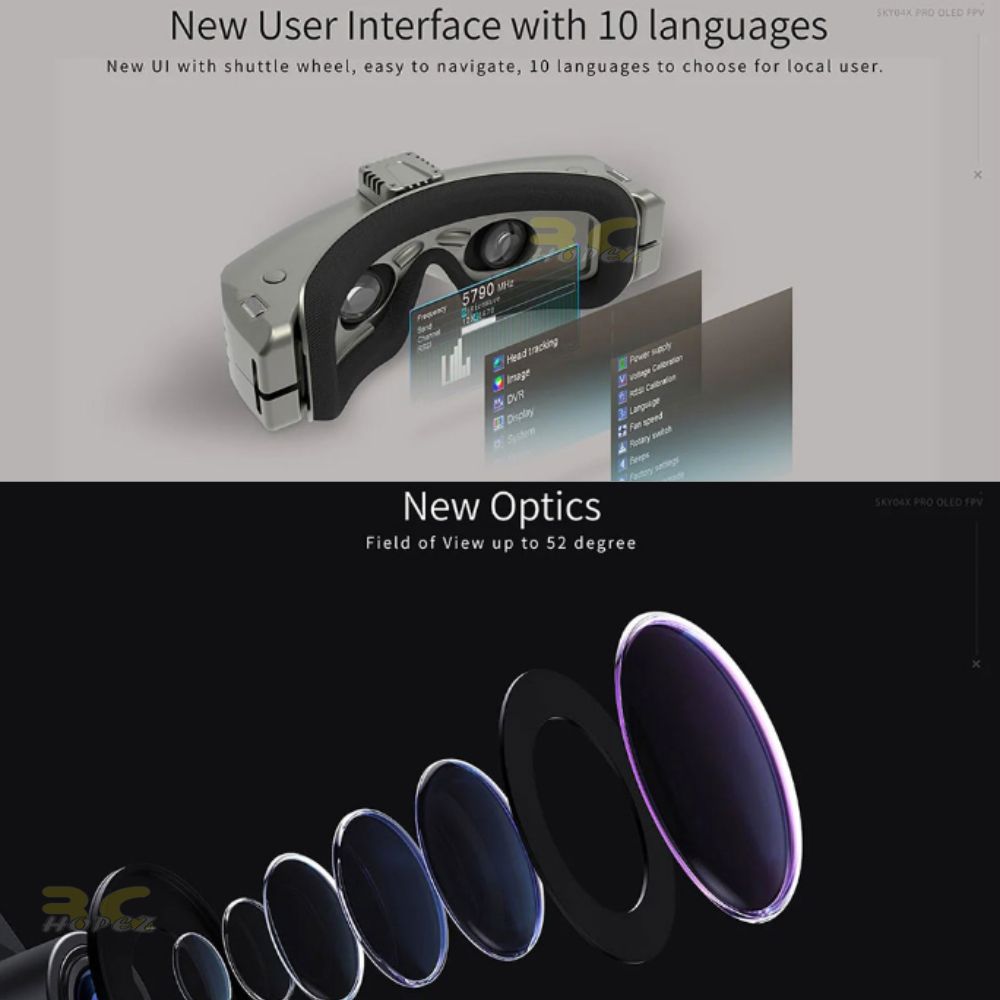

* New User Interface with 10 languages.
New UI with shuttle wheel, easy to navigate, 10 languages to choose for local user.

Package Included:
1x SKY04X V2 / SKY04X Pro Goggles (Optional)
1x Steadyview V3.3 Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with Velcro
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable
1x User Manualmy-11134208-7r98z-lq8kg56gt6wu13my-11134208-7r992-lq8kg56gqdry20my-11134208-7r98o-lq1j1p2ecsam83my-11134208-7r98r-lq1j1p2ee6v2a6my-11134208-7r98z-lq1j1p2eflfi7dmy-11134208-7r98t-lq1j1p2egzzyd8my-11134208-7r98u-lq1j1p2eieke7amy-11134208-7r991-lq1j1p2ejt4u52

Weight 1 kg
Dimensions 8 × 10 × 8 cm
Optional

SKY04X V2-Red, SKY04X PRO-Red, SKY04X PRO-Black, SKY04X PRO-White
